RIGOL
Quick Guide
DS2000E Series Digital
Oscilloscope
Jun. 2017
RIGOL TECHNOLOGIES, INC.

RIGOL
DS2000E Quick Guide 1
English
Guaranty and Declaration
Copyright
© 2017 RIGOL TECHNOLOGIES, INC. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL TECHNOLOGIES, INC.
Publication Number
QGA23101-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at the company’s sole decision.
Information in this publication replaces all previously released materials.
Information in this publication is subject to change without notice.
RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use, or performance of this manual, as
well as any information contained.
Any part of this document is forbidden to be copied, photocopied, or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial
standards in China as well as the ISO9001:2008 standard and the
ISO14001:2004 standard. Other international standard conformance
certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this
manual, please contact RIGOL.
E-mail: servic[email protected]
Website: www.rigol.com

RIGOL
2 DS2000E Quick Guide
English
General Safety Summary
1. Only the exclusive power cord
designed for the instrument
and authorized for use within
the local country could be
used.
2. Ensure that the instrument is
safely grounded.
3. Observe all terminal ratings.
4. Use proper overvoltage
protection.
5. Do not operate without covers.
6. Do not insert objects into the
air outlet.
7. Use the proper fuse.
8. Avoid circuit or wire exposure.
9. Do not operate the instrument
with suspected failures.
10. Provide adequate ventilation.
11. Do not operate in wet conditions.
12. Do not operate in an explosive
atmosphere.
13. Keep instrument surfaces clean
and dry.
14. Prevent electrostatic impact.
15. Handle with caution.
Safety Notices and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not
avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not
avoided, could result in damage to the product or loss of
important data.
Safety Terms on the Product:
DANGER
It calls attention to an operation, if not correctly performed,
could result in injury or hazard immediately.
WARNING
It calls attention to an operation, if not correctly performed,
could result in potential injury or hazard.
CAUTION
It calls attention to an operation, if not correctly performed,
could result in damage to the product or other devices
connected to the product.

RIGOL
DS2000E Quick Guide 3
English

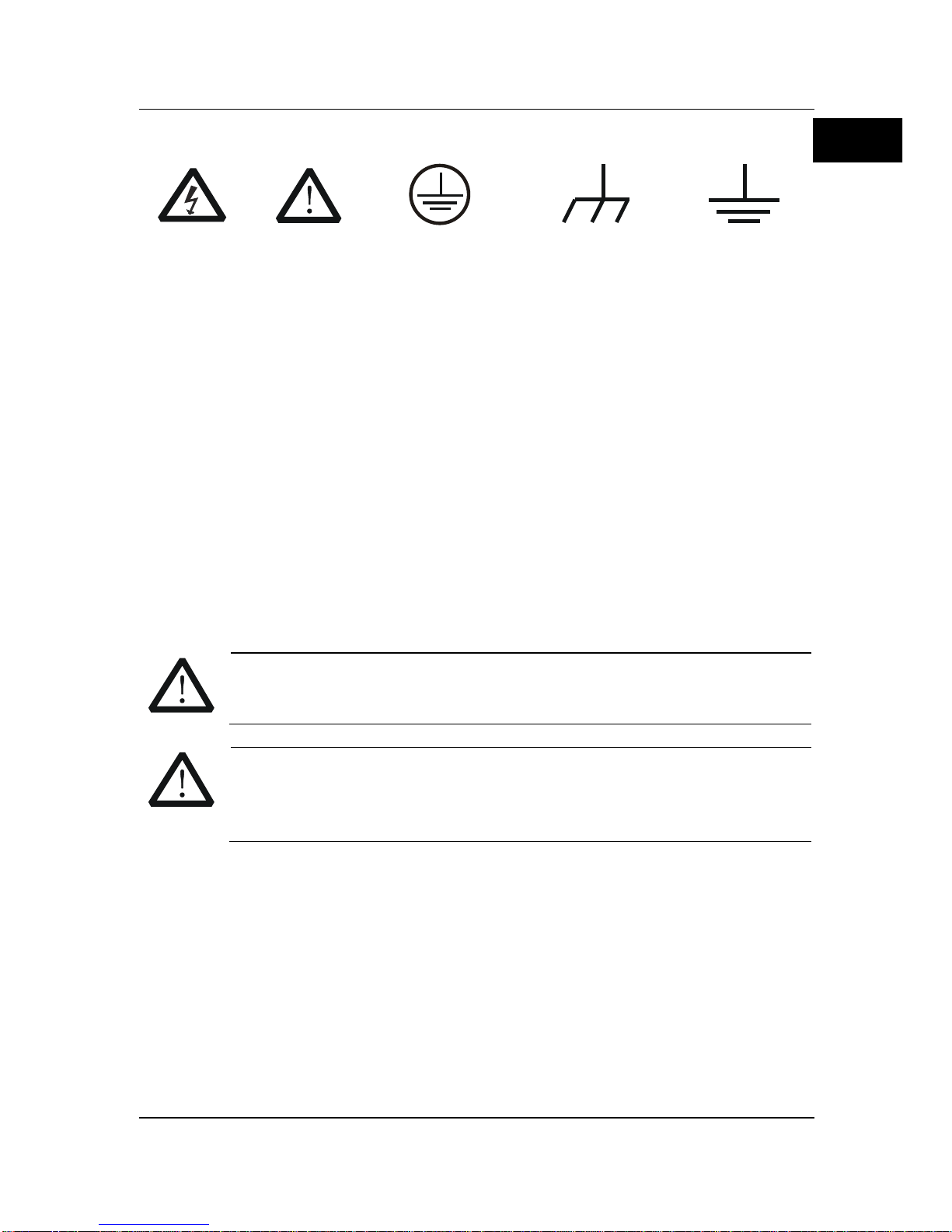

Safety Symbols on the Product:
Hazardous
Voltage
Safety
Warning
Protective Earth
Terminal
Chassis Ground Test Ground
Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight
for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
1. Disconnect the instrument from all power sources.
2. Clean the external surfaces of the instrument with a soft cloth dampened
with mild detergent or water. When cleaning the LCD, take care to avoid
scarifying it.
CAUTION
To avoid damage to the instrument, do not expose it to caustic
liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries,
ensure that the instrument is completely dry before connecting it
to the power supply.

RIGOL
4 DS2000E Quick Guide
English
Document Overview
This manual gives you a quick review about the front and rear panel of
DS2000E series, the user interface, and the basic operation method.
Tip
For the latest version of this manual, download it from the official website
of
RIGOL
(www.rigol.com).
Format Conventions in this Manual
1. Front panel key: The key on the front panel is denoted by the format of
"Key Name (Bold) + Text Box" in the manual. For example, Utility
indicates the "Utility" key on the front panel.
2. Menu softkey: The menu softkey is denoted by the format of "Menu Word
(Bold) + Character Shading". For example, System denotes the "System"
menu softkey under Utility.
3. Operation step: The next step of operation is denoted by an arrow "".
For example, Utility System denotes that first press Utility, and
then press the System softkey.
Content Conventions in this Manual
DS2000E series includes the following models. Unless otherwise specified, this
manual takes DS2202E as an example to introduce DS2000E series and its
basic operations.
Model
Analog Bandwidth
No. of Channels
DS2102E 100 MHz
2
DS2202E 200 MHz 2

RIGOL
DS2000E Quick Guide 5
English
General Inspection
1．Inspect the packaging
If the packaging has been damaged, do not dispose the damaged
packaging or cushioning materials until the shipment has been checked
for completeness and has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument
resulting from shipment. RIGOL would not be responsible for free
maintenance/rework or replacement of the instrument.
2．Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the
electrical and mechanical tests, contact your RIGOL sales
representative.
3．Check the accessories
Please check the accessories according to the packing lists. If the
accessories are damaged or incomplete, please contact your RIGOL
sales representative.

RIGOL
6 DS2000E Quick Guide
English
Product Overview
Based on the UltraVision technology, DS2000E is a digital oscilloscope with high
performance. It is equipped with extremely high memory depth, wide dynamic
range, superb waveform capture rate, and comprehensive trigger functions. It
also features hardware waveform recording function and good display effects.
As a rare debugging instrument, it has been widely applied to various industries
and fields, such as communications, aerospace, defense, embedded systems,
computers, research, and education. It is the excellent representative of the
200 MHz digital oscilloscope type with the most comprehensive functions and
excellent specifications.
For descriptions of the front panel, refer to Figure 1 and Table 1; for
descriptions of the rear panel, refer to Figure 2 and Table 2; and for
descriptions of the main interface (display screen), refer to Figure 3 and Table
3.

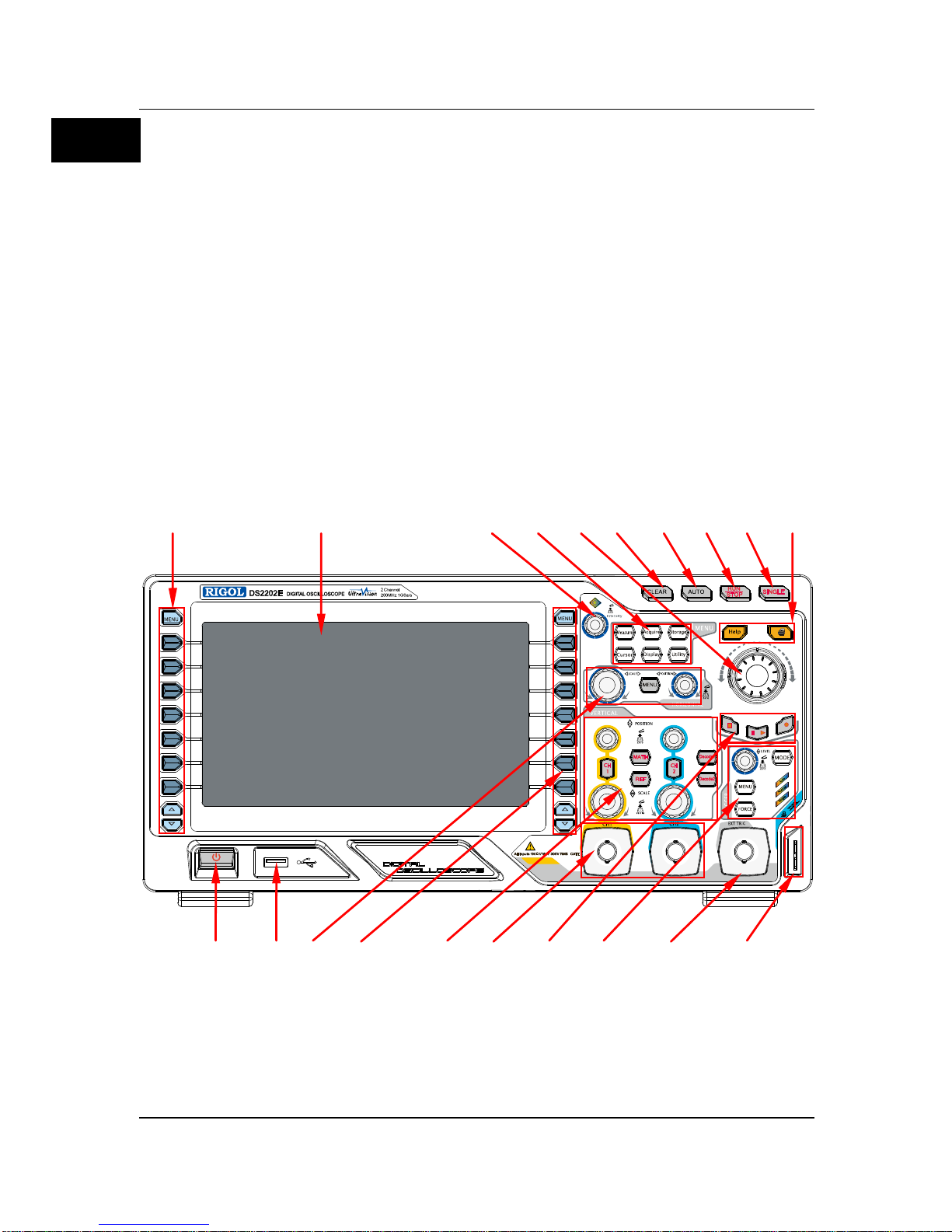

Figure 1 Front Panel
1 2 3 4 5 6 7 8 9 10
20 19 18 17 16 15 14 13 12 11

RIGOL
DS2000E Quick Guide 7
English
Table 1 Front Panel Description
No.
Description
No.
Description
1 Measurement Menu Softkeys 11 Compensation Signal Output
Terminal/Ground Terminal
2 LCD 12 External Trigger Input
Terminal
3 Multi-function Knob 13 Trigger Control Area
4 Function Keys 14 Waveform
Recording/Playback Keys
5 Navigation Knob 15 Analog Channel Input
Terminals
6 Clear Key 16 Vertical Control Area
7 AUTO Key 17 Function Menu Softkeys
8 Run/Stop Key 18 Horizontal Control Area
9 Single Trigger Control Key 19 USB HOST Interface
10
Help/Print Key
20
Power Key
Figure 2 Rear Panel
1 2 3
7 6 5 4

RIGOL
8 DS2000E Quick Guide
English
Table 2 Rear Panel Description
No.
Description
1 Handle
2 LAN Interface
3 USB DEVICE Interface
4 Trigger Output Interface
5 Lock Hole
6 Fuse
7 AC Power Cord Connector

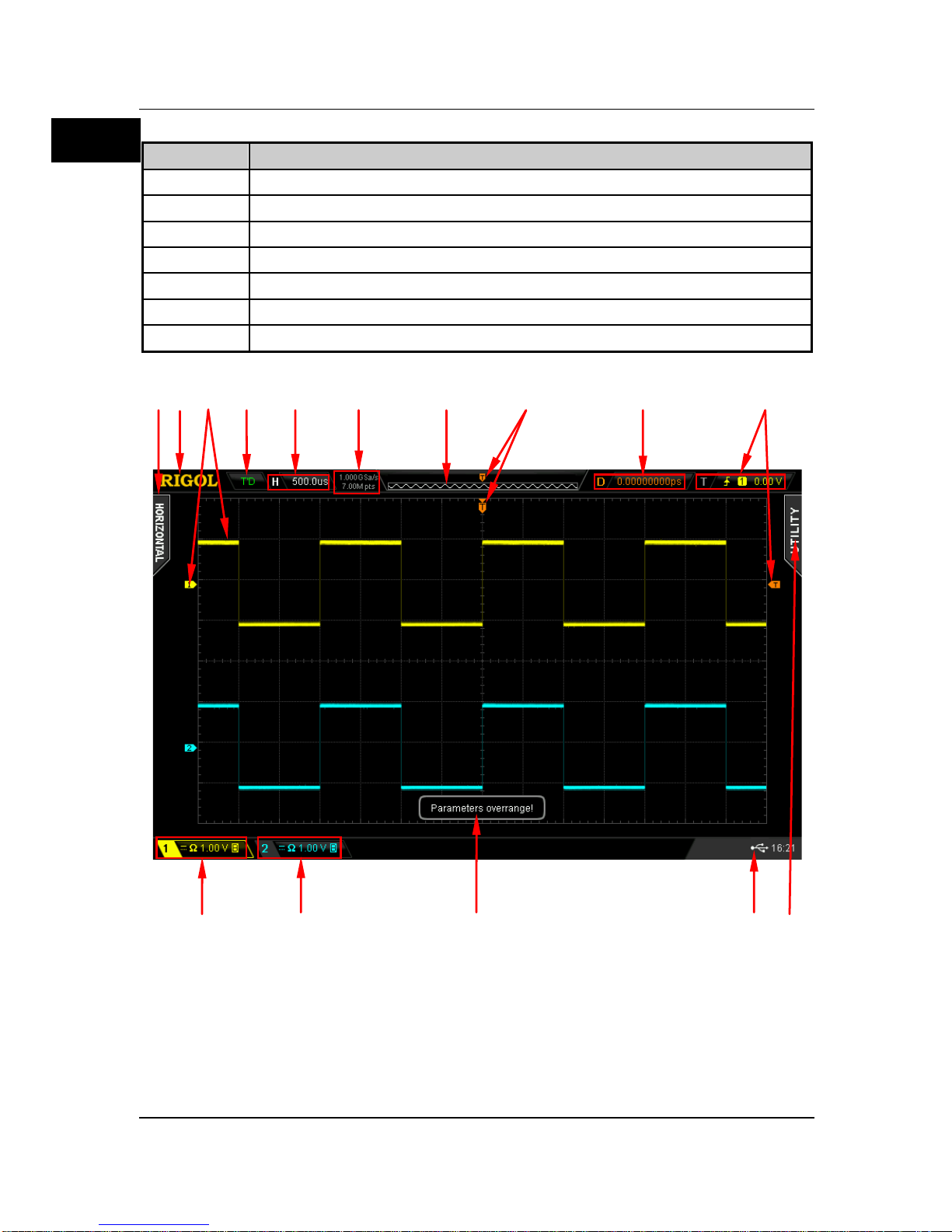

Figure 3 User Interface
1 2 3 4 5 6 7 8 9 10
15 14 13 12
11

RIGOL
DS2000E Quick Guide 9
English
Table 3 User Interface Icons
No.
Description
No.
Description
1 Auto Measurement
Option 9 Horizontal Position
2 Company Logo 10 Trigger Setting
3
Analog Channel Label
and Waveforms
11 Operation Menu
4 Operating Status 12 Notification Area
5 Horizontal Time Base 13 Message Box
6 Sample Rate and
Memory Depth 14 CH2 Status Label
7 Waveform Memory 15 CH1 Status Label
8 Trigger Position
To Prepare for Use
To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as better operation
and observation.
Figure 4To Adjust the Supporting Legs

RIGOL
10 DS2000E Quick Guide
English
To Connect to AC Power
The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please
use the power cord provided in the accessories to connect the oscilloscope to
the AC power source, as shown in the figure below. After you turn on the power
switch, the oscilloscope is connected to power, and the Power key located at the
lower left corner of the front panel is blinking.

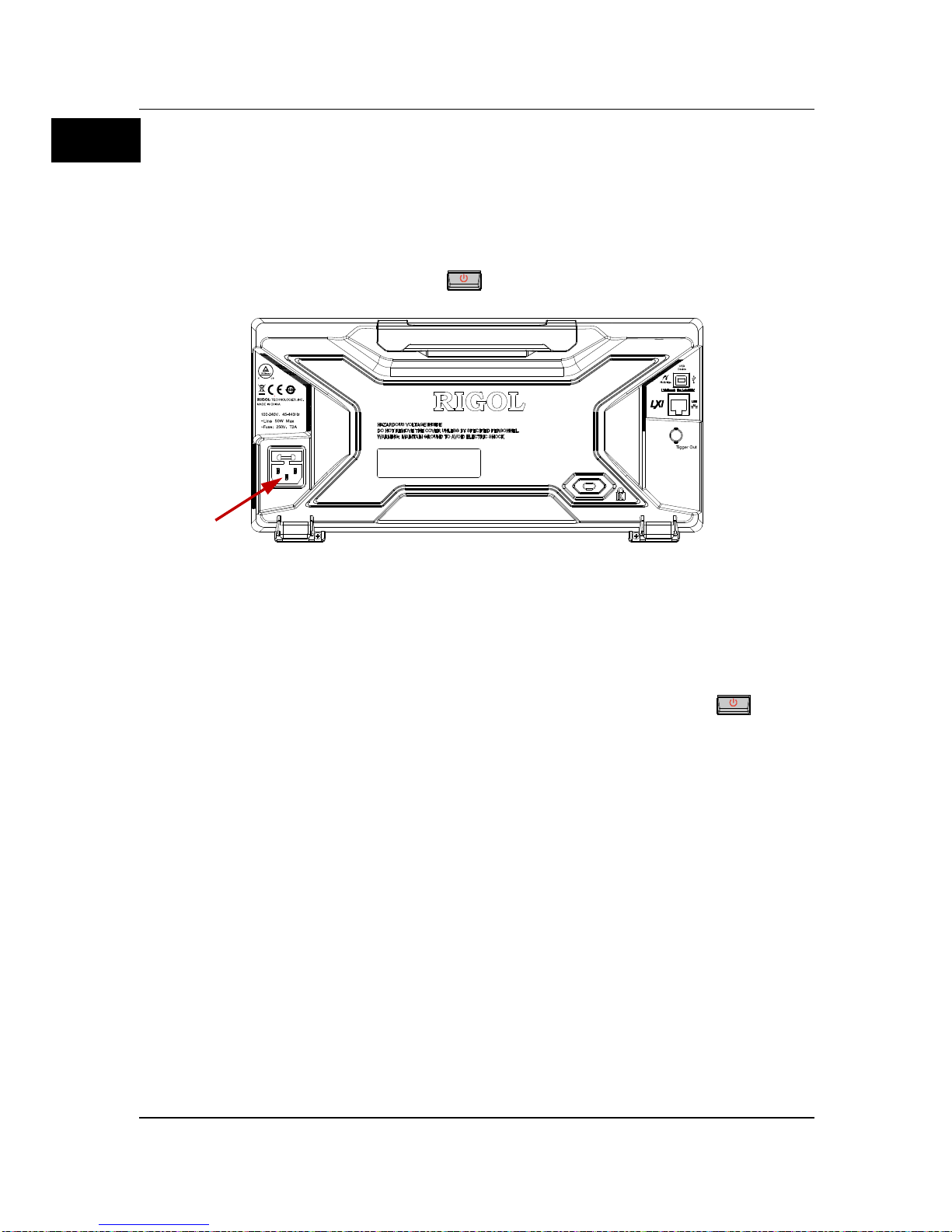

Figure 5 To Connect to AC Power
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-tests. You can hear the
switching sound of the relay. After the self-test, the welcome screen is
displayed. The "Current Options" dialog box will be displayed if your instrument
currently has installed the trial versions of the options. From this dialog box,
you can view the type, the name, the version, and the remaining trial time of
the option currently installed. The instrument is installed with the trial versions
of the options before leaving factory. Its remaining trial time is about 2,000
minutes.
Power Cord
Connector

RIGOL
DS2000E Quick Guide 11
English
To Connect the Probe
RIGOL's DS2000E series is equipped with a passive probe. For details about
the models of the probe, refer to DS2000E DataSheet . For detailed technical
information of the probes, please refer to the corresponding Probe User’s
Guide.
To Connect the Probe:
1. Connect the BNC terminal of the probe to an analog channel input of the
oscilloscope at the front panel.
2. Connect the ground alligator clip of the probe to the circuit ground
terminal and then connect the probe tip to the circuit point under test.

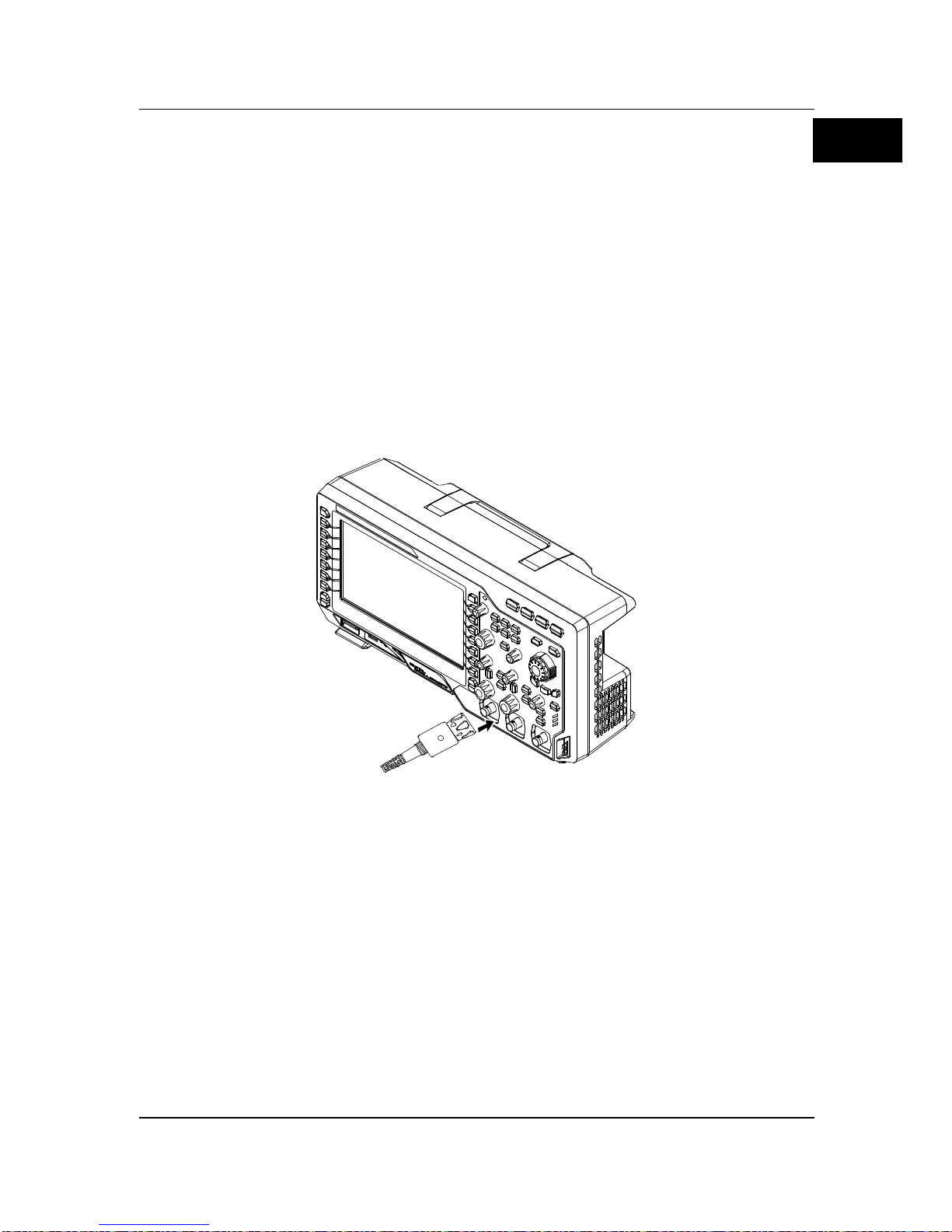

Figure 6 To Connect the Probe

RIGOL
12 DS2000E Quick Guide
English
Function Inspection
1. Press Storage Default to restore the oscilloscope to its default
configuration.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as
shown in the figure below.
3. Use the probe to connect the input terminal of CH1 of the oscilloscope and
the "Compensation Signal Output Terminal" of the probe.
Figure 7 Compensation Signal Output Terminal/Ground Terminal
4. Set the probe attenuation to 10X, and then press AUTO.
5. Observe the waveform on the display. In normal condition, the square
waveform as shown in the figure below should be displayed.
Figure 8 Square Waveform Signal
6. Use the same method to test the other channels. If the square waveforms
actually shown do not match that in the figure above, please perform
"Probe Compensation" introduced in the next section.
Compensation Signal
Output Terminal
Ground Terminal

RIGOL
DS2000E Quick Guide 13
English
WARNING
To avoid electric shock when using the probe, please make sure
that the insulated wire of the probe is in good condition. Do not
touch the metallic part of the probe when the probe is connected
to high voltage source.
Probe Compensation
When the probes are used for the first time, you should compensate the probes
to make them match the input channels of the oscilloscope. Non-compensated
or poorly compensated probes may cause measurement inaccuracy or errors.
The probe compensation procedures are as follows:
1. Perform Step 1, 2, 3, and 4 in "Function Inspection".
2. Check the displayed waveforms and compare them with the following
figures.

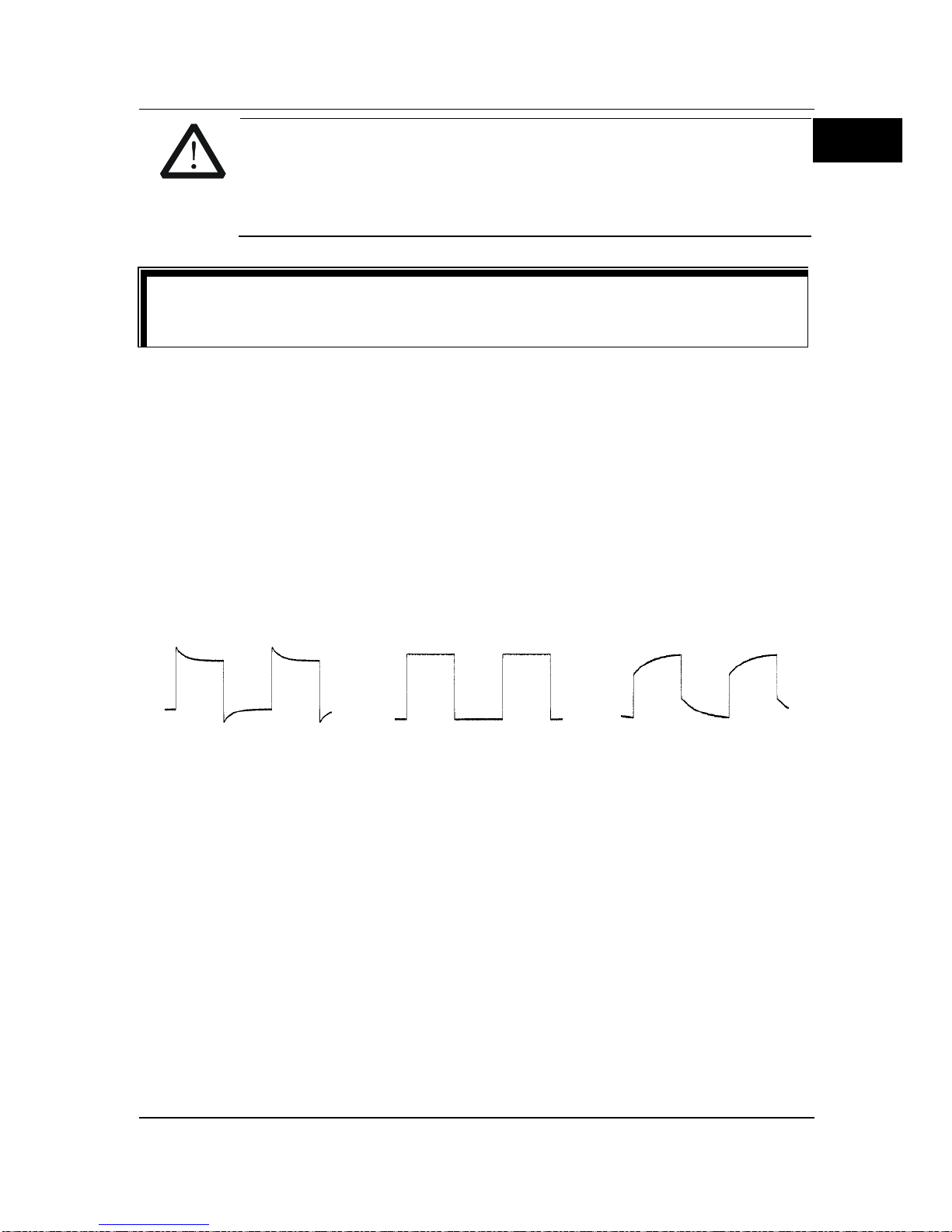

Figure 9 Probe Compensation
3. Use a nonmetallic screwdriver to adjust the low-frequency compensation
adjustment hole on the probe until the waveform is displayed as "Perfectly
compensated" in the figure above.
Tip
The probe compensation signal can only be used for probe compensation
adjustment and cannot be used for calibration.
Over compensated Perfectly compensated Under compensated

RIGOL
14 DS2000E Quick Guide
English
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function
keys (including the menu keys) on the front panel. Press Help to open the help
interface. Press it again to close the interface. The help interface mainly
consists of two sections. The left section is "Help Options", and you can select
the "Button" or "Index" tab. The right section is "Help Display Area", which
displays the help information.
Figure 10 Help Information
Button:
By default, the "Button" tab is selected. Under the tab, you can view the
corresponding help information in the "Help Display Area" by pressing the keys
or menu softkeys (except the Power key , the multi-function knob , and
the Page Up/Down key /) on the front panel directly or rotating the
multi-function knob to select the desired key name (the item currently
selected is displayed with brown shading) in the "Help Options" area and then
pressing down the knob.
To switch to the Index tab, use the multi-function knob to select "To
Index" and then press down the knob.
Help Options Help Display Area

RIGOL
DS2000E Quick Guide 15
English
Index:
Under the tab, you can use the multi-function knob to select the desired
item (e.g. BW). The item currently selected is displayed with brown shading in
the "Help Options" area. Then press down the knob to obtain the help
information about the item.
To switch to the Button tab, use the multi-function knob to select "To
Button" and then press down the knob.

RIGOL
16 DS2000E Quick Guide
English
Parameter Setting Method
The commonly used parameter setting methods for the DS2000E series are
follows:
Method 1:
For the parameters with the sign or , rotate the multi-function knob
on the front panel directly to select the parameter item or modify the
parameter value.
Method 2:
For the parameters with the sign , first rotate the multi-function knob
on the front panel to select one item from the available choices, and then press
down the multi-function knob to select the item.
Method 3:
For the parameters with the sign , rotate the navigation knob on the front
panel to increase or decrease the value of the parameter. Use the inner knob to
make a fine adjustment, the outer knob to make a coarse adjustment.
Method 4:
For the parameters without the above signs, press the desired menu softkey to
switch between the parameter items. This method is applicable to the
parameters with only two available options.
Tip
The above methods are commonly used in parameter settings. For other
setting methods of certain parameters, refer to details in relevant chapters
of
DS2000E User's Guide .

RIGOL
DS2000E Quick Guide 17
English
Remote Control
DS2000E series digital oscilloscope can be connected to the PC via the USB,
LAN, or GPIB interface to set up communication and realize remote control
through the PC. The remote control can be realized by using SCPI (Standard
Commands for Programmable Instruments) commands. DS2000E series digital
oscilloscope supports two ways of remote control: user-defined programming
and PC software (e.g. RIGOL Ultra Sigma).
More Product Information
1. Obtain the device information
Press Utility System System Info to obtain the information of the
instrument, including the manufacturer, model, serial number, software
version number, and hardware version number.
2. Check the option installation status
Press Utility OptionsInstalled to view the options currently
installed on the oscilloscope and their information. Press Setup to enter
the option activation operation menu and input the serial number of the
option that you've purchased.
For more information about this instrument, refer to the relevant manuals by
logging in to the official website of RIGOL (www.rigol.com) to download them.
DS2000E User's Guide : introduces the functions of the instrument and the
operation methods, remote control methods, possible failures and solutions in
using the instrument, the technical specifications, and order information;
DS2000E Programming Guide : provides detailed descriptions of SCPI
commands and programming examples of the instrument.
DS2000E Datasheet : provides the main features and technical specifications of
the instrument.
