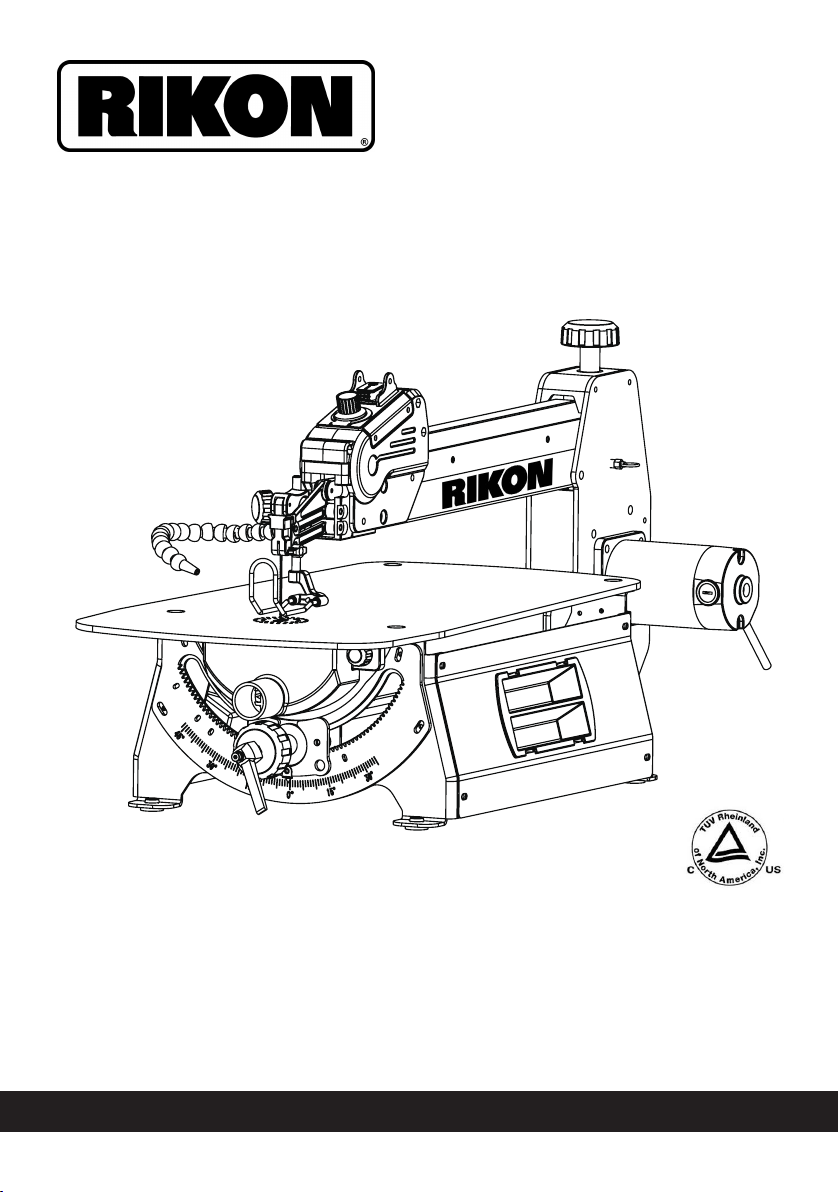

Rikon Power Tools 10-622VS User manual

22”VARIABLE SPEED
SCROLL SAW
#10-622VS
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the specification label on the rear of your machine.
Serial Number: ________________________ Date of purchase: _________________
For technical support or parts questions, email [email protected]
or call toll free at [phone].
www.rikontools.com
10-622VSM1

TABLE OF CONTENTS
Specifications ........................................................................................ 2
Safety ............................................................................................... 3 - 7
Key Parts Overview ............................................................................... 8

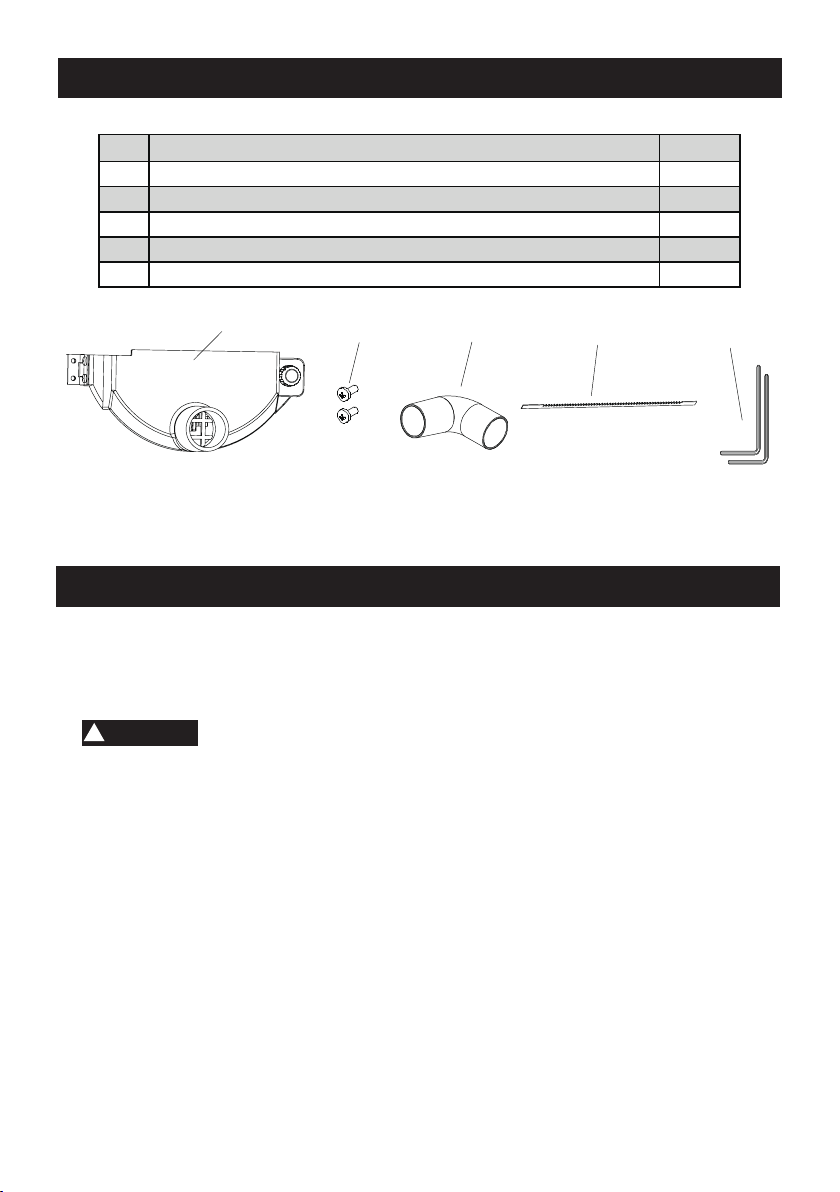

Attachment Parts ................................................................................... 9
Assembly ......................................................................................... 9, 10
Adjustments .................................................................................. 10 - 13
Operation ...................................................................................... 11 - 13
Maintenance ........................................................................................ 14
Troubleshooting ................................................................................... 15
Parts Diagram ...................................................................................... 16
Parts List ........................................................................................ 17, 18
Notes ................................................................................................... 18
Warranty .............................................................................................. 19
SPECIFICATIONS
Motor Amps, Volts, Hertz .......................................... 1.6A, 120V, 60Hz
Electronic Variable Speed (SPM) ....................................... 550 - 1,550
Pinless Blade Length .......................................................... 5” / 130mm
Maximum Cutting Height ...................................................... 2“ / 50mm
Stroke ................................................................................ 3/4” / 20mm
Throat Depth .................................................................... 22” / 560mm
Table Size (LxW) ...............................25-5/8” x 13-3/4” / 650 x 350mm
Table Tilting ...................................................... 30° Left, 0°, 45° Right
Base to Table Height .................................................. 7-9/16“ / 192mm
Dust Port Diameter (O.D.) ............................................. 1-3/8” / 35mm
Maximum Sound Level (at 0.3m / 11.8“) .................................... <80dB
Overall Size (LxWxH)............ 34"x14-1/8"x16-9/16" / 865x360x420mm
Base Size (approx. LxW) .................. 18-5/8” x 13-1/4” / 475 x 335mm
Net Weight ................................................................................. 68 lbs.
NOTE: The specifications, photographs, drawings and information in this manual represent the
current model when the manual was prepared. Changes and improvements may be made at any time,
with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units.
Reasonable care has been taken to ensure that the information in this manual is correct, to provide
you with the guidelines for the proper safety, assembly and operation of this machine.

Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of
electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective
equipment such as a respiratory mask, non-skid safety shoes and hearing
protection used for appropriate conditions will reduce the risk of personal injury.
3. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energizing power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
WARNING
!
3
TSAFETY INSTRUCTIONS

5. Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and
clothing away from moving parts. Loose clothes, jewelry or long hair can be
caughtin moving parts.
7. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
8. Use clamps to secure your workpiece to a stable surface. Holding a workpiece
by hand or using your body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
4
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities may contain chemicals, including lead, known to the State
of California to cause cancer, birth defects, or other reproductive harm. Wash
hands after handling. Some examples of these chemicals are:
SAFETY INSTRUCTIONS

• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do this type
of work. To reduce your exposure to these chemicals, work in a well-ventilated
area with approved safety equipment such as dust masks specially designed to
filter out microscopic particles. For more information go to www.P65Warnings.ca.gov
BEFORE OPERATION
1. Check for both proper assembly and proper alignment of moving parts.
2. Understand the proper use of the ON / OFF switch.
3. Know the condition of the scroll saw. If any part is missing, bent, or does not
operate properly, replace the component before attempting to operate the scroll
saw.
4. Determine the type of work you are going to be doing. Properly protect your
body including your eyes, hands, face, and ears.
5. To avoid injury caused by pieces thrown from accessories, use only
recommended accessories designed for this saw. Follow the instructions supplied
with the accessory. The use of improper accessories may cause
risk of injury.
6. To avoid contact with rotating equipment:
- Do not put your fingers in a position where they risk contacting the blade if the
workpiece unexpectedly shifts or your hand unexpectedly slips.
- Do not cut a workpiece too small to be held safely.
- Do not reach under the scroll saw table when the motor is running.
- Do not wear loose clothing or jewelry. Roll long sleeves above the elbow. Tie
back long hair.
7. To avoid injury from accidental startups of the scroll saw:
- Make sure to turn OFF the switch and unplug the power cord from the electric
outlet before changing the blade, performing maintenance or making adjustments.
- Make sure the switch is OFF before plugging in the power cord to an electric outlet.
8. To avoid injury from a fire hazard, do not operate the scroll saw near flammable
liquids, vapors or gases.
9. To avoid back injury:
- Obtain help when raising the scroll saw more than 10 inches (25.4 cm). Bend
your knees when lifting the scroll saw.
- Carry the scroll saw by its base. Do not move the scroll saw by pulling on the
power cord. Pulling on the power cord could cause damage to the insulation or
the wire connections resulting in electric shock or fire.
5
SCROLL SAW SAFETY
1. To avoid injury from unexpected saw movement:
- Use the scroll saw on a firm level surface with adequate space for handling
and supporting the workpiece.
- Be sure the scroll saw cannot move when operated. Secure the scroll saw to a
workbench or table with wood screws or bolts, washers and nuts.
SAFETY INSTRUCTIONS
CONTINUED ON PAGE 6

2. Before moving the scroll saw, unplug the power cord from the electrical outlet.
3. To avoid injury from kickback:
- Hold the workpiece firmly against the tabletop.
- Do not feed the workpiece too fast while cutting. Only feed the workpiece at
the rate the saw will cut.
- Install the blade with the teeth pointing downward.
- Do not start the saw with the workpiece pressing against the blade. Slowly feed
the workpiece into the moving blade.
- Use caution when cutting round or irregularly shaped workpieces. Round items
will roll and irregularly shaped workpieces can pinch the blade.
4. To avoid injury when operating the scroll saw:
- Obtain advice from a qualified person if you’re not thoroughly familiar with the
operation of scroll saws.
- Before starting the saw, make sure the blade tension is correct. Recheck and
adjust tension as needed.
- Make sure the table is locked into position before starting the saw.
- Do not use dull or bent blades.
- When cutting a large workpiece, make sure the material is supported at the
table height.
- Turn the saw OFF and unplug the power cord if the blade jams in the workpiece.
This condition is usually caused by sawdust clogging the line you are cutting.
Wedge open the workpiece and back out the blade after turning off and unplugging
the machine.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding provides the path of least
resistance for an electric current and reduces the risk of electric shock. This tool
is equipped with an electric cord that has an equipment grounding conductor and
a grounding plug. The plug MUST be plugged into a matching outlet that is properly
installed and grounded in accordance with ALL local codes and ordinances.
1. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet
installed by a licensed electrician.
2. Improper connection of the equipment grounding conductor can result in electric
shock. The conductor with the green insulation (with or without yellow stripes) is the
equipment grounding conductor. If repair or replacement of the electric cord or plug is
necessary, DO NOT connect the equipment grounding conductorto a live terminal.
3. Check with a licensed electrician or service personnel if you do not completely
understand the grounding instructions or whether the tool is properly grounded.
4. Use only three-wire extension cords that have three-pronged plugs and outlets
that accept the tool’s plug. Repair or replace a damaged or worn cord immediately.
CAUTION! In all cases, make certain the outlet in question is properly grounded. If
you are not sure, have a licensed electrician check the outlet.
6
SAFETY INSTRUCTIONS
SCROLL SAW SAFETY - CONTINUED FROM PAGE 5

GUIDELINES AND RECOMMENDATIONS FOR
EXTENSION CORDS
When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. The table below shows
the correct size to be used according to cord length and
ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
NOTE: Canadian electrical codes require extension cords to be certified SJT type or better.
1. Examine extension cord before use. Make sure your extension cord is properly
wired and in good condition. Always replace a damaged extension cord or have it
repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle;
always disconnect by pulling on plug. Disconnect the extension cord from the receptacle
before disconnecting the product from the extension cord. Protect your extension cords
from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a
12-gauge wire and should be protected with a 15A time-delayed fuse. Before connecting
the motor to the power line, make sure the switch is in the OFF position and the electric
current is rated the same as the current stamped on the motor nameplate. Running at a
lower voltage will damage the motor.
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
0 TO 6 Amps 18 gauge 16 gauge 16 gauge 14 gauge
7
SAFETY INSTRUCTIONS

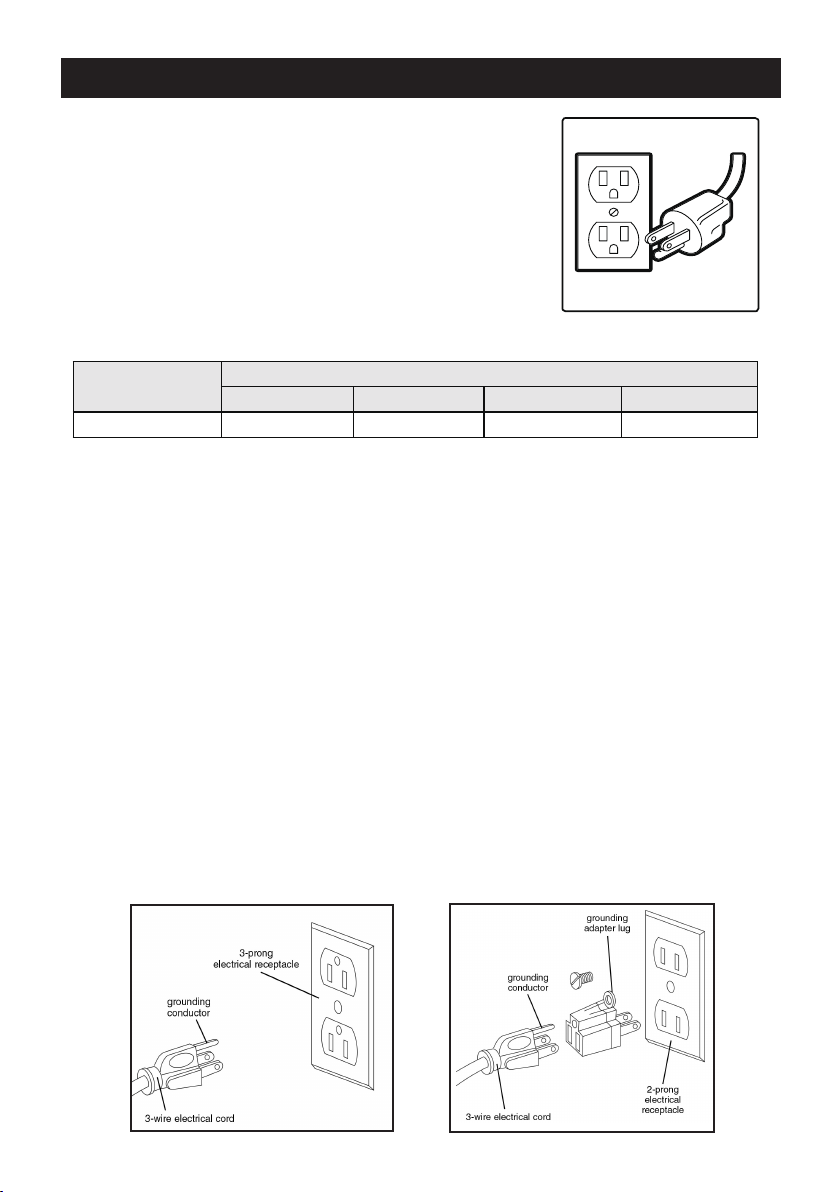

This tool is intended for use on a circuit that has an electrical receptacle as shown in
FIGURE A. It shows a 3-wire electrical plug and electrical receptacle that has a grounding
conductor. If a properly grounded electrical receptacle is not available, an adapter as
shown in FIGURE B can be used to temporarily connect this plug to a 2-contact unground-
ed receptacle. The adapter has a rigid lug extending from it that MUST be connected to a
permanent earth ground, such as a properly grounded receptacle box. THIS ADAPTER IS
PROHIBITED IN CANADA.
FIG. A FIG. B

KEY PARTS DIAGRAM
8
No. Description Qty.
1 Blade tension knob 1
2 Power switch 1
3 Variable speed control knob 1
4 1
5
Sawdust blower
2
6 1
7
Blade tension handle
1
8
Blade guard
1
Work table
Tablelevel knob
Tool box
Motor
Pull ring pin
18 TPI Pinless Blade
Tablelevel lock handle
9 1
1
2
1
1
1
Blade lock knob
11
12
13
10
14
KEY PARTS OVERVIEW
1
2
3
4
65
14
7
8
910 11
12
13

No. Description Qty.
1
2
3
4
5
9
Dust hood 1
Phillips screw M4X12 2
90° Dust hose fitting 1
1
2Hex Wrenches (S3, S4)
15 TPI Pinless Blade
5
4
123
ATTACHMENT PARTS
See pages 16 to 18 for the Parts Diagram and Parts List.
ASSEMBLY
UNPACKING AND CLEAN-UP
1. Report any shipping damage immediately to your local distributor. Take
photographs for any possible insurance claims.
2. Carefully remove all contents from the shipping carton. Compare the contents with the list
of contents to make sure that all of the items are accounted for, before discarding any
packing material. Place parts on a protected surface for easy identification and assembly.
If any parts are missing or broken, please call RIKON Customer Service (877- 884-5167)
as soon as possible for replacements. DO NOT turn your machine ON if any of these items
are missing. You may cause injury to yourself or damage to the machine.
3. Clean all rust protected surfaces with ordinary house-hold type grease / spot remover or
mild solvent. Do not use; gasoline, paint thinner, mineral spirits, etc. These may damage
painted surfaces. Wipe all parts thoroughly with a clean dry cloth.
4. Set packing material and shipping carton aside. Do not discard until the machine
has been set up and is running properly. Dispose of the packing in an environment-
ally friendly manner.
The model # 10-622VS 22” Scroll Saw is shipped complete in one box.
WARNING
!

ALIGN THE BEVEL INDICATOR
DUST COVER INSTALLATION
The bevel indicator has been adjusted at the factory, but should be rechecked prior to
use for best operation.
1. Secure the dust hood to the machine by
threading the Phillips screws (Fig. 1, 1) through
the holes in the hinge.
2. Tighten the locking knob (2).
Note: This machine is equipped with a 90°
elbow for easy dust hose fitting. See page 9.
TO REDUCE RISK OF INJURY:
• When carrying the saw, hold it close to your body to avoid injury to your back. Bend
your knees when lifting the saw.
• Carry the saw by the base, table or housing. DO NOT carry the saw by the upper arm,
motor or power cord.
• Secure the saw in a position where people cannot stand, sit, or walk behind it. Debris
thrown from the saw could injure people standing, sitting, or walking behind it.
Securethe saw on a firm, level surface where the saw cannot rock. Make sure there
is adequate room for handling and properly supporting the workpiece.
1. Loosen the blade guard knob (Fig. 2, 1) and move the blade guard (2) all the way up.
2. Check if the pointer is on the 0 scale. If not, first Loosen the table level lock handle
(Fig. 3, 3) and turn the table level knob (4) to bevel the table until it is approximately at a
right angle to the blade.
10
1
2
ASSEMBLY & ADJUSTMENTS
This machine is designed to operate in closed rooms and must be placed stable on a firm
and level surface. For safe operation of the scroll saw, the machine should be secured to
a solid work surface, bench or stand.
• A workbench made from solid wood is better than one made of plywood, as interfering
vibrations and noise are more noticeable with plywood.
THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH
MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE.
WARNING
!
FIGURE 1

1. Lay out desired design, or secure design to the workpiece.
2. Raise the blade guard foot by loosening the height adjustment knob.
3. Position the workpiece against the blade and place the blade guard foot just above
the top surface of the workpiece.
4. Secure the blade guard foot by tightening the height adjustment knob.
5. Remove the workpiece from the blade prior to turning the scroll saw ON.
6. Slowly feed the workpiece into the blade while holding the workpiece securely
against the table.
7. When cutting is complete, move trailing edge of the workpiece beyond the blade
guard foot. Turn the switch OFF.
FREEHAND CUTTING
1
2
3
4
To avoid injury from accidental start-ups, always turn the switch OFF and unplug the scroll
saw before moving the saw, replacing the blade, or making adjustments.
WARNING!
11
For best results, the dust blower tube (Fig. 4, 3)
should be adjusted to direct air at both the
blade and the workpiece.
ADJUSTING THE DUST BLOWER
1. To turn the saw on, flip the I/O switch (Fig. 4, 1)
to I. When first starting the saw, it is best to move the speed control knob (2) to the
POWER SWITCH & SPEED CONTROL
KNOB
1
2
3
middle speed position.
2. Turning the control knob. Turning it towards H increases speed; turning it towards L
reduces speed.
3. To turn the saw off, flip the I/O switch back to O.
ADJUSTMENTS & OPERATION
FIGURE 2 FIGURE 3
FIGURE 4

12
1. Layout or secure design to workpiece.
2. Loosen the blade guard height adjustment knob (Fig. 5, 2), move the blade guard foot
(1) to the highest position, and retighten the knob.

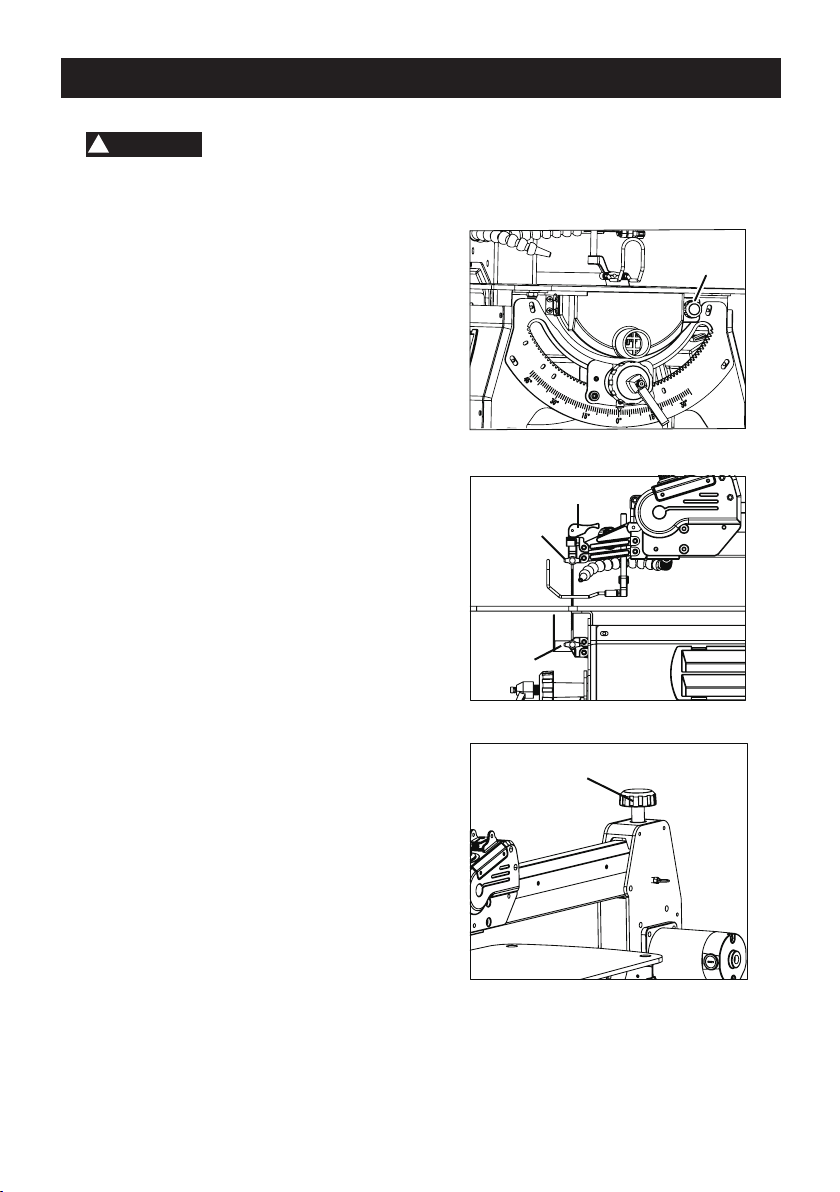

3. Tilt the table to the desired angle by loosening the table bevel lock knob (3).
ANGLE CUTTING (BEVELING)
1
2
3
4
Move the table to the proper angle using
the degree scale and the pointer (4).
TIP: The table has positive stops at 0, 22.5,
30, and 45 degrees.
4. Tighten the table bevel lock knob (Fig. 5, 3).
5. Loosen the blade guard rear screw (Fig. 6, 3),
and tilt the blade guard to the same angle as
the table. Retighten the blade guard screw.
6. Position the workpiece on the right side of
the blade. Lower the blade guard foot against
the surface by loosening the height adjustment
knob. Retighten.
7. Follow steps 5 to 7 under Freehand Cutting on
page 11.
INTERIOR CUTTING & FRETWORK
1. Lay out the your design on the workpiece.
Drill a 1/4” pilot hole in the workpiece.
2. Rotate the Blade tension handle (Fig. 6, 1)
up. Loosen the top blade locking knob (2).
3. Gently lift the upper arm (Fig. 7, 3) of the saw.
4. Place the workpiece on the saw table,
threading the blade through the hole in the
workpiece.
5. Pull the ring pin (Fig. 7, 4）outward, lower the
upper arm. This will lock the upper arm in place.
Gently press on the upper arm to make sure
it is locked in place.
6. Secure the blade in the upper blade clamp,
as directed in “ Replace The Saw Blade ” (see
page 13).
7. Follow steps 4 - 7 under “Freehand Cutting” .
8. When finished making the interior cuts, turn
the scroll saw OFF and unplug it.
Relieve blade tension and remove the blade
from the upper blade clamp. Raise the upper
arm and remove the workpiece. Lower the
upper arm and lock it in place.
3
4
1
2
ADJUSTMENTS & OPERATION
FIGURE 5
FIGURE 7
FIGURE 6
3

13
1. Loosen the locking knob (Fig.8, 1) first and
swing open the Dust Hood (2).
2. To remove the blade, rotate the Blade
Tension Handle (Fig. 9, 2) upward to relieve
tension.
3. Loosen the top blade locking knob (3),
then Loosen the bottom blade locking
knob (4).
Remove the blade.
4. With the blade’s teeth facing toward you
and pointing down, thread the new blade
through the table slot so that its bottom rests
in the bottom clamp.
5. Tighten the bottom blade locking knob (4).
This locks the blade in place.
6. Insert the top of the blade into the top
clamp. Tighten the top blade locking knob (3).
7. Pull down the Blade tension handle (2)
toward down to Lock up.
8. Fine-tune the Blade tension knob (Fig. 10, 5).
TIP: A properly-tensioned blade will make a
high-C sound (C6, 1047 Hz) when plucked
with a finger.
REPLACE THE SAW BLADE
Make sure the saw is turned OFF and unplugged before making
any adjustments to the blade.
WARNING
!
2
3
4
5
1
ADJUSTMENTS & OPERATION
FIGURE 10
FIGURE 8
FIGURE 9
2
NOTE: The 10-622VS 22” Scroll Saw only
accepts 5” PINLESS scroll saw blades.
IMPORTANT
For your own safety, read and follow all of the Safety Guidelines
and Operating Instructions before using this machine.

14
The wear on the carbon brushes depends on
how frequently and how heavily the tool is used.
To maintain maximum efficiency of the motor,
we recommend inspecting the two carbon
brushes every 60 hours of operation or when
the tool stops working.
1. Unplug the saw. To access the carbon
brushes, remove the carbon brush cover
(Fig. 11, 1) with a flat-head screwdriver (not included).
2. Carefully remove the old carbon brushes.
Keep track of which orientation the old
CARBON BRUSH REPLACEMENT
1
1. Before each use:
• Check the power cord and plug for any wear or damage.
• Check for any loose screws or hardware.
• Check the area to make sure it is clear of any misplaced tools, lumber, cleaning supplies,
etc. that could hamper the safe operation of the machine.
2. Check the saw blade before use to make sure that it is properly installed, tensioned and
not dull. Clean and efficient cutting results from a properly set blade.
3. Clean your saw after each use. Wipe it down with a soft cloth. Clean any accumulated
sawdust out of the base. Use low-pressure compressed air (not to exceed 25 PSI) to
blow any sawdust out of the blade holders, blade bevel rails, etc.. WARNING: If blowing
sawdust, wear proper eye protection to prevent debris from blowing into eyes.
4. If desired, apply a light coat of dry lubricant (such as PTFE) to the inside of the blade
bevel rails. This will help the table bevel smoothly.
5. The motor bearings, interior bearings, and table bevel rail bearings are all sealed and
require no additional lubrication.
GENERAL MAINTENANCE
Reinstall the old carbon brushes (in their original
orientation) if your brushes are not worn down to
19/32” or less. Both carbon brushes should be
replaced at the same time.
4. Replace the carbon brush cover.
carbon brushes were in to prevent unnecessary
wear if they will be reinstalled.
3. Measure the length of the brushes. Install the
new set of carbon brushes if either carbon brush
length is worn down to 19/32” or less.
19/32"
or less
MAINTENANCE
FIGURE 11
FIGURE 11

SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Saw blades break
Tension incorrectly set Set the correct tension
Load to greatFeed the work piece more
slowly
Incorrect saw blade variety Use the correct saw blades
Avoid exerting side pressure
Work piece not fed straight
Change faulty cable
Motor does not
function
NOTE:
The saw
vibrates slightly when
the motor is running in
normal operation
Motor faulty
Call customer service. Do
not attempt to repair the
motor yourself as this should
be carried out by trained
personnel.
Power cable faulty
Saw blade incorrectly
installed
Motor control board failure Change a new control board
Unsuitable underlay
Refer tothe instructions
in this manual on page 13.
The heavier the work bench is
the less the vibration. A bench
madefrom plywood always
vibrates more than one made
from solid wood.Select the
work bench best suited to your
working conditions.
Vibration
Saw blade not
aligned straight
Secure the scroll saw to the
workbench or stand.
The scroll saw is not
secured to bench or stand
Align the screws in the holders
so that they are perpendicular
to each other and retighten
the screws.
Holders not aligned
15
TROUBLESHOOTING
FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE
MACHINE BEFORE CARRYING OUT ANY TROUBLESHOOTING.
WARNING
!

PARTS DIAGRAM
16
#10-622VS
SCROLL SAW

17
PARTS LIST - #10-622VS
KEY DESCRIPTION QTY KEY DESCRIPTION QTY
1 Housing guard board 1 41 Hex socket screw M6x8 4
2 Lower adaptor 1 42 Sping cloumn pin-3x18 1
3 Upper supporting tube 1 43 Big washer D4 11
4 Upper supporting pad 1 44 Big washer D8 1
5 Upper supporting spindle 1 45 Lock hex nut M4 25
6 Upper supporting backplate 1 46 Steering gear M1.5Z14 2
7 Arm base 2 47 Hex socket screw M4x8 1
8 Pull rod slide block 1 48 Switch box cover 1
9 Adaptor support 1 49 Big arm 2
10 Upper adaptor 1 50 Bearing bush 3 4
11 Blade tension handle 1 51 Needle bearing HK0810 4
12 Bearing bushing 2 4 52 Needle bearing HK0609 12
13 Blade 1 53 Bearing pad 4
14 Left housing insert 1 54 Small arm 2
15 Motor control board PCB R3 1 55 Swing axle sleeve 2
16 Pull ring pin M8 1 56 Dust hose fitting 1
17 Bellows 1 57 Hex socket screw M5x20 1
18 Blast pipe 1 58 Hex socket screw M4x12 1
19 Hex socket screw M4x20 14 59 Right housing insert 1
20 Hex socket screw M5x8 33 60 Strain relief 6P-4 2
21 Hex socket screw M4x40 4 61 Power cord 1
22 Bracket Reinforcement Tube 1 62 Overload protector base 1
23 Adjusting rod 1 63 Panel 2
24 Drop foot base 1 64 Rotation plate 2
25 Bearing spacer bush 4 65 Side plate 2
26 Bearing pad 4 66 Tool box 2
27 Dome screw-M6x25 4 67 Work table 1
28 Hex socket wrench S4 1 68 Switch 1
29 Bearing 606 4 69 Variable speed knob 1
30 Hex nut M6 4 70 Potentiometer 1
31 Lock rod（M8) 1 71 Fixed bolt 1
32 Bearing pressure plate rivets 1 72 Washer 1
33 Bearing pressure plate 2 73 Spring washer D10 1
34 Table lock knob 1 74 Hex nut M8 left 1
35 Pointer 1 75 DC Motor 1
36 Phillips screw ST3.9*12 10 76 Lock handle assy 1
37 Hex socket screw M4x10 7 77 Hex socket wrench S3 1
38 Hex screw-M8x65 3 78 Ground plate 1
39 Phillips screw ST3.5x6-F 6 79 Phillips screw M4x10 1
40 Hex socket screw M4x20 4 80 Phillips screw M4x6 2
NOTE: Please reference the Key Number when calling for Replacement Parts.
For Parts under Warranty, the Serial Number of your machine is required.
CONTINUED ON PAGE 18

18
PARTS LIST - #10-622VS
KEY DESCRIPTION QTY KEY DESCRIPTION QTY
81 Star washer D4 1
82 Phillips screw M4x40 1
83 Phillips screw M4x50 2
84 Lock hex nut M8 3
85 Lower supporting 1
86 Lower supporting direction plate 2
87 Lower supporting direction bracket 1
88 Left housing plate 1
89 Right housing plate 1
90 Tension bracket 1
91 Housing spacing board 1
92 Housing connecting board 1
93 Left switch box 1
94 Right switch box 1
95 Positioning screw M8x12 1
96 Hex screw M8x20 1
97 Blade tension knob 1
98 Blade lock knob 2
99 Drop foot lock knob 1
100 Hex socket screw M6x10 1
101 Hex socket screw M8x20 4
102 Hex nut M8 4
103 Hex socket screw M6x16 4
104 Eccentric swinging rod 1
105 Needle bearing HK1412 2
106 Swing axle 1
107 Spring washer D8 1
108 Pull plate 4
109 Bearing bush 1 10
110 Bearing-628-2Z 2
111 Connection rod pressure plate 1
112 Eccentric rod 1
113 Eccentric wheel 1
114 Bearing pressure plate 1
115 Drop foot 1
116 Dust hood 1
117 Lock knob M5x18 1
118 Hex nut M5 4
119 Phillips screw M4x12 4
120 Hinge 1
Front panel 1
121
NOTES

WARRANTY
19

#10-622VS
www.rikontools.com
10-622VSM1
For more information:
25 Commerce Way
North Andover, MA 01845
877-884-5167 / 978-528-5380
[email protected]
LINK TO
RIKON
WEBSITE
