General 90-170B M1 Parts list manual

SETUP & OPERATION MANUAL
VERSION 5_NOVEMBER 12/12 (92207612)
© Copyright General® International 11/2012
MODEL
#90-170B M1
DELUXE 14” WOOD CUTTING BANDSAW
FEATURES
Heavy-duty one-piece frame designed for
added stability. Requires no further assem-
bly.
Dynamically-balanced cast-iron wheels
with replaceable rubber tires.
Solid, high quality, precision machined,
ribbed cast-iron table with 45° right tilting
action for bevel cuts.
Deluxe upper and lower blade guide
bearings included.
2 cutting speeds for excellent results in
either hard or soft woods.
Precision metal miter gauge and dual
miter slots in table for stable precision
cross cuts on either side of the blade.
Deluxe Excalibur bandsaw rip fence sys-
tem with curved resaw guide block.
Onboard storage mounts for miter gauge
and rip fence.
Smooth rack and pinion upper blade
guard adjustment.
Quick release blade tension lever for fast
blade changes.
2 built-in 4” diameter dust chutes for better
dust collection.
Magnetic safety switch.
Large 12” resaw capacity.
3/4” blade included.
Safety foot brake simultaneously slows
down the blade and disconnects electri-
cal circuit for quick blade stoppage and
emergency shut-off.
SPECIFICATIONS
WHEEL SIZE
14” (356 mm)
WHEEL SPEEDS (2)
588/840 RPM
MAXIMUM BLADE WIDTH
3⁄4” (19 mm)
MINIMUM BLADE WIDTH
1⁄8” (3 mm)
BLADE LENGTH
112” (2845 mm)
BLADE SPEEDS (2)
2300 & 3250 Lin. FPM (690/975 Lin. MPM)
TABLE SIZE
16” x 20” (406 x 508 mm)
TABLE TILT
0°- 45° (Right)
TABLE HEIGHT
36 1⁄2” (927 mm)
MAXIMUM WIDTH OF CUT
13 1⁄2” (343 mm)
MAXIMUM DEPTH OF CUT
12” (305 mm)
DUST COLLECTION PORT
2 x 4” (102 mm)
BASE DIMENSIONS (L x W)
25” x 15” (635 x 381 mm)
MOTOR
1 1⁄2 HP, 110V, 1PH, 12.5A
WEIGHT
293 LBS (133 kg)

THAN YOUfor choosing this General®International model 90-170B M1 14”
Deluxe Wood Cutting Bandsaw. This bandsaw has been carefully tested and inspected before
shipment and if properly used and maintained, will provide you with years of reliable service.
or your safety, as well as to ensure optimum performance and trouble-free operation, and to
get the most from your investment, please take the time to read this manual before assem-
bling, installing and operating the unit.
The manual’s purpose is to familiarize you with the safe operation, basic function, and features
of this bandsaw as well as the set-up, maintenance and identification of its parts and compo-
nents. This manual is not intended as a substitute for formal woodworking instruction, nor to
offer the user instruction in the craft of woodworking. If you are not sure about the safety of
performing a certain operation or procedure, do not proceed until you can confirm, from
knowledgeable and qualified sources, that it is safe to do so.
Once you’ve read through these instructions, keep this manual handy for future reference.
Disclaimer:The information and specifications in this
manual pertain to the unit as it was supplied from the
factory at the time of printing. Because we are commit-
ted to making constant improvements, General®
International reserves the right to make changes to
components, parts or features of this unit as deemed
necessary, without prior notice and without obligation to
install any such changes on previously delivered units.
Reasonable care is taken at the factory to ensure that
the specifications and information in this manual corres-
ponds with that of the unit with which it was supplied.
However, special orders and “after factory” modifica-
tions may render some or all information in this manual
inapplicable to your machine. urther, as several gene-
rations of this model of bandsaw and several versions of
this manual may be in circulation, if you own an earlier
or later version of this unit, this manual may not depict
your machine exactly. If you have any doubts or ques-
tions contact your retailer or our support line with the
model and serial number of your unit for clarification.
GENERAL® INTERNATIONAL
8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3
Telephone [phone] • ax [phone] • www.general.ca

GENERA ®& GENERA ®INTERNATIONA WARRANTY
All component parts of General®, General® International and Excalibur by General
International ® products are carefully inspected during all stages of production and each unit
is thoroughly inspected upon completion of assembly.
Limited Lifetime Warranty
Because of our commitment to quality and customer satisfaction, General® and General®
International agree to repair or replace any part or component which upon examination,
proves to be defective in either workmanship or material to the original purchaser for the life
of the tool. Ho ever, the Limited Lifetime Warranty does not cover any product used for profes-
sional or commercial production purposes nor for industrial or educational applications. Such
cases are covered by our Standard 2-year Limited Warranty only. The Limited Lifetime Warranty
is also subject to the “Conditions and Exceptions” as listed belo .
Standard 2-Year Limited Warranty
All products not covered by our lifetime warranty including products used in commercial,
industrial and educational applications are warranted for a period of 2 years (24 months) from
the date of purchase. General® and General® International agree to repair or replace any
part or component which upon examination, proves to be defective in either workmanship or
material to the original purchaser during this 2-year warranty period, subject to the “conditions
and exceptions” as listed below.
To file a Claim
To file a claim under our Standard 2-year Limited Warranty or under our Limited Lifetime
Warranty, all defective parts, components or machinery must be returned freight or postage
prepaid to General® International, or to a nearby distributor, repair center or other location
designated by General® International. or further details call our service department at 1-888-
949-1161 or your local distributor for assistance when filing your claim.
Along with the return of the product being claimed for warranty, a copy of the original proof
of purchase and a “letter of claim” must be included (a warranty claim form can also be used
and can be obtained, upon request, from General® International or an authorized distributor)
clearly stating the model and serial number of the unit (if applicable) and including an expla-
nation of the complaint or presumed defect in material or workmanship.
CONDITIONS AND EXCEPTIONS:
This coverage is extended to the original purchaser only. Prior warranty registration is not
required but documented proof of purchase i.e. a copy of original sales invoice or receipt
showing the date and location of the purchase as well as the purchase price paid, must be
provided at the time of claim.
Warranty does not include failures, breakage or defects deemed after inspection by General®
or General® International to have been directly or indirectly caused by or resulting from;
improper use, or lack of or improper maintenance, misuse or abuse, negligence, accidents,
damage in handling or transport, or normal wear and tear of any generally considered con-
sumable parts or components.
RepairsmadewithoutthewrittenconsentofGeneral®Internationallwillvoidallwarranty.

TABLE OF CONTENTS
Rules for safe operation . . . . . . . . . . . . . . .5
Electrical requirements . . . . . . . . . . . . . . .6
Circuit capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Extension cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Identification of main parts and
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Unpacking . . . . . . . . . . . . . . . . . . . . . . . .8
List of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Additional requirements for set up . . . . . . . . . . . . .8
Basic functions of the unit . . . . . . . . . . . . .9
Placement within the shop / Establishing a
safety zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Placement within the shop . . . . . . . . . . . . . . . . . . .9
Establishing a safety zone . . . . . . . . . . . . . . . . . . . .9
Clean up . . . . . . . . . . . . . . . . . . . . . . . . .10
Assembly instructions . . . . . . . . . . . . . . .10
Attach the storage brackets . . . . . . . . . . . . . . . . . .10
Attaching the table . . . . . . . . . . . . . . . . . . . . . . . . .10
Install the foot brake . . . . . . . . . . . . . . . . . . . . . . . .11
Install the fence assembly . . . . . . . . . . . .11
Basic Adjustments & Controls . . . . . . . . . .12
Connecting to a power source . . . . . . . . . . . . . . .12
Magnetic safety switch . . . . . . . . . . . . . . . . . . . . . .12
Thermal relay / Circuit breaker . . . . . . . . . . . . . . .12
Foot brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Tilting the table . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Adjusting the 90º table stop and re-aligning
the angle pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Removing / Installing the blade . . . . . . . . . . . . . .14
Blade Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Blade Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Adjusting blade tension . . . . . . . . . . . . . . . . . . . . .16
Adjusting blade tracking . . . . . . . . . . . . . . . . . . . .17
Adjusting the upper/lower blade guides
assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Changing speed settings . . . . . . . . . . . . . . . . . . . .19
Adjusting the blade guard for depth of cut . . . .19
Operating Instructions . . . . . . . . . . . . . . .20
Connecting to dust collector . . . . . . . . . . . . . . . . .20
Checklist before starting . . . . . . . . . . . . . . . . . . . . .20
Operations step-by-step . . . . . . . . . . . . . . . . . . . . .20
To stop the machine . . . . . . . . . . . . . . . . . . . . . . . .20
Using the miter gauge . . . . . . . . . . . . . . . . . . . . . .21
Using the rip fence . . . . . . . . . . . . . . . . . . . . . . . . .21
Cutting curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Cutting circles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Periodic Maintenance & Lubrication . . . . . .22
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Periodic maintenance . . . . . . . . . . . . . . . . . . . . . .22
Required Maintenance . . . . . . . . . . . . . . .23
Replacing the bandsaw blade . . . . . . . . . . . . . . .23
Replacing the upper and lower blade guides
and thrust bearings . . . . . . . . . . . . . . . . . . . . . . . . .23
Replacing the wheel tire . . . . . . . . . . . . . . . . . . . .24
Replacing the lower wheel brush . . . . . . . . . . . . .24
Replacing the lower wheel motor belt . . . . . . . . .24
Front to back table tilt adjustment . . . . . . . . . . . .24
Recommended optional accessories . . . . .25
Parts list & diagrams . . . . . . . . . . . . . .26-30
Wiring Diagrams . . . . . . . . . . . . . . . . . . . .31

1. Do not operate the bandsaw when tired, distracted
or under the effects of drugs, alcohol or any medi-
cation that impairs reflexes or alertness.
2. The working area should be well lit, clean and free
of debris.
3. Keep children and visitors at a safe distance when
the bandsaw is in operation; do not permit them to
operate the bandsaw.
4. Childproof and tamper proof your shop and all
machinery with locks, master electrical switches
and switch keys, to prevent unauthorized or unsu-
pervised use.
5. Stay alert! Give your work your undivided attention.
Even a momentary distraction can lead to serious
injury.
6. ine particulate dust is a carcinogen that can be
hazardous to health. Work in a well-ventilated area
and whenever possible use a dust collector. Wear
face, eye, ear, respiratory and body protection de-
vices.
7. Do not wear loose clothing, gloves, bracelets,
necklaces or other jewelry while the bandsaw is in
operation.
8. Be sure that adjusting wrenches, tools, drinks and
other clutter are removed from the machine and/or
the table surface before operating.
9. Keep hands well away from the blade and all mo-
ving parts. Use a brush, not hands, to clear
away chips and dust.
10. Adjust and position upper and lower blade guides
before starting to cut. Upper blade guide should be
adjusted to approximately 1/8” above the material
to be cut.
11. Adjust blade tension and tracking before starting to
cut.
12. Saw teeth must point down toward the table.
13. Be sure that the blade has gained full operating
speed before starting to cut.
14. Always use a clean, properly sharpened blade.
Dirty or dull blades are unsafe and can lead to
accidents.
15. Use suitable workpiece support if the workpiece
does not have a flat surface.
16. Hold material firmly against the table.
17. Do not work on long stock without adequate sup-
port on the out feed end of the table.
18. If using a power feeder, stop the feeder before stop-
ping the bandsaw.
19. Do not push or force stock into the blade. The band-
saw will perform better and more safely when work-
ing at the rate for which it was designed.
20. Avoid working from awkward or off balance posi-
tions. Do not overreach and keep both feet on floor.
21. Keep guards in place and in working order. If a
guard must be removed for maintenance or clea-
ning be sure it is properly re-attached before using
the tool again.
22. Never leave the machine unattended while it is run-
ning or with the power on.
23. Use of parts and accessories NOT recommended
by General® International may result in equip-
ment malfunction or risk of injury.
24. Never stand on machinery. Serious injury could re-
sult if the tool is tipped over or if the cutting tool is
unintentionally contacted.
25. Always disconnect the machine from the power
source before servicing or changing accessories
such as blades, or before performing any mainte-
nance or cleaning, or if the machine will be left un-
attended.
26. Make sure that the switch is in the “O ” position be-
fore plugging in the power cord.
27. Make sure the tool is properly grounded. If equip-
ped with a 3-prong plug it should be used with a
three-pole receptacle. Never remove the third prong.
28. Do not use this bandsaw for other than its intended
use. If used for other purposes, General® Interna-
tional disclaims any real or implied warranty and
holds itself harmless for any injury, which may result
from that use.
Rules for Safe Operation
To help en ure afe operation, plea e take a moment to learn the machine’ application and limita-
tion , a well a potential hazard . General® International di claim any real or implied warranty and
hold it elf harmle for any injury that may re ult from the improper u e of it’ equipment.
5

6
ELECTRICAL REQUIREMENTS
CIRCUIT CAPACITY
Make sure that the wires in your circuit are capable of
handling the amperage draw from your machine, as
well as any other machines that could be operating on
the same circuit. If you are unsure, consult a qualified
electrician. If the circuit breaker trips or the fuse blows
regularly, your machine may be operating on a circuit
that is close to its amperage draw capacity. However, if
an unusual amperage draw does not exist and a
power failure still occurs, contact a qualified technician
or our service department.
BEFORE CONNECTING THE MACHINE TO THE POWER SOURCE, VERIFY THAT THE VOLTAGE OF YOUR POWER SUPPLY CORRE-
SPONDS WITH THE VOLTAGE SPECIFIED ON THE MOTOR I.D. NAMEPLATE. A POWER SOURCE WITH GREATER VOLTAGE THAN
NEEDED CAN RESULT IN SERIOUS INJURY TO THE USER AS WELL AS DAMAGE TO THE MACHINE. IF IN DOUBT, CONTACT A QUAL-
IFIED ELECTRICIAN BEFORE CONNECTING TO THE POWER SOURCE.
THIS TOOL IS FOR INDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN WET OR DAMP LOCATIONS.
EXTENSION CORDS
If you find it necessary to use an extension cord with your
machine, use only 3-wire extension cords that have 3-
prong grounding plug and a matching 3-pole recepta-
cle that accepts the tool’s plug. Repair or replace a
damaged extension cord or plug immediately.
Make sure the cord rating is suitable for the amperage
listed on the motor I.D. plate. An undersized cord will
cause a drop in line voltage resulting in loss of power
and overheating. The accompanying chart shows the
correct size extension cord to be used based on cord
length and motor I.D. plate amp rating. If in doubt, use
the next heavier gauge. The smaller the number, the
heavier the gauge.
TABLE - MINIMUM GAUGE FOR CORD
AMPERE
RATING
TOTAL LENGTH OF CORD IN FEET
110 VOLTS 25 FEET 50 FEET 100 FEET 150 FEET
220 VOLTS 50 FEET 100 FEET 200 FEET 300 FEET
AWG
< 5 -------> 18 16 16 14
6 TO 10 -------> 18 16 14 12
10 TO 12 -------> 16 16 14 12
12 TO 16 -------> 14 12 * NR * NR
* NR = Not Recommended

IDENTIFICATION OF MAIN PARTS AND COMPONENTS

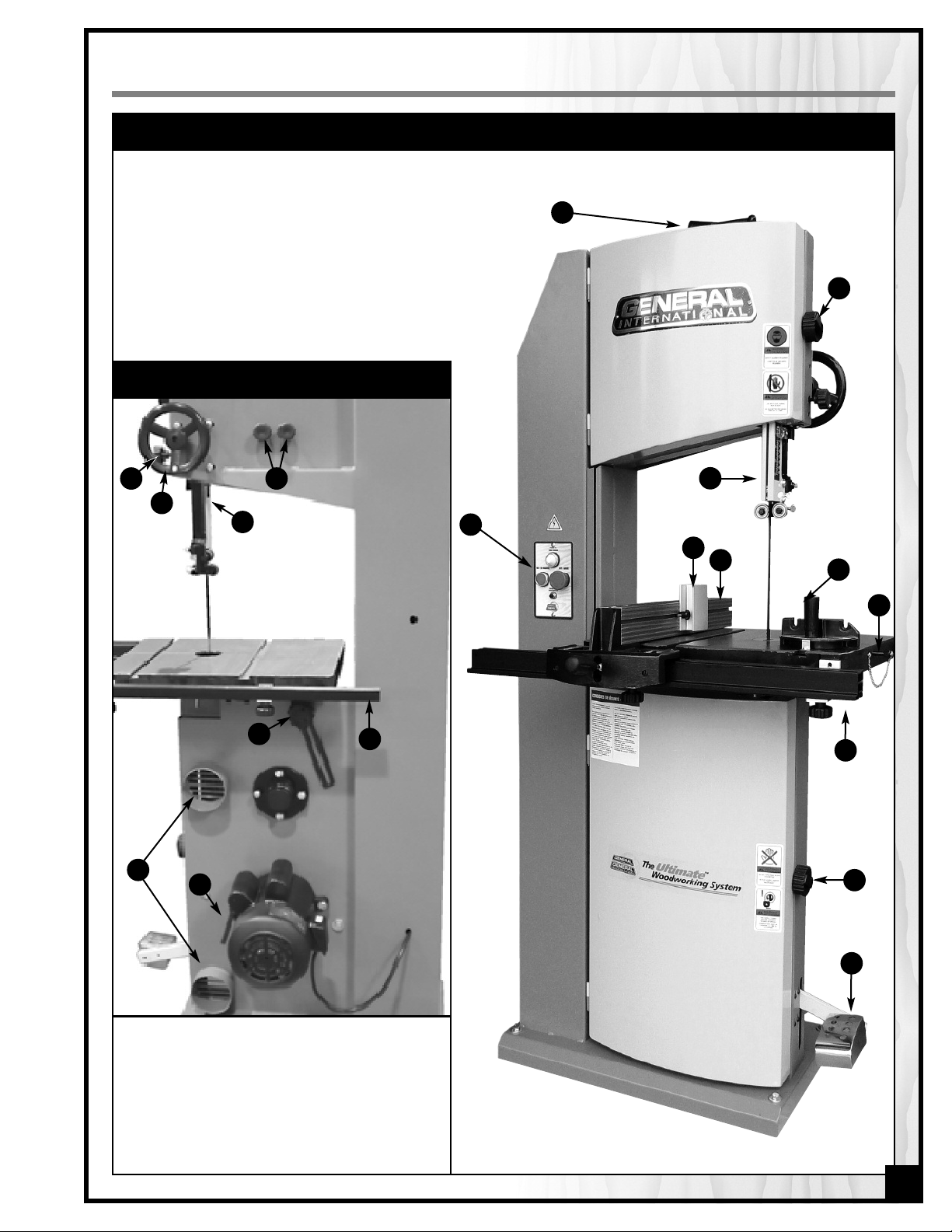

FRONT VIEW
7
L- BLADE TRACKING ADJUSTMENT KNOBS
M- BLADE GUARD ADJUSTMENT HANDWHEEL
N- BLADE GUARD LOCK KNOB
O- UPPER BLADE GUIDES
P- REAR FENCE RAIL
Q- TABLE TILT LOCK KNOB
R- DUST OUTLET
S- MOTOR PIVOT LOCKING LEVER
B
D
H
I
A
M
O
QP
R
REAR VIEW
E
F
G
J
C
K
A- BLADE TENSION ADJUSTMENT HANDLE
B- UPPER WHEEL COVER DOOR LOCK KNOB
C- BLADE GUARD
D- RIP FENCE
E- RESAW GUIDE BLOCK
F- MITER GAUGE
G- TABLE ALIGNMENT PIN
H- FENCE FRONT RAIL
I- LOWER WHEEL COVER DOOR LOCK KNOB
J- FOOT BRAKE
K- MAGNETIC SAFETY SWITCH
LN
S

IST OF CONTENTS
Once the parts have been removed from the packag-
ing, you should have the following items:
QTY
A- BANDSAW (NOT SHOWN) .......................1
B- TABLE ......................................1
C- TABLELOCKKNOB ...........................2
D- MITERGAUGE ...............................1
E- MITER GAUGE STORAGE BRACKET . . . . . . . . . . . . . . .1
F- RIP ENCE STORAGE BRACKET . . . . . . . . . . . . . . . . . .1
G- 8MMALLENKEY .............................1
H- 3MMALLENKEY .............................1
I- 10-12 MM OPEN END WRENCH . . . . . . . . . . . . . . . . .1
J- OOTBRAKE.................................1
- CAPSCREW .................................2
L- LOCKWASHER ...............................2
Carefully unpack and remove the unit and its components from its shipping container and check for missing or
damaged items as per the list of contents below.
NOTE:PleasereportanydamagedormissingitemstoyourGENERAL®INTERNATIONALdistributorimmediately.
UNPACKING
ADDITIONA REQUIREMENTS FOR SET UP
• Extra person for help with lifting
• Phillips screwdriver
• lat head screwdriver
• 10 mm wrench
• 15 mm wrench
• eeler gauge set
• Combination square
8
B
C
D
E
F
J
GH
I
K
L
Note:DeluxeExcaliburUniversalBandsawRipFenceSys-
temispackagedseparately.Refertothemanualsupplied
intheboxwiththeExcalibuerRipFenceforcompletelist
ofcontents.

P ACEMENT WITHIN THE SHOP / ESTAB ISHING A SAFETY ZONE
P ACEMENT WITHIN THE SHOP
This machine should be installed and operated only on a
solid, flat and stable floor that is able to support the weight
of the bandsaw and the operator. Using the dimensions
shown as a guideline, plan for placement within your shop
that will allow the operator to work unencumbered and
unobstructed by foot traffic (either passing shop visitors or
other shop workers) or other tools or machinery.
BASIC FUNCTIONS OF THE UNIT
This Deluxe 14" Wood Cutting Bandsaw is supplied with a
3/4" wide general purpose blade and is designed to
accommodate blade widths from 1/8" to 3/4". Ideal blade
length for this model 90-170B M1 is 112" (2845 mm).
Note:Generallyspeaking,becausetheupperwheelheightis
somewhatadjustable(toallowforbladetensioning),ablade
lengthvariationofplusorminus1/2"fromthe“idealblade
length”canbeaccommodated.
Maximum inboard width of cut (space between the blade
and the body of the saw A) is 13 1/2".
or cutting thicker stock or for resawing, the maximum
depth of cut B(or max. workpiece height) is 12".
An adjustable rip fence Cis supplied to serve as a straight-
edge to guide the workpiece for longer rip cuts. The fence
can easily be removed and set aside when not required,
for example when making curved cuts.
A
ESTAB ISHING A SAFETY ZONE
or shops with frequent visitors or multiple operators, it is
advisable to establish a Safety Zone around shop machin-
ery. A clearly defined “no-go” zone on the floor around
each machine can help avoid accidents that could cause
injury to either the operator or the shop visitor. It is advisable
to take a few moments to either paint (using non-slip paint)
or using tape, define on the floor the limits or perimeter of each machines safety zone. Take steps to ensure that all
operators and shop visitors are aware that these areas are off limits whenever a machine is running for everyone
but the individual operating the unit. 9
441/2”
73”
33”
B
C
THIS MODEL 90-170B M1 IS HEAVY. DO NOT OVER-EXERT. THE HELP OF AT LEAST ONE ASSISTANT OR A HOIST WILL BE NEEDED
FOR THE FOLLOWING STEP.
TO LIMIT THE RIS OF SERIOUS INJURY OR DAMAGE TO THE MACHINE, ANY EQUIPMENT USED TO LIFT THIS MACHINE SHOULD
HAVE A RATED CAPACITY IN EXCESS OF 293 LBS (133 G).
Liftingandhandlingthemachine
Tolimitthepotentialfordamageintransport,this
bandsawisshippedfromthefactoryboltedtoits
crateintheverticalposition.Withaforkliftorhydrau-
licpalletjack,movetheentirecrateasclosetothe
finalinstallationlocationaspossible,andthenun-
cratethesawandremovethe4boltsAthatsecureit
tothecrateusinga15mmwrench.
A

ATTACHING THE TABLE
The wor table mounts on a brac et which allows
adjustment from flat (0°) to any angle up to 45° to the
right. Adjustments can be made easily with the angle
scale and loc nobs.
1. Remove the red insert Afrom the center of the
table and the table alignment pin Bfrom the
table slot.
The protective coating on the saw table prevents rust from
forming during shipping and storage. Remove it by rub-
bing with a rag dipped in erosene, mineral sprits or paint
thinner. (Dispose of potentially flammable solvent-soa ed
rags according to manufacturer’s safety recommenda-
tions.)
A putty nife, held flat to avoid scratching the surface, may
also be used to scrape off the coating followed by clean-
up with solvent. Avoid rubbing the saw’s painted surfaces,
as many solvent-based products will remove paint.
To prevent rust, apply a light coating of paste wax or use
regular applications of any after-mar et surface protectant
or rust inhibitor.
CLEAN UP
SERIOUS PERSONAL INJURY COULD OCCUR IF YOU CONNECT THE SAW TO THE POWER SOURCE BEFORE YOU HAVE
COMPLETED THE INSTALLATION AND ASSEMBLY STEPS.
DO NOT CONNECT THE SAW TO THE POWER SOURCE UNTIL INSTRUCTED TO DO SO.
Tip:Withascrewdriver,pushasolvent-saturatedraginto
theT-slotstoremovethegreasesothemitergaugewill
slidefreely.
ASSEMBLY INSTRUCTIONS
This model 90-170B is supplied with convenient
onboard storage brac ets to safely stow the rip fence
and miter gauge out of the way when not in use A.
Attach the rip fence storage brac et Band miter
gauge storage brac ets Cto the bac of the saw as
shown in D, using the bolts and washers already
mounted to the saw.
ATTACH THE STORAGE BRACKETS
For your convenience this bandsaw is shipped from the factory partially assembled and requires only minimal
assembly and set up before being put into service.
B
C
DA
2. Turn the table right side up.Verify that the long bolts
Cin the center of each trunnion are pointing down. 3. Carefully move the table into position over the
table-tilt brac et D, guiding the saw blade through
the table slot E.
C
D
E
AB
10

NN
M
6. Thread the two small lock knobs Honto the long
bolts Inow protruding from the underside of the
table-tilt bracket and tighten loosely.
7. Attach the table tilt support bracket Jto the rear of
the saw using the big lock knob with the two flat
washers Lalready mounted on the frame.
I
H
L
K
J
FG
G
4. Rotate the table 1/4 turn counterclockwise so that the
saw blade is now perpendicular to the table slot F.
5. Gently lower the table onto the bracket so the long
bolts Cin the center of the trunnions pass through
the holes in the table-tilt bracket G.
O
P
9. Re-install the insert into the center of the table, with
the opening in the slot Ofacing the rear of the saw.
10.Re-install the table alignment pin into the table
slot P.
8. Make sure that the blade is centered in the table
opening. If the blade is not centered, slide the ta-
ble back or forward Muntil the blade is centered in
the table opening, then fully tighten the two lock
knobs, H.
INSTA THE FOOT BRAKE
1. Open the lower wheel cover door.
2. Attach the foot brake to the foot brake mounting bar
as shown in Qusing the two supplied cap screws and
lock washers, in the assembly order shown in R.
3. irmly tighten with the supplied 8 mm Allen key.
Note:Ifthelongboltshavemovedoutofposition,have
anassistanttapthemintoplacewithascrewdriver.
R
INSTA THE FENCE ASSEMB Y
Thismodel90-170BM1isequippedwithanExcaliburT-
fenceandguiderailsystem.
Followallassemblyandadjustmentinstructionsinthe90-
075A manual supplied in the box with the Excalibur
UniversalBandsawRipFenceSystem.
11

BASIC ADJUSTMENTS AND CONTROLS

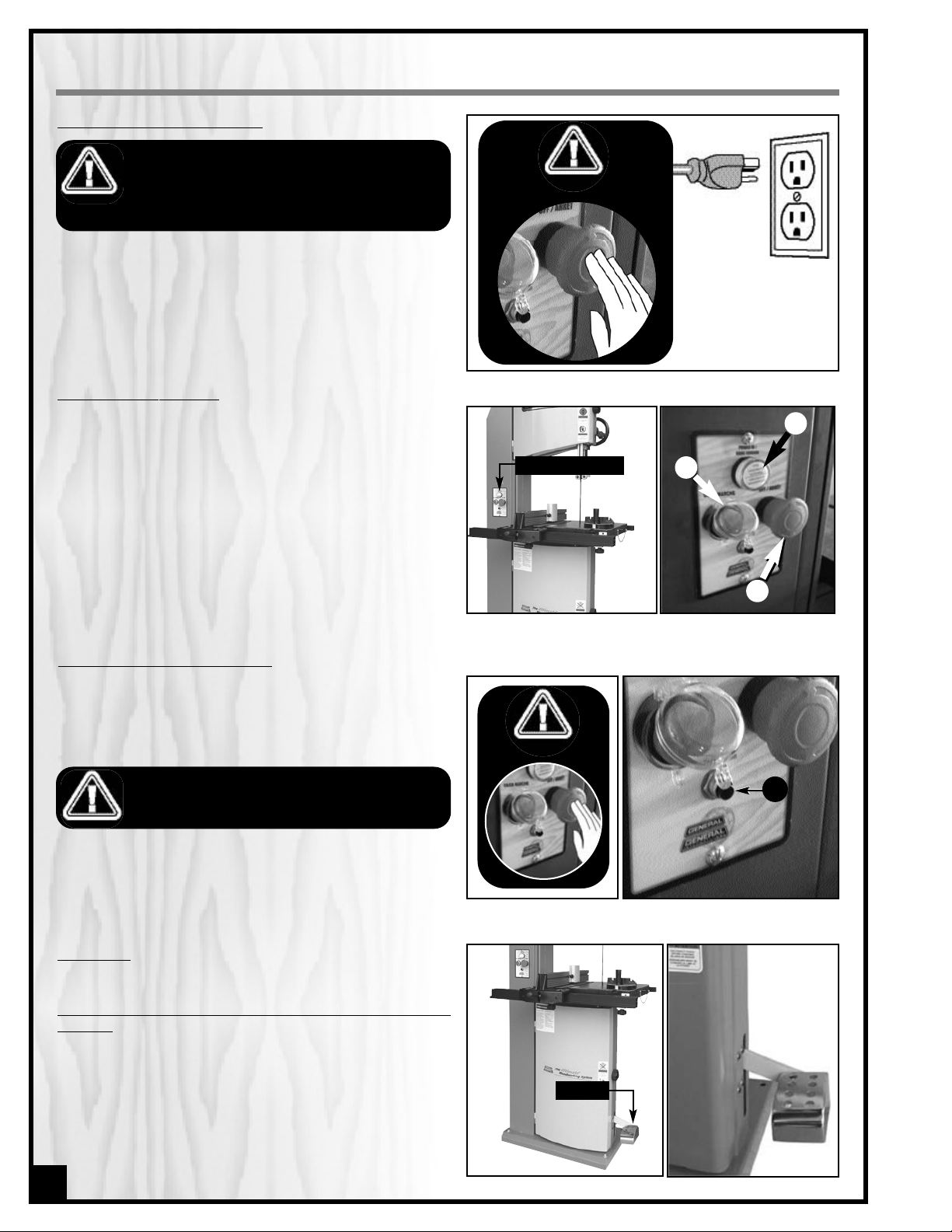

CONNECTING TO A POWER SOURCE
MAGNETIC SAFETY SWITCH
This model 90-170B is equipped with a MAGNETIC SAFETY
SWITCH located at the front, on the frame of the machine.
This magnetic switch is designed to protect the unit and the
user from power surges, power outages and unwanted or
unintentional start-up.
The switch assembly is equipped with a GREEN “ON” button
with protective cap B to prevent unwanted or unintention-
al start-up, and a RED spring loaded “OFF” button C. Once
the RED “OFF” button has been pressed, the machine can
only be started by turning the RED button to the right to
release the stop button it.
When you have finished using the machine be sure to unplug
the bandsaw from the power source.
TO REDUCE THE RISK OF SHOCK OR FIRE DO NOT OPER-
ATE THE UNIT WITH A DAMAGED POWER CORD OR PLUG.
REPLACE DAMAGED CORD OR PLUG IMMEDIATELY.
TO AVOID UNEXPECTED OR UNINTENTIONAL START-UP,
MAKE SURE THAT THE POWER SWITCH IS IN THE OFF POSI-
TION BEFORE CONNECTING TO A POWER SOURCE.
Refer back to the section entitled “ELECTRICAL REQUI-
REMENTS” and make sure all requirements and ground-
ing instructions are followed.
Once the assembly has been completed, plug the
power cord into an appropriate outlet. The “POWER IN”
indicator light A will illuminate.
FOOT BRAKE
This bandsaw is also equipped with a FOOT BRAKE locat-
ed at the bottom of the machine. This device allows for
immediate immobilization of the blade and machine
shut off.
Notice – The foot brake is not designed to function as the pri-
mary stop mechanism of this saw. The foot brake should be
used for emergency situations or any time it is necessary to
immobilize the blade quicker than normal. Under normal
working conditions the red stop button should be used as the
primary stop mechanism. Continuously using the foot brake
as the primary stop mechanism will lead to premature wear
of the brake and may cause damage to the motor.
12
THERMAL RELAY / CIRCUIT BREAKER
TO AVOID UNEXPECTED OR UNINTENTIONAL START-UP BE
CERTAIN THAT THE POWER SWITCH HAS BEEN SET TO THE
OFF POSITION BEFORE RE-SETTING THE THERMAL RELAY.
To reset the thermal relay after it has been tripped: set the
power switch to the “off” position and press the thermal
relay re-set button D, then restart the machine.
The unit is equipped with a thermal relay (circuit breaker)
D located under the magnetic switch, to protect the motor
from power surges or spikes in line voltage. In the event of a
power surge, the thermal relay will be automatically tripped
thereby cutting off the power to the motor.
SWITCH OFF
MAGNETIC SAFETY SWITCH
FOOT BRAKE
SWITCH OFF
B
A
C
D

13
1. Loosen ock knobs C(be ow) and ock knob B(right)
ocated under the saw tab e.
2. Ti t the tab e unti it is at the desired ang e. (Refer to the
ang e indicator A.)
3. Tighten the ock knobs to ock the tab e in position.
TILTING THE TABLE
The tab e can be ti ted to any ang e from 0° to 45° to the
right to a ow for any type of beve (or ang e) cutting. Refer
to the tab e ti t ang e indicator Aocated under the band-
saw tab e, to set the ang e of the tab e to the desired posi-
tion.
BEFORE MAKING ANY ADJ STMENTS, MAKE S RE
THAT THE SWITCH IS IN THE “OFF” POSITION AND
THAT THE POWER CORD IS NPL GGED.
ADJUSTING THE 90º TABLE STOP AND RE-ALIGNING THE ANGLE POINTER
To ensure that your 90º cuts are square and that ang ed cuts are accurate with the ang e indicator sca e, the tab e
defau t position must be set to 90º to the b ade and the ang e indicator pointer must be set to read 0 when the tab e
is in the defau t (90º) position. To set the tab e-stop bo t:
C
D
1. Loosen ock knobs Cand ock knob B.
8. With the tab e set to 90º and the stop bo t at the
correct height, make sure the tab e ti t ang e indi-
cator pointer Iis set to read 0º.
9. If the pointer needs to be adjusted, oosen the
screw Jon the pointer of the front trunnion and
adjust the pointer Kto the 0 point on the sca e.
Then re-tighten the screw to secure the pointer in
p ace.
J
2. P ace a combination square Df at on the tab e
with the hee of the square f at against the saw
b ade E.
3. Leve the tab e unti it is exact y 90° to the b ade,
then tighten ock knobs Cand B.
E
I
F
H
A
B
4. Using the supp ied open end wrench, oosen the
jam nut Fon the 90º tab e-stop bo t then adjust the
height of the bo t Gunti it touches the underside of
the tab e as shown in H.
5. Loosen the ock knobs Band Cand make sure the
tab e is resting on the tab e-stop bo t H.
6. Check the square and make sure the tab e is sti at
90° to the b ade. If not, re-adjust the tab e-stop bo t.
7. Re-tighten jam nut F.
F
G
You wi now be ab e to accurate y return the tab e to the 90º position automatica y without further adjustments and
sca e reading for any ang e other than 0 wi a so be accurate.
K

REMOVING/INSTA ING THE B ADE

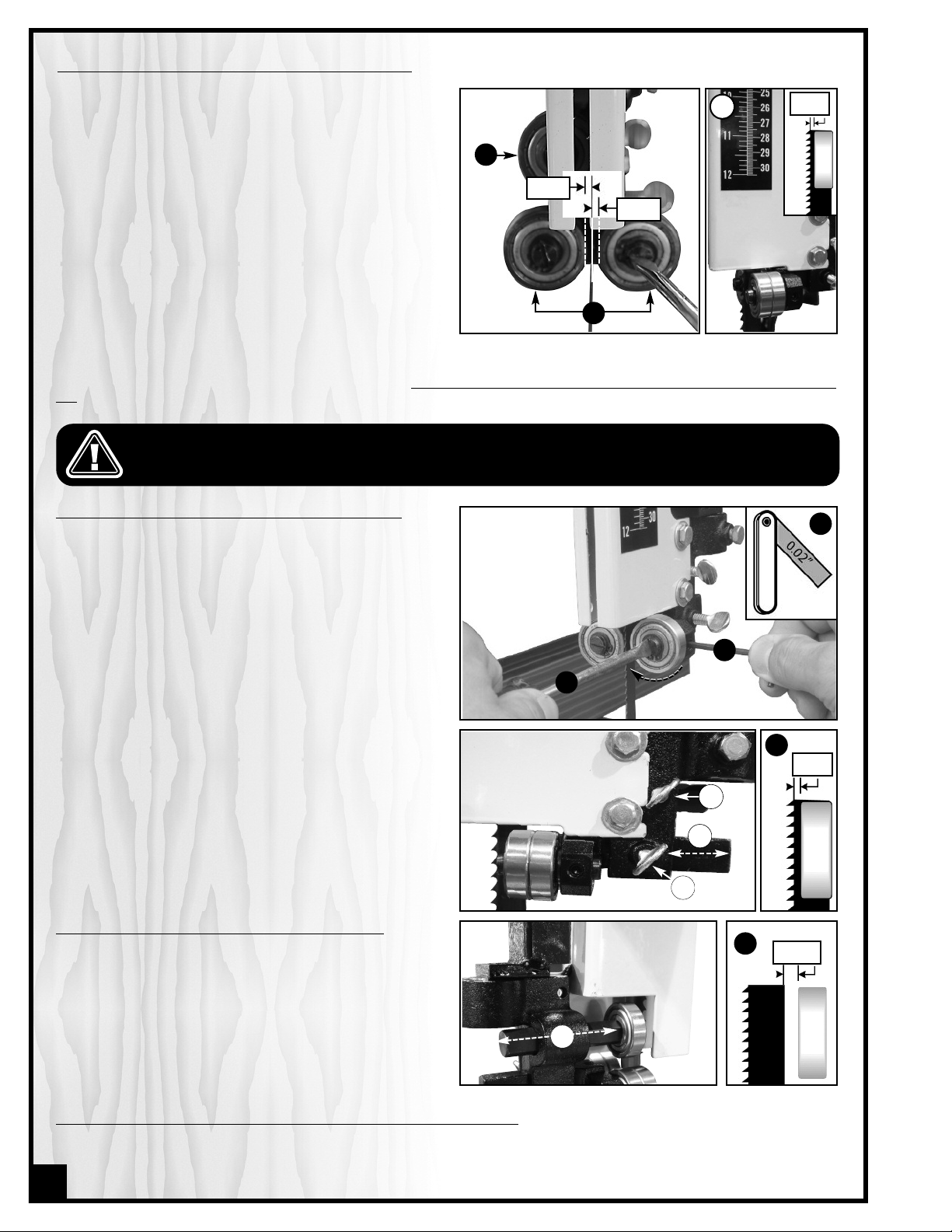

Your bandsaw is designed to handle several blade widths ranging from 1/8” and 3/8” used for tight radius curves,
up to 1/2” and 3/4” for larger radius curves or for cutting thicker stock.
B ADE C EARANCE
Note:Whenperformingbladeinstallation,removal,tensioningor
tracking,maximumclearancebetweenthebladeandbothupper
andlowerbladeguideassembliesisrequiredtominimizefriction,
whichwouldbedamagingtotheblade.
Move the upper & lower guide bearings away from the blade:
1. Using the supplied 3 mm Allen key, loosen set screw A.
2. Use a flat head screwdriver to make a quarter of a turn
toward the outside to the guide bearing Bto obtain maxi-
mum blade clearance.
3. Re-tighten set screw A.
4. Repeat steps 1 to 3 with the other upper guide bearing and
two lower guide bearings.
Move the upper thrust bearing away from the blade:
1. Loosen the upper thumb screw Con the upper blade guide
assembly.
2. Pull on the upper thrust bearing shaft Dgoing back as far as
possible for maximum blade clearance.
3. Re-tighten the upper thumb screw Cto lock the thrust bear-
ing in place.
Move the lower thrust bearing away from the blade:
1. Loosen the upper thumb screw Eon the lower blade guide
assembly.
2. Pull on the lower thrust bearing shaft Fgoing back as far as
possible for maximum blade clearance.
3. Re-tighten the upper thumb screw Eto lock the thrust bear-
ing in place.
A
B
C
F
BC
3. Remove the insert from the center of the
table D.
4. Remove the table alignment pin Efrom the table
slot.
D
E
1. Turn off the bandsaw and unplug the power cord.
2. Release blade tension by lifting handle B. It may
be necessary to also turn handle counterclock
wise Cfor the blade to be loose enough to remo-
ve easily.
14
D
E
DoNotOver-LoosenBladeTensionMechanism!Toavoidinadvertentlyunseating/disconnectingtheten-
sionmechanism,donotloosenthebladetensionbeyondtherangeshownonthetensionscaleA.Loosen
thetensiongradually,inincrements,toavoidlooseningtoomuch.
A

5. Open the top and bottom wheel cover doors and
bring the left hand side of the loose blade toward
you and out of the left hand blade guard slot E.
Note:Youmaywanttouseathickshoptoweltohandlethe
loosebladeorwearapairofheavydutyworkgloves.
6. With the blade perpendicular to the wheels, feed
the blade through the table slot to free it from the
saw F.
7. Carefully hang the blade on a hook in a safe, dry place in your workshop if it will be re-used, or dispose of it
safely if it is worn or damaged.
To install a blade:
1. Turn off the bandsaw and unplug the power cord. Note:Youmaywanttouseathickshoptowelto
handletheloosebladeorwearapairofheavy
dutyworkglovesforthefollowingsteps.
2. If you are installing a new blade, carefully remove the
blade from its package. Hold it firmly with one hand as
you remove the twist ties. Slowly separate the coils of
the blade until it unravels into one hoop.
BLADE TEETH ARE SHARP.
USE CARE WHEN HANDLING A SAW BLADE.
DO NOT ATTEMPT TO COIL UP THE BLADE AS IT WAS WHEN YOU FIRST PURCHASED IT AS IT HAS A TENDANCY TO POP
OPEN UNEXPECTEDLY AND COULD CAUSE INJURY.
15
BEWARE OF THE BLADE POPPING OPEN.
F
E
B ADE SE ECTION
There are a variety of different types of bandsaw blades on the market to suit various cutting applications. Your results
may vary based on usage, experience and personal preference.
Standard size - 112” (2845 mm) - replacement blades made from high carbon steel can be purchased in a variety of
widths from your General® International dealer under the following parts numbers:
•#90170-B14:1/4” - 6 TPI, blade thickness: 0.65 mm •#90170-B38: 3/8” - 6 TPI, blade thickness: 0.50 mm
•#90170-B12: 1/2” - 4 TPI, blade thickness: 0.65 mm •#90170-B34: 3/4” - 4 TPI, blade thickness: 0.65 mm
or (depending on availability) from your local tool dealer. These are standard sizes that should be readily available
in most areas. The use of any other size is not recommended and can lead to serious injury and/or damage to the
machine.
Some general guidelines to consider when choosing bandsaw blades:
• Wider blades with fewer teeth per inch are best suited to cutting straight lines, re-sawing and for sweeping curves,
but will not turn tight radius curves. They will cut quickly and aggressively but do have a tendency to bind (or get
stuck in the cut) if turned too sharply.
•Narrower, thinner blades with more teeth per inch will cut more slowly but can turn much tighter corners for cutting
more intricate work.
Common causes of blade breakage:
• Poor guide bearing alignment and adjustment. • eeding the workpiece too quickly.
• orcing or twisting a wide blade around a short radius. • Dull teeth.
• Setting blade guard assembly too high above the workpiece. • Too much blade tension.
• Lumpy or improperly finished braze or weld on the blade. • Continuous running of blade when not cutting.

B
A
Note:Steps3and4maybeunnecessaryifyou’vejustremovedablade.(Ifneeded,referbacktopage14.)
3. Remove the table alignment pin from the table slot and the red circular insert from the center of the table.
4. With the blade perpendicular to the wheels, guide it
through the table slot, then rotate the side of the blade
nearest you back toward the left side of the wheels.

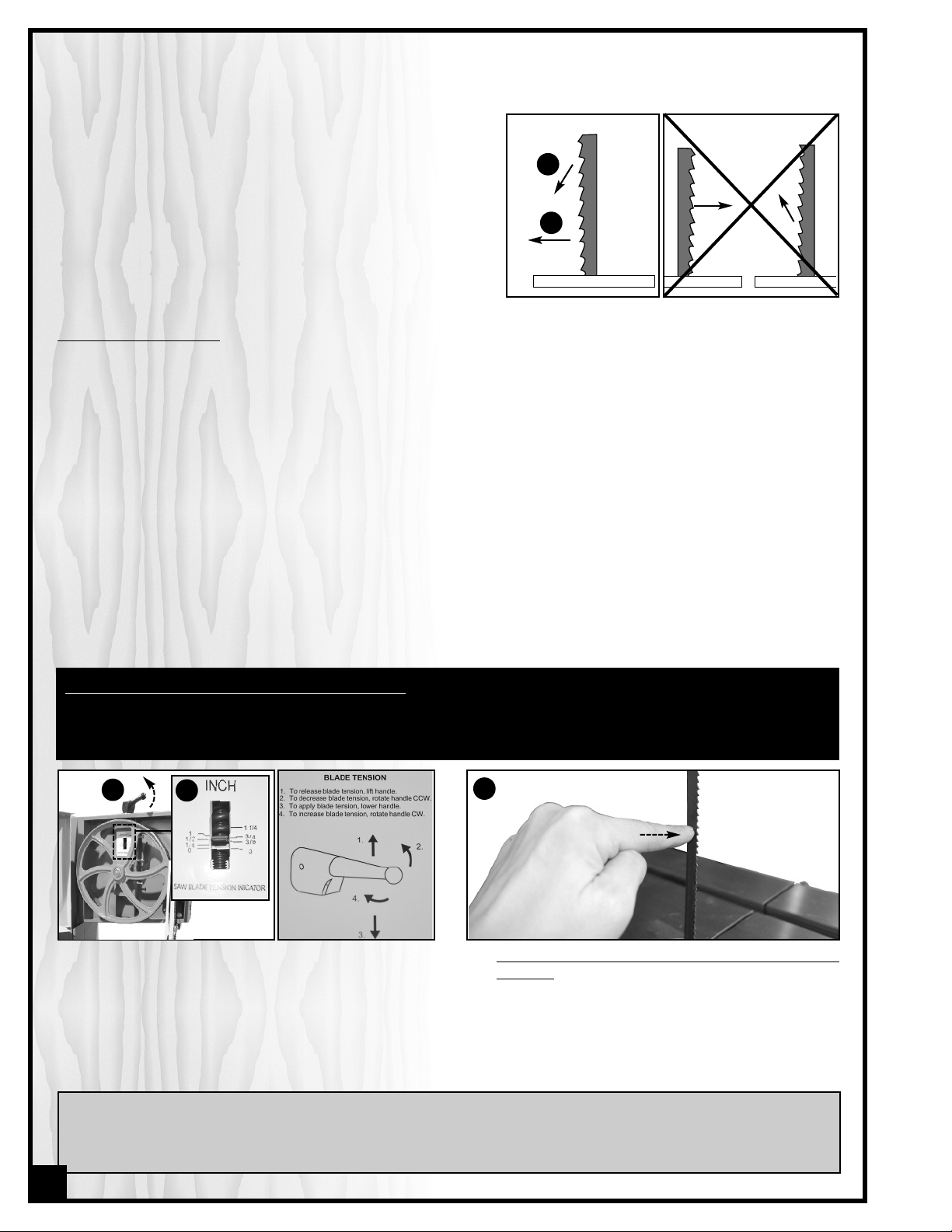

5. eed the blade into the left blade guard and around the
wheels. Make sure the blade teeth point forward Aand
down B.
With the blade properly installed, proceed to blade tension
adjustments and blade tracking adjustments, as per instruc-
tions on the next few pages.
ADJUSTING B ADE TENSION
Note:Toprolongthelifeofthebladewheneverthebandsawisnotinuseforprolongedperiods(morethan24hours),
releasethebladetensionlevertoremovetensionfromtheblade,Overtime,maintainingtensiononabladethatisnot
inusewillcausethebladetodeform,bytakingtheshapeofthewheelsatbothextremities.Thiscanweakentheblade
andcauseprematurebreakage.
16
C
2. With the saw turned off and the tension lever
lowered, press against the side of the blade to test
the tautness of the blade C. or ideal results with
most blade widths and cutting applications the
blade should flex in no more than 1/4" to 3/8".
3. Make a test cut on a sample piece of wood and if
needed re-adjust the blade tension
B
DoNotOver-LoosenBladeTensionMechanism!Toavoidinadvertentlyunseating/disconnectingtheten-
sionmechanism,donotloosenthebladetensionbeyondtherangeshownonthetensionscale.Loosen
thetensiongradually,inincrements,andretightenthetensionleverperiodicallyasyougotoverifyonthe
tensionscaleandavoidlooseningtoomuch.
1. Refering to the blade tension scale A, set the blade
tension to correspond with the width of the blade
installed on your bandsaw. Adjust the blade ten-
sion by lifting the blade tension handle B, then by
turning it:
- Clockwise to tighten
- Counter-clockwise to loosen the blade tension.
Determining ideal blade tension is somewhat subjective. It is learned through practice and experience and is some-
what dependant on personal preference and individual work habits.
A properly tensioned blade is critical to obtaining maximum performance from any bandsaw. A properly tensioned
blade will last longer and be much less likely to break prematurely. If the blade tension is too loose you will notice
that the blade will have a tendency to drift or slip off-line when cutting and you will have more difficulty controlling
your cuts. A blade that is tensioned too tightly will break prematurely and will be difficult to work with when making
tighter radius cuts.
The following information can be used as a guideline or starting point to assist you in determining ideal blade ten-
sion for your needs:
•When working with wider blades, re-sawing taller stock, making straight cuts or wide sweeping curves tight-
er blade tensions will provide better results.
•When working with narrower blades, sawing shorter stock and making tighter curved cuts are best per-
formed using less tension
This model 90-170B M1 bandsaw is equipped with a blade tension scale, which can be used as a reference for the
ideal setting with various blade widths.
A

ADJUSTING BLADE TRACKING
Blade trac ing means centering the blade on the wheels A.
Ideally, the blade should stay relatively centered on both
the upper and lower wheels.
Due to natural variations in castings, blade thic ness or den-
sity and tire wear, absolute perfect centering alignment is
rarely attainable. A slight misalignment of the blade on the
wheels is inevitable and as long as it is ept to a minimum
(following the steps listed below) will not hinder the perform-
ance of the saw.
This misalignment is controlled and ept to a minimum by
adjusting the tilt angle of the upper wheel.
When adjusting blade trac ing to center the blade on the wheels and assuming that perfect centering is not attain-
able, it is preferable to have the blade slightly off-center towards the front of the wheels rather than towards the rear
because the teeth on most bandsaw blades have alternating hoo (one inner, one outer) – therefore if the blade is
centered too far bac on the wheel (or if the blade tension is too tight), inner hoo ed teeth will dig into the wheel
tire and cause premature wear of the tire.
Nonetheless, to avoid having the blade come off of the wheels on it’s own during operation, the front edge of the
blades teeth should never be any closer than 3 mm (1/8”) from the front edge of the wheel B.
BLADE CLEARANCE
Note:A previouly tated,whenperformingbladeintallation,removal,tenioningortracking,maximumclearance
betweenthebladeandbothupperandlowerbearinga emblie i requiredtominimizefriction,whichwouldbe
damagingtotheblade.Referbackandfollowtheintruction for“bladeclearance”beforeperformingbladetrack-
ingadjutment.
A
B
3 mm - 1/8"
To adjust the blade trac ing:
1. Open the upper wheel cover door then rotate the wheel
slowly forward by hand Aand chec the position of the
blade on the wheel. The blade should remain as cen-
tered as possible on the wheel as it turns B.
2. If the blade trac ing must be adjusted, loosen the loc
nut Con the trac ing adjustment nobs D, then turn the
nobs:
- Cloc wise if the blade moves toward the front of
the wheel. This tilts the top of the wheel to the bac
and moves the blade toward the center.
- Countercloc wise if the blade moves toward the
bac edge. This tilts the top of the wheel to the front
and moves the blade toward the center.
Note:Turnthetrackingknob in1/2turnincrement,re-check
andadjutagaina needed.
3. With the trac ing set, re-tighten loc nuts C.
Note:Theupperandlowerwheel arefactory ettoallowforeayand
optimalbladetrackingadjutment uingtheprimarybladetracking
adjutmentknob,whichadjut theangleoftiltoftheupperwheel.In
extremelyrarecae,ifacceptablebladetrackingcannotbeattained
throughtheprimaryadjutmentitmayeventuallybecomenece aryto
makeminoradjutment totheangleoftiltofthelowerwheel.Thefour
bolt Emaybeadjutedinorouttotiltthelowerwheelup/downor
left/righta needed.
B
E
17
A
C
D

ADJUSTING THE UPPER / OWER B ADE GUIDES ASSEMB IES
The guide bearings Akeep the blade from moving from
side to side during cutting and must be snug but not
touching the blade in order to ensure accurate cuts. The
space between each guide bearing and the blade must
not exceed 0.02" (the thickness of a sheet of paper). If less
space is left, the blade will get stuck or jammed between
both bearings. Too much friction will cause blade to over-
heat and break.
Also, the guide bearings must remain at least 1/32” be-
hind the blade teeth to prevent damage to the blade B.
The thrust bearing Ckeeps the blade from moving back
and out of position when the work is being fed into the
blade and must be very close to the back of the blade to
prevent damage to the blade during cutting.
Note:Beforeadjustingtheupperandlowerbladeguidesassemblies,makesurethebladeistensionedandtrackingprop-
erly.Adjusttheupperandlowerbladeguidesassembliesaftereachbladetensionandtrackingadjustment.Wheneverthe
upperguidebearingsandthrustbearingareadjusted,thelowerguidebearingsandthrustbearingshouldalsobeadjust-
ed. TO AVOID INJURY, MA E SURE THAT THE POWER SWITCH IS IN THE “OFF” POSITION AND THAT THE POWER CORD IS
UNPLUGGED BEFORE PERFORMING ANY ADJUSTMENTS ON THE BANDSAW.
Adjust the positioning of the upper guide bearings:
1. Using the supplied 3 mm Allen key, loosen set
screw, A.
2. Use a flat head screwdriver to make a quarter of a
turn (approx.) toward the inside to the guide bearing
B, to obtain a space of 0.02" (the thickness of a sheet
of paper) between the bearing and the blade.
Tip:PlaceafeelergaugeCorsheetofpaperbetweenthe
bearingandthebladetomakesurethereisa0.02"space.
3. Re-tighten set screw Ato lock the guide bearing in
position.
4. Repeat steps 1 to 3 with the other upper guide bear-
ing.
5. Loosen the lower thumb screw D.
6. Move the upper guide bearing shaft in or out Euntil
the guide bearing are at least 1/32" behind the
blade teeth, (do not protrude past the hollowed part
of the teeth of the blade F.
7. Re-tighten the lower thumb screw D.
1/64"
0.02"
0.02"
A
C
A
B
C
1/32"
B
E
F
Adjust the positioning of the upper thrust bearing:
8. Loosen the upper thumb screw G.
9. Move the upper thrust bearing shaft in or out H
until the thrust bearing barely touches the blade (is
1/64" behind the back of the blade I).
10. Re-tighten the upper thumb screw G.
G
H
I
Adjust the positioning of the lower guide bearings and thrust bearing:
Repeat steps 1 to 10 with the lower guide bearings and thrust bearing.
18
1/32"
D

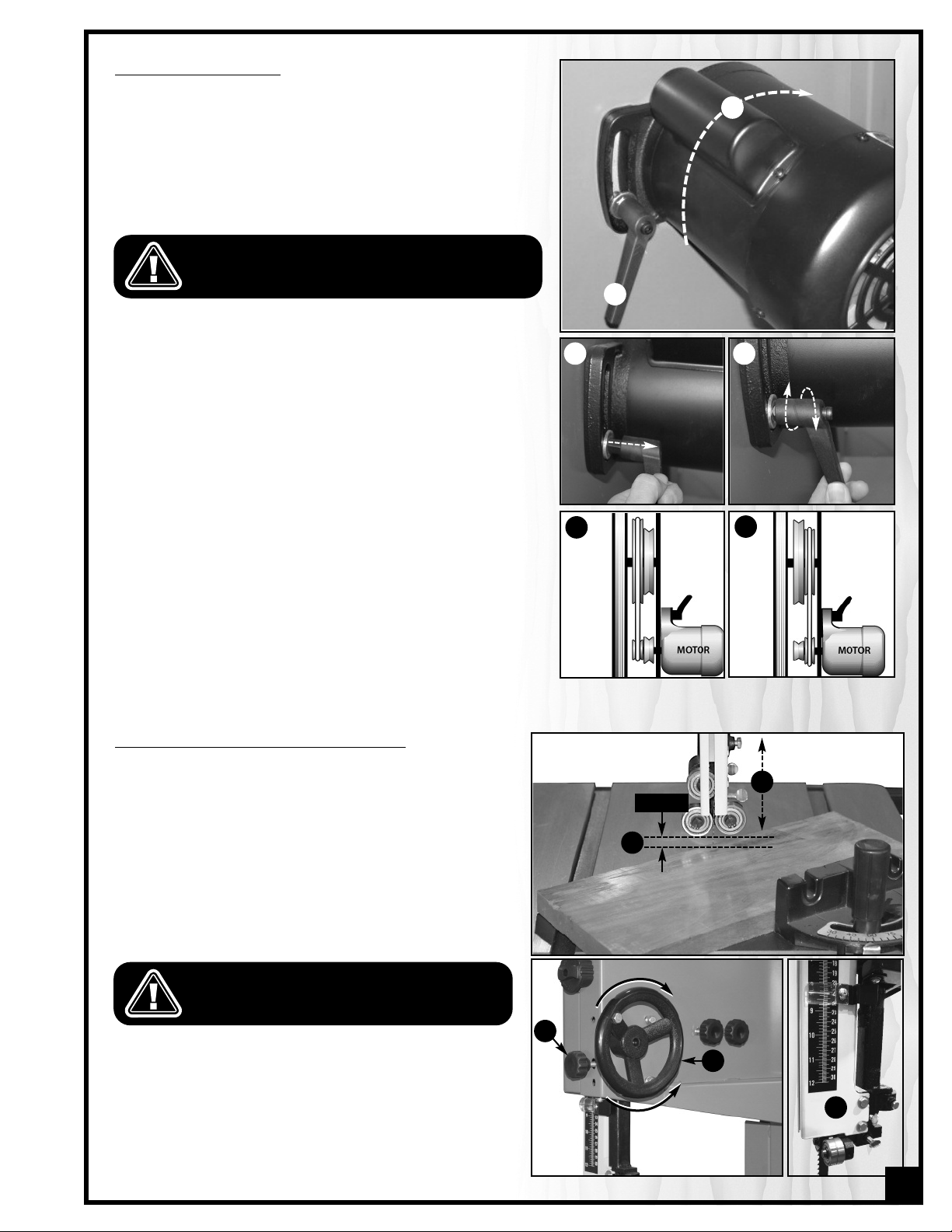

CHANGING SPEED SETTINGS
This model 90-170B has 2 different speed settings; low and high.
- Low speed is to be used for cutting soft woods over 4"
in height or hard woods over 2" in height.
- High speed is best for cutting soft woods under 4" in
height or hard woods under 2" in height.
Note:Ifwoodstartstoburnathighspeed,stopandchangetothe
lowerspeedsetting.
At the back of the bandsaw, just next to the motor, there is a
ratchet lever Afor loosening the tension on the drive belt. When
you pull it out as shown in B,it disengages for resetting.When you
release it, it engages the bolt for screwing or unscrewing C.
1. Unscrew the bolt a few turns counterclockwise then lift the
motor by hand Dand tighten ratchet lever Ato lock the
motor in position. This will loosen the drive belt enough to
move it between one set of pulleys and the other.
2. Open the lower wheel cover door.
3. To set the bandsaw speed to the slower setting; 2300 Lin.
PM (690 MPM), place the belt on the frontmost set of pul-
leys as in E.
4. To set the bandsaw speed to the faster setting; 3250 Lin.
PM (975 MPM), place the belt on the rearmost set of pul-
leys as in F.
5. Having repositioned the belt, set the motor back to it’s initial
position to tighten the belt around the pulleys, then turn the
ratchet lever clockwise until it is tight and the motor does
not move.
A
D
EF
ADJUSTING THE B ADE GUARD FOR DEPTH OF CUT
The blade guard can be moved up or down to accommo-
date the height of the work to be cut A. To prevent the bla-
de (which is flexible and which would not otherwise be
supported) from slipping out of position during cutting, and
to reduce risks of injuries, a minimum amount of blade
should be exposed.
Thebladeguardshouldbeset1/8”-1/4”abovethework-
pieceBtopreventthebladefromflexingoutofpositionoroff-
lineduringcutting.
Adjust the height of the blade guard to suit the thickness of
the workpiece as follows:
1. Make sure the bandsaw is turned off and the power
cord is disconnected from the power source.
2. Loosen the lock knob C.
3. Move the blade guide assembly up or down by turning
the handwheel D. Then re-tighten the lock knob C.
Note:ThedepthgaugeEonthebladeguardcanbeusedasa
referencebutitisnotintendedforhighprecisionmeasurements.
1/8” - 1/4”
RAISE
OWER
C
D
A
B
E
BEFORE MA ING ANY ADJUSTMENTS, MA E SURE
THAT THE SWITCH IS IN THE “OFF” POSITION AND
THAT THE POWER CORD IS UNPLUGGED.
19
BC
BEFORE MA ING ANY ADJUSTMENTS, MA E SURE THAT
THE SWITCH IS IN THE “OFF” POSITION AND THAT THE
POWER CORD IS UNPLUGGED.

20
OPERATING INSTRUCTIONS
NOTE:Nowthatyouhavecompletedthefouradjustmentstepswhichareanessentialpartofsafe,accuratebandsaw
operation,itwouldbeagoodideatomakeyourselfachecklistasfollowstoensurethateachadjustmenttothebandsaw
ismadeintheproperorderstartingwiththegeneralsafetyprecaution:
1. Turnoffthebandsawandunplugthepowercord.
2. Adjustbladetension.
3. Adjustbladetracking.
4. Adjustupperbladeguidesandthrustbearing.
5. Adjustlowerbladeguidesandthrustbearing.
CHECK IST BEFORE STARTING
Theseadditionalsafetymeasuresshouldbebeincludedinyourchecklist:
6. Makesureallthebladeguardsareinplace.
7. Makesurethebandsawtableandworkareaingeneralarecleanandfreeofsawdustanddebris.
Thesestepsshouldalwaysbefollowedwhenanyadjustmentisperformed,thebladeischanged,orperiodicallyasvibra-
tionandnormalwearandtearonthemachinecouldthrowthesepartsoutofalignment.
OPERATIONS STEP-BY-STEP
1. Trace the cutting line on your workpiece with a pencil.
2. Set the height of the blade guard according to the thickness of your workpiece (see section: “Adjusting the bla-
de guard for depth of cut”.)
3. If a dust collector is connected to your bandsaw, turn it on.
4. Push the green “START” button to start the bandsaw.
Note:Thesafetypinmustfirstberemovedfromthestartbutton.
5. Align the cutting line on your workpiece with the blade and feed the workpiece into the blade.
Tip:Theuseofarollerstandprovidesanextrasupportformoreconveniencewhenworkingwithlongerworkpieces.
TO STOP THE MACHINE
1. Push on the RED “STOP” panel and wait for the blade to come to a complete stop.
2. Turn your dust collector off.
TO REDUCE THE RIS OF DAMAGE TO THE BANDSAW OR THE WOR PIECE, AS WELL AS A POTENTIAL FOR PERSONAL
INJURY, AFTER INITIAL SET-UP AS WELL AS BEFORE EACH USE, MA E SURE THAT EVERYTHING IS SECURELY INSTALLED AND
THAT ALL FASTENERS AND MOVING PARTS ON THIS BANDSAW ARE LOC ED IN PLACE BEFORE STARTING THE MACHINE.
MA E SURE TO HAVE ON SAFETY GLASSES AT ALL TIMES WHEN USING THE BANDSAW.
MA E SURE YOU ARE WEARING SAFE APPROPRIATE WOR SHOP ATTIRE. ROLL UP LONG SLEEVES, SECURE LONG HAIR
AND REMOVE ANY JEWELRY: WATCHES, RINGS, BRACELETS OR ANYTHING THAT COULD GET STUC INTO THE MOVING
PARTS OF THE BANDSAW, POTENTIALLY CAUSING SERIOUS INJURIES.

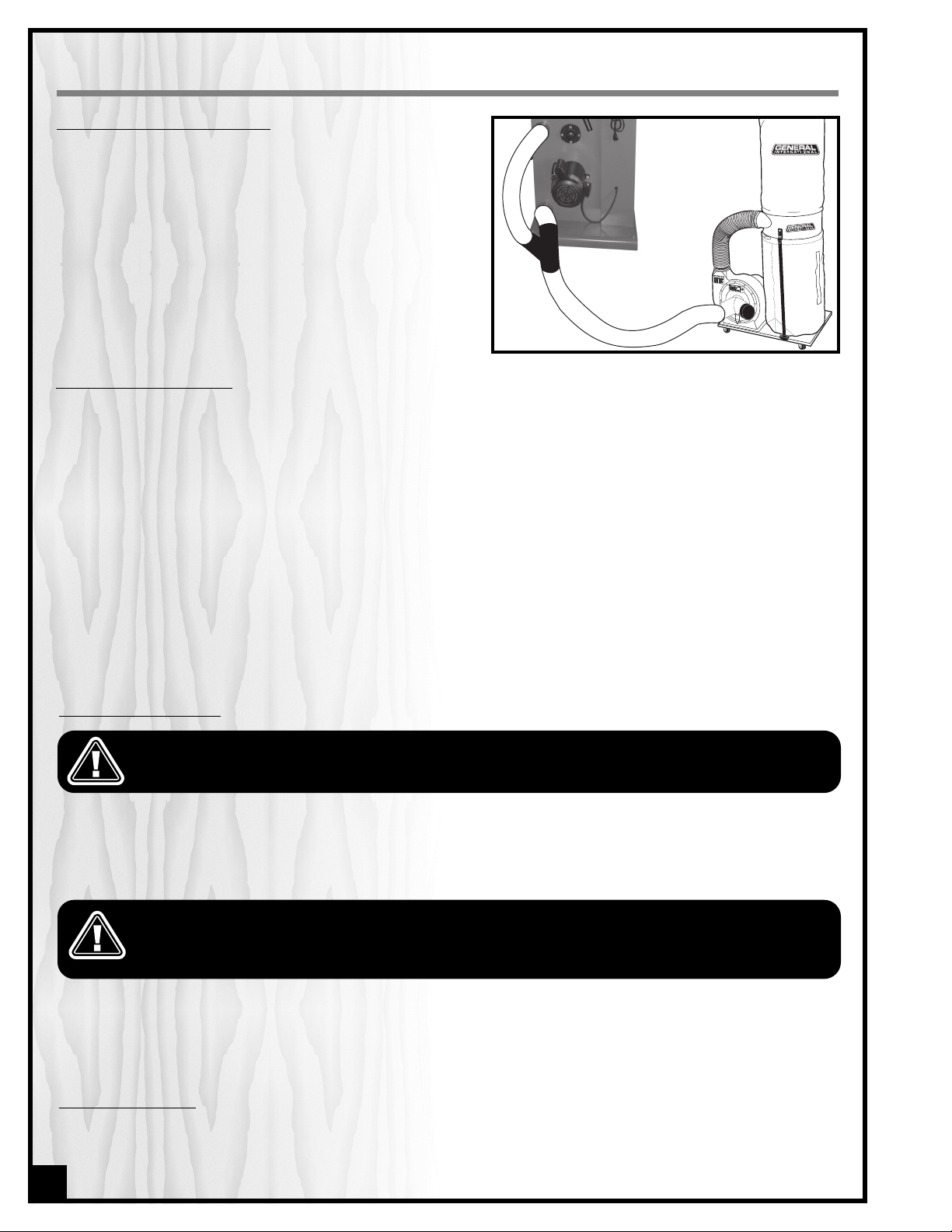

CONNECTING TO A DUST CO ECTOR
This model 90-170B is equiped with two built-in 4" diameter
dust chutes to accommodate connection to a dust collector
(not included).
Be sure to use appropriate sized hose and fittings (not includ-
ed) and check that all connections are sealed tightly to help
minimize airborne dust.
If you do not already own a dust collection system consider
contacting your General® International distributor for infor-
mation on our complete line of dust collection systems and
accessories or visit our Web Site at: www.general.ca.
