Rinnai RGP-43SV User manual

Infrared Gas Griller
(Upper Flame Type)
Contents
Thank you for purchasing this infrared gas
griller (upper flame type).
• Before use, please read this manual
carefully for safe and proper use of this
appliance.
• This appliance is for commercial use.
Not for domestic use.
• In case of change of user, be sure to let
the new user to read this anual and
provide instructions on the use of this
appliance.
• In case this operation manual is missing,
please contact your dealer or Rinnai and
repurchase this manual.
RGP-46SV
Dear Valued Users
For Commercial Use
Model Name
Operation Manual
RGP 43SV
RGP 46SV
1SAFETY PRECAUTIONS 1
Safety Precautions Be sure to observe the precautions
2BEFORE USING THE GRILLER 6
Preparations Before Use

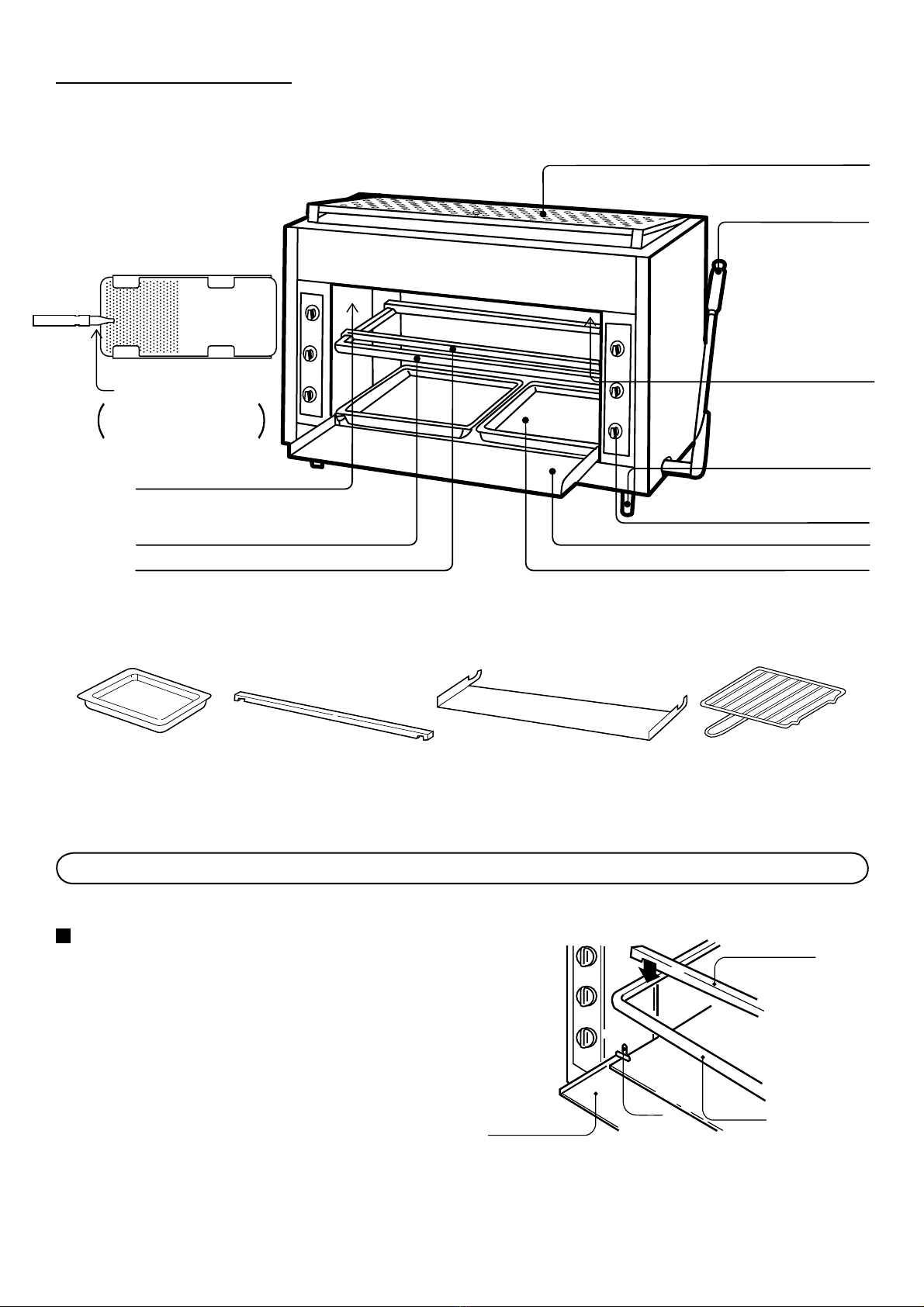

Names of Each Parts
3HOW TO USE 9
Preparations and Verifi cation Before Use
How To Use
Daily Inspection and Cleaning
4TROUBLESHOOTING 12
Fault/Error Identifi cation and Remedy
Specifi cations
External Dimensions
Gas Consumption
OT_ anual for RGP-43SV, 46SV

1SAFETY PRECAUTIONS Be sure to observe the precautions
Be sure to observe the following precautions for safe use of this appliance.
These precautions contain important safety information. The indications and their
defi nitions are as outlined below.
Indications Definitions
This indicates an immediate hazard that, if ignored, could result in death,
serious injury or fire due to incorrect operation.
This indicates hazard that, if ignored, could result in death, serious injury
or fire due to incorrect operation.
This indicates hazard that, if ignored, could result in injury or damage to
property only due to incorrect operation.
The above mentioned “injury” and “damage to property” refer to the followings
respectively.
Injury : Refers to wound, burns (hot and cold) and electric shock that requires no
hospitalization or long-term outpatient treatment.
Damage to property : Refers to extended damage in relation to house, household goods, livestock and
pets.
The definitions for the following symbols are as follows:
Disassembly
prohibited No fi re
General
prohibition
Compulsory
Do not touch
Ventilate
If you suspected a gas leakage,
never ignite any fire, turn on/off the
switch of any electrical appliance or
use the telephone located around
the gas appliance.
Flame or spark may ignite fire and an
explosion could occur.
If you detected a gas leakage, stop using
the appliance immediately.
1 Stop using the appliance and shut off
the gas valve (gas cock) immediately.
2 Open the windows and door for the gas
to escape.
3 Contact the nearest gas operator (supplier).
Caution
with fi re
CAUTION
WARNING
DANGER
DANGER
General Danger
Warning
Caution
No fi re
- 1 -

• Caution for the type of gas supplied
• Ensure that the type of gas (gas group) supplied is same as the one mentioned on the nameplate of
the appliance.
• Use of the appliance with incorrect gas type could result in carbon monoxide poisoning due to
incomplete combustion or burn injury due to explosive ignition.
• When you move to another house, ensure that the type of gas supplied is same as the one mentioned
on the nameplate once again.
Confi rm the gas
• About installation
• Be sure to observe the precautions on installation to ensure compliance with the Fire Prevention
Ordinance. Insufficient clearance around the appliance may result in fire. Even if an inflammable wall
is covered with the object such as stainless steel plate, it is necessary to maintain the same distance
as required for combustible objects.
•
Do not refurbish the appliance’s surroundings
after the installation (such as enclosing the
appliance, installation of hanging shelf).
Such a refurbishment may not be compatible
with the installation standards or cause
imperfect combustion or fire.

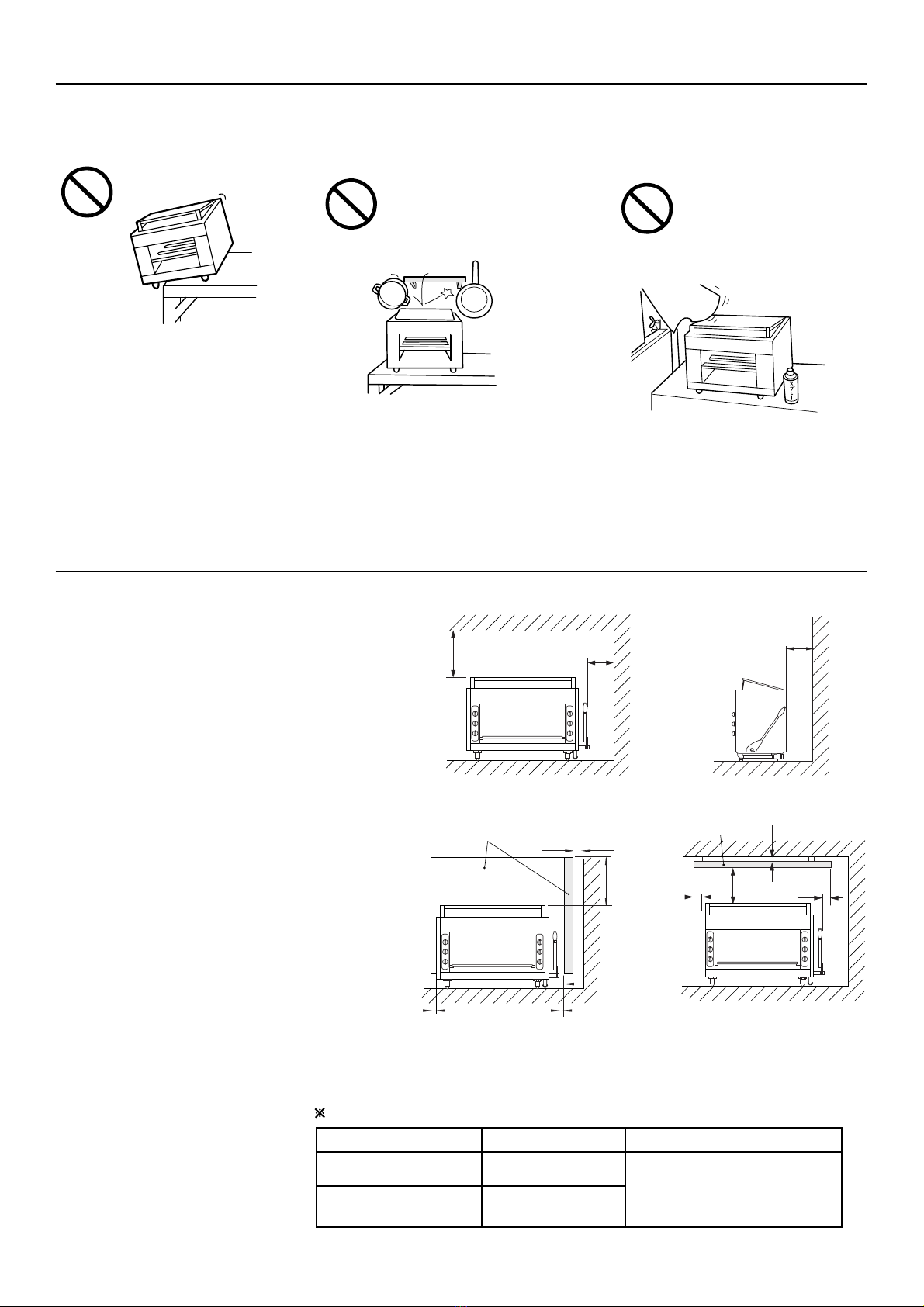

Safety distance to combustible object
and fi re prevention measures for the
surroundings
• If the wall around the appliance is
flammable (such as wooden wall),
be sure to keep a distance of at least
20cm, 15cm and 100cm for sides,
rear and top respectively.
Gap between ceiling and side wall Gap between back wall side
15cm and above
Gap 3cm
and above
50cm
and
above
0cm and above0cm and above
100cm and above
20cm
and above
Heat insulating plate Heat insulating plate Gap 3cm
and above
0cm and
above
80cm
and
above
0cm and
above
• If the distance of at least 20cm (sides),
15cm (rear) and 100cm (top) is
unavailable between the appliance
and flammable wall, installation of a
heat insulating plate is required as
shown in the illustrations on the right.
Be sure to maintain a safe
distance from infl ammable object
Heat insulating plate
aterial Thickness Caution
Steel plate
Stainless steel plate
0.6cm and above
0.6cm and above
• Prevention of gas accident
Gas pipe work requires specialist qualifications and expertise. Consult your dealer.
WARNING
Example) 08.12
( anufactured on
December 2008)
Leave
a gap
Ensure a space at least
3cm and provide adequate
reinforcement to prevent
harmful deformation.
- 2 -

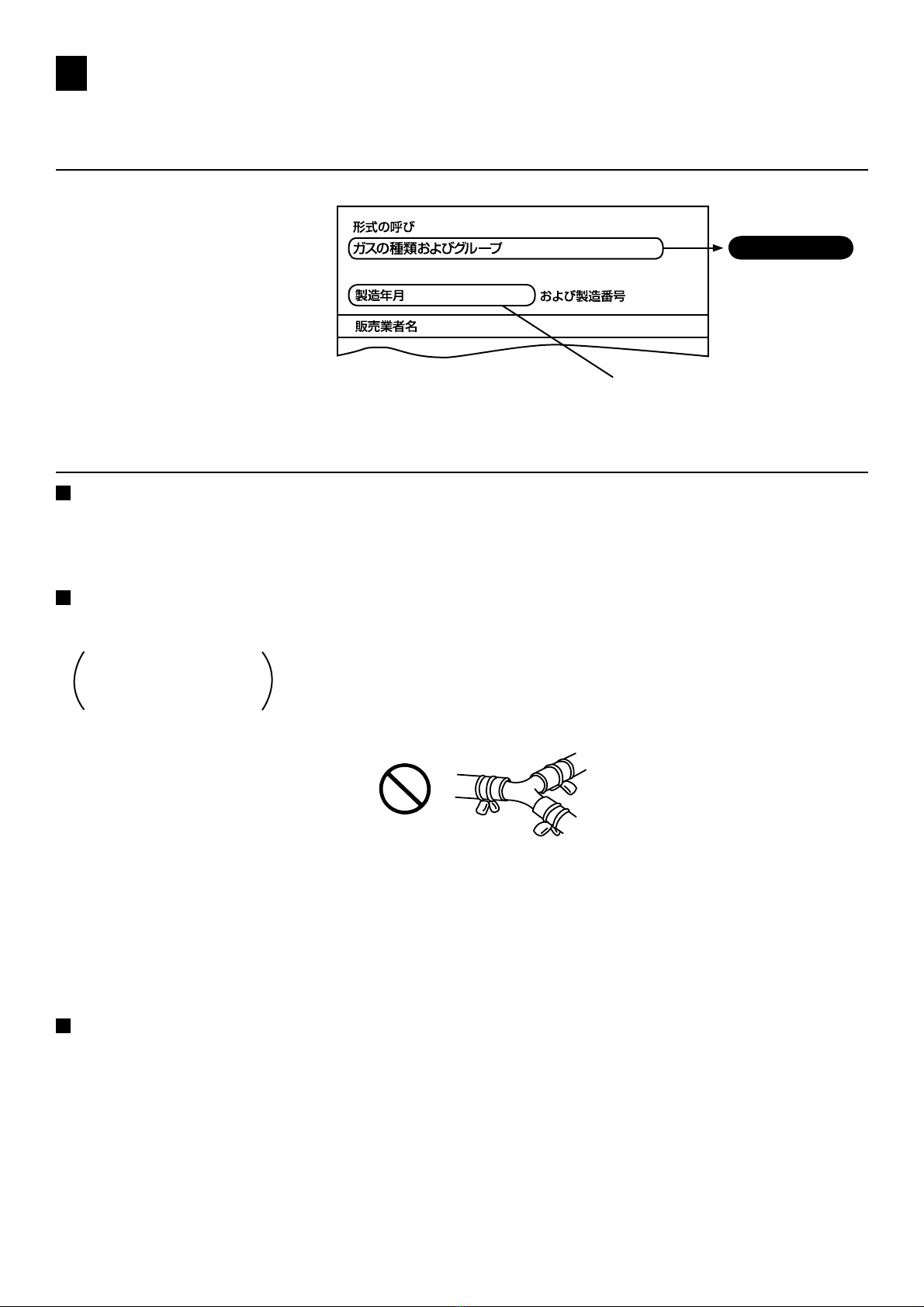

Confi rm the gas type
(Model name)
(Manufactured date)
(Type of gas (gas group))
(Distributor)
(Serial No: )
<Nameplate>

Prohibited
•
Do not leave the griller while the burner is on
Leaving the griller or going to sleep while the
burner is on is strictly prohibited. The food being
grilled could burn or catch fire and may
result in fire damage.
•
Always ensure the ventilation (air inlet/exhaust) of
the place where this appliance is used. Do not
block the ventilation with any object. Turn on
the ventilation fan or take other
measures to maintain good
ventilation while in use.
Ventilate
Disassembly
prohibited
•
Do not use in vehicle or ship.
The appliance may tilt while in use and cause fire
or burn injury.
•
Do not use this appliance near other heat source
or in a place on which water is spilled or splashed.
Failure to observe this warning may result in
failure of this appliance.
•
Do not install this appliance in any unstable place
or on top of combustible object. Failure to observe
this warning may result in fire.
•
Do not allow children to use this product without
adult supervision. Keep out of reach of infant and
small child. Failure to observe this warning may
result in burn or injury.
Caution with fi re
•
ake sure that no gas exists around the appliance
before repeating ignition. The gas suspended
around the appliance can be ignited and may
cause burn injury.
•
During cleaning, be careful of projecting parts
inside the unit. Hard contact with these parts can
cause hand injury. Be sure to wear gloves during
cleaning.
•
Do not place any towel or kitchen cloth, etc., on
the exhaust outlet while the grill is being used.
Failure to observe this warning could result in
incomplete combustion or fire.
•
If case of earthquake or fire or when any unusual
state is observed, stay calm and stop using the
appliance, and shut off the gas valve.
Prohibited
WARNING
Stop using
Do not leave the griller
while the burner is on
•
Do not modify the appliance
Never disassemble, repair or modify the appliance
unless it is necessary for maintenance work.
Failure to observe this precaution could result
in gas leakage or fire.
•
No placing of combustible object near the
appliance
Do not place any combustible object (such as
curtain, newspaper and paper bag) or inflammable
object (such as spray can) on top of or around the
appliance. These objects could
burn or catch fire and may
result in fire damage.
- 3 -

• Do not put water on the appliance. It could
result in incomplete combustion. • Do not use any part other than genuine parts and the parts supplied with this appliance.
Use of such part can cause carbon monoxide
poisoning may occur due to imperfect
combustion, burn damage or fire due to
overheating or abnormal combustion.
Prohibited
WARNING
CAUTION
• Prevention of gas accident
• Use a gas rubber hose (authorized
by local association).
Crack on the hose or loose hose
connection can cause gas poisoning
or gas explosion. Be sure to replace
damaged rubber hose with new
one.
• Push the rubber hose onto
the fitting up to the red line
and secure it with a hose
clamp.
• Do not connect additional
rubber hose or branch out
the hose.
• After use, make sure that the fire has been
extinguished. Be sure to shut off the gas valve
before going out or going to sleep.
• Do not use the griller for any purpose
other than cooking
Fire or burn damage can occur. Do not use the
griller for drying clothes, etc. Clothes may drop
onto the griller and cause fire.
Prohibited
• Do not touch the hot parts such as rotisserie
sticks, heat shield plate, grill frame and grate
during and immediately after use. Do not bring
your face or hand near the grill surface to avoid
contact with hot exhaust heat. Failure to
observe this caution can result in burn injury.
Caution with fi re
• Precautions on water tray
• Oil and fat deposited on the water tray may
catch fire and cause burn injury or fire damage.
• Be sure to fill the water tray with water before
use.
If the oil or fat deposited on the tray starts
splashing, be sure to replace water on the
tray to remove oil and fat.
Do not touch
Close the
gas valve
- 4 -

CAUTION
• Be sure to keep the burner control knob at
the fully turned position during use. If the gas
is regulated, the burner may go out or
imperfect combustion can occur.
• Leave the top plate open while the griller is in
use. Closed top plate during use may result
in imperfect combustion or failure of the
appliance. Top plate
Open
• Do not use this appliance in a place subjected to strong wind or the air blown from an air
conditioner.
Failure to observe this caution could result in failure or malfunction.
This appliance is for commercial use
• This appliance is for commercial use.
Do not use for dosmetic purpose.
• In case of change of user, be sure to let the
new user to read this anual and understand
the contents thoroughly before use.
• Do not cover the griller with towel or newspaper after use.
THINGS YOU NEED TO PAY ATTENTION
Fully open
- 5 -

2BEFORE USING THE GRILLER
• Preparation Before Use
• Ensure that the type of gas
(gas group) supplied is same
as the one mentioned on the
nameplate of the appliance.

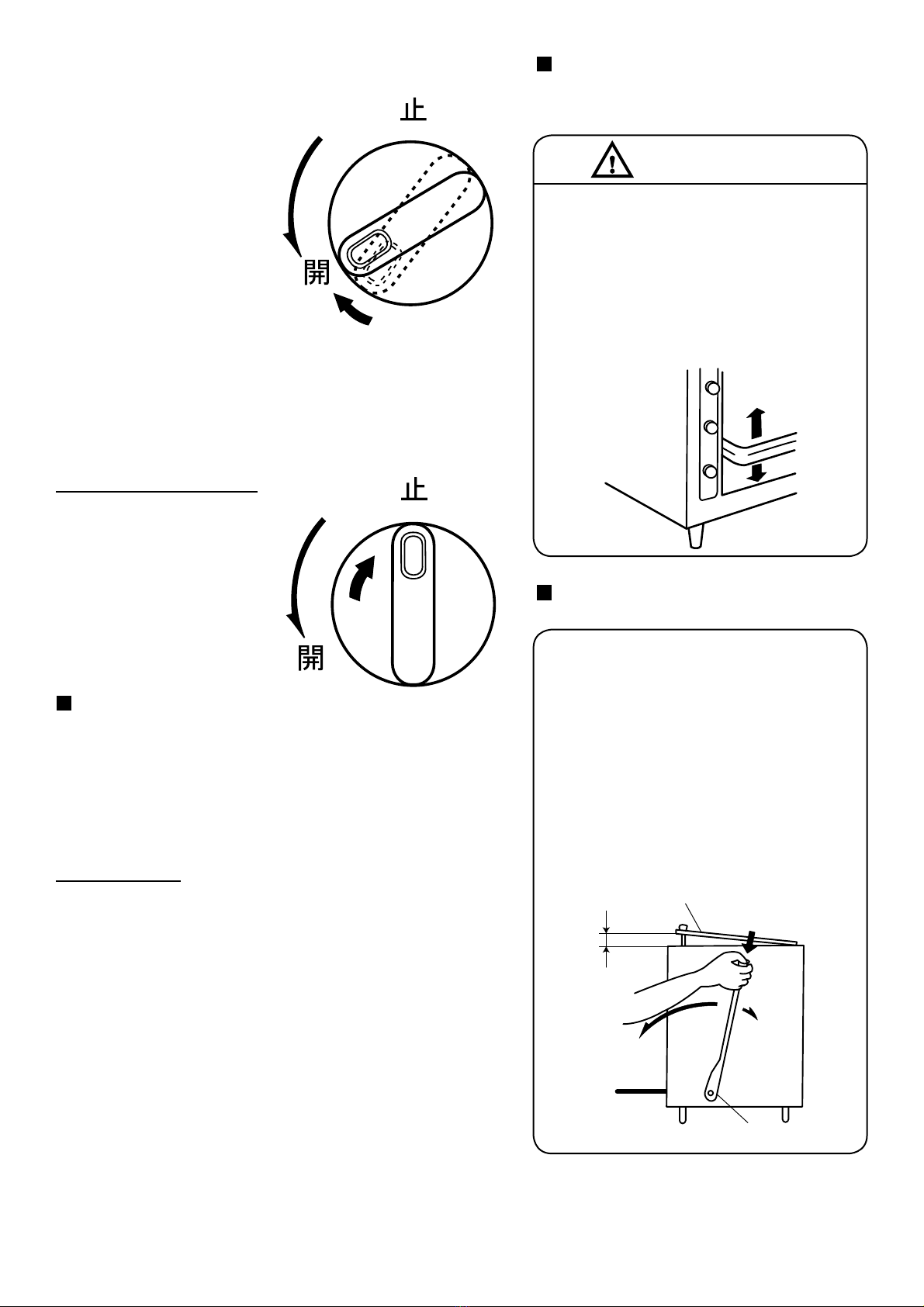

Gas valve
• Prepare a dedicated gas valve for this appliance.
• If there is no gas valve in the installation location or the gas valve is not appropriate, the gas valve needs
to be newly installed, relocated or replaced. Consult your dealer or gas operator.
Gas connection
• The connection port diameter is
ø 9.5mm hose end.
RGP-46: Natural gas
Gas other than LP gas:
ø 13mm hose end
RGP-46SV
For LP gas: ø9.5mm hose end
For natural gas: ø13mm hose end
• Use a gas rubber hose and make
it shorter as much as possible
(up to 2m with reasonable margin)
to avoid twist or bend. Do not
place the rubber hose under the
griller. Avoid contact between
hose and the griller.
• Push the rubber hose onto
the fitting up to the red line
and secure it with a hose
clamp.
• Do not connect additional
rubber hose or branch out
the hose.
• Use a gas rubber hose only.
Never use any vinyl hose.
(Vinyl hose is not resilient
and vulnerable to heat.) The
hose with any crack or loose
connection problem must be
replaced with new one.
• When a fuse cock is used,
select the one appropriate for
the gas type and gas amount
to be used.
• Gas pipe work requires specialist qualifications and expertise. Consult your dealer.
• Gas connecting screw of 15A (R1/2) is available by removing the hose end of the griller.
Installation
• Rectify the shaky griller by adjusting the legs at four corners on the bottom to ensure the level installation.
Check the type of gas supplied
Gas connection and installation
- 6 -
Example) 08.12
( anufactured on December 2008)
Confi rm the gas type
(Model name)
(Manufactured date)
(Type of gas (gas group))
(Distributor)
(Serial No: )
<Nameplate>

Installation location
Location without a risk of
falling object
Do not use this appliance in a
location with a risk of
falling object such as
under a shelf. The object
fallen on top of it may
burn and cause fire.
Location without flammable
object such as curtain and
spray can
Do not use this
appliance near curtain
or flammable object.
These objects may
catch fire and cause
fire damage.
• Install the appliance in a location with low humidity to ensure durability.
• Always ensure the ventilation (air inlet/exhaust) of the place where this appliance is used, and do not block
the ventilation with any object. Be sure to maintain good ventilation while in use. Using this appliance in a
closed location for a long time may cause imperfect combustion due to low oxygen level and, which can
result in carbon monoxide poisoning.
Safety distance to combustible object and fi re prevention measures for
the surroundings
• If the distance of at least 20cm (sides),
15cm (rear) and 100cm (top) is unavailable
between the appliance and flammable wall,
installation of a heat insulating plate is required
as shown in the illustrations on the right.
• Be sure to observe the precautions on
installation to ensure compliance with the
Fire Prevention Ordinance. Insufficient
clearance around the appliance may result
in fire. Even if an inflammable wall is covered
with the object such as stainless steel plate,
it is necessary to maintain the same distance
as required for combustible objects.
•
Do not refurbish the appliance’s surroundings
after the installation (such as enclosing the
appliance, installation of hanging shelf).
Such a refurbishment may not be compatible
with the installation standards or cause
imperfect combustion or fire.
• If the wall around the appliance is
flammable
(such as wooden wall), be sure to keep a
distance of at least 20cm, 15cm and 100cm
for sides, rear and top respectively.
Stable, level location
Do not use this appliance in any
unstable or windy location.
Gap between ceiling and side wall Gap between back wall side
Gap 3cm
and above
100cm and above
20cm
and above
15cm and above
Heat insulating plate Heat insulating plate Gap 3cm
and above
0cm and
above
80cm
and
above
0cm and
above
50cm
and
above
0cm and above0cm and above
Leave
a gap
aterial Thickness Caution
Steel plate
Stainless steel plate
0.6cm and above
0.6cm and above
Ensure a space at least
3cm and provide adequate
reinforcement to prevent
harmful deformation.
Heat insulating plate
- 7 -

• Name of Each Parts
• Main unit
(RGP-46SV)
(Bottom view)
Grill mesh
Top plate
Height adjustment
lever
Leg
Knob
Heat shield plate
Water tray
• Accessories
Water tray
• RGP-43SV...1 pc
• RGP-46SV...2 pcs
Rotisserie sticks...2 pcs Heat shield plate...1 pc Grate
• RGP-43SV...1 pc
• RGP-46SV...2 pcs
Installation of parts
Installation of parts
• Place the rotisserie sticks properly on the grill
frame. (The grooves on the rotisserie stick should
be engaged with the grill frame to prevent the
rotisserie sticks from coming off of the frame.)
• Be sure to attach the heat shield plate to the front
side of the griller. (The heat shield plate should
be attached by engaging it with the pins to
prevent it from coming off.)
Remove the papers/packaging materials and install the appliance correctly.
Grill mesh
Pin
Equipped with each
main burner
Flame detection part
Flame detection part
Flame detection part
Rotisserie sticks
Rotisserie sticks
Heat shield plate
- 8 -

3HOW TO USE
•
Preparation and Verifi cation Before Use
Preparation
• ake sure that the burner control knob is
at the “OFF” position and then fully turn on
the gas valve.
• Fill the water tray with water to approximately
half level.
• Open the top plate.
• Pull out the heat shield plate towards you.
CAUTION
• If the griller is used without filling the water tray
with water, the oil and fat deposited on the water
tray may catch fire. Be sure to fill the water tray
with water to approximately half level before use.
• During use, make sure from time to time that the
water tray is filled with water without a lot of oil and
fat deposited. If the oil or fat deposited on the tray
starts splashing, be sure to replace water on the
tray to remove oil and fat. If the water tray is used
without replacing water, the splashed oil and fat
may catch fire. Caution should be exercised during
water replacement as the water tray may be very
hot.
• Using the griller with its top plate closed may result
in failure. Be sure to use it with its top plate open.
•
How To Use
1 Ignition
• Push the burner control
knob and slowly turn
counterclockwise (towards
ON direction) until it stops.
• A click sounds and the pilot burner is ignited. Keep the
knob pushed in and turned for a few seconds until the
main burner is ignited.
•
Wipe the main unit with a clean cloth.
•
Wash the grate, heat shield plate, rotisserie
sticks and water tray using neutral detergent
and then wipe them with a clean cloth.
When using this appliance for the first time
CAUTION
CAUTION
• Do not bring your face too near the burner
during ignition. Burn injury on the face may occur
due to flame or heat. Caution on high
temperature
Verifi cation
• No flammable object such as paper, plastic, oil and spray can is placed near the appliance.
• The rubber hose is not cracked, excessively bent or in contact with the griller.
• Ignite the main burners by turning the
burner control knobs one by one.
• When the burners are ignited for the first
time, the ignition may not be smooth due
to the air trapped in the rubber hose. In
this case, repeat the ignition operation
few times until the air is released. If the
ignition attempt fails, turn the burner
control knob back to the original position
and then make another ignition attempt.
Ignition may fail if the knob is turned too
fast.
Push and turn (OFF)
(ON)
- 9 -

• Release your hand from the burner control knob only
after making sure that the
main burner has been
ignited.
• The burner control knob
slightly returns up to “ON”
position.
• ake sure that the main
burner is burning. If the
burner goes out, it means
the knob was not kept pushed in and turned long
enough. Repeat the ignition operation and hold the
knob longer.
Flame control
• Be sure to keep the burner control knob
at the fully turned position during use.
CAUTION
• In case of low heat grill, the flame
can be flexibly controlled with the
burner control knob but the radiation
effect will substantially be lost once the
gas is regulated. To control the heat,
adjust the grill height with the height
adjustment lever while maintaining the
burner control knob at fully turned
position.
2 Extinguishment
• Turn the burner control
knob clockwise fully (up
to the “OFF” position).
• ake sure that the
main burner has been
extinguished.
Re ignition
• Slowly turn the burner control knob counterclockwise
(towards ON direction) until it stops.
• When re-igniting immediately after extinguishing, wait
for about 5 seconds before the next ignition attempt.
3 After use
• ake sure that the burner control knob is at the “OFF”
position and shut off the gas valve fully.
• Do not cover the griller with towel or newspaper.
Height adjustment lever
and top plate
Top plate
Open
Up
Down
• The grill height can be adjusted to your
preference with the height adjustment
lever. Adjust the grill height according
to the type and size of the ingredients
to be grilled.
You may change the grill surface
height by moving the lever back and
f orth while pressing the top button. Lock
the lever at your desired grill height.
• Keep the top plate open while in use
as shown in the illustration.
Height adjustment lever
Push and turn (OFF)
(ON)
Push and turn (OFF)
(ON)
- 10 -

• Daily Inspection and Cleaning
First of all, make sure that: 1 the gas valve is shut off; and
2 the griller has been cooled down.
WARNING
• Users other than repair personnel must
never disassemble, repair or modify this
appliance. Failure to observe this warning
may result in fire, gas leakage or injury
due to malfunction.
Disassembly
prohibited
• Do not put water on the appliance. It could
result in incomplete combustion.
Inspection
• Check if a gas rubber hose is used and connected to the griller as well as the gas valve properly up to the
red line.
• Check for gas leakage from the gas connection from time to time using soap water, etc.
• Check if any combustible object such as paper, plastic and spray can is placed near the appliance.
• Check if a lot of oil and fat is deposited on the water tray from time to time. If the oil or fat deposited on the
tray splashes during use, replace the water on the tray.
Cleaning Be sure to wear gloves when cleaning to prevent injury.
Usable tools
Unusable tools
• Neutral kitchen detergent • Soft cloth • Sponge
• Acidic detergent, alkaline detergent
• Cleanser (Scrubbing powder)
• Alcohol, thinner, benzene
• etal brush, Nylon brush, metal spatula
A caution label containing safety information is pasted on the main unit. If the label is dirty and unreadable,
wipe the appliance with a soft cloth and watch out for the label when cleaning. If the label is peeled off or
unreadable, contact your dealer or any Rinnai office for repurchase and re-paste of the label.
Main unit, grill mesh
• Wipe well with a dry cloth. In case of stubborn dirt, clean with a cloth
dampened with neutral detergent solution, wipe off the detergent adequately
and then wipe with a dry cloth. Damage may be promoted if the dirt is left
untreated.
Flame failure device (Flame detection part)
• Wipe off the dirt on the flame detection part with a dry cloth while paying
attention not to damage the main burner.
Grate, water tray, heat shield plate, rotisserie sticks
• Clean the dirt with neutral detergent and wipe off the water well with a dry cloth.
• Reattach them to the main unit after cleaning.
About consumable parts Contact your dealer or any Rinnai offi ce for purchase of consumable parts.
Grate, water tray, heat shield plate, rotisserie sticks
• You may purchase grate, water tray, heat shield plate and rotisserie sticks if any of these parts is deformed
or damaged to the extent that the use of the griller is likely to be affected.
- 11 -

4TROUBLESHOOTING
•
Fault/Error Identifi cation and Remedy
WARNING
If you notice something abnormal while in use, immediately
stop using this product and shut off the gas valve.
Symptom
The fl ame is not ignited.
It is hard to ignite. • Is the gas valve fully opened?
Cause
It is hard to ignite (from
pilot burner to main burner)
Explosion-like ignition
The burner does not turn
red when heated.
• Is the gas valve fully opened?
• Is the fl ame detection part of
the fl ame failure device dirty?
• Is the fl ame holes on the
burner clogged?
• Fully open the gas valve.
Action to be taken
• Fully open the gas valve.
• Clean the fl ame detection
part.
• Clean the clogged fl ame
holes on the burner.
The fl ame goes off
while using.
• Is the burner control knob fully
opened?
• Is the gas valve fully opened?
• Is the fl ame holes on the
burner clogged?
• Is the fl ame detection part of
the fl ame failure device dirty?
• Fully open the burner control
knob when using.
• Fully open the gas valve.
• Clean the clogged fl ame
holes on the burner.
• Clean the fl ame detection
part.
If the problem still persists even after you have checked the above items, stop using the griller
immediately and contact your dealer or any Rinnai offi ce.
The phenomenon outlined below is not a failure of the appliance.
Symptom Cause and action
The main burner goes
out once the hand is
released from the
knob after ignition.
• If the burner goes out when the hand is released from the burner
control knob, it means the knob was not kept pushed in and turned long
enough. Repeat the ignition operation once again. At this time, hold the
knob longer and release your hand from the knob slowly.
Flame failure device
• Flame failure device is a safety device to shut off the gas automatically in the event the fl ame of the main
burner goes out.
• What to do if the fl ame failure device is activated?
When the
fl ame goes out
while in use
To re-ignite the
burner
Turn the burner control
knob back to the
position immediately.
Wait for a while until no gas is
suspended around the griller
and wipe off the dirt on the fl ame
detection part before resuming
the use of the griller.
Notes
• Ignition may become harder if dirt or
foreign objects accumulate on the
fl ame failure device (fl ame detection
part). Remove the dirt or foreign objects.
• Do not allow any hard object to come
into contact with the fl ame detection
part. It can cause deformation and may
result in ignition problems.
- 12 -

• Specifi cations
odel name Infrared Gas Griller (Upper Flame Type)
odel no. RGP-43SV RGP-46SV
Type
Ignition system
Safety devices
Dimension
Weight
Accessories
Gas connection
Upper fl ame
Piezo
Flame failure device
(W) 613mm x (D) 400mm x (H) 602mm (W) 988mm x (D) 400mm x (H) 602mm
23kg 35kg
Grate (1 pc), water tray (1 pc), heat shield
plate (1 pc), rotisserie sticks (2 pcs),
operation manual (1 book),
contact list (1 pc)
ø9.5mm gas rubber hose
(15A, R1/2)
• Gas consumption
Gas in use Gas consumption per hour
Gas group RGP-43SV RGP-46SV
For natural gas 5.47kW/18664.41 BTU 10.9kW/37192.34 BTU
5.74kW/19585.69 BTU 11.5kW/39239.62 BTU
For LP gas
For natural gas: ø13mm gas rubber hose
For LP gas: ø9.5mm gas rubber hose
(15A, R1/2)
•
External dimensions (Unit: mm)
RGP-43SV
Upper view
Side view
14
37
300
400
Front view
380
613
95 6870
330
330
510 602
19
545
73
RGP-46SV
Upper view Front view
19
602 51073
920
680
730
988
330
95 85
Side view
300
400
37
14
Grate (2 pcs), water tray (2 pcs), heat
shield plate (1 pc), rotisserie sticks
(2 pcs), operation manual (1 book),
contact list (1 pc)
- 13 -

RINNAI (MALAYSIA) SDN. BHD. (015790-A)
D2-3-G & D2-3-1, Block D2,
Pusat Perdagangan Dana 1,
Jalan PJU 1A/46, 47301 Petaling Jaya,
Selangor Darul Ehsan, alaysia.
Tel: [phone] & 03-7832 0039
Fax: [phone] Website: www.rinnai.com.my
