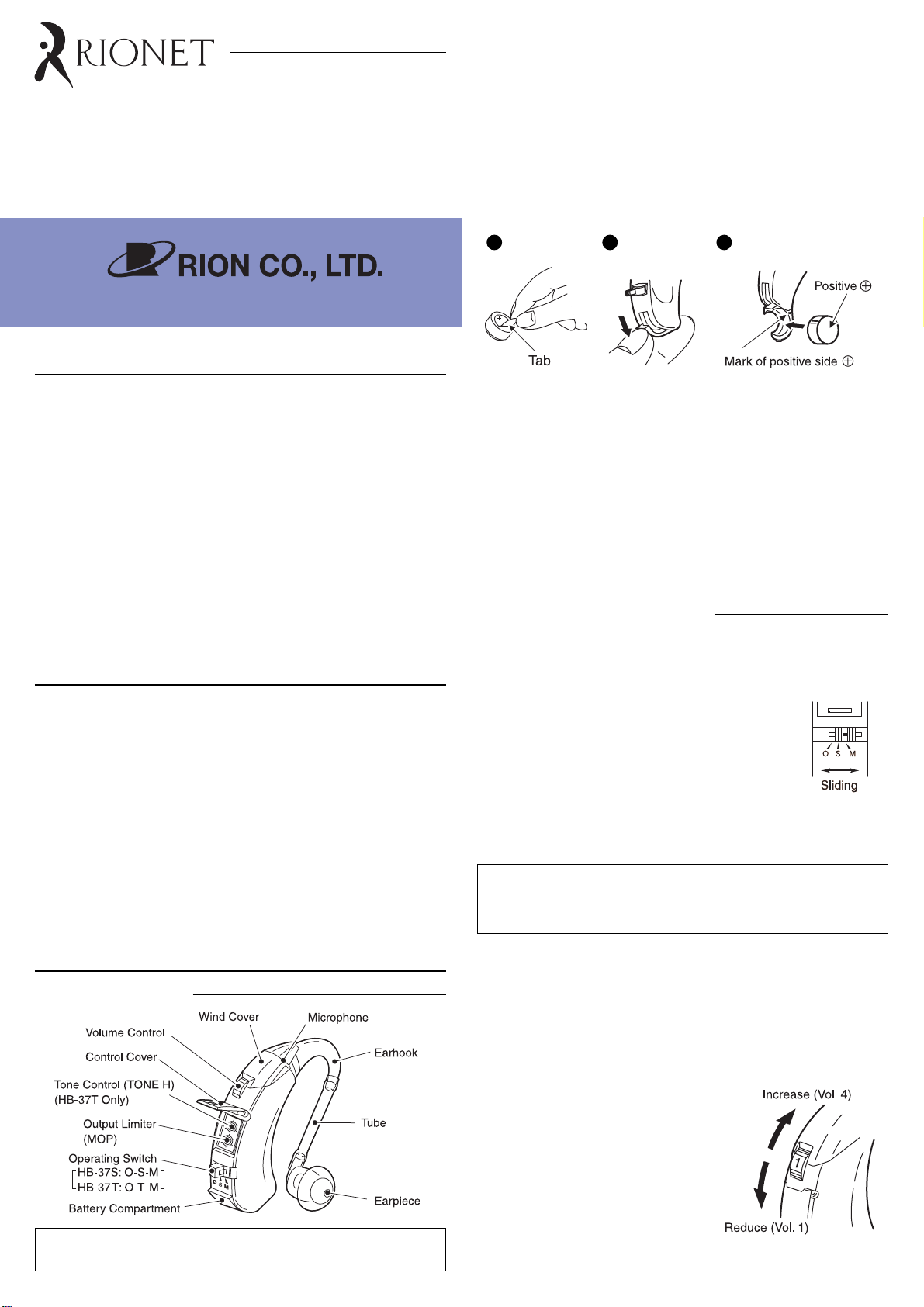

rionet HB-37S User manual

Battery Placement
1. Remove thetabonthebattery(PR-44 or A675HP zinc-airbattery).
2. Open the battery door.
3. Place the battery in the door, checking to see that the battery
is in with the positive the plus mark side matched.
4. Close the battery door tightly.
HOW TO USE YOUR FIRST HEARING AID
zAny hearing aid cannot return level of your hearing to normal or
halt further hearing deterioration, but proper use of your hearing
aid can help you hear what is going on around you and let you
get more enjoyment of life.
z
If this is your first hearing aid, you - like most new users - will
probablybe surprised at the loudness of thesounds, and after using
itforashortwhile,youmay even feelthatitis too noisy.Thefollowing
three tips are important in overcoming your concerns.
1) Read this manual and become familiar with the hearing aid's
various mechanisms and how to use them correctly.
2) First, use your hearing aid in a quiet place and listen to quiet
sounds and give yourself sufficient time to get accustomed
to the sound of your hearing aid.
3) If any physical problems develop, consult your doctor.
FOR KEEPING YOUR HEARING AID LONGER
zAlways keep the hearing aid clean. Clean the hearing aid with
dry cloth periodically and also remove earwax plugged in the
earpiece or earmold using eyebrush or toothbrush.
zDo not expose the hearing aid to the heat from stoves, etc. Also,
avoid leaving it in places with high humidity.
zOperate the controls with care. Do not press hard.
zIf the hearing aid is dropped in water, wipe with dry cloth and ask
the dispenser for check.
zDo not pick the microphone with nail, pin, etc., because this may
damage the microphone.
zDo not disassemble or attempt any repairs by yourself. Ask the
dispenser for repair.
OPERATING INSTRUCTIONS
Parts and Controls
3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan
HB-37S
HB-37T
Tube and earpiece shown above are not included as
standard accessories in some countries.
HEARING AID
Be sure to remove the battery when the hearing aid is not to be
used more than one week.
In addition, Zinc-air battery may be discharged gradually after
removing the tab.
Battery life (PR-44 or A675HP, for continuous use)
HB-37S: Approx. 420 hours
HB-37T: Approx. 380 hours
Battery life will change depending on the operating
condition.
3-Position Operating Switch
(HB-37S: O-S-M, HB-37T: O-T-M)
O: Power off
Set to "O" when the hearing aid is not in use.
S: Power on and low frequency reduced
(HB-37S Only)
Set to "S" when using the hearing aid in noisy
place.
T: Induction coil (Telephone coil)
(HB-37T only)
Set to "T" when the hearing aid is used for telephone or loop
system.
When the switch of the hearing aid is set to T, noise may be
heard in the vicinity of electromagnetic fields, such as generated
for example by electronically secured gates or similar.
M: Microphone
Set to "M" for ordinary use.
When taking off the hearing aid, set the switch to "O". If not,
whistling (acoustic feedback) may occur.
Volume Control (Vol. 1 to 4)
1. Turn the volume all the way
down (Vol. 1) before putting your
hearing aid in your ear.
2. Then, adjust the volume to the
appropriate level.
The best position of the control will
depend on the distance and sound
level you want to hear.
1 2 3

TECHNICAL DATA (According to IEC Standard Pub. 118-0-1983)
Model HB-37S HB-37T
Reference Test Frequency 1600 Hz
OSPL90 123 dB
500 Hz 123 dB 122 dB
Peak 129 dB
Full-on Acoustic Gain 54 dB
Equivalent Input Noise Level 29 dB
Total Harmonic Distortion 800 Hz: 5% 1600 Hz: 10%
Induction Coil Sensitivity(at 1 mA/m) NO 88 dB
Operating Switch O-S-M O-T-M
Output Limiting Control MOP, range 10 dB (continuous)
Tone Control NO TONE H, N to 4
Low Frequency Reduction S NO
Battery Type, Supply Voltage PR-44 or A675HP, 1.3 V
Battery Current, Life 1.25 mA, 420 h 1.38 mA, 380 h
Dimensions 3.9 × 1.42 × 0.88 cm
Weight (excluding battery) 5 g (Typical value)
TECHNICAL DATA (According to ANSI Standard S3.22 1987)
Model HB-37S HB-37T
Maximum SSPL90 125 dB
HFA-SSPL90 120 dB
HFA-full-on Gain 52 dB
Reference Test Gain 42 dB
Frequency Range 160 Hz to 5800 Hz 140 Hz to 6000 Hz
Equivalent Input Noise Level 25 dB
Total Harmonic Distortion 800 Hz: 1.7% 1600 Hz: 1.1%
Induction Coil Sensitivity(at 10 mA/m) NO 103 dB
Operating Switch O-S-M O-T-M
Output Limiting Control MOP, range 10 dB (continuous)
Tone Control NO TONE H, N to 4
Low Frequency Reduction S NO
Battery Type, Supply Voltage PR-44 or A675HP, 1.3 V
Battery Current, Life 1.25 mA, 420 h 1.38 mA, 380 h
Dimensions 3.9 × 1.42 × 0.88 cm
Weight (excluding battery) 5 g (Typical value)
No. 21164 04-04
Full-on gain curve
Frequency response curve
(HB-37S)
SSPL90 curve and effect of
output limiting control (HB-37T)
SSPL90 curve and effect of
output limiting control (HB-37S)
Frequency response curve and
effect of tone control (HB-37T)
Full-on acoustic gain
frequency response curve
OSPL90 curve and effect of
output limiting control (HB-37T)
OSPL90 curve and effect of
output limiting control (HB-37S)
Basic frequency response curve
and effect of tone control
(HB-37T)
Basic frequency response
curve (HB-37S)
Output Limiting Control (MOP)
This control serves to adjust the maximum output
of the hearing aid to protect your hearing from
loud sounds.
The maximum output can be held to a given level
even when input exceeds that level.
Use the screw driver for fine adjustment.
Turning this control counterclockwise will reduce
the maximum power output by up to 10 dB.
Tone Control (TONE H, HB-37T only)
Turning this control clockwise from "N" to "4"
cuts off low frequencies continuously.
Do not lift up the control cover too far.
Note:
(1) Production number (serial
number) is indicated inside
the battery door.
(2) Manufacturer's name is
imprinted at the back side of
