rionet HB-G4PE User manual

* The communication connector serves for adjustment of
the hearing aid by the hearing aid professional. Using the
optional Audio input Controller and dedicated cable, ex-
ternal equipment can be connected directly to HB-G4PE,
allowing the wearer to listen to the sound from various
devices.
Battery Placement
1. Set the O- -M switch of the hearing aid to
"O" (power off).
2. Peel off the sticker on the positive side of
battery (PR44 or 675 zinc-air battery).
3. Open the battery holder with the tip of your finger.
4. Insert a PR44 or 675 battery into the
battery holder. You do not have to
worry about the polarity.
5. Close the battery holder.
Battery life (PR44 or 675, for continuous use)
Approx. 180 hours
- Battery life will change depending on the operat-
ing condition.
Putting on Hearing Aid
1. Place the hearing aid on the ear.
Earmold
HOW TO USE YOUR FIRST HEARING AID
Any hearing aid cannot return level of your hearing to normal or
halt further hearing deterioration, but proper use of your hearing
aid can help you hear what is going on around you and let you
get more enjoyment of life.
If this is your first hearing aid, you - like most new users - will
probably be surprised at the loudness of the sounds, and after
using it for a short while, you may even feel that it is too noisy. The
following three tips are important in overcoming your concerns.
1) Read this manual and become familiar with the hearing aid's
various mechanisms and how to use them correctly.
2) First, use your hearing aid in a quiet place and listen to quiet
sounds and give yourself sufficient time to get accustomed to
the sound of your hearing aid.
3) If any physical problems develop, consult your doctor.
FOR KEEPING YOUR HEARING AID LONGER
Always keep the hearing aid clean. Clean the hearing aid with dry
cloth periodically and also remove earwax plugged in the earpiece
or earmold using eyebrush or toothbrush.
Do not expose the hearing aid to the heat from stoves, etc. Also,
avoid leaving it in places with high humidity.
Operate the controls with care. Do not press hard.
If the hearing aid is dropped in water, wipe with dry cloth and ask
the dispenser for check.
Do not pick the microphone with nail, pin, etc., because this may
damage the microphone.
Do not disassemble or attempt any repairs by yourself. Ask the
dispenser for repair.
3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan
HB-G4PE
DIGITAL HEARING AID
(off) (on) (on)
O M
Do not drop the battery into this opening.
The battery may jam and the hearing aid may be damaged. or
(off) (on)
Select "M".
O M
Turn up to
increase volume.
Turn down to
decrease volume.
Wind cover
Volume control
Control cover
O- -M switch
Communication/
Audio input connector
Battery holder
Earpiece
Hook
Microphone
"Either way"
circuit
OPERATING INSTRUCTIONS
Parts and Controls
Earpiece
2. Turn the power on.
3. Adjust the volume control to a suitable level.
Volume control
Higher numbers mean louder sound.
* Adjust the volume according to the situation (volume of
other voices, ambient noise, etc.).

O- -M Switch
O: Hearing aid is turned off and no sound is heard.
: Sounds through both the microphone and telephone coil can
be heard. Set to " " position when using your hearing aid
for telephone or induction loop system in combination with
the MT balancer.
When the switch of the hearing aid is set to , noise may be
heard in the vicinity of electromagnetic fields, such as generated
for example by electronically secured gates or similar.
M: Microphone for ordinary use. This is the normal operating
position.
Removing Hearing Aid
1. Set the switch to "O" (power off) before re-
moving the hearing aid. If the switch is left in
the "M" or " " position, acoustic feedback
(high-pitched sounds) may occur.
2. Be sure to set the switch to "O" and take out the battery, when
not using the hearing aid.
No. 51960 07-06
Turn-on precaution
If you switch the hearing aid off and then immediately on again,
there may be no sound, but this is not a defect. In such a case,
return the switch to "O" (Off), wait for at least 10 seconds, and
then set the switch to "M" or " " again.
Adjusting the Controls
This hearing aid is a digital type. Any adjustments must be done
at the dealer. For details, please contact the dealer.
Factory default setting for communication/Audio input selector
The default setting is as shown at right.
FIT: Position for hearing aid fitting adjustment
: Position for Audio input
Other setting
O - - M switch: "O"
Volume control (1 to 4): "1"
80 1600 2500
70
60
50
40
30
100 200 500 1000 2000 5000 10000
Input SPL 50dB(0dB=20µPa)
Frequency (Hz)
Acoustic Gain (dB)
140 0dB=20µPa 1600 2500
130
120
110
100
90
100 200 500 1000 2000 5000 10000
Frequency (Hz)
Output SPL (dB)
Input SPL 60dB
80 1600 2500
70
60
50
40
30
100 200 500 1000 2000 5000 10000
Input SPL 60dB(0dB=20µPa)
Frequency (Hz)
Acoustic Gain (dB)
140 0dB=20µPa 1600 2500
130
120
110
100
90
100 200 500 1000 2000 5000 10000
Frequency (Hz)
Output SPL (dB)
Intensity of Magnetic Field 31.6mA/m
(off) (on) (on)
O M

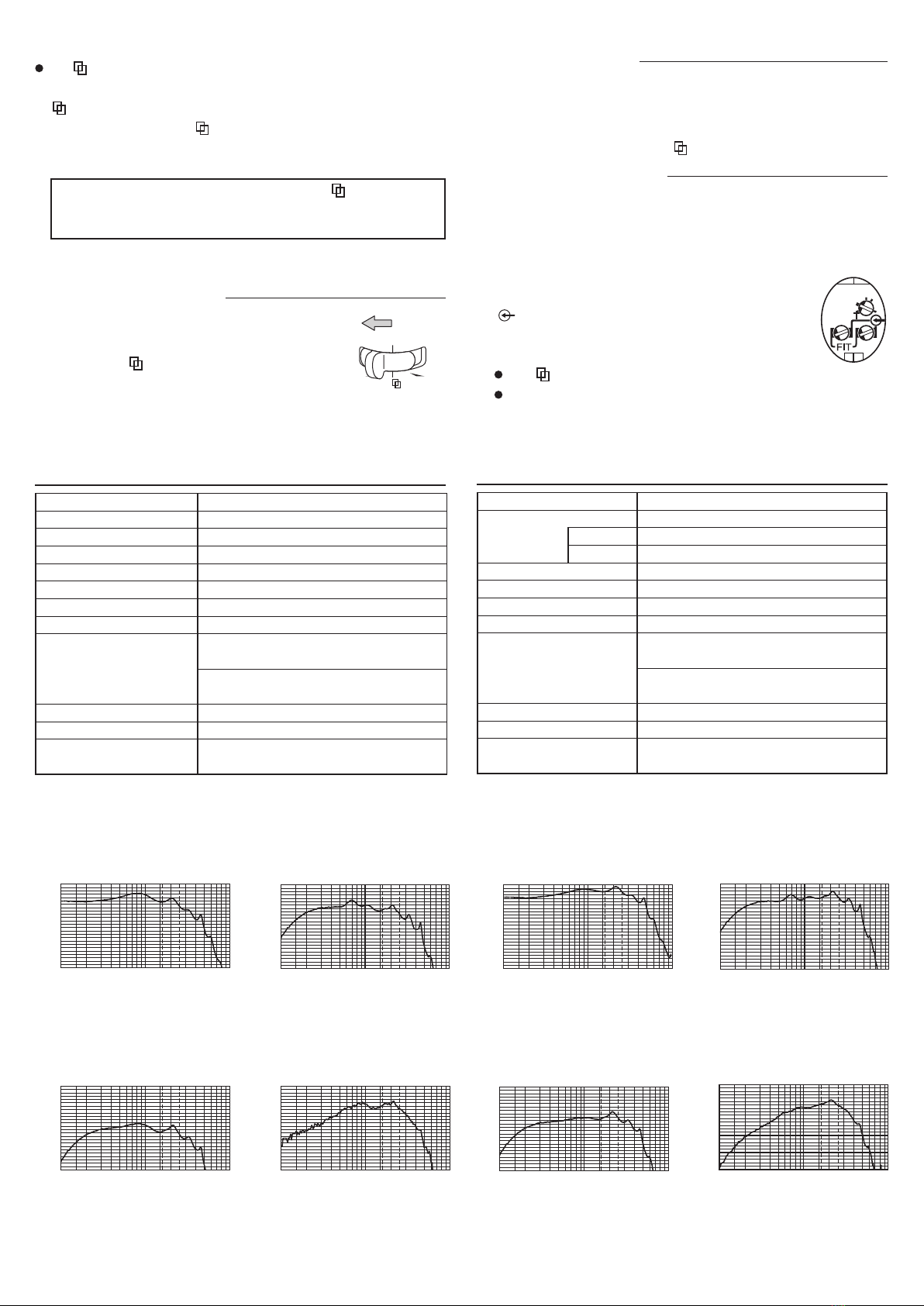

Frequency response curve
Full-on gain curve Full-on acoustic gain
frequency response curve
Note:
(1) Production number (serial number) is indicated at the upper rear side of the unit.
(2) Manufacturer's name is imprinted at the lower rear side of the unit.
TECHNICAL DATA (According to ANSI standard S3.22 2003)
Maximum OSPL90 134 dB (870 Hz)
HFA-OSPL90 130 dB
HFA-full-on Acoustic Gain 65 dB
Reference Test Gain 53 dB
Frequency Range 200 Hz to 5000 Hz
Equivalent Input Noise Level
29 dB
Total Harmonic Distor tion 500 Hz: 1% 800 Hz: 1% 1600 Hz: 1%
HFA-SPLITS (HFA-SPLIV) 108 dB (120 dB at 31.6 mA/m)
AGC
(Attack / Recovery Time)
Input AGC
Attack / Recovery: 8 or 256 msec
Output AGC
Attack / Recovery: 0.25 msec
Battery Type/Supply Voltage 675/1.4 V
Battery Current/Battery Life 2.5 mA/180 hours
Dimensions/Weight 4.67 × 1.62 × 0.97 cm /
6.7 g (excluding battery)
(Typical value)
TECHNICAL DATA ( )
Reference Test Frequency 1600 Hz
OSPL90 136 dB
500 Hz 135 dB
Peak 139 dB
Full-on Acoustic Gain 72 dB
Equivalent Input Noise Level 26 dB
Total Harmonic Distortion 500 Hz: 1% 800 Hz: 1% 1600 Hz: 1%
Induction Coil Sensitivity 112 dB at 1 mA/m
AGC
(Attack / Recovery Time)
Input AGC
Attack / Recovery: 8 or 256 msec
Output AGC
Attack / Recovery: 0.25 msec
Battery Type/Supply Voltage PR44 (675)/1.4 V
Battery Current/Battery Life 2.5 mA/180 hours
Dimensions/Weight 4.67 × 1.62 × 0.97 cm /
6.7 g (excluding battery)
(Typical value)
According to IEC standard Pub. 60118-0-1983
Amendment 1-1994
SPLITS curve Basic frequency response
curve
Induction Coil Input
frequency response curve
120 0dB=20µPa 1600 2500
110
100
90
80
70
100 200 500 1000 2000 5000 10000
Frequency (Hz)
Output SPL (dB)
140 0dB=20µPa 1600 2500
130
120
110
100
90
100 200 500 1000 2000 5000 10000
Frequency (Hz)
Output SPL (dB)
Input SPL 60dB
140 0dB=20µPa 1600 2500
130
120
110
100
90
100 200 500 1000 2000 5000 10000
Frequency (Hz)
Output SPL (dB)
Input SPL 90dB
OSPL90 curve
140 0dB=20µPa 1600 2500
130
120
110
100
90
100 200 500 1000 2000 5000 10000
Frequency (Hz)
Output SPL (dB)
Input SPL 90dB
OSPL90 curve
