Ritchie Classic Equine StallFount User manual

Installation Instructions
For
STALLFOUNT
Congratulations, you have just purchased the finest watering fountain on the
market. This unit is built to give you excellent service when properly installed
and maintained. Please follow instructions carefully. Read and understand all
instructions before installing.

Fountain Installation Instructions
A. Installation of Stall Fount - The Stall Fount - Unheated and the Stall Fount - Heated are to be corner mounted
and are designed to accept the water supply line from below, from above or from behind the fountain through the
wall.
Item
No.
Description
Watts
Amps
Item
No.
Description
Watts
Amps
18740
Equine SF 120V
173W
1.4A@120V
18741
Equine SF 240V
248W
1A@240V

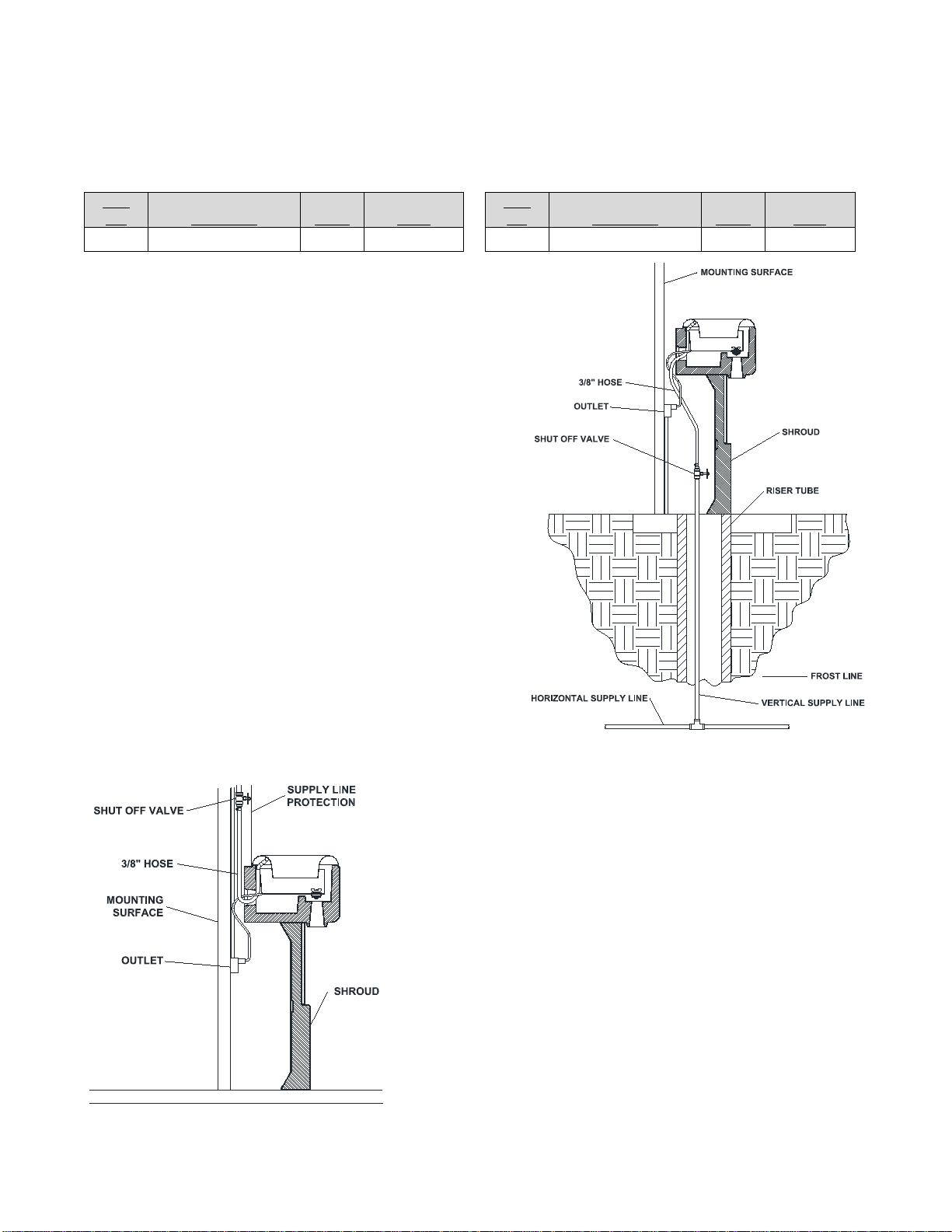

B. Water Supply Line from Underground –Horizontal
underground water line should be sized to account for
pressure drop, relating to distance, and placed one foot below
the frost line. A one-inch vertical supply pipe is
recommended, placed inside of a riser tile. A shut-off valve
(as pictured) should be installed under the fountain to allow
for servicing. If your facility is cold in the winter, using a
Ritchie Thermal Tube in combination with the insulated
shroud will provide optimum protection to the vertical supply
line against frost and freezing.
C. Water Supply from Overhead - Overhead water lines
should be sized to account for pressure drop, relating to
distance, and placed out of reach of livestock. A one-inch
vertical supply pipe is recommended, placed inside of a
protective cover. A shut-off valve (as pictured) should be
used at the fountain to allow for servicing. If your facility is
cold in the winter, additional cold climate protection should
be incorporated to protect the vertical supply line against frost
and freezing.
D. Water Supply Through Wall - Through wall supply
lines should be sized to account for pressure drop, relating to
distance, and located to prevent tampering by livestock. A one-inch
supply pipe is recommended. A shut-off valve should be located at
the fountain to allow for servicing. If your facility is cold in the
winter, additional cold climate protection will be required.
E. Water Hose - The Stall Fount comes with a 3/8” rubber
hose (30" long) which attaches to the supply pipe with a 3/8” hose
barb and hose clamp. When using a riser tube the vertical supply
line it must be centered in tube below ground to provide an air space
between the line and frozen ground outside of tube. Do not
Classic Equine Stall Fount Instruction Manual
1
August 13, 2022

surround supply line with insulation, wood or any foreign material.
Any foreign material in the tube may cause frost to migrate to supply
line causing supply line freezing.
Flush water supply line thoroughly before connection to fountain.
Water supplies with foreign material such as sand, rust, etc. may
require a filter to keep fountain valve working properly.

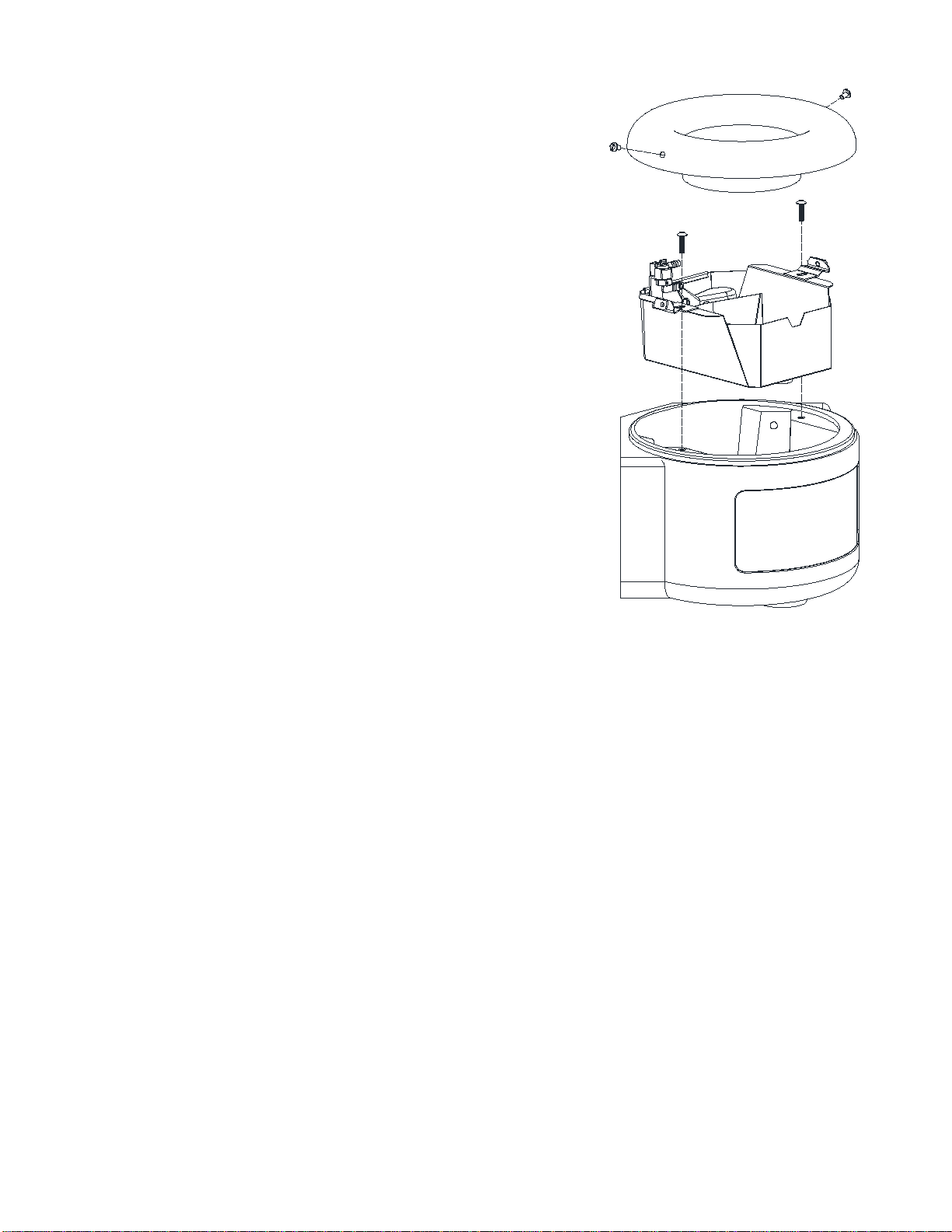

F. Mounting the Fountain - The stainless-steel cover and trough
must be removed prior to mounting. The cover can be removed by
removing the two screws on the cover. The trough can then be
removed by removing the two Phillips headed screws.
CAUTION: For maximum protection, it is recommended to
use the Ritchie Shroud for supply line protection under the
unit.
Mount the unit on the wall at a height appropriate for your animals.
If you are using the optional plastic shroud, then use the shroud as a
guide for determining the height of the unit. Use of 3/8” carriage
bolts or lag screws (not provided), and washers, is recommended. Do
not over tighten the screws as damage could occur to the plastic.
After the Stall Fount is securely mounted to the wall and all supply
connections are made you can reinstall the trough with the Phillips
headed screws. Do not over tighten the screws as that could result in damage to the plastic base. Install the drain
plug in the drain hole from above, pushing the plug into the hole and tightening the wing nut to secure.
G. Cable Heater – Uncoil cable heater attach to the water supply with the cable twist ties provided. This heater is
water-tight but should not be immersed in water. Heater may cross over itself but should not be tightened at those
locations. It is not recommended to route cable heater around the valve in this unit.
CAUTION: Installation must not cause any strain on heater wiring connections. Avoid heater
damage caused by hot spots due to its leads lying too close to each other. Also, do not wrap
additional insulation around heater.
H. Electrical Connection – The electrical installation should be made and maintained by qualified electrician
conforming to national and local codes. Electrical Supply wiring can be provided either underground, overhead, or
from an inside wall behind fountain. In all cases, a grounded receptacle should be provided for the attached power
cord and the wiring should be protected from tampering by the livestock. Connect only to a properly grounded
circuit protected by a Ground-Fault Circuit-Interrupter (GFCI). This GFCI protection must be installed in a manor
to allow for inspection.
NOTE: Condensation drain hole in the base is not to be used for heat cable or electrical wire
routing.
WARNING: ANY ELECTRICAL SERVICE MUST BE INSTALLED AND MAINTAINED BY A
QUALIFIED ELECTRICIAN.
Classic Equine Stall Fount Instruction Manual
2
August 13, 2022

WARNING: DISCONNECT POWER IF THE WATER SUPPLY IS TO BE SHUT OFF FOR AN
EXTENDED AMOUNT OF TIME. FAILURE TO TURN OFF POWER CAN RESULT IN DAMAGE TO
THE WATERING FOUNTAIN.
WARNING: THIS INSTALLATION MUST BE MADE AND MAINTAINED IN STRICT CONFORMITY
WITH NATIONAL/LOCAL PLUMBING CODES AND NATIONAL/LOCAL ELECTRICAL CODES (CSA
IN CANADA). THE APPLICABLE PROVISIONS OF THESE CODES TAKE PRECEDENT. FAILURE
TO MAKE AND MAINTAIN ALL INSTALLATIONS PROPERLY MAY RESULT IN LOSS OF
LIVESTOCK, PERSONAL INJURY, OR DEATH.
NOTE: National/Local electrical codes may require livestock waterers installed in feedlotsin openfeeding
area to be grounded by a separate stranded copper grounding conductor or at least no.6 AWG
terminating at a point where the branch circuit receives its supply. Check with local authorities.
I. Adjust Water Level – After the drain plug is installed, turn on water and adjust float to water level mark or
until there is approximately 3 inches of water in trough. Float is adjusted by loosening the wing-nut then raising or
lowering the float as needed, and then re-tightening the wing-nut. When finished adjusting, reinstall the stainless-
steel cover with the two screws.
J. Installing the Shroud (Optional) – After the plumbing and electrical connections are made, install the shroud
under the unit using 3/8" lag screws or bolts. For irregular mounting surfaces, foam tape (included) may be applied
to the mounting surfaces to eliminate air gaps. Two-inch rigid insulation can be mounted against the stall walls,
behind the shroud for maximum supply line protection in severe climates.
K. Children should be supervised to ensure that they do not play with the appliance - This appliance is not
intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance
by a person responsible for their safety. Troubleshooting
Problem
Solution
Ice in Trough
Check fuses or circuit breakers
Check heating elements to make sure they are working and hot
Check voltage after the thermostat to the fountain with and without electrical load.
Supply line freezing
Check that the cable heater is fastened to supply line and is working (hot).
Check that supply piping is centered in riser tube and that there is air space between riser tube and
supply line. Ritchie Thermal Tubes are recommended as they have optimum inside and outside
diameter to maximize insulation.
Check that riser tube is free of water and mud that may freeze.
Valve won’t shut off
Check float adjustment. Check for waterlogged float and free range of motion.
Disassemble valve and check for sand or scale in valve rubber. Also check valve orifice outlets
for wear and damage. A screen or filter may be required with sandy or scaly water
Turn valve rubber over and re-assemble
Check for excessive water system pressure (greater that 60 psi). May need to use pressure
reducer.
Low water flow
Check that valve inlet is not plugged or supply hose is not kinked
Check system pressure to unit. A severe pressure drop indicates a restriction or undersized
supply system.
Check that shutoff valves are fully open.
Classic Equine Stall Fount Instruction Manual
3
August 13, 2022

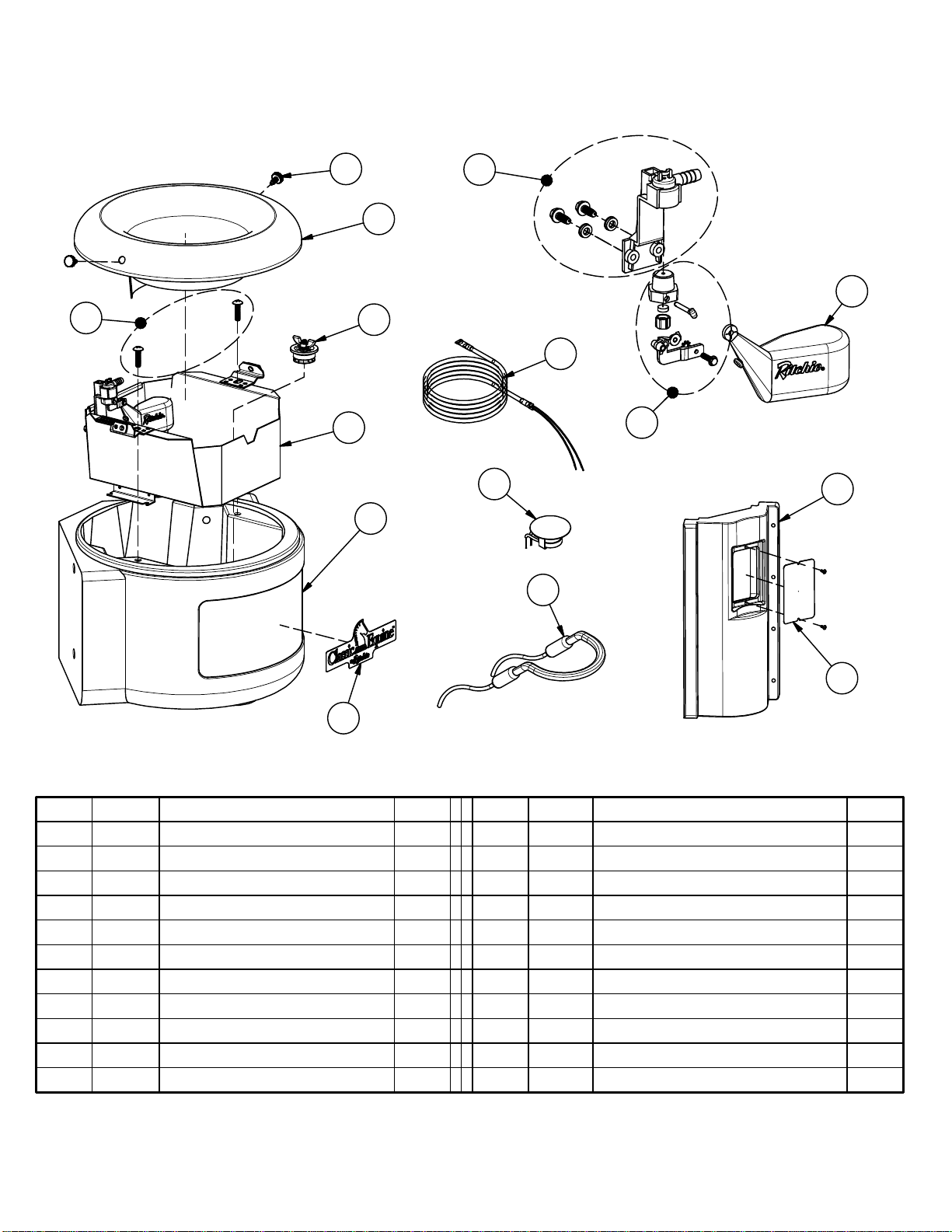

1
3
10
13
12
4
8
9
Item Part # Description Qty . . Item Part # Description Qty
1 18486 Cover 1 13 13597 Valve Pkg. Green 1 pkg
2 18494 Screw PKG - SF Cover (2/pkg) 1 pkg 14 18746 Shroud 30" 1
3 18643 Drain Plug 1 1/2" Adj 1 15 18497 Trough HD Screws (2/pkg) 1 pkg
4 18477 Trough (120V/240V) 1 16 18695 Acc. Panel w/ screws (Equine SF) 1 pkg
518742 CE Stallfount Base 1 NS 18744 Shroud 20" 1
6 18719 Classic Equine Logo pkg (2/pkg) 1 pkg NS 18613 Adapter 1/2" NPT x 3/8 HB 1 pkg
7 13830 Cable Heater 120V 48 Watt 1 pkg NS 15930 Hose Clamp (5/pkg) 1 pkg
8 11885 Disc Thermostat Pkg. 1 pkg NS 18754 Complete Accessory Pkg. 1 pkg
9 14150 Heater 120V 125 Watt 1 pkg
10 18641 Valve Bracket & Screws SF2 1 pkg 18748 CE Stallfount - No Heat
12 18642 Float 1 pkg NS 18487 Trough (No-Heat) 1
2
5
7
15
Classic Equine
STALLFOUNT
Part # 18740
6
14
16
Classic Equine Stall Fount Instruction Manual
4
August 13, 2022

RITCHIE INDUSTRIES, INC.
LIMITED WARRANTY
Ritchie Industries, Inc., hereinafter referred to as Ritchie Industries, gives a LIMITED WARRANTY
for the period of time(s) stated herein, subject to certain limitations, on your new watering system
against defects in material or workmanship when properly installed, set up, operated, and maintained
in accordance with the instructions and recommendations set forth by Ritchie Industries, including in
the Installation Instructions. The warranty excludes labor and shipping charges.
The warranty is transferable to the next purchaser of the watering system prior to expiration of the warranty period, but any
such transfer will not extend the original warranty term. Proof of purchase must be submitted with any warranty claim, and all
warranty claims shall be processed through an Authorized Ritchie Dealer or Distributor.
Ritchie Industries’ liability for any defects in material or workmanship with respect to accepted goods shall be limited to
repairing the goods or replacing them as Ritchie Industries shall elect. Parts used in warranty repairs will be warranted for the
balance of the water system’s warranty period, with all parts replaced under warranty becoming the property of Ritchie
Industries.
The limited warranty periods begin upon delivery ofthe watering system to the original purchaser. Upon delivery of the goods,
purchaser assumes all liability, including but not limited for all personal injury and property damage, resulting from the
handling, possession, or use of the goods.
WARRANTY COVERAGE AND LIMITATIONS
Limitations of Warranties and Remedies
Ritchie Industries’ watering systems are designed and manufactured to provide years of reliable use when installed and operated
consistent with Ritchie Industries’ instructions and recommendations. However, the potential for improper installation,
modifications and misuse of the goods exists. Therefore, the limited warranty provided shall be as follows:
This limited warranty shall not apply to any appearance items and shall not apply to any product which has been subject to
misuse, abuse, abnormal service or handling, negligence, or accident, nor to any product that is installed and/or used contrary
to Ritchie Industries’ installation instructions and instructions for use. The limited warranty shall also not apply to any product
whose exterior has been damaged or otherwise defaced, that has been repaired, altered, or modified by anyone, other than
Ritchie Industries, in a way so as in Ritchie Industries’ judgment it adversely affects the product’s operation, performance,
durability, or intended use, nor to any product where removal of parts, modification(s) or use of parts or accessories not
manufactured or approved by Ritchie Industries has caused damage.
Coverage and Warranty Periods
Unit Type Coverage and Warranty Period
Poly Units Base, top, and ball closures. Ten-year limited warranty: 100% for first five years,
then declining 20% per year for remainder of the 10-year period.
Stainless Steel Units Stainless trough and stainless valve chamber frame. Ten-year limited warranty,
plus ten years of corrosion coverage, at 100% for entire 10-year period.
Component Parts One-year limited warranty on all component parts, such as floats, valves, and
heating elements.
Exclusions of Liability
EXCEPT AS OTHERWISE EXPRESSLY STATED HEREIN, RITCHIE INDUSTRIES MAKES NO OTHER WARRANTY OR REPRESENTATION OF
ANY KIND, EXPRESSED OR IMPLIED. THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXCLUDED FROM THIS LIMITED WARRANTY. TO THE EXTENT THEY CANNOT BE DISCLAIMED, THE IMPLIED
WARRANTIES ARE LIMITED IN DURATION TO THE LIFE OF THE EXPRESS WARRANTY. THIS LIMITED WARRANTY EXCLUDES
INCIDENTAL, CONSEQUENTIAL, AND SPECIAL DAMAGES. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL
DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS
ESSENTIAL PURPOSE. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY
PERSON UNDER THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS, AND
EXCLUSIONS IDENTIFIED ABOVE AND, AS A RESULT, THEY MAY NOT APPLY TO YOU.
No agent, employee or representative of Ritchie Industries, and no Ritchie Industries Dealer/Distributor, is authorized to bind Ritchie Industries to any
representation or warranty regarding the goods except as specifically included in this limited warranty.
Classic Equine Stall Fount Instruction Manual
5
August 13, 2022

This page intentionally left blank
Classic Equine Stall Fount Instruction Manual
6
August 13, 2022

Part #24089
August 13, 2022
