Ritchie Classic Equine ULTRAFOUNT ES1 User manual

Installation Instructions
For
ULTRA FOUNT
MODEL:ES1&ES2
Congratulations, you have just purchased the finest watering
fountain on the market. This unit is built to give you excellent
service when properly installed and maintained. Please follow
instructions carefully. Read and understand all instructions
before installing
Part # 24076
15 November,2019

Fountain Installation Instructions
A. Location - Installing the fountain in a location that offers protection from the wind will enhance the performance.
Livestock will tend to gather in this protected area, enticing them to drink more. Access panel should be opposite of
prevailing winter wind to give additional protection to the supply line.
B. Mounting Platform - A concrete platform (see above) must be provided for all fountains. Use a minimum of 4” thick,
(6” recommended thickness), large enough to accommodate fountain, and additional 4” step (on top of the platform)
extending 18” out from each side of the unit. This will protect the unit from manure handling equipment, as well as
discouraging animals from defecating in the fountain. Extending the platform provides animals a place to stand while
drinking, consider the size of your animals when determining the dimensions of your platform. The concrete step and
platform should slope away from the fountain for drainage. A rough broom finish to concrete surface provides better footing
for livestock.
C. Water Supply Line - Horizontal underground water line (#1) should be sized to account for pressure drop, relating to
distance, and placed one foot below frost line. A one-inch vertical supply pipe (#2) is recommended. A shut-off valve (#3)
should be installed under fountain to allow for easier servicing. For optimum serviceability, a stop and waste valve can be
installed below frost level to drain water when unit is not in use. Vertical supply line must be centered in riser tube to provide
an air space between the line and frozen ground outside of tube. Flush water supply line thoroughly before connection to
fountain. Water supplies with foreign material such as sand, rust, etc. may require a filter to keep fountain valve working
properly.
D. Riser Tube - Install a riser tube (#4) to provide room for plumbing and to
accommodate optional shut-off valve. Ensure that the water supply line is
centered in the riser tube. For optimum water line protection, use the
recommended insulated Ritchie Thermal Tube. Use a combination of Thermal
Tubes to reach the required depth of 1’ below your frost depth.
NOTE: The supply line touching the riser tube is the most common cause of the
supply line freezing. Do not surround the supply line with insulation, wood, or other foreign material. Any foreign material in
the tube may cause frost to migrate to the supply line causing it to freeze.
Ritchie Thermal Tubes
18158 1’ top section
16417 2’ top section
16612 4’ top section
16416 2’ extension
ULTRA-Fount Instruction Manual
1
11/15/2019

E. Preparing the Bottom - Apply the provided foam weather stripping to the bottom of the fountain, following along the
outside edge of the fountain. Note: Sealing the bottom of the unit from cold air is an important aspect of the
unit's thermal performance.
F. Hold-Downs - Your fountain has four built-in hold-down locations to anchor your unit securely to the concrete pad. The
use of 3/8” x 5” stainless steel expansion anchor bolts (not included) is recommended for concrete installations. Anchor bolts
are available from Ritchie in a two pack, part # 16555. Fender washers are supplied for use with anchors.
G. Electric Supply – It is generally most cost effective to run your electrical supply line at the same time you are trenching
for your water supply. Any electrical service must be installed and maintained by a qualified electrician.
H. Electrical Connection – The electrical installation should be made and maintained by qualified electrician
conforming to national and local codes. Electrical Supply wiring can be provided either underground, overhead, or from
an inside wall behind fountain. In all cases, a grounded receptacle should be provided for the attached power cord and the
wiring should be protected from tampering by the livestock. For cord connected units, connection must be made only to a
properly grounded circuit protected by a ground-fault circuit-interrupter (GFCI).
NOTE: National/Local electrical codes may require livestock fountains installed in feedlots in open
feeding area to be grounded by a separate stranded copper grounding conductor or at least No.6 AWG
terminating at a point where the branch circuit receives its supply. Check with local inspection
authorities.
WARNING: This installation must be made and maintained in strict conformity with National/Local
plumbing codes and National/Local electrical codes (CSA in Canada). The application of these codes
takes precedent. Failure to make and maintain all installations properly may result in loss of livestock,
personal injury, or death.
I. Cable Heater – Uncoil cable heater and loop around the valve.
Attach the remaining part of the cable heater to the water supply, as far
down the riser tube as possible with the cable twist ties provided. This
heater is water tight, but should not be immersed in water.
CAUTION: Installation must not cause any strain on heater wiring
connections. Do not cross the cable over itself along the water
line. Avoid heater damage caused by hot spots due to its leads
lying close to each other. Also, do not wrap additional insulation
around heater.

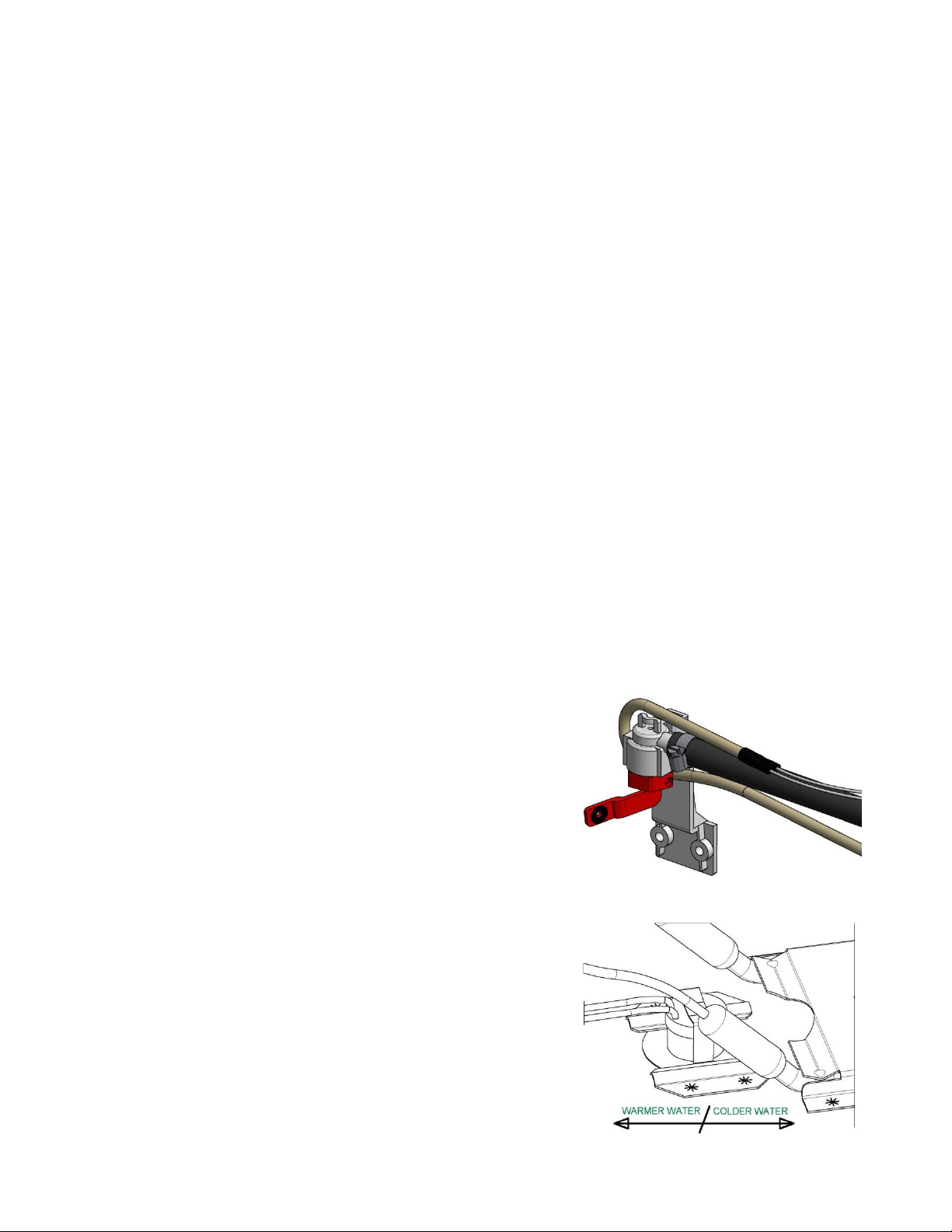

J. Disc Thermostat – The disc thermostat is mounted in a bracket under
the trough, which allows it to be moved relative to the heater. To ease
movement of thermostat turn ¼ turn. To lock in position after adjustment
turn ¼ turn back. As the thermostat is moved toward the heater, the
water temperature in the trough is lowered. The best location is
determined by checking the trough temperature several times during the
heating season.
ULTRA-Fount Instruction Manual
2
11/15/2019

K. Valve Cover –Before installing the valve cover the weather seal must be
installed. The seal is installed by removing the paper backing from the adhesive
side and then, starting at the midpoint of one of the legs, attach the seal to the
frame. Work your way around the frame with the seal as close to the inside edge
as possible and then up the other leg to the halfway point. At this time cut any
extra foam seal as needed then repeat for other side.
L. Attaching Valve – Installing the valve assembly before attaching the cover
is preferred. To attach the valve you will need a 3/8” socket with driver. Align
holes of white valve bracket with the holes on the trough tab, as shown at right.
Securely tighten the screw being careful to not over tighten and strip out plastic
valve bracket.
M. Float Adjustment – Open water-supply shut-off valve, check for and fix
any leaks. Adjust float for a water depth of 2 inches below top of trough or
overflow pipe by adjusting the thumbscrew or wing-nut. With the valve
functioning properly and the water level set at the proper level, you may install
the valve cover.

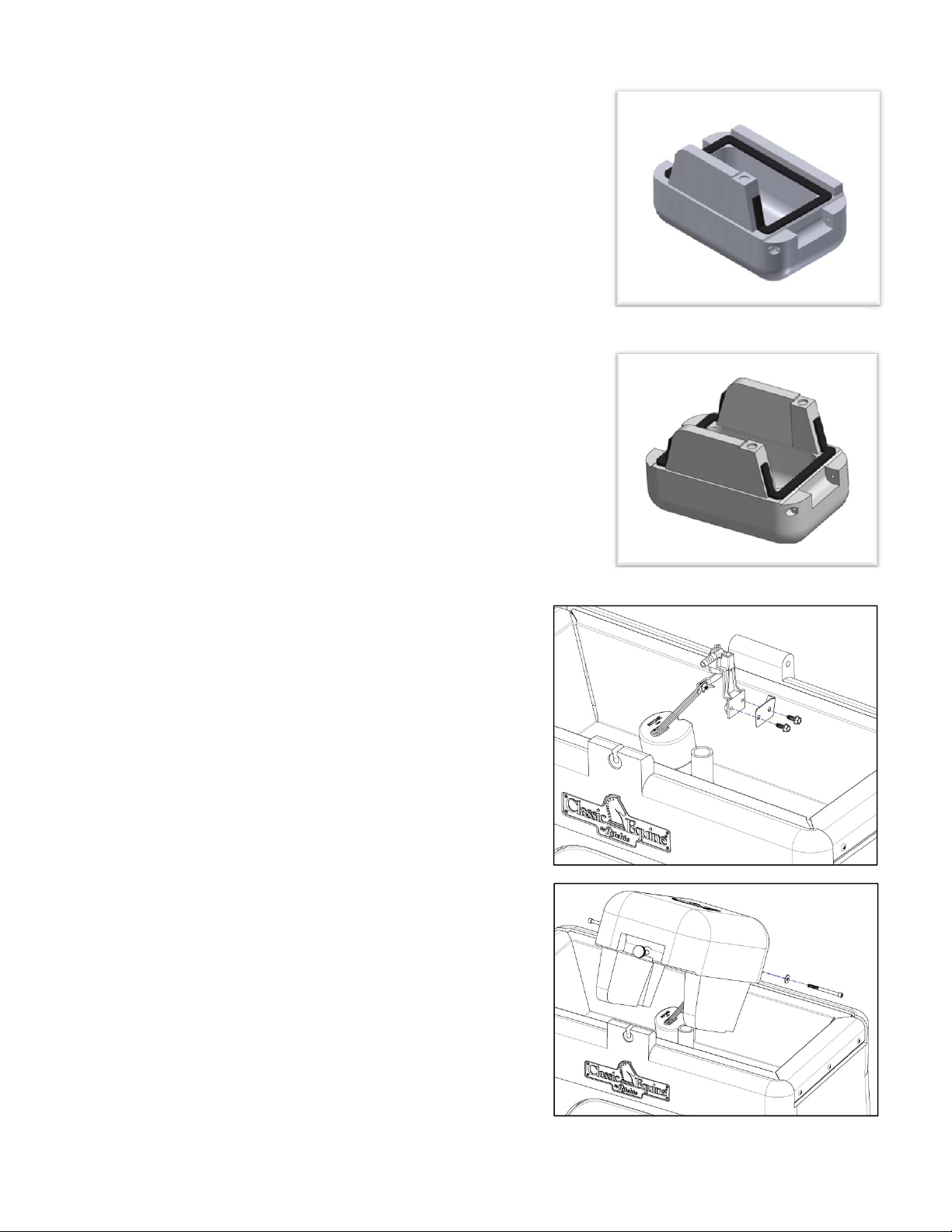

N. Attaching the Cover – Install the cover assembly as shown in picture on
right. Align holes of the cover with holes in casing behind the valve. Using the
supplied 3/16” hex wrench tighten the screws until there is a 1/8” gap between
the cover and the base on both sides of the cover. Some adjust may be required if
the thumb screw does not align with the locking groove on the front of the
fountain.
O. Hose Connection – Connect hose to customer supplied shutoff
valve at the top of the concrete. Cut hose to proper length and slip onto
the barb fitting of the valve assembly. Clamps and fittings are furnished
to secure the connection.
P. Drain Plug – Insert the drain plug firmly into the drain hole in the
center of the trough.
Q. Install Side Access Panel – Once all water line connections have
been checked for leaks and electrical hook-up is complete, the side
access door may be installed.
R. Children should be supervised to ensure that they do not play
with the appliance – This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning use of the appliance by a
person responsible for their safety.
S. Cleaning Your Fountain – To clean your watering fountain you
will need a good stiff bristled brush. Open the cover then brush the tank
to remove any build-up. Remove the plug that is located in the valve
chamber area under the float to drain out the water and debris. You can
shut off the water with the shut-off valve located under the unit or by
holding the float in the up position. After the water and debris has
drained reinstall the plug and let the tank refill. Now is a good time to
readjust the float if needed. Close cover and you are done.
Figure 2. Ultrafount ES2

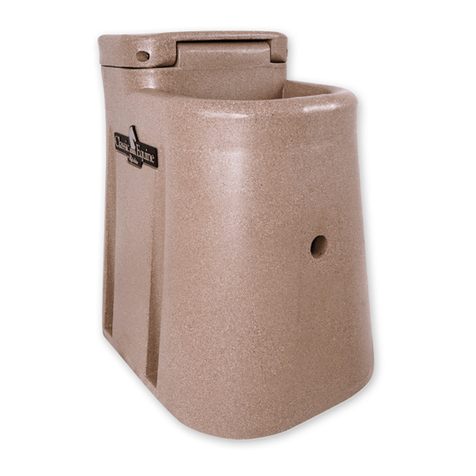

Figure 1. Ultrafount ES1
ULTRA-Fount Instruction Manual
3
11/15/2019

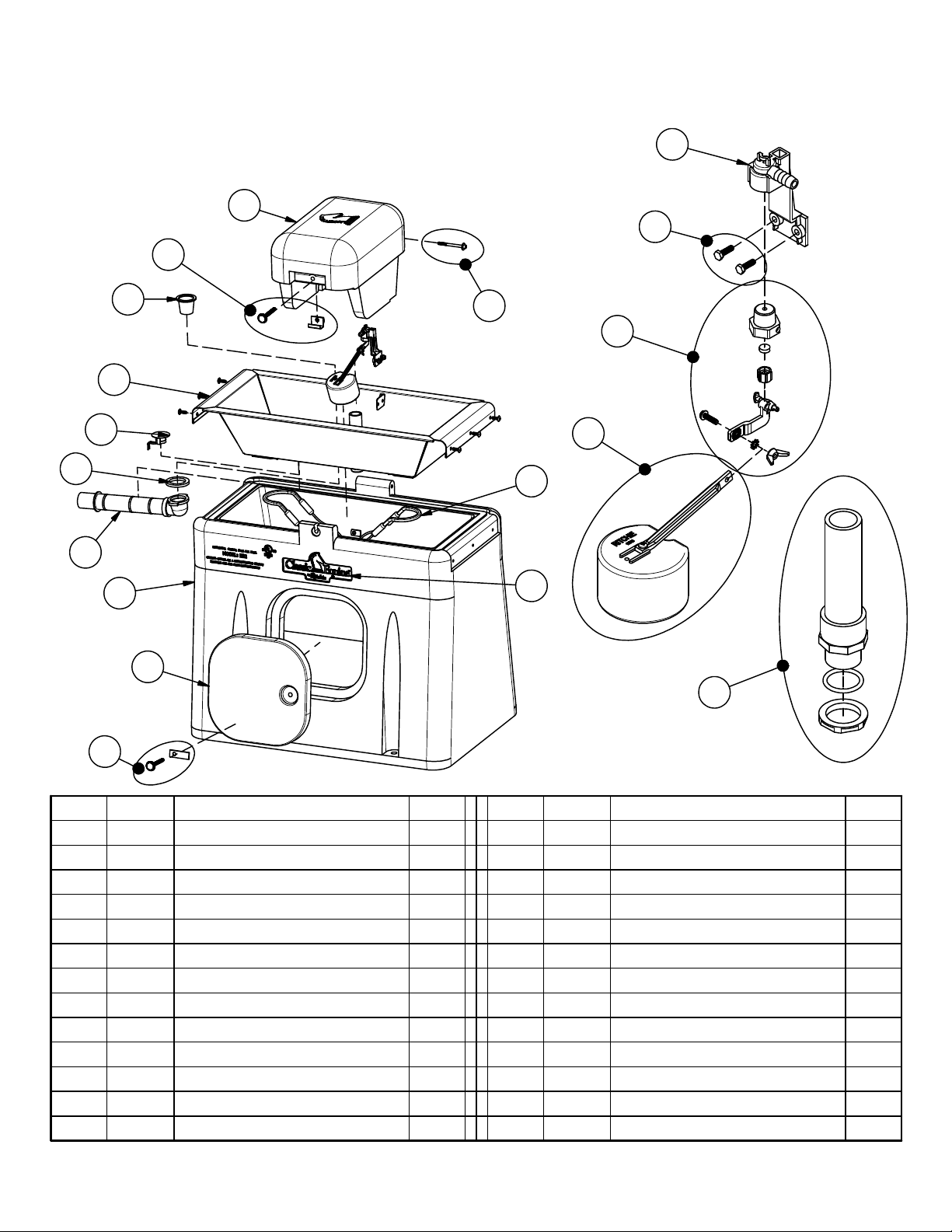

Classic Equine
ULTRAFOUNT
MODEL: ES1
Part # 18780

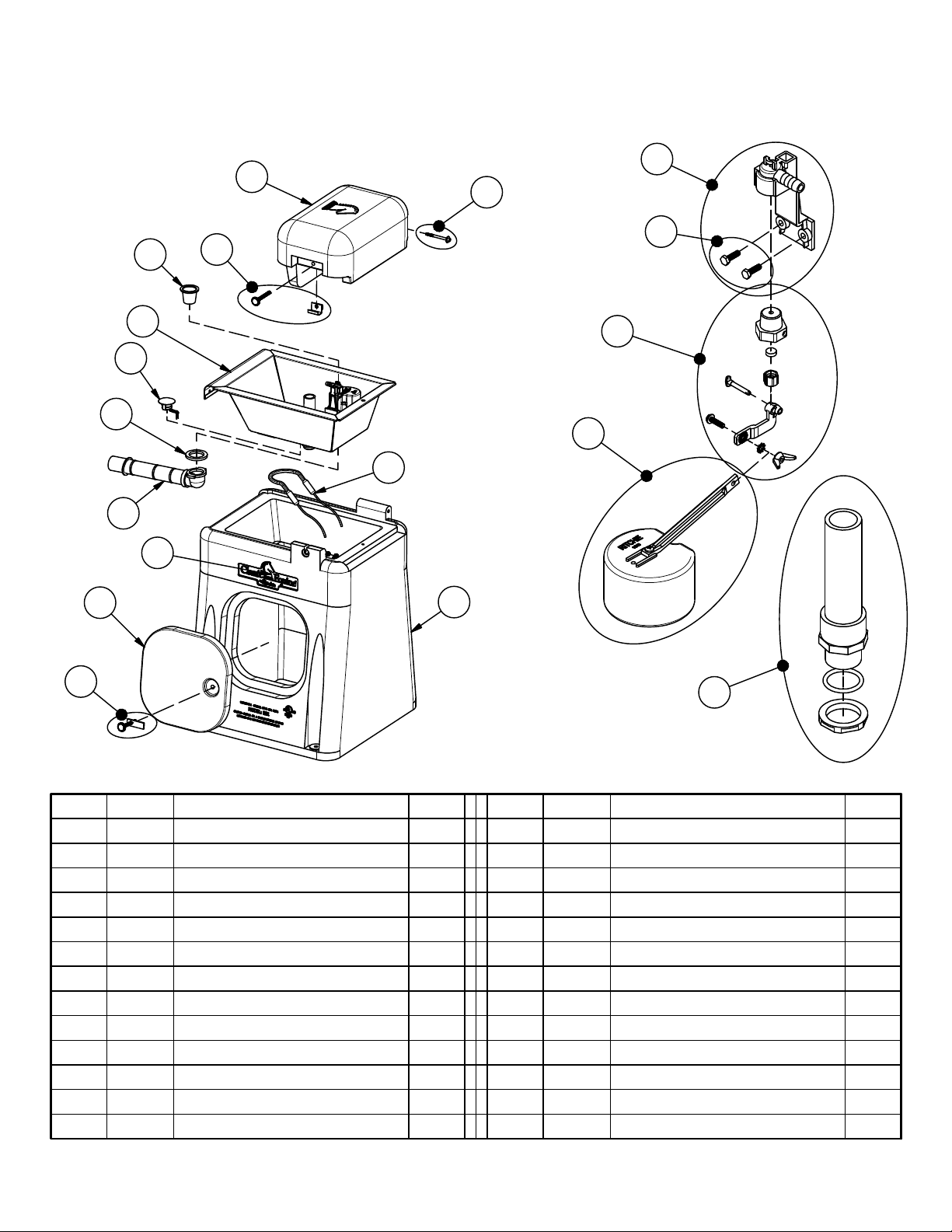

Item Part # Description Qty . . Item Part # Description Qty
118778 ULTRAFOUNT ES1 Cover 114 18788 Standpipe pkg 1 pkg
218776 ULTRAFOUNT ES1 Casing 115 11515 Valve Bracket 1/2" w/ Scrws pkg 1 pkg
3 18726 Classic Equine Access Panel 116 15154 Screws Valve Bracket (10/ pkg) 1 pkg
4 18775 ULTRAFOUNT ES1 Trough 117 12575 Red Valve 1/2" pkg 1 pkg
518753 Access Panel Hardware Pkg 1 pkg 18 12836 Float with Long Arm pkg 1 pkg
6 18718 Cover Latch Hardware Pkg 1 pkg NS 13830 Cable Htr 120V 48W (1/pkg) 1 pkg
7 11885 Disc Thermostat pkg 1 pkg NS 18791 ULTRAFOUNT Accessory pkg 1 pkg
8 18716 Classic Equine Hinge Bolt Pkg 1 pkg NS 16523 Seal Foam 1/4"x3/4"x25' Roll 1
9 18719 Classic Equine Logo Pkg (2/pkg) 1 pkg NS 14866 Seal Foam 1/2"x3/4"x10' Roll 1
10 18628 Drain Plug (2/pkg) 1 pkg
11 14150 Heater 120V 125W (1/pkg) 1 pkg 18781 ULTRAFOUNT ES1 - 240V
12 18075 Drain Washer (6/pkg) NS 16664 Heater 240V 200W (1/pkg) 1 pkg
13 11473 Drain Pipe with Elbow 1 pkg NS 16424 Cable Htr 240V 48W (1/pkg) 1 pkg
14
1
10
7
6
8
4
13
12
11
3
5
2
9
15
17
18
16
ULTRA-Fount Instruction Manual
4
11/15/2019

Classic Equine
ULTRAFOUNT
MODEL: ES2
Part # 18730
Item Part # Description Qty Item Part # Description Qty
118734 ULTRAFOUNT Cover 1 14 18788 Standpipe pkg 1 pkg
218732 ULTRAFOUNT Casing 115 11515 Valve Bracket 1/2" w/ Scrws pkg 1 pkg
3 18726 Classic Equine Access Panel 116 15154 Screws Valve Bracket (10/ pkg) 1 pkg
418737 ULTRAFOUNT Trough 1 17 12575 Red Valve 1/2" pkg 1 pkg
518753 Access Panel Hardware Pkg 1 pkg 18 12836 Float with Long Arm pkg 1 pkg
6 18718 Cover Latch Hardware Pkg 1 pkg NS 13830 Cable Htr 120V 48W (1/pkg) 1 pkg
7 11885 Disc Thermostat pkg 1 pkg NS 18751 ULTRAFOUNT Accessory pkg 1 pkg
8 18716 Classic Equine Hinge Bolt Pkg 1 pkg NS 16523 Seal Foam 1/4"x3/4"x25' Roll 1
9 18719 Classic Equine Logo Pkg (2/pkg) 1 pkg NS 14866 Seal Foam 1/2"x3/4"x10' Roll 1
10 18628 Drain Plug (2/pkg) 1 pkg
11 14150 Heater 120V 125W (1/pkg) 2 pkg 18731 ULTRAFOUNT ES2 - 240V
12 18075 Drain Washer (6/pkg) NS 16664 Heater 240V 200W (1/pkg) 2 pkg
13 11473 Drain Pipe with Elbow 1 pkg NS 16424 Cable Htr 240V 48W (1/pkg) 1 pkg
18
17
15
16
6
8
11
7
10
5
13
12
3
4
2
1
14
9
ULTRA-Fount Instruction Manual
5
11/15/2019

Trouble Shooting
Problem Solution
Ice in Trough
Check fuses or circuit breakers
Check all heating elements to make sure they are heating
Adjust thermostat to higher temperature
Check for voltage to fountain
Valve Freezing Check that cable heater is installed properly and fastened around valve
Check for air gaps where a cold wind can reach the valve
Supply line Freezing
Check that the cable heater is uncoiled and fastened around valve and supply line
Check that supply piping is centered in riser tube and not touching the sides
Check that riser tube is free of water and mud that may cause freezing
Check that flexible hose does not touch side of casing or frame
Check for air gaps between casing and concrete floor
Valve won’t stop dripping
Check the float adjustment. Check that float is not water logged or rubbing sides
Check for excessive water supply pressure
Disassemble valve and check for sand or mineral build-up on valve rubber. Check
valve orifice outlet for wear and damage. A screen or filter may be required with
sandy or scaly water
Turn valve rubber over and re-assemble
Low water flow Check that valve inlet is not plugged or supply hose is not kinked Check system pressure and water flow from supply line
Check that shutoff valves are fully open
Ritchie Limited Warranty Effective September 2012
Ritchie Industries, Inc. warrants its products to
be free of defective materials and workmanship.
Defective part(s) will be repaired or replaced at the
option of Ritchie Industries. This warranty
specifically excludes all labor and shipping charges.
This warranty does not apply to any appearance
items, to any product whose exterior has been
damaged or defaced, to any product that has been
improperly installed, to any product subjected to
misuse, abnormal service or handling, and to any
products altered or repaired with other than original
equipment or manufacturer’s parts.
This warranty gives you specific legal rights,
and you may also have other rights which vary from
state to state.
All warranty claims must be processed through
an Authorized Ritchie Dealer/ Distributor. Proof of
purchase is required. This warranty is not
transferable. The period of warranty begins at
original date of purchase as follows:
Poly Units
Base, top and ball closures
10 year limited against manufacturing defect. 100% first five
years, then declining 20% per year for the remaining five years.
Stainless Steel Units
Stainless trough and stainless valve chamber frame:
Ten years against manufacturing defect or corrosion. 100% all
ten years.
Casing and cover:
10 year limited against manufacturing defect. 100% first year,
then declining 10% per year for the remaining nine years.
Component Parts
All component parts, such as floats, valves, heating
elements:
One year from the date of purchase against manufacturing
defect, 100%.
ULTRA-Fount Instruction Manual
6
11/15/2019
