RITE-HITE GUARDRITE STRAP Installation instructions

PRINTED IN U.S.A. PUBLICATI N N . GUARDRITE STRAP REV 3.1
RITE-HITE PRINT SH P © CT BER 2013
THIS MANUAL C VERS ALL UNITS SHIPPED APRIL 2006 T DATE
GUARDRITE® STRAP
BARRIER SYSTEM
INSTALLATI N AND WNER’S MANUAL

TABLE F C NTENTS
GUARDRITE®STRAP SYSTEM BARRIER
2PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
SAFETY WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TOO S AND COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
NOTICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
INSTA ATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
POST ASSEMB Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
STORAGE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ATCH BRACKET INSTA ATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
STRAP ATTACHMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SHORTENING OF STRAPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PR DUCT INTR DUCTI N
Thank you for purchasing the GUARDRITE®STRAP SYSTEM BARRIER from RITE-HITE®.
IMP RTANT
Read and understand contents of this manual prior to installation or operation of this equipment.
For best results, have this product serviced by your authorized RITE-HITE®Representative.
N TICE T USER
Your local RITE-HITE®Representative provides the Planned Maintenance Program (P.M.P.) which can be fitted to your
specific operation. Call your local representative or RITE-HITE®at 1-414-355-2600 or toll free at 1-800-456-0600.
RIGINAL INSTRUCTI NS (ENGLISH)
The English version of this manual shall prevail over any error in, or conflicting interpretation of, any translations.
The RITE-HITE®products in this manual may be covered by one or more of the following U.S. patents: 4,560,315 (RE:
32,968); 4,634,334; 4,692,755; 4,744,121; 4,819,770; 4,843,373; 4,865,507; 4,920,598; 4,995,130; 5,040,258;
5,440,772; 5,442,825; 5,453,735;
37,570); 5,882,167; 5,964,572;
6,116,839; 6,190,109;
6,488,464; 6,497,067;
HITE®, LEVEL-RITE®, THINMANTM
, SAFE-T-LIP®, HYDRACHEK®, WHEEL-LOKTM
, DOK-
®
, DUAL-DOK®,SAFE-T-STRUT and SAFE-T-GATE ®are trademarks of
®
.
TM
,DOK-COMMANDER , JUMBOTM
®
5,111,546; 5,212,846; 5,271,183; 5,299,386; 5,311,628; 5,323,503; 5,375,965;
5,531,557; 5,546,623; 5,553,987; 5,582,498; 5,664,930; 5,702,223; 5,762,459 (RE:
6,010,297; 6,052,268; 6,065,172; 6,070,283; 6,074,157; 6,085,375; 6,092,970; 6,106,212;
6,220,809; 6,627,016; 6,238,163; 6,322,310; 6,311,352; 6,360,394; 6,368,043, 6,431,819;
6,499,169; 6,505,713; 6,524,053; 6,634,049; 6,654,976; 6,676,360; and pending U.S. and foreign patent
applications. RITE-
LOK
RITE-HITE

SAFETY
GUARDRITE®STRAP SYSTEM BARRIER
PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 3
SAFETY
WARNING
!
When working with electrical or
electronic controls, make sure
that the power source has been
locked out and tagged according
to SHA regulations or your
country’s local standards and
approved local electrical codes.
L CK UT / TAG UT PR CEDURES
The Occupational Safety and Health Administration (OSHA) requires that, in addition to posting safety
warnings and barricading the work area, the power supply has been locked in the OFF position or
disconnected. It is mandatory that an approved lockout device is utilized. An example of a lockout device is
illustrated in Figure 1. The proper lockout procedure requires that the person responsible for the repairs is
the only person who has the ability to remove the lockout device.
In addition to the lockout device, it is also a requirement to tag the power control in a manner that will
clearly note that repairs are under way and state who is responsible for the lockout condition. Tagout
devices have to be constructed and printed so that exposure to weather conditions or wet and damp
locations will not cause the tag to deteriorate or become unreadable.
RITE-HITE®Corporation does not recommend any particular lockout device, but recommends the utilization
of a device that meets OSHA standards (refer to OSHA regulation 1910.147). RITE-HITE®Corporation also
recommends the review and implementation of an entire safety program for the Control of Hazardous
Energy ( ockout/Tagout). These regulations are available through OSHA publication 3120.
Figure 1
DANGER
!
Indicates a hazardous situation which, if
not avoided, will result in death or
serious injury.
WARNING
!
Indicates a hazardous situation which, if
not avoided, could result in death or
serious injury.
CAUTI N
!
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate injury.
NOTICE
Indi ates a situation whi h an ause
damage to the equipment, personal property
and/or the environment, or ause the
equipment to operate improperly.

GUARDRITE®STRAP SYSTEM BARRIER
4PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
T LS AND C MP NENTS
T LS REQUIRED:
(1) Hammer Drill
(1) 3/4” Concrete Bit for Hammer Drill,
Minimum 6” long
(1) Impact wrench with 15/16” socket
(2) 3/4” Rachet
(2) 3/4”Combination Wrench
(1) Chalk ine
(1) Tape Measure

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 5
GUARDRITE®STRAP SYSTEM BARRIER
N TICES
GUARDRITE STRAP M DELS
The Guardrite STRAP is available in two different models: The standard model is capable of
stopping a 10,000 lb. fork truck moving at 4 mph. The light duty model is intended only to guide
and restrict pedestrians. See the note below for expected deflection distances to aid in
application.
IMPORTANT
RESTRAINING STRAPS WI DEF ECT
WHEN OADED. USE CARE WHEN
DETERMINING MOUNTING OCATION
NEAR EQUIPMENT OR CHANGE IN
E EVATION. A OW FOR THE
FO OWING DEF ECTION DISTANCES:
"A"
"B"
10 FT (3048 MM) 20 IN (508 MM)
20 FT (6096 MM) 32 IN (813 MM)
30 FT (9144 MM) 42 IN (1067 MM)
40 FT (12192 MM) 50 IN (1270 MM)
50 FT (15240 MM) 65 IN (1651 MM)
60 FT (18288 MM) 84 IN (2134 MM)
EXPECTED DEF ECTION
FORK TRUCK BARRIER (DOUB E POSTS)
PEDESTRIAN BARRIER ON Y (SING E POSTS)
10,000 BS
MOVING
AT 4 MPH.
Figure 2
NOTICE
To be properly positioned, the straps must be
fully horizontal with all sla k removed. The
lo k pin must be fully inserted through the
tensioner into the tensioner bra ket, and there
must be a minimum of 1-1/2 full rotations of
strap wrapped around the tensioner. If any
one of the above onditions is not met, you
must retension the System Barrier.
NOTICE
The barrier straps should be inspe ted on a
regular basis. They should be repla ed when
there are signs of wear. Stret hing, snags,
fraying and pun tures are all indi ations that
the straps should be repla ed.
NOTICE
SHORTENING OF STRAPS. If you need to
shorten the strap length, ut the strap using a
sharp s issors and melt the end to prevent
fraying.
NOTICE
The storage system is not intended to be
used when tensioning the straps. This will
make the tensioning of the straps more
diffi ult. Please refer to the operational video.

P ST ASSEMBLY
The posts can be assembled as necessary to
provide support for the straps in one or multiple
directions. Use the ½" x 6-1/2" bolts and lock nuts
provided to bolt the posts together as necessary for
your application. See Figures 3-6 for typical post
configurations. The holes in the post are offset to
allow the hardware to be through bolted. Be sure to
align the posts so the sides being bolted together
have holes at the same height. Do not fully tighten
the hardware until it is completely assembled.
Notice that the same bolts used to hold the posts
together may be used to hold on the tensioner
assembly brackets or the storage system brackets.
TENSI NER BRACKET
INSTALLATI N
Use the ½" x 6.5" bolts and lock nuts provided to
fasten the U-shaped tensioner bracket to the post.
Note that you may be using the same hardware that
is being used to attach the reinforcement post cross
members. The holes on the tensioner bracket are
offset to allow the strap to be at the same height off
of the floor on different sides of the post. Position
the bracket in the proper direction before fastening
to the post.
INSTALLATI N INSTRUCTI NS
6PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
GUARDRITE®STRAP SYSTEM BARRIER
Single Post with Tensioner Bracket
Figure 3
ffset Hole Pattern for Bracket Alignment
Figure 5
Double Post with Tensioner Bracket
and Storage System
Figure 4
Triple Post with Tensioner Bracket and
Storage System
Figure 6

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 7
GUARDRITE®STRAP SYSTEM BARRIER
ST RAGE SYSTEM INSTALLATI N
The storage system is used to neatly organize
and store the straps when the system is not in
use. The storage system is intended to be
installed on the non-traffic side of the post to
keep the straps out of the way and to protect
the storage device from incidental contact.
Use the ½" x 6.5" bolts and lock nuts provided
to attach this system to the face of the post
adjacent to the tensioner brackets. Note that the
holes in the brackets are offset to allow these
brackets to align with the tensioner brackets.
Insert the storage rod down through the storage
brackets. Using the #10 x 2.25" bolts and nuts
provided, attach the pressure straps to the
storage rod. Do not tighten hardware at this
time. One pressure strap should get attached
for each strap that will be rolled up.
LATCH BRACKET INSTALLATI N
Position the latch bracket on the post so that
the top of the latch bracket is aligned with the
top of the post. Fasten the bracket to the post
with the (4) ½" x 6.5" bolts, washers, and lock
nuts that are provided.
Before the fasteners are tightened, install the
post cap on the post. If the post cap is not
installed before the latch plate is tightened, the
latch plate will interfere with the post cap
installation.
P ST P SITI NING
Position the posts as necessary to protect the
desired areas. Check to make sure you have
allowed for the necessary strap deflection if
your system is intended to stop heavy traffic.
Storage System on Single Post with
Tensioner Assembly
Figure 7
Latch Bracket Installed on
a Double Post System
Figure 8

GUARDRITE®STRAP SYSTEM BARRIER
8PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
P ST P SITI NING
Use a hammer drill and ¾" concrete drill bit to
drill holes in the concrete floor. Use the ¾" x 5-
1/4" concrete anchors that are provided to
anchor the posts to the concrete floor. Insure
the anchors are seated properly with an impact
wrench.
INSTALLATI N F THE P ST CAPS
Use a rubber hammer to securely tap the caps
onto the posts. The cap that is on the post with
the latch bracket will need to fit between the
latch bracket and the post to allow the cap to
be installed completely. See the previous
photo of the latch plate and the post cap.
STRAP ATTACHMENT
Double Strap Restraining Kit with
Storage System
Unroll the strap and drop the loop end over the
latch bar. The smooth side of the strap should
face the side expecting the most impacts. Do
not fasten the strap to the latch bar at this time.
Remove any twists in the strap and insert the
non-looped end of the strap through the slots in
the tensioner at the opposite end of the
opening.
Continue pulling and insert the end of
the strap behind the pressure strap on the
storage rod. These bolts will be tightened later
after the strap lengths are matched. Repeat
this process for the second strap.
Double Strap Restraining Kit with
Storage System
Figure 9

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 9
GUARDRITE®STRAP SYSTEM BARRIER
STRAP ATTACHMENT C NTINUED
Attachment of the Straps and Strap Handle
to the Latch Bar
Insert the latch bar with the straps looped over
it into the latch bracket. The center of the top
strap should be attached to the latch bar at 40"
from the floor (39.5" from the top of the base
plate).
Insert the self drilling screw through one
of the grommets in the strap handle and drive
the tek screw into the strap and latch bar at this
level.
The center of the lower strap should be
attached to the latch bar at 18" from the floor
(17.5" from the top of the base bracket). Insert
the self drilling screw through the second
grommet in the strap handle and drive the self
drilling screw into the strap and latch bar at this
level.
Remove the latch bar with the straps attached
from the latch bracket and lay it on the floor.
Go to the opposite side of the opening and turn
the crank mechanism on the storage rod to roll
up the straps around the rod. Continue to roll
up the straps until the straps are completely
stored. If the straps do not store evenly, it may
be necessary to unroll the straps and pull one
of the straps further into the storage rod
pressure strap to get the straps to store evenly
on the roll.
Double Strap Restraining Kit
w/o Storage System
These units will install the same as above
except that excess material will hang loose
beyond the tensioner assembly. There will be
no final sizing required. If there is excess
strap, trim it with a sharp scissors and melt the
end of the strap to prevent fraying.
Single Strap Restraining Kit
Unroll the strap and drop the loop end of the
strap around one of the tensioners. Remove
any twists in the strap and insert the nonlooped
end of the strap through the slot in the
tensioner at the opposite end of the opening.
Strap Handle
on Latch Bar
Figure 10
Tensioner Going
Through Single
Strap Loop
Figure 11
NOTICE
SHORTENING OF STRAPS: If you need to
shorten the strap length, ut the strap using a
sharp s issors and melt the end to prevent
fraying.

GUARDRITE®STRAP SYSTEM BARRIER
10 PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
PERATI N
Double Strap Restraining Kit with Storage
System Placement and Tensioning
Unroll the strap and drop the loop end over the
latch bar. The smooth side of the strap should
face the side expecting the most impacts. Do
not fasten the strap to the latch bar at this time.
Remove any twists in the strap and insert the
non-looped end of the strap through the slots in
the tensioner at the opposite end of the
opening.
Continue pulling and insert the end of
the strap behind the pressure strap on the
storage rod. These bolts will be tightened later
after the strap lengths are matched. Repeat
this process for the second strap.
Retraction
Insert the tensioner bar into the bottom of the
tensioner and pull on the bar to relieve
pressure on the lock pin.
Remove the lock pin and allow the strap to go
slack. Repeat this process for the second
strap. Store the tensioner bar. Go to the other
side of the system and remove the latch bar
from the latch bracket and lay it on the ground.
Return to the storage system and turn the
storage rod to wrap the straps around the
storage rod.
Double Strap Restraining Kit w/o Storage
System
The process is the same as for the kit with the
storage system except that when the latch bar
is removed from the latch bracket, you will
need to carry the latch bar out of the opening.
NOTICE
The storage system is not intended to be
used when tensioning the straps. This will
make the tensioning of the straps more
diffi ult. Please refer to the operational video.
NOTICE
To be properly positioned, the straps must be
fully horizontal with all sla k removed. The
lo k pin must be fully inserted through the
tensioner into the tensioner bra ket, and there
must be a minimum of 1-1/2 full rotations of
strap wrapped around the tensioner. If any
one of the above onditions is not met, you
must re-tension the safety barrier.

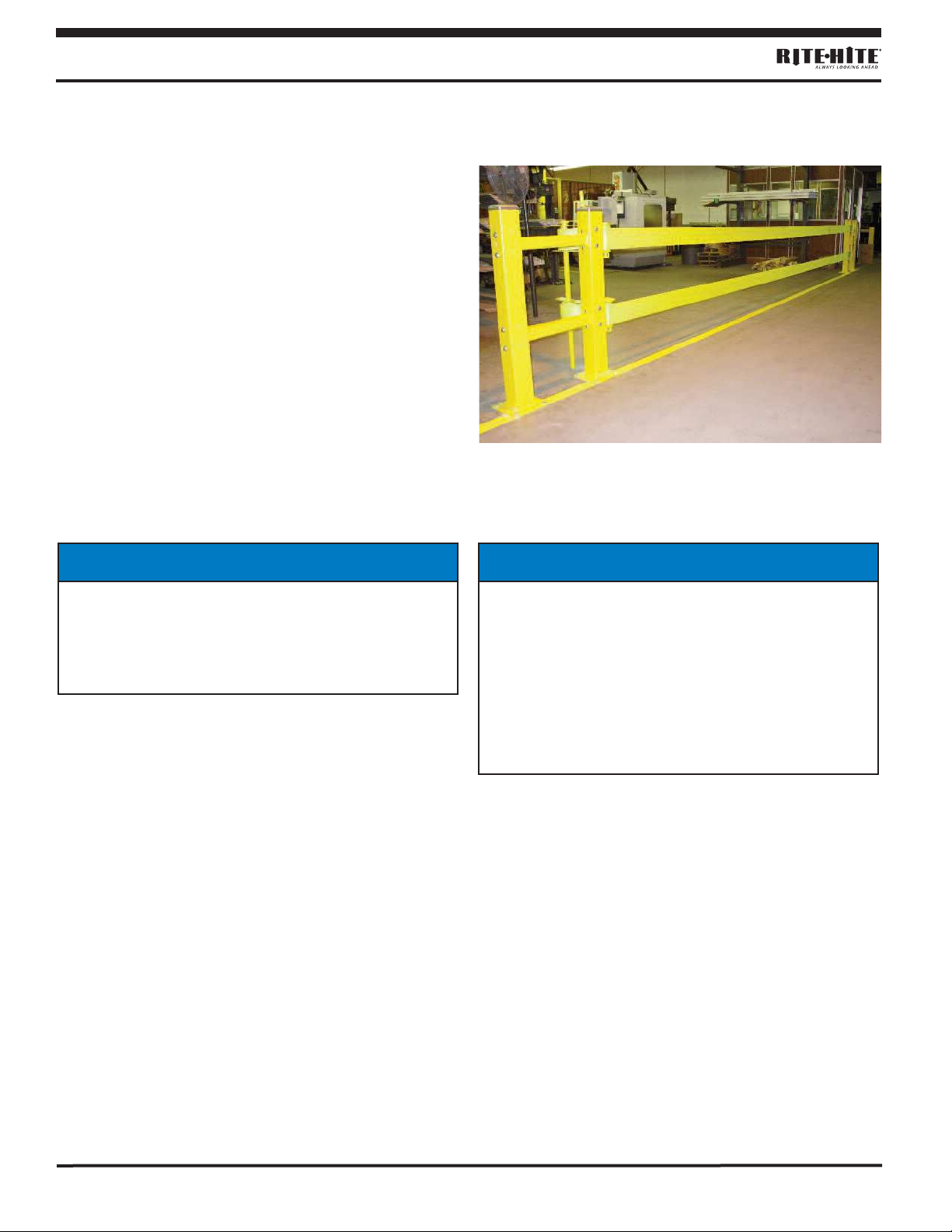

Properly Tensioned Strap Barrier System
Figure 12

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 11
GUARDRITE®STRAP SYSTEM BARRIER
PERATI N C NTINUED
Single Strap Restraining Kit
Placement and Tensioning
Unroll the strap and drop the loop end of the
strap around the tensioner on the far end.
Go back to the storage side and manually pull
the loose strap through the tensioner.
Rotate the tensioner by hand to begin to tighten
the strap. Insert the tensioner bar into the
bottom of the tensioner and continue to tension
the strap. It will be necessary to insert the lock
pin into the holes at the top of the tensioner and
tensioner bracket in order to reposition the
tensioner bar.
Once the tensioner bar is repositioned, remove
the lock pin to continue tensioning the strap.
Tension the strap until it is completely horizontal
and it does not have any slack or sag. Fully
insert the lock pin through the tensioner and
tensioner bracket.
Retraction
Insert the tensioner bar into the bottom of the
tensioner and pull on the bar to relieve
pressure on the lock pin. Remove the lock pin
and allow the strap to go slack.
Store the tensioner bar. Go to the other side of
the system and remove the strap from the
tensioner. If the storage system is used, roll the
strap up with the storage rod. If the storage
system is not used, pick up the strap and
remove it to allow access to the opening.
NOTICE
The barrier straps should be inspe ted on a
regular basis. They should be repla ed when
there are signs of wear. Stret hing, snags,
fraying and pun tures are all indi ations that
the straps should be repla ed.

GUARDRITE®STRAP SYSTEM BARRIER
12 PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013

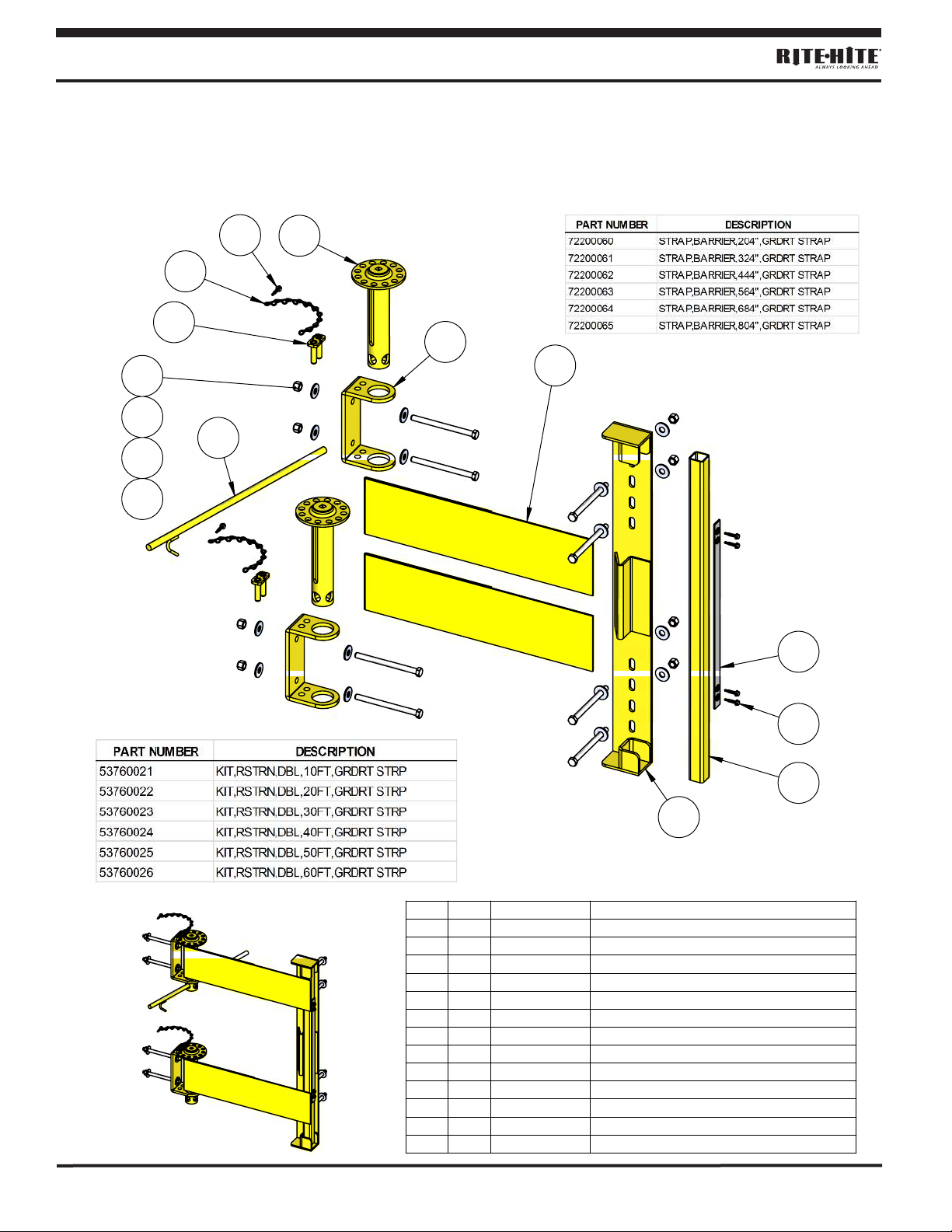

PARTS
 
7<3,&$/3('(675,$1$33/,&$7,21
7<3,&$/)25.758&.$33/,&$7,21
*8$5'5,7(675$3
,7(0 3$57180%(5 '(6&5,37,21
 .,732677<3*8$5'5,7(675$3
 .,7326751)&017*5'576753
 .,76725$*(*8$5'5,7(675$3
 6((7$%/( .,756751'%/>;;@)7*5'576753
 6((7$%/( .,75675161*/;;)7*5'576753

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 13
GUARDRITE®STRAP SYSTEM BARRIER





6,1*/(3267.,7
,7(0 47< 3$57180%(5 '(6&5,37,21
   32676,1*/(*8$5'5,7(675$3
   &$33267;5,7(+,7(
   /$%(/%$55,(5*8$5'5,7(675$3
   3/8*3/67&</:
   $1&+25&21&5(7(;=1&

GUARDRITE®STRAP SYSTEM BARRIER
14 PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013















'28%/(675$35(675$,1,1*.,7
,7(0 47< 3$57180%(5 '(6&5,37,21
 6((7$%/( 675$3%$55,(5>;;;@*5'57675$3
  %5.7$1&+25675$3*8$5'5,7(675$3
  716156322/*8$5'5,7(675$3
  6&5+:+'573;
  &+$,1-$&.%5*+7.50
  3,1/2&.71615*8$5'5,7(675$3
  187+(;1<//2&.=1&
  :6+5)/$7;;=1&
  6&5++06;*5=1&
   %$57(16,21(5*8$5'5,7(675$3
   +$1'/(%$5*8$5'5,7(675$3
   %$5675$3(;7(1'*8$5'5,7(
   /$7&+5(&(,9,1**8$5'5,7(675$3

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 15
GUARDRITE®STRAP SYSTEM BARRIER






675$36725$*(6<67(0
,7(0 47< 3$57180%(5 '(6&5,37,21
   &5$1.6/$&.*8$5'5,7(675$3
   6&5)+066&.7;=1&
   3/$7(35(6685(*8$5'5,7(675$3
   187+(;1<//2&.=1&
   %5.7&5$1.017*8$5'5,7(675$3
   187+(;1<//2&.=1&
   :6+5)/$7;;=1&
   6&5++06;*5=1&

GUARDRITE®STRAP SYSTEM BARRIER
16 PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013







5(,1)25&(0(173267.,7
,7(0 47< 3$57180%(5 '(6&5,37,21
  32676,1*/(*8$5'5,7(675$3
  &$33267*8$5'5,7(+'
  3267-2,1(5*8$5'5,7(675$3
  /$%(/%$55,(5*8$5'5,7(675$3
  187+(;1<//2&.=1&
  :6+5)/$7;;=1&
  6&5++06;*5=1&
  3/8*3/67&</:
  $1&+25&21&5(7(;=1&

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 17
GUARDRITE®STRAP SYSTEM BARRIER








6,1*/(675$35(675$,1,1*.,7
,7(0 47< 3$57180%(5 '(6&5,37,21
   3,1/2&.71615*8$5'5,7(675$3
   716156322/*8$5'5,7(675$3
   %5.7$1&+25675$3*8$5'5,7(675$3
 6((7$%/( .,7.,756751'%/>;;@)7*5'576753
   %$57(16,21(5*8$5'5,7(675$3
   &+$,1-$&.%5*+7.50
   6&5+:+'573;
   187+(;1<//2&.=1&
   :6+5)/$7;;=1&
   6&5++06;*5=1&

GUARDRITE®STRAP SYSTEM BARRIER
18 PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
N TES

PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013 19
GUARDRITE®STRAP SYSTEM BARRIER

GUARDRITE®STRAP SYSTEM BARRIER
20 PUB. N . GUARDRITE STRAP REV 3.1 - © JUNE 2013
A F T E R M A R K E T
C R P R AT I N
8900 N. Arbon Drive
P. . Box 23043
Milwaukee, Wisconsin 53223
Sales: 414-362-6377
Toll Free: 888-423-0789
Representatives in All Major Cities
To find the name and number of
your local RITE-HITE®representative
please visit www.ritehite.com
RITE-HITE®warrants that its GUARDRITE®STRAP SYSTEM BARRIER, will be free from defects in design, materials and
workmanship for a period of one (1) year from the date of shipment. All claims for breach of this warranty must be made within thirty
(30) days after the defect is or can, with reasonable care, be discovered to be entitled to the benefits of this warranty, the products must
have been properly installed, maintained, operated within their rated capacities, and not otherwise abused. Periodic lubrication and
adjustment is the sole responsibility of the owner. This warranty is RITE-HITE®exclusive warranty. RITE-HITE®EXPRESS Y
DISC AIMS A IMP IED WARRANTIES INC UDING THE IMP IED WARRANTIES OF MERCHANTABI ITY AND FITNESS. Non-
standard RITE-HITE®warranties, if any, must be specified by RITE-HITE in writing.
In the event of any defects covered by this warranty, RITE-HITE®will remedy such defects by repairing or replacing any defective
equipment or parts, bearing all of the costs for parts, labor, and transportation. This shall be the exclusive remedy for all claims whether
based on contract negligence or strict liability. Neither RITE-HITE®, ANY OTHER MANUFACTURER WHOSE PRODUCTS ARE THE
SUBJECT OF THIS TRANSACTION, NOR ANY RITE-HITE®REPRESENTATIVE, SHA IN ANY EVENT BE IAB E FOR ANY OSS
OR USE OF ANY EQUIPMENT OR INCIDENTA OR CONSEQUENTIA DAMAGES OF ANY KIND WHETHER FOR BREACH OF
WARRANTY, NEG IGENCE, OR STRICT IABI ITY. The application of a manufacturer's specifications to a particular job is the
responsibility of the purchaser. RITE-HITE®SHA NOT IN ANY EVENT BE IAB E FOR ANY OSS OF THE USE OF ANY
EQUIPMENT OR INCIDENTA OR CONSEQUENTIA DAMAGES OF ANY KIND.
RITE-HITE®WARRANTY
