LEVEL-RITE®
HL-800 SERIES
HYDRAULIC DOCK LEVELER
Owner’s Manual
PRINTED IN U.S.A. PUBLICATION NO. 1167-R2
RITE-HITE PRINT SHOP 1-414-355-2600 APRIL 2003
By Rite-Hite
®
THIS MANUAL COVERS LEVELERS
AFTER SERIAL NUMBER M101516

HL-800 HYDRAULIC DOCK LEVELER
2Pub. No. 1167-R2 - April 2003
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
PIT DETAILS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HYDRUALIC FLUID CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MAINTENANCE PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ADJUSTMENT PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ELECTRICAL SCHEMATICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
HYDRAULIC SCHEMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
PRODUCT INTRODUCTION
The LEVEL-RITE®HL Series Leveler By RITE-HITE®is intended to provide a safer work place for workers in shipping
and receiving dock areas. The HL Series Leveler is a hydraulically operated device that, when properly installed and
operated, provides a safe and secure access between dock and truck. The HL Series Leveler is operated from the top
of the dock.
NOTICE TO USER
Your local RITE-HITE
®
representative provides a Planned Maintenance Program (P.M.P.) which can be fitted to your
The RITE-HITE
®
products in this manual are covered by one or more of the following U.S. patents: 4,560,315 (RE:
32,968); 4,570,277; 4,605,353 (RE: 33,154); 4,634,334; 4,692,755; 4,744,121; 4,819,770; 4,843,373; 4,865,507;
4,920,598; 4,995,130; 5,040,258; 5,111,546; 5,212,846; 5,271,183; 5,299,386; 5,311,628; 5,323,503; 5,375,965;
5,440,772; 5,442,825; 5,453,735; 5,531,557; 5,546,623; 5,553,987; 5,582,498; 5,664,930; 5,702,223; 5,762,459 (RE:
37,570); 5,882,167; 5,964,572; 6,010,297; 6,065,172; 6,070,283; 6,074,157; 6,085,375; 6,092,970; 6,106,212;
6,116,839; 6,190,109; 6,220,809; 6,627,016; 6,238,163; 6,322,310; 6,311,352; 6,360,394; 6,368,043, 6,431,819;
6,488,464; 6,497,067; 6,499,169; 6,505,713; 6,524,053 and pending U.S. and foreign patent applications. RITE-
HITE
®
, LEVEL-RITE
®
, GUARDRITE
®
, SAFE-T-LIP
®
, HYDRACHEK
®
, WHEEL-LOK
TM
, DOK-LOK
®
, DUAL-DOK
®
,
and SAFE-T-GATE
®
are trademarks of RITE-HITE
®
Corporation.
specific operation. Call your local representative or the Corporation at 414-355-2600.RITE-HITE
®

Pub. No. 1167-R2 - April 2003
3
SAFETY WARNINGS
HL-800 HYDRAULIC DOCK LEVELER
LOCKOUT/TAGOUT PROCEDURES
The Occupational Safety and Health Administration (OSHA) requires that, in addition to posting safety warnings and
barricading the work area, the power supply has been locked in the OFF position or disconnected. It is mandatory
that an approved lockout device is utilized. An example of a lockout device is illustrated. The proper lockout
procedure requires that the person responsible for the repairs is the only person who has the ability to remove the
lockout device.
In addition to the lockout device, it is also a requirement to tag the power control in a manner that will clearly note
that repairs are under way and state who is responsible for the lockout condition. Tagout devices have to be
constructed and printed so that exposure to weather conditions or wet and damp locations will not cause the tag to
deteriorate or become unreadable.
RITE-HITE PRODUCTS CORPORATION does not recommend any particular lockout device, but recommends the
utilization of an OSHA approved device (refer to OSHA regulation 1910.147). RITE-HITE PRODUCTS
CORPORATION also recommends the review and implementation of an entire safety program for the Control of
Hazardous Energy (Lockout/Tagout). These regulations are available through OSHA publication 3120.
This is a statement of serious hazard. Failure to
follow the listed instructions could place the
individual at risk of serious injury or death.
WARNING
!
This is the highest level statement. Failure to
follow the listed instructions will most likely
result in severe injury or death.
DANGER
!
The statements used with this level of
warning deal with a safe operating
procedure. If the procedure is ignored, the
possibility of personal injury may exist.
CAUTION
!
IMPORTANT is used to draw attention
to a procedure that needs to be followed to
prevent machine or property damage.
IMPORTANT
When working with electrical or electronic
controls, make sure that the power source has
been locked out and tagged according to OSHA
regulations and approved local electrical codes.
WARNING
!

HL-800 HYDRAULIC DOCK LEVELER
4Pub. No. 1167-R2 - April 2003
NOTES

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
5
Pit Details for LEVEL-RITE®by Rite-Hite®
Hydraulic and Mechanical Dock Levelers
Dock Floor
Pit Floor
Dock
Face
1/2" Pitch
Driveway Approach
Dim. A
+1/4-0
Dim. C
± 1/8
Dim. B
± 1/8
All Curb Angle
Joints To Be
Welded Securely.
Rear Pit Wall
To Be Plumb.
Reverse Slope Of
1/4" Is Permissible.
Important: Concrete Behind
Pit Steel Must Be Well Vibrated.
8" Recommended Minimum Thickness
For Pit Walls, Pit Floor And Dock Face.
FrontCurbAngleForUnits
MustBe3"x 3"x 3/16"
With1/2"Dia. x 6"Long
ConcreteAnchors
On12"Centers.
Important:
Side Curb
Angles Must
Be 90
o
To
Dock Face.
Important: Angle Between
Side And Rear Curb Angles
Must Be 90
o
.
Junction Box Location
For HL Series Only
(See Item 6 On Following Page)
See Item 5
On Following Page
See Item 1
On Following Page
See Item 4
On Following Page
See Item 3
On Following Page
See Item 3
On Following Page
See Item 2
On Following Page
See Item 4
On Following Page
6L X 6W 8L X 6W 8L X 7W
63 87 87
74 74 85
19-1/2
19-1/2
19-1/2
PIT DIMENSIONS FOR CAPACITIES: 30K, 35K, 40K
NOMINAL PIT SIZES
PIT LENGTH
PIT WIDTH DIM A DIM B
DIM C
PIT DEPTH
Figure - 3 Pit Details

HL-800 HYDRAULIC DOCK LEVELER
6Pub. No. 1167-R2 - April 2003
PIT DETAILS CONTINUED
Alternate
Junction Box
And Conduit
Location
4" x 4" x 2" NEMA 4 (By Others)
10"
ITEM 6: JUNCTION BOX LOCATION DIMENSIONS FOR HL SERIES
Preferred
Junction Box
And Conduit
Location
Minimum
1" Dia.
Conduit
Required
14"
14"
C
L
27-1/2"
90
o
11-3/4"
23-1/2"
20"
7" Typ.
6" Typ.
1-1/4"
Typ.
1/4" Front Curb Angle
To Be Welded To
Mounting Plate
1/2" x 6"
Nelson Stud (16)
Mounting Plate
1/4" x 20" x 23-1/2"
H.R.S.
C
L
ITEM 5: RESTRAINT MOUNTING PLATE (OPTIONAL)
1"
Typ.
Restraint Mounting Plate Furnished By General Contractor Or
Available From RITE-HITE at Additional Cost.
¨
ITEM 1, 2, 3, 4: ANCHOR LAYOUT
FOR CURB ANGLES
12" 12"
IMPORTANT: Curb Angles Nelson Studs.
1/2" Dia. 6" Long Located As Shown
3"
3"
3"
12" 12"
CONSTRUCTION NOTES
1. Concrete Behind Pit Steel Must Be Well Vibrated.
2. Rear Pit Wall Must Be Square With Dock Floor.
3. All Curb Angle Joints To Be Welded Securely.
4. 1/2" Pitch Toward Front Of Pit For Drainage.
5. Both Item 4 Bumper Mountings Must Be The
Same Design.
ITEM QTY 6L X 6W 8L X 6W 8L X 7W
1 1 74 74 85
2 1 80 80 91
3 2 60 84 84
4 2 20 20 20
CONTRACTOR'S BILL OF MATERIALS FOR NOMINAL PIT SIZES
DESCRIPTION
FRONT CURB ANGLE
3 X 3 X 3/16
REAR CURB ANGLE
3 X 3 X 3/16
SIDE CURB ANGLE
3 X 3 X 3/16
SIDE VERTICAL ANGLES
3 X 3 X 3/16
Figure - 4 Pit Details

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
7
INSTALLATION INSTRUCTIONS
HL800
LEVELER
ASSEMBLY
APPROACH
DOCK
BUMPERS
(2)
DOCK FACE
BRANCH
RITE-HITE)
(SUPPLIED BY
CONTROL BOX
CIRCUIT
ASSEMBLY
CUSTOMER
DISCONNECT.
TYPICAL COMPLETED INSTALLATION
IMPORTANT
DANGER
NEVER BE UNDER THIS LEVELER WITHOUT PLACING
THE MAINTENANCE SUPPORT AS SHOWN IN DIAGRAM.
FOR SUPPORT REMOVAL: RAISE LEVELER TO HIGHEST
POSITION AND TILT SUPPORT TO THE STORED POSITION.
DO NOT USE MAINTENANCE SUPPORT IF DAMAGED.
IF A PROCEDURE IS NOT CLEARLY DEFINED, CONTACT YOUR LOCAL RITE-HITE
REPRESENTATIVE OR RITE-HITE AT 1-414-355-2600 BEFORE PROCEEDING.
Figure - 5 Complete Installation

HL-800 HYDRAULIC DOCK LEVELER
8Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
DETAIL "B" - HANDLING PLATE
DETAIL "C"
3/8 X 3
1-1/2
2 REQUIRED. SUPPLIED BY OTHERS.
3/4
DIA
8
FLAT
2
1-3/4
ROD, 1 DIA
15°
1-1/2
3-1/2
1. Check pit to ensure it meets RITE-HITE pit details #0108172. If pit does not match pit details, contact your local
representative or RITE-HITE before proceeding.
2. Leave shipping bands on leveler until instructed to remove them.
3. Verify that the leveler voltage matches the voltage supplied at pit. Remove control box from frame if it has not already
been installed.
4. Clean out pit and remove all debris from work area.
5. Handling Plates (see Detail "B") must be inserted into the forward handling holes of the toeguards. See Details "C".
6. Attach lifting chain, lift leveler and position above pit. Lower leveler into pit. See Detail "C".
7. Center leveler in pit so that equal gaps are maintained on each side of leveler. See Detail "D".
8. Push leveler straight back until the front frame angle is flush with the front curb angle. If the pit is not square, push
the leveler straight back until the front frame angle is completely behind the front curb angle by no more than 1/4 inch.
The front frame angle should never extend past the front curb angle. If unit cannot be pushed back far enough, the
back edge of the rear frame angle can be cut off up to 3/8 inch. If trimming back edge of angle does not allow frame
to be positioned properly in pit, contact contact your local representative or RITE-HITE for assistance. Tack weld rear
frame angle to rear curb angle. See Details "D" & "G".
DOCK FACE
PLATFORM
LIP
SIDE CURB ANGLE
PIT FLOOR
PIT SIDE VIEW
FLOOR
DOCK
HANDLING PLATE
BANDS
SHIPPING LEVELER
TOP OF
FRONT CURB ANGLE
LIFTING CHAIN
REAR FRAME
ANGLE
NUT
HANDLING
PLATE
TOEGUARD
FRAME
FRONT
FRAME
ANGLE
REAR CURB
ANGLE
THREADED
X 2 LG.
NUT,
1 DIA
FLAT,
X 8 HRS
WARNING
WHILE WORK IS BEING PERFORMED.
* POST SAFETY WARNINGS AND BARRICADE WORK AREA TO PREVENT UNAUTHORIZED USE OF THE UNIT
* DO NOT POSITION THE LEVELER ON ITS SIDE OR TURN THE LEVELER TOPSIDE DOWN AT ANY TIME.
* ENSURE LIFTING EQUIPMENT IS RATED FOR 3,000 lb. LIFTING CAPACITY OR GREATER.
COMPONENTS MAY RESULT.
PLATFORM WHEN WELDING ON LEVELER FRAME. DAMAGE TO BEARINGS OR OTHER MECHANICAL
* ALWAYS GROUND TO THE FRAME OR FRONT PIT ANGLE WHEN WELDING. DO NOT GROUND TO LEVELER
Figure - 6 Installation

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
9

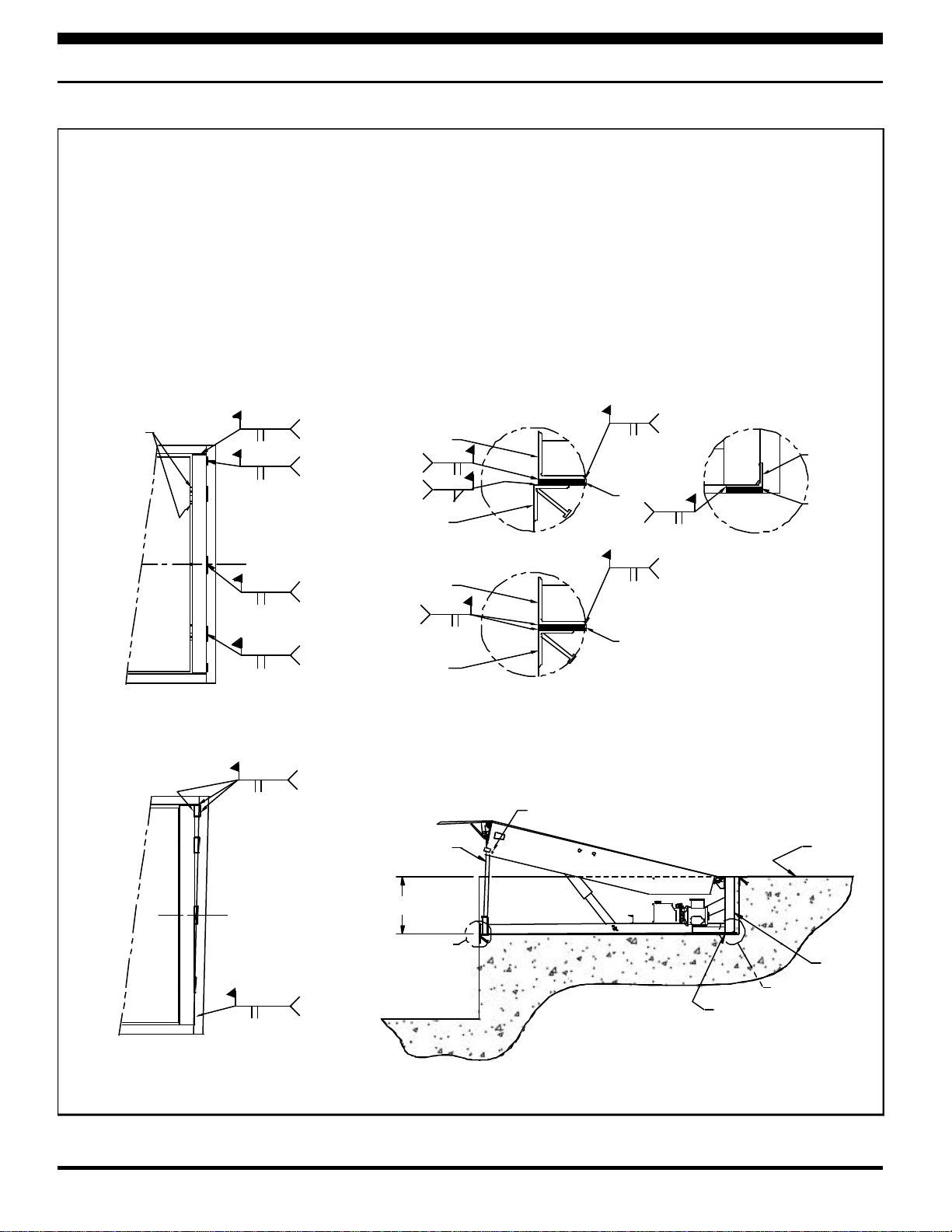

INSTALLATION INSTRUCTIONS - CONTINUED
DETAIL "G"
DETAIL "F"
TOP VIEW OF
LEVELER IN PIT.
DETAIL "D"
DETAIL "J"
9. Check the area between the rear frame and the back of the pit. If a gap exists, place spacers between the rear frame
angle and the rear curb angle. Tack weld spacers to rear frame angle only. See Detail "F".
10. Remove lifting chain from handling plates. See Detail "C".
11. Lift leveler until platform is level with dock floor. Place shims under below dock stop channels, located on frame angle,
and tack to front frame angle. NOTE: For units with 20" lips, lift bottom of front frame angle until it is at 19-1/2"
below dock floor, and add shims. See Detail "K".
12. Remove and discard shipping bands from lip.
13. Place marks on the face of the front frame angle to indicate the frame centerline and the location of each below
dock stop channel. Also, place a mark on the face of the lip to indicate the lip/platform centerline.
14. Shift the front frame angle sideways so that the frame centerline matches up with the lip centerline (using the lines
drawn earlier.) Tack weld front frame angle and shims to front curb angle.
15. Manually raise platform and extend lip. Engage the maintenance support. See Detail "K".
16. Remove handling plates from platform.
1 MAX
CUT
5
PLACES1/4 TACK
SPACER AS
2 PLACES EACH
C
L
FRAME MUST BE IN
CONTACT WITH REAR
CURB ANGLE.
EQUAL GAPS
MUST BE
MAINTAINED
ON EACH
SIDE OF
LEVELER.
1/4 TACK NECESSARY.
FILL GAP BETWEEN REAR FRAME
ANGLE AND REAR CURB ANGLE ON
EACH END WITH A 3" LONG SPACER.
FILL GAP BETWEEN REAR FRAME
ANGLE AND REAR CURB ANGLE AT
CENTER WITH A 6" LONG SPACER.
FILL GAP BETWEEN REAR FRAME
ANGLE AND REAR CURB ANGLE
BEHIND HINGE LUGS. SPACER
MUST SPAN DISTANCE FROM
OUTSIDE TO OUTSIDE OF HINGE
LUGS.
HINGE LUGS
ON EACH
EQUAL GAPS
MAINTAINED
MUST BE
C
L
SIDE OF
LEVELER
REAR EDGE OF LEVELER FRAME MUST BE AGAINST REAR
CURB ANGLE. SHIM OR TRIM REAR FRAME ANGLE AS
NECESSARY. IF PIT IS NOT SQUARE, SEE DETAIL "F" & "G".
1/4 TACK
SIDE CURB ANGLE
FRONT CURB ANGLE
C
L
PLATFORM REMOVED FOR CLARITY
PORTIONS OF FRAME AND
SHIM SIZE:
4 X 3 X *
QTY 3
2 PLACES
14
14
2 SHIMS
UNDER REAR
FRAME
SUPPORTS.
SHIM SIZE:
4 X 3 X *
UNDER
CENTER
REAR FRAME
SUPPORT. MIN.
SHIM SIZE:
4 X 12 X *
REAR CURB
ANGLE
6'UNITS: 40-1/2
8'UNITS: 44-1/2 CENTERED UNDER
FRAME CHANNELS
UNDER RAMP
CYLINDER.
SHIM SIZE:
4 X 12 X *
SHIM PACK
WILL VARY
DEPENDING
HEIGHT OF
ON PIT
DEPTH.
CAUTION
STAND TO ONE SIDE WHEN CUTTING BANDS TO AVOID BEING CUT BY THE BANDS.
SHIPPING BANDS ARE UNDER TENSION. WEAR SAFETY GLASSES AND PROTECTIVE GLOVES.
DANGER
1/4 TACK
NEVER BE UNDER THIS LEVELER WITHOUT PLACING
THE MAINTENANCE SUPPORT AS SHOWN IN DIAGRAM.
FOR SUPPORT REMOVAL: RAISE LEVELER TO HIGHEST
POSITION AND TILT SUPPORT TO THE STORED POSITION.
DO NOT USE MAINTENANCE SUPPORT IF DAMAGED.
Figure - 7 Installation

HL-800 HYDRAULIC DOCK LEVELER
10 Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
DETAIL "L"
DETAIL "H"
DETAIL "K"
M
N
DETAIL "N"DETAIL "M"
DETAIL "M"
2 PLACES
C
L
C
L
** WELD TO SPAN
OUTSIDE TO OUTSIDE
OF HINGE LUGS
2 PLACES
EACH
SPACER
CENTERED
SPACER
WHEN NO
EXISTS.
HINGE
LUGS
2 PLACES
POSTS.
REAR FRAME SUPPORT
INSERT SHIMS UNDER
POST
SUPPORT
FLOOR
DOCK
FULL RANGE TOEGUARD
SHIPPING BOLT
LOCATION
MAINTENANCE
SUPPORT
19-1/2
EACH SHIM 1/4
FRONT CURB
ANGLE
FRONT FRAME
ANGLE
SHIM
EACH SHIM
1/4
EACH SHIM 1/4 SHIM
REAR FRAME
ANGLE
EACH SHIM 1/4
1/4
FRONT CURB
ANGLE
FRONT FRAME
ANGLE
EACH SHIM
1/4
EACH SHIM
SHIM
1/4 **
1/4 6
1/4 5
1/4
1/4 3 MIN.
1/4 3
SOME COMPONENTS
REMOVED FOR
CLARITY
FRAME RECESSED
FRAME FLUSH
17. Cut and place shims under the rear frame support posts as necessary. See Detail "J".
18. Cut and place shim(s) between the frame channels and pit floor directly under the ramp cylinder pivot.
Do not weld shims at this time! The frame channels will be level between the rear frame and the ramp
cylinder pivot with the proper shim height. See Detail "J" and "K".
19. Weld all stacked shims together. Weld rear shims to the rear frame. Weld shim(s) to the frame channels
under the ramp cylinder pivot. Weld shims to the front curb angle and front frame angle. See Detail "M"
& "N".
20. Stitch weld the rear frame angle (and the rear spacers if needed) to the rear curb angle. See Detail "H"
& "L". Center a 6 inch weld behind each support post and a 3 inch weld at each end of rear frame angle.
21. Clean and paint all weld and grind marks.
22. Remove front shipping bolt from each full range toeguard. Verify that toeguards move up and down freely.
See Detail "K".
Figure - 8 Installation

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
11
INSTALLATION INSTRUCTIONS - CONTINUED
FOR LEVELERS WITH SELF FORMING PANS
Figure - 9 Installation

HL-800 HYDRAULIC DOCK LEVELER
12 Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
FOR LEVELERS WITH SELF FORMING PANS
Figure - 10 Installation

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
13
INSTALLATION INSTRUCTIONS - CONTINUED
FOR LEVELERS WITH SELF FORMING PANS
Figure - 11 Installation

HL-800 HYDRAULIC DOCK LEVELER
14 Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
FOR LEVELERS WITH SELF FORMING PANS
Figure - 12 Installation

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
15
INSTALLATION INSTRUCTIONS - CONTINUED
FOR LEVELERS WITH SELF FORMING PANS
Figure - 13 Installation

HL-800 HYDRAULIC DOCK LEVELER
16 Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
FOR LEVELERS WITH SELF FORMING PANS
Figure - 14 Installation

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
17
INSTALLATION INSTRUCTIONS - CONTINUED
ELECTRICAL INSTALLATION
Figure - 15 Electrical Installation

HL-800 HYDRAULIC DOCK LEVELER
18 Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
ELECTRICAL INSTALLATION
Figure - 16 Electrical Installation

HL-800 HYDRAULIC DOCK LEVELER
Pub. No. 1167-R2 - April 2003
19
3. Drill two 3/4 inch holes per bumper that are approximately 1/2 inch deeper than the bolt length that will be used.
2. Each bumper should be secured with two 3/4 inch concrete anchor bolts that are a minimum of 5-1/4 inches long.
(Ref. Rawl anchor 6954 - supplied by others.)
3. Drill two 3/4 inch holes per bumper that are approximately 1/2 inch deeper than the bolt length that will be used.
of the pit), mark the hole centers.
2. Each bumper should be secured with two 3/4 inch concrete anchor bolts that are a minimum of 5-1/4 inches long.
(Ref. Rawl anchor 6954 - supplied by others.)
1. With a bumper positioned as shown in Detail "R" (top is inline with dock surface and one side is even with the edge
4. Secure each bumper with concrete anchor bolts. Torque each bolt to 120 ft-lbs.
5. Apply logo decal to front curb angle. See Detail "R".
1. With a bumper positioned as shown in Detail "S", mark the hole centers.
4. Weld the bumper side plate to the front vertical pit angle.
5. Torque each bolt to 120 ft-lbs.
6. Clean and paint all weld and grind marks.
7. Apply logo decal to front curb angle. See Detail "S".
BUMPER INSTALLATION
LAMINATED BUMPER (OPTIONAL)
MOLDED BUMPER (STANDARD)
DOCK FLOOR
MIN. 3/4 X 5-1/4
CONCRETE ANCHOR
BOLTS (SUPPLIED
BY OTHERS)
LOGO DECAL SIDE OF
LEVELER
PIT
LEVELER
LIP
MOLDED
BUMPER
DETAIL "R"
LOGO DECAL
1/4
1/4
1/4
MIN. 3/4 X 5-1/4
CONCRETE ANCHOR
BOLTS (SUPPLIED
BY OTHERS)
LEVELER LIP
SIDE OF
LEVELER
PIT
LAMINATED
BUMPER
DETAIL "S"
2 PLACES
DOCK FLOOR
INSTALLATION INSTRUCTIONS - CONTINUED
COMPLETION
Figure - 17 Bumper Installation

HL-800 HYDRAULIC DOCK LEVELER
20 Pub. No. 1167-R2 - April 2003
INSTALLATION INSTRUCTIONS - CONTINUED
COMPLETION
ANCHOR PLATE
(SUPPLIED BY OTHERS)
DETAIL "U"
1. Raise leveler and engage maintenance support.
2. Remove lip supports from front frame angle (right side).
3. Disengage maintenance support and lower leveler to below dock position.
4. Manually raise platform until it is level with dock floor and support leveler.
5. Locate and weld lip supports to front pit steel as shown in Detail "T". NOTE: If front curb steel does not exist, anchor
plates must be used. See details below. (Supplied by others)
6 Adjust the lip stop bolt to allow the lip to be centered on lip supports.
5/8" X 5 LONG
ANCHOR. QTY 4
(SUPPLIED BY OTHERS)
6
1
8
Ø3/4
13 1/2
3
LIP SUPPORT INSTALLATION (20" LIPS ONLY)
DETAIL "T"
WITH PIT STEELWITHOUT PIT STEEL
1/4 2 PLACES
2 PLACES
1/4
13 1/2
Figure - 18 Lip Support Installation
