RITE-HITE Wheel-Lok MWL-1300 User manual

MWL-1300 Wheel-LokTM
Vehicle Restraint
Owners Manual
This Manual Covers Restraints Built After Serial Numbers:
10HG900001M and up
PRINTED IN U.S.A.
RITE-HITE PRINT SHOP
PUBLICATION NO. 1307
JULY 2013
MADE IN U.S.A.

2Pub. No. 1307 - July 2013
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 2
SAFETY WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
OWNER RESPONSIBILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DEFINITION AND FUNCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATING PROCEDURES & TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MAINTENANCE (BASED ON TYPICAL APPLICATIONS OF 8 TRUCKS PER DAY). . . . . . . . . . . . . . . . . . . . . . . . 11
HORN OVERRIDE CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ELECTRICAL SCHEMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BACK COVER
RITE-HITE®MWL-1300 Owner’s Manual
TABEL OF CONTENTS
INTRODUCTION
Read and understand this manual before attempting to install or operate. For best results, have this product serviced
by your authorized Rite-Hite representative.
The MWL-1300 vehicle restraint by Rite-Hite is intended to provide a safer workplace for workers in shipping and
receiving dock areas. The MWL-1300 vehicle restraint is a restraint device that, when properly installed and operated,
retains a secure connection between the truck and dock. Signal lights, warning horns and signs provide instructions to
the truck driver and MWL vehicle restraint operator that a safe condition exists.
NOTICE TO USER
Your local Rite-Hite representative provides a Planned Maintenance Program (P.M.P.) which can be fitted to your
specific operation. Call your local representative or the Rite-Hite at 414-355-2600.
The Rite-Hite products in this manual are covered by one or more of the following U.S. patents: 5,271,183;
5,323,503; 5,546,623; 5,553,987; 5,582,498; 5,664,930; 5,702,223; 5,762,459 (RE: 37,570); 5,882,167; 6,065,172;
6,070,283; 6,085,375; 6,092,970; 6,106,212; 6,116,839; 6,190,109; 6,220,809; 6,276,016; 6,311,352; 6,318,947;
6,322,310; 6,360,394; 6,368,043; 6,431,819; 6,488,464; 6,499,169; 6,505,713; 6,524,053; 6,634,049; 6,726,432;
6,773,221; 6,832,403; 6,880,301; 6,892,411; 7,032,267; 7,062,814; 7,134,159; 7,213,285; 7,216,391; 7,363,670;
7,380,305; 7,503,089; 7,533,431; 7,546,655; 7,584,517; 7,681,271; 7,841,823; 7,877,831; 7,823,239; 8,006,811;
8,065,770; 8,141,189 and pending U.S and foreign patent applications. RITE-HITE®, THINMANTM, SAFE-T-LIP®,
HYDRACHEK®, WHEEL-LOKTM, DOK-LOK®, DUAL-DOK®, SAFE-T-STRUTTM, DOK-COMMANDER®, JUMBOTM,
HYDRA-RITETM, SAFE-T-GATE®, RITE-VUTM LIGHT COMMUNICATION SYSTEM and SMOOTH TRANSITION DOK
SYSTEMTM, are trademarks of Rite-Hite®.

Pub. No. 1307 - July 2013 3
RITE-HITE®MWL-1300 Owner’s Manual
SAFETY WARNINGS
LOCKOUT/TAGOUT PROCEDURES
The Occupational Safety and Health Administration requires that, in addition to posting safety warnings and
barricading the work area, the power supply has been locked in the OFF position or disconnected. It is mandatory
that an approved lockout device is utilized. An example of a lockout device is illustrated. The proper lockout
procedure requires that the person responsible for the repairs is the only person who has the ability to remove the
lockout device.
In addition to the lockout device, it is also a requirement to tag the power control in a manner that will clearly note
that repairs are under way and state who is responsible for the lockout condition. Tagout devices have to be
constructed and printed so that exposure to weather conditions or wet and damp locations will not cause the tag to
deteriorate or become unreadable.
Rite-Hite Corporation does not recommend any particular lockout device, but recommends the utilization of an
OSHA approved device (refer to OSHA regulation 1910.147). Rite-Hite Corporation also recommends the review and
implementation of an entire safety program for the Control of Hazardous Energy (Lockout/Tagout). These regulations
are available through OSHA publication 3120.
When working with electrical or electronic
controls, make sure that the power source has
been locked out and tagged according to OSHA
regulations and approved local electrical codes.
FIGURE 1 - LOCKOUT/TAGOUT
This is the highest level statement. Failure to
follow the listed instructions will most likely
result in severe injury or death.
IMPORTANT is used to draw attention
to a procedure that needs to be followed to
prevent machine or property damage.
This is a statement of serious hazard. Failure to
follow the listed instructions could place the
individual at risk of serious injury or death.
The statements used with this level of
warning deal with a safe operating
procedure. If the procedure is ignored, the
possibility of personal injury may exist.

4Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
OWNER RESPONSIBILITY
1. The owner should recognize the inherent danger of
the interface between dock and transport vehicle.
The owner should, therefore, train and instruct
operators in the safe use of dock equipment in
accordance with the information provided below.
The manufacturer shall publish, provide to the initial
purchaser, and make the following information
readily available to owners:
•Installation instructions
•Recommended initial and periodic inspections
procedures
•Maintenance procedures
•Operating instructions
•Descriptions or specifications for replaceable or
repairable parts
•Tables identifying the grade (slope) for all
variations of length or configuration of the dock
equipment, and
•Information identifying the maximum
uncontrolled drop encountered upon sudden
removal of support while within the working
range of the equipment.
It shall be the responsibility of the owner to verify
that the material listed in this section has been
received and that it is made available for the
instruction and training of presonnel entrusted with
the use or maintenance of the dock equipment.
2. When a transport vehicle is parked at a loading
dock, it is important that the vehicle is relatively
perpendicular to the dock face and in close contact
with at least one of the dock bumpers.
3. Nameplates, cautions, instructions, and posted
warnings shall not be obscured from the view of
operating or maintenance personnel for whom such
warnings are intended.
4. Manufacturer’s recommended periodic maintenance
and inspection procedures in effect at date of
shipment shall be followed, and written records of
the performance of these procedures should be kept.
5. As with any piece of machinery, dock equipment
requires routine maintenance, lubrication, and
adjustments. Your local Rite-Hite representative
offers owners the option of a Planned Maintenance
Program (P.M.P.). As part of this service, your local
Rite-Hite representative will do all routine
maintenance, lubrication, and adjustments.
6. Dock equipment that is structurally damaged shall
be removed from service, inspected by a
manufacturer’s authorized representative, and
repaired as needed before being placed back in
service.
7. The manufacturer shall make available
replacement nameplates, caution/instruction labels,
and operating/maintenance manuals upon request
of the owner. The owner shall see that all
nameplates, caution/instruction markings or labels
are in place and legible, and that the appropriate
operating/maintenance manuals are provided to
users.
8. Modifications or alterations of dock equipment shall
be made only with written permission of the original
manufacturer. These changes shall also satisfy all
safety recommendations of the original equipment
manufacturer for the particular application of the
dock equipment.
9. In order to be entitled to the benefits of the
standard product warranty, the dock equipment
must have been properly installed, maintained and
operated within its rated capacities and/or specific
design parameters, and not otherwise abused.
10. It is recommended that trailers equipped with air
ride suspensions should remove the air from the
suspension to minimize trailer bed drop, prior to
loading or unloading.
11. When industrial trucks are driven on and off
transport vehicles during the loading and unloading
operation, the brakes on the transport vehicle shall
be applied and wheel chocks or a positive
restraining device shall be engaged.
12. In selecting dock equipment, it is important to
consider not only present requirements but also
future plans or adverse environments.

Pub. No. 1307 - July 2013 5
The MWL-1300 vehicle restraint is a truck and trailer
locking system used to help secure trucks and trailers to
the face of a loading dock. The barrier is deployed in
front of the tire after the trailer has been positioned
against the dock bumpers.
This prevents forward movement of the truck/trailer that
may create an unsafe void between the face of the dock
and the rear end of the truck/trailer as the forklift travels
from the loading dock onto the trailer; and creates an
obstruction noticeable (via outside lights) to the truck
driver, should the driver accidentally try to pull the truck/
trailer away while it is being serviced.
The normal mode of the restraint is the barrier assembly
is stored at the near end (closest to the dock). Inside
lights should be flashing red and outside lights should be
flashing green.
The proper activation of the wheel restraint is monitored
by:
•VISUAL CONTROL
– one set of flashing green and red lights located
inside the building for the dock personnel, and
one set located outside the building for the truck
driver. See Figure 2.
• AUDIO CONTROL
– a horn sounds inside and outside the building,
warning dock personnel when the locking
mechanism is not properly activated. In this case,
the truck or trailer must be secured by other
means (wheel chocks etc.) prior to servicing the
trailer. See Figure 3.
RITE-HITE®MWL-1300 Owner’s Manual
DEFINITION AND FUNCTION
Outside Light Box
With Red And
Green Lights
Inside Control Box
With Red And
Green Lights

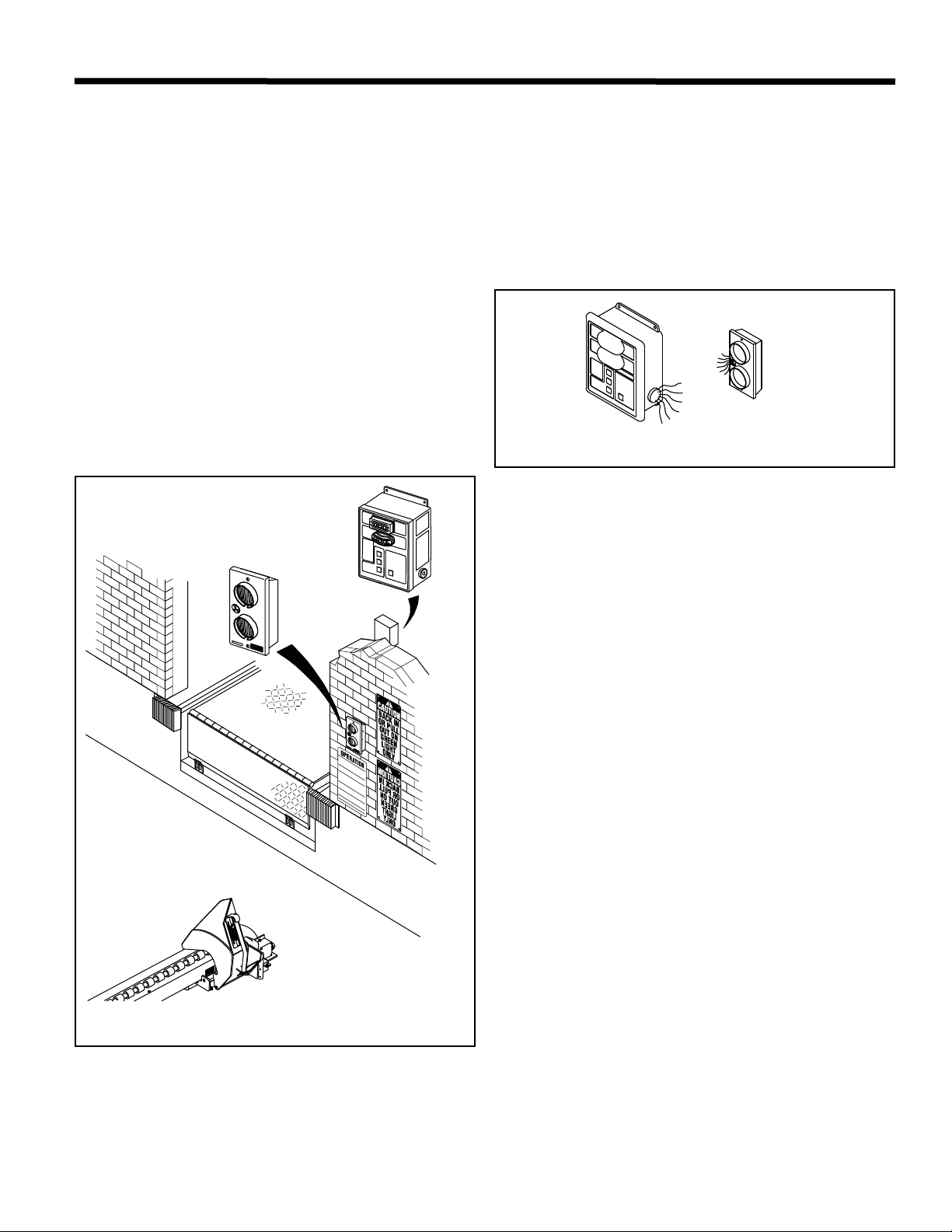

FIGURE 3 - AUDIO CONTROLS
FIGURE 2 - VISUAL CONTROLS

See Figure 4 for locations of these features.
WHEEL GUIDE
The main weldment which is bolted onto the approach. It
aligns the truck to the dock and also holds the wheel
restraint in a locked position.
BARRIER
Travels along the Wheel Guide and is then locked in front
of a trailer tire.
BARRIER CARRIAGE
Carries the Barrier along the Wheel Guide.
LOCK SENSORS – SW1 (BARRIER LOCKED
SENSOR AND PHOTO-EYE)
Communicate to the controls that the unit is locked. Both
sensors need to be made to in order for the MWL-1300 to
indicate a safe locked condition.
UNLOCK SENSORS – SW2 (BARRIER
STORED SENSOR AND CARRIAGE STORED
SENSOR)
Communicate to the controls that the unit is stored. Both
sensors need to be made to indicate a stored condition.
CONTROL BOX, OUTSIDE LIGHT BOX,
AND SIGNAGE
The combination of these components is used to control
the function of the MWL-1300 wheel restraint and provide
audio/visual communication to the dock attendant and the
trailer driver.
6Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
FEATURES

Pub. No. 1307 - July 2013 7
RITE-HITE®MWL-1300 Owner’s Manual

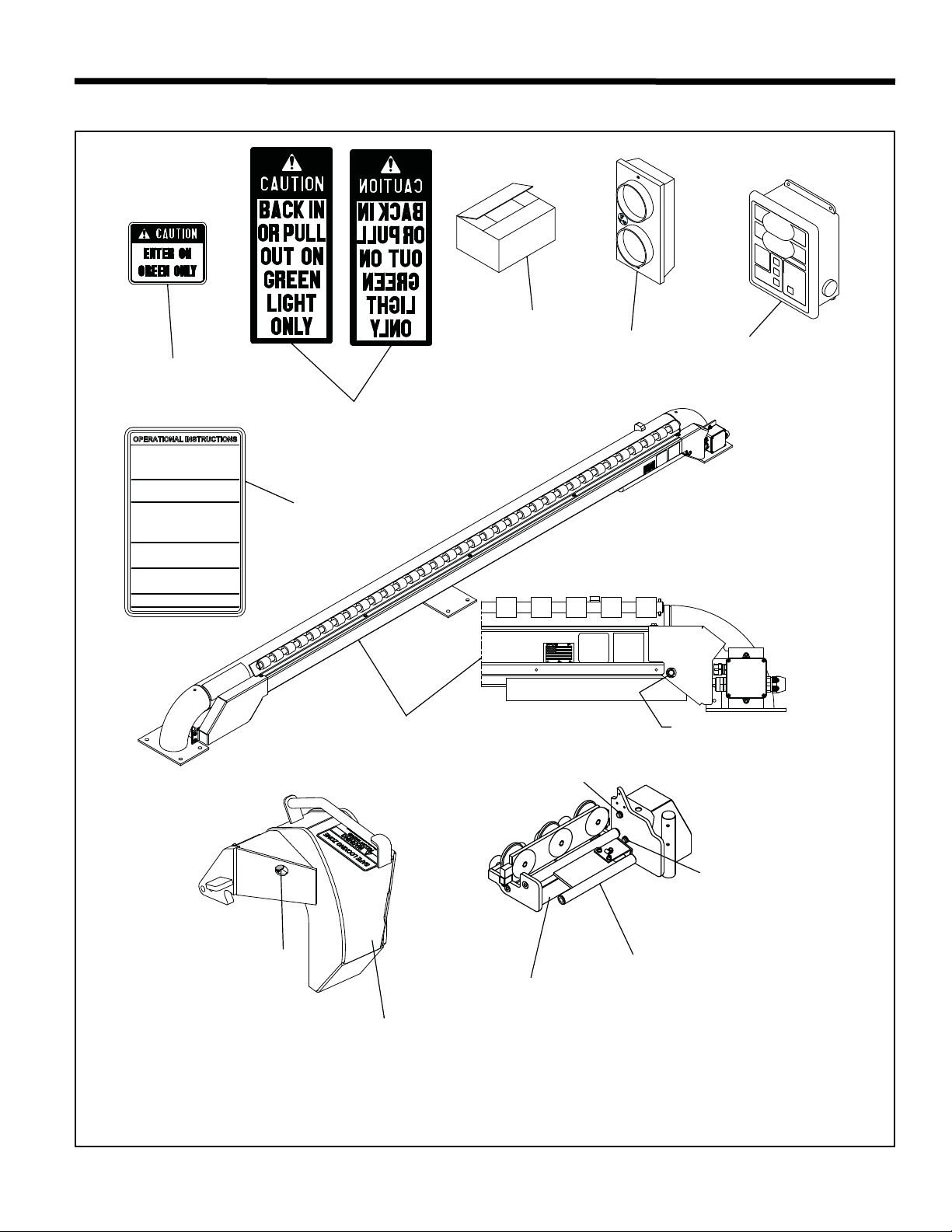

FIGURE 4 - FEATURES OF MWL-1300
Inside
Sign
Outside
Signs
Anchor Kit
Outside Lights
with Horn Control Box
Wheel Guide
Barrier
Operation
Sign
Barrier Locked
Sensor
Barrier Stored
Sensor
Carriage Stored
Sensor
Photo-Eye
Barrier Carriage
Barrier Link

8Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
Stored Position / Restraint UNLOCKED
If the MWL-1300 vehicle restraint is in the UNLOCKED
position (Barrier is up and stored all the way towards the
dock face), the Light communication System should give
the following signals:
1. OUTSIDE light flashing GREEN, which indicates that
a vehicle may pull into our out of the loading bay.
2. INSIDE light flashing RED, which indicates that
loading or unloading is not permitted, since the
truck/trailer is not secured against the building. See
Figure 5.
Restraint LOCKING, Position Barrier In Front
Of Tire
It is assumed that the loading bay is empty (no truck).
The outside GREEN light and the inside RED light are
flashing, the Barrier is stored. A truck backs in. When
the truck is parked firmly against the bumpers, the
operator can now lock the vehicle.
To lock the vehicle, the operator deploys the Barrier in
front of a tire. The inside light will now be flashing green.
The truck may now be serviced. The light communication
and truck position are shown in Figure 6.
OPERATING PROCEDURES
Outside Lights
OUTSIDE LIGHT
STATUS
GREEN
Inside Lights
CONTROL BOX
STATUS
MWL-1300 POSITION
GREEN
RED
LOADING
OPERATION
COMPLETE
OVERRIDEHORN
3
2
1
RED
FIGURE 5 - STORED POSITION, INSIDE RED LIGHT AND OUTSIDE GREEN LIGHT
• Before loading or unloading a vehicle at
your loading dock while using a vehicle
restraint, always visually inspect to be sure
that the barrier blocks blocks the trailer
wheel. If a condition occurs that cannot be
remedied by backing the trailer firmly
against the dock bumpers, secure the
trailer by other means.
• Inspect all restraint lights daily to make
certain they work properly.
• Perform maintenance on restraints in
accordance with Maintenance on page 11 of
this manual.
• Vehicle restraints should be operated only
by authorized personnel who have read and
understand the Owner’s Manual.
• Call your local representative or RITE-HITE
at [phone] with any questions.
FAILURE TO FOLLOW THESE PROCEDURES
COULD ALLOW UNEXPECTED TRAILER /
LOADING DOCK SEPERATION RESULTING IN
DEATH OR SERIOUS INJURY!

Pub. No. 1307 - July 2013 9
RITE-HITE®MWL-1300 Owner’s Manual
Outside Lights
OUTSIDE LIGHT
STATUS
RED
Inside Lights
CONTROL BOX
STATUS
MWL-1300 POSITION
GREEN
RED
OVERRIDEHORN
3
2
1GREEN
LOADING
OPERATION
COMPLETE
FIGURE 6 - TRUCK LOCKED AGAINST THE BUMPERS
Restraint LOCKED
If the MWL-1300 vehicle restraint is in the LOCKED
position (Barrier is down in front the tire), the Light
Communication System should give the following signals:
1. OUTSIDE light flashing RED, indicating that the truck
driver is not permitted to leave.
2. INSIDE light flashing GREEN, indicating that the
truck may now be loaded or unloaded. See Figure 6.
NOTE:
If testing without a trailer present, make sure to cover
photo-eye so controls can signal a LOCKED
condition.
Restraint UNLOCKING, LOADING
OPERATION COMPLETE Button Pressed
In order to release the truck after completion of the
loading/unloading process, the operator must first press
the LOADING OPERATION COMPLETE button on the
control box. The inside lights will be flashing RED and
the outside lights will be flashing simultaneous RED and
GREEN signaling to the exterior that it is now safe to
disengage the restraint and return the barrier to its stored
position. Once the barrier gets placed in its stored
position, the outside lights will automatically change to
GREEN allowing the truck to depart.

10 Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
FAULT State From LOCKING State
In case the Barrier does not engage properly or if it does
not sense a tire, the alarm will sound. The outside and
inside lights will show flashing RED. The light
communication, alarm and truck position are shown in
Figure 7.
HORN OVERRIDE State, HORN OVERRIDE
Code Entered after Securing Trailer by
Alternate Means
An alternate means of securing the truck must be used if
the Barrier cannot capture a tire (i.e. wheel chocks)
before the horn over-ride code is entered. After entering
the horn over-ride code, inside lights are flashing red and
green alerting the forklift operator the trailer is secured by
other means. Outside light is flashing red alerting the
truck driver not to move.
To return to STORED, (barrier must be in its STORED
position) enter the HORN OVERRIDE GODE followed by
the LOADING OPERATION COMPLETE button.
Outside Lights
OUTSIDE LIGHT
STATUS
RED
Inside Lights
Horn
CONTROL BOX
STATUS
MWL-1300 POSITION
RED
OVERRIDEHORN
3
2
1GREEN
LOADING
OPERATION
COMPLETE
FIGURE 7 - FAULT MODE, TRUCK NOT PROPERLY LOCKED, HORN ON
Outside Lights
OUTSIDE LIGHT
STATUS
RED
Inside Lights
CONTROL BOX
STATUS
MWL-1300 POSITION
GREEN
RED
OVERRIDEHORN
3
2
1
GREEN
LOADING
OPERATION
COMPLETE
FIGURE 8 - FAULT MODE, TRUCK NOT PROPERLY LOCKED, HORN SILENCED
Before operating “HORN OVERRIDE”, secure
trailer by other means.

Pub. No. 1307 - July 2013 11
RITE-HITE®MWL-1300 Owner’s Manual
NOTE: Your local Rite-Hite representative provides a
Planned Maintenance Program (P.M.P.) which
can be fitted to your specific operation. Call your
local representative.
DAILY
1. Remove dirt, snow, ice and debris around MWL-1300
vehicle restraint.
2. Verify inside, outside lights and horns are working.
3. Replace damaged or missing light bulbs and lenses.
4. Repair, remount, or replace outside and inside signs
as required.
5. Inspect dock bumpers. Missing bumpers must be
replaced.
6. Clean and remove any debris in front of the photo
eye on the Wheel Barrier (see figure 9).
180 DAYS
1. Perform all Daily maintenance.
2. Inspect and clean the Trolley Track. Replace if
necessary.
3. Inspect the Carriage Rollers. Replace if necessary.
4. Inspect trolley sliders for wear. Replace if necessary.
4. Inspect the Coil Cord support Cable. If necessary,
remove any slack by tightening the adjustment nut.
5. Perform operational test after all maintenance repairs
are complete.
6. Verify decals are present and legible, replace as
required.
MAINTENANCE
(BASED ON TYPICAL APPLICATIONS OF 8 TRUCKS PER DAY)
When working with electrical or electronic
controls, make sure that the power source has
been locked out and tagged according to OSHA
regulations and approved local electrical codes.
Post safety warnings and barricade work area,
at dock level and at ground level, to prevent
unauthorized use of the dock position.
A safe work place requires all lights and the
horn to be working properly. DO NOT use
MWL-1300 vehicle restraint if parts are broken
or missing.
Maintenance may be required more frequently
at loading docks exposed to harsh
environments (extreme climates, corrosive
chemicals, frequency of usage exceeding 8
trucks per day, etc.). Consult RITE-HITE if these
conditions exist for accelerated maintenance
requirements.

12 Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
SENSOR TESTING
Unlocked:
1. Place restraint in its stored position, Barrier stored
and carriage all the way towards dock. SW2 should
be ON and SW1 should be OFF. See LED Status
Chart page 15.
2. If SW2 is off, check switch adjustment and adjust if
necessary. See Figure 10.
3. If switch is adjusted properly, verify switch operation.
See Switch Testing Procedure.
4. If all switches are working properly, verify all wiring
per electrical schematic.
Locked:
1. Place restraint in LOCKED position, barrier in vehicle
tire path and engaging locking pin. Photo-eye will
need to be covered if vehicle tire not present. SW1
should be ON and SW2 should be OFF. See LED
Status Chart page 15.
2. If SW1 is off, verify operation of Barrier Locked
switch and Photo-Eye. See Switch Testing
Procedure.
3. If all switches are working properly, verify all wiring
per electrical schematic.
FIGURE 9 - INSPECTION
Some Items
Removed
For Clarity
Track
Coil Cord Support Cable
Trolley Wheel
Trolley Slider
Trolley
Carriage
Coil Cord
Carriage Roller
Photo-Eye
To Be Flush
With Guard Face
FIGURE 10 - MAG. RES. SWITCH ADJUSTMENT

Pub. No. 1307 - July 2013 13
Sensing Switch Test Procedure
Mag Res. Sensor:
1. Locate sensor wires and disconnect.
2. Set multi-meter to Continuity setting.
3. Attach leads to switch wires and place a magnet in
front of switch:
a. Magnet Present – Continuity through switch
b. Magnet Not Present – No continuity through
switch
4. If there is no continuity when a magnet is present,
replace switch.
Photo-Eye Sensor:
1. Switch must be installed to test.
2. Remove sensor cover with sensor installed from
barrier.
3. Ensure restraint is powered up.
4. Green LED on top of sensor indicates power to
sensor. If LED is not on and restraint is powered,
check all electrical connections and verify wiring per
electrical schematic.
5. Green LED on, place obstruction in front of photo-eye
lens. Yellow LED should turn on.
RITE-HITE®MWL-1300 Owner’s Manual
Photo-Eye
Green LED
Yellow LED
Brown (+DC)
Blue (-DC)
White
(Output)

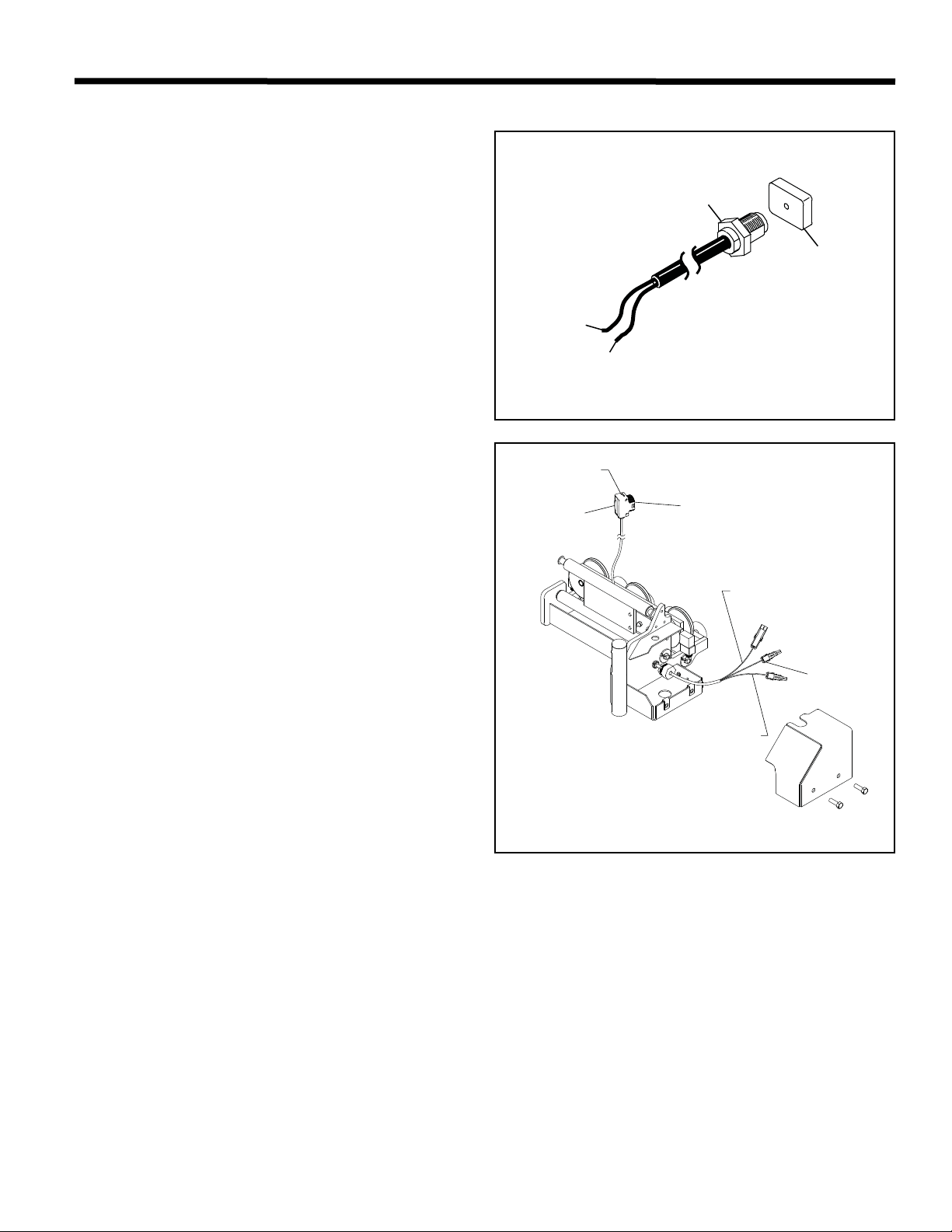

FIGURE 12 - PHOTO-EYE SENSOR TEST
FIGURE 11 - MAG RES. SWITCH TEST
Sensing
Switch
Magnet
White
Black

14 Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
SETTING HORN OVERRIDE CODE
1. Press and hold DIAGNOSTIC button until horn
chirps (approximately three seconds).
2. Enter the factory preset HORN OVERRIDE
code:1223.
3. Enter the new HORN OVERRIDE code. The code
can be one to four numbers in length.
4. Once the new code has been entered, press the
LOCK button.
5. Controls reset with new HORN OVERRIDE code
enabled.
If no buttons are pressed within a five minute period, the
controls will automatically retain the previous code. To
exit the HORN OVERRIDE code set mode at any time,
press the DIAGNOSTIC button.
If code has been forgotten, follow the above procedures
and enter a new code.
HORN OVERRIDE CODE

Pub. No. 1307 - July 2013 15
RITE-HITE®MWL-1300 Owner’s Manual
LED STATUS CHART
LED Inputs LED Outputs
STORED (UNLOCKED) F T - - P F F P F F * T
LOCKING F F - - P F P F F F * T
LOCKED T F - - F P P F F T * T
STORING (UNLOCKED) F F M - T F P P F F * T
HORN SILENCED ? ? - M P P P F F T * T
SWI = MAG RES 1 (LOCK) ISR = Inside Red Light
SW2 = MAG RES 2 (STORED) ISG = Inside Green Light
OSR = Outside Green Light
UNLOCK PB = Unlock Push Button OSG = Outside Green Light
PB1, 2, &3 = Horn Silence Code Push Button HORNS = Alarm Horn - Inside and Outside
FAULT = SW1 did not sense a safe CR1 = Green Light Interlock Output
LOCK/UNLOCK CR2 = Unidox Output
CR3 = Security System Output
T = Steady On
D = Double Pulse
F = Off
P = Pulsing/Flashing
* = True when Unidox is enabled
? = Varies depending on operation
SW1 SW2 UNLOCK PB PB1,2 & 3 ISR ISG OSR OSG HORNS CR1 CR2 CR3
FIGURE 13 - LED STATUS CHART

16 Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual

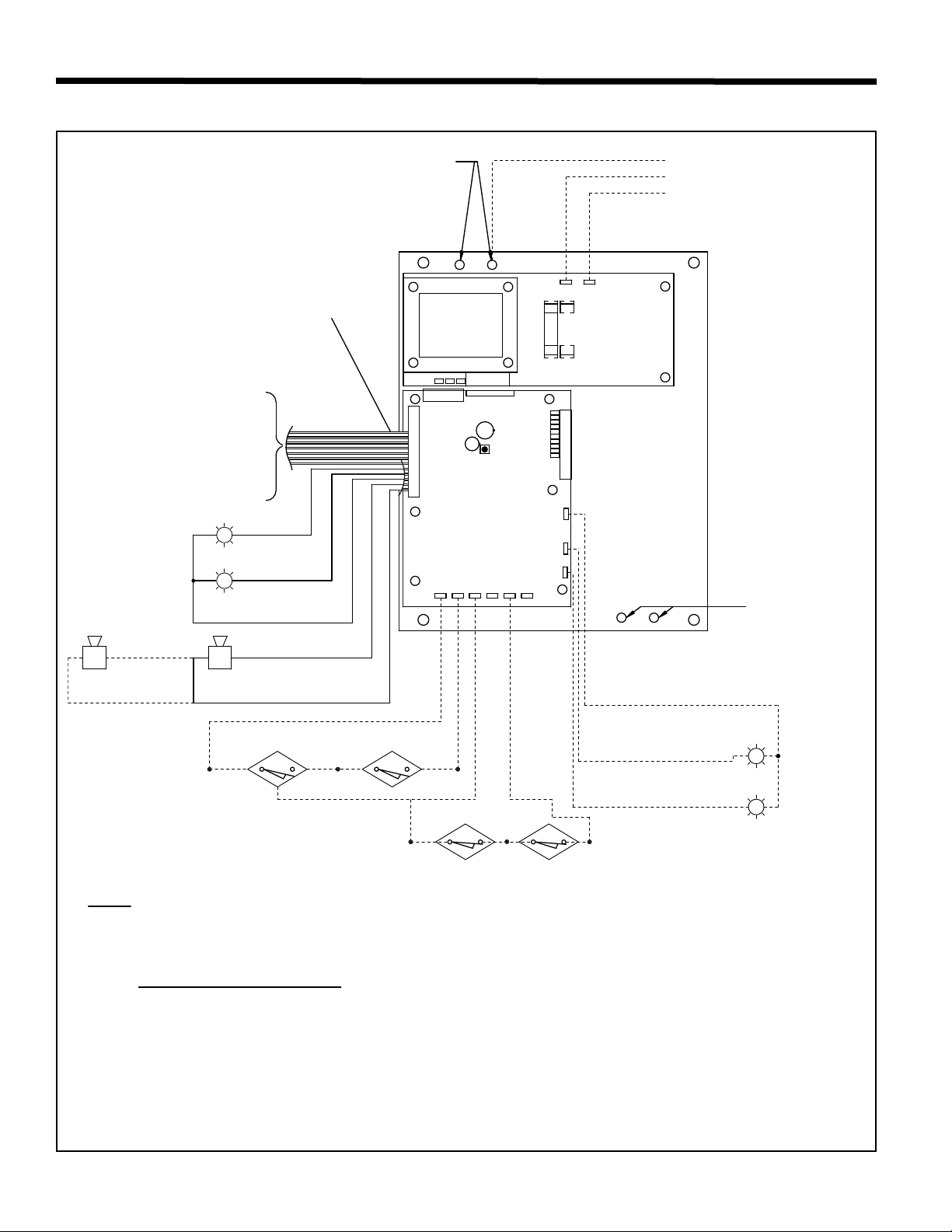

ELECTRICAL SCHEMATIC (STANDARD)
Ground Terminals
Ground Terminals
Outside Light
Green
12VDC, 2.1A
Outside Light
Red
12VDC, 2.1A
Outside Light
Common
(40)
(42)
(41)
R
G
(L1)(L2/N)(G)
GND - BK LK PB - BL HS 3 PB - VT HS 2 PB - BN HS 1 PB - GY UNLK PB - WH
Orange ISR
Green ISG
Red +12V
G
R
White/Black Horn -
White/Red Horn +
Horn
12VDC, 0.03A
12VDC, .54A
NOTES:
1. Refer all installation and service to qualified personnel.
2. Refer to equipment owners manual for complete discription.
3. Power supply disconnect or protection device supplied at installation.
4. All field wiring to be minimum #14GA. 60°/75°C copper wire only, insulated sufficiently for incoming voltage.
5. All internal control box wiring to be #16GA. minimum 90°C copper wire, insulated sufficiently for incoming voltage.
NOTE: This does not include control harness.
6. Class 1 control circuit.
7. Use insulated 1/4" female spade connectors.
8. Torque requirements:
Contactor: 8.9-22 LB-IN (MIN-MAX)
Overload Relay: 16 LB-IN
Ground Terminal: 35 LB-IN
Terminal Block: 5.0-5.6 LB-IN (MIN-MAX)
Solid State Relay Terminal: 35 LB-IN
12VDC, .54A
SW3 SW4
Barrier Stored
Sensor
Carriage Stored
Sensor
Tire PEC
Sensor
(BU)
(BN) LO (WH)
SW1 SW2
Barrier Locked
Sensor
N.O.
N.O.H.C. N.O.H.C.
(1) (5)
(4)
(2)
(6)
(3)
White/Black
Horn -
12VDC, 0.03A
Outside Horn
White/Red Horn +
Inside Lights,
Horn and Push
Button Wiring
Harness
To Customer Power Supply,
120V, 1PH, 60HZ, 30 AMP.
Fused Disconnect with 3 AMP.
Dual Element Time Delay Fusing
Supplied By Others.
SW1-
SW1+
+V1
OSG
OSR
SW2-
+V2
SW2+
SW3
01048__
OSPWR
L1L2
HH
FIGURE 14 - ELECTRICAL SCHEMATIC (STANDARD)

Pub. No. 1307 - July 2013 17
RITE-HITE®MWL-1300 Owner’s Manual
ELECTRICAL SCHEMATIC (OPTIONS MODULE)
CPU
module
photoeye
inter-
connect
hydraulic
inter-
connect
raise
LEGEND
lable LED lamp
denotes field wiring
leveler/overhead door
stored interlock
mechanical/
FA inter-
connect
NOTE: Use included female spade
connectors for installation. 5631D029
unidox
inter-
connect
selector
switch
OFF ON
security
system
interface
output
unidox
inter-
connect
output
green
light
inter-
lock
output
option
module
circuit breaker
reset button
power
module
NOTE: The standard wiring is not shown in this drawing to better show the option module wiring.
For information on standard wiring, see previous page.
FIGURE 15 - ELECTRICAL SCHEMATIC (OPTIONAL)

18 Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual

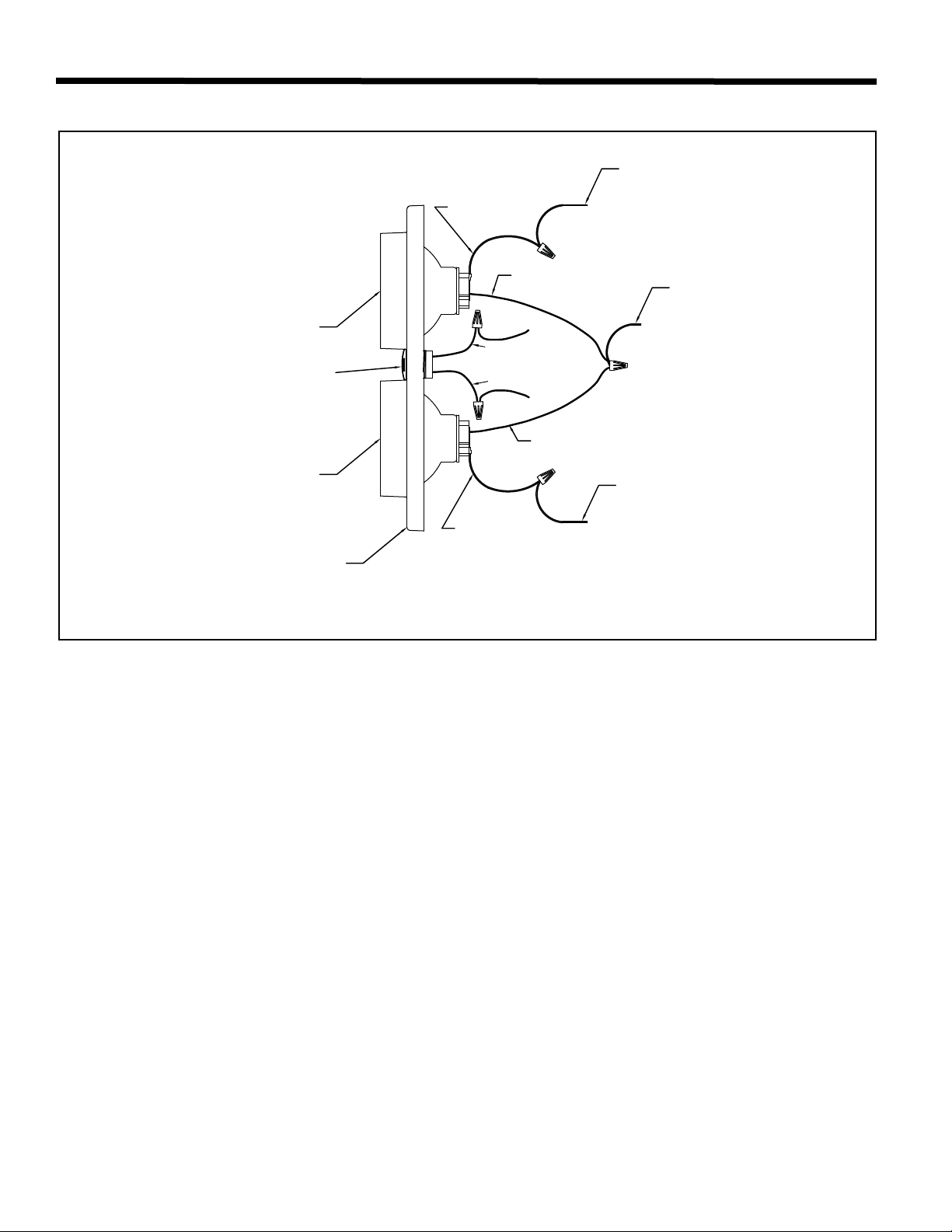

OUTSIDE LIGHT BOX WIRING
#40 Wire
White Wire
Red Wire #42 Wire
White Wire
Red Wire
#41 Wire
Red Lamp
Horn
Green Lamp
Light Box Cover
Red Wire
Black Wire
FIGURE 13 - OUTSIDE LIGHT BOX WIRING

Pub. No. 1307 - July 2013 19
RITE-HITE®MWL-1300 Owner’s Manual
NOTES

20 Pub. No. 1307 - July 2013
RITE-HITE®MWL-1300 Owner’s Manual
WHEEL GUIDE REPLACEMENT PARTS
3
2
19
4
4
5
5
6
16
7
8
9
10
11
12 13
14
15
16
17
18
6
11
17
15
16
4
13
12
14
4
6
87
