Rivers Edge Treestands RE705 User manual
Operator's Manual
Climbing Aids
OMRECA002
Revised 05/09/11
© 2011 RETI.
All Rights Reserved.
Get parts online at
www.HuntRiversEdge.com
20' TROPHY™ TREE LADDER
Model RE705
INCLUDES MODEL #'s:
RE705, 20' Trophy Tree Ladder
RE708, 20' Rapid Stick
RE709, 15' Rapid Stick
RE710, 5' Rapid Stick Section
RE720, 20' Double Rung Climbing Aid
RE721, 15' Double Rung Climbing Aid
RE722, 5' Double Rung Climbing Aid Section
15' RAPID STICK
Model RE709
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-52
Operator's Manual
Rivers Edge Climbing Aids
CONTENTS
Introduction and Warranty ...................................................................................................................................................................................................................................... 2
Warnings..................................................................................................................................................................................................................................................................... 3-4
Inspection and Maintenance .................................................................................................................................................................................................................................. 5
Assembly/Set-Up and Use/Parts Explosion/Parts List (RE705)................................................................................................................................................................ 6-8

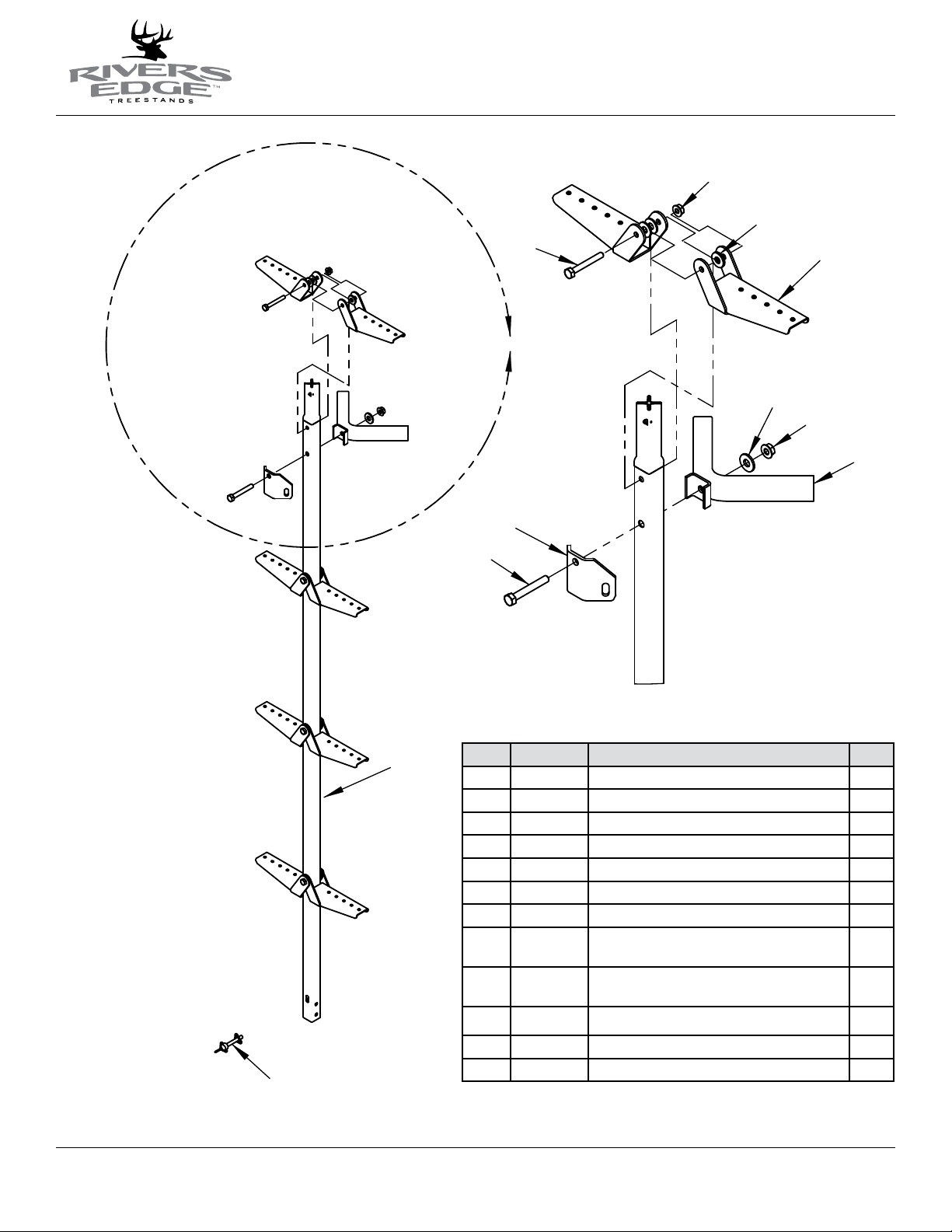

Assembly/Set-Up and Use/Parts Explosion/Parts List (RE708, RE709, RE710).................................................................................................................................9-11
Assembly/Set-Up and Use/Parts Explosion/Parts List (RE720, RE721, RE722).............................................................................................................................. 12-16
Bolt Guide ....................................................................................................................................................................................................................................................................17
Rivers Edge Treestands are engineered with you the hunter in mind. We appreciate your purchase of one of our world class treestands. Follow
these few simple instructions and your stand will provide you many years of trouble-free pleasure. Instructions should be kept in a safe place and
reviewed at least annually.
If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge customer service department at
800-450-EDGE (3343) for assistance.
WARRANTY
Rivers Edge Treestands, Inc., oers a lifetime warranty to be free from defects in materials and workmanship. This warranty applies to the original owner with a proof of purchase.
All items attached to our stands (seat, strap, rope, wood, etc.) that are degradable are warranted for a period of one year. There is no warranty on paint. This warranty applies
to products that are not modied, abused or misused in a manner that deviates from the products intended usage. Rivers Edge Treestands oers no other warranty expressed
or implied nor is to be held liable for any damage that may result from any defect in a treestand manufactured by them. Warranty work must be sent directly to Rivers Edge
Treestands and performed by them. To obtain warranty service and/or replacement instructions, you must have prior approval from Rivers Edge Treestands before
shipping your package to us by calling our customer service department at 800-450-EDGE (3343) or by writing to: Rivers Edge Treestands, Inc., P.O. Box 755, 1690
Elm Street, Cumberland, WI 54829 for a return material authorization number (RMA#). All items must be shipped prepaid. Rivers Edge Treestands will at no charge, repair
or replace, at their discretion, any defective stand which falls under the conditions stated above. Rivers Edge Treestands retains the right to change models, specications and
price without notice.
This equipment has been manufactured under strict quality guidelines. As with any equipment of this type, full understanding of the instructions and its use is mandatory for
the safety of its user. Rivers Edge Treestands, Inc., is not responsible for any damages or injuries sustained due to improper use or modication of any of its products, or due to
any use which deviates from the products intended usage. The manufacturer also is not responsible for any injuries sustained due to failure to adhere to the instructions for
use. Any misunderstanding of its operation should be directed to manufacturer prior to its use.
Owner is responsible to check product eld rating and must never exceed maximum weight rating stated. Rivers Edge Treestands, Inc., is not responsible for any malfunction
due to normal wear and tear and/or damage caused by improper use, improper maintenance or accidents. This product if used safely as intended, will give you years of trouble
free service. We hope you will enjoy the quality of our products for years to come, and have a safe hunt.
For replacement parts, phone 800-450-EDGE (3343) or go online to www.HuntRiversEdge.com.
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 3
Operator's Manual
Rivers Edge Climbing Aids
WARNINGS
WARNING
YOU MUST PURCHASE AND ALWAYS USE A FULL
BODY HARNESS FALL ARREST SYSTEM WITH A
CLIMBING BELT THAT MEETS TMA STANDARDS WHILE
USING THIS PRODUCT. SINGLE SAFETY BLETS AND
CHEST HARNESSES ARE NO LONGER ALLOWED AND
SHOULD NEVER BE USED.
IF YOU ARE NOT WEARING A FULL BODY HARNESS
WITH A CLIMBING BELT THAT IS PROPERLY ATTACHED
TO THE TREE THAT IS PROTECTING YOU FROM A FALL,
DO NOT LEAVE THE GROUND.
FAILURE TO USE OR IMPROPER USE OF A FULL BODY
HARNESS FALL ARREST SYSTEM WITH A CLIMBING
BELT THAT MEETS TMA STANDARDS MAY RESULT IN
SERIOUS INJURY OR DEATH! READ, UNDERSTAND
AND FOLLOW ALL INSTRUCTIONS. IF ANY INSTRUC
TIONS ARE NOT UNDERSTOOD OR IF YOU HAVE A
PARTS ISSUE CALL 800450EDGE 3343 BEFORE US
ING.
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
INSPECTION, MAINTENANCE, & USE INSTRUCTIONS
PROVIDED BEFORE EACH USE. FAILURE TO FOLLOW
ALL WARNINGS AND INSTRUCTIONS COULD RESULT
IN SERIOUS INJURY OR DEATH.
READ AND PERFORM ALL INSPECTION AND MAIN
TENANCE TASKS BEFORE EACH AND EVERY USE. RE
PLACE ANY QUESTIONABLE COMPONENTS IMMEDI
ATELY WITH RIVERS EDGE ORIGINAL REPLACEMENT
PARTS. DO NOT LEAVE YOUR STAND OUTDOORS RE
MOVE AFTER EACH USE AND STORE INDOORS!
INSTRUCTIONS SHOULD BE KEPT IN A SAFE PLACE AND RE
VIEWED AT LEAST ANNUALLY.
DOUBLE CHECK ASSEMBLY STEPSTO BE CERTAIN YOU
HAVE CORRECTLY ASSEMBLED THIS PRODUCT.
DO NOT CRUSH TUBING WHEN TIGHTENING BOLT AS
SEMBLIES! IDENTIFY AND FAMILIARIZE YOURSELF
WITH ALL PARTS BEFORE YOU START.
DO NOT EXCEED THE TOTAL FIELD RATING 300 LB.
NEVER USE ANY PRODUCT THAT HAS NOT BEEN
MAINTAINED OR INSPECTED PROPERLY YOUR LIFE
DEPENDS ON IT!
WHEN HUNTING FROM A TREESTAND, FALLS CAN OC
CUR ANY TIME AFTER LEAVING THE GROUND CAUS
ING INJURY OR DEATH.
WARNING
NEVER ATTACH TO A DEAD, ODDSHAPED, LEANING,
DISEASED, LOOSEBARKED TREE OR UTILITY POLES.
REPLACE ANY AND ALL TREESTAND STRAPS EVERY
TWO YEARS OR WHEN ANY SIGNS OF DAMAGE OR
WEAR EXIST BEFORE.
BE SURE TO RAISE AND LOWER YOUR WEAPON OR GEAR
WITH A HAUL LINE. GUN BARREL END OR ARROW TIPS
MUST BE POINTED DOWN AWAY FROM YOU.
ALL ASSEMBLY MUST BE DONE IN THIS ORDER AT
GROUND LEVEL BEFORE SETUP AND USE.
STUDY YOUR NEW CLIMBING AID TO BECOME FA
MILIAR WITH ALL OF ITS FEATURES AND DESIGN.
AT GROUND LEVEL, FOLLOWING PROVIDED USE IN
STRUCTIONS, PRACTICE ATTACHING CLIMBING AID
TO TREE AND REMOVING FROM TREE BEFORE AT
TACHING OVERHEAD. SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE. PROPERLY USE A FULL
BODY HARNESS FALL ARREST SYSTEM WITH A
CLIMBING BELT THAT MEETSTMA STANDARDS AT ALL
TIMES INCLUDING ASCENDING TO AND DESCENDING
FROM A TREESTAND.
SECTIONAL LADDERS AND STEPS SHOULD BE SPACED
ONTHETREE TO INSURE EACH STEP IS NO MORETHAN
18INCHES APART.
CHECK EVERY STICK LADDER SECTION CONNECTION
EVERYTIME YOU USE THE STICK LADDER BEFOREYOU
LEAVE THE GROUND. IF STICK LADDER SECTIONS ARE
SEPARATING, DO NOT USE THE STICK LADDER.
BE CERTAIN TO ALWAYS LEAN FORWARD, TOWARD
THE TREE WHEN ASCENDING OR DESCENDING CLIMB
ING AID.
ALWAYS HAVE THREE POINTS OF CONTACT WHILE
CLIMBING STICK.
NEVER HOLD ONTO ANY SECTION OR PULL ON ANY
SECTION THAT IS NOT SECURELY ATTACHED TO THE
TREE WITH THE PROVIDED STRAP AND BUCKLE.
ALWAYS ATTACH THE CAM STRAP ASSEMBLY SO THE
SPRING LOADED CAM LEVER OF THE STRAP IS FAC
ING AWAY FROM THE TREE. NEVER TOUCH THE CAM
LEVER WHILE PUTTING WEIGHT ON THE STICK AND/
OR CLIMBING THE STICK AS THIS COULD POTENTIAL
LY RELEASE THE STRAP AND REMOVE THAT SECTION
FROM THE TREE.
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-54
Operator's Manual
Rivers Edge Climbing Aids
WARNING
A FULL BODY HARNESS WITH LINEMAN’S/CLIMBING
BELT MUST BE WORN AT ALL TIMES WHILE INSTALL
ING OR REMOVING ANY HANGON CLIMBING AIDS.
HANGON CLIMBING AIDS MUST BE PLACED ON THE
TREE AT A HEIGHT ABOVE THE PLATFORM WHERETHE
USER CAN MAINTAIN A HANDHOLD OF THE UNIT AND
STEP DOWNWARDS ONTO THE TREESTAND. NEVER
STEP UP FROM A CLIMBING DEVICE TO GET INTO
YOUR STAND.
WHEN USING A CLIMBING/LINEMAN’S BELT TO AS
CEND THE TREE, THE FULL BODY HARNESS TETHER
SHOULD BE ATTACHED TO THE TREE BEFORE STEP
PING DOWN ONTO THE TREESTAND.
NEVER JUMP OR BOUNCE ON A CLIMBING AID TO
SEAT IT TO THE TREE.
LUBRICATION IS HIGHLY RECOMMENDED AT SLIDE TO
GETHER POINTS OF EACH SECTION TO PREVENT BIND
ING. SECTIONS ARE STACKED TOGETHER BY SLIDING
SECTIONS TOGETHER, INSIDE OF EACH OTHER.
BE SURE SECTIONS ARE SEATED COMPLETELY TO
GETHER ON SWEDGED ENDS OF PIPE.
DO NOT UNDER ANY CIRCUMSTANCES EXCEED THE
MAXIMUM USAGE HEIGHT OF 20'. 5' EXTENSIONS CAN
ONLY BE USED WITH 15' CLIMBING AIDS.
BOTTOM OF ASSEMBLED CLIMBING AID MUST AL
WAYS TOUCH GROUND DURING USE. NEVER POSI
TION CLIMBING AID SO THE BOTTOM IS NOT TOUCH
ING THE GROUND.
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 5
Operator's Manual
Rivers Edge Climbing Aids
ALWAYS...
for future reference.
TMA standards at all times including ascending to and descending from a
treestand.
application, replace if necessary.
binding, wear, rust & noise.
located and the expected duration of the hunt.
personal locator device (PLD) and it must be readily available at all times.
use and do not store outdoors when not in use.
NEVER...
utility pole.
lightning, windstorms or icy conditions and end your hunt and return to
the ground if inclement conditions arise.
drugs.
you have a prior medical condition that could cause a problem (i.e. heart
condition, joints that lock up, spinal fusions, etc.) or if you are not well
rested.
INSPECTION AND MAINTENANCE SCHEDULE
FOR ALL RIVERS EDGE PRODUCTS
discard product if any damage is found.)
Lubricate all pivot and slide together points with powder graphite to prevent noise, wear,
and rust.
or rotting damage that may effect the safety of your product. Discard any
questionable product.
locations. (Return to factory for repair or discard product if any damage is found.)
any that may be loose. Be careful not to crush tubing when tightening!
strap or chain assemblies. Replace with factory new any item or assembly that
shows signs of wear, damage, kinking, or functions incorrectly.
damage or wear.
writing by the manufacturer.
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-56
Operator's Manual
Rivers Edge Climbing Aids
WARNING
USHAPED TREE HUGGER MUST ALWAYS BE BOLTED
ON BOTTOM SIDE OF STEPS.
USHAPED TREE HUGGER MUST ALWAYS BE ORIEN
TATED IN THE SAME DIRECTION AS THE WELDEDON
LINKS ON THE VERTICAL POSTS.

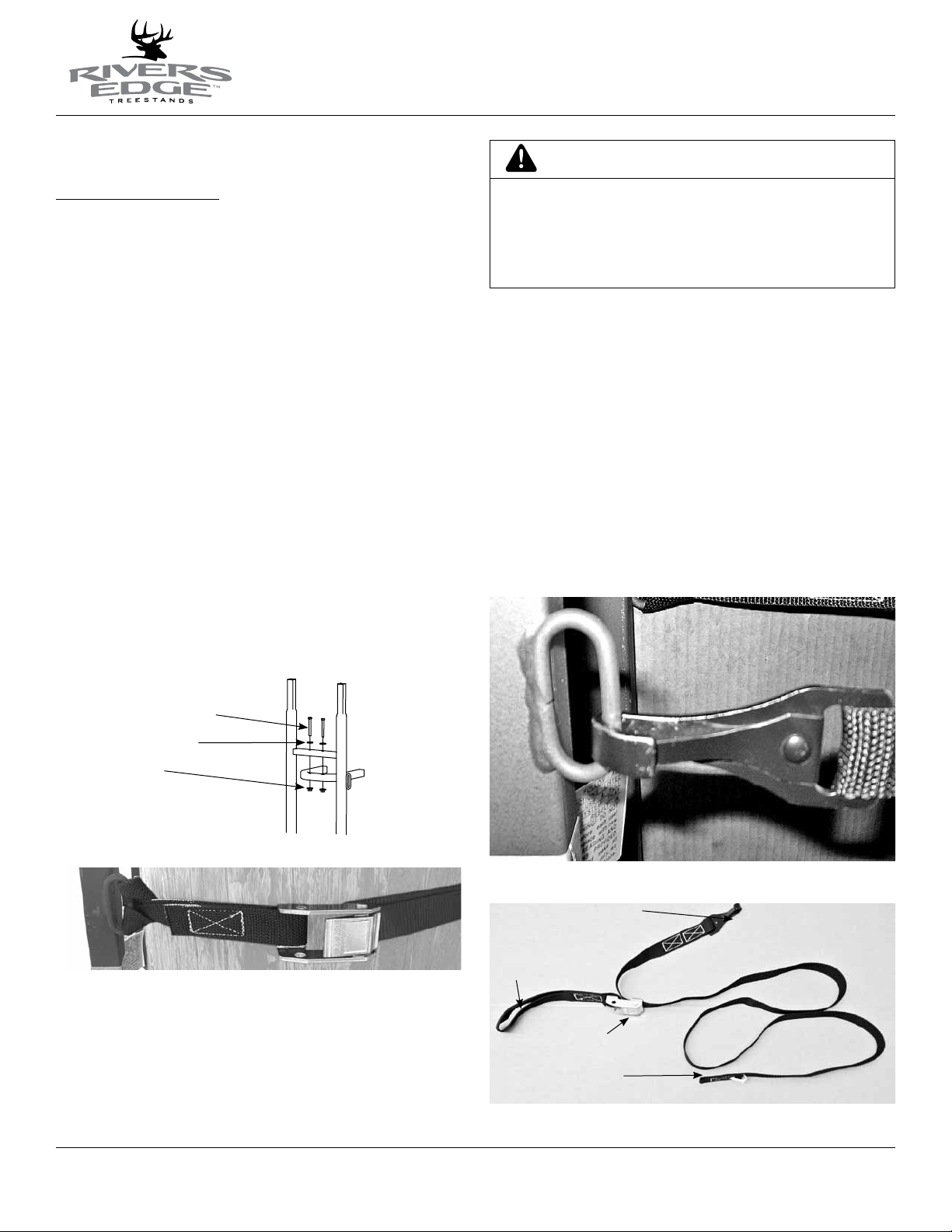

ASSEMBLY INSTRUCTIONS RE705
Tools needed – two 7/16" wrenches
IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combina-
tions completely until all parts are assembled together! Finger tighten
plus one turn of a wrench only! This will temporarily hold the lock nut on
the boltwhile helpingalignmentof allparts! Afterall parts areassembled
together, all nut & bolt combinations must be completely tightened.
1. Bolt a U-shaped tree hugger (RCL12) onto the bottom side of the top step
of each ladder section using the (2) provided 1/4-20 x 2" bolts, locknuts and
steel washers. U-shaped tree hugger must point in the same direction as
welded on links on vertical posts. SEE FIGURE 1. Tighten all nut & bolt
assemblies. Be sure not to over tighten or crush tubing when tightening!
NOTE: Top end is always the end with holes drilled in step.
NOTE: Head of bolt should be on top side of step and locknut should be
on underside of tree hugger.
2. Using (1) of the provided cam straps (48749), insert the looped end of
the short strap through one of the welded links of the Trophy Tree
Ladder post. Take the entire cam strap assembly and feed it through
the loop and pull tight, forming a knot. The cam strap will now be
securely attached to the Trophy Tree Ladder. SEE FIGURES 2 AND 4.
Repeat for each section.
3. Sections are assembled on the ground in the following order: bottom
section (RCL9), middle section (RCL10), middle section (RCL10), top
section (RCL11). SEE FINISHED 20' TROPHY TREE LADDER. Sections
stack together by sliding sections together, inside of each other.
NOTE: On 20' model, a second middle section (RCL10) is inserted between
bottom and top sections. SEE FINISHED 20' TROPHY TREE LADDER.
Figure 1
1/4-20 x 2" bolts
steel washers
locknuts
Figure 2
SETUP AND USE INSTRUCTIONS
1. Stand the ladder up against the selected straight tree on dry, level ground.
Take snap hook end of bottom section strap, wrap it around the tree, and
attach it securely to the welded on chain link on opposite vertical post. Pull
the tail of the cam strap so that the section is snugly secured to the tree. SEE
FIGURE 3. Be certain (2) two contact points of tree hugger are contacting
the tree.
NOTE: Be sure you wrap the strap correctly so there are no twists in the
strap and that the cam lever of buckle is facing away from the tree.
belt, climb the climbing aid only far enough to reach the middle section
strap and attach it to the tree. Repeat step 1 for proper attachment.
3. Repeat steps 1 and 2 for strap attachment for each section until all sections
are securely attached.
4. Reverse set-up and use instructions to take down climbing aid.
Figure 3
snap hook
cam
short strap loop
long strap
Figure 4
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 7
Operator's Manual
Rivers Edge Climbing Aids
20' TROPHY TREE LADDER PARTS
KEY # PART # DESCRIPTION QT Y.
1 RCL11 1
2 RCL10 2
3RCL9 1
4 RCL12 4
5 48749 4
6 48153B 8
7 48261B 8
8 48752B 8
NO EXTENSIONS AVAILABLE FOR THIS MODEL,
TESTED FOR 20' MAXIMUM HEIGHT!
4
5
1
4
5
2
4
5
2
4
5
3
6
7
8
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-58
Operator's Manual
Rivers Edge Climbing Aids
FINISHED 20' TROPHY TREE LADDER PARTS
RE705
tree strap
top section
tree strap
middle section
tree strap
middle section
tree strap
bottom section
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 9
Operator's Manual
Rivers Edge Climbing Aids
ASSEMBLY INSTRUCTIONS
RE708, RE709, RE710
Tools needed – two 7/16" wrenches
IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combi-
nations completely until all parts are assembled together! Finger
tighten plus one turn of a wrench only! This will temporarily hold the
lock nut on the bolt while helping alignment of all parts! After all parts
are assembled together, all nut & bolt combinations must be com-
pletely tightened.
1. Attach one tree hugger (SS12) to each stick section using (1) provided
1/4-20 x 3" bolt, 1/4" washer and locknut on each section. SEE FIGURE 1.
Tighten all nut & bolt assemblies. Be sure not to over tighten or crush
tubing when tightening!
NOTE: Head of bolt should be on front side of step and washers and locknut
should be on back side of tree hugger.
2. Attach the provided anti-slip tape (48104) to the top side of each step. The
step must be clean and at room temperature to assure proper adhesion.
3. Thread the snap hook of strap through the pocket on the vertical post of
each section. SEE FIGURE 2. Temporarily and loosely tie the strap (48748)
to the Rapid Stick section to prevent it from falling o during transport and
uprighting.
Figure 1
locknut
1/4-20 x 3" bolt
Figure 2
pocket on
vertical post
1/4" steel washer
snap hook
4. Sections are assembled on the ground in the following order: bottom
section (SS9), middle section (SS10), top section (SS11). SEE FINISHED
15' RAPID STICK. Sections are stacked together by sliding sections
together, inside of each other.
NOTE: On 20' model, a second middle section (SS10) is inserted between
bottom and top sections. SEE FINISHED 20' RAPID STICK.
NOTE: If you purchased the optional 5' Extension (RE710), it is to be
inserted (positioned) between top & bottom sections. Extensions are
the same design as the middle sections that come with a complete 15'
Rapid Stick or 20' Rapid Stick.
SETUP AND USE INSTRUCTIONS
1. Stand the stick up against the selected straight tree on dry, level ground.
Take the buckle end of the bottom section strap, wrap it around the tree,
and attach it to the snap hook end of the strap. Pull the strap so that the
section is snugly secured to the tree. SEE FIGURE 3. Be certain (2) two
contact points of tree hugger are contacting the tree.
NOTE: Be sure you wrap the strap correctly so there are no twists in the
strap and that the cam lever of the buckle is facing away from the tree.
only far enough to reach the middle section strap and attach it to the tree.
Repeat step 1 for proper attachment.
3. Repeat steps 1 and 2 for strap attachment for each section until all sections
are securely attached.
4. Reverse set-up and use instructions to take down climbing aid.
Figure 3
PRESS PRESS
PULL TIGHT
TAIL
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-510
Operator's Manual
Rivers Edge Climbing Aids
15' RAPID STICK PARTS RE709
4
1
4
2
4
3
5
7
615' RAPID STICK PARTS
KEY # PART # DESCRIPTION QT Y.
1 SS11 1
2 SS10 1
3SS9 1
4 SS12 3
5 48280B 3
6 48261B 3
7 48752B 3
48748 3
48104 11
5' EXTENSION RE710 AVAILABLE FOR THIS MODEL,
TESTED FOR 20' MAXIMUM HEIGHT!
tree strap
top section
tree strap
middle section
anti-slip tape on
top of all steps
tree strap
bottom section
foot
Finished 15' Rapid Stick
Model RE709
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 11
Operator's Manual
Rivers Edge Climbing Aids
4
1
4
2
4
2
4
3
20' RAPID STICK PARTS RE708 KEY # PART # DESCRIPTION QT Y.
1 SS11 1
2 SS10 2
3SS9 1
4 SS12 4
5 48280B 4
6 48261B 4
7 48752B 4
48748 4
48104 15
NO EXTENSIONS AVAILABLE FOR THIS MODEL,
TESTED FOR 20' MAXIMUM HEIGHT!
tree strap
top section
tree strap
middle section
tree strap
middle section
tree strap
anti-slip tape on
top of all steps
bottom section
foot
Finished 20' Rapid Stick
Model RE708
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-512
Operator's Manual
Rivers Edge Climbing Aids
ASSEMBLY INSTRUCTIONS
RE720, RE721, RE722
Tools needed – two 7/16" wrenches
IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combi-
nations completely until all parts are assembled together! Finger
tighten plus one turn of a wrench only! This will temporarily hold the
lock nut on the bolt while helping alignment of all parts! After all parts
are assembled together, all nut & bolt combinations must be com-
pletely tightened.
1. Attach (1) tree hugger (SS24) and strap bracket to each factory assembled
stick section using (1) provided 5/16-18 x 2-1/2” bolt, steel washer and
locknut on each section. SEE FIGURE 1. Tighten securely. Do not over
tighten or crush tubing when tightening!
NOTE: Head of bolt should be on the front side, same side as strap bracket.
Washer and locknut should be on the back side of the tree hugger.
2. Attach (2) ground tabs (SS19) to the bottom end of the bottom stick section
using (2) provided 1/4-20 x 2” bolts. SEE FIGURE 2. Tighten securely. Do
not over tighten or crush tubing when tightening!
3. a. Using (1) of the provided cam strap assemblies (48749), insert the loop end
either slot, depending on left or right hand preference. SEE FIGURE 3A.
b. Take the entire cam strap assembly and feed it through the loop and
pull tight forming a cinch knot. This permanently attaches the strap to the
climbing section. SEE FIGURES 3B and 3C.
c. Repeat steps 3a and 3b to attach remaining strap assemblies to remaining
Double Rung Climbing Aid sections.
4. Sections are assembled on the ground in the following order: bottom section
(section with ground tabs attached), middle section, top section (section
with no swedged end on top). SEE FINISHED 15’DOUBLE RUNG CLIMBING
AID. Sections are stacked together by sliding sections together, inside of
each other. Steps should be folded down to the in-use position.
NOTE: On 20’ model, a second middle section is inserted between bottom
and top sections, SEE FINISHED 20’ DOUBLE RUNG CLIMBING AID.
NOTE: If you purchased the optional 5’ Extension (RE722), it is to be
inserted (positioned) between top and bottom sections. Extensions are
the same design as the middle sections that come with a complete 15’
Double Rung Climbing Aid.
5. Secure each stick section together using spring lock pins.
Figure 3a
Figure 3b
Figure 3c
Figure 2
ground tabs
1/4-20 x 2” bolts
locknuts
Figure 1
SS24 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT 3
12 WF516B WASHER FLAT 5/16" STANDARD BLACK ZN 3
13 WN516 WASHER, 5/16", BLACK NYLON 48
BALLOON #
YTQNOITPIRCSED#TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 14
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 3
3 48752BNUT1/4-20 HFLTPLKBLKZN 14
4 48753BNUT, FLANGED, TOP LOCK, 5/16-18 3
563281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 2
6 SS17 FTS RAPID STICK WITH SWEDGE 2
1POTKCITSDIPARSTF81SS7
8 SS19 TAB GROUND BRACE RAPID STICK 2
9 SS22 WELDMENT STEP PIVOT RAPID STICK 24
10 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 3
11
A
7
steel washer
tree hugger
strap
bracket
5/16-18 x 2-1/2” bolt
locknut
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 13
Operator's Manual
Rivers Edge Climbing Aids
SET-UP AND USE INSTRUCTIONS
1. Stand the stick up against the selected straight tree on dry, level
ground. Take the snap hook end of the bottom section strap,
wrap it around the tree, and attach it to the opposite slot of strap
bracket by snapping it into the slot. Pull the tail of cam strap tight
so that the section is snugly secured to the tree. SEE FIGURE 4. Be
certain (2) two contact points of the tree hugger are contacting
the tree.
climbing belt, climb the assembled climbing aid only far enough to
reach the middle section strap and attach it to the tree. Repeat step 1
for proper attachment.
3. Repeat steps 1 and 2 for strap attachment for each section until all
sections are securely attached.
4. Reverse set-up and use instructions to take down climbing aid.
Figure 4
WARNING
BE CERTAIN SPRING LOCK PINS ARE LATCHED SE
CURELY TO PREVENT ACCIDENTAL REMOVAL.
ALWAYS HAVE STEPS FOLDED DOWN TO THE INUSE
POSITION DURING USE.
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-514
Operator's Manual
Rivers Edge Climbing Aids
15' DOUBLE RUNG CLIMBING AID PARTS
RE721
SS24 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT 3
12 WF516B WASHER FLAT 5/16" STANDARD BLACK ZN 3
13 WN516 WASHER, 5/16", BLACK NYLON 48
BALLOON #
YTQNOITPIRCSED#TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 14
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 3
3 48752BNUT1/4-20 HFLTPLKBLKZN 14
4 48753BNUT, FLANGED, TOP LOCK, 5/16-18 3
563281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 2
6 SS17 FTS RAPID STICK WITH SWEDGE 2
1POTKCITSDIPARSTF81SS7
8 SS19 TAB GROUND BRACE RAPID STICK 2
9 SS22 WELDMENT STEP PIVOT RAPID STICK 24
10 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 3
11
A
6
6
5
7
8
2
9
13
3
11
4
12
10
1
SS24 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT 3
12 WF516B WASHER FLAT 5/16" STANDARD BLACK ZN 3
13 WN516 WASHER, 5/16", BLACK NYLON 48
BALLOON #
YTQNOITPIRCSED#TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 14
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 3
3 48752BNUT1/4-20 HFLTPLKBLKZN 14
4 48753BNUT, FLANGED, TOP LOCK, 5/16-18 3
563281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 2
6 SS17 FTS RAPID STICK WITH SWEDGE 2
1POTKCITSDIPARSTF81SS7
8 SS19 TAB GROUND BRACE RAPID STICK 2
9 SS22 WELDMENT STEP PIVOT RAPID STICK 24
10 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 3
11
A
6
6
5
7
8
2
9
13
3
11
4
12
10
1
KEY # PART # DESCRIPTION QT Y.
1 48153B 14
2 53730B 3
3 48752B 14
4 3
5 63281 2
6 SS17 2
7 SS18 1
8 SS19 2
9 SS22 24
10 SS23 3
11 SS24
5/16" BOLT
3
12 WF516B 3
13 48
48749 3
5' EXTENSION RE722 AVAILABLE FOR THIS MODEL,
TESTED FOR 20' MAXIMUM HEIGHT!
tree strap
top section
tree strap
middle section
tree strap
bottom section
foot
Finished 15' Double Rung Climbing Aid
Model RE721
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 15
Operator's Manual
Rivers Edge Climbing Aids
SS24 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT 4
12 WF516B WASHER FLAT 5/16" STANDARD BLACK ZN 4
13 WN516 WASHER, 5/16", BLACK NYLON 64
BALLOON #
#TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 18
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 4
3 48752B NUT 1/4-20 HFLTPLKBLKZN 18
4 48753B NUT, FLANGED, TOP LOCK, 5/16-18 4
5 63281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 3
6 SS17 FTS RAPID STICK WITH SWEDGE 3
S
TF81SS7
8 SS19 TAB GROUND BRACE RAPID STICK 2
9 SS22 WELDMENT STEP PIVOT RAPID STICK 32
10 SS23 BRACKET, STRAP A
11
RANDY SCHAMBERGER
SEE BILL OF MATERIALS
RLS 9/23/10
09/23/2010
20 FOOT
NONE
17123.583209045.30
RAPID STICK
SHEET: 1 OF 1
SURFACE AREADATE
PARTS TO BE FREE OF
BURRS AND SHARP EDGES
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS THE PROPERTY RIVERS EDGE TREESTANDS
INC. AND IS CONFIDENTIAL. IT IS SUBMITTED AND MAY BE USED ONLY IN CONNECTION WITH RIVERS EDGE TREESTANDS'
PROPOSALS AND/OR ITS CUSTOMERS'ORDERS. IT SHALL NOT BE DISCLOSED TO OTHERS OR COPIED WITHOUT
RIVERS EDGE TREESTANDS'SPECIFIC WRITTEN CONSENT AND SHALL BE IMMEDIATELY RETURNED UPON REQUEST.
MATERIAL
TOLERANCE UNLESS
OTHERWISE NOTED:
0.0 ±.100 INCH ± 2.54 MM
0.00 ±.030 INCH ± 0.76 MM
0.000 ±.010 INCH ± 0.25 MM
ANGLES:
0± 2°
0.0 ± 1.0°
THREADS CLASS 2
PRIMARY DIMENSIONS ARE IN INCHES
SECONDARY DIMEMSION ARE IN MM
ALL ANGLES ARE DECIMAL DEGREES
UNLESS OTHERWISE SPECIFIED
NAME
TREATMENT
DPPAYBRD
PT WEIGHT
THIRD ANGLE PROJECTION
A
6
6
5
7
6
8
3
13
1
10
DETAIL A
SCALE 1 : 7
11
4
12
9
2
SS24 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT 4
12 WF516B WASHER FLAT 5/16" STANDARD BLACK ZN 4
13 WN516 WASHER, 5/16", BLACK NYLON 64
BALLOON # #TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 18
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 4
3 48752B NUT 1/4-20 HFLTPLKBLKZN 18
4 48753B NUT, FLANGED, TOP LOCK, 5/16-18 4
5 63281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 3
6 SS17 FTS RAPID STICK WITH SWEDGE 3
S
TF81SS7
8 SS19 TAB GROUND BRACE RAPID STICK 2
9 SS22 WELDMENT STEP PIVOT RAPID STICK 32
10 SS23 BRACKET, STRAP A
11
RANDY SCHAMBERGER
SEE BILL OF MATERIALS
RLS 9/23/10
09/23/2010
20 FOOT
NONE
17123.583209045.30
RAPID STICK
SHEET: 1 OF 1
SURFACE AREADATE
PARTS TO BE FREE OF
BURRS AND SHARP EDGES
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS THE PROPERTY RIVERS EDGE TREESTANDS
INC. AND IS CONFIDENTIAL. IT IS SUBMITTED AND MAY BE USED ONLY IN CONNECTION WITH RIVERS EDGE TREESTANDS'
PROPOSALS AND/OR ITS CUSTOMERS'ORDERS. IT SHALL NOT BE DISCLOSED TO OTHERS OR COPIED WITHOUT
RIVERS EDGE TREESTANDS'SPECIFIC WRITTEN CONSENT AND SHALL BE IMMEDIATELY RETURNED UPON REQUEST.
MATERIAL
TOLERANCE UNLESS
OTHERWISE NOTED:
0.0 ±.100 INCH ± 2.54 MM
0.00 ±.030 INCH ± 0.76 MM
0.000 ±.010 INCH ± 0.25 MM
ANGLES:
0± 2°
0.0 ± 1.0°
THREADS CLASS 2
PRIMARY DIMENSIONS ARE IN INCHES
SECONDARY DIMEMSION ARE IN MM
ALL ANGLES ARE DECIMAL DEGREES
UNLESS OTHERWISE SPECIFIED
NAME
TREATMENT
DPPAYBRD
PT WEIGHT
THIRD ANGLE PROJECTION
A
6
6
5
7
6
8
3
13
1
10
DETAIL A
SCALE 1 : 7
11
4
12
9
2
20' DOUBLE RUNG CLIMBING AID PARTS
RE720
KEY # PART # DESCRIPTION QT Y.
1 48153B 18
2 53730B 4
3 48752B 18
4 4
5 63281 3
6 SS17 3
7 SS18 1
8 SS19 2
9 SS22 32
10 SS23 4
11 SS24
5/16" BOLT
4
12 WF516B 4
13 64
48749 4
NO EXTENSIONS AVAILABLE FOR THIS MODEL,
TESTED FOR 20' MAXIMUM HEIGHT!
tree strap
top section
tree strap
middle section
tree strap
middle section
tree strap
bottom section
foot
Finished 20' Double Rung Climbing Aid
Model RE720
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-516
Operator's Manual
Rivers Edge Climbing Aids
16WASHER, 5/16", BLACK NYLONWN51611
1WASHER FLAT 5/16" STANDARD BLACK ZNWF516B10
1WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLTSS24
BALLOON #
YTQNOITPIRCSED#TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 4
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 1
3 48752B NUT 1/4-20 HFLTPLK BLK ZN 4
4 48753B NUT, FLANGED, TOP LOCK, 5/16-18 1
563281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 1
6 SS17 FTS RAPID STICK WITH SWEDGE 1
7 SS22 WELDMENT STEP PIVOT RAPID STICK 8
8 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 1
9
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS THE PROPERTY RIVERS EDGE TREESTANDS
A
6
5
11
3
9
4
10
8
2
7
1
16WASHER, 5/16", BLACK NYLONWN51611
1WASHER FLAT 5/16" STANDARD BLACK ZNWF516B10
1WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLTSS24
BALLOON #
YTQNOITPIRCSED#TRAP
1 48153B BOLT 1/4-20 X2 HHCS GR5 BLKZN 4
2 48300B BOLT 5/16-18 X2-1/4 HHCS GR5 BLKZN 1
3 48752B NUT 1/4-20 HFLTPLK BLK ZN 4
4 48753B NUT, FLANGED, TOP LOCK, 5/16-18 1
563281SNAP PIN, 1/4 X1-3/4, ROUNDED RETAINER 1
6 SS17 FTS RAPID STICK WITH SWEDGE 1
7 SS22 WELDMENT STEP PIVOT RAPID STICK 8
8 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 1
9
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS THE PROPERTY RIVERS EDGE TREESTANDS
A
6
5
11
3
9
4
10
8
2
7
1
KEY # PART # DESCRIPTION QT Y.
1 48153B 4
2 53730B 1
3 48752B 4
4 1
5 63281 1
6 SS17 1
7 SS22 8
8 SS23
1
9 SS24
5/16" BOLT
1
10 WF516B 1
11 16
48749 1
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 17
Operator's Manual
Rivers Edge Climbing Aids
BOLT IDENTIFICATION CHART
in the parts bag.
1/4-20 x 1-1/4" grade 5 hex head bolt
1/4-20 x 1-1/2" grade 5 hex head bolt
1/4-20 x 1-3/4" grade 5 hex head bolt
1/4-20 x 2" grade 5 hex head bolt
1/4-20 x 2-1/4" grade 5 hex head bolt
1/4-20 x 2-1/2" grade 5 hex head bolt
1/4-20 x 2-3/4" grade 5 hex head bolt
5/16-18 x 2-1/2" grade 5 hex head bolt
5/16-18 x 3-1/4" grade 5 hex head bolt
1/4-20 x 3" grade 5 hex head bolt
1/4-20 x 3-1/4" grade 5 hex head bolt
5/16-18 x 1-3/4" grade 5 hex head bolt
5/16-18 x 2" grade 5 hex head bolt
5/16-18 x 2-1/4" grade 5 hex head bolt
1/4-20 x 1" grade 5 hex head bolt
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-518
Operator's Manual
Rivers Edge Climbing Aids
NOTES
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 19
Operator's Manual
Rivers Edge Climbing Aids
NOTES
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
Rivers Edge Treestands, Inc.
1690 Elm Street, PO Box 755
Cumberland, WI 54829
800-450-EDGE (3343) | Fax 715-822-2124
Email: [email protected]
*All weights, specications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product
images may have been removed for photography purposes only. Props shown in photos not included. Some assembly may be required.
This manual suits for next models
6
Table of contents
