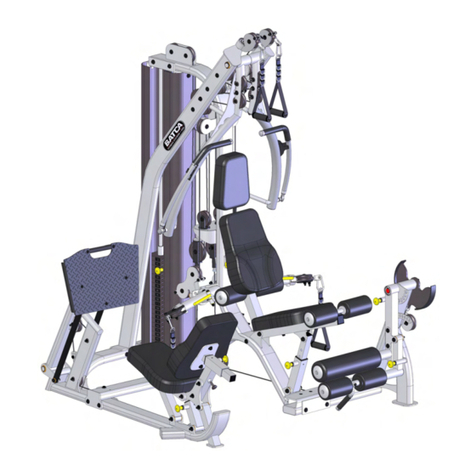

Batca Fusion 3 User manual

www.batcafitness.com Fusion 3 Owner’s Manual
FEB 2016
Revision 5
Serial Number Here
Date of Purchase
Owner’s Manual
1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com
P E R S O N A L G Y M

Batca Fitness Systems 2 Fusion 3 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3-5
Hardware Comparison 6-9
Cable Comparison 10
Main Frame Assembly 11-19
Cable Routing 20-25
Upholstery 26-27
Leg Press Option 28-33
Congratulations on the purchase of your new Fusion 3. This gym will provide you with a
lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to
build the best quality multi-station gyms and to package these gyms in such a way to avoid any
damage during shipping.
In order to get started with your assembly you should first familiarize yourself with
this manual. It is recommended that you read through each step thoroughly before you begin.
Begin by opening your boxes and separating all of your parts. Verify that all parts are
accounted for and have no damage. When all parts are accounted for, you may begin your
assembly. Some items may have been pre-assembled for your convenience. Please note that
hardware quantities shown reflect total quantities for your gym and may not reflect actual
quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best
possible performance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual.
Failure to do so will void your warranty and may result in personal injury. After assembly, you
should check each station to ensure correct operation. If a problem arises, recheck your
assembly with these instructions to verify correct assembly. If you are unable to correct a
problem or have questions with your assembly please contact your authorized Batca dealer.
Batca Fitness Systems has built this gym to give you a safe, effective and
enjoyable workout. However, there is a risk assumed by individuals who use this
type of equipment. It is very important that all warnings and instructions are
read and followed before beginning any exercise program.
It is also very important to read and follow the preventative maintenance
schedule described in this manual. If any of the warning labels or stickers are
worn, faded, torn, scratched or missing they should be replaced immediately.
WARNING: There is a risk assumed by individuals who use this type of equipment. To
minimize risk always follow these rules.
1) It is essential that you consult with your physician before beginning any
exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including
cables, nuts and bolts). Replace parts at first signs of wear (use only genuine
BATCA replacement parts). Use of equipment that is damaged, worn, frayed or
not completely assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of
the gym. Be alert to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not
hesitate to call your local BATCA FITNESS SYSTEMS distributor or BATCA
FITNESS SYSTEMS at [phone]. www.batcafitness.com
__________ Page
Leg Press Cable Routing 32
Leg Press Attachment 34
Weight Stack Decals and Serial Number 35
Cable Tension and Adjustments 36-37
Final Assembly and Troubleshooting 38
Maintenance 39
Warranty 40
Floor plan Layout 41-42
Table of Contents
Instructions
Warning

www.batcafitness.com 3 Fusion 3 Owner’s Manual
Frame Components
Accessories
Upholstery
ITEM NO. PART NO. DESCRIPTION QTY
156 BFC-10103 Strap Handle 4
200 BFM-10771 Press Arm Lock (Optional) 1
ITEM NO. PART NO. DESCRIPTION QTY
31 BFU-10117 Large Bottom Pad 1
11 BFU-10119 Head Pad 1
32 BFU-10120 Back Pad With Lum-
bar
1
43 BFU-50187 Large Roller 1
28 BFU-50189 7" Roller 6
ITEM NO. PART NO. DESCRIPTION QTY
1 BFM-10593 Rear Base 1
2 BFM-10566 Right Vertical Support 1
3 BFM-10567 Left Vertical Support 1
4 BFM-10568 Middle Base 1
5 BFM-10569 Middle Pole Assembly 1
6 BFM-51044 Guide Rod Holder 1
7 BFM-51022 1 1/4" Spacer 6
9 BFM-50529 Rubber Donut 2
10 BFM-50256 Weight Plate 19
12 BFM-51051 Guide Rod 2
13 BFM-10570 Right Arm Assembly 1
14 BFM-10574 Left Arm Assembly 1
15 BFM-10573 Functional Arm Mount 1
16 BFM-10571 User Right Functional Arm 1
17 BFM-10572 User Left Functional Arm 1
18 BFL-50197 Middle Pole Connector Plate 2
19 BFL-50203 Pulley Holder Connector Plate 1
20 BFM-10577 8" Telespar 1
21 BFM-10578 Seat Frame Assembly 1
24 BFM-10579 10" Chrome Adjustment 1
25 BFM-10141 Knee Alignment Roller 1
30 BFM-10580 Back Chrome Adjustment 1
33 BFM-10581 Leg Extension/ Curl Frame 1
35 BFM-51080 .45” Spacer 1
36 BFM-10582rev1 Functional Arm Swivel Pulley 2
37 BFM-10583 Top Swivel Pulley Holder 2
38 BFM-51082 Weight Stack Shroud 2
39 BFM-10584 Leg Extension Shaft 1
40 BFM-10585 Leg Extension Cam Assembly 1
41 BFM-51084 1 1/4" OD x .120 Wall x .225" Spacer 1
42 BFM-10586 Leg Extension Arm Assembly 1
44 BFL-50207 Hold Down Adjustment Plate 1
45 BFL-50211 Plate 1
46 BFM-10587 Knee Hold Down Assembly 1
47 BFM-51094 2” Axle 1
48 BFM-10588 Knee Hold Down Handle 1
50 BFL-50221 Pulley Plate 1
53 BFM-51143 8” Anti-Deflection Plate 1
54 BFM-51148 1" x 13 3/16" Arm Shaft 1
77 BFM-50505 3 1/2" Pulley Cover 11
79 BFM-10603 Left Arm Adjustment Handle 1
80 BFM-10602 Right Arm Adjustment Handle 1
87 BFM-51158 1" OD x 25/64" ID Spacer 1
91 BFM-10607 Press Arm 2
93 BFM-10609rev1 Pulley Holder 2
94 BFM-10611 Criss-Cross Free Floater 1
96 BFM-10610rev1 Lower Pulley Holder 2
105 BFM-10612 Cable Tie Out Plate 1
107 BFM-10299 Top Plate 1
108 BFM-50258 Selector Shaft 1
121 BFM-50222 2 9/16” Axle 1
122 BFM-50931 3” Axle 1
123 BFM-51173 Weight Stack Pull Pin 1
180 BFM-51130 Front Pivot 1
185 BFM-51158 Spacer 1
ITEM
NO. PART NO. DESCRIPTION QTY
BFM-10736 Right Press Arm Assembly 1191
BFM-10737rev1 Right Swing Arm Assembly 1192
BFM-10733rev1 Left Swing Arm Assembly 1193
BFM-10735 Left Press Arm Assembly 1194
195 BFM-52410 Weight Stack Shroud w/Logo 1
201 BFM-11038 Short Bar Holder 1

Batca Fitness Systems 4 Fusion 3 Owner's Manual
Hardware
Cables
ITEM NO. PART NUMBER DESCRIPTION QTY
8 BFH-50173 3 1/2" Pulley 31
22 BFH-50103 1/2" Flanged Bushing 4
23 BFH-50102 5/8" Flanged Bushing 2
26 BFH-50222 Rubber Bumper 2
27 BFH-50221 3" Plastic Washer 4
29 BFH-50252 Plastic Collar 6
34 BFH-50101 1" Flanged Bushing 28
49 BFH-50280 1" Round Plastic Cap 5
51 BFH-10002 Threaded Bearing 2
55 BFH-50165 1" Snap Ring 7
56 BFH-50146 3/8" Flat Washer (Black) 113
57 BFP-51752 SHCS 3/8"-16 X 2 1/4" 21
58 BFH-50157 3/8"-16 Nylock (Black) 69
59 BFH-50270 SHCS 3/8"-16 X 5 1/4" 8
60 BFH-50147 3/8" Lock Washer (Black) 16
61 BFP-51653 SHCS 3/8"-16 X 1 1/4" 4
62 BFP-51750 SHCS 3/8"-16 X 2 3/4" 8
63 BFP-51747 SHCS 3/8"-16 X 3" 5
64 BFH-50251 1/2" Flat Washer (Black) 4
65 BFP-51760 SHCS 1/2”-13 X 3 1/2” 1
66 BFP-51884 SHCS 1/2”-13 X 4 1/4” 1
67 BFP-51747 SHCS 1/2”-13 X 3” 1
68 BFH-50155 1/2"-13 Nylock (Black) 3
70 BFP-51759 SHCS 3/8"-16 X 2" 13
72 BFP-51753 SHCS 3/8"-16 X 4 3/4" 6
73 BFP-52397 SHCS 3/8"-16 1 3/4" 2
74 BFP-52396 SHCS 3/8"-16 X 5 1/2" 2
75 BFH-50605 3/8" Pulley Spacer 2
76 BFP-52394 SHCS 3/8"-16 X 2 1/2" 3
92 BFH-50256 1/2” Jam Nut 6
95 BFH-50174 4 1/2" Pulley 4
98 BFH-50253 Beveled Leveler 2
99 BFH-50149 3/8"-16 Jam Nut (Zinc) 6
110 BFH-51174 Large Logo/Chrome & Red 2
111 BFH-50192 Weight Stack Decals 2
ITEM NO. PART NUMBER DESCRIPTION QTY
113 BFH-50351 1 3/8" Shoulder Bolt 2
114 BFH-50267 5/16"-18 Nylock (Black) 2
115 BFH-50144 FHSCS 3/8"-16 X 1" 2
116 BFP-52340 SHCS 3/8”-16 X 3/4” 2
118 BFP-51799 SHCS 3/8”-16 X 5" 4
119 BFH-50245 FHSCS 5/16"-18 X 1" 2
128 BFH-50188 Snap Hook 4
129 BFH-50211 2" Square Plastic Cap 1
130 BFH-50212 2" x 3" Plastic Cap 2
131 BFH-50215 1 1/2" Square Plastic Cap 6
133 BFH-50227 Cable Strap 5
136 BFH-50238 Pin 2
137 BFH-50239 Snap Ring 2
138 BFH-50244 1/2" Bronze Bushing 8
140 BFH-50248 13/32" Bushing 8
143 BFH-50297 1" Flanged Bushing x 1/2"L 2
144 BFH-50590 Plastic Sleeve 3
145 BFH-50602 1" ID Bearing 14
146 BFH-50604 2" Interior Snap Ring 26
147 BFH-50607 Pull Pin Threaded Cap 2
148 BFH-50608 5" Plastic Sleeve 1
149 BFH-50609 Molded Grip 1" ID 1
150 BFH-50611 2" Round Plastic Cap 3
151 BFH-50612 1 3/4" x 4" Rectangular Cap 4
152 BFH-50614 6" Rubber Grips 2
153 BFH-50618 Mounting Bracket 2
154 BFH-50203 1/2" Curved Pulley Spacer 8
155 BFH-50204 3/8” Curved Washer (Black) 8
181 BFH-50339 Large Flat Leveler 2
182 BFH-50337 Wavy Washer 5
183 BFH-50630 FHSCS 3/8”-16 X 3/4” 2
184 BFP-52420 BHSCS 3/8”-16 X 1/2” 4
186 BFH-50620 BHSCS 3/8”-16 X 3/4” 6
187 BFH-50622 Upholstery Cap 6
188 BFH-50620 BHSCS 3/8” x 1” 2
189 BFM-52421 1 1/2” Aluminum Cap 2
190 BFH-50220 1” Shaft Collar 2
197 BFM-52422 Red Pivot Point Cap 1
ITEM
NO. PART NUMBER DESCRIPTION QTY
101 CAB-13021 Fusion Lat Pull to Functional Arm 2
109 CAB-13022 Fusion Weight Stack to Cable Tie Out 1
103 CAB-13024 Fusion Floating Pulley Cable 1
104 CAB-13025 Fusion Leg Extension Cable 1
106 CAB-13026 Fusion Tie Out Cable 1

www.batcafitness.com 5 Fusion 3 Owner’s Manual
Leg Press Components
Tools Required
 1/2” Wrench
 9/16” Wrench
 9/16” Ratchet
 3/4” Wrench
 3/4” Ratchet
 Allen Wrench
Set
 Tape Measure
 Snap Ring
Pliers
Leg Press Hardware
Upholstery
Cables
ITEM NO. PART NUMBER DESCRIPTION Qty
102 CAB-13023 Fusion Leg Press Cable 1
ITEM NO. PART NUMBER DESCRIPTION Qty
61 BFP-51653 SHCS 3/8"-16 X 1 1/4" P5 2
70 BFP-51759 SHCS 3/8"-16 X 2" P5 1
76 BFP-52394 SHCS 3/8"-16 X 2 1/2" P5 2
63 BFP-51747 SHCS 3/8"-16 X 3" P5 2
69 BFP-51748 SHCS 3/8"-16 X 3 1/4" P5 2
82 BFP-51760 SHCS 3/8"-16 X 3 1/2" P5 3
83 BFP-51884 SHCS 3/8"-16 X 4 1/4" P5 1
84 BFP-51751 SHCS 3/8"-16 X 4 1/2" P5 1
56 BFH-50146 3/8" Flat Washer (Black) 34
60 BFH-50147 3/8" Lock Washer (Black) 4
99 BFH-50149 3/8"-16 Jam Nut (Zinc) 3
58 BFH-50157 3/8"-16 Nylock (Black) 22
8 BFH-50173 3 1/2" Pulley 5
ITEM NO. PART NUMBER DESCRIPTION Qty
113 BFH-50351 1 3/8" Shoulder Bolt 1
64 BFH-50251 1/2" Flat Washer (Black) 2
98 BFH-50253 Beveled Leveler 1
114 BFH-50267 5/16"-18 Nylock (Black) 1
59 BFP-51756 SHCS 3/8"-16 X 5 1/4" P5 4
73 BFP-52397 SHCS 3/8"-16 1 3/4" P5 1
75 BFH-50605 3/8" Pulley Spacer 5
92 BFH-50256 1/2” Jam Nut 1
181 BFH-50339 Large Flat Leveler 1
198 BFP-51696 2” Aluminum Cap 2
199 BFH-50620 BHSCS 3/8” x 1” 4
ITEM NO. PART NUMBER DESCRIPTION Qty
166 BFM-10597 Back Seat Frame 1
164 BFM-10598 Bottom Seat Frame 1
157 BFM-10605rev1 Leg Press Frame 1
170 BFP-10918 Four Bar 2
159 BFM-51155 2 1/32" Axle 3
160 BFM-51157 3 1/32" Axle 1
180 BFM-51130 Front Pivot 1
ITEM NO. PART NUMBER DESCRIPTION Qty
172 BFP-10916 Foot Plate 1
162 BFL-50219 Bench Frame Plate 2
165 BFM-10106 Chrome Pad Adjustment 1
158 BFM-10575 Leg Press Connector
Assembly 1
167 BFP-10919 Leg Press Pivot Arm 1
163 BFM-10595 Chrome Adjustment 1
161 BFM-10596 6" Telespar 1
198 BFP-52029 Four Bar Spacer 2
ITEM NO. PART NUMBER DESCRIPTION Qty
173 BFU-10117 Large Bottom Pad 1
174 BFU-10120 Back Pad With Lumbar 1

Batca Fitness Systems 6 Fusion 3 Owner's Manual

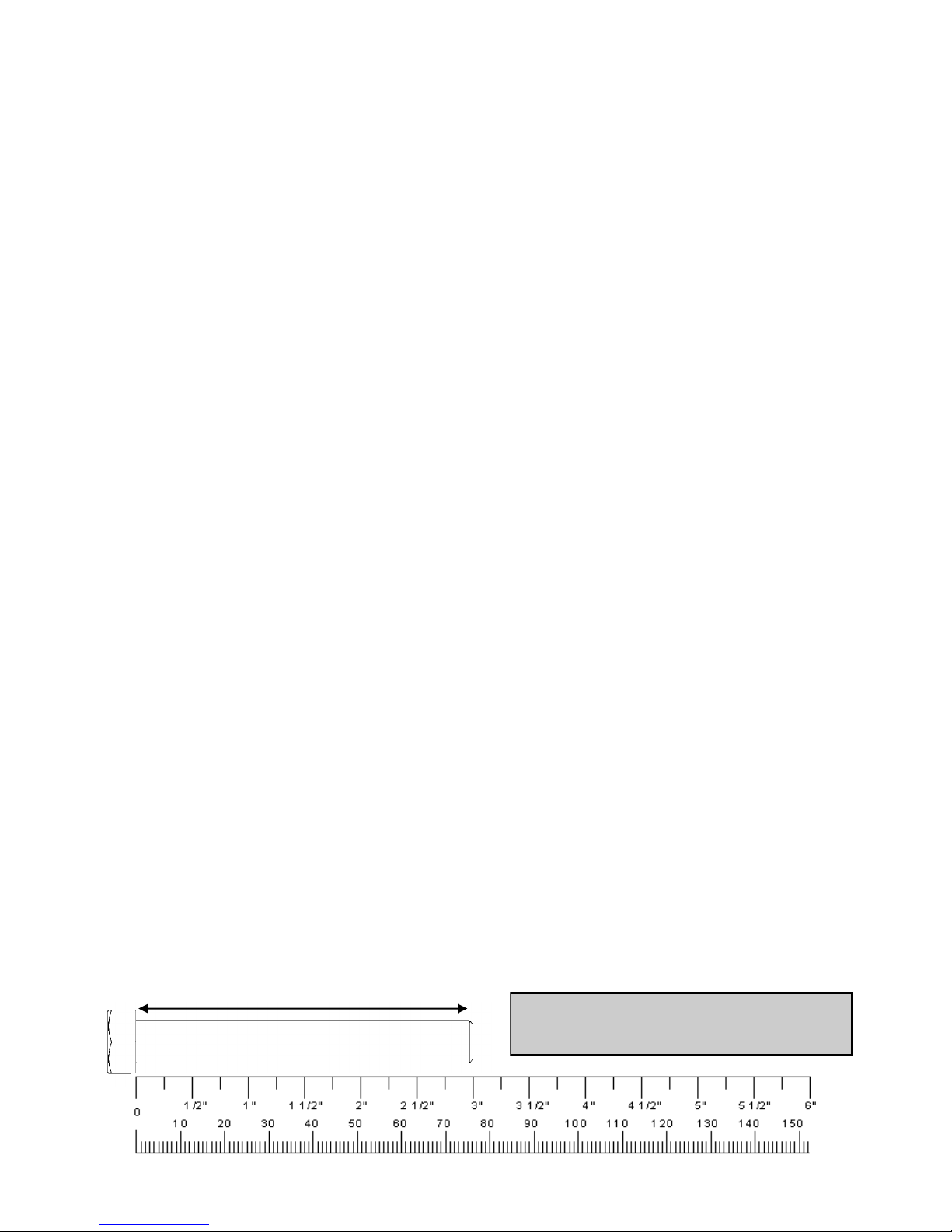

Bolt Length Note: Bolt length is measured from
the underside of the head of the bolt.

www.batcafitness.com 7 Fusion 3 Owner’s Manual
Beveled Leveler
BFH-50253
Upholstery
Cap
3” Plastic
Washer
Large Flat Leveler
BFH-50339
3 1/2” Pulley
BFH-50173
Threaded
Bearing
BFH-10002
Pin
BFH-50238
4 1/2” Pulley
BFH-50174
Cable Strap
BFH-50227
Strap Handle
BFC-10103
Snap Hook
BFH-50188

Batca Fitness Systems 8 Fusion 3 Owner's Manual

www.batcafitness.com 9 Fusion 3 Owner’s Manual
Long Pop Pin
BFM-51172 Magnetic Weight Stack Pin
BFM-51173
Short Pop Pin
BFM-51175
Pop Pin Cap
BFM-51181 Rubber Donut
BFM-50529
3/8” Curved Washer
BFM-50204 3/8” Flat Washer
BFM-50146
1/2” Flat Washer
BFM-50251
3/8” Lock Washer
BFM-50147
Mounting Brackets
BFH-50618
6” Rubber Grips (Yellow)
BFH-50614
1 3/4” x 4” Rectangular Cap
BFH-50612
Plastic Cap
Part # Size
BFH-50211 2” X 2”
BFH-50212 2” X 3”
BFH-50213 1 1/2” X 2”
BFH-50214 1 3/4” X 1 3/4”
BFH-50215 1 1/2” X 1 1/2”

Batca Fitness Systems 10 Fusion 3 Owner's Manual
ITEM NO. PART NUMBER DESCRIPTION QTY
101 CAB-13021 Fusion Lat Pull to Functional Arm 2
109 CAB-13022 Fusion Weight Stack to Cable Tie Out 1
102 CAB-13023 Fusion Leg Press Cable 1
103 CAB-13024 Fusion Floating Pulley Cable 1
104 CAB-13025 Fusion Leg Extension Cable 1
106 CAB-13026 Fusion Tie Out Cable 1
Cables
Cable Comparison Chart
71 5/8”
22 5/8”
187 1/2”
90 1/2”
85 1/4”
90 3/8”
CAB-13021 CAB-13024
CAB-13022 CAB-13025
CAB-13023 CAB-13026

www.batcafitness.com 11 Fusion 3 Owner’s Manual
Step 1:
Item # Part # Description Qty
1 BFM-10593 Rear Base 1
2 BFM-10566 Left Vertical Support 1
3 BFM-10567 Right Vertical Support 1
4 BFM-10568 Middle Base 1
37 BFM-10583 Top Swivel Pulley 2
55 BFH-50165 1” Snap Ring 4
56 BFH-50146 3/8" Flat Washer (Black) 8
57 BFH-50157 3/8"-16 Nylock (Black) 4
58 BFP-51756 SHCS 3/8"-16 X 5 1/4" P5 2
118 BFP-51799 SHCS 3/8-16 X 5" P5 2
182 BFH-50337 Wavy Washer 2
201 BFM-11038 Short Bar Holder 1
 All Flat Washers and Nylocks are
3/8” unless otherwise noted.
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR
PROPER INSTALLATION.
Note: For a more consistent appearance,
position all bolts in the direction
shown in each figure.
Figure 1
Do Not Tighten
Hardware Until
Step 3

Batca Fitness Systems 12 Fusion 3 Owner's Manual
Figure 2
Step 2:
Item # Part # Description Qty
5 BFM-10569 Middle Pole Assembly 1
18 BFL-50197 Middle Pole Connector Plate 2
56 BFH-50146 3/8" Flat Washer (Black) 10
58 BFH-50157 3/8"-16 Nylock (Black) 4
59 BFP-51756 SHCS 3/8"-16 X 5 1/4" P5 4
60 BFH-50147 3/8” Lock Washer (Black) 2
76 BFP-52394 SHCS 3/8"-16 X 2 1/2" P5 2
98 BFH-50253 Beveled Leveler 2
99 BFH-50149 3/8"-16 Jam Nut (Zinc) 4
181 BFH-50339 Large Flat Leveler 2
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Do Not Tighten
Hardware Until
Step 3

www.batcafitness.com 13 Fusion 3 Owner’s Manual
Figure 3
Item # Part # Description Qty
200 BFM-10771 Press Arm Lock (Optional) 1
191 BFM-10736 Right Press Arm Assembly 1
192 BFM-10737rev1 Right Swing Arm Assembly 1
193 BFM-10733rev1 Left Swing Arm Assembly 1
194 BFM-10735 Left Press Arm Assembly 1
35 BFM-51080 .45” Spacer 1
54 BFM-51148 1" Arm Shaft 1
182 BFH-50337 Wavy Washer 2
188 BFH-50620 BHSCS 3/8” x 1” 2
189 BFM-52421 1 1/2” Aluminum Cap 2
190 BFH-50220 1” Shaft Collar 2
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Step 3:
Tighten All
Hardware From
Steps 1, 2, and 3

Batca Fitness Systems 14 Fusion 3 Owner's Manual
Figure 4
Step 4:
Item # Part # Description Qty
195 BFM-52410 Weight Stack Shroud w/Logo 1
108 BFM-50258 Selector Shaft 1
111 BFH-50192 Weight Stack Decals 2
116 BFP-52340 SHCS 3/8”-16 X 3/4” 2
118 BFP-51799 SHCS 3/8"-16 X 5" P5 2
123 BFM-51173 Weight Stack Pull Pin 1
183 BFH-50630 FHSCS 3/8"-16 X 3/4" 2
184 BFP-52401 BHSCS 3/8"-16 X 1/2" 4
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Item # Part # Description Qty
6 BFM-51044 Guide Rod Holder 1
9 BFM-50529 Rubber Donut 2
10 BFM-50256 Weight Plate 19
12 BFM-51051 Guide Rod 2
38 BFM-51082 Weight Stack Shroud 1
56 BFH-50146 3/8" Flat Washer (Black) 10
58 BFH-50157 3/8"-16 Nylock (Black) 2
60 BFH-50147 3/8" Lock Washer (Black) 6
107 BFM-10299 Top Plate 1

www.batcafitness.com 15 Fusion 3 Owner’s Manual
Step 5:
Figure 5 Item # Part # Description Qty
15 BFM-10573 Functional Arm Mount 1
16 BFM-10571 User Right Functional Arm 1
17 BFM-10572 User Left Functional Arm 1
36 BFM-10582rev1 Functional Arm Swivel Pulley 2
56 BFH-50146 3/8" Flat Washer (Black) 4
58 BFH-50157 3/8"-16 Nylock (Black) 2
61 BFP-51653 SHCS 3/8"-16 1 1/4" P5 2
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.

Batca Fitness Systems 16 Fusion 3 Owner's Manual
Figure 6
Item # Part # Description Qty
20 BFM-10577 8" Telespar 1
24 BFM-10579 10" Chrome Adjustment 1
33 BFM-10581 Leg Extension/ Curl Frame 1
53 BFM-51143 8” Anti-Deflection Plate 1
56 BFH-50146 3/8" Flat Washer (Black) 6
58 BFH-50157 3/8"-16 Nylock (Black) 4
64 BFH-50251 1/2" Flat Washer Black 2
66 BFP-51884 SHCS 1/2-13 X 4 1/4 P5 1
68 BFH-50155 1/2"-13 Nylock (Black) 1
74 BFP-52396 SHCS 3/8"-16 X 5 1/2" 2
115 BFH-50144 FHSCS 3/8"-16 X 1" 2
122 BFM-50931 3” Axle 1
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Step 6:
8” Anti-Deflection Plate

www.batcafitness.com 17 Fusion 3 Owner’s Manual
Step 7:
Figure 7
Item # Part # Description Qty
21 BFM-10578 Seat Frame Assembly 1
30 BFM-10580 Back Chrome Adjustment 1
64 BFH-50251 1/2" Flat Washer (Black) 4
65 BFP-51760 SHCS 1/2”-13 X 3 1/2” 1
67 BFP-51747 SHCS 1/2”-13 X 3” P5 1
68 BFH-50155 1/2"-13 Nylock (Black) 2
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.

Batca Fitness Systems 18 Fusion 3 Owner's Manual
Step 8:
Figure 8
Item # Part # Description Qty
25 BFM-10141 Knee Alignment Roller 1
39 BFM-10584 Leg Extension Shaft 1
40 BFM-10585 Leg Extension Cam Assembly 1
55 BFH-50165 1" Snap Ring 1
58 BFH-50157 3/8"-16 Nylock (Black) 1
70 BFP-51759 SHCS 3/8"-16 X 2" 1
119 BFH-50245 FHSCS 5/16"-18 X 1" 2
121 BFM-50222 2 9/16” Axle 1
182 BFH-50337 Wavy Washer 2
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
SHCS

www.batcafitness.com 19 Fusion 3 Owner’s Manual
Step 9:
Figure 9
Item # Part # Description Qty
42 BFM-10586 Leg Extension Arm Assembly 1
44 BFL-50207 Hold Down Adjustment Plate 1
45 BFL-50211 Plate 1
46 BFM-10587 Knee Hold Down Assembly 1
47 BFM-51094 2” Axle 1
55 BFH-50165 1" Snap Ring 2
56 BFH-50146 3/8" Flat Washer (Black) 6
58 BFH-50157 3/8"-16 Nylock (Black) 3
63 BFP-51747 SHCS 3/8"-16 X 3" P5 3
182 BFH-50337 Wavy Washer 1
188 BFH-50620 BHSCS 3/8” x 1” 1
197 BFM-52422 Red Pivot Point Cap 1
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.

Batca Fitness Systems 20 Fusion 3 Owner's Manual
Figure 10
All Flat Washers and Nylocks
are 3/8” unless otherwise
noted.
Item # Part # Description Qty
8 BFH-50173 3 1/2" Pulley 2
56 BFH-50146 3/8" Flat Washer (Black) 6
57 BFP-51752 SHCS 3/8"-16 X 2 1/4" P5 3
58 BFH-50157 3/8"-16 Nylock (Black) 3
92 BFH-50256 1/2” Jam Nut 1
94 BFM-10611 Criss-Cross Free Floater 1
95 BFH-50174 4 1/2" Pulley 1
109 CAB-13022 Fusion Weight Stack to Cable Tie Out 1
113 BFH-50351 1 3/8" Shoulder Bolt 1
114 BFH-50267 5/16"-18 Nylock (Zinc) 1
71 5/8”
Cable Routing
Step 10:
Note: Each Cable with a
threaded bolt on
either end must be
threaded at least
1 / 2 ” i n t o i t s
attachment.
CAB-13022
1 3/8”
