RIZHAO J&J RV SHELTER 103-1642 User manual

ASSEMBLY INSTRUCTIONS
RIZHAO J&J MANUFACTURING CO,LTD
ADDR.: RIZHAO SHANDONG CHINA
TEL:[phone]
FAX:[phone]
Http:www.globalsources.com/jj.co
jj[email protected]
RV SHELTER
39’ X 16’ X 14’
Model No.: 103-1642

Specifications
The RV Shelter is a heavy duty protective cover with UV protection, double stitched and white in color to
resist the heat in the summer. The tubing is powder coated for rust resistance. The zipper door flap allows
for easy access.
Materials Steel Tubing- Powder Coated Frame
Shelter Cover 305 MG Heavy Duty Protection Cover–UV Protection
Outside Dimensions 39’10” L x 16’ W x 14’5” H（120CMX490CMX430CM）
Anchors Easy Hook Anchor
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using product, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Keep work area well lit. Avoid sharp edges when
assembling. Assemble on a flat and leveled area.
3. Check for damaged parts. Before using any product, any part that appears damaged
should be carefully checked to determine that it will perform its intended function. Check
for any broken or damaged parts and any other conditions that may affect its operation.
Replace or repair damaged or worn parts immediately. Check that any of the components
are not cracked or have splits that could affect the function and performance.
4. Replacement parts and accessories. When servicing, use only identical replacement
parts. Use of any other parts will void the warranty.
5. Always check hardware and assembled parts after assembling. All connections
should be tight and hardware tightened.
6. Keep children away. Children must never be allowed in the work area. Do not let them
play in or around the RV Shelter.
SKU 103-1642 Page 2

7. Dress Properly. Protective non skid footwear are recommended when setting up the RV
Shelter. Wear restrictive hair covering to contain long hair.
8. Use eye protection. Always wear ANSI approved impact safety goggles when setting up
this product.
9. Do not overreach. Keep proper footing and balance at all times.
10. Do not try moving assembled RV Shelter. Do not lift the RV Shelter. Six or more
people are needed to assemble.
11. Do not allow children to play around RV Shelter. Do not place anything on top of RV
Shelter.
12. Avoid harsh conditions. The RV Shelter could topple in strong winds causing damage
to property and personal property. Disassemble if weather conditions become severe and
could damage the RV Shelter. Harbor Freight Tools is not responsible for damage due to
weather conditions and will not be held responsible for a RV Shelter exposed to and/or
damaged by conditions such as high winds, heavy rain, snow or ice under any
conditions.
13. You will need to remove the cover when you know that severe weather conditions are
approaching. And if covered, frequently check the anchoring system to insure stability of
the RV Shelter. Proper anchoring is your responsibility.
Warning: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which cannot
be built into this product, but must be supplied by the operator.
Unpacking
When unpacking the RV Shelter, check to make sure that all parts are included as shown in
the parts list. If any parts are missing or broken, please call Harbor Freight Tools at the number
below.
SKU 103-1642 Page 3

ASSEMBLY
Note: For simplicity, many of the parts in these instructions are referred to by their
part number in parenthesis.
For example: “Foot (5)” is the same as “(5)”
Refer to the Parts List on page 14 for part number definitions.
Assembling the Frame
Assemble the End Bows and the Middle Bows as shown in Figure 1. Parts are attached
using a 3” Bolt (14) and Nut (16) at each junction - see End and Middle Bows, below.
Note: The two End Bows are the only ones with Corner Feet (4).
Corner
Foot(4)
Lower
Leg(7)
Upper
Leg(6)
Roof
Extension(2)
Top Crest(12)
Roof
Bend(3)
Roof
Bend(3)
Roof
Extension(2)
Top Crest(12)
END BOW MIDDLE BOW
Upper
Leg(6)
Foot(5)
Lower
Leg(7)
Note:The nuts need to be on the inside of the frame.This helps
Prevent damage to the cover.

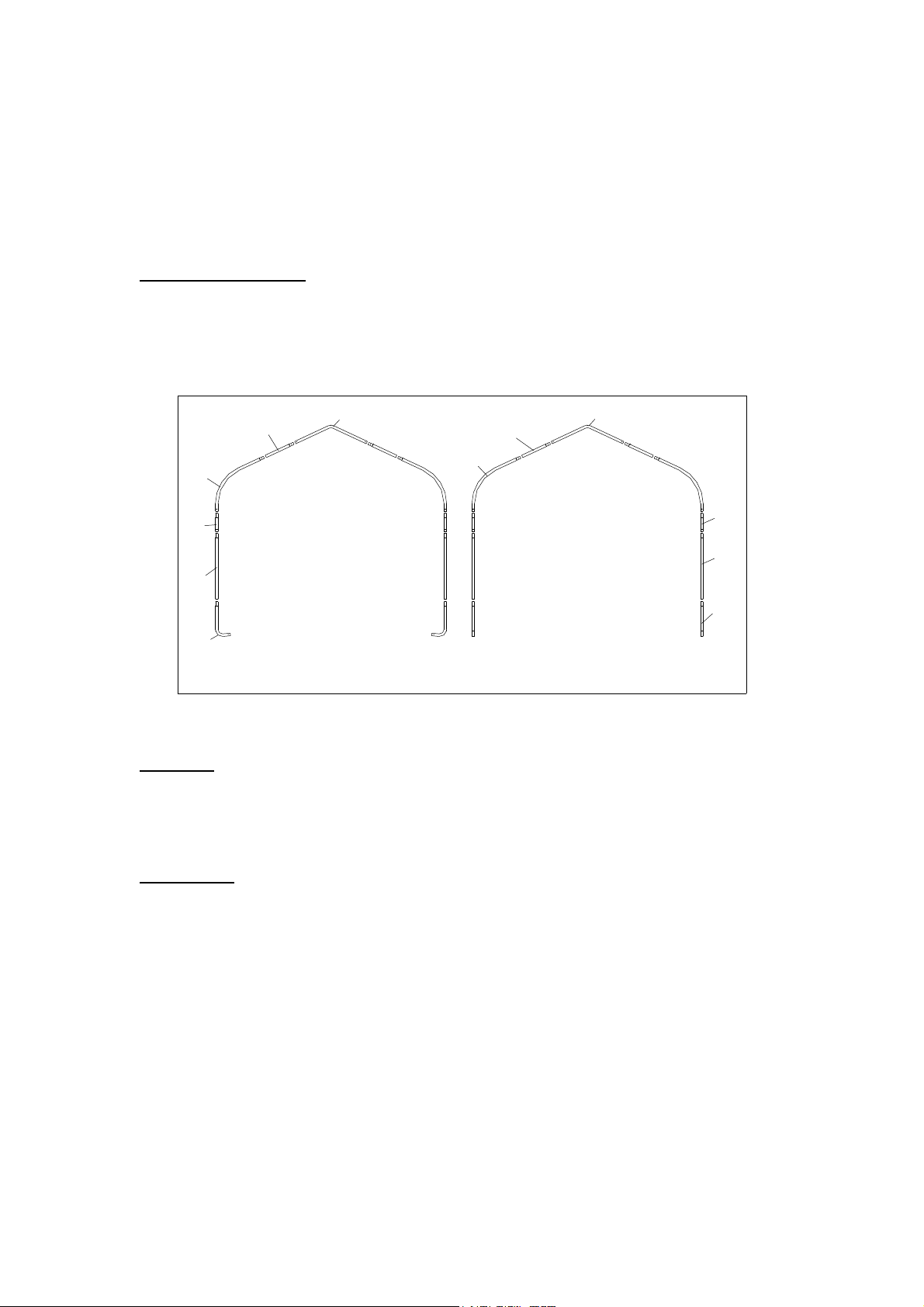

Figure 1
End Bows
Starting with two Corner Feet (4) (left side and right side) for each end, work your way up
bolting connections together. Connect the Lower and Upper Legs (7,6), Roof Bend (3), and
Roof Extension (2). Complete the End Bows (qty. 2) by connecting the left and right sides
with (12). See Figure 1.
Middle Bows
The middle bows have the same procedure as above, except the lowest pieces are the
Feet (5). See Figure 1.
SKU 103-1642Page 4

Connecting the Front End Bow to the Middle Bow
1. At what will be the front of the RV Shelter, attach (10a+b) to the END BOW (center). Use
Bolts (13), Washer (17), and Nuts (16). Repeat on the opposite side. Do not completely
tighten at this time because minor frame adjustments will be done later. Insert the
tapered end of each (10b) into the end of each (10a), secure with Nut (14) and Bolt (16).
2. At the base of that same End Bow, attach (8) to the base of (4). Swing the end of (10a+b)
over to the connection of (5) and the end of (8). The tapered end of each (8) fits into the
next (8). Use Bolts (13), Washers (17), and Nuts (16) for this end of (10a+b) also. Do not
completely tighten at this time because minor frame adjustments will be done later. Repeat
these steps on the opposite end of the End Bow. Continue assembling (8) between all of
Middle Bows until the final Middle Bow, using hardware listed below. See Figures 2 & 3.
BOLT ALL CONNECTIONS WITH BOLTS (14) AND NUTS (16) UNLESS OTHERWISE
INDICATED. ALL NUTS NEED TO BE ON THE INSIDE OF THE FRAME.

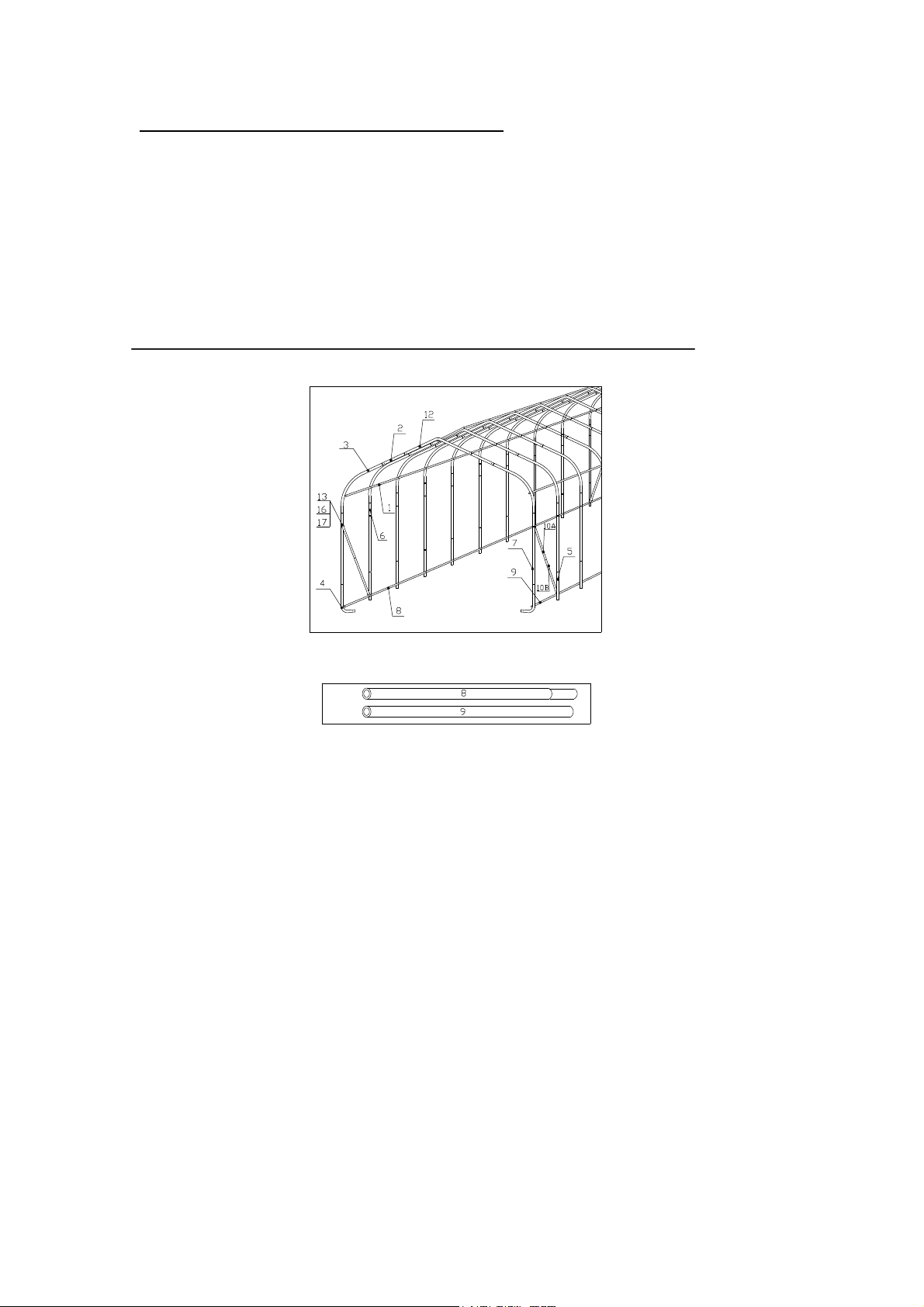

Figure 2
Figure
3
REV 08/05
SKU 103-1642 Page 5

The Back End Bow
1. At the base of the back End Bow, fit (9) to (4). Attach (10a+b) to the center of the last
End Bow. Use Bolts (13), Washer (17), and Nuts (16). Repeat on the other side of the
End Bow. Do not completely tighten at this time because minor frame adjustments will
be done later.
2. At the base of the first Bow in from the end, attach (9) to the base of (5). Swing the end
of (10a+b) over to the connection of (5) and the end of (8). The tapered end of (8) fits into
(9). Use Bolts (13), Washers (17), and Nuts (16). Do not completely tighten at this time
because minor frame adjustments will be done later. Repeat these steps on the
opposite end of the End Bow. Continue assembling (8) between all of Middle Bows until
the final Middle Bow, using the hardware (14), (16). See Figure 4.

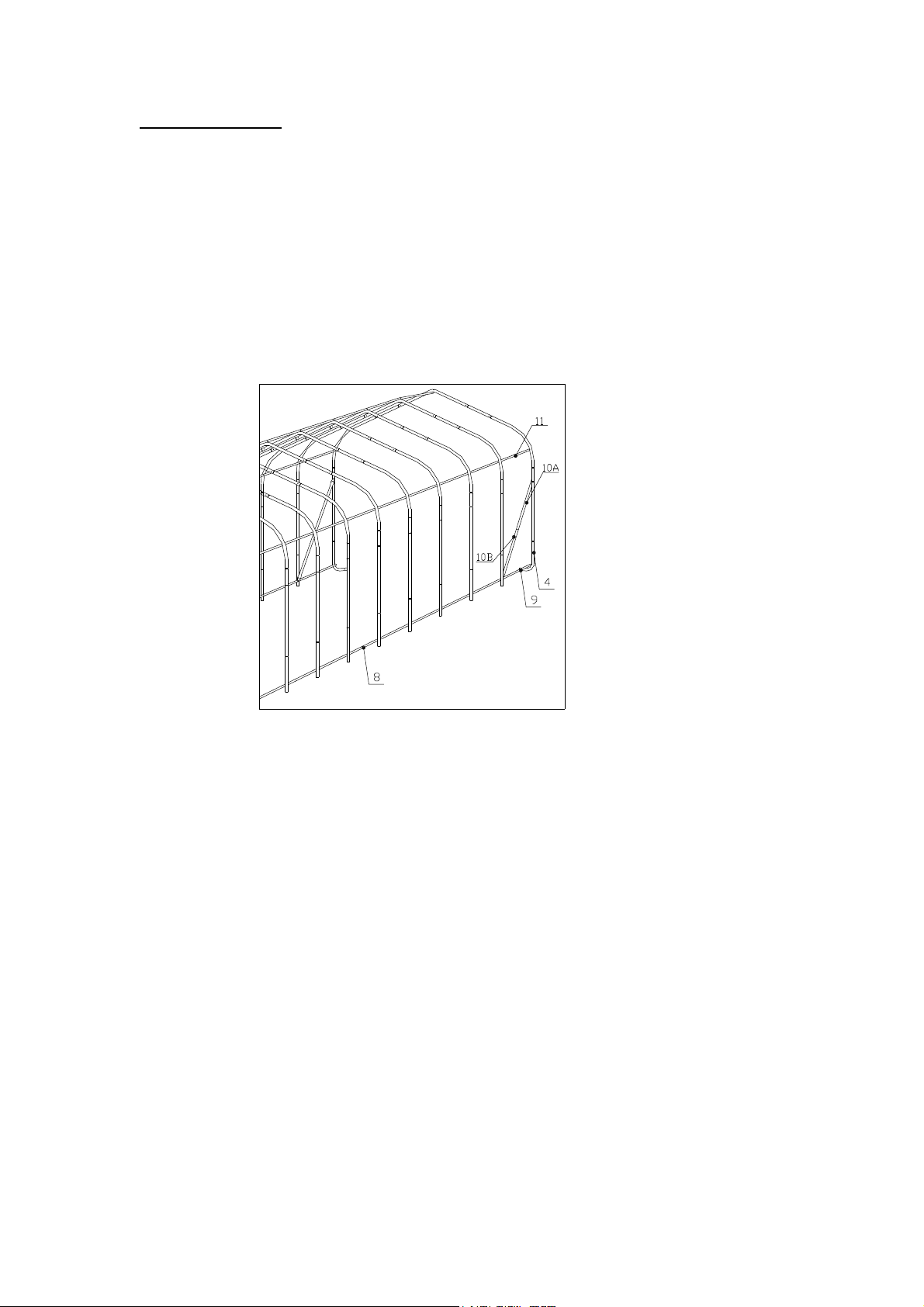

Figure 4
SKU 103-1642 Page 6

Top Rails

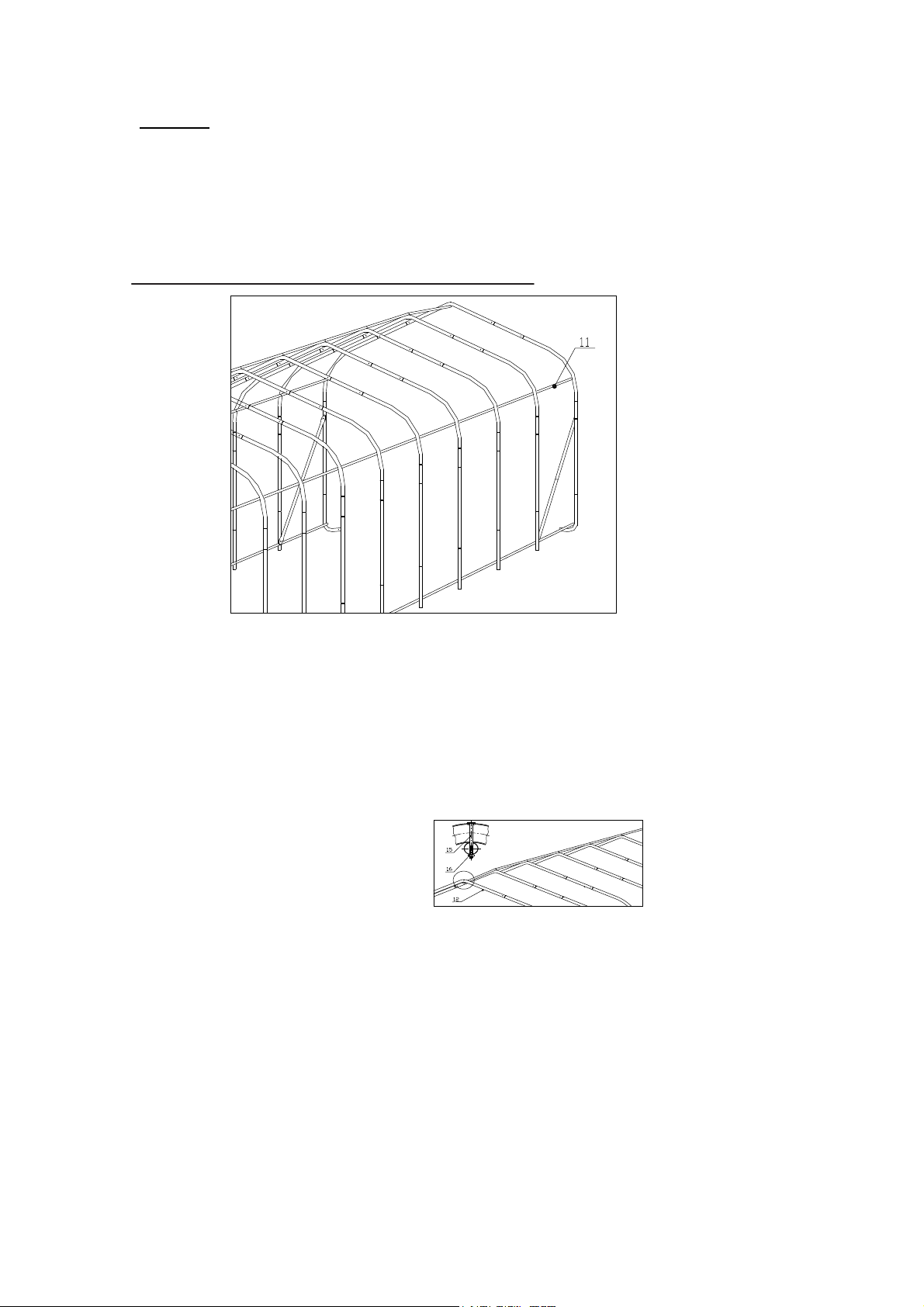

1. Start at one side of the back End Bow along the curvature of (3). (11) attaches to (3) on
the inside of this curve. Insert (1) inside (11) and attach to the Middle Bow. Continue
attaching the (1)’s to the Middle Bows and each other until you reach the end. Repeat
these steps on the other side. Do not tighten bolts at this time. The bolts at the end will
need to be removed when installing the Tarp (door) and Tarp (back). See Figure 5.
2. When this portion of the frame is assembled and free standing, move the assembled
frame to your desired location using several people.
Figure 5
3. The Top Crests (12) are at the top of the assembled Bows. To anchor that portion of the
roof to the Bows, attach (11) underneath the (12) on the End Bow using Carriage Bolt (15)
and Nut (16). Fit (1) into (11) and connect to the top of the Middle Bow with (15) and (16).
Continue connecting to the top until the last Middle Bow. At the end, connect (1)
underneath the last (12).
See Figure 6
Figure 6
SKU 103-1642 Page 7

Squaring the Frame
When the RV Shelter frame is assembled, and in it’s final location, use the Rope (19) to
measure the distance between opposite corners, see Figure 7. Mark the rope and check
the distance of the other two corners; the distance should be the same. If not, adjust the
frame until it is.
Figure 7
ANCHOR INSTRUCTIONS
1. The RV Shelter needs to be anchored down and the frame needs to be secure. From the
inside of the Shelter, place the Anchors with Steel Cable (18) on all four corners. Place
the remainder of the Anchors on the inside of the Bows at intervals. See

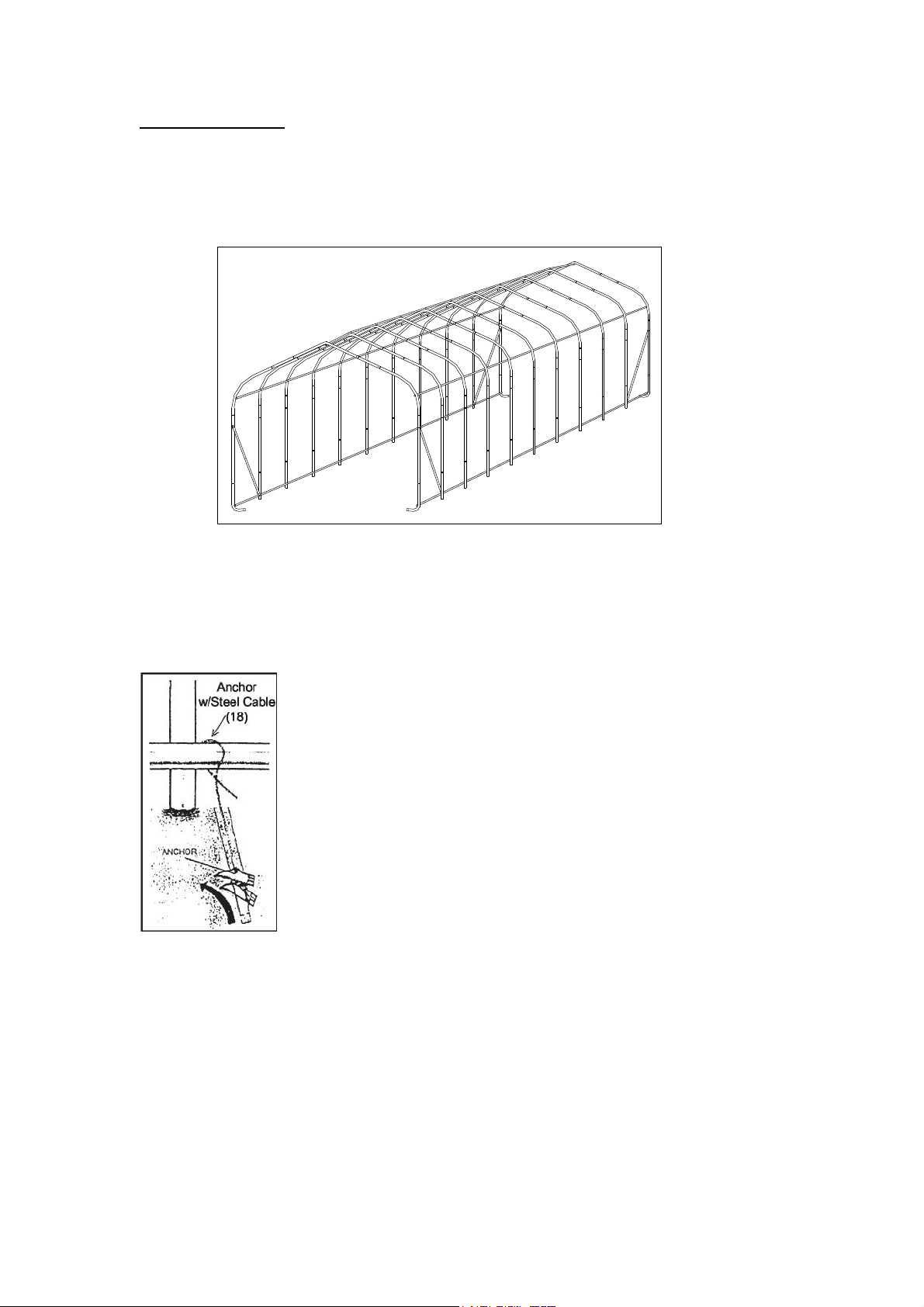

Figure 8.
Note: Additional Anchors may be required in windy areas.
2. If you are installing on asphalt, drill a 1” hole to accept the Anchor through the asphalt.
3. If installing in dirt, drive the Anchor (18) into the soil using a
hammer and drive rod (not provided). The more you hammer, the
more the Anchor goes into the soil, compacting the soil around it.
Remove the drive rod once you have established the proper depth.
4. Pull upwards on the cable, rotating the Anchor into a load lock
position. The Anchor cuts into the undisturbed soil.
5. After placing all the Anchors, wrap the Wire Cable from each
Anchor, around the Bottom Rails and securely attach it to itself using
Clamps (25) (not shown). See Figure 8. Figure 8
SKU 103-1642 Page 8

TARP DOOR INSTRUCTIONS
Before installing the Tarp Cover (23), install the Tarp Door (21) and Tarp Back
Panel (22). The Tarp Door Panel (21) has two zippers in it.
1. At the doorway of the frame, remove the Bolts (14) and Nuts (16) from the three Top
Rails (1), top and sides.
2. Place the Tarp Door (21) over the arch of the front End Bow and wrap the material
around the arch while bringing the slits to the inside of the frame. Place the Top Rail (1)
at the Top Crest (12) into the slit. See Figure 9.
3. Once the Top Rails (1) are into the slits on the sides and top, put the Bolts (14) and Nuts
(16) back into all the places that they were removed from and tighten them down. See
Figure 9.
Figure 9
4. Notice the black rope hanging out of the bottom of the Tarp Door (21) on both sides.
With two people, wrap the rope under the Corner Feet (4). Both of you are to pull up at
the same time to tighten the door. When Tarp Door is snug, tie off the rope to the Corner
Feet (4).
5. Attach the side of the Tarp Door (21) to the frame by using the 6 pcs. Ball Tie Downs
(24).
6. A pipe (not included, 1-1 /4” diameter) can be placed in the pocket at the bottom of each
door. This will keep the door straight and it may roll up easier. Caution must be
exercised, using the pipe will make the door heavier.
7. At the back doorway of the frame, remove the Bolts (14) and Nuts (16) from the three
End Top Rails (11), top and sides.
SKU 103-1642 Page9

8. Place the Tarp Back (22) over the arch of the back End Bow and wrap the material
around the arch while bringing the slits to the inside of the frame. Place the End Top Rail
(11) at the Top Crest (12) into the slit. See Figure 9 on the previous page.
9. Once the End Top Rails (11) are into the slits on the sides and top, put the Bolts (14) and
Nuts (16) back into all the places that they were removed and tighten them down. See
Figure 9.
10. There are extra slits in the Tarp Back (22) for the Support Braces (10a+b). Repeat the
steps as before for the sides with the Support Braces replacing the exact hardware.
Tighten. See Figure 9.
11. Notice the black rope hanging out of the bottom of the Tarp Back (22) on both sides.
With two people, wrap the rope under the Corner Feet (4). Both of you are to pull up at
the same time to tighten the door. When Tarp Back is snug, tie of the rope to the Corner
Feet (4).
12. Attach the side of the Tarp Back (22) to the frame by using the 6 pcs. Ball Tie Downs
(24).
TARP COVER INSTRUCTIONS
1. Position the Tarp Cover (23) face side up, being aware of length and height of RV Shelter
frame in reference to the length and width of the Cover. Lie the Tarp Cover along the side
of the frame. Fold in half lengthwise. Position the folded Tarp as close to the frame as
possible. Attach long ropes (not provided) in holes on each end of the Tarp. These ropes
will be used to guide and pull the Tarp Cover (23) over the top of the frame. Figure 10.
SKU 103-1642 Page 10
Figure 10

TARP COVER INSTRUCTIONS (continued)
2. Use at least six people to help position the Tarp Cover (23) over the frame. It is suggested
to have a person on a ladder at each end of the frame to assist with lifting. For safety, have
someone to support the ladder so it will not topple over. Use two to four other people to pull

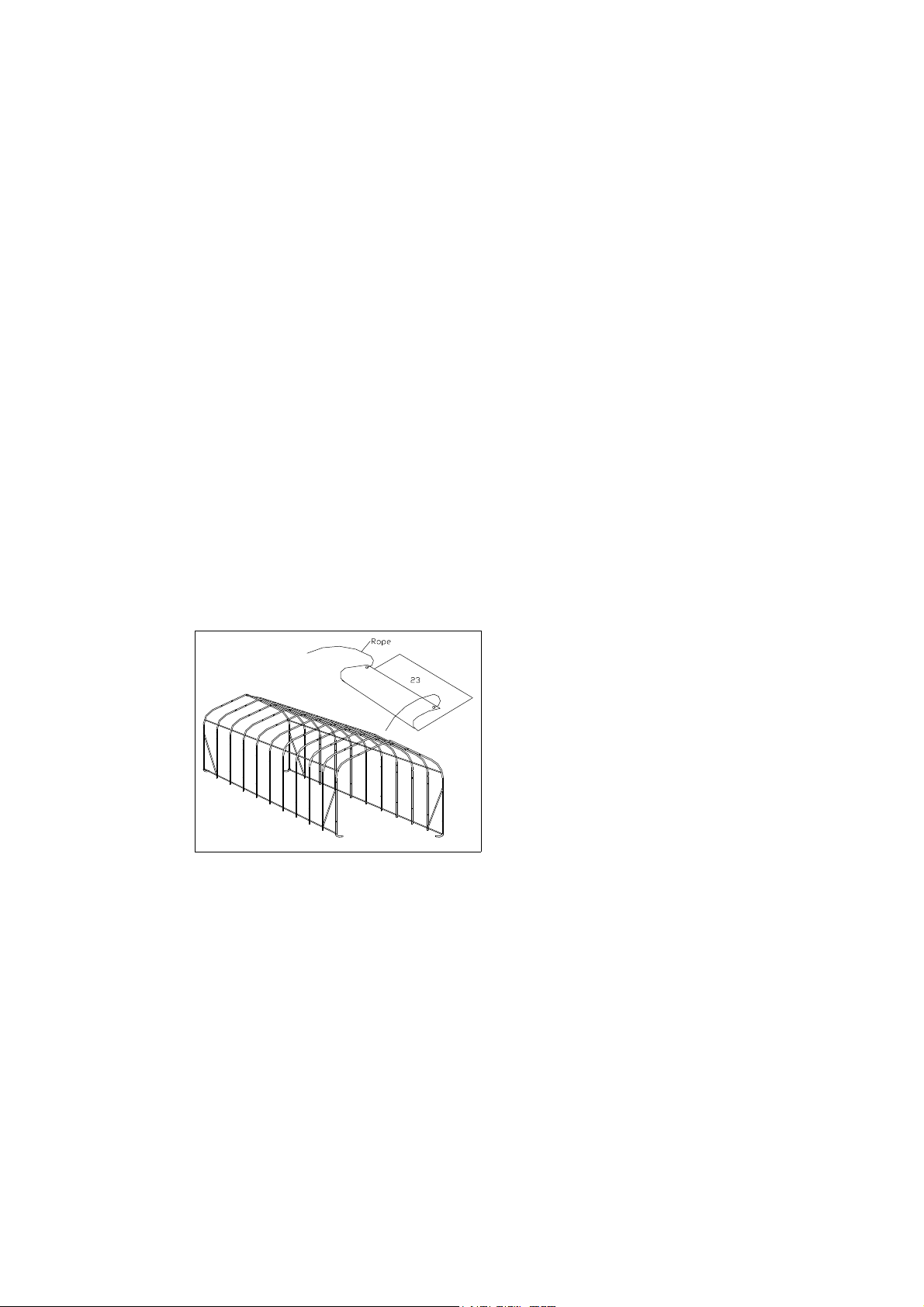

the ropes and shift the Tarp Cover (23) into position. See Figure 10.
3. Center the Tarp Cover (23) over the frame. The internal rope should be in the front and
rear (outside). The punched holes should be positioned on the inside of the RV Shelter.
Center the Tarp Cover on all four sides. See Figure 11.
Figure 11
4. Loosen the four Turnbuckles (20). Tie the ropes loosely to the Turnbuckles (20). Check to
be sure the Cover is still centered and has the same amount of overlap on the front and the
back. See Dwg. in Figure 13.
5. The area where the rope comes out of the Tarp Cover (23) should be about 12” from the
ground. See Figure
12.
Figure 12
12” from
the ground
Rope
Bottom
Rail (8)
SKU 103-1642 Page 11

TARP COVER INSTRUCTIONS (continued)

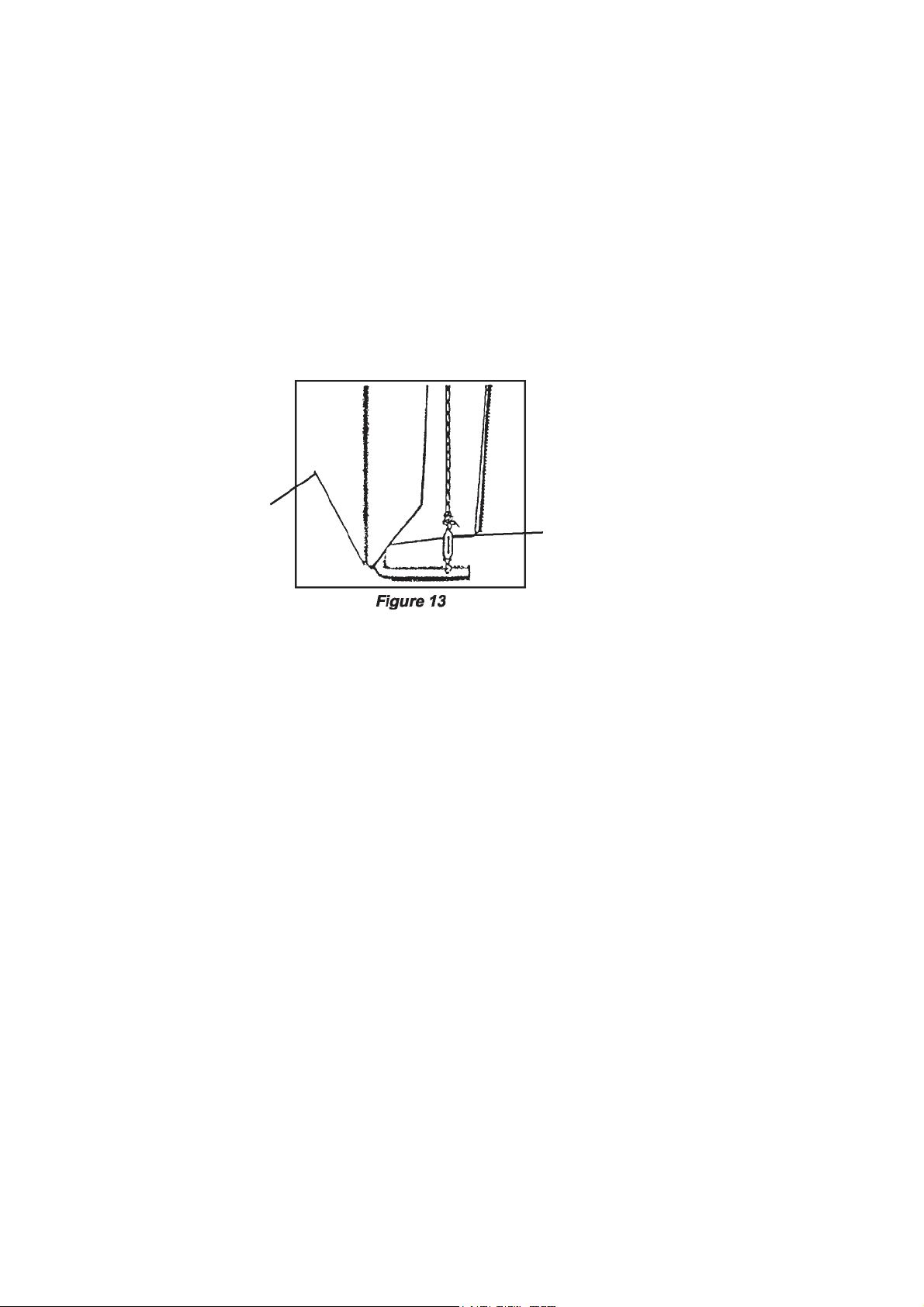

6. Pull the rope tighter, using a few knots to secure to the Turnbuckle (20). Twist the
Turnbuckle (20) to tighten the rope. Check monthly & tighten if needed.
See Figure 13.
7. When the Tarp Cover (23) is aligned, fasten the Tarp Cover to the frame using the Rope
(19). Start by lacing the end of the Rope through the first punched hole in the Tarp Cover.
Pass the Rope under the Bottom Rails (8), Continue down the Shelter, creating a laced
effect. When laced to the end, that will be End Bottom Rail (9). Tie off at the end. Work
your way back tightening the lacing by pulling the Rope down, creating a snug fit. When
you get to the other end, tie off and trim off any extra Rope. See Figure 12, previous
page.
Maintenance
1. Cover can be cleaned with soap & water.
2. For better and safer performance, keep all parts of this product clean and dry.
3. Periodically check to see that all hardware is in place. Check the turnbuckles monthly.
SKU 103-1642 Page 12
Tarp Cover (23)
Turnbuckle (20)

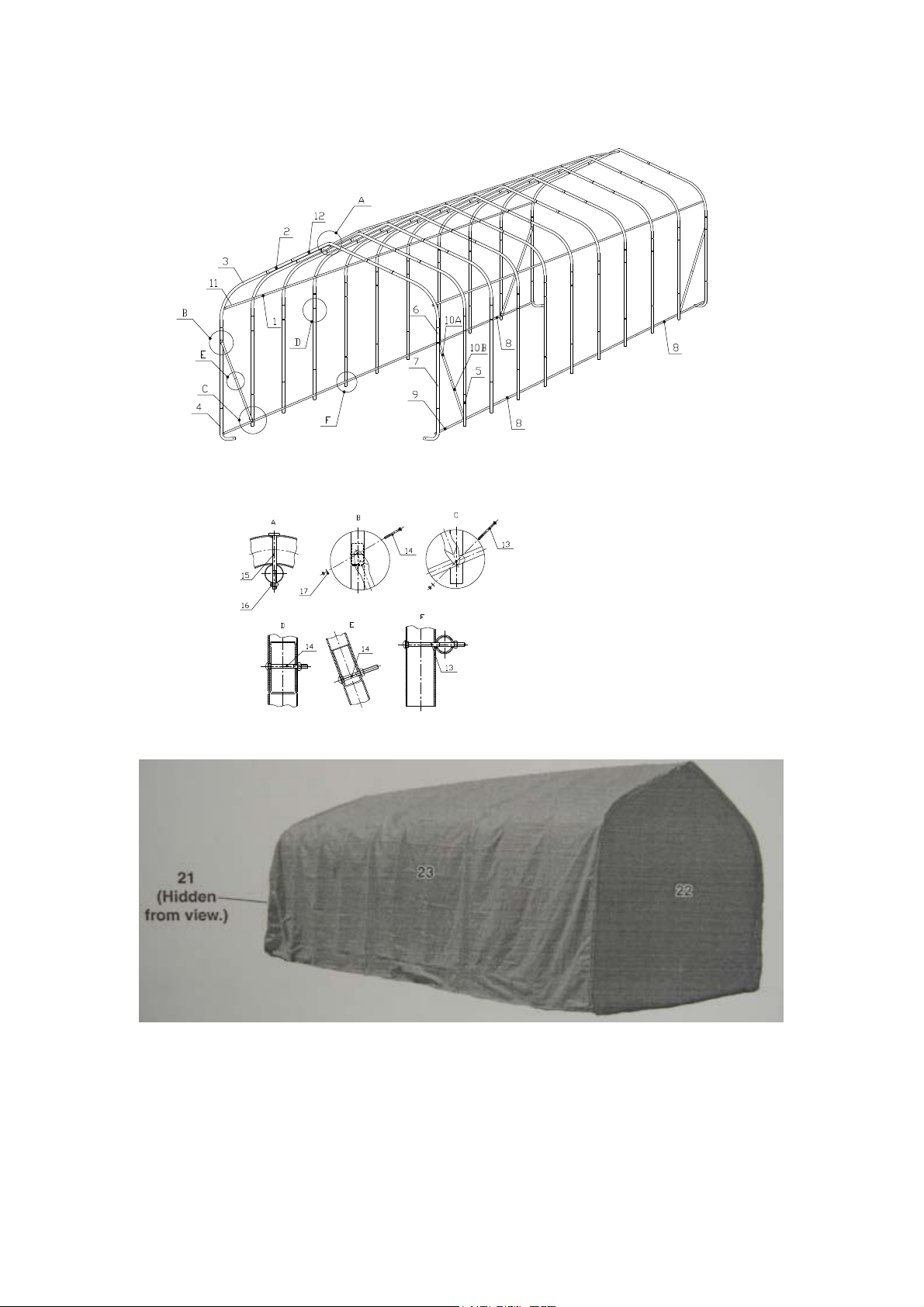

Assembly Drawing
NOTE: Some parts are listed and shown for illustration purposes only
and are not available individually as replacement parts.
SKU 103-1642
Page 13

Parts List
Part
Description
Q'ty
1 Top Rail with Tapered End 27
2 Roof Extension 22
3 Roof Bend 22
4 Corner Foot
4
5 Foot 18
6* Upper Leg 22
7 Lower Leg 22
8 Bottom Rail with Tapered End 18
9* End Bottom Rail
2
10a Upper Support Brace 4
10b Lower Support Brace(Tapered)
4
11 End Top Rail 3
12 Top Crest 11
13 Bolt (4-1 /2”) 44
14 Bolt (3”) 114
15 Carriage Bolt (4-1 /2”) 11
16 Nut 169
17 Washer
8
18 Anchor with Steel Cable 12
19 Rope
1
20 Turnbuckle
4
21 Tarp(door)
1
22 Tarp(back)
1
23 Tarp(cover) 1
24 Ball Tie Down 12
25 Cable Clamp 12
*Note: Parts 6 and 9 are distinguished from one another
with an underline indicating the bottom of the number.
SKU 103-1642 Page 14
