ADC FlexWave nano Manual

Confidential 8/11/2008
Mobile Network Solutions
FlexWave™ BSS
FlexWave™ nano Hardware Installation
AGCP
ADCP 75-313 •Issue 2
•
07/2008
D-620056-0-20,
R
ev A
© 2008 ADC Telecommunications, Inc. Page 1

8/11/2008
REVISION HISTORY
ISSUE DATE
1 06/2007 Original
2 07/2008 Update for Release 3.2
LIST OF CHANGES
The technical changes incorporated into this issue are listed below.
LIST OF CHANGES
All New publication
Generic Revisions for 3.2 software
COPYRIGHT
© 2008, ADC Telecommunications, Inc. All Rights Reserved. Neither this document, nor any
part may be copied, reproduced, modified, transmitted in any form or by any means,
electronically or mechanically, nor shall any derivative works be created without the
express prior written consent of ADC Telecommunications Inc.
TRADEMARK INFORMATION
ADC is a registered trademark and InterReach, InterReach Unison, InterReach Fusion,
WAVEXchange, FlexWave are registered trademarks and trademarks of ADC
Telecommunications, Inc. or LGC Wireless, Inc. a wholly owned subsidiary of ADC. All other
products, company names, service marks, and trademarks mentioned in this document or
website are used for identification purposes only and may be owned by other companies.
DISCLAIMER OF LIABILITY
Contents herein are current as of the date of publication. ADC reserves the right to change
the contents without prior notice. In no event shall ADC be liable for any damages
resulting from loss of data, loss of use, or loss of profits and ADC further disclaims
any and all liability for indirect, incidental, special, consequential or other similar
damages. This disclaimer of liability applies to all products, publications and
services during and after the warranty period.
This publication may be verified at any time by contacting ADC’s Technical Assistance
Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476
(outside U.S.A. and Canada), or by e-mail to [email protected].
© 2008 ADC Telecommunications, Inc.

Confidential 8/11/2008
DISPOSAL OF ELECTRONIC AND ELECTRICAL WASTE
Pursuant to the WEEE EU Directive electronic and electrical
waste must not be disposed of with unsorted waste. Please
contact your local recycling authority for disposal of this
product.
© 2008 ADC Telecommunications, Inc. Page 3

Confidential 8/11/2008
Table of Contents
1Introduction............................................................................................ 5
1.1 Purpose and Scope................................................................................5
2Warnings................................................................................................ 6
3Regulatory Information ............................................................................ 7
4Unpacking .............................................................................................. 8
5Fitting the External Antenna Kit (optional)................................................... 9
5.1 139/140 Hardware ................................................................................9
5.2 165 Hardware.................................................................................... 10
6Cabling the FlexWave™ nano ...................................................................12
6.1 139/140 Hardware .............................................................................. 12
6.2 165 Hardware.................................................................................... 12
6.3 Ethernet .......................................................................................... 13
6.4 Timing Interface Bus (TIB) – Multi-TRX only ................................................ 13
6.5 Chassis Bond Strap – Multi-TRX only.......................................................... 14
7Mounting the FlexWave™ nano.................................................................16
7.1 Mounting Multi-TRX FlexWave™ nano ........................................................ 18
7.2 Mounting Multi-TRX 165 FlexWave™ nano................................................... 18
8Initial Frequency Calibration.....................................................................19
9LED Status Indicators..............................................................................20
10 Annex A – Drawing 165#018 ...................................................................22
© 2008 ADC Telecommunications, Inc. Page 4

Confidential 8/11/2008
1Introduction
1.1 Purpose and Scope
This document describes the procedure used to install the FlexWave™ nano
hardware and physical connections together with applying the base software
configuration.
© 2008 ADC Telecommunications, Inc. Page 5

Confidential 8/11/2008
2Warnings
Please refer to the appropriate section of ADCP-75-311 [1].
© 2008 ADC Telecommunications, Inc. Page 6

Confidential 8/11/2008
3Regulatory Information
For all regulatory information please see ADCP-75-311 [1].
© 2008 ADC Telecommunications, Inc. Page 7

Confidential 8/11/2008
4Unpacking
Unpack FlexWave™ nano and check to see that the unit has not been damaged in
transit. Any damaged units should be returned to your supplier.
Figure 1 - Unpacking the FlexWave™ nano
© 2008 ADC Telecommunications, Inc. Page 8

Confidential 8/11/2008
5Fitting the External Antenna Kit
(optional)
5.1 139/140 Hardware
NOTE: When looking at the FlexWave™ nano with the connections facing down and
the LED visible the antenna on the left is the Transmit antenna and the antenna on
the right hand side is the Receive antenna.
NOTE: The RF feeder cable must not be bent sharply as this may result in a
degraded performance.
Remove the plastic covers by removing the top and bottom plates from both ends of
the FlexWave™ nano . Lever gently apart with screwdriver in notch.
Antenna Cover
Top
Antenna Cover
Bottom
Notch to aid
removal of
cover
Antenna Cover
Body

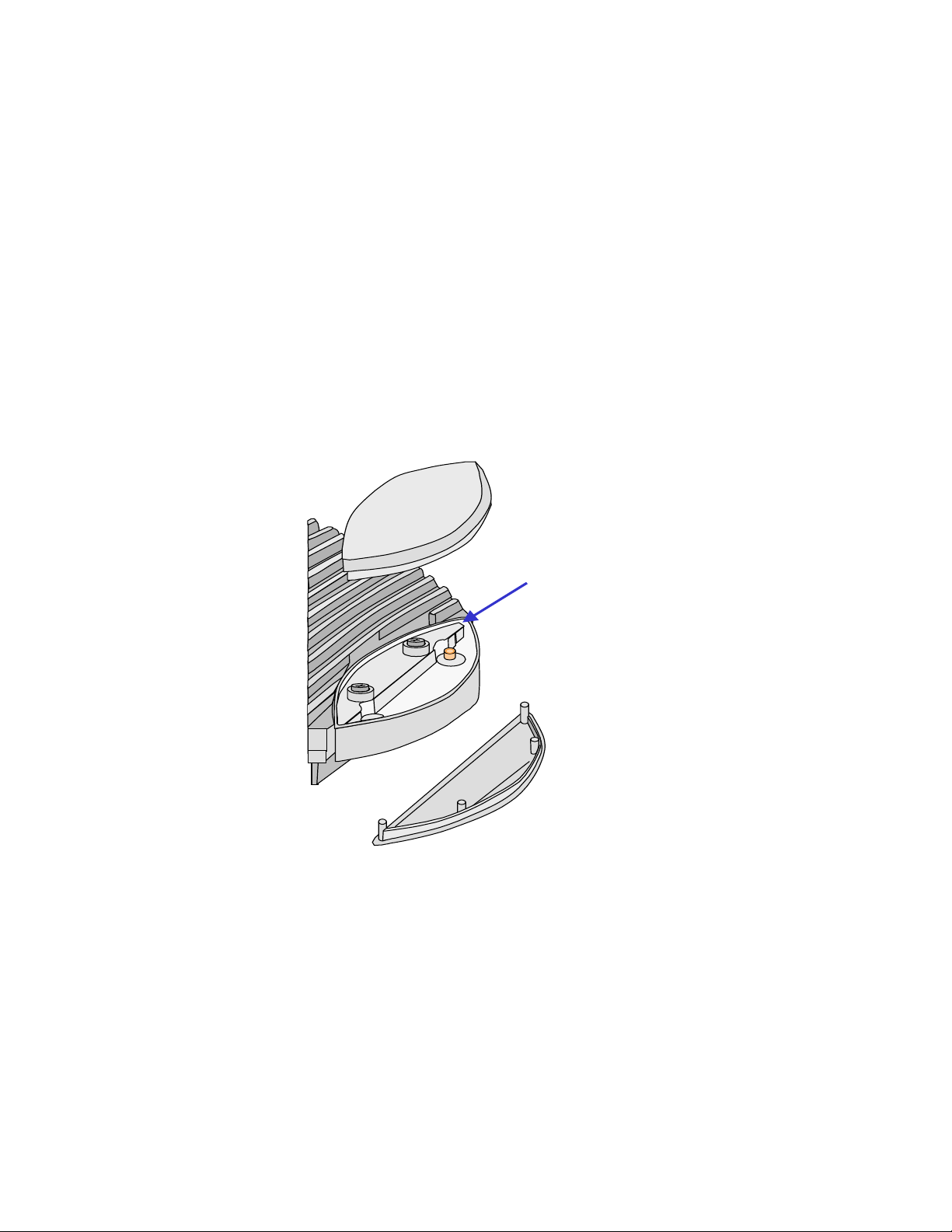

Figure 2 - Removal of antenna covers
Remove the antenna cover body, by unscrewing the two Torx T20 screws retaining
© 2008 ADC Telecommunications, Inc. Page 9

Confidential 8/11/2008
Remove Torx Screws
Figure 3 - Removal of antenna cover body
Fit the replacement antenna cover body ensuring that the feeder cable connector fits
into the antenna. Note that one cover only fits the receiver whilst the other fits the
transmitter.
Fit the clamp as shown below and second Torx screw, then replace top and bottom
covers.
Clamp plate
Compression
Spring
Figure 4 - Fit clamp plate
Repeat the process for the other end of FlexWave™ nano.
5.2 165 Hardware
NOTE: When looking at the front of 165 FlexWave™ nano with the Ethernet and TIB
connectors facing downwards, the TX antenna is bottom left, the RX antenna is
bottom right and the Network Listen (NWL) antenna is top right.
To fit external antennas, remove the plastic cover from the unit and unscrew the the
antennas to expose the SMA connectors. Connect directly to these connectors.
© 2008 ADC Telecommunications, Inc Page 10

Confidential 8/11/2008
Removable
Antennas

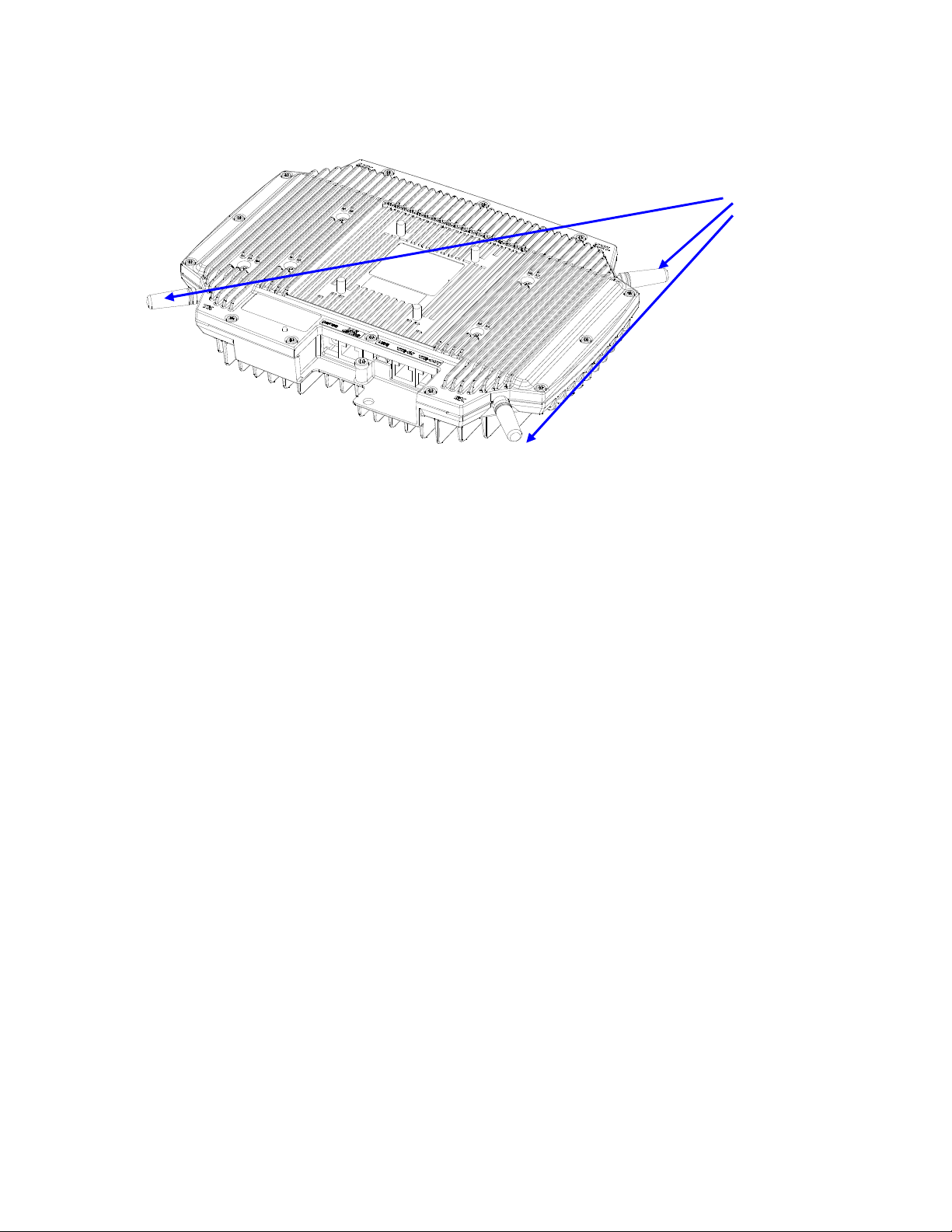

Figure 5 - 165 FlexWave™ nano Removable Antennas
© 2008 ADC Telecommunications, Inc. Page 11

Confidential 8/11/2008
6Cabling the FlexWave™ nano
6.1 139/140 Hardware
RX Port
TX Port
Figure 6 – 139/140 FlexWave™ nano Connections
6.2 165 Hardware NWL Port
Secondary
TX location
See 7.2
Figure 7 – 165 FlexWave™ nano Connections
TX Port
RX Port
Chassis
Bond
Powered
Ethernet
TIB in
TIB out
LED
Status
Indicat
48v DC
Power USB Port
(Not
© 2008 ADC Telecommunications, Inc. Page 12

Confidential 8/11/2008
Figure 8 below illustrates the correct cabling of the Ethernet and TIB cables:
Figure 8 - Ethernet and TIB cabling
6.3 Ethernet
Each 139/140/178 FlexWave™ nano must be connected to an Ethernet switch or hub
via either a 109 ADC single power inserter or 126 ADC Powered Ethernet Switch.
Refer to CENG0033 for details of the power supply connections. The 165 EDGE
FlexWave™ nano may use either the above power options or a separate 48V DC
power supply available from ADC.
6.4 Timing Interface Bus (TIB) – Multi-TRX
only
The Timing Interface Bus (TIB) is used to provide clock and signaling between the
FlexWave™ nano when operating in a Multi-TRX configuration.
The TIB OUT from the Master TRX must be connected to the TIB IN of the slave TRX.
This in turn has its TIB OUT connected to the next TRX in the chain. See Figure 9.
© 2008 ADC Telecommunications, Inc. Page 13

Confidential 8/11/2008
Figure 9 - TIB Connections
6.5 Chassis Bond Strap – Multi-TRX only
When the FlexWave™ nano is operated in a Multi-TRX configuration, each of the
FlexWave™ nano must be connected together using the supplied chassis bond kit.
To fit the chassis bond strap, remove the FlexWave™ nano from the mounting plate
Using the screw provided, screw the Chassis Bond Strap to the screw on the rear of
the FlexWave™ nano , see Figure 10 or Figure 11.
Chassis
Bond Point
Figure 10 – Chassis Bond Screw Location – 139/140 BTS
Connect the other end of the Chassis Bond lead to the next FlexWave™ nano chassis
bond point in the chain.
© 2008 ADC Telecommunications, Inc. Page 14

Confidential 8/11/2008
Chassis
Bond Point

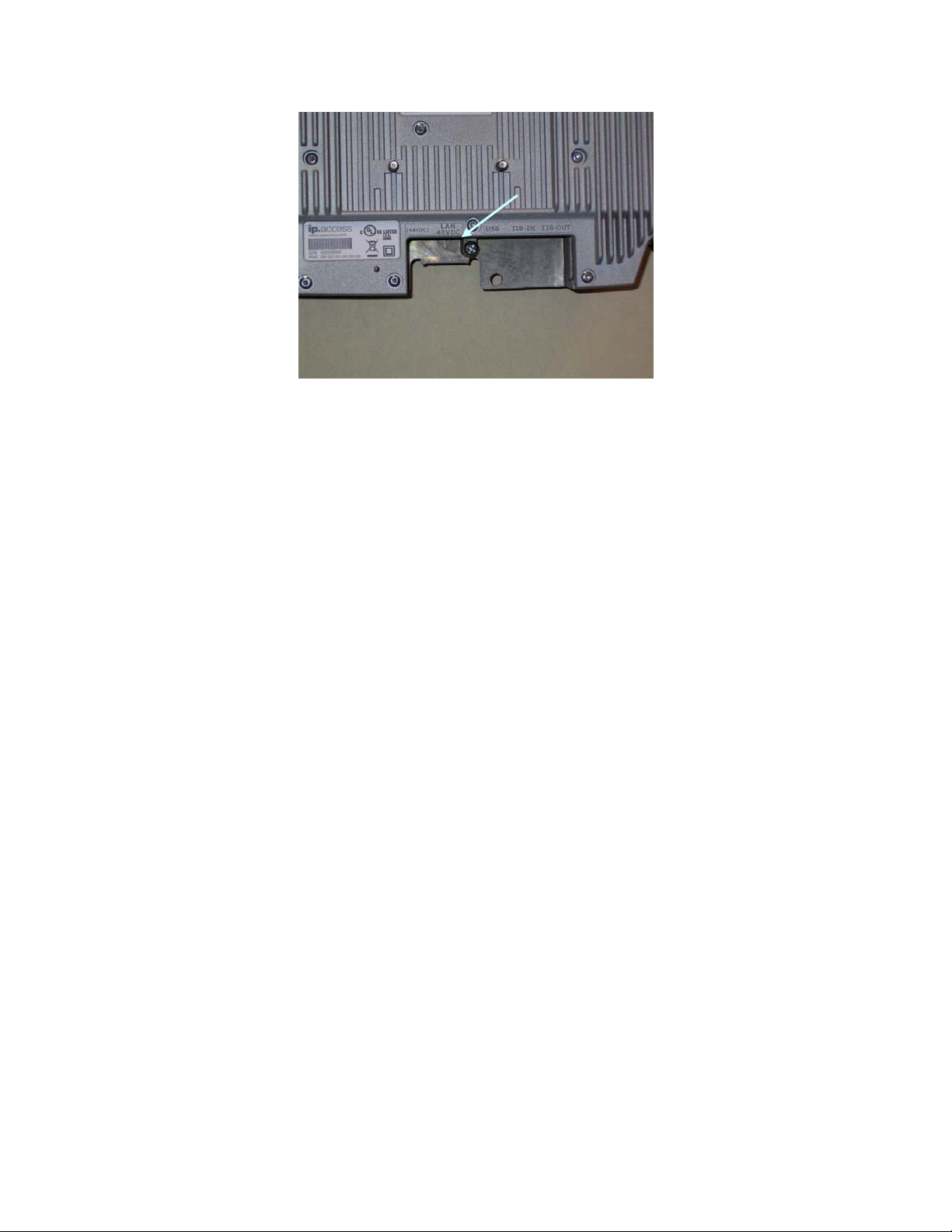

Figure 11 – Chassis Bond Screw Location – 165 BTS
© 2008 ADC Telecommunications, Inc. Page 15

Confidential 8/11/2008
7Mounting the FlexWave™ nano
The location of each FlexWave™ nano is shown on the installation floor plan
produced at the network planning stage. The network wiring must be complete
before the FlexWave™ nano can be installed and commissioned. The FlexWave™
nano should be placed on a wall at or above head height or on a ceiling. Unless
explicitly stated otherwise, the following procedure is common for both 139/140 and
165 hardware variants.
Remove the FlexWave™ nano from the bracket by sliding the removal tool over the
central fin between the bracket and the body of the unit to disengage the locking
spring, slide bracket to separate it from the main body of the unit. The tool may be
inserted from the top or bottom of the FlexWave™ nano
Figure 12 - FlexWave™ nano Bracket Removal
Position the bracket on the wall and mark the position of the four screw holes. The
top of the bracket MUST be positioned uppermost. Ensure that the bracket is level
and sufficient clearance is maintained to allow the unit to be located on the bracket
(at least 80mm from the bracket to the top of wall and 120mm from the side of the
bracket to a side wall). See the diagram below, Figure 13 - Fixing the wall bracket.
80mm min
120mm min
Figure 13 - Fixing the wall bracket
© 2008 ADC Telecommunications, Inc. Page 16

Confidential 8/11/2008
Drill the four holes in the positions marked previously and insert wall plugs (if
required) and fix the mounting bracket securely to the wall. The bracket is designed
to allow the FlexWave™ nano unit to be mounted with the connections at the bottom
of the unit.
Slide the FlexWave™ nano onto the bracket and ensure that the retaining spring
engages into the indent at the rear of the unit.
2
Locking Spring
1
TOP

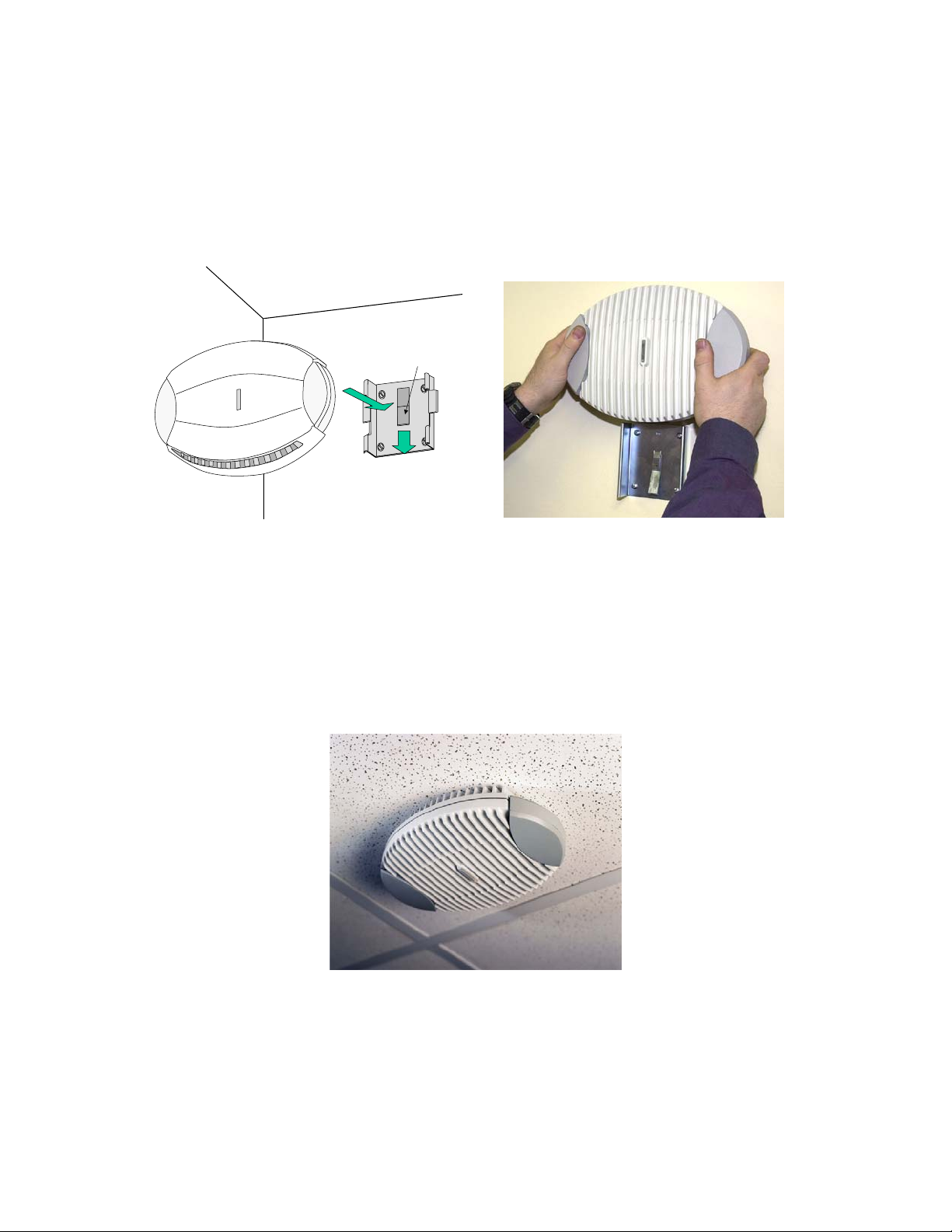

Figure 14 - Mounting the FlexWave™ nano
When fixing to a ceiling or a sloping wall the same fixing process and clearances
should be observed as for fixing to a wall (at least 80mm from the bracket to the top
of wall and 120mm from the side of the bracket to a side wall). On a sloping surface
the top of the bracket MUST be uppermost. Once the unit has been attached to the
bracket the outer cover MUST be removed to expose the cooling vanes, as shown in
Figure 15 - Ceiling Mounted FlexWave™ nano
Figure 15 - Ceiling Mounted FlexWave™ nano
© 2008 ADC Telecommunications, Inc. Page 17

Confidential 8/11/2008
7.1 Mounting Multi-TRX FlexWave™ nano
When the FlexWave™ nano are to be installed in a Multi-TRX configuration, then
each TRX should be installed in a similar orientation but not closer than 30cm to
each other.
A further specific constraint is that the TIB cables must be <1.5m and a 1.5mm2
Chassis Bond cable must also be connected between each TRX with a length not
exceeding that of the TIB cable.
7.2 Mounting Multi-TRX 165 FlexWave™ nano
The 165 (EDGE) BTS may be installed in a stacked two-TRX configuration. See Annex
A - Drawing 165#018 for details. The procedure for mounting a stacked two-TRX
configuration is as follows:
•Fit the first wall bracket to the wall in the desired position
•Remove the plastic cover from the bottom unit
•Relocate the TX antenna as illustrated in Annex A
•Fit the antenna cable (part number 165_072) as illustrated in Annex A
•Fit the second wall bracket to the bottom unit as illustrated in Annex A
•Mount the bottom unit on the wall
•Fit the Ethernet and TIB cables to the bottom unit
•Fit the skirt (part number 165_028) to the bottom unit
•Remove the plastic cover from the top unit and attach it to the bottom unit
•Attach the Ethernet and TIB cables to the top unit
•Replace the plastic cover on the top unit
© 2008 ADC Telecommunications, Inc. Page 18

Confidential 8/11/2008
8Initial Frequency Calibration
NOTE: The FlexWave™ nano must be powered on for a minimum of 24 hours prior
to final frequency calibration. It is recommended that during installation an initial,
local calibration is made following a powered on time of > 10 minutes followed by a
final operational calibration after 24 hours power on time.
NOTE: If the FlexWave™ nano is used in a Multi-TRX configuration, then the TIB
OUT must be disconnected from each FlexWave™ nano in the chain prior to
calibration and reconnected afterwards. Only the Master TRX should be calibrated.
•Using BTSInstaller, select the FlexWave™ nano that is to be calibrated and
then click on the “Listen” button in the “BTS Status” pane.
•Select the frequency band to match that of the FlexWave™ nano to be
installed.
•Click on the “Connect” button, this will cause the FlexWave™ nano TRX to
power up. The status LED will flash green when completed.
•Click on the “Channel Usage” tab and then click on the “Start Test” button.
•When completed click on the “BCCH Channel Usage” tab and then click on the
“Start Test” button.
•When completed, click on the “Frequency Synchronisation” tab.
•Select “Configure Test”
•Select the “Freq Sync Options” tab and then click on the “Apply Frequency
Synch Options” and change the Option to “Adjust The Clock To Correct The
Reported Errors” then click “OK”
•Click on the “Start Test” button.
Once the test completes then the calibration is completed and the procedure should
be repeated for all installed FlexWave™ nano before reconnecting the TIB cables.
Following the 24-hour period, the Frequency Calibration procedure should be
performed as per the Operations procedure – Ref {2}
© 2008 ADC Telecommunications, Inc. Page 19

Confidential 8/11/2008
9LED Status Indicators
The following table shows the meaning of the state LED under normal and fault
conditions.
State Pattern When Precedence
LED_SELF_TEST_FAILURE Red
Steady
In boot or application
code when a power
on self-test fails.
1 (High)
LED_UNSPECIFIED_FAILURE Red
Steady
On s/w fatal errors. 2
LED_NO_ETHERNET Orange
Slow Flash
Ethernet
disconnected.
3
LED_FACTORY_RESET Red
Fast Blink
Dongle detected at
start up and the
factory defaults have
been applied.
4
LED_NOT_CONFIGURED Alternating
Red/Green
Fast Flash
The unit has not
been configured.
5
LED_DOWNLOADING_CODE Orange
Fast Flash
Code download
procedure is in
progress.
6
LED_ESTABLISHING_XML Orange
Slow Blink
A management link
has not yet been
established but is
needed for the TRX
to become
operational.
Specifically: for a
master a Primary
OML or Secondary
OML is not yet
established; for a
slave an IML to its
master or a
Secondary OML is not
yet established.
7
LED_SELF_TEST Orange
Steady
From power on until
end of backhaul
power on self-test
8
LED_NWL_TEST Green
Fast Flash
OML established,
NWL test in progress
9
LED_OCXO_CALIBRATION Alternating
Green /
Orange
Slow Blink
The unit is in the fast
calibrating state
[SYNC].
10
LED_NOT_TRANSMITTING Green
Slow Flash
The radio carrier is
not being
transmitted.
11
LED_OPERATIONAL Green Default condition if 12 (Low)
© 2008 ADC Telecommunications, Inc. Page 20
