DAVIS SONIC-ANEMO-DZP User manual

SONIC-ANEMO-DZP
Ultrasonic wind-vane anemometer compatible with Davis Equipment
User Manual
07/11/2016 rev2.1
LCJ Capteurs
ZA Le Chêne Ferré
44120 VERTOU (France)
Tel: [phone]
http://www.lcjcapteurs.com
[e-mail]

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved.
Copyright © LCJ Capteurs. All right reserved
No part of this manual can be copied in any form and by any means without prior written consent of LCJ
Capteurs.
The products manufactured by LCJ Capteurs are constantly developed. Therefore, the content of this manual
can be amended without notice.
This manual does not create any legal bond between LCJ CAPTEURS and the customer of final user and LCJ
CAPTEURS does not assume any responsibility for any damage and/or injury resulting from the use of the
product described in this manual.
Logos and images of Davis Instruments Corp. are used with their kind permission. Davis is a trade mark of
Davis Instruments Corp. www.davisnet.com

SONIC-ANEMO-DZP
ZERO-POWER ULTRASONIC WIND VANE / ANEMOMETER
Thank you for purchasing our SONIC-ANEMO-DZP sensor. This ultrasonic sensor is simple to use and does not
require any external power supply thanks to its solar panel which allows full operation independently. The
measurement rate of one per second gives you a clear vision of gusts.
Quick Installation:
1-Connect the battery.
4-Align your sensor with the tool supplied.
2-Push the cap in place.
3-Mount the sensor on a pole or a vertical surface
5-Connect the RJ11 connector to the interface
module
Photo credit
DAVIS
Instruments.
6-Your sensor is ready to use
Battery capacity:
The SONIC-ANEMO-DZP operates independently thanks to its PV panel. The battery supplies sufficient
voltage for 23 days without sun.

Content
1. Généralités.......................................................................................................................................................1
1. A propos du manuel ....................................................................................................................................1
2. Avertissements ............................................................................................................................................1
3. Votre expérience .........................................................................................................................................1
4. Sécurité........................................................................................................................................................1
5. Recyclage .....................................................................................................................................................2
6. Garantie .......................................................................................................................................................2
7. Retour produit .............................................................................................................................................2
2. Présentation ....................................................................................................................................................2
3. Installation.......................................................................................................................................................3
1. Contrôle de l’emballage...............................................................................................................................3
2. Déballage du produit ...................................................................................................................................3
3. Sélection du meilleur emplacement............................................................................................................3
a) Distance de dégagement.........................................................................................................................3
b) Hauteur de montage ...............................................................................................................................4
c) Alignement du capteur............................................................................................................................4
d) Mode de fixation .....................................................................................................................................4
4. Câblage ........................................................................................................................................................5
5. Alimentation................................................................................................................................................5
6. Connexion à l’ISS Davis VP2.........................................................................................................................5
4. Configuration de la station DAVIS VP2 ............................................................................................................5
5. Mise en route ..................................................................................................................................................6
6. Maintenance....................................................................................................................................................6
7. Remplacement de la batterie ..........................................................................................................................6
8. Spécifications techniques ................................................................................................................................7
9. Déclaration de conformité...............................................................................................................................8

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 1
1. General information
1. About this manual
This manual brings all the required information to install and use the SONIC-ANEMO-DZP for Davis VP2.
Read all the information contained in this manual carefully before using the sensor, as misuse can
cause damage to the product.
2. Warnings
Important points are highlighted in this document as follow:
Warning! Serious hazard. Read carefully and follow the instructions. High risk of injury or even
death.
Warning: Potential hazardous situation. Read carefully and follow the instructions to avoid damages
on the product or loss of important data.
Note: Important information regarding use of the product.
3. Your experience
LCJ CAPTEURS values your feedback and suggestions to improve the manual. Should you find any mistake,
please contact us indicating the chapter, section and page to correct. You can find our details on the manual's
cover page and on our website: www.lcjcapteurs.com.
4. Safety
When using the product, safety measures described below must be followed to avoid damage and legal
responsibility. Follow all safety and use instructions regarding the product. Follow all warning notices indicated
in the product's use instructions. The following instructions are meant to reduce all risk of personal injuries,
electric shock, fire and damage of the equipment.
Read carefully and follow all instructions contained in this manual to avoid measures errors caused by misuse.
Warning! Follow all safety measures applicable for the product's installation.
Electric safety measures
This product has been designed to be powered by a battery or a specific power supply. Any other power
supply can be hazardous and will result in the product's unconformity.
Handle the battery with care.
This product contains a Lithium-ion iron phosphate battery (LiFePO4). There is a risk of fire if the
battery is not correctly handled. Do not attempt to open or repair the battery. Do not dismount the
battery, do not press on it, do not drill in it, do not place it in a short-circuit situation, do not threw it in fire or
water and do not expose it to temperatures over 60°C (140°F). Use only original LiFePO4 batteries with
original connectors.
Air transport.
When the product is transported by plane, it must be disconnected. Refer to IATA recommendations.

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 2

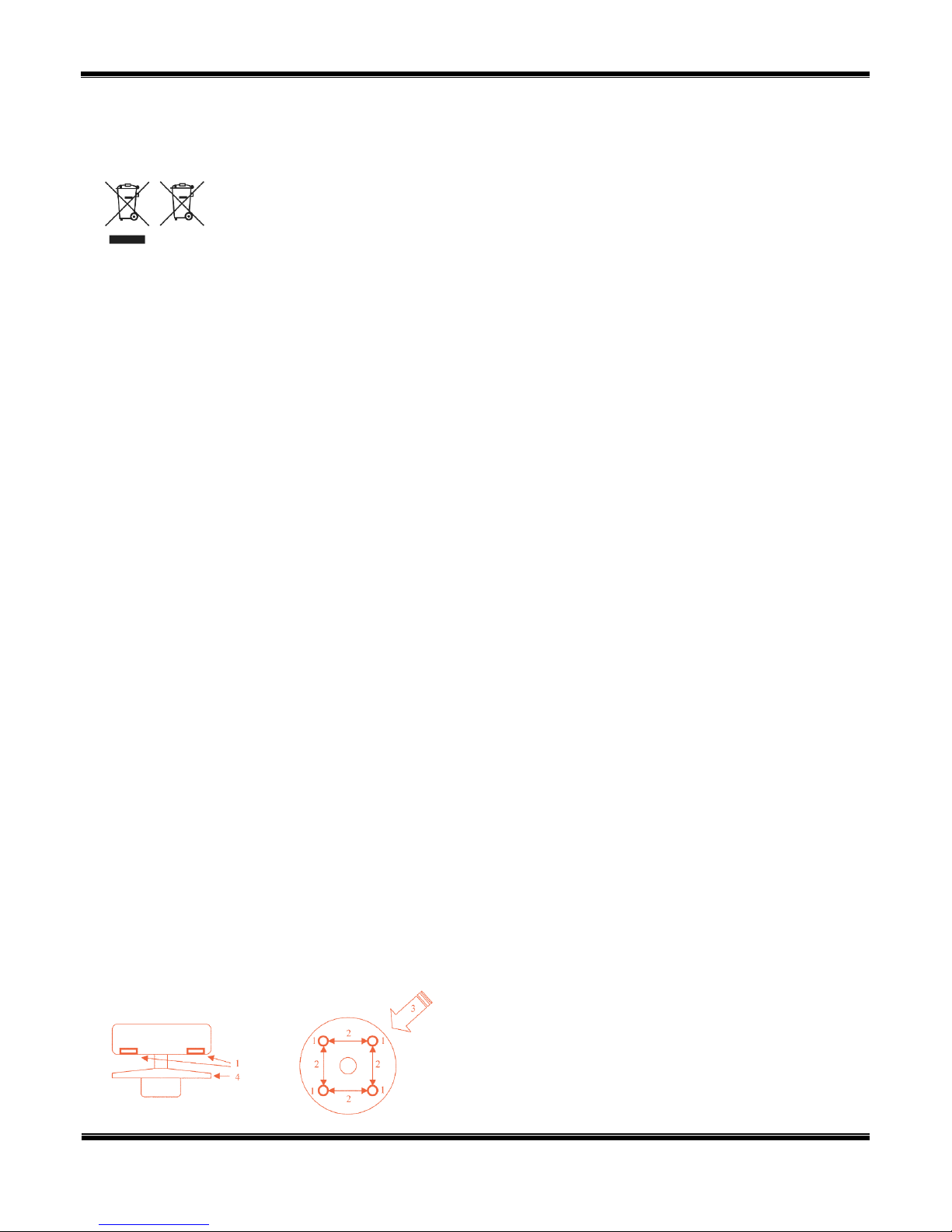

5. Recycling
LCJ Capteurs encourage recycling of all material when possible, following local regulations. You can find more
details about recycling by contacting the local authorities in charge of Environment Protection in your country.
European Union (and European Economic Area) only.
These pictograms indicate that the product cannot be disposed of with waste, according to
the European Directive DEEE (2002/96/CE), the Directive applying to batteries disposal
(2006/66/CE) and local waste regulations following these directives. When a chemical toxicity pictogram is
printed below this one, according to the Directive applying to batteries disposal, it means that Heavy Metals
are present (Hg = mercury, Cd = cadmium, Pb = lead) in the battery at or above the applicable cut-off
concentration specified in the Directive. This product must be given to a disposal centre, i.e. when you
purchase a new similar product, or to a designated collection point for the recycling of waste electrical and
electronic equipment (EEE). Wrong behaviour in disposal can have consequences on the environment and
human health, because of the potentially hazardous substances generally associated to electric and electronic
equipment. Your contribution to a correct disposal of this product will contribute to efficient use of natural
resources.
6. Warranty
Your LCJ CAPTEURS product is warranted against manufacturing defects in materials and workmanship for a
period of 24 months from the date of purchase. LCJ CAPTEURS will at its discretion, repair or replace faulty
products free of charge at their premises. The warranty does not cover the installation labour and shipping
costs of the faulty parts. A proof of purchase can be asked when processing the warranty claim by written.
Once LCJ CAPTEURS approve the warranty claim, the sensor must be sent to their workshop address. LCJ
Capteurs guaranties that each wind sensor is tested and calibrated before despatch.
The warranty does not apply in the following cases:
1. Damage resulting from misuse.
2. Improper installation or inappropriate conditions of operation.
3. If the product has been damaged, open or repaired by an unapproved agent.
4. Damage resulting from lightning, fire or any similar circumstances.
Warranty is void if operation, use, installation and technical service instructions have not been followed and if
a repair has been carried out without prior agreement.
7. Product return
Contact your dealer prior to returning a product to LCJ CAPTEURS. A Return Merchandise Authorisation (RMA)
must be issued and received before sending a product back.
2. Introduction
A conventional Wind-vane Anemometer includes mechanical rotating parts. These parts are subject to wear
and they represent sources of failure of the sensor. Our ultrasonic sensor has been designed to avoid this and
to ensure reliable and stable operation. This Wind-vane-anemometer shows very stable results over a long
term and with no maintenance.
The sound (and ultrasound) is conveyed by the
movement of the fluid in which it crosses. The electro
acoustic transducers (1) communicate between
themselves two by two using ultrasonic signals (2) to
determine, following the orthogonal axes, the wave
transit time differences induced by the air flow (3). The

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 3
measurements are combined in an integrated calculation to establish the wind speed and its direction in
relation to a reference axis. The temperature measurements are used for calibration corrections. The sensor’s
design minimises the effect of heel angle (4). The CV7 range of products features lateral transducers delivering
four independent measurements. The validity checks are used to measure head wind vectors for calculations.
This method gives a sensitivity of 0.15 m/s, a 40 m/s (144 km/h) reliability and excellent linearity.*
LCJ Capteurs has designed and manufactured wind sensors since 1999. Our range of wind vanes/anemometers
covers the needs over many applications. They have proved their robustness and accuracy on the marine
sector, and they are now widely used in other fields such as weather stations, industry, security and
agriculture to name a few.

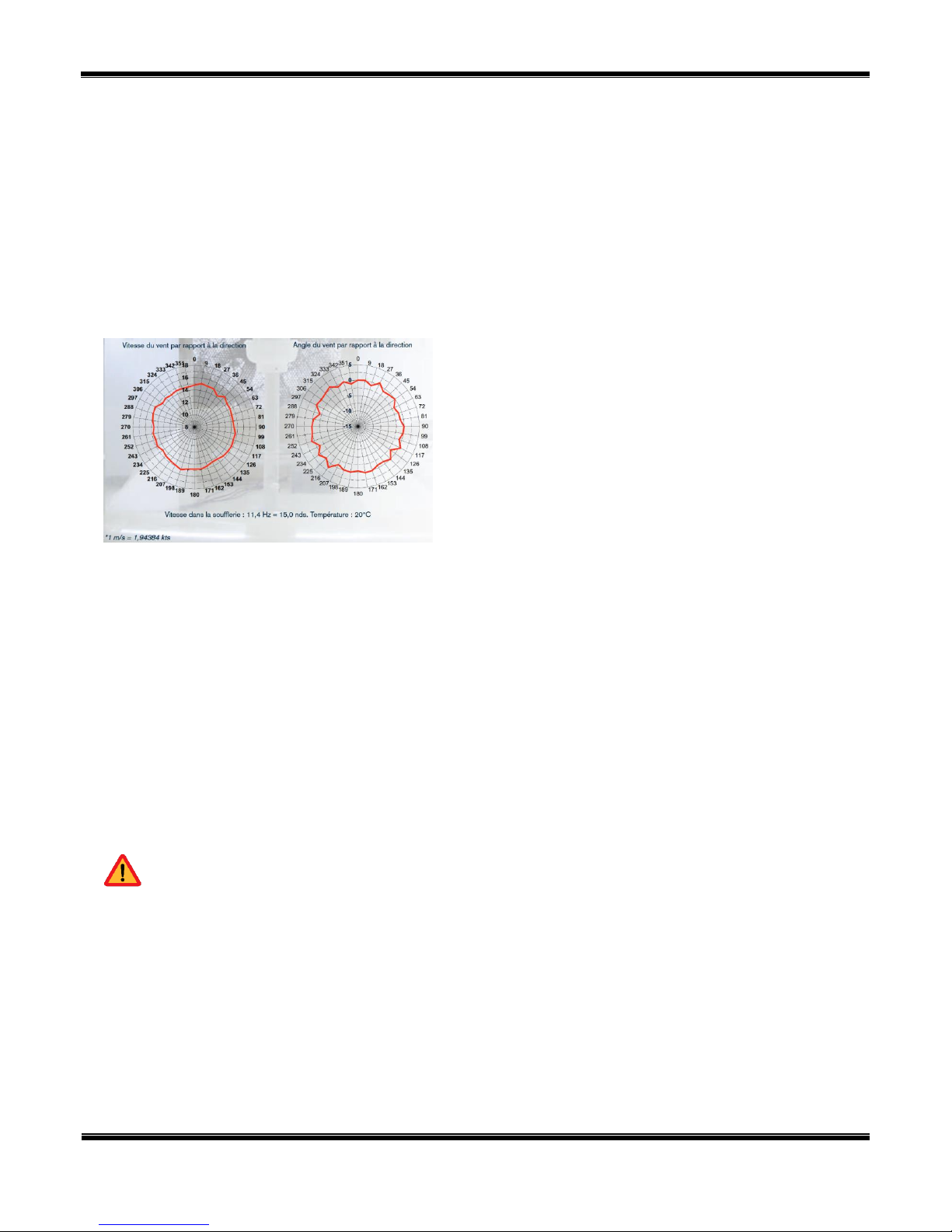

At LCJ Capteurs, each sensor is fully tested before despatch and the test results are saved against the serial
number. The sensor is placed in our wind tunnel on a
bracket that rotates through 9 degree steps. This is
Computer Controlled. The sensor is aligned at 0 degrees
of the air flow and then, 40 measure points are completed
with data saved for speed and angle. You can read a
typical test report here below. The full document is
available on our website.
3. Installation
1. Checking the delivery
Before opening the box, check it carefully to spot any damage that can have occurred in transport. If the
packaging is damaged, fill in a Freight Claim with full description of the problem.
2. Opening the box
Unpack the parcel in a dry and clean place and check the delivery:
1. SONIC-ANEMO-DZP with a 5 m cable.
2. Mounting bracket with 4 nuts.
3. Alignment tool
4. User manual
Warning: Unpack the product with care to avoid any damage
3. Choose the best location
The choice of the appropriate installation location is crucial to get the best measurements. The location must
be free of turbulence and magnetic field resulting from electricity, engines, radio transmitters, radars, etc. For
mobile installations, consider that the sensor measures the apparent wind speed and angle. This has to be
integrated in the data process to calculate the true wind vector.
a) Clearance distance
To avoid measurement errors the sensor must be installed at a distance of at least 10 times the height of the
nearest obstacle.

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 4
We recommend installing the sensor at a height of 3 metres in a clear environment and a minimum of 10
metres from nearby objects.
b) Height of mounting
When the sensor is installed on the
top of a building roof, the
installation height must be equal to
the building's length or, if possible,
5 times the building's height.
Install the sensor in the middle of
the roof when possible. It is not
recommended to install a sensor on
a slanted roof. These roofs
generate upwards turbulences that
will affect the sensor.
c) Alignment of the sensor
The sensor must be aligned to North. An alignment tool is supplied for this
purpose. Clip the tool on the tube and slide it so that it snaps into the dedicated
slots. Do not tamper with the slots. The tool must gently find its place.
Slightly loosen the 4 screws that hold the tube. Align the tool - and the sensor - to
North. Tighten the screws.
Note: Magnetic deviation must be considered to reference the
measurements to True North.

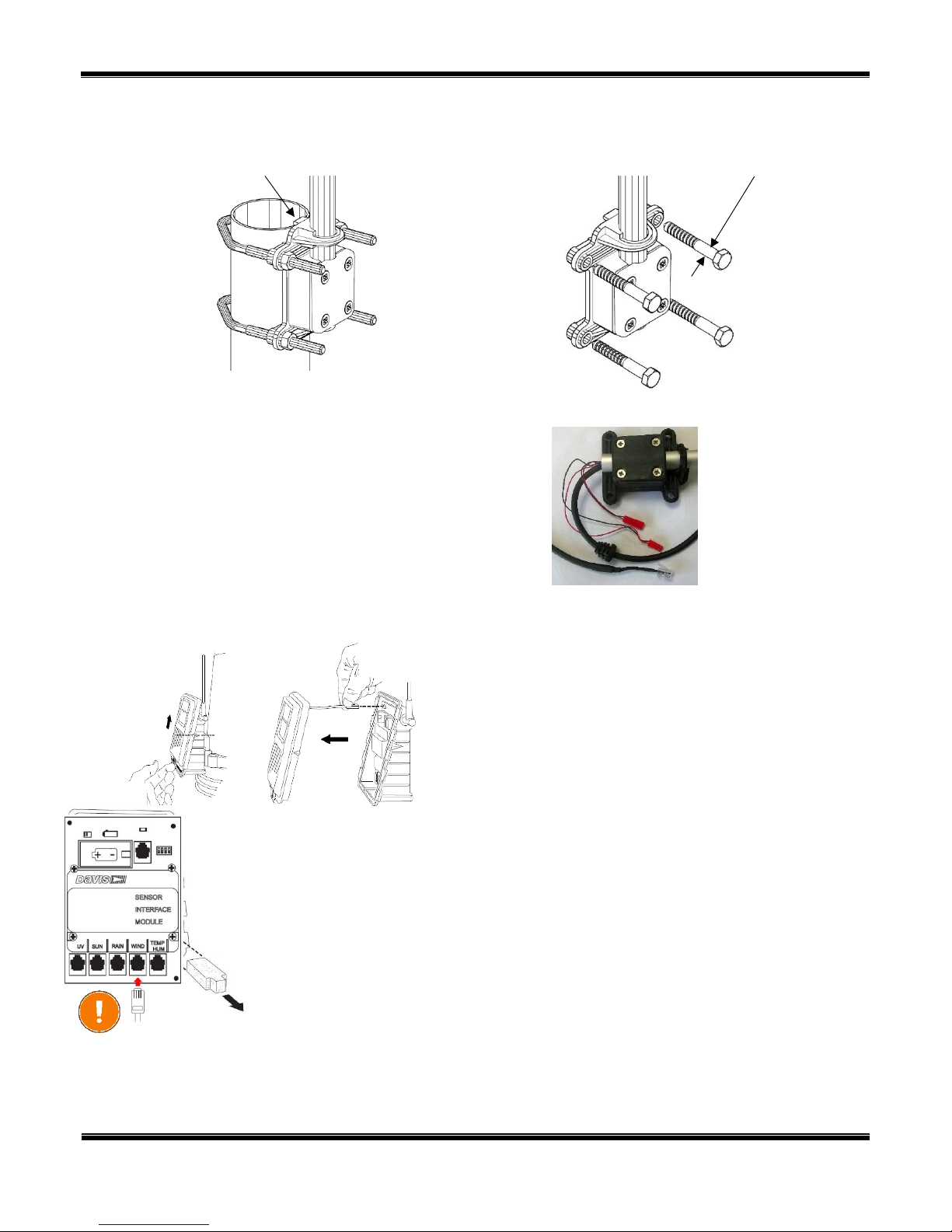

d) Mounting methods
The SONIC-ANEMO-DZP comes with a mounting bracket allowing two mounting methods:

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 5
On a pole:
Pole diameter: Ø 35 min ; Ø 48 max.
On a vertical surface:
(the sleeper screws are not supplied)
Stop
Max. tightening torque: 1.5 N.m
Ø 6 max

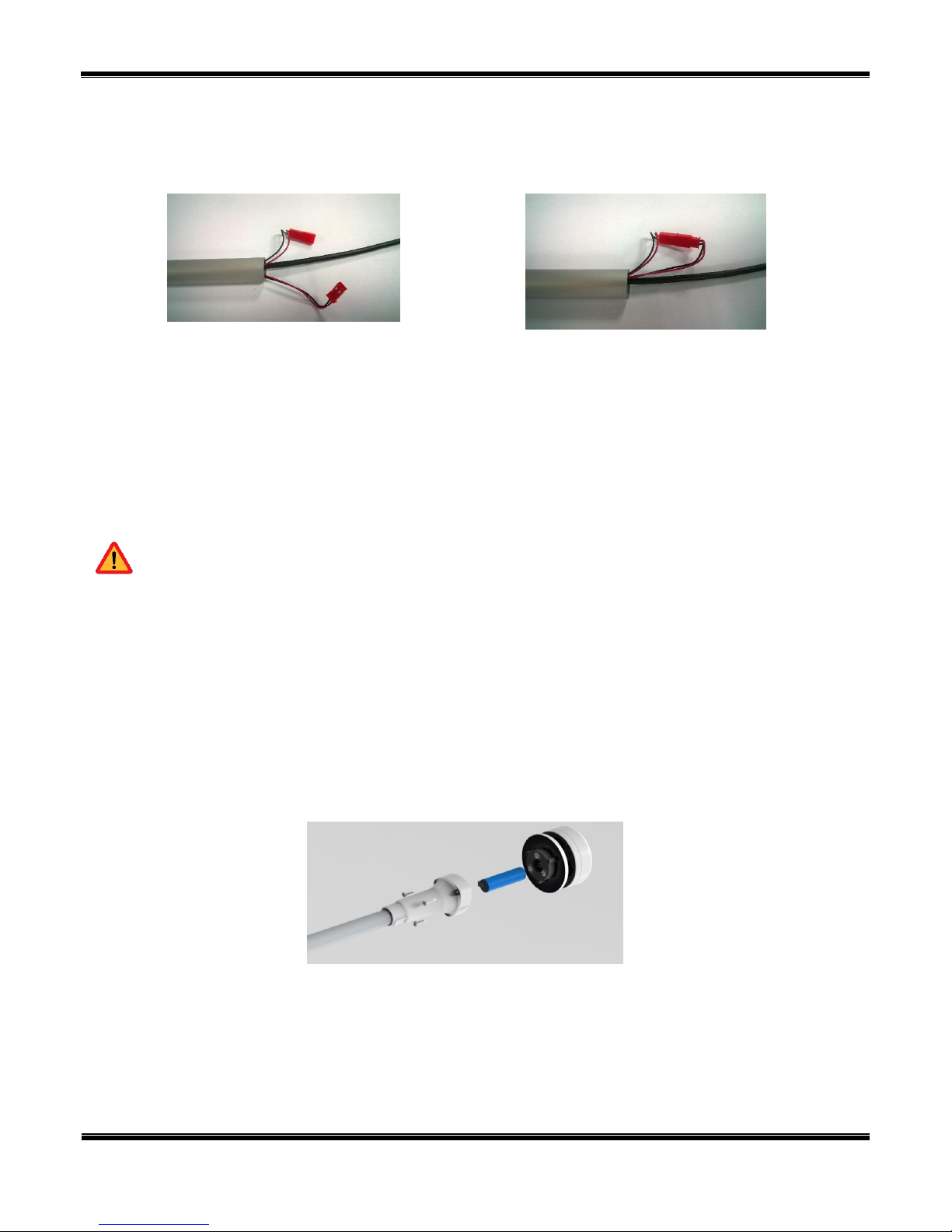

4. Wiring
The SONIC-ANEMO-DZP includes a data cable with a RJ11
connector to connect to the VP2 Interface and 2 pairs of wires
with connectors for the battery connection.
5. Power supply
The PV panel ensures the SONIC-ANEMO-DZP operates independently.
The energy is stored in a LiFePO4 battery of 3.2 V –600 fitted in a 14500 box.
6. Connection to the ISS Davis VP2
Follow the following instructions to connect the SONIC-
ANEMO-DZP to a ISS Davis VP2 :
a)- Open the SIM box, sliding the cover upwards.
b)- Disconnect the Solar Module if it is fitted.
Photos credit DAVIS Instruments.
4. Configuration of the DAVIS VP2
The anemometer cups must be set to "OTHER" in the Setup Menu.
c)- Take out the cap to insert the SONIC-ANEMO-DZP's RJ11.
d)- Connect on the "WIND" socket.
b)- Connect the Solar Module back if required.
f)- Put the cap and the cover back in place.
Note: Refer to your DAVIS VP2 for more information about the Interface Module.

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 6
5. Commissioning
For a correct start, the PV module must supply at the minimum energy comparable to 50 W/m² solar energy.
The battery is disconnected for delivery.
Disconnected battery
Connected battery
It is recommended to complete the wiring of your installation before connecting the battery.
Then, insert the connectors inside the tube and plug the cap in place.
After one minute of initialisation and with enough sun exposure, your SONIC-ANEMO-DZP is ready to operate.
6. Maintenance
The SONIC-ANEMO-DZP does not require particular maintenance. Wipe eventually the solar module from time
to time.
Warning: Do not use alcohol base cleaning products. Use a clean soft cloth, clear water or a neutral
cleaning product.
7. Replacing the battery
Choose a clean and dry location to change the battery.
a)- Disconnect the RJ11 from the SIM.
b)- Dismount the SONIC-ANEMO-DZP.
c)- Open the tube.
d)- Pull the battery's wires.
e)- Disconnect the battery.
f)- Spot the North mark on the battery's box.
g)- Unscrew the 3 screws of the battery's box:
h)- Slide the tube along the cable to access the battery.
i)- Pull the battery out with the wires and connectors.
j)-Insert the wires and connectors of the new battery until they come out of the other side of the tube.
k)- Put the new battery in place.
l)- Slide the tube back to the slot while taking care of the North mark previously identified.
m)- Tighten the 3 screws.
n)- Connect the battery.

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 7
o)- Insert the wires and the connector in the tube and plug the cap.
p)- Mount the SONIC-ANEMO-DZP back in place.
q)- Connect the RJ11 on the SIM.
Note: When purchasing the battery at LCJ Capteurs, please mention the part number: DZP_BATT.
Use only original battery with its wires and connectors.
Do not weld the wires directly on the battery.
8. Technical specifications
Technical documentation is available upon request.

SONIC-ANEMO-DZP
© LCJ Capteurs 2016 –All rights reserved. Page 8
9. Declaration of Conformity
LCJ Capteurs certifies that the following product:
SONIC-ANEMO-DZP, Ultrasonic Wind-vane-anemoneter
Conforms with the provisions of the following directives:
1. Electromagnetic Compatibility: 2004/108 / CE
2. Low voltage: 2006/95 / CE
This declaration of conformity is based on the product's compliance with the following harmonised
standards:
1. Electromagnetic Compatibility: EN 61326-1: 2006
2. Safety: EN 61010-1: 2001
Date of issue: 14/10/2016
Signed by:
Christophe MICHEL
Title
