RM4 800 Installation instructions

RM4 Plow mount Instructions
Can-Am Commander 800/1000
After drilling out the front plastic skid plate
Now you can holt it back up in place along
with the plow mount and attach with the to
5/16 x 1 hex bolt and washers going
through the mount and skid plate and
bumper and use the 5/16 washers and
nylock nuts on the inside. Align and snug
up.
Now using the plow mount as a guide drill
through the metal skid plate on the inside
hole for the u-bolts to fit through. After
drilling you can place the 5/16 x square
u-bolts over the frame tubes and down
through the holes in the mount and secure
with the 5/16 washers and nylock nuts.
Align and tighten all bolts.
Install the ½ bolts and ½ nuts into the front
of the removable mount. These are used as
droop stops to keep the plow from drooping
down too far. Thread them in about half
way for now. Slide the removable mount
into place on the machine mount and pin
from the top with the 1/2 locking pin. You
can now attach you plow and push tube.
Once the complete plow system has been
installed on the machine put the blade
straight and on the ground. Adjust both
droop stop bolts so there is ¼ to ½ clearance
between the bolt heads and the push tube.
Failure to adjust properly may cause damage
and this would not be covered under
warranty.
For question or comments call 763-689-4800
Inst2483 09/04/15

RM4 Plow Mount Instructions
Can-Am Commander 800/1000
Part #: 4501-0528
You may need to loosen winch or winch mount
To help gain access to mount plow mount
The RM4 plow kit is designed to allow quick removal
of the plow when not plowing snow. The mount
design uses the front bumper and frame to push
against and distribute the load when plowing.
WARNING!
This mount kit is designed to withstand normal
plowing at a maximum of 5 mph. Excessive plowing
speed and or impacting objects may cause damage to
the plow or the machine or operator and will not be
warranted. The plow system is covered by a 1 year
warranty from defects in manufacturing only.
Bent or broken item from abuse or excessive use or
Speed will not be covered under warranty.

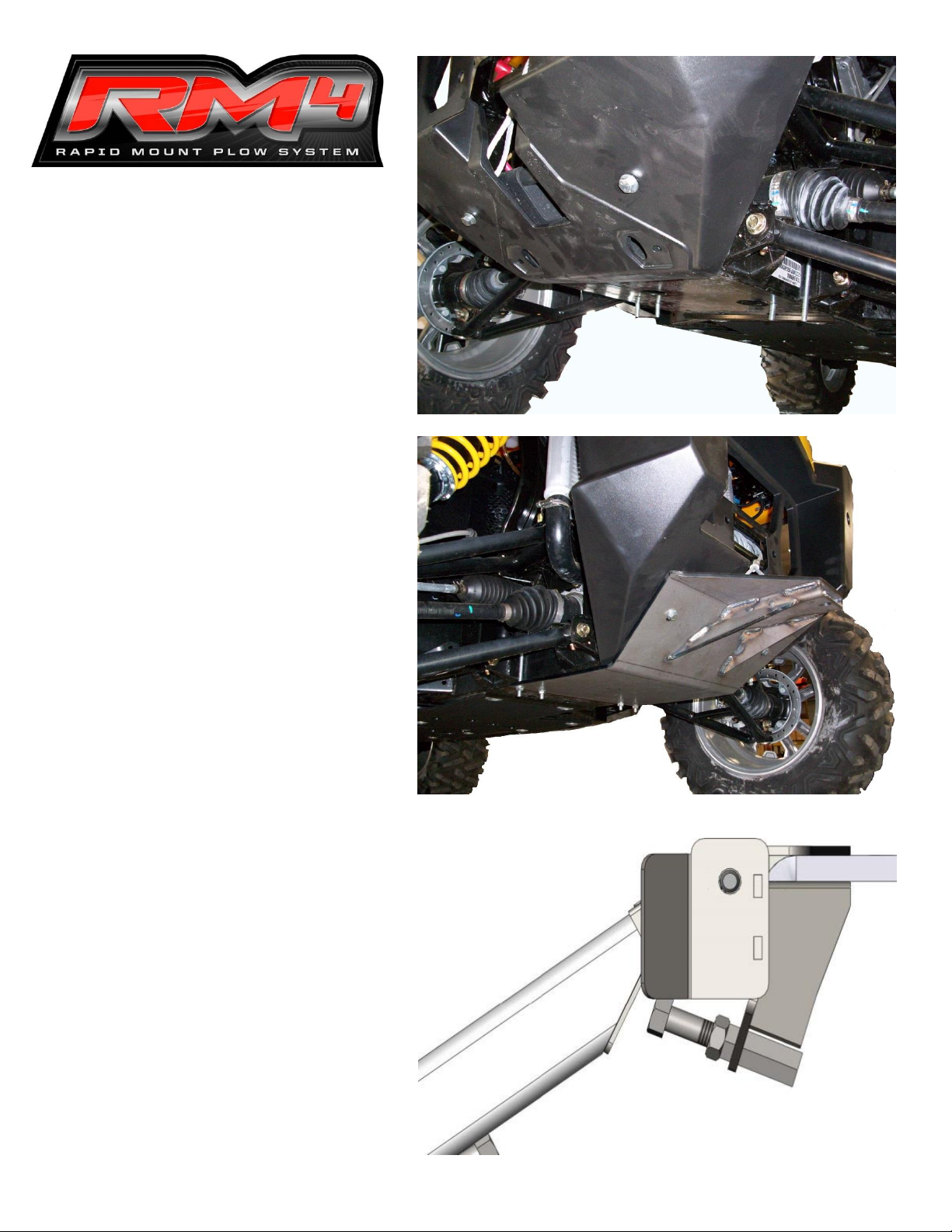

Before removing the front plastic skid plate you will
have to behind bumper and mark or scribe on the
Plastic the two hole location for the mount as shown
In the lower picture where the two bolt are sticking
out. After marking this bolt location on the plastic
skid plate you can remove the plastic skid plate and
You will have to drill out this location on the plastic
skid plate. Drill with a 3/8” hole.
Inst2483 09/04/15
Quantity Part # Desription
1 2483-100 RM4 Plow Mount
1 2493-101 Removable Mount
2 HDW9110 1/2 x 2 Hex Bolt
2 HDW7078 1/2 Hex Nut
1 HDW9185 1/2 x 1-1/2 Pin
2 HDW2051 5/16 x 1 Hex Bolt
2 HDW2073 5/16 x 1-1/2 x 3-1/2 Sq. U-Bolt
6 HDW7058 5/16 Nylock Nut
8 HDW9002 5/16 Flat Washer
1 INST2483 Instruction Sheet
