Road Mate The Personal Motorcycle Navigator User manual

The Personal Motorcycle Navigator
User’s Manual
B125CC

B125CC User’s Manual 1
Please read this manual carefully before operating your navigation device.
Retain it for future reference. Operation of our device is very easy, simply
you press the button or touch the screen.
What is GPS?
The Global Positioning System (GPS) is a satellite-based navigation
system made up of a network of 24 satellites placed into orbit by the U.S.
Department of Defense. GPS was originally intended for military
applications, but in the 1980s, the government made the system available
for civilian use. GPS works in any weather conditions, anywhere in the
world, 24 hours a day.
Safety is the most important, the followings you must
comply with:
1.Always operate the vehicle in a safe manner. Do not become distracted
by the navigation while driving, and always be fully aware of all driving
condition. Minimize the amount of time spent viewing the screen of the
navigation while driving and use voice prompts when possible. Do not
enter destinations, change settings, or access any functions requiring
prolonged use of the unit'controls while driving. Pull over in a safe place
before attempting such operations.
2.Do not kink or crease the power cable or place heavy objects on the
power cable. Fire can result from damaged power cables.
3.Immediately power off the player and unplug the AC adapter if smoke
or odors emit from the player or adapter.
4.Note that malfunctions may occur if you use the product in places
where static electricity occurs frequently.
5.Never attempt to open and repair the product yourself.
6. Please use the battery that the manufacturer provided , or the product
maybe Damaged
7.Do not use for many hours at extremely low or high temperature.

2 B125CCUser’sManual
8.If the product emits an unusual ordor or excessive heat, or you notice
anything else that seems unusual, do not use the product .
9.When you install the mount,fix well the machine to motorcycle
handlebars, to avoid the machine falling down and damaging.
10.When attaching a navigation holder to car, remove impurities on the
surface before attaching, and press suction cup lever to avoid falling.
11. Please power-down before moving the product
12. When you install the machine to the backup,please make sure there is
no water on the power contact, so as not to damage the machine.
13. Please put the power line in a suitable place to avoid any accident
when you are driving.DŽ
14.Please obey the practical traffic regulations. Voice guidance and map
route may differ from the actual traffic condition.
Accessories:
GPS-------------------1 Stylus Pen----------------1 PowerCable----------2
Mount----------------2 Nuts----------------------4 Cradle------------------1
USB Cable---------- 1 AC charger Excluded

B125CC User’s Manual 3

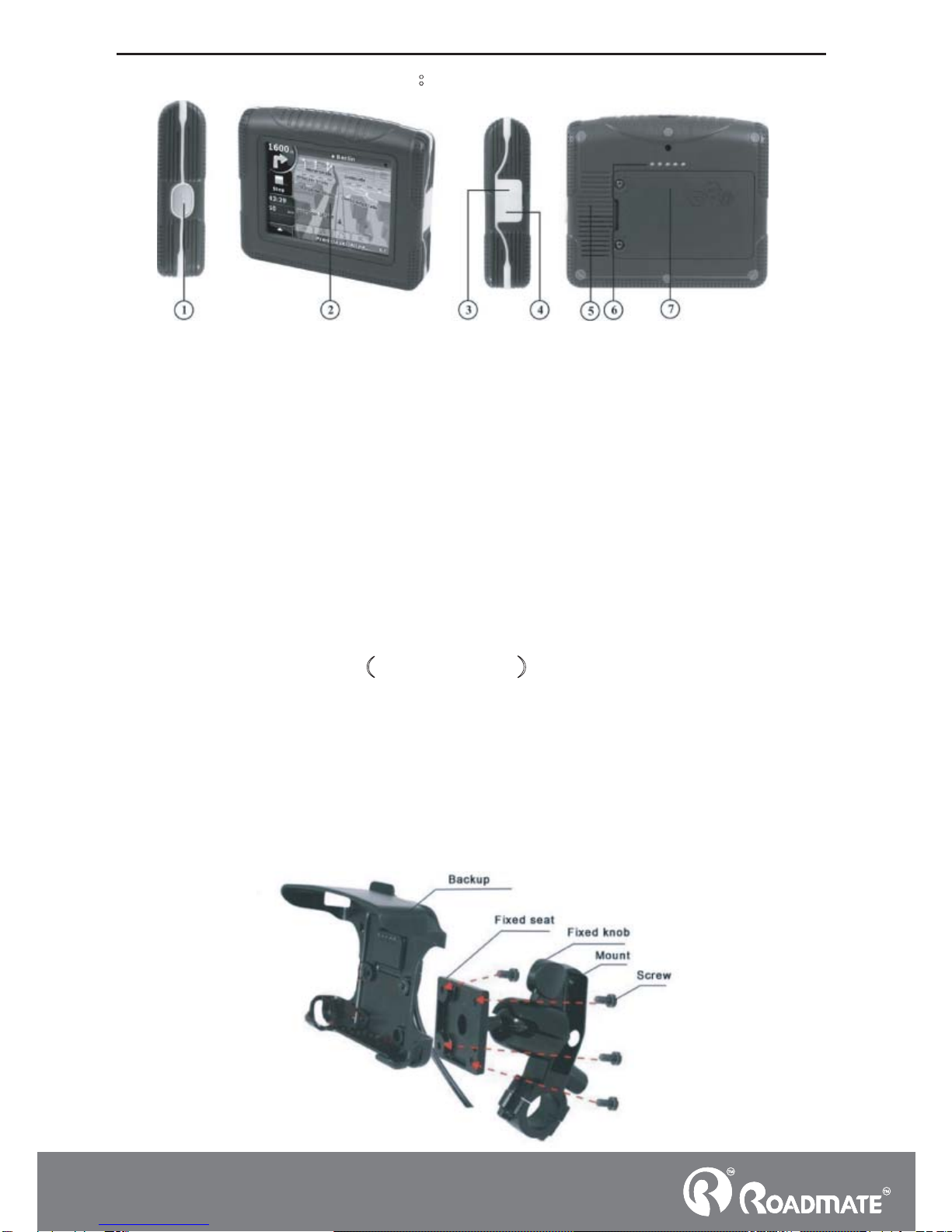

Name of the components˖
Host GPS Device:
ķPower Key: Power on/off
ĸDisplay Screen
ĹMINI USB Port:
1.Exchange the data with PC by MINI USB Cable.
2.Charge the GPS device by connecting AC adaptor or car charger
ĺReset: Press this key to reset the system
ĻSpeaker
ļExternal Power supply: Connected with ouside power supply like
GPS storage battery.
ĽMicro SD card Slot:
Connecting devices˄Motorcycle˅
A)To install an external power cradle and mount
1. Rotating the fixed knob, rotated the mount to the shape as illustrated.
2. Take 4pcs screws out from the bag .
3. The direction shown by the arrow.put the screw into the screw jack of
the fixed-disk mount
Finally fixed the external power backup & mount with a screwdriver

4 B125CCUser’sManual

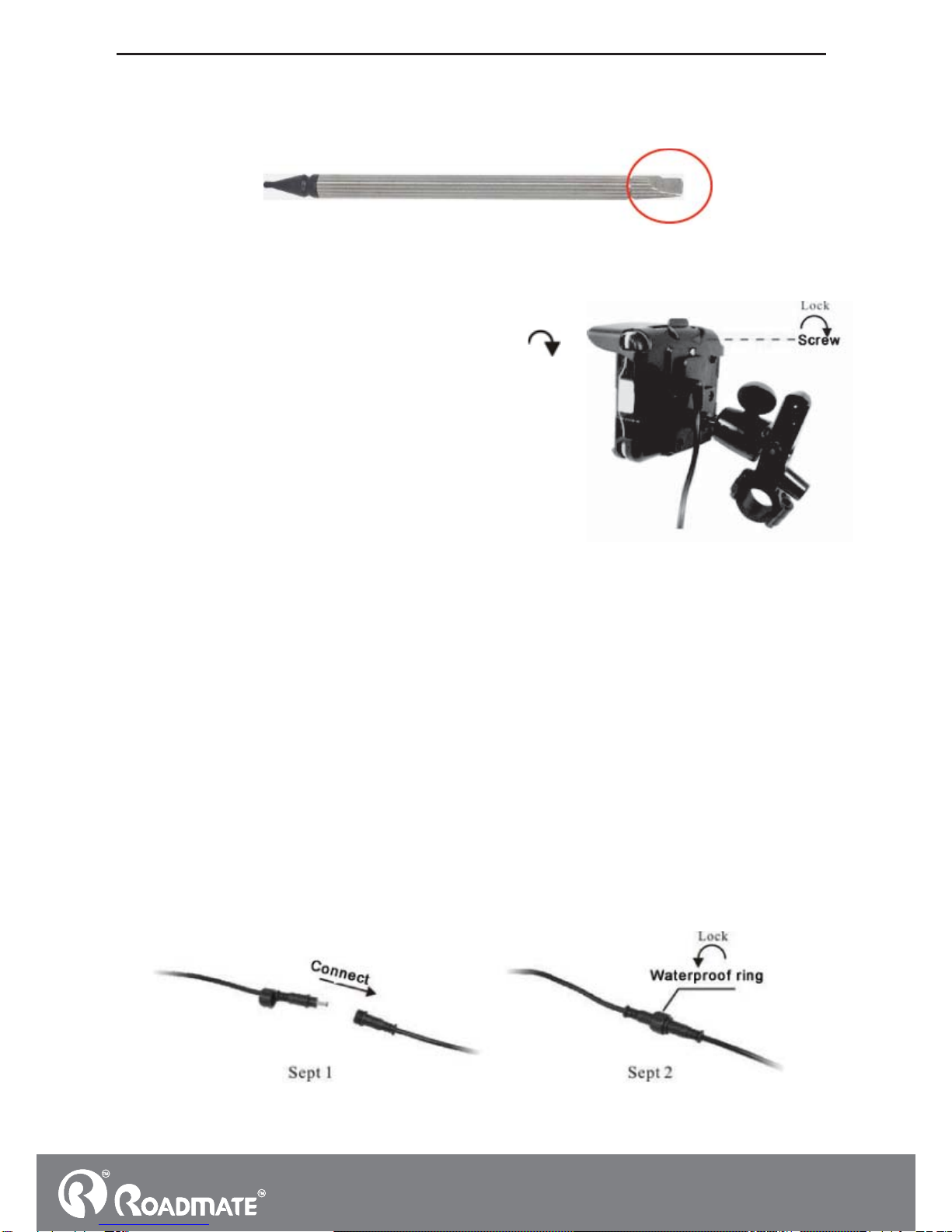

Note: The top of the stylus can be used as a screwdriver.
B) Install the machine to the external power backup
1. Install the machine to the cradle as shown .
2. And then rotated the screw according to
L direction,until it is fixed with machine
C) Install the mount to the motorbike handlebar
1. Place the mount in proper position.
2. And then take it off from the U-shape mount
3. As shown, At last fixed U-shape mount & handlerbar with screws
Note: when the user install, need to consider the location of installation to
make sure safety,also need to pay attention & take on the duty by yourself
D) Connected the external power backup with the external power device
1. Connected the power line of the backup with the external device
2. Tighten the waterproof ring according to picture shown

B125CC User’s Manual 5
E) Connected the external devices with the power of motorcycle.
1. Connect the end line of the external devices with the motorbike's
power
Note: when the user connected the power, please consider the right
personal fault, you should take the responsibility for yourself.
End line of the external power
Connecting devices˄CAR˅
position, it is the best if a technician can help you, because of you

6 B125CCUser’sManual
Power Supply
The device has three ways of power supply:battery supply , AC Adapter
and car adapter
(1)Lithium battery
When the device doesn't connect with the adaptor, it is supplied by the
lithium battery.
(2)AC adapter (usualy optional)(not included)
When the device connects with the adaptor, it is supplied by the outer
power supply.
Tips:Under normal condition(volume and backlight at 50%),it can last
about 3~4 hours After the battery is fully changed. Some functions need
to consume a lot of battery energy, Such as music/video playing, height
backlight, which may reduce the using time.
3) CAR adapter
Connect the Car adapter to USB port on the device and plug the other end
to cigarette jack.
Notice
(1)The Device comes with two removable batterys.
(2)Charge the battery fully before initial use.
(3)Charging time is normally about 3 hours.
Charge
1.Install the GPS to bracket and make sure there is a well connection
between host and bracket power connector
2.Make sure the device connector has been locked in order to avoid the
water entering and lead short-circuit.
3.Connect the input end to the device storage battery, tie the charger
cables to the device body in case of cable shaking and the influence
riving.d
Micro SD card
1. Removed the battery cover according to with a screwdriver
2. Open the battery cover, and take out the battery, then put Micro SD
card into the slot, and then replace the battery, finally install the battery

B125CC User’s Manual 7
cover,
Tighten the screw according to direction
3.One side of USB insert the product,and the other connected with the
computer.
Note: During transmiss the date. please do not pull out the card.
Connect to PC
Ensure the device, and any other external device connected to the unit, is
power off and unplugged from the power supply before you attempt to
connect the unit to any external device. The Device comes with an USB
port for connecting to a PC with the supplied USB cable.
Caution:Plase remove the USB line after finishing the data transmission(just operate
it as the USB flash disk)
Connect to Bluetooth earphone(usually optional)(not included)
1. Only support Bluetooth earphone (which can search the phone, but can
not connect)
2. According to instructions, after successfully connected, you can
enjoy a personal listening.
Tip: When connected the Bluetooth earphone, the speaker of the host will auto turn
off

8 B125CCUser’sManual
Main Menu
Main menu will be displayed when the device is power on.
Multimedia
Tap , Enter Multimedia interface.

B125CC User’s Manual 9
Music
Tap , Enter Music interface.
Play Playing Time
Pause Item name
Stop Playing Progress
Previous Volume Adjustment
Next Return
Circle play Close
Random play

10 B125CC User’s Manual

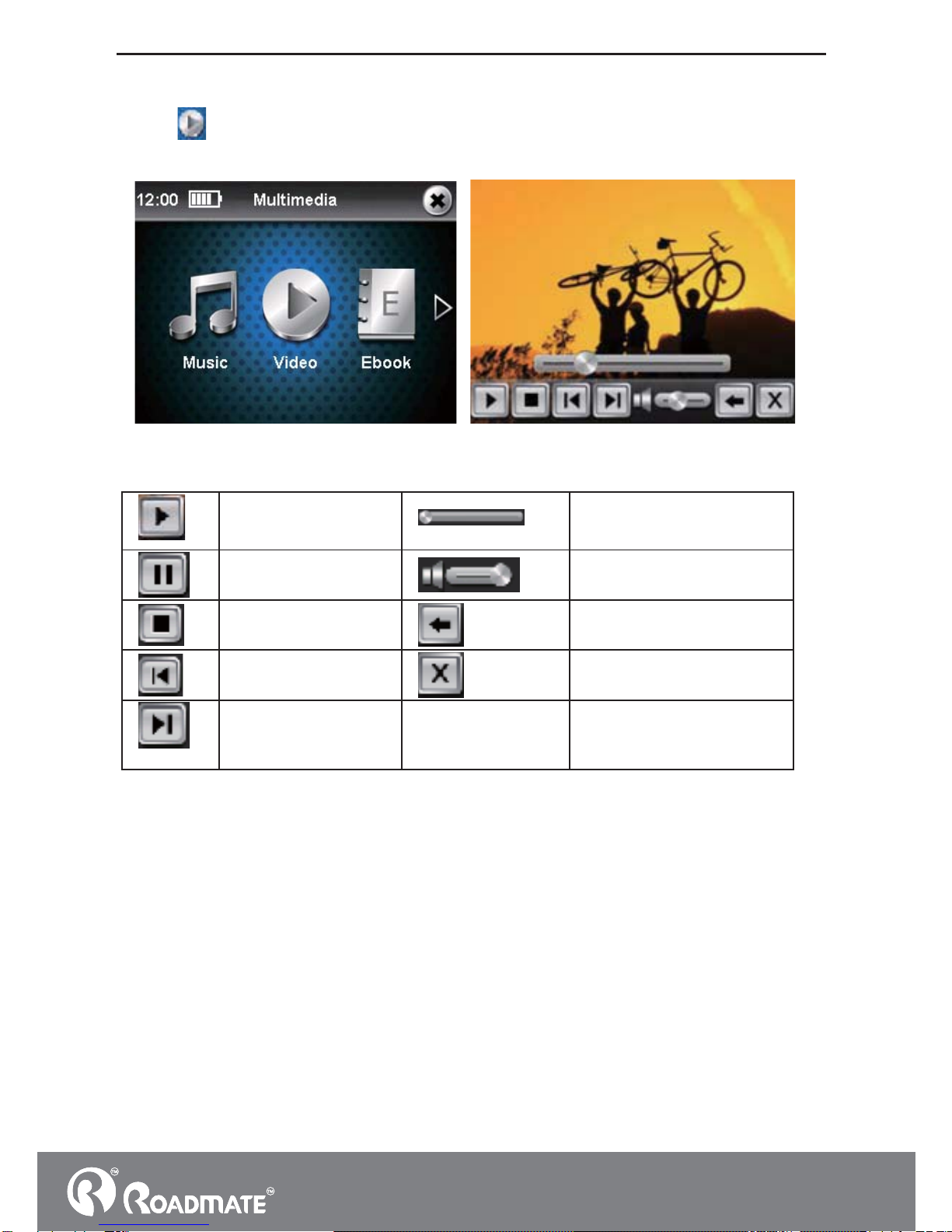

Video
Tap , Enter Video interface.
Play Playing Progress
Pause Volume Adjustment
Stop Return
Previous Close
Next

B125CC User’s Manual 11
Ebook
Tap , Enter Ebook interface.
Item name & format
Load book mark
Previous
Next
Current page/Total page
Return
Close

12 B125CC User’s Manual
Tap , Enter Photo interface.
Previous Return
Next Close
Full screen
Rotation
Zoom in
Zoom Out
GPS
Tap . When you initially orient, you had better to go to a open place
without upper shelter and wait for patiently .

B125CC User’s Manual 13
Tap , Enter Setting interface.
Bluetooth
Setting
Tap , Enter Bluetooth interface.

14 B125CC User’s Manual

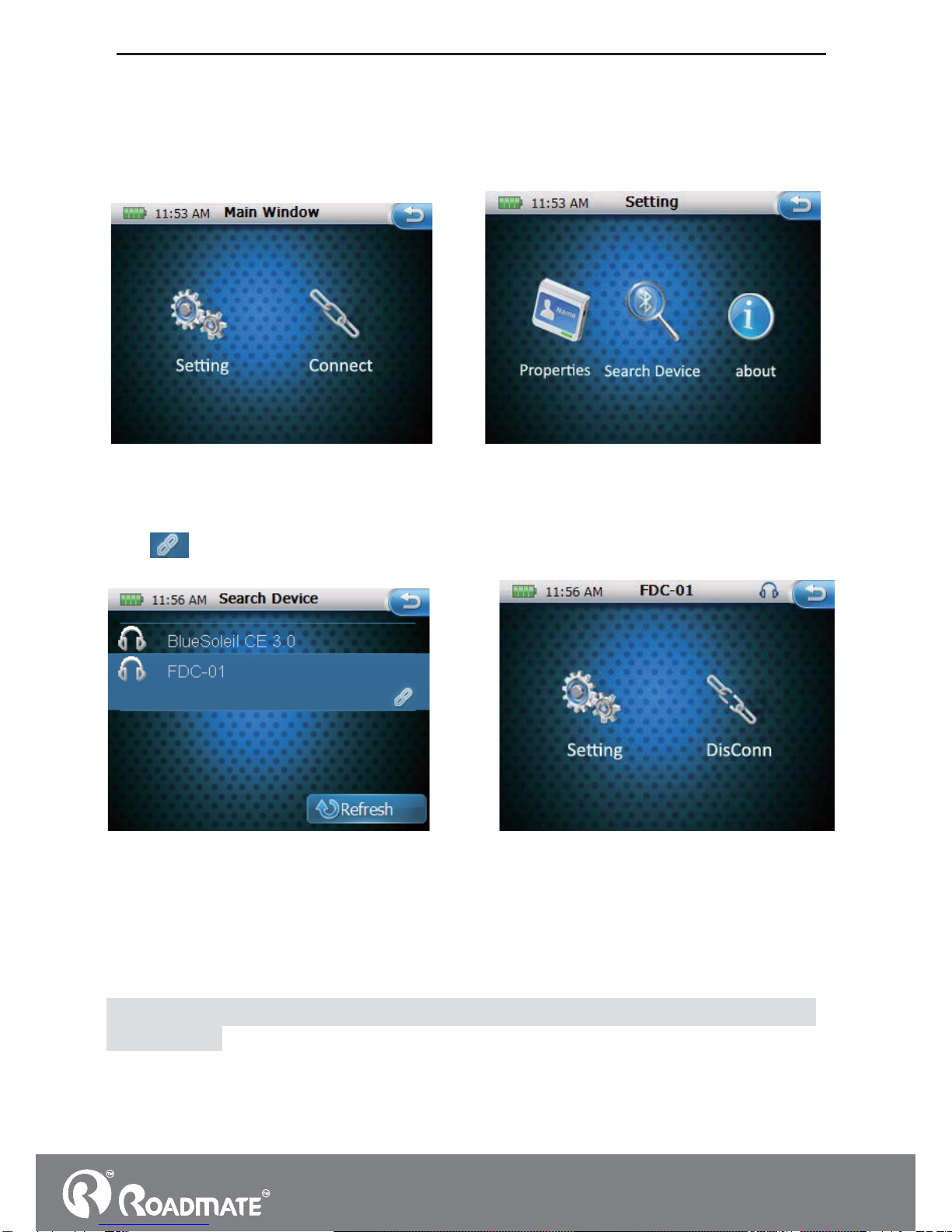

3ˊSearch Bluetooth earphone,
1.Enter Bluetooth and tap “setting” 2. Enter Setting and tap “search Device”
tap link the device 4. link success, it shows:
1. Only support Bluetooth earphone (which can search the phone, but can not
connect)
2. According to instructions ,after successfully connected,, you can enjoy a
personal listening.
Tip: When connected the Bluetooth earhpone, the speaker of the host will
auto turn off

B125CC User’s Manual 15

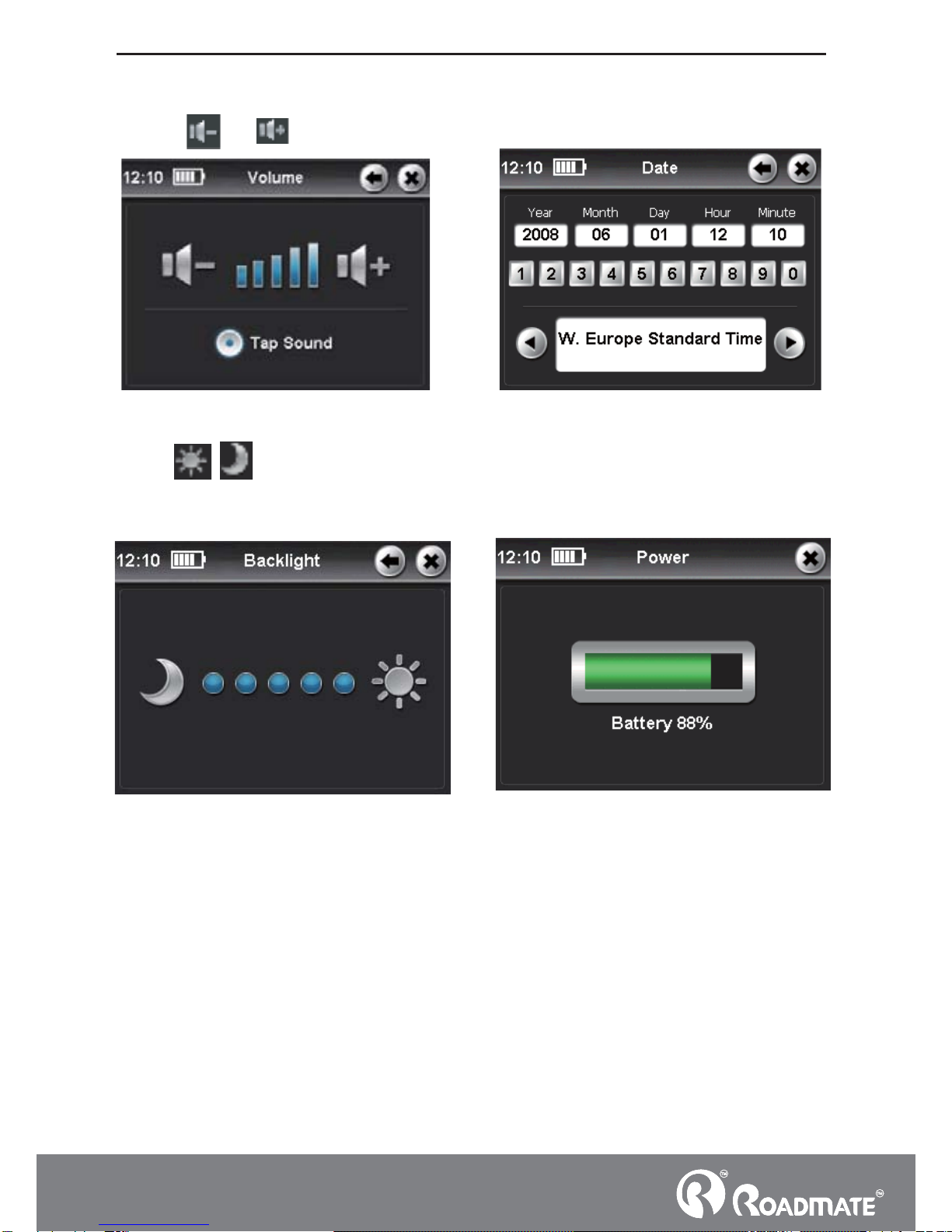

Click to adjust volume. Click to adjust the date/time/zone.
Backlight Power
Volume Date
Click to adjust lightness. Enter this interface to see the power
situation.

16 B125CC User’s Manual

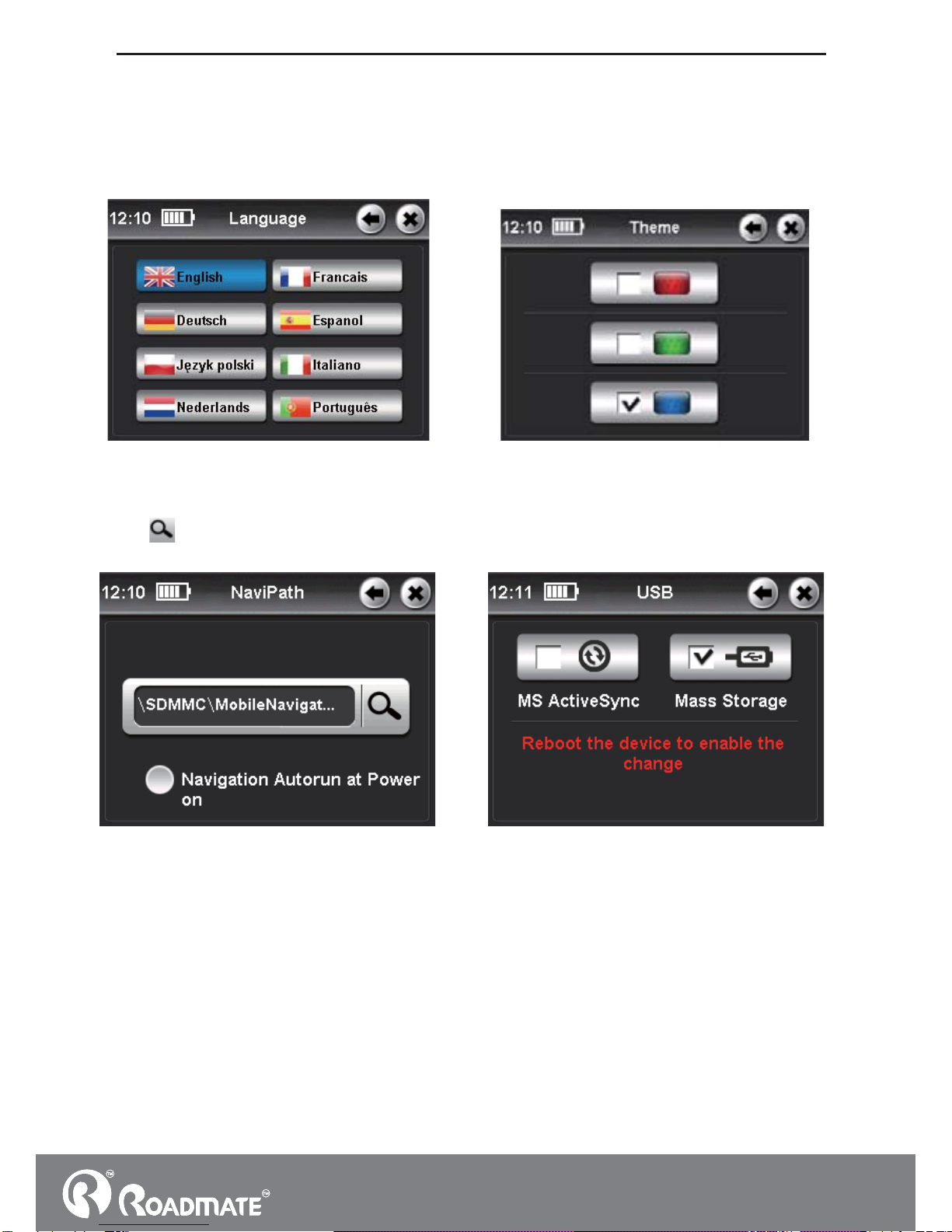

Enter this interface select language. You can choose different colour for
background according to your like
NaviPath USB
Language Theme
click to adjust the navigation path. choose the connection way to GPS once.

B125CC User’s Manual 17
You can see relevant information from left picture entering the interface
tap it,GPS search star test.
tap it,it gets back to original setting.
When you tap the menu or operate the device, touch panel isn't
sensitive, you need to adjust the touch panel.
System

18 B125CCUser’sManual
ƻWeight: 190 G
ƻproduct size: 105mmX88.7mmX23mm
ƻ3.5 inch touch panel, TFT screen
ƻDisplay color: 65k colors
ƻDisplay resolution: 320 x 240 Pixels
ƻCPU Chipset: SAMSUNG S3C2416 processor533MHz
ƻOperating System: Microsoft WinCE.NET5.0 (Core Version)
ƻBuilt-in Memory: 128MByte DDR2 SDRAM
ƻFlash Memory: 2GB (NAND flash)
ƻBuilt in Bluetooth
ƻWaterproof IP54
ƻAudio Format: WMA,WAV
ƻVideo Format: AVI, ASF
ƻPhoto Format: JPG, PNG, TIF
ƻBattery: 3.7V 1300 mAh Li-Ion Battery
ƻExpansion Slot: Micro SD card Slot (Maximum support:8 GB)
ƻSpeaker: Built-In Speaker
ƻUSB: USB2.0 Mass Storage USB connector (Mini Port)
ƻHot Start: <=5sec (Open Sky,-130dBm)
ƻWarm Start: <=38sec (Open Sky,-130dBm)
ƻCold Start: <=45sec (Open Sky,-130dBm)
ƻSatellite Reacquisition Time Accuracy: 100 Ms
ƻPosition Accuracy: <5m (Outdoor,-135dBm)
ƻGPS frequency 1575.42MHz
ƻSensitivity: -157 dBm
ƻGPS Module: High Sensitivity Receiver (NXP GNS7560)
ƻAccuracy and velocity < 10 meter, 0.1m/s
ƻAntenna Real built-in antenna (built-in GPS high sensitivity receiver 42
channel)
ƻFirmware upgrade:site : Micro SD
ƻOperation time(maximum): about 3 hours ( when battery full power)
ƻStandby time(maximum): 6 hours
ƻOperation temperature: -10eC to +50eC
ƻStorage temperature: -20eC to +70eC
ƻSupport language: multilateral language
Specification

B125CC User’s Manual 19
Disclaimer
Unauthorized distribution of this manual is strictly prohibited. All features and
specifications are subject to change without notice.All the pictures in this
manual is simulation. The practicability will be prevailing!
