RECESSED WASH 150

3
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFOREYOU INITIAL START - UP!
1. Safety instructions
Caution ! Be careful with your operations.With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires
Thisdevice has left ourpremisesinabsolutely perfect condition.Inorderto maintain this conditionandtoensure
asafe operation, it isabsolutelynecessaryfor the usertofollowthe safety instructions andwarningnoteswritten
in this manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty.The dealer will not accept
liability for any resulting defects or problems.
If the device has been exposed to drastic temperature fluctuation (e.g.after transportation), do not switch it on
immediately.Thearising condensation water mightdamageyourdevice.Leavethe device switched offuntilit has
reachedroomtemperature.
This device falls under protection-class I.The power plug must only be plugged into a protection class I outlet.
Never let the power cord come into contact with other cables!
Make sure that the power cord is never crimped or damaged by sharp edges.
Always disconnect from the mains, when the device is not in use or before cleaning it.
During the initial start-up some smoke or smell may arise.This is a normal process and does not necessarily
mean that the device is defective.
Caution: Duringthe operation, the housingbecomesveryhot.
Do not switch the device on and off in short intervals as this would reduce the lamp’s life.
HEALTH HAZARD!
Never look directly into the light source,as sensitive persons may suffer
an epileptic shock
( especially meant for epileptics) !
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Keepaway childrenand amateurs !

4
2.Operating determinations
This device is a moving head for creating decorative effects and was designed for indoor use only.
This device is suitable for ceiling mounting applications in in discotheques, theatres etc.
Lightingeffectsarenotdesignedforpermanentoperation.Consistent operation breaks will ensure that the device
will serve you for a long time without defects.
Never run the device without lamp!
Do not shake the device.Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
fixture at the transport handles.
Whenchoosing the installation-spot,pleasemake sure that thedevice is not exposedtoextreme heat, moisture
or dust.There should not be any cables lying around.You endanger your own and the safety of others!
The minimum distance between light-output and the illuminated surface must be more than 0,8 meter.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Onlyoperate the fixture afterhavingcheckedthat the housingisfirmlyclosed and all screwsaretightlyfastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may
explose .
Themaximum ambient temperaturetamustneverbe exceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualifiedfor operating thedevice.Mostdamages are theresultof unprofessional operation!
CAUTION!
The lamp has to be replaced when it is damaged
or deformed due to the heat!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, lamp explosion, crash etc.
DANGERTO LIFE!
For protection from dangerous electric shock,the fixture must be
installed in ceiling box and covered with box covers before applying power!

5
3.Description of the device

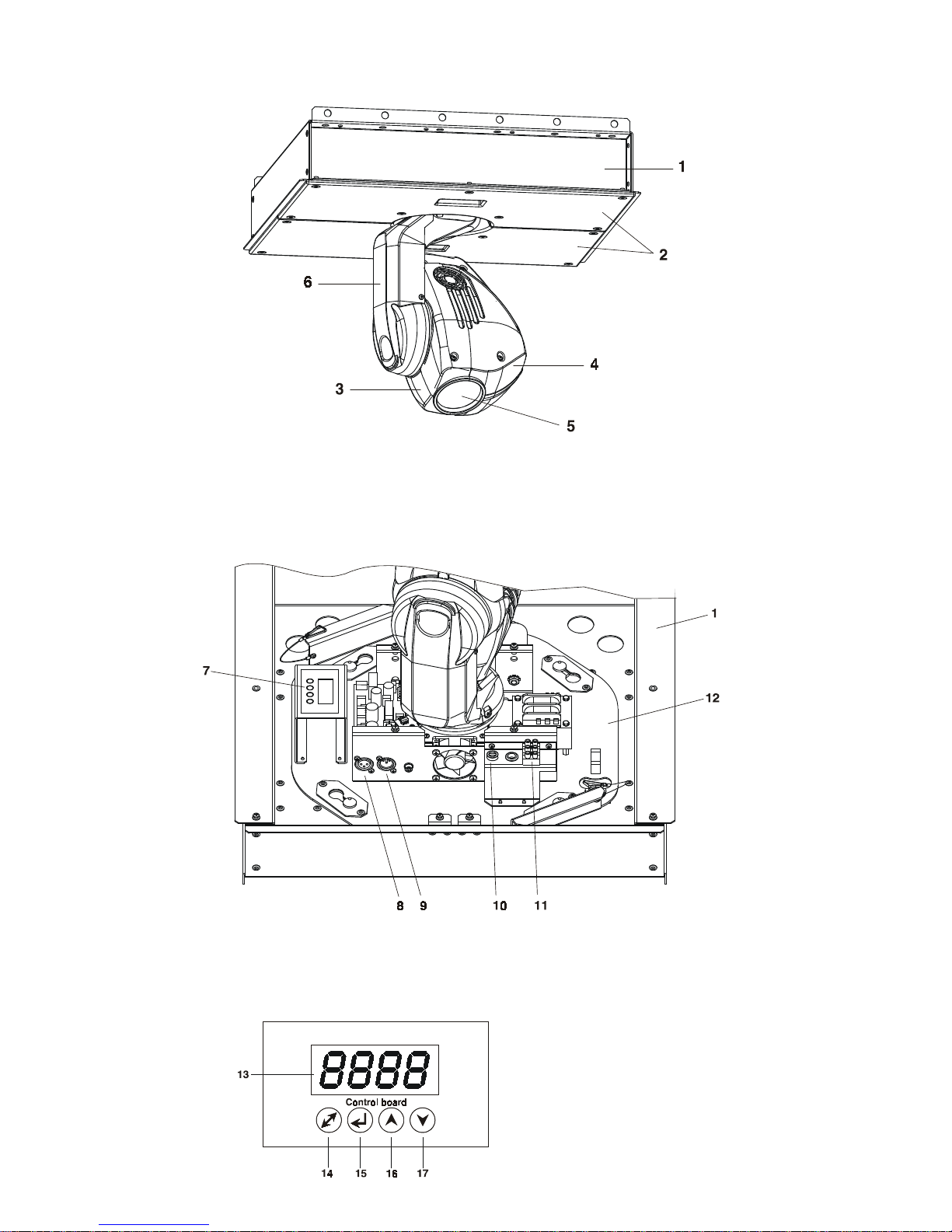

Moving head base
13 - Display
14-Mode-button
15-Enter-button
16-Up-button
17- Down-button
1 - Ceiling box 10 - Fuse holder
7 - Control panel 11 - Power terminals
8 - DMX output 12 - Moving head base
9 - DMX input
Control panel
1- Ceiling box 4- Bottom cover of the head
2 - Box covers 5 - PC lens
3 -Top cover of the head 6 - Arm

6
Installation
4.1Fitting/Exchanging the lamp
DANGER !
Isolate the fixture from AC power before replacing the lamp.
To insert thelamp(CDM-SA/T150W/942):
1.Disconnect the fixture from power and allow it to cool.
2.Loosen the 4 screws „X,Y, Z,W” on the lamp socket assembly at the back of the head.
3.Gently pull the lamp socket assembly out of the head.Hold this assembly while replacing the lamp.
4.Holding the lamp by its ceramic base,carefully pull the lamp straight out of the lamp socket.
5.Holding the new lamp by its ceramics base,gently insert the lamp to the lamp socket.Make sure that the lamp
is installed tightly into the lamp socket.
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed
for.Damages caused by non-observance are not subject to warranty. Please follow the lamp manufacturer‘s
notes!Do not touch the glass bulb bare hand during the installation!
6.Reinsert the lamp socket assembly and tighten the 4 screws again.
7.Align the new lamp (see instructions below)
8.Resetthe "LAti/rSEt" and "LASt/rSEt"counters inthe"InFO" menu on the controlpanel, by pressing the [ Up
]and [ Down ] buttons in one time and then confirming with the [ Enter ] button.
Do not operate this fixture with opened housing-cover!
4.2Lamp adjustment
The lamp holder is aligned at the factory. Due to differences
betweenlamps,fine adjustmentmayimprovelightperformance.
Strike the lamp, cancel all effects, open the shutter and set
the dimmer intensity to maximum and focus the light on a
flat surface (wall) or use function "LAAd" in the Special
functions .
Centerthe hot-spot(the brightestpartof the beam) using the3
adjustment screws „A,B,C”.Turn one screw at a time to drag
thehot-spot,diagonallyacrosstheprojectedimage.If youcannot
detect a hot -spot, adjust the lamp until the light is even.
Lampcover:
screws"A,B,C"
screws "X,Y,ZW"

7
To reduce a hot-spot, pull the lamp in by turning all three screws „A, B,C” clockwise 1/4-turn at a time until the
light is evenly distributed.
If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back in the
reflector.„Push”the lampoutbyturning the screws„A,B,C”counterclockwise1/4-turn at atime thelightisbright
andevenly distributed.
4.3 Rigging
DANGERTO LIFE!
Please consider the respective national norms during the installation! The
installation must only be carried out by an authorized dealer!
The moving head is designed for ceiling mounting.
Theinstallation is of themovinghead has to bebuiltand constructed in awaythat it can hold10times the weight
for1 hour without anyharmingdeformation.
Whenrigging,deriggingorservicingthefixturestayingintheareabelowtheinstallationplace, underhighworking
placesandotherendangered areas is forbidden.
Theoperatorhas to makesurethatsafety-relatingand machine-technical installationsare approved byanexpert
before taking into operation for the first time and after changes before taking into operation another time.
Theoperatorhas to makesurethatsafety-relatingand machine-technical installationsare approved byanexpert
after every four year in the course of an acceptance test.
Theoperator has tomakesure that safetyrelating and machine-technicalinstallationsare approved byaskilled
persononce a year.
The moving head should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualifications, do not attempt the installation yourself.Improper
installation can result in bodily injury and (or) damage to property.
The moving head has to be installed out of the reach of people.
Caution:Movingheadsmaycausesevereinjurieswhencrashingdown!Ifyouhavedoubtsconcerningthesafety
of a possible installation, do NOT install the moving head!
Before rigging make sure that the installation structure can hold a minimum point load of 10 times the moving
head’s weight.
Danger of fire !
When installing the device, make sure there is no highly inflammable
material (decoration articles, etc.) in between a distance of min. 0,5 m.
CAUTION!
Make sure that the device is fixed properly! Ensure that
the structure (truss) to which you are attaching the fixtures is secure.
The moving head do not have a power switch.
The AC mains supply must be fitted with a circuit breaker to isolate
the fixture from the mains during service ,lamp replacement or when not in use.

8
The RECESSED WASH 150 includes a moving head and a ceiling box for mounting to the lower ceiling.
Installation:
1.Fix the recessed ceiling box (8) to the lower ceiling. Be careful the mounting grid can hold the moving head
installation!
The ceiling box must be fixed properly ,otherwise the vibration of the mounting structure can occur during the
operationofthe movinghead.Pullthepowercableand data cablesthroughtheapertures(1) on thebottomof the
box.
2.Put the moving head base (4) on the 4 fixative pins (6) in the bottom of the ceiling box (8) and turn the base
gently to the right. Insert and tighten clockwise the 2 quick-lock fasteners (7) to secure the moving head in the
ceiling box.
3.Use the 3-wired power cable (the wires with cross-sectional area of 1.5mm2 ) to connect the power.
Verifythatthe voltageand frequency settingsmatchthe local AC supply.Thesettingsare printed on thelabel on
the bottom of the moving head base.If you wish to change the power supply settings,see the chapter Appendix.
Pull the power cable through a cable holder (3) and connect it into the connection terminals (2) as follows:
Possible pin identification schemes:
Cable (EU) Cable (US) Pin International
Brown Black Live L
Lightblue White Neutral N
Yellow/Green Green Earth

9
Connectthe earth-wire(10) with theearth-terminal (9) ontheceilingbox(8).
If you have any doubts about proper installation,consult a qualified electrician!
Make sure the wires are securely connected.Tighten the 2 screws in the cable holder to secure the power cable
in it.
For protection from electric shock,the fixture must be grounded!
Verify the power supply settings before applaying power!
4.Connect the data cables to the fixture data input/output.
5.Fasten the 2 covers on the ceiling box by 14 screws.
DANGERTO LIFE!
For protection from dangerous electric shock,the fixture must be
installed in ceiling box and covered with box covers before applying power!
Before taking into operation for the first time,the installation has to be
approved by an expert!
When installing fixtures side-by-side,
avoid illuminating one fixture with another!

10
4.4 DMX-512 connection, master/slave connection
Use shielded,twisted-paircabledesignedforRS-485applicationswithlowcapacitanceandcharacteristicimpedance
of 120 Ohm.
Occupation of the XLR-connection:
DMX - output DMX-input
XLR mounting-socket: XLR mounting-plug:
Building a serial DMX-chain:
Ifyouare using the standardcontrollers,youcan connect the DMX-outputofthecontroller directly with theDMX-
input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you
needtouse adapter-cables.
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ohm resistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Building a master/slave-chain:
Connect the DMX-output of the master fixture in the data-chain with the DMX-input of the first slave. Always
connect output with the input of the next slave until all slaves are connected (up to 9 fixtures).
Caution:It’s necessary toinsert the XLRterminationplug (with 120Ohm)into the input ofthemaster fixture and
into the output of the last slave fixture in the link in order to ensure proper transmission on the data link.
1-Ground
2 - Signal (-)
3 - Signal (+)
1-Ground
2 - Signal (-)
3 - Signal (+)

11
5. DMX Protocol 16-bit
Mode 1 Mode 2 Value Function Type of control
Channel Channel
1 1 Pan
0-255 Pan movement by 530° proportional
2 3 Tilt
0-255 Tilt movement by 280° proportional
3 2 Pan fine
0-255 Fine control of pan movement proportional
4 4 Tilt fine
0-255 Fine control of tilt movement proportional
5 5 Speed of PAN/TILT movement
0 Max.speed(tracking mode) step
1-249 From max.speed to min.speed (vector mode) proportional
250-252 Max. speed(track.mode),black-out while step
colourorgobo changes
253-255 Max.speed(vector mode),black-out while PAN/TILT step
movingor colour or gobochanges
6 6 Colours
0 Open/white proportional
10 Turquoise proportional
21 Red proportional
32 Cyan proportional
42 Lightgreen proportional
53 Magenta proportional
64 LightBlue proportional
74 Yellow proportional
85 Green proportional
96 Pink proportional
106 Blue proportional
117 Orange proportional
128-189 Forwards rainbow effect from fast to slow proportional
190-193 No rotation proportional
194-255 Backwards rainbow effect from slow to fast proportional
7 7 Dimmer intensity
0-255 Intensity from 0 to 100% proportional
8 8 Lampon/off,Shutter,Strobe,Reset
0 Shutterclosed step
1-63 Light intensity from 0 to 100% proportional
64-95 Shutter open step
96-127 Strobe-effect from slow to fast (max 8 flashes/s) proportional
128-139 Lamp on,reset,shutter closed step
140-159 Shutter closed step
160-175 Pulse-effect in sequences with increasing speed proportional
176-191 Pulse-effectin sequences withdecreasingspeed proportional
192-223 Random strobe effect withincreasingspeed proportional
224-229 Shutteropen step
230-239 Lamp off after 3 s,shutter open step
240-255 Shutteropen step

12
Mode 3 Mode 4 Value Function Type of control
Channel Channel
1 1 Pan
0-255 Pan movement by 530° proportional
2 2 Tilt
0-255 Tilt movement by 280° proportional
3 Speed of PAN/TILT movement
0 Max.speed(tracking mode) step
1-249 From max.speed to min.speed (vector mode) proportional
250-252 Max. speed(track.mode),black-out while step
colourorgobo changes
253-255 Max.speed(vector mode),black-out while PAN/TILT step
movingor colour or gobochanges
4 3 Colours
0 Open/white proportional
10 Turquoise proportional
21 Red proportional
32 Cyan proportional
42 Lightgreen proportional
53 Magenta proportional
64 LightBlue proportional
74 Yellow proportional
85 Green proportional
96 Pink proportional
106 Blue proportional
117 Orange proportional
128-189 Forwards rainbow effect from fast to slow proportional
190-193 No rotation proportional
194-255 Backwards rainbow effect from slow to fast proportional
5 4 Dimmer intensity
0-255 Intensity from 0 to 100% proportional
6. DMX Protocol 8-bit
5 No function
6 6 Lampon/off,Shutter,Strobe,Reset
0 Shutterclosed step
1-63 Light intensity from 0 to 100% proportional
64-95 Shutter open step
96-127 Strobe-effect from slow to fast (max 8 flashes/s) proportional
128-139 Lamp on,reset,shutter closed step
140-159 Shutter closed step
160-175 Pulse-effect in sequences with increasing speed proportional
176-191 Pulse-effectinsequences with decreasing speed proportional
192-223 Random strobe effect withincreasingspeed proportional
224-229 Shutteropen step
230-239 Lamp off after 3 s,shutter open step
240-255 Shutteropen step

The RECESSEDWASH 150 can be operated with a controller in controller mode or without the controller in
stand-alone mode.
Both modes are described in the text below.
7.Controller mode
The fixtures are individually addressed (001-505) on a data link and connected to the controller.The fixtures
respond to the DMX signal from the controller.
7.1 DMX addressing
Thecontrol panel onthe front side ofthe base allowsyouto assign theDMX fixture address,whichis defined as
the first channel from which the RECESSEDWASH 150 will respond to the controller.
If you set, for example, the address to channel 5, the RECESSED WASH 150 will use the channel 5 to 12 for
control.
Please, be sure that you don’t have any overlapping channels in order to control each RECESSED WASH 150
correctly and independently from any other fixture on the DMX data link.
If two, three or more RECESSED WASH 150 are addressed similarly, they will work similarly.
Foraddress setting, pleaserefertothe instructions under"Addressing"(menu"A001").
Controlling:
AfterhavingaddressedallRECESSEDWASH150 , you maynowstart operatingtheseviayourlightingcontroller.
Note:After switchingon, the RECESSEDWASH150will automatically detect whetherDMX512data is received
or not.If there is no data received at the DMX-input, the display will start to flash "A001" with actually set
address.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the RECESSED
WASH 150
- the controller is switched off or defective, the cable or connector is defective or the signal wires are swap in the
inputconnector.
Note:It’s necessary to insert the XLR termination plug (with 120 Ohm) to the last fixture in the link in order to
ensure proper transmission on the DMX data link.
7.2 Remotely controllable functions
Lamp
TheRECESSEDWASH 150 is tobeoperatedwith a CDM-SA/T150W/942lamp.
Arelayinsideof the RECESSEDWASH150 allowsyouto switchonand off thelamp via thecontrolpanel or via
your DMX-controller without affecting the rest of the lighting.
To switch On/Off the lamp,use the menu "LAMP"- please refer to "Switching On/Off the lamp ".
Note: It is also important to note, that the discharge lamp is cold restrike types, that means, that they have to be
coldbeforere-striking. For this reason,youhaveto wait 5 minutes (afterhavingswitchedOff the lamp beforeyou
can switch it back On again. If you try to switch On the lamp within 5 minutes after having switched it Off, the
RECESSEDWASH 150 will store this information and automatically ignite the lamp when the 5 minutes period
hasexpired.The message"HEAt" willappear on the controlboarddisplayof theRECESSEDWASH 150. Ifthe
ignition of thelamp is seven times unsuccessful,on the display will appear "LA.Er.",meaningthatthelamp could
be damaged or even missed, or there could be a failure on the ignitor or ballast.
Colour - wheel
The RECESSEDWASH 150 contains a colour wheel with 12 colour positions - 11 of these with dichroic colours
andthelastonewhite.Thecolour-wheel canbepositionedbetween twoadjacentcoloursinanyposition.Itisalso
possible to rotate the colour- wheel continuously at different speeds("Rainbow effect“ in both directions).
Dimmer
The dimming (0-100%) is provided by the mechanical dimmer unit.
Shutter/Strobe
Theshutter is executedbythe mechanicalshutter unit.This unitmayalso beused forstrobe effect(1 - 8flashes
persecond).

14
8. Stand - alone mode
The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be
different for every fixture.To set the program to be played,see the "Stand-alone setting" ( menu "St.AL.").
"Stand-alone operation" can be applied to the single fixture (the fixture may be set to the master /slave mode or
controller mode ) or to multiple fixtures operating synchronously.
Synchronous operation of multiple fixtures requires that they must be connected on a data link and one of them
is set as a master (master mode) and the rest as the slaves (slave mode).The slaves are assigned to SLA1-
SLA9 and on the certain slave address can be connected only one fixture.To set the fixture as the master or
slave , see the "Addressing" (menu "A001").
If the master fixture runs a reset or plays test(program) ,all slaves will execute these acts too.
You can't play or edit any programs on the slaves by their control panels if the master is switched on and
connected to the master/slave chain.
The master fixture starts simultaneous program start in the other slave fixtures.All fixtures have a definite,
synchronizedstarting point when playing backtheirprograms.Thenumber of runningprogram isthe sameinall
slaves and depends on the master's choice (menu "St.AL." ).Every fixture runs its program repeatedly ,starting
the program step No.1 when requested by the master .
Forexample:
If the slave fixture has a shorter program length, it will continously repeat its program until the master fixture
finishes its own program and restarts its program running (slave 1- prog.step 3 will not be finished).
If the slave fixture has a longer program length, it will restart at prog.step 1 before it completes all its prog.steps
(slave 2 - prog.step 5 will not be played)- see the picture bellow.
Note:Disconectthe fixtures from the DMXcontroller beforemaster/slave operating,otherwise datacollisionscan
occur and the fixtures will not work properly!
It’s necessary to insert the XLR termination plug (with 120 Ohm) into the input of the master fixture and into the
output of the last slave fixture in the data link in order to ensure proper transmission on the data link.
From the master's control panel is possible to control any slave in a master/slave chain.
Starting point
Restart

15
9. Functions of the control panel
The control panel situated on the front side of the base offers several features.You can simply set the DMX
address,master/slave mode, read the number of lamp or unit hours, run test, make a reset and also use many
functions for setting and service purposes.
The main menu of the control panel is accessed by pressing the [ ] button - press this one so many times until
thedisplayshows message "A001" (withactually storedaddress).Browsethrough the menu bythepressing[
]or[ ]buttons-the displayshowsstep bystep thesemessages:A001,SLCt,InFO,PErS,LAMP,tESt,StAL,rESE,
SPEC.Press[ ] if you wishto select oneofthem.The functions aredescribed in thefollowing sections andthe
function hierarchy is shown below.

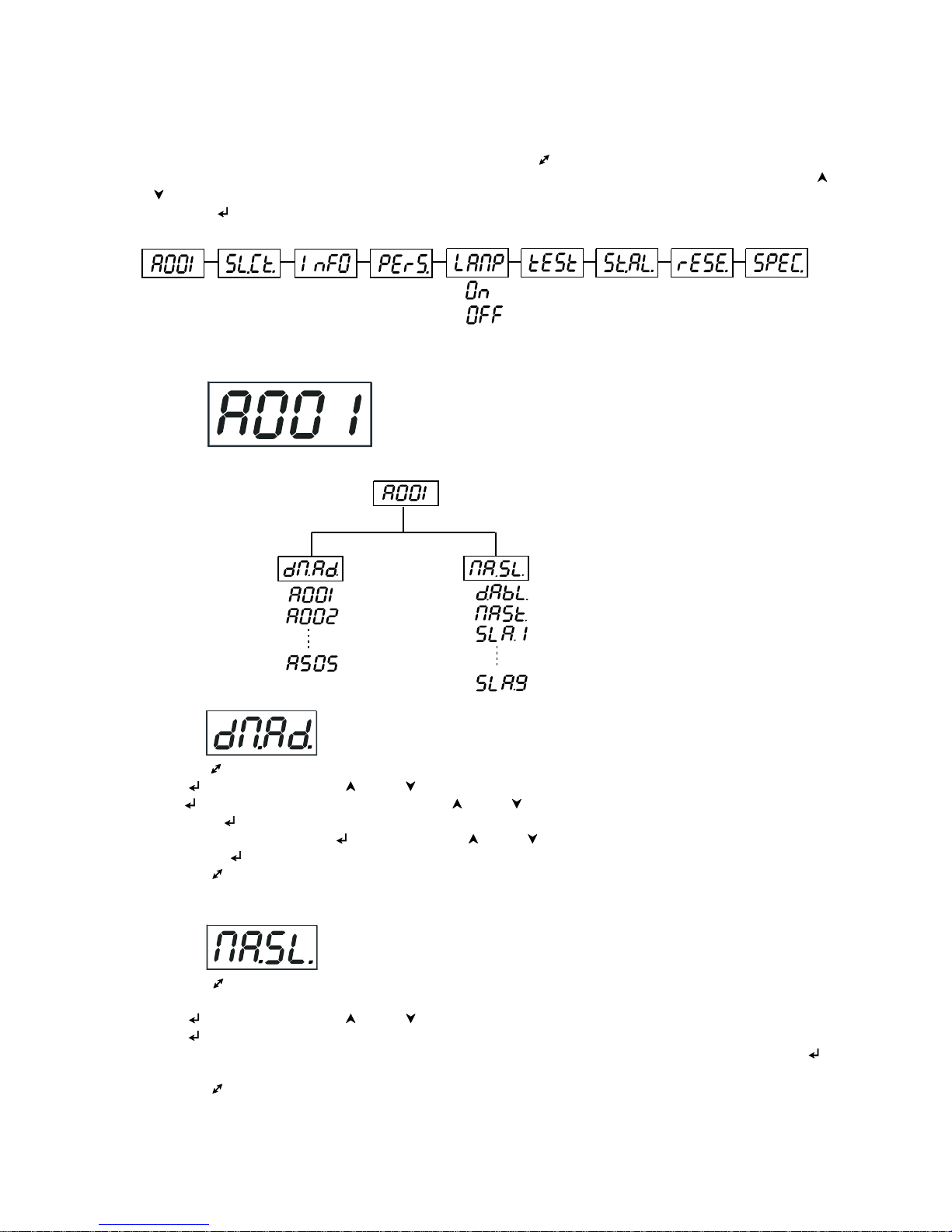

9.1 Addressing
By this menu you can set the DMX address or address the fixture as a master/slave.
- DMX addressing
1. Press the [ ]- buttonso many timesuntil the displayshows message "A001" (withactuallystored address).
2. Press [ ]-button and use the [ ] and [ ] buttons to select"dM.Ad."-menu.
3. Press[ ]-button(the letter "A" flashes) and by [ ] and [ ] buttons select required address (001 -
505), press [ ]-button to confirm.
4. Select "M.ASL."-menu,press[ ]-button and use [ ] and [ ] buttons to select "d.AbL."(no master or
slave),press [ ]-button to confirm.
5.Press the [ ]- button.Choosen address is shown on the display.
If message "A001" (with actually stored address) flashes-no DMX data received at the DMX-input.
- Master/slave adressing
1. Press the [ ]- button so many times until the display shows message "A001" (with actually stored
address).
2. Press [ ]-button and use the [ ] and [ ] buttons to select "MA.SL."-menu.
3. Press [ ]-button(display flashes) and select"MASt"(to set the fixture as the master in a chain of multiple
fixtures) or "SLA.1"-"SLA.9" (to set the fixture to be the slave in a chain of multiple fixtures) and press [ ]
to confirm. If you want address no master or slave, select "d.AbL.".
4.Press the [ ]- button.Choosen address is shown on the display.
If message "MASt." fast flashes-DMX signal is received at the DMX-input- disconnect DMX controller!
Only one fixture may be the master.Up to the 9 slaves may be connected to the master and on the certain
address can be connected only one slave fixture (SLA1-SLA9).

16
Note:Disconectthe fixtures from the DMXcontroller beforemaster/slave operating,otherwise datacollisionscan
occur and the fixtures will not work properly!
If the fixture is set as the master and DMX signal is connected to its input,the error massage "MAEr" will appear
onits displayandthe fixture's addresswill be setto its DMX addressin order torespond to DMXsignal from the
controller.
Forexample:
The master fixture has this address setting:"dM.Ad."-menu.........A009
"MA.SL."-menu........MASt (is displayed)
The DMX signal is connected to the master fixture.The message "MAst" starts fast flashing and after 20s error
massage "MA.Er" appears on its display and the fixture automatically will be switched to its DMX address
(masteraddress is disabled).
Now the fixture has the address setting: "dM.Ad."-menu.........A009 ("A009"/" MA.Er"blinks )
"MA.SL."-menu.........d.AbL.
If the fixture is set as the slave and DMX signal is connected to its input,the fixture will respond to DMX signal
fromthe controller (independenceon the fixture's DMXaddress).
9.2 Slave control
This function allows you to control the slaves from the master's control panel in a master/slave operation.
Selectthis function fromthe main menuandpress [ ]-button.Browse thelistof all connectedslaves("SL.C.1"
- "SL.C.9")by pressing [ ] and[ ] bottons.Select the desiredslaveandpress [ ]-button.The slave'scontrol
panel is available from the master's control panel.
If no slave is connected to the master,massages "SL.C.1","SL.C.2","SL.C3"..."SL.C.9" still round repeat.
Note:This function is available from the master fixture only.
9.3 Fixture informations
The menu allows you to read an useful information about the fixture as the lamp life,lamp strikes,software
version, etc.
Press [ ] or [ ] buttons to select the desired option and press [ ] to see the value or next submenu.
Power On time
-By this option you can read the total number of the operation hours since the
RECESSEDWASH150 has beenfabricated.Press [ ] or[ ] toreturnto the menu.

17
-Thenumberof the hoursthatthe RECESSEDWASH 150hasbeen poweredOn
since the counter was last reset.Press [ ] or [ ] to return to the menu.In order
to reset this counter to 0, you have to hold the [ ] and [ ]-button and press the [
]-button.
Lamp On time
-This option enables you to read the total number of the operation hours with the lamp
on since theRECESSEDWASH150 has been fabricated.Press [ ] or [ ] to return
to the menu.
-The number of hours that the lamp has been powered On since the counter was last
reset.Press [ ] or [ ] to return to the menu. In order to reset this counter to 0,
you have to hold the [ ] and [ ]-button and press the [ ]-button.
Lamp strikes
- By this option you can read the total number of the lamp strikes since the
RECESSEDWASH 150 hasbeen fabricated.Press [ ] or [ ] to return to the menu.
-The number of the lamp strikes since the counter was last reset.Press [ ]
or [ ] to return to the menu. In order to reset the counter to 0, you have to hold
the [ ] and [ ]-button and press the [ ]-button.
- DMX values
Readout DMX values of each channel received by the fixture. Use the [ ] and [ ] buttons to select desired
channel and press [ ] to read its value coming to the fixture or [ ] to cancel and return to the menu.
- Software version
By this function you can read the software version of the display module. Press [ ] to read its value or [ ]
to return to the menu.
9.4 Personality options
Theseoptions allow youto modify RECESSEDWASH 150 operatingbehavior.
Press [ ] and [ ]buttons to select the desired option and press [ ] to set the value or to see next submenu.

18

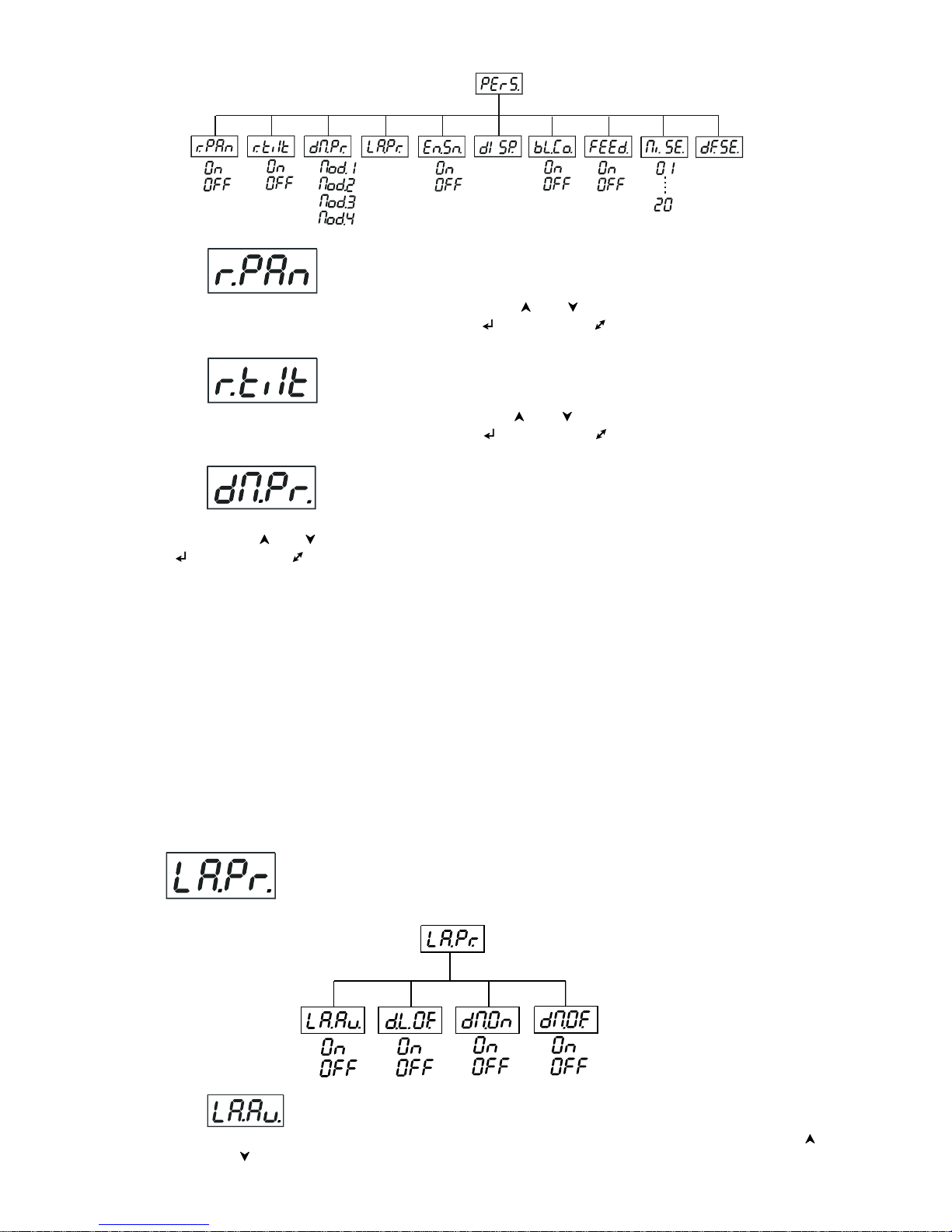

- Pan reverse
This function allows you to invert the pan movement.Use the [ ] or [ ] buttons to select "On" if you wish this
feature or"Off" if you don’twish this featureand press [ ] toconfirm or [ ] tocancel and returntothe menu.
-Tilt reverse
This function allows you to invert the tilt movement.Use the [ ] or [ ] buttons to select "On" if you wish this
feature or"Off" if you don’twishthisfeature and press [ ] toconfirmor[ ] to cancelandreturn to the menu.
- DMX presetting
The function makes possible to select from the 4 DMX- channels settings (including 8 or 16 bit movement
resolution).Use the [ ] or [ ] buttons to selectdesiredchannel settings ("Mod.1,Mod.2,Mod.3,Mod.4") and
press [ ] to confirm or [ ] to cancel and return to the menu.
List of the channels settings:
Channel Mode 1 (default) Mode 2 Mode 3 Mode 4
1 Pan Pan Pan Pan
2 Tilt FinePan Tilt Tilt
3 Fine Pan Tilt Speed Colours
4 FineTilt FineTilt Colours Dimmer
5 Speed Speed Dimmer Nofunction
6 Colours Colours Lamp on/off,strobe Lamp on/off,strobe
7 Dimmer Dimmer
8 Lampon/off,strobe Lampon/off,strobe
Please refer to the chapter "DMX- protocol" for detail description.
If the Mode 4 is selected,the speed of pan/tilt movement is set onto maximum.
Lamp presetting
This function allows you to adjust the lamp settings:
Lamp On after switching the fixture On
This function enables to turn the lamp on automatically after switching the fixture on. Use the [ ]
and [ ]buttons to select "On" if you wish to turn the lamp on automatically after switching the

19
fixture on or "Off" if you wish the lamp off after switching on the fixture and press [ ] to confirm
or [ ] to cancel and return to the menu.
Lamp Off via DMX
This function allows you to switch off the lamp by DMX. Use the [ ]and [ ] buttons to select
"On" if you want to switch off the lamp by DMX or "Off" if you don’t want to switch off the lamp by
DMX and press [ ] to confirm or [ ]to cancel and return to the menu.
Lamp On if DMX is present
This function allows you to strike the lamp automatically after 26 seconds if DMX signal is present
on the data link.If the ignition is unsuccessfull (e.g.lamp is too hot),the fixture will try to ignite the
lamp after next 26 s.This process will repeat until the lamp lights.Use the [ ]and [ ] buttons
to select "On" if you want to strike the lamp or"Off" if you don’t want to strike the lamp and press
[ ] to confirm or [ ]to cancel and return to the menu.
Lamp Off if DMX is missing
This function allows you to switch Off the lamp automatically after 2 minutes if DMX signal is
missing on the data link. Use the [ ]and [ ] buttons to select "On" if you want to switch Off
the lamp or "Off" if you don’t want to switch Off the lamp and press [ ] to confirm or [ ]
to cancel and return to the menu.
Switch On/Off the lamp light sensor
Usethe [ ] and [ ]buttonsto select"On"ifyou wishtoswitch the lamp lightsensor onandpress[ ] toconfirm
or [ ] to cancel and return to the menu.The option"On" is for the standard operation.Use the [] and [ ]
buttons to select "Off" if you wish to switch the lamp light sensor Off and press [ ] to confirm or [ ]to cancel
andreturnto the menu.
Important:The option"Off" is for "emergency operation" only if the lamp light sensor is defective and
you will wait for a service intervertion! If the lamp light sensor is switched Off,the error messages
"LAEr,SnEr,HEAt"willnotappearon the display(only the message"HEAt"willappear if the lamp wasturnedoff
andon within 5minutes ) andat switching the lampon the electronicswill still tryto ignite thelamp until itshines
(even when the lamp is damaged or absent), on this account some electronics parts could be damaged!
- Display adjusting
This function allows you to adjust the display settings:
- Display -intensity
With this function you can adjust the display intensity from 20% to 100% . Use the [ ] or [ ]
buttons to select the level of the display intensity and press [ ] to confirm or [ ] to cancel
andreturn to themenu.
- Display-reverse
Withthis function, youcanrotate the display by180°.Use the [ ] or[ ] buttons to select"normal
display" or "display turned by 180°" and press [ ] to confirm or [ ] to cancel and return to the
menu.
- Display-On
This function allows you to keep the display on or to turn off automatically 2 minutes after last

20
pressing any button on the control panel. Use the [ ] or [ ] buttons to select "On" if you wish to
keep the display on or "Off" if you wish to turn off automatically 2 minutes after last pressing any
button on the control panel and press [ ] to confirm or [ ] to cancel and return to the menu.

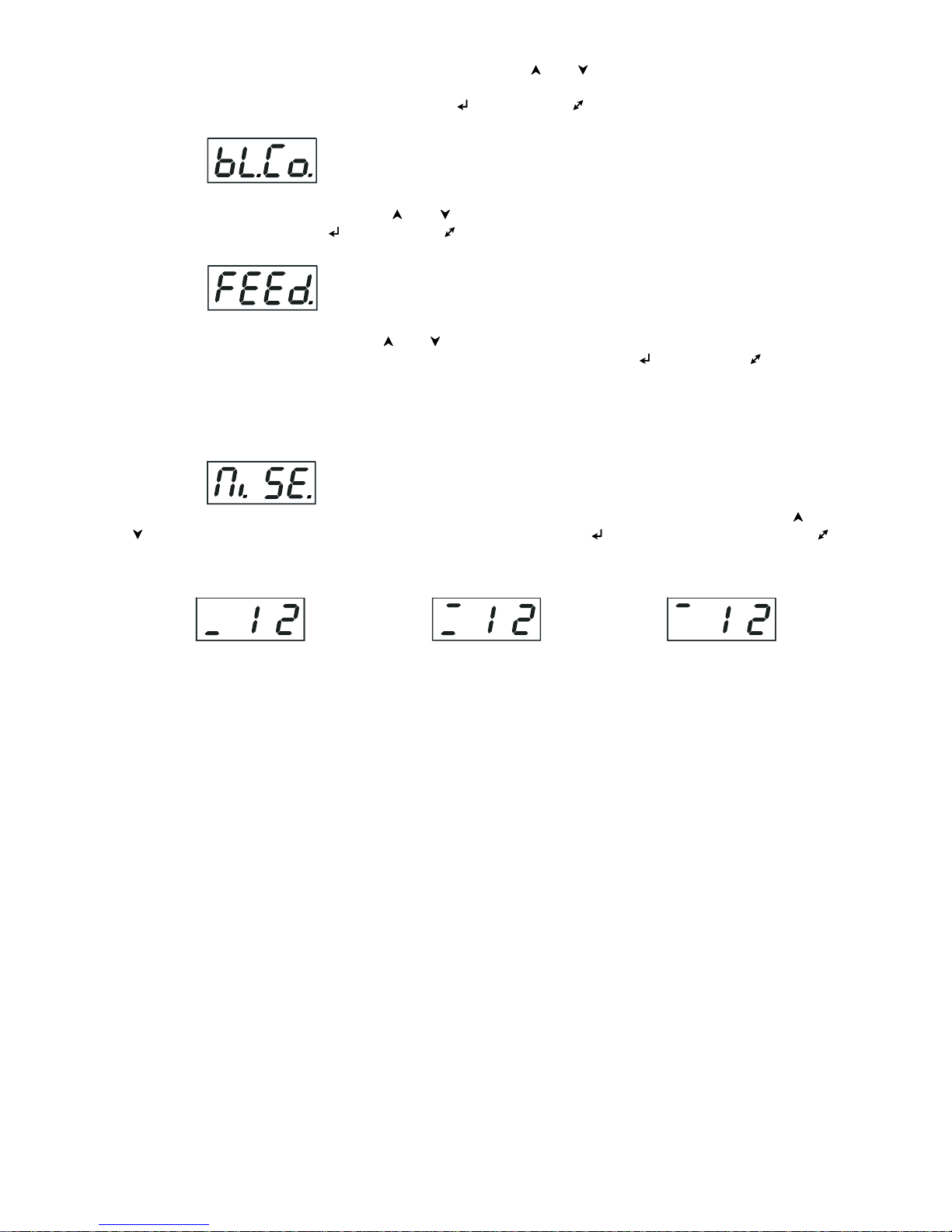

- Blackout during movement correction
Thefunction executestheblackoutduring the head movement correction (themoving head haslost its rightpan/
tilt-position for a short moment).Use the [ ] or [ ] buttons to select "On" if you want to execute the blackout
or "Off" if you don’t and press [ ] to confirm or [ ] to cancel and return to the menu.
- PAN/TILT-feedback
This function allows to return the mowing head to the required pan/tilt position after changing the position by
external force (e.g.by stroke). Use the [ ] or [ ] buttons to select "On" if you wish to enable this function or
"Off" ifyouwish not to return themowingheadtothe required position and press[ ] to confirm or[ ] to cancel
andreturn to themenu.
Note: If the feedback was switched off ,the pan/tilt-position is changed by an external force and the feedback is
switched on again,the moving head might not to be synchronized with the DMX signal.You have to make a reset
in order to synchronize the moving head with the DMX signal.
- Microphone -sensitivity
With this function you can adjust the microphone sensitivity from 1(maximum) to 20(minimum) . Use the [ ] or
[ ] buttons to select the level of the microphone sensitivity and press [ ] to confirm the chosen level or [
]to cancel and return to the menu.
Example:
underexited right level overexited
(upper segment blinks by the bass rhythm)
