Robe Anolis Calumma XS MC User manual

V
er
sion 1.
8
QR code for user manual

Calumma XS
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 5
3. Control and connection .............................................................................................................................................. 5
4. Installation .................................................................................................................................................................. 8
4.1 Mounting the fixture ............................................................................................................................................ 8
4.2 Connection to power ............................................................................................................................................ 9
5. Software update ....................................................................................................................................................... 14
6. Technical specifications ............................................................................................................................................ 16
7. Cleaning and maintenance ....................................................................................................................................... 19
7.1 Disposing of the product .................................................................................................................................... 19
8. ChangeLog ................................................................................................................................................................ 20

Calumma XS
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR Calumma !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Always disconnect the fixture from power before cleaning, servicing or installing.
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before servicing or cleaning.
Make sure the power/data cable is not damaged by sharp edges.
Do not install the unit near an open flame.
Refer servicing to qualified service personnel.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable protective
eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate the light
output.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.

Calumma XS
4
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.
The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
Immunity of the equipment is designed according to the standard EN 55035 Electromagnetic compatibility of
multimedia equipment - Immunity requirements
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
The [Device] wireless operation is safe and complies to RF Exposure requirements.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning for fixtures with Harsh Environment Finish (HEF):
Handle with care!
Avoid any damage to the painted surface.
Damaging the paint may result in corrosion and loss of warranty.

Calumma XS
5

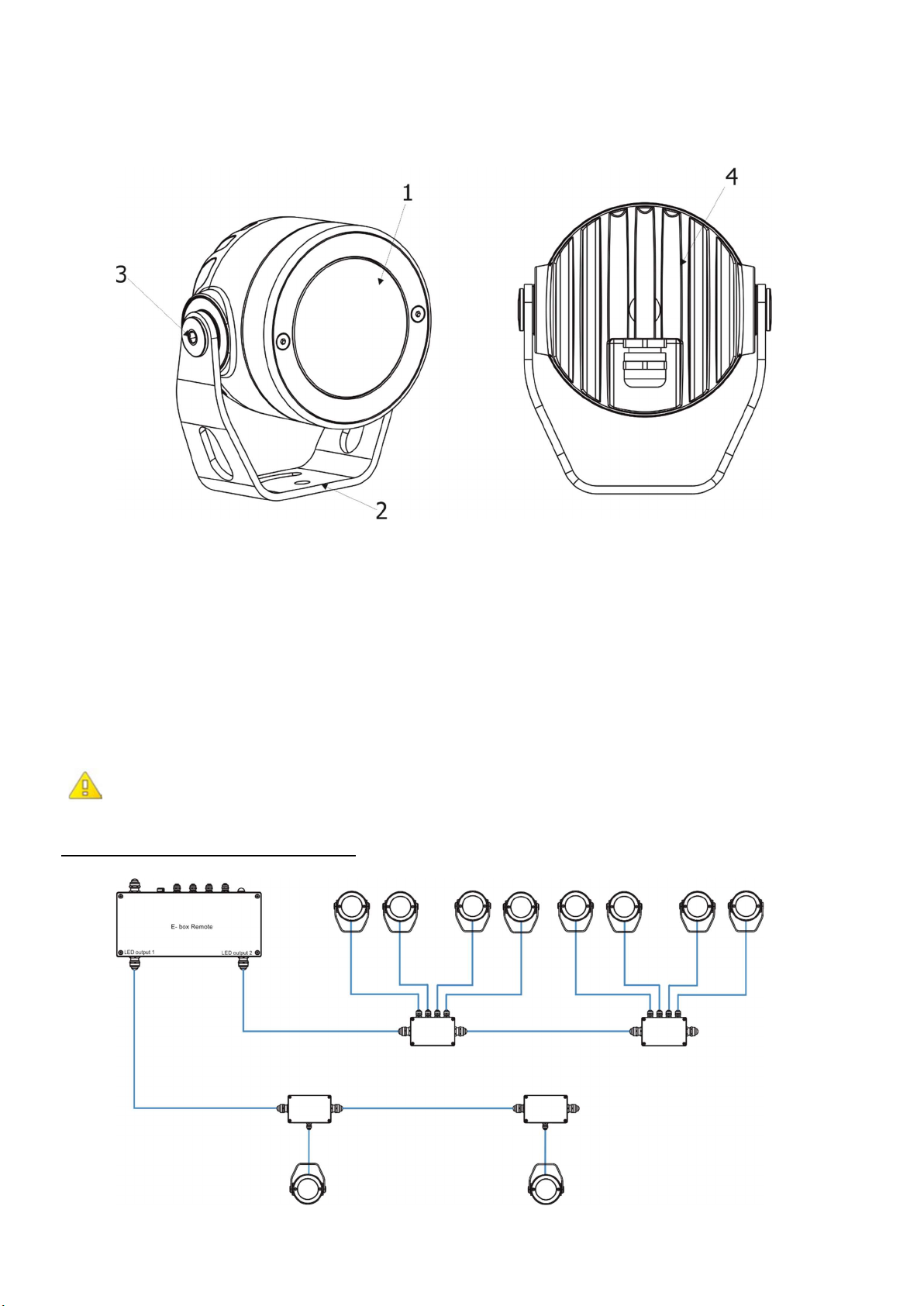

2. Fixture exterior view
3. Control and connection
The Calumma modules should be connected to the E-Box Remote or E-Box Remote basic via junction boxes.
The E-box Remote has to be switched to the Pass-Through mode.
Example of connection with E-box Remote
1. Transparent glass cover
2. Mounting yoke
3. Tilt adjusting lock
4. LED module with heat sink

Calumma XS
6
Example of connection with E-box Remote Basic
Note. Combination of Calummas XS and Emineres Remote is also possible.
Example:
From point of view of driver load (E-box Remote/E-box Remote Basic), max. number of Calummas connected to
one E-box Remote/E-box Remote Basic is 40 but Calummas XS have to be operated in the Pass-through mode, it
means that max. 32 Calummas XS can be connected in one string.
Max. number of Calummas XS connected to the E-box Remote/E-box Remote Basic also depends on cable length.
E-box Remote
Cable length *
Max
. n
umber of
Calumma
s
XS
50 m
25
per output, 40
in total
100 m
20
per output
, 40 in total

Calumma XS
7
E-box Remote Basic
Cable length *
Max. n
umber of
Calumma
s
XS
50 m
25
100 m
20
* Cable length is a total cable length between one output of the E-box Remote (E-box Remote Basic) and last
connected Calumma XS.

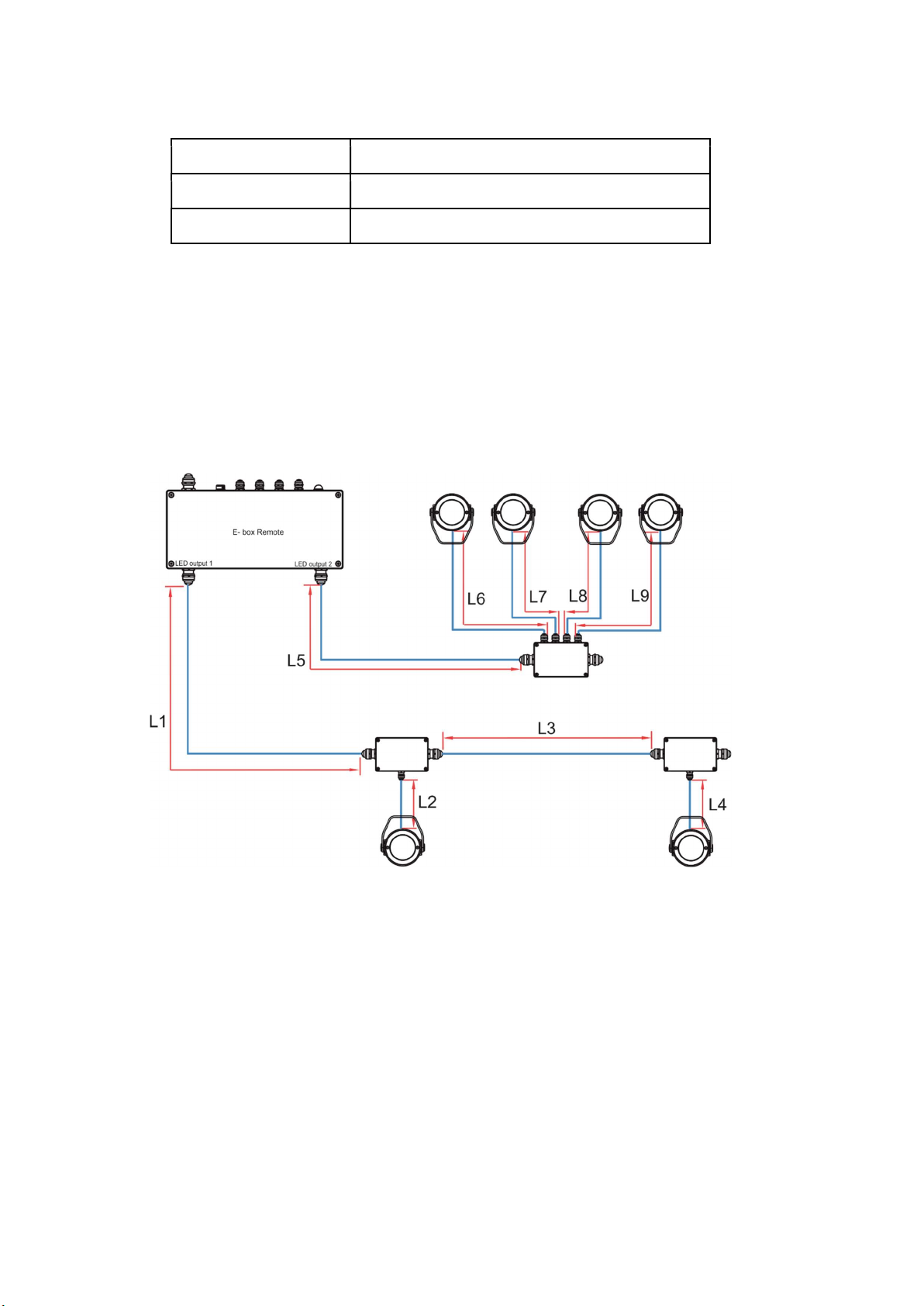

Example:
Total cable length(output 1)=L1+L2+L3+L4
Total cable length(output 2)=L5+L6+L7+L8+L9

Calumma XS
8
4. Installation
4.1 Mounting the fixture
The Calumma can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2).
The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position.
Ensure that the structure to which you are attaching the fixture is secure.

Calumma XS
9
4.2 Connection to power
The unit must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.

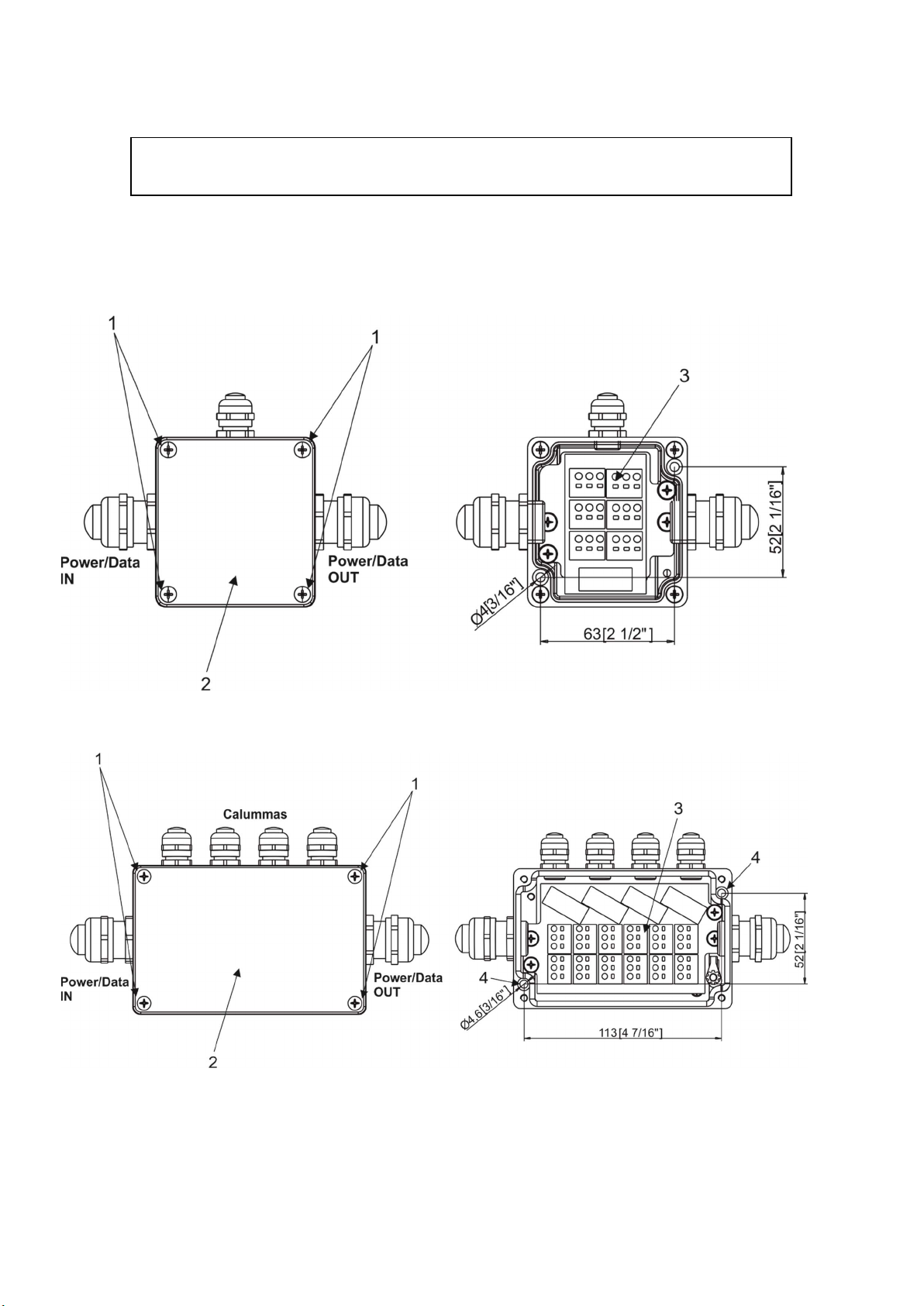

Junction box installation
Junction box with one output
Junction box with four outputs
1.Unscrew the four screws (1) from the cover (2) on the junction box to get access to the DPS with terminal
blocks (3) and two mounting holes (4).
2. Screw the junction box on a non-flammable flat surface.

Calumma XS
10
3. Connect cables to terminal blocks.
Two cable glands M20 x 1.5 serves for a power/data cable. One (or four) cable gland M12 x 1.5 serves for Calumma
XS connection cable.
Remove the end cap from the cable gland before passing the cable.
We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland
before inserting it into the body of the gland.

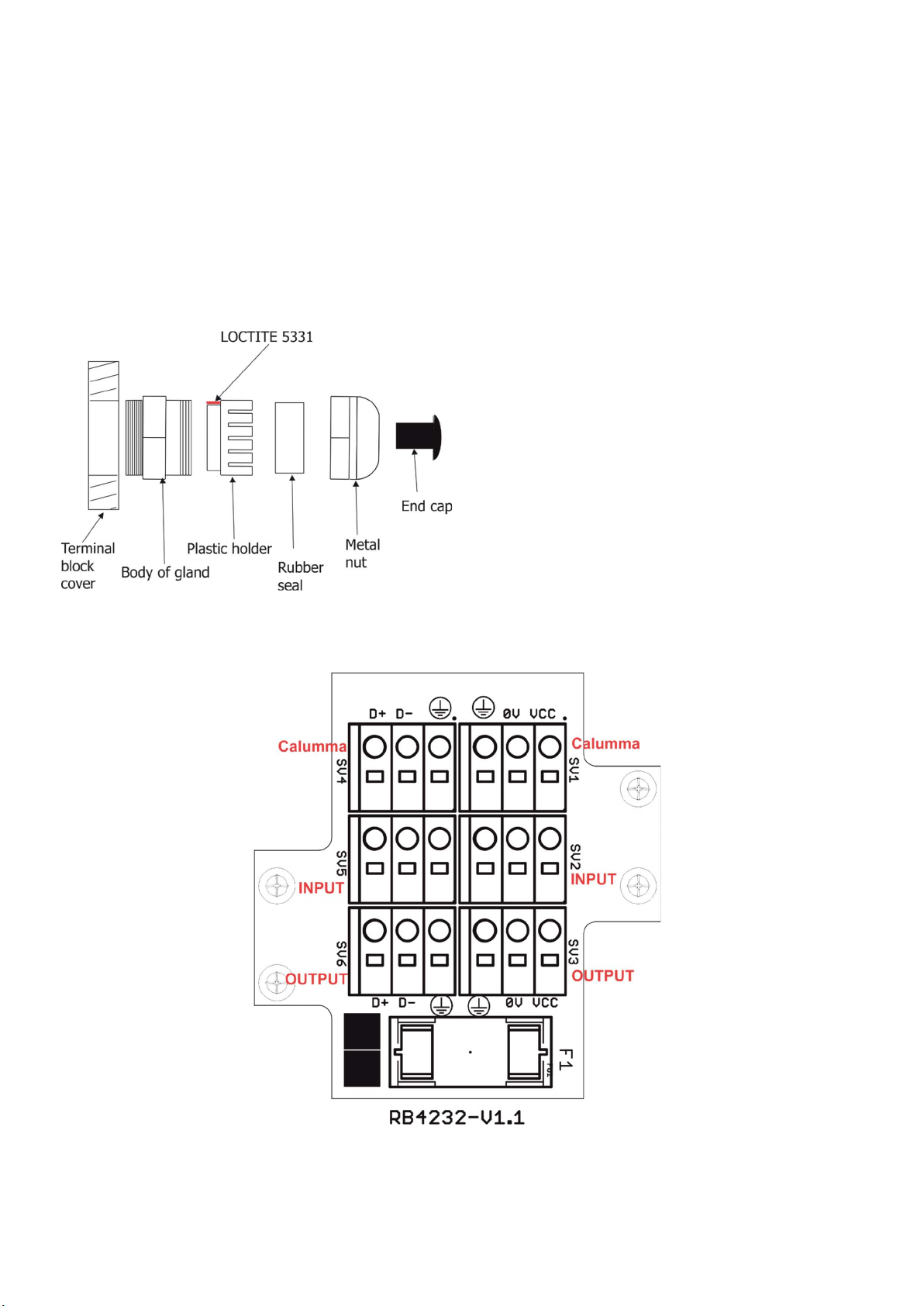

Cable gland M20x1.5 and M12x1.5

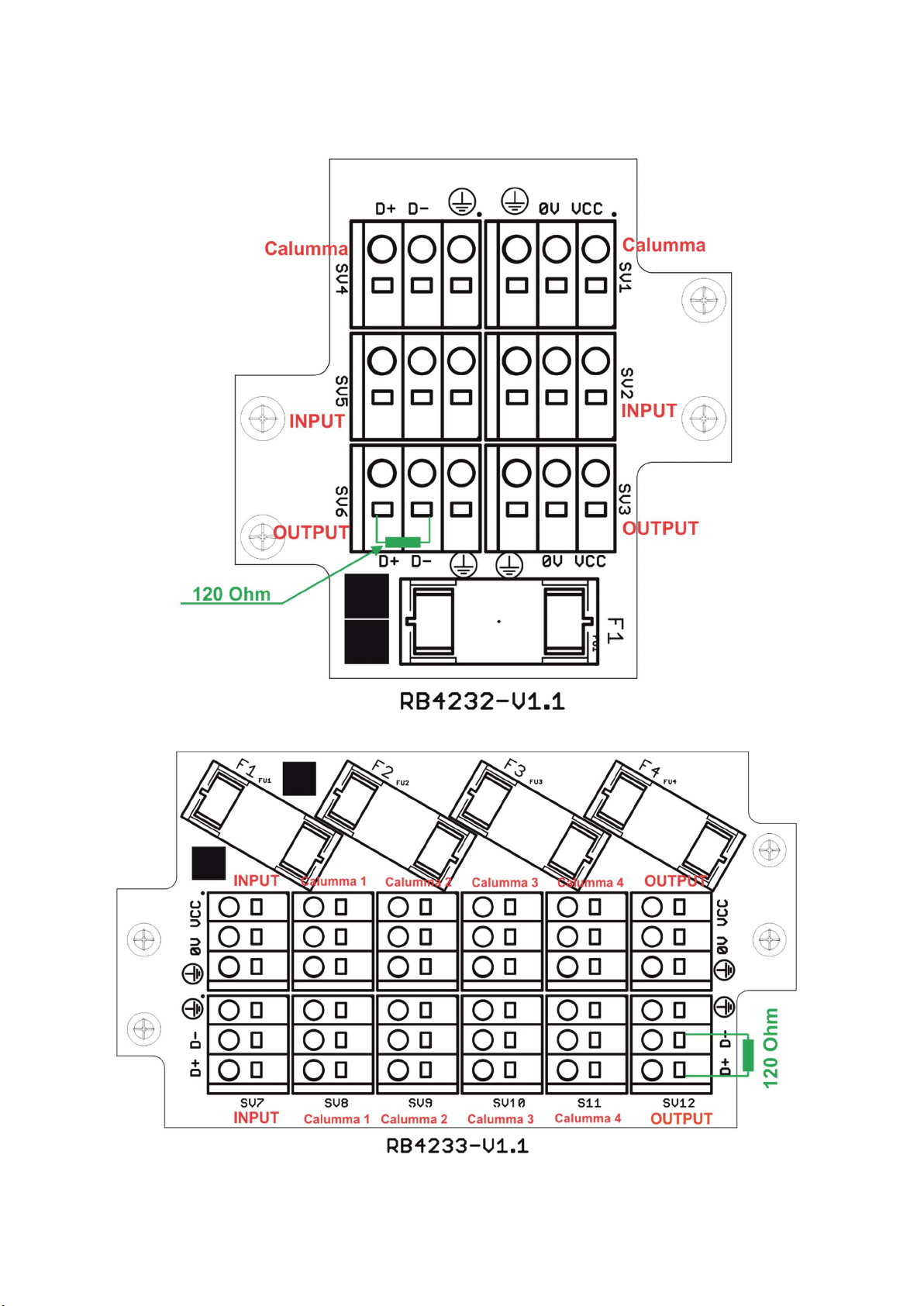

Wiring of connection blocks on DPS RB4232 in the junction box with one LED output.
Fuse F1: 2A/500V AC.

Calumma XS
11
Wiring of connection blocks on DPS RB4233 in the junction box with four LED outputs.
Fuse F1-F4: 2A/500V AC.
Calumma XS connection:
Connector
Vcc
D+
D
-
0V
Function
LEDs +
Data +
Data
-
LEDs
-
Not connected
Colour of wire
Red
Orange
White
Black
Colours of wires apply to the 5-cored cable UL 20969 5x 20AWG (P/N 13053481)
Connection between junction box and E-box Remote and among junction boxes:
Connector
Vcc
D+
D
-
0V
Function
LEDs +
Data +
Data
-
LEDs
-
Not connected
Colour of wire
Red
Orange
White
Black
Colours of wires apply to the 5-cored cable SJTW 5x 14AWG (P/N 1305 3336).
NOTE: Each line of Calummas XS connected to the LED output of the E-box Remote has to be terminated at
the last fixture.
EITHER connect a 120 Ohm resistor between terminals D+ and D- in the last fixture,
OR terminate via RDM as described in the E-box Remote user manual.
Ensure ONLY the last fixture in the line is terminated using ONE of the above methods!

Calumma XS
12
Examples
Termination via 120 Ohm resistor

Calumma XS
13

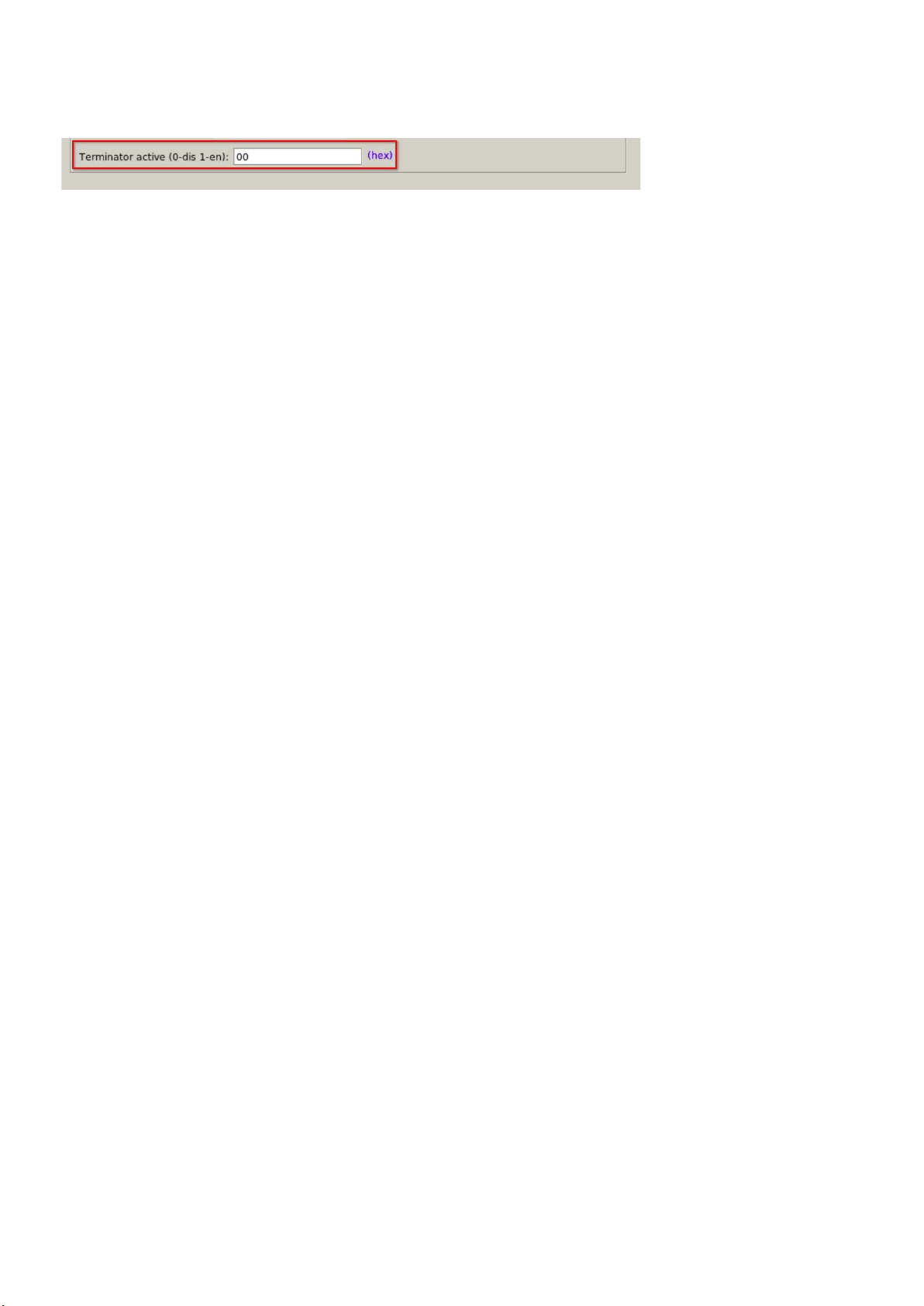

Termination via RDM:
4. Screw the cover (2) back on the junction box.

Calumma XS
14
5. Software update
Software update of Calumma XS modules has to be done by means of the software ROBE Uploader running on PC.
The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches
Calummas XS to the update mode automatically.
Please see https://www.robe.cz/robe-uploader/ for more information.
The Calummas XS have to be operated in the Pass-Through mode only.
To update Calummas XS including the E-box Remote.
1. Update connected LED modules by means of the file Calumma.lib in the ROBE Uploader.
2. Set the E-box Remote to the Standard mode and switch it off/on. Use the file EminereEbox.lib in
the ROBE Uploader for software update of the E-box Remote.
3. After updating the E-box Remote, set the E-box Remote to the Pass-Through mode and switch it off/on.
For more information about updating please see the E-box Remote user manual and E-box Remote Base user
manual.
Examples of connection for software update

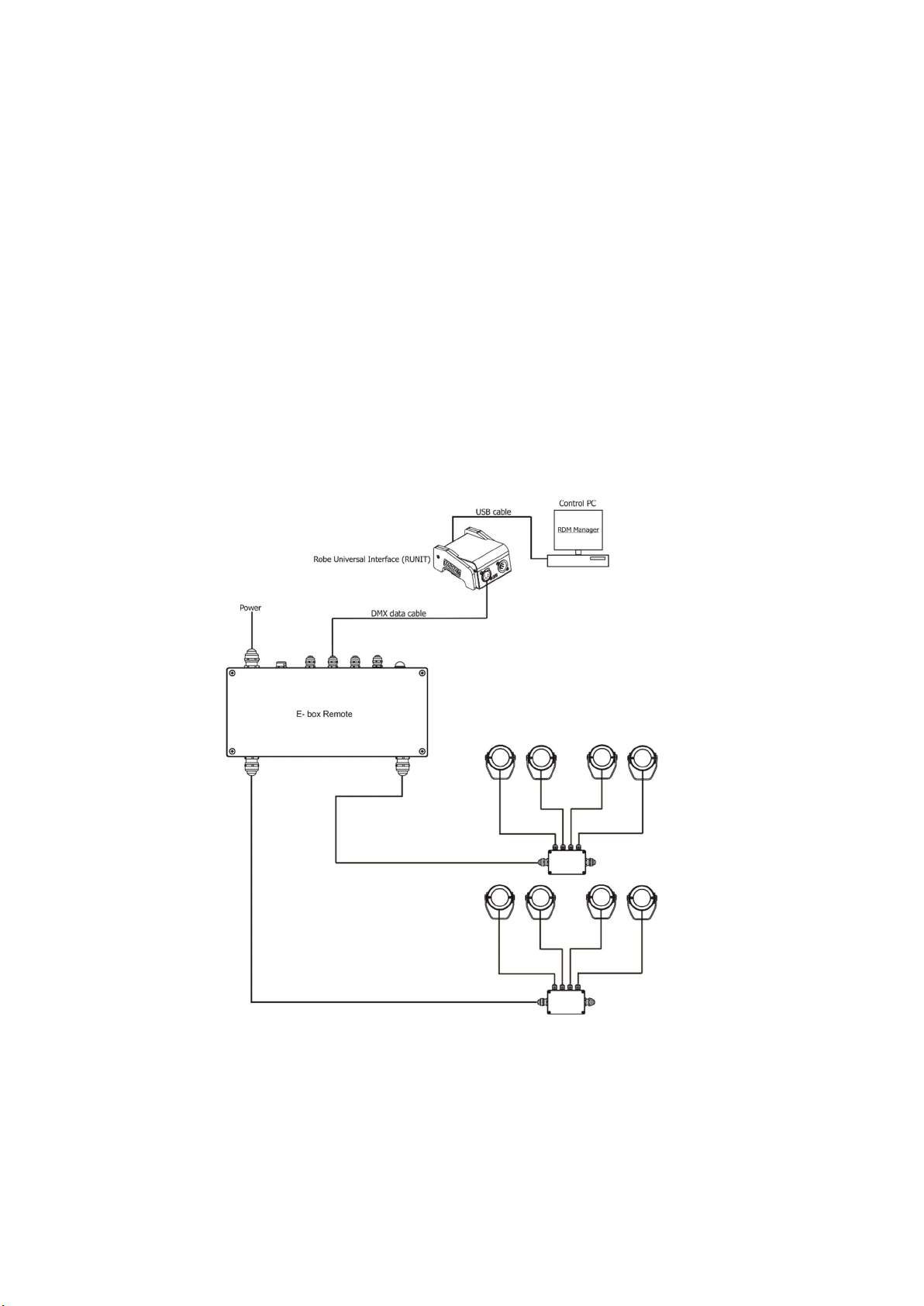

1. By means of DMX connection and Robe Universal Interface.

Calumma XS
15

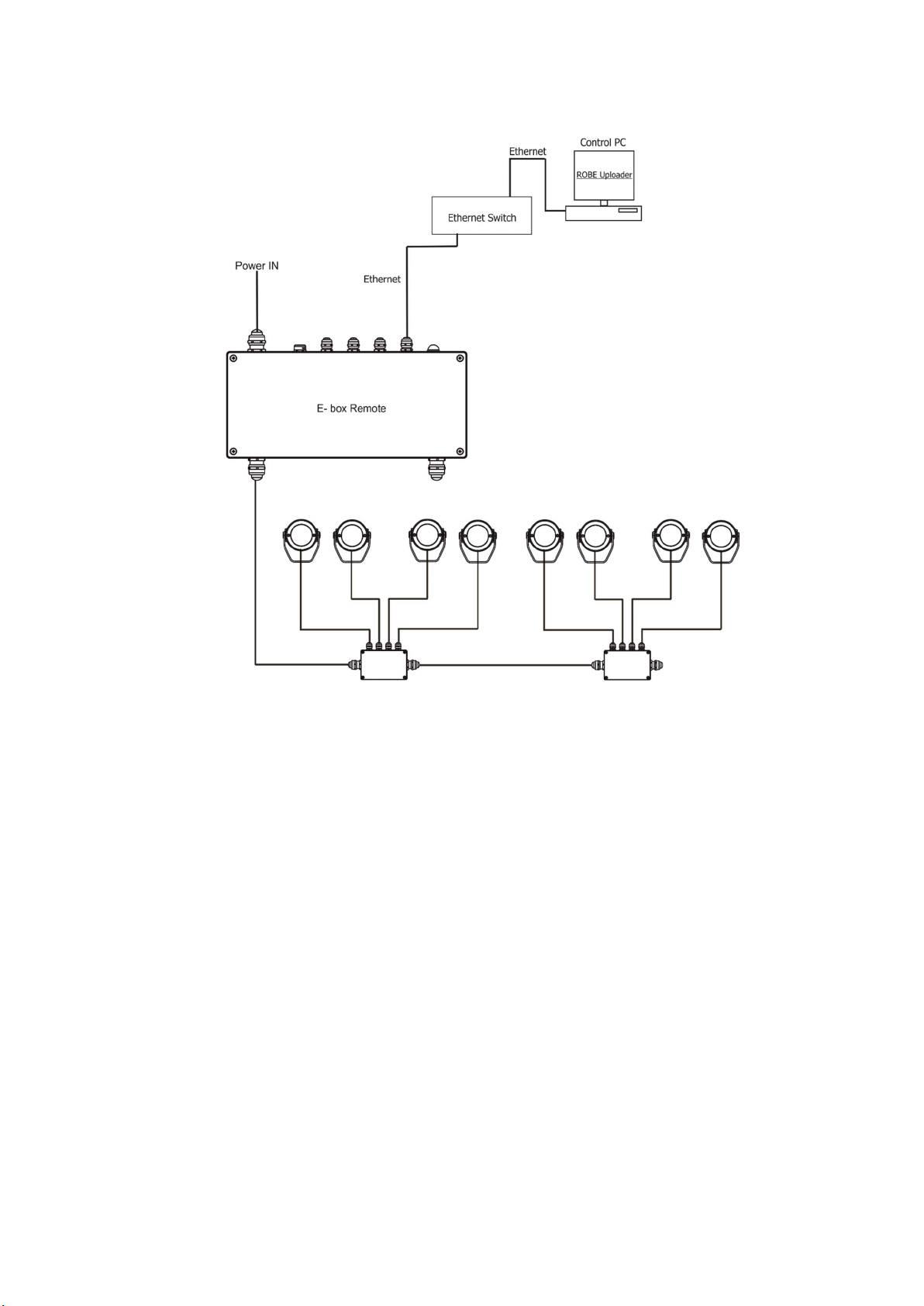

2. By means of the Ethernet connection

Calumma XS
16
6. Technical specifications
Power supply
• Input voltage: 48 V
• Power consumption:
Calumma XS MC: 10 W
Calumma XS SC: 10 W
Optic
• Light source:
Calumma XS MC: one high power multichip LEDs
Calumma XS SC: 4 x high power single chip LED
• Colour variants Calumma XS MC: RGBW (W - 6500 K), RGBA, PW (W - 3000 K)
• Colour variants Calumma XS SC: PW (W - 3000 K)
• Beam Angle Calumma XS MC:
Symetrical: 9°,12°, 15°, 25°, 30°, 45°, 65°, 100°
Bi-symetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°,
15°x90°, 90°x15°, 30°x60°, 60°x30°, 30°x90°, 90°x30°
• Beam Angle Calumma XS SC:
Symetrical: 10°, 15°, 25°, 30°, 45°, 65°, 100°
Bi-symetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°,
15°x90°, 90°x15°, 30°x60°, 60°x30°, 30°x90°, 90°x30°
• Projected Lumen Maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F
Compatible drivers
• E-box Remote
• E-box Remote Basic
Mounting method
• Via yoke
• Adjustability: -180°/+180°
Housing
• High pressure die-cast aluminium body
• Tempered glass
Cooling system
• Convection
Total heat dissipation
• Calumma XS MC: 25 BTU/h (calculated)
• Calumma XS SC: 25 BTU/h (calculated)
Protection factor
• CE: IP 67 (IP 66 junction box)
• US: Suitable for wet location
Impact rating
• IK10
Operating ambient temperature range
• -20°C /+40°C (-4°F /+104°F)

Calumma XS
17
Connection
• Via E-box Remote/E-box Remote Basic
Calumma IN: cable UL 20969 5x 20AWG (P/N 13053481), length 1m standard
Interconnecting cable between junction boxes: SJTW 5x 14AWG (P/N 13053336)
Junction Box for Calumma XS, (1x Output)
Junction Box for Calumma XS, (4x Output)
Weight
• Calumma XS MC: 0.59 kg (1.3 lbs)
• Calumma XS SC: 0.6 kg (1.3 lbs)

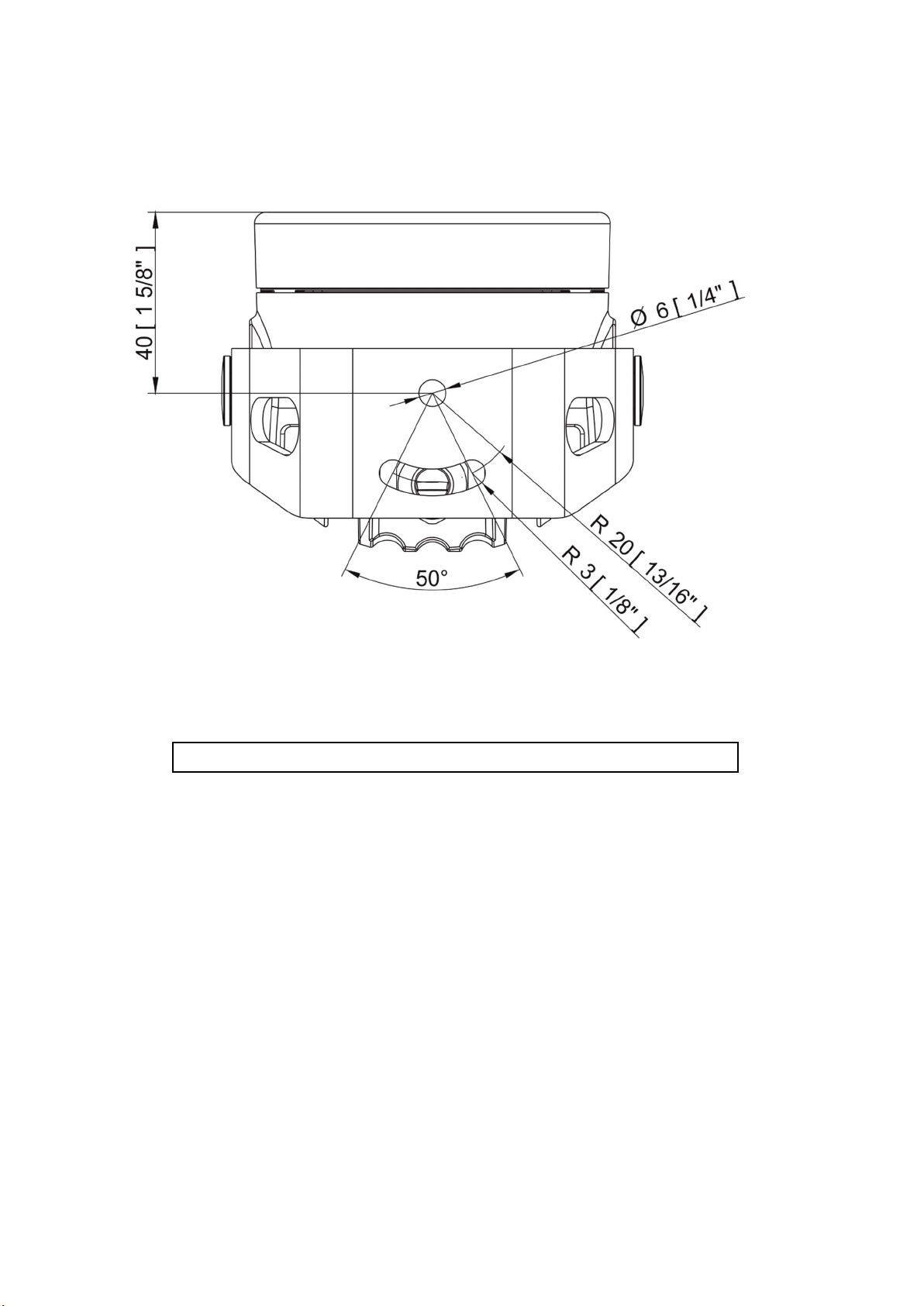

Dimensions (All dimensions in mm [inch])

Calumma XS
18
Junction box with one output
Junction box with four outputs

Calumma XS
19
Included items
• 1 x Calumma XS MC / Calumma XS SC
• 1 x User manual
Optional accessories
Top Hat Calumma XS RAL9011 (P/N 10980732)
Half Top Hat Calumma XS RAL9011 (P/N 10980736)
Tenon Adaptor for Calumma XS
Pole Mount Bracket for Calumma XS
Junction Box for Calumma XS, 1x Output, Ral 9011 (P/N 10980715)
Junction Box for Calumma XS, 4x Output, Ral 9011 (P/N 10980716)
7. Cleaning and maintenance
DANGER !
Disconnect from the mains before starting any maintenance or cleaning work
Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non-
abrasive washing detergent. Rinse it.
Maintenance and service operations are only to be carried out by a qualified person.
Should you need any spare parts, please use ROBE OEM parts.
7.1 Disposing of the product
To preserve the environment please dispose or recycle this product at the end of its life according to the local
regulations and codes.

Calumma XS
20
8. ChangeLog
This section summarizes changes in the user manual.
Version of manual
Date of issue
Description of changes
1.1
1
3
/09/2022
Junction box connection change
1.2
13/10/2022
DMX chart ver. 1.1 added
1.3
14/10/2022
Numbers of connected Calummas to
E
-
box
changed
1.4
05/01/2022
Description of the software update changed
1.5
10/02/2023
DMX chart ver. 1.2 added
1.6
22/02/2023
Cable gland installation changed
1.7
10/03/2023
Beam
angle 12°added at MC version
1.8
17/03/2023
EM
C notes added
Specifications are subject to change without notice.
March 17, 2023
Copyright © 2022-2023 Robe Lighting - All rights reserved
Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici
