Robe Anolis Ambiane XP56 User manual

Version
1
.
1
QR code for user manual

Ambiane XP56 Recessed US
2
Table of contents
1. Attention ..................................................................................................................................................................... 3
2. Installation .................................................................................................................................................................. 4
2.1. DMX and DALI address setting and control ......................................................................................................... 7
2.2 0-10V control ........................................................................................................................................................ 8
3. RDM ............................................................................................................................................................................ 8
4. Optional accessories installation .............................................................................................................................. 10
4.1 Top frame installation ......................................................................................................................................... 10
4.2 Louver installation .............................................................................................................................................. 11
4.3 False ceiling mounting adaptor istallation .......................................................................................................... 12
5. DMX protocols .......................................................................................................................................................... 13
6. Technical specifications ............................................................................................................................................ 15
7. Cleaning and maintenance ....................................................................................................................................... 22
7.1 Software update ................................................................................................................................................. 22
7.2 Disposing of the product .................................................................................................................................... 23

Ambiane XP56 Recessed US
3
1. Attention
The unit must be installed by a qualified electrician in accordance with all national and local electrical and
construction codes and regulations.
The unit was designed for indoor use only.
Do not install the unit near highly inflammable liquids or materials.
Do not allow anything to rest on the unit.
Do not install the unit near an open flame.
Do not install the unit in dirty, dusty or badly ventilated location.
The unit has to be grounded.
A ceiling (structure) intended for installation of the unit(s) must safely hold at least 5 times the weight of the unit(s)
fastened on it.
Sufficient air accessing to the housing of the unit has to be ensured, there must not be any heat or anti-noise
insulation within a 1m x 1m area around the unit (non-IC rated fixture).
Avoid looking directly into the light beam at close range!
Suitable for fastening on Unsuitable for covering by heat insulation
non-flammable surfaces only material
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The equipment (covers and cables) must not be exposed to a high frequency electromagnetic field higher than
3V/m.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility
of multimedia equipment – Emission Requirements according to class B.

Ambiane XP56 Recessed US
4
2. Installation
Always switch off power supply of the unit before connecting or disconnecting the unit

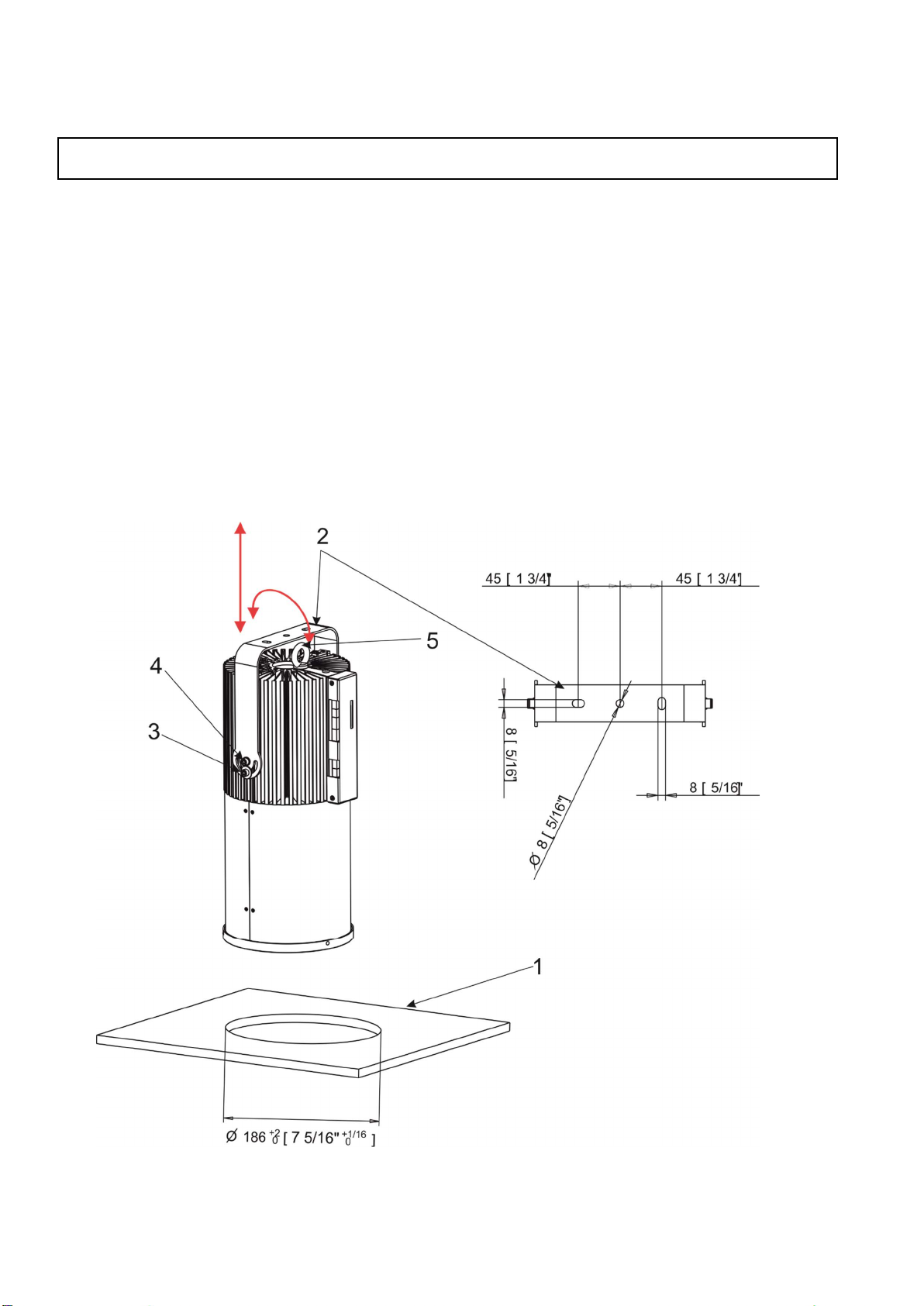

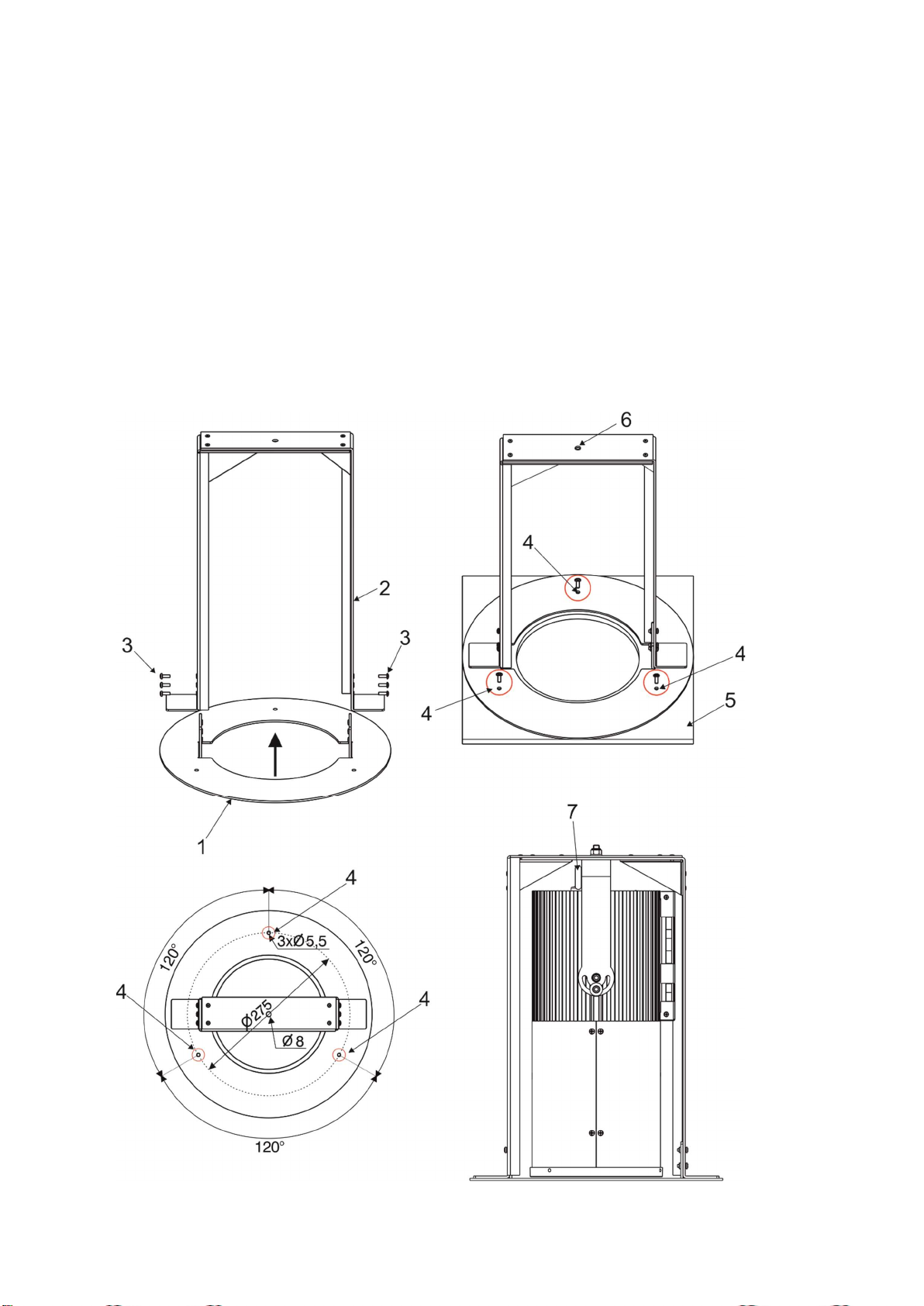

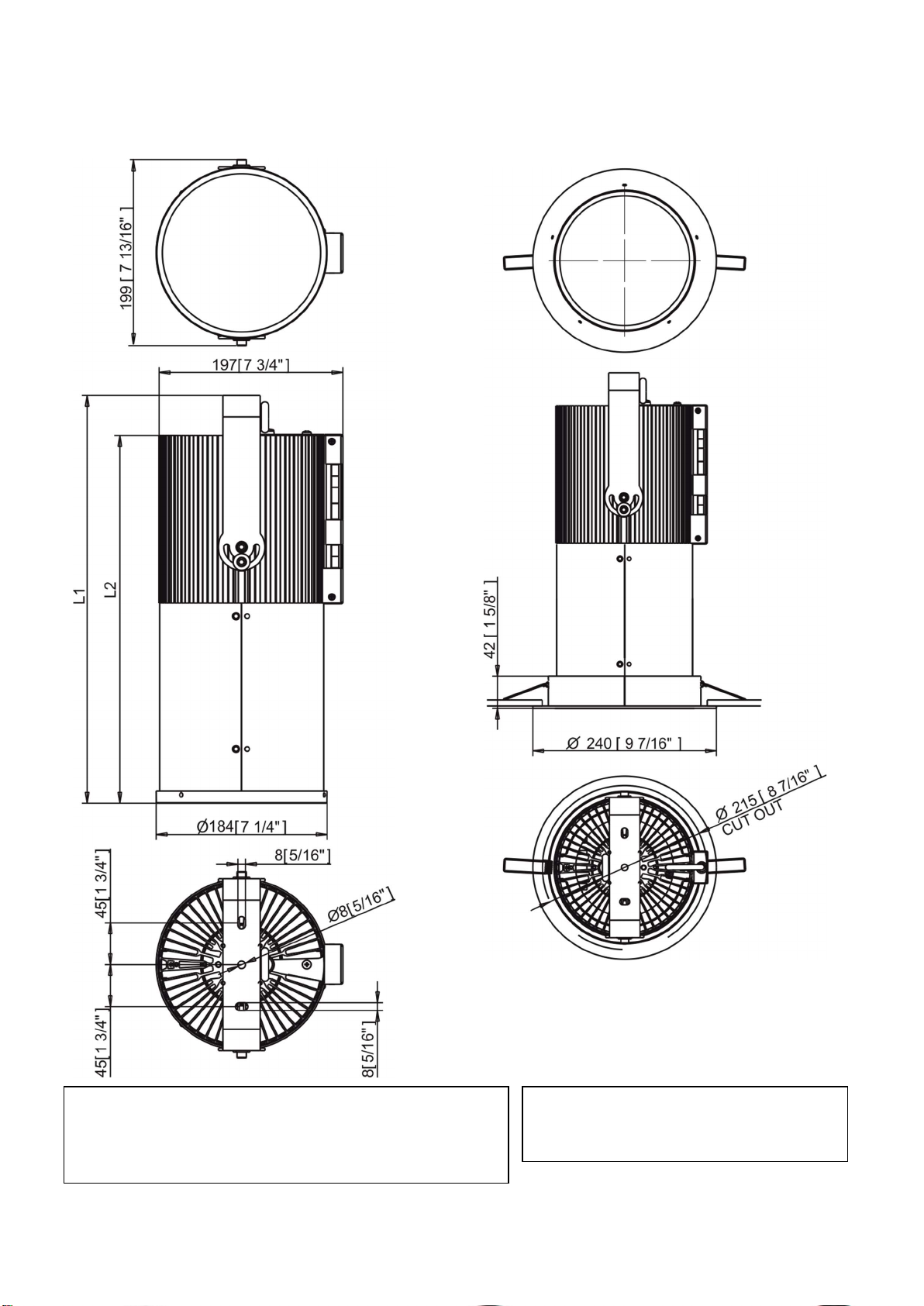

1. Prepare a circular opening (diameter of 186mm) in the lower ceiling (1) as shown on the picture below.
If you will use the Louver for Ambiane XP Recessed, this circular opening in the lower ceiling has to be of
diameter of 190mm.
If you will use the Top frame for Ambiane XP Recessed, this circular opening in the lower ceiling has to be of
diameter of 215mm.
Important: The Top frame for Ambiane XP Recessed has to be under lower ceiling before its inserting on
the housing of the Ambiane XP56 Recessed.
2. The yoke (2) with three holes serves for fastening the Ambiane XP56 Recessed to the ceiling (construction).
To move the yoke (2) up/down, release both screws (3), (4) on each side of the unit.
To tilt the yoke in range of +/-90° from the vertical axis, release the screw (3) on each side of the unit
Use the Allen key (size 5) to release/tighten screws (3) and (4).
The Ambiane XP56 RECESSED has to be secured to the ceiling (construction) via a safety wire pulled through
the mounting lug (5) which serves for securing of the Ambiane XP 56 Recessed to the ceiling (construction) .

Ambiane XP56 Recessed US
5
3. Connect cables with installed connectors to the Ambiane XP56 Recessed.

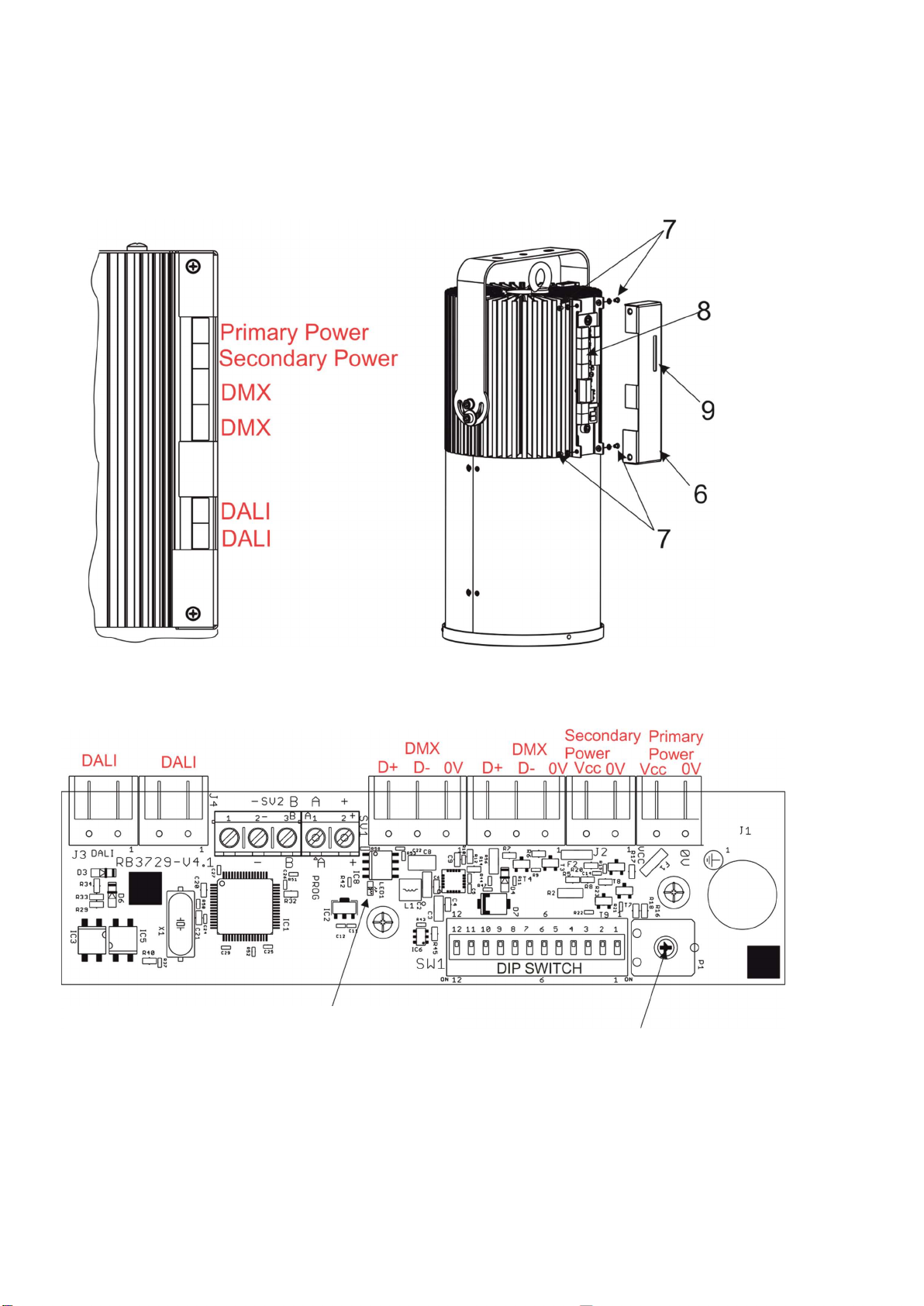

If you need access to the control PCB RB3729 (8), unscrew the four screws (7) on the cover (6).
The aperture (9) in the cover (6) allows you access to DIP switch.
The control PCB (RB3729)
Trimmer for light intensity
setting (for Secondary Power only)
The primary power input serves for a standard power (e.g. Ambiane Power XP).
The secondary power input serves for a backup power (in case that primary power failed).
If both power inputs are under voltage, the primary power has a priority and the secondary power is disabled. In
case of primary power loss, the secondary power is enabled.
The green LED on the PCB signals way of DMX address setting:
LED lights-DMX address is set by means of the DIP switch.
LED does not light- DMX address is set by means of RDM.

Ambiane XP56 Recessed US
6
If the fixture is supplied via the secondary power, the light output of the fixture is a white colour 3200K (RGBW, TW
version) and its light intensity can be set by a trimmer.
The fixture can be controlled by one of the following methods: DMX 512
DALI
0-10V (for PW or TD version only)
The fixture is equipped with two DMX and DALI connection blocks for easy connection to DMX or DALI chain
(In/Out method).
Primary power connection
Connector
Vcc
0V
Function
Power +
Power
-
Secondary power connection
DMX connection
Connector
D+
D
-
0V
Function
Data +
Data
-
Data ground
(shielding)
0-10V connection
Connector
D+
0V
Function
+10V
0V
DMX connectors are used for 0-10V control
Max. length of the supply cable between the Ambiane XP56 Recessed and the Ambiane Power XP and Ambiane
Power Rack is defined by the following table:
Circular cross
-
section of wire
Max. cable length
0.5 mm
2
15 m
1 mm
2
30 m
1.5 mm
2
45 m
2 mm
2
60 m
2.5 mm
2
75 m
Connector
Vcc
0V
Function
Power +
Power
-

Ambiane XP56 Recessed US
7
2.1. DMX and DALI address setting and control

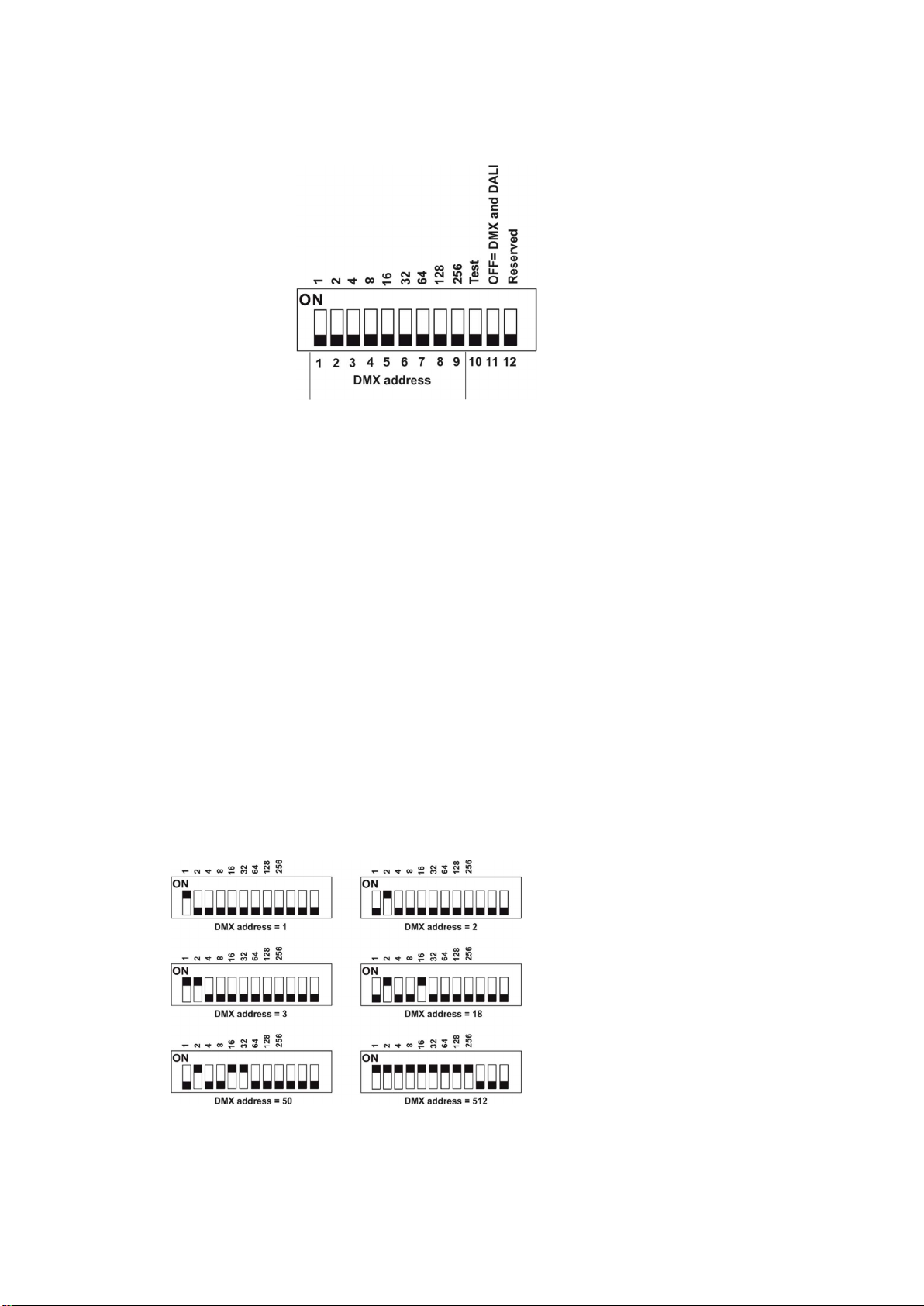

The DIP switch on the control PCB (RB3729) allows you to set DMX address and run a test light.
DIP 10 - if it is switched to ON=test light (the fixture lights at 3200K (for RGBW and TW version))
DIP 11 - has to be switched to OFF position to receive DMX 512 and DALI, position ON=0-10V control
Note: If DIP 11=OFF (fixture is controlled by DMX and DALI), the last coming command switches the fixture to the
corresponding operation mode (DMX operation by a DMX command, DALI operation by a DALI command). E.g. the
fixture stays in a DALI operation and last coming command is a DMX command which switches the fixture to DMX
operation. Next command is a DALI command and switches the fixture to the DALI operation etc.
If you need the permanent DALI operation, you have to send a DALI command 8 to the fixture.
DMX control
The DMX start address, is the first channel used to receive instructions from the DMX controller. The address may
be any channel from 1 to 512. DMX address can be set either by DIP switch or by RDM. DMX address set by RDM
overwrites address set by DIP switch and vice versa. The green LED on PCB signals way of DMX address setting:
LED lights-DMX address is set by means of the DIP switch.
LED does not light-DMX address is set by means of RDM.
The DIP 11 has to be set to OFF position.
Example of DMX addresses:

Ambiane XP56 Recessed US
8
DALI control
Addressing of the fixture has to be made by means of an external DALI controller.
If you need to start the permanent DALI control of the fixture (fixture will not respond to DMX commands), the
external DALI controller has to send activating command (8=ON).
If you need to stop the permanent DALI control of the fixture, the external DALI controller has to send deactivating
command (0=OFF).
2.2 0-10V control
DIP 11 has to be set in ON position. 0-10V operation has priority to DALI and DMX commands. The option is
applicable for the PW and TD version of the Ambiane XP56 Recessed only.
3. RDM
This fixture supports RDM operation. RDM (Remote Device Management) is a bi-directional communication
protocol for use in DMX 512 control systems, it is the new open standard for DMX512 device configuration and
status monitoring.
RDM allows you to set a DMX address, select DMX mode, readout software version of the fixture etc. It is also used
for fixture software update by means of the Robe Uploader.
RDM model ID for the Ambiane XP56 Recessed is 0x0109.
Parameter ID
Discovery
command
SET command
GET command
DISC_UNIQUE_BRANCH
*
DISC_MUTE
*
DISC_UN_MUTE
*
DEVICE_INFO
*
SUPPORTED_PARAMETERS
*
SOFTWARE_VERSION_LABEL
*
DMX_START_ADDRESS
* *
IDENTIFY_DEVICE
* *
DEVICE_MODEL_DESCRIPTION
*
MANUFACTURER_LABEL
*
DEVICE_LABEL
* *
DMX_PERSONALITY
* *
DMX_PERSONALITY_DESCRIPTION
*
RESET_DEVICE
*
SENSOR_VALUE
*
*
SENSOR_DEFINITION
*

Ambiane XP56 Recessed US
9
SLOT_INFO
*
SLOT_DESCRIPTION
*
DEFAULT_SLOT_VALUE
*
PARAMETER_DESCRIPTION
*

Ambiane XP56 Recessed US
10
4. Optional accessories installation
4.1 Top frame installation
The Top frame for Ambiane XP56 Recessed (2) serves for covering of the opening in the lower ceiling (1) if it is
required.
Note: The Top frame has to be placed under lower ceiling before sliding it onto the housing of the Ambiane XP56
Recessed.

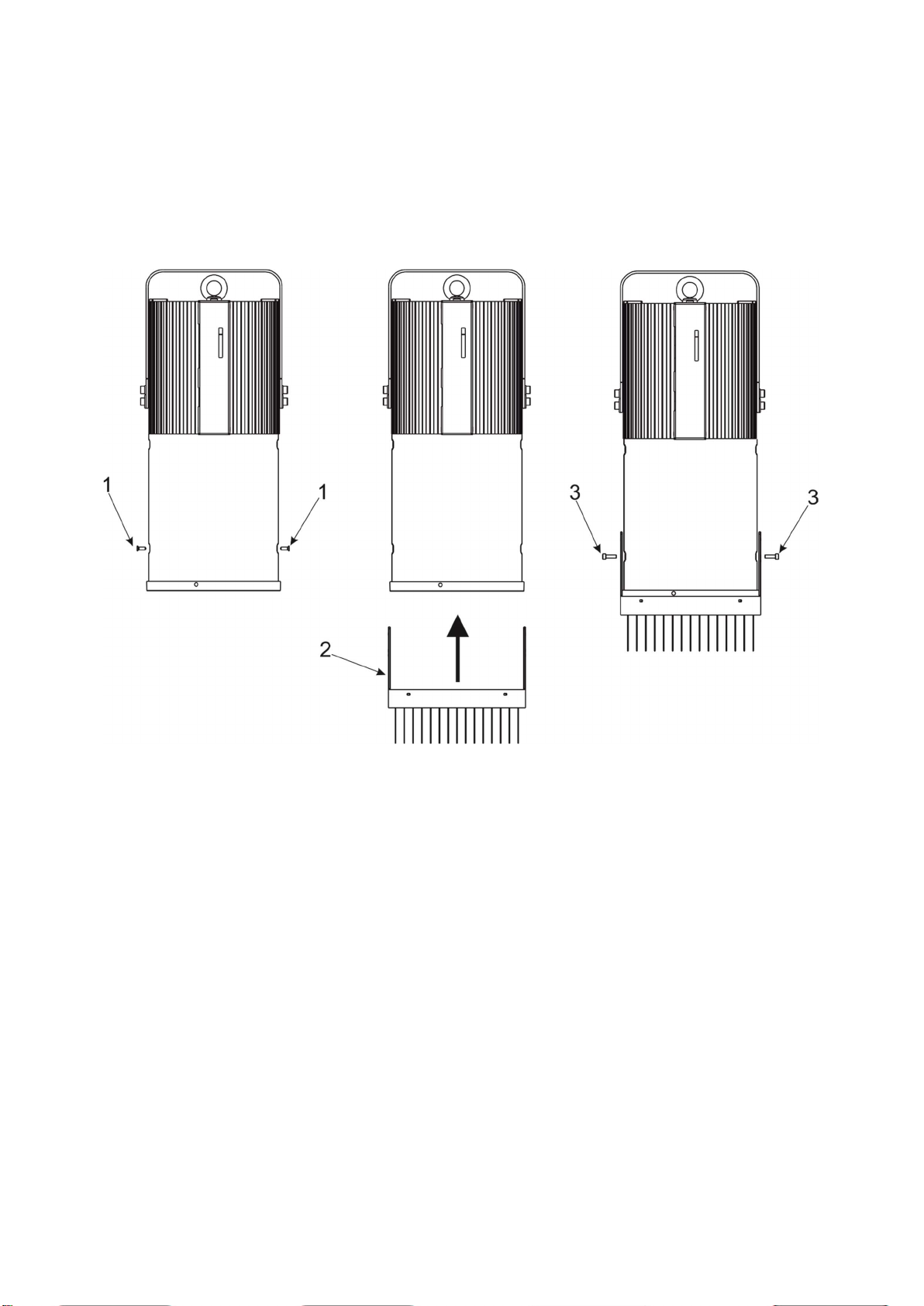

1. Slide the Top frame (2) onto the housing of the Ambiane XP56 Recessed through the opening in the lower
ceiling.
2. Secure the Top frame in a right position by means of two spring locks (3) which have to lean against ceiling (1).
