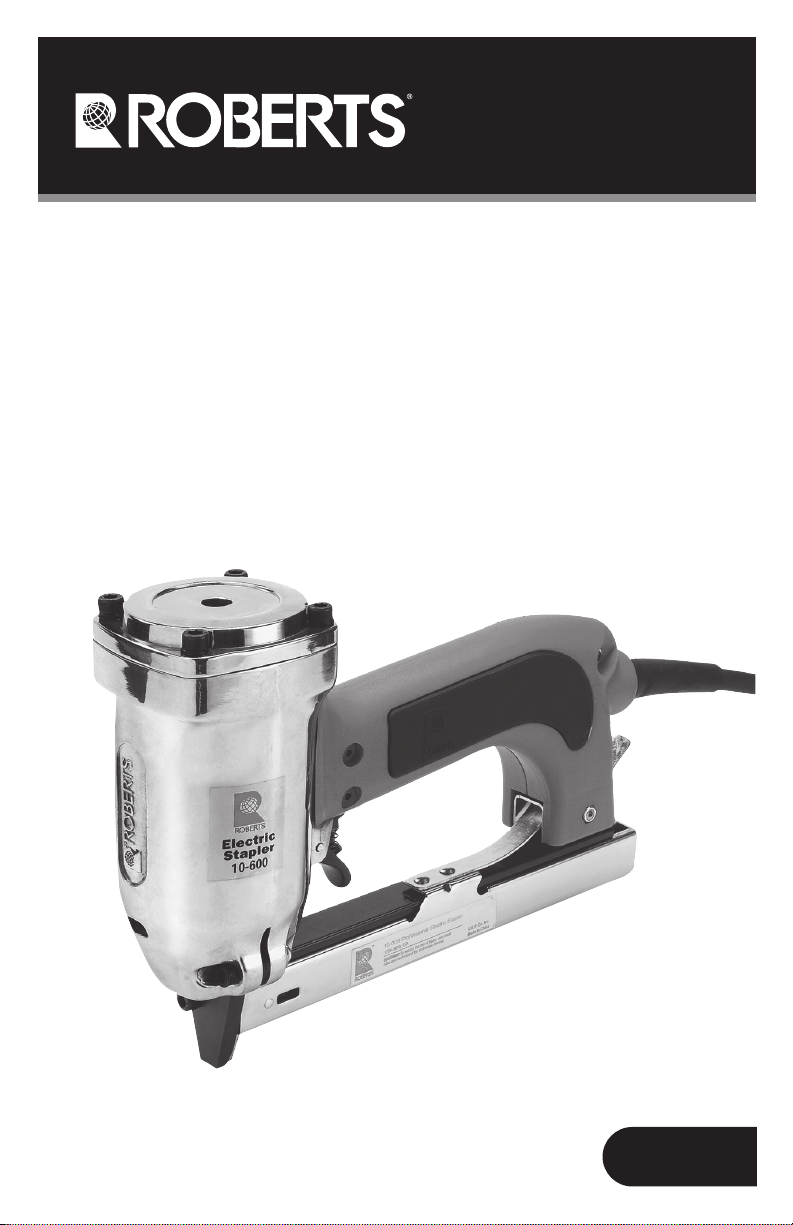

Roberts 10-600 User manual

10-600
4.76mm Crown Electric Stapler
OWNER’S MANUAL

PLEASE READ THIS
MANUAL CAREFULLY
BEFORE USING TOOL.
WARNING
It is important to read
and understand these
instructions fully before
using the tool. Failure to
follow these instructions
may result in electric shock,
fire and/or serious
personal injury.
SAVE THESE INSTRUCTIONS.
General Safety Instructions:
Work Area
Keep your work area clean and well
lit. Accidents may result from cluttered
benches and dark areas. Do not operate
power tool in explosive atmospheres,
such as in the presence of flammable
liquids, gases or heavy thick dust.
Power tools create sparks, which
may ignite such substances. Keep
bystanders, children and visitors away
while operating tool. Such distractions
can cause loss of control.
Electrical Safety
• Don’t expose power tool to rain or
wet conditions. Water can increase
the risk of electric shock.
• Never abuse power cord or carry the
tool by the cord or yank the cord to
disconnect it from a receptacle. Keep
cord away from heat, oil and sharp
edges at all times.
Personal Safety
• Guard against electric shock. Prevent
body contact with grounded surfaces
such as pipes, radiators, ranges, etc.
• KEEP AWAY FROM CHILDREN AND
VISITORS. Do not let visitors come in
contact with tool or extension cord.
• Store idle tools in a dry and
locked-up place; high and out
of the reach of children.
• Stay alert when operating tool at
all times. Use common sense and
carefully watch what you are doing.
Do not operate tool if you are tired or
under the influence of drugs, alcohol
or medication.
• Ensure proper dress by NOT wearing
clothing or jewelry that may get
caught in moving parts. Wear rubber
gloves and non-skid footwear,
especially when working outdoors.
Protect and contain long hair with
proper coverings.
• ALWAYS WEAR EYE PROTECTION
such as OSHA required “Z87” safety
glasses. Also consider
the use of earplugs, hard
hats or other equipment
specific to the job for
adequate personal
protection.
Tool Use and Care
• Do not force tool when
using. Tool is more
efficient and safe when
used at the rate for which it was
intended.
• Use the right tool. Do not use tool for
a purpose not intended.
• Never abuse power cord.
• Keep tools clean to maintain
efficient and safe performance.
Follow instructions for lubricating
and changing accessories. Inspect
tool cords periodically to check for
damage. If damage occurs, have the
tool repaired by an authorized facility.
Keep handles dry, clean and free
from oil/grease.
• When operating tool, DO NOT
overreach. Keep proper footing and
balance at all times.
• Disconnect tool when not in use,
before servicing and when
changing accessories.
• Avoid unintentional starting of the
tool by making sure switch is OFF
and tool is unplugged before
carrying/transporting tool.
• Use only extension cords intended for
outdoor use when operating
tool outdoors.
• Before using tool, check for damaged
parts or ensure all parts are operating
correctly and will perform as
designed. Any damaged parts
should be repaired or replaced by
an authorized facility.
• When servicing, use only identical
replacement parts ordered from

an authorized service facility. DO
NOT attempt to modify or create.
accessories not recommended for
the tool. Alterations, modifications
or misuse could result in serious
personal injury.
• Never point driving tool with
operational fasteners at yourself or
any other person.
Tool Specific
Safety Instructions:
• NOTICE: NEVER POINT THE
STAPLER AT ANOTHER PERSON
OR TOWARD ANYTHING YOU DO
NOT WANT TO STAPLE. SEVERE
BODILY INJURY CAN OCCUR.
ALWAYS HAVE THE STAPLER HEAD
SECURELY SEATED ON OBJECTS
TO BE STAPLED BEFORE PULLING
THE TRIGGER. UNPLUG WHEN NOT
IN USE.
• use Roberts Staples 88-4115 15mm
with 4.76 crown or similar. Use of
accessories that are not designed for
the tool may cause personal injury
and damage to the tool.
• Before connecting tool to a power
source (outlet, receptacle, etc.), be
sure that the power supply is of the
same voltage as specified on the
tool. Use of a higher voltage then
specified could result in a serious
injury to the user and damage to the
tool. Use of a lower voltage could
also cause injury or damage.
• Ensure tool is grounded while in
use to protect yourself from electric
shock. Use only 3-wire extension
cords that have 3-prong grounding
type plugs and 3-pole receptacles
that accepts the tool’s plug. Replace
or repair damaged cords. Cords
should be tested and tagged
regularly.
Safety Instructions:
• Only hold plastic handle when tool
is in use. DO NOT touch tool’s
metal parts.
• Do not use tool on a hard surface
such as rock or concrete. Personal
injury or damage to the tool
may result.
• When using tool in high elevations,
ensure proper footing and that no
one is below the work area that could
possibly be injured.
• Improper use of an extension cord
may result in the risk of fire and/or
electric shock. If an extension cord
must be used, always ensure the
prongs are the same number, size
and shape to fit inside the plug and
that the extension cord is properly
wired, in good condition and the wire
size is large enough to carry the full
amp rating of the tool. Use only 12
gauge or 14 gauge extension cords
with this tool. An undersized cord will
cause a drop in tool voltage resulting
in loss of power and overheating. If in
doubt, use the next heaviest gauge.
The smaller the gauge number, the
heavier the cord.
• Take special caution when tacking
thin material. Fasteners may
penetrate through such material and
cause possible harm to anything or
anyone in the immediate area.
• Never connect tool to a DC
power source.
• During operation, the stapler head
may be warm to the touch. This is
normal. However, if the tool begins
to feel hot, slow down tacking speed.
If the unit continues to be hot,
discontinue use until it cools.
• Do not drive fasteners on top of other
fasteners or with tool at too steep of
an angle. Fasteners may ricochet and
injure someone.
• Do not drive fasteners too close to
the edge of the work materials. The
work piece is likely to split and the
fasteners could fly free or ricochet
and injure someone.

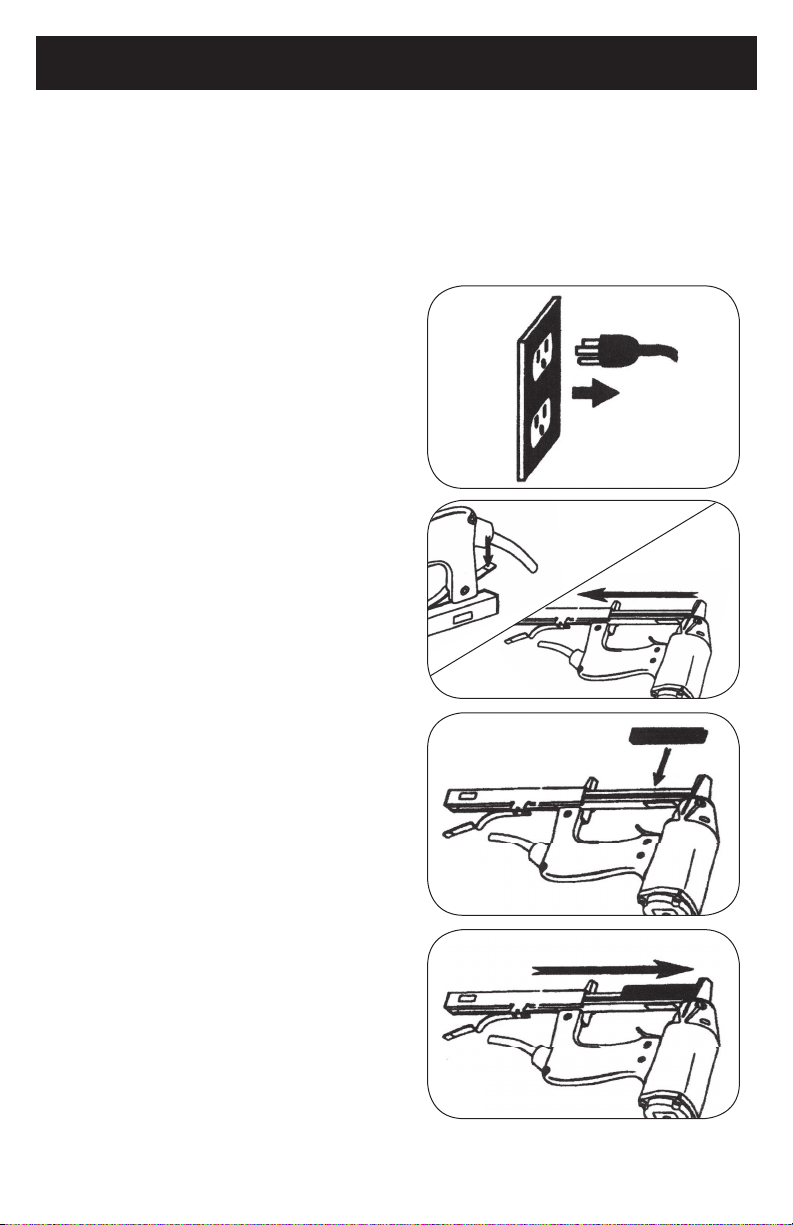

Disconnect the power supply.
Depress the magazine latch.
Pull back on the magazine cover.
Insert a strip of fasteners into
the magazine. Make sure the
staple’s crown is resting
on the magazine.
Push the magazine cover
forward until the latch catches.
Operating Instructions
AVOID BLANK SHOTS THAT COULD
SHORTEN THE TOOL’S COMPONENT LIFE.
Loading Staples
Extension Cords
Use only 12 or 14 gauge extension cords with the 10-600 Electric
Stapler. For maximum performance, use the shortest length
extension cord possible.

CAUTION: ALWAYS DISCONNECT THE POWER SUPPLY TO
THE TOOL BEFORE ADJUSTING, CLEARING JAMS, SERVICING,
RELOCATING AND DURING NON-OPERATION.
NOTE: USE ROBERTS STAPLES 88-4115 TO MINIMIZE
POSSIBILITY OF JAMMING.
Clearing Fastener Jams inside the Magazine
1. Disconnect the power supply.
2. Press down the latch and pull back on the magazine.
3. Remove jammed fasteners using needle nose or standard pliers.
4. Reinsert staples in magazine.
5. Push the magazine cover forward until the latch catches.
6. Reconnect power supply.
Clearing Fastener Jammed in the Discharge Area
1. Disconnect the power supply.
2. Remove jammed fasteners using needle nose or standard pliers.
3. If fastener cannot be reached from discharge area, refer to
“Clearing Fastener Jams Inside the Magazine” above.
4. Reinsert staples in magazine.
5. Push the magazine cover forward until the latch catches.
6. Reconnect power supply.
General Maintenance
1. Keep all screws tight. Loose screws could result in unsafe operations
and breakage of parts.
2. Occasionally wipe the inside of the magazine and the “nose” with
light oil. Make sure dirt and debris is removed from the trigger area
magazine, and the staple “chute”.
3. Wipe tool clean daily and inspect for wear. Use non-flammable
cleaning solutions only if necessary. Never soak tool, for such
solutions may damage tool parts and electrical components.
4. Keep fastener discharge area clean at all times. Any residues could
cause jamming.
SERVICE: Return your stapler to your Roberts dealer or
distributor for servicing of any problem.
Maintenance & Inspection

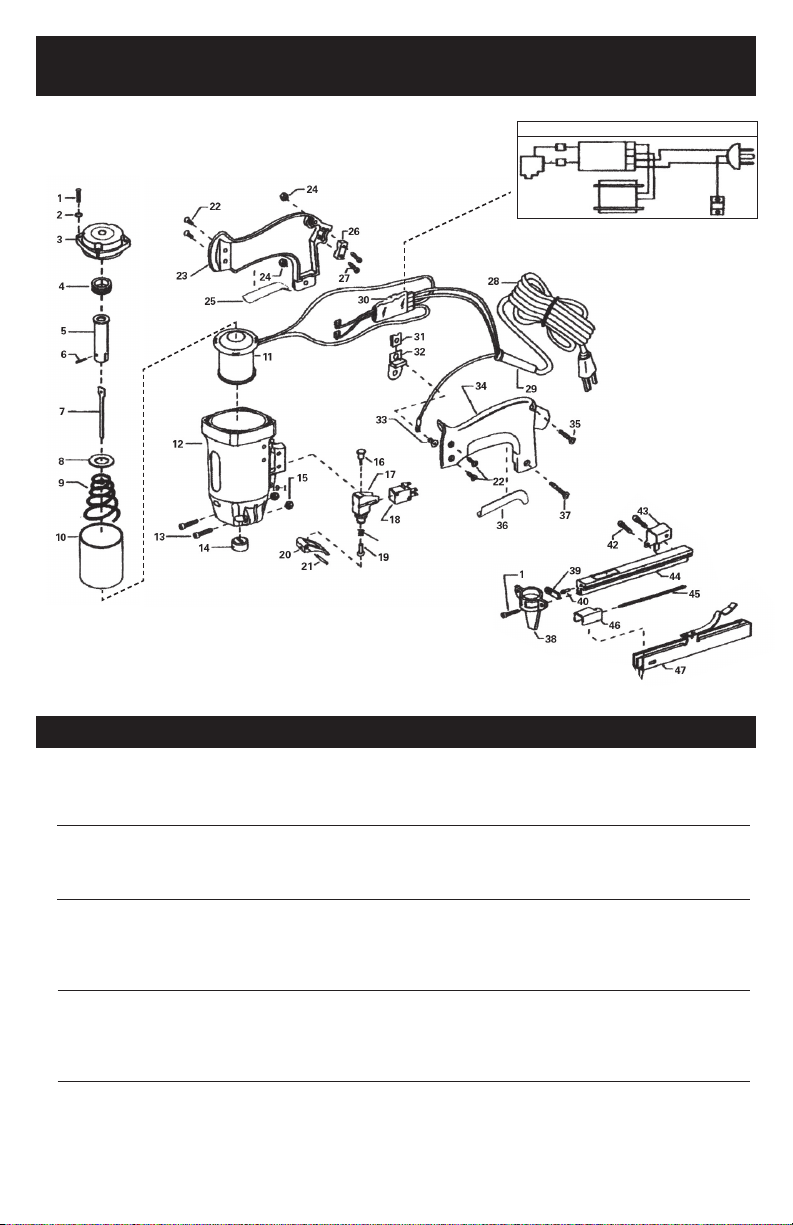

ROBERTS 10-600
3/16” CROWN ELECTRIC STAPLER
REPLACEMENT PARTS LIST
120 Volt Wiring Diagram
Power
Supply
Coil
White
Green
Ground
Clip
Red
Red
Red
Trigger
Switch
Line
Cord
Plug
Black
Blue
SKU# Description Contents of Kit
Part # Description
10-600-01 Cap Assembly 1 Hex Bolt (4)
2 Washers (4)
3 Cap Casting
10-600-02 Driver Assembly 4 Retainer
5 Drive Plunger
6 Roll Pin
7 Driver Blade
10-600-03 Solenoid Assembly 8 Retaining Washer
9 Return Spring
10 Sleeve
11
Coil Assembly w/ Lead Wires
10-600-04 Head Assembly 12 Head Casting
13 Bolts (2)
14 Nose Bumper
15 Lock Nuts

REPLACEMENT PARTS LIST (continued)
SKU # Description Contents of Kit
Part # Description
10-600-05 Trigger Assembly 16 Switch Plunger
17 Switch Housing
18 Switch
19 Plunger
20 Trigger
21 Trigger Pin
10-600-06 Handle Assembly 22 Screws (2)
23 Handle (Right)
24 Nut
25 Grip Insert (Right)
34 Handle (Left)
35 Bolts
36 Grip Insert (Left)
37 Bolt
10-600-07 Fuse Holder Assembly 26 Fuse Holder
27 Screws (2)
10-600-08 Cord Assembly 28 Power Cord - 14 gauge
29 Connector Jacket
10-600-09 Power Supply 30 Power Supply
10-600-10 Nose Casting 38 Nose Casting
10-600-11 Magazine Assembly 39 Plate
40 Pin
42 Bolt
43 Magazine Support
44 Rack
45 Spring
46 Pusher
47 Magazine Base
10-600-12 Staple “Pusher” & Spring 45 Spring
46 Staple Pusher
10-600-14 Spare Fuses Set of 3 Fuses

Made in China
Roberts Consolidated, Inc.
Boca Raton, FL 33487
www.robertsconsolidated.com
www.qep.com F2717-10392
