RoboMaster S1 Education Expansion Set Core User manual

RoboMaster EP Core
Quick Start Guide

Introduction
The RoboMaster TM S1 Education Expansion Set Core (EP Core) is an all-in-one education
solution for STEAM classrooms. It provides an official SDK that can be used with powerful
mechanical accessories and interfaces to expand hardware possibilities. Together with rich
teaching resources and a continually-updated competition database, the EP Core delivers a
new classroom experience to make education easier for both teachers and students,
expanding the boundaries of the future of education.
EP Core Diagram
1. Omnidirectional Chassis
2. Chassis Extension Platform
3. Gripper
4. Robotic Arm
5. DJI 1528BA Servo
6. Intelligent Controller
7. Motion Controller (Built-in)
8. Camera
9. Speaker
10. Mecanum Wheel
11. Armor
12. Intelligent Battery (Built-in)
1
2
3
4
5
6
7
8
9
10
11
12

Powering On the EP Core
Follow the steps below to power on the robot:
1. Press the rear armor release button to open the chassis rear armor.
2. Install the intelligent battery into the battery compartment.
3. Press and hold the power button to turn on the battery.
4. Close the chassis rear armor.
Connecting the EP Core and the App
The EP Core must be connected to the RoboMaster app in order to use. Users can learn how to connect via Wi-Fi or via a router
in the Connection Mode page. Follow the prompts to connect the EP Core to the app. Refer to the Connecting section for more
information.
Initializing the EP Core with the App
Activating the EP Core
After connecting, use your DJI account to activate the EP Core in the RoboMaster app. Activation requires an internet connection.
Using the RoboMaster App
With the dedicated RoboMaster app, users can access rich educational resources and several gameplay modes. The app can be
used with a touchscreen or a gamepad and is available on iOS, Android, Windows and Mac. Users on different platforms can
even play together at the same time. Users can also write programs easily and apply them or share with friends instantly using the
RoboMaster app. This section uses the RoboMaster app on iOS as an example. The specific interface may vary depending on the
device used.
Omnidirectional Chassis
The EP Core chassis is an omnidirectional motion platform based on the Mecanum wheels, which can be used to move forward,

traverse, skew, rotate, or a combination of movements at once.
Motion Controller
The motion controller is the core module for the EP Core chassis movement, providing a rich external module interface for video
transmission and connecting the battery, armor, and motors. It also integrates an omnidirectional wheel motion control algorithm,
power management system, motor management system, and a chassis management system.
Mecanum Wheel

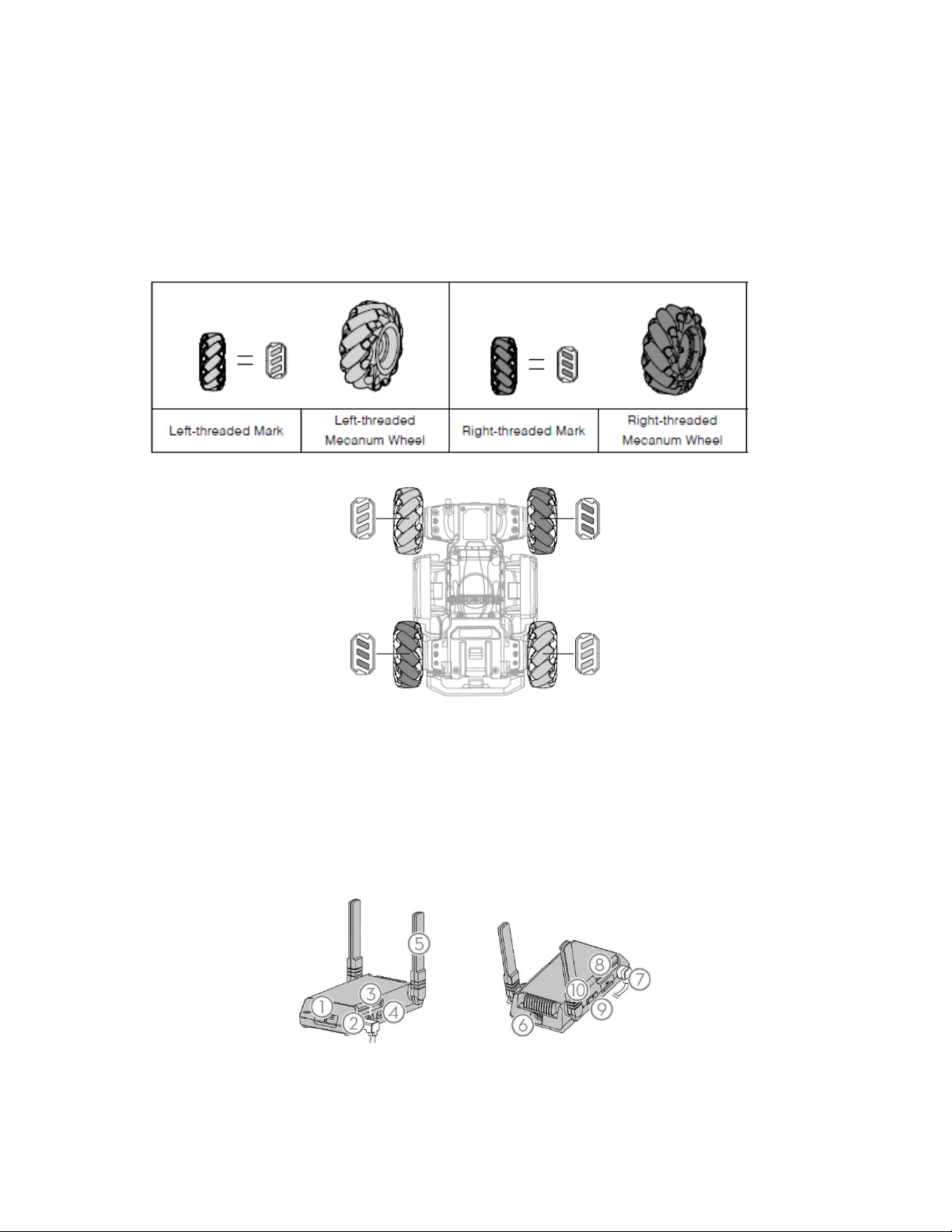

The Mecanum wheel is a commonly used robotic omnidirectional chassis moving solution, which is divided into two types: left-
threaded and right-threaded. The four-wheeled chassis requires two pairs of Mecanum wheels.
When installing, you can check the left-threaded mark or right-threaded mark on the bottom of the chassis, and install the left-
threaded or right-threaded Mecanum wheel accordingly.
Armor Modules
A total of four armored modules are installed on the four sides of the EP Core chassis, which protect the internal structure of the
EP Core.
All armor is equipped with a hit detector, which is used to detect where the EP Core is struck and sends feedback to the intelligent
controller to deduct hit points from the corresponding hit point bar.
Each hit detector module is represented by an LED light and is visible under the armor module.
Intelligent Controller
The intelligent controller is integrated with multiple systems including a video transmission system, game system, and Scratch
programming system. It supports six smart modules, including line recognition, vision marker recognition, person recognition, clap
recognition, gesture recognition, and EP Core robot recognition.
1. microSD Slot
Compatible with a microSD card that can read and write faster than 10 MB/s, supporting up to 64 GB.
2. Camera Port
Used to connect to the camera.

3. Speaker Port
Used to connect to the speaker.
4. Autonomous Program Button
Scratch programs written by the user can be set as autonomous programs, which can be loaded directly onto the EP Core. Press
the Autonomous Program Button to run the program.
5. Antennas
For optimal Wi-Fi connection, set the intelligent controller antennas at 90°.
6. Reserved Port
Unused port.
7. CAN Bus Port
8. Micro USB Port
Used to connect to the computer.
9. Connect Mode Switch
Used to switch between connecting via Wi-Fi or a router.
10. Connect Button
The connect button functions differently when connecting via Wi-Fi or router.
Connection to Wi-Fi: Once the Wi-Fi password is forgotten, press and hold this button for five seconds to reset the Wi-Fi
password.
Connection to Router: When scanning the QR code with the EP Core to join a network, press this button first.
⚫DO NOT pull on the antenna.
⚫If the intelligent controller antenna is damaged, the performance of the EP Core will be affected. Contact
DJI if the antenna is damaged.
Camera
Designed for EP Core robots, the EP Core camera features a 1/4-inch sensor with 5 million pixels and a FOV of 120°, allowing
users to control the EP Core from a first-person perspective.
Clean the lens regularly to avoid blurring or halos. Use a special lens cleaner to make sure that there is no foreign matter on the
lens after cleaning and that it does not damage the lens.
Speaker
The EP Core speaker is compatible with a 2.5 mm device with a power rating of 2 W. The speaker provides users with a more
immersive experience with sound effects such as when the EP Core launches gel beads or is hit by another EP Core.
Operating Your EP Core
Checking Before Use
Check the following each time you use the EP Core:
1. Make sure the motion controller is properly installed, all cables are connected, and the screws on the chassis rear cover are
tightened.
2. Make sure the intelligent controller, blaster, camera, and speaker are connected.
3. Make sure the microSD card is inserted.
4. Make sure the intelligent battery is fully charged and properly inserted.
5. For optimal Wi-Fi connection, set the intelligent controller antennas at 90°.
Operating the EP Core Using a Mobile Device
It is recommended to use the EP Core on flat surfaces such as wooden floors and carpets. Uneven surfaces such as sand or
rocks may damage the wheels or motors.
Specifications
RoboMaster EP Core
Chassis Speed Range 0-3.5 m/s (forward)
0-2.5 m/s (backward)
0-2.8 m/s (sideward)
Max Chassis Rotational Speed 600°/s
Intelligent Controller
Latency[1] Connection via Wi-Fi: 80-100 ms
Connection via Router: 100-120 ms (unobstructed, free of
interference)
Live View Quality 720p/30fps
Operating Frequency 2.4 GHz，5.1 GHz[2]，5.8 GHz

Operating Mode Connection via Wi-Fi, Connection via Router
Max Transmission Distance[3] Connection via Wi-Fi:
FCC, 2.4 GHz 140 m, 5.8 GHz 90 m
CE, 2.4 GHz 130 m, 5.8 GHz 70 m
SRRC, 2.4 GHz 130 m, 5.8 GHz 130 m
MIC, 2.4 GHz 130 m
Connection via Router:
FCC, 2.4 GHz 190 m, 5.8 GHz 300 m
CE, 2.4 GHz 180 m, 5.1 GHz 70 m
SRRC, 2.4 GHz 180 m, 5.8 GHz 300m
MIC, 2.4 GHz 180 m
Transmission Standard
IEEE802.11a/b/g/n
Camera
Sensor
CMOS 1/4″; Effective pixels: 5MP
FOV
120°
Max Still Photo Resolution 2560×1440 pixels
Max Video Resolution
FHD: 1080p/30fps
HD: 720p/30fps
Max Video Bitrate
16 Mbps
Photo Format
JPEG
Video Format
MP4
Supported SD Cards
Supports microSD cards with a capacity of up to 64 GB
Operating Temperature Range
-10℃ to 40℃ (14 to 104 °F)
Intelligent Battery
Capacity
2400 mAh
Maximum Charging Voltage
12.6 V
Nominal Charging Voltage
10.8 V
Battery Type
LiPo 3S
Energy
25.92 Wh
Battery Life (in use) 35 mins (measured at a constant speed of 2.0 m/s on a flat
surface)
Battery Life (on standby) Approx. 100 mins
Weight
169 g
Operating Temperature Range
-10℃ to 40℃
Charging Temperature Range
5℃ to 40℃
Maximum Charging Power
29 W
App
iOS iOS 10.0.2 or later
Android Android 5.0 or later
Others
Recommended Routers TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China)
TP-Link Archer C7; NETGEAR X6S (International)
Recommended outdoor power supply
solution for routers
Portable laptop charger (with the same input power of the
router)
[1] Measured in an interference-free and unobstructed environment with a distance of approximately one meter
between the mobile device, the router, and the EP Core. The iOS device used was an iPhone X. The results
of testing with differentAndroid device may be different.
[2] Outdoor use of the 5.1 GHz and 5.8 GHz frequency bands is prohibited in some areas. Always follow all
local laws and regulations in your country or region.
[3] Measured in an interference-free and unobstructed environment.
For Connection viaWi-Fi, the mobile device used for testing was a sixth-generation iPad (released in 2018).

For Connection via Router, several router models were used for testing. FCC: TP-Link Archer C9; SRRC:
TP-Link WDR8600; CE: TP-Link Archer C7; MIC: WSR-1160DHP3.
EU Compliance Statement: SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with
the essential requirements and other relevant provisions of the Directive 2014/53/EU.
A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance
EU contact address: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany
