Robomow RK1000 Installation manual

ADDITIONAL INFORMATION
Original user instructions
ZUSÄTZLICHE INFORMATIONENDE
FR INFORMATIONS COMPLÉMENTAIRES
NL BIJKOMENDE INFORMATIE
IT ULTERIORI INFORMAZIONI
DK YDERLIGERE INFORMATION
FI LISÄTIEDOT
NO TILLEGGSINFORMASJON
SE YTTERLIGARE INFORMATION
ES MÁS INFORMACIÓN
CZ DALŠÍ INFORMACE



2
2 sec
Safety first
Maintenance and Cleaning

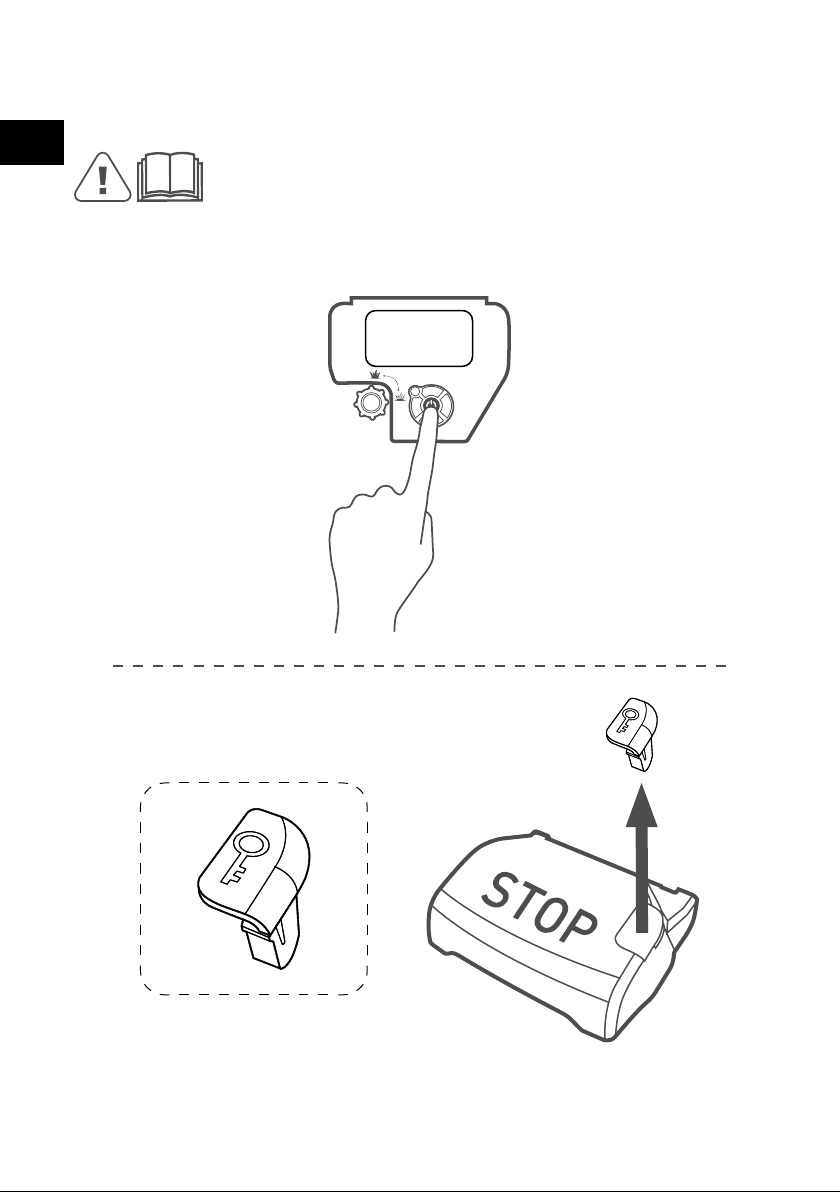

1. Switch off the robot
2. Remove the disabling device before doing any
maintenance
EN

3
Blade Replacement

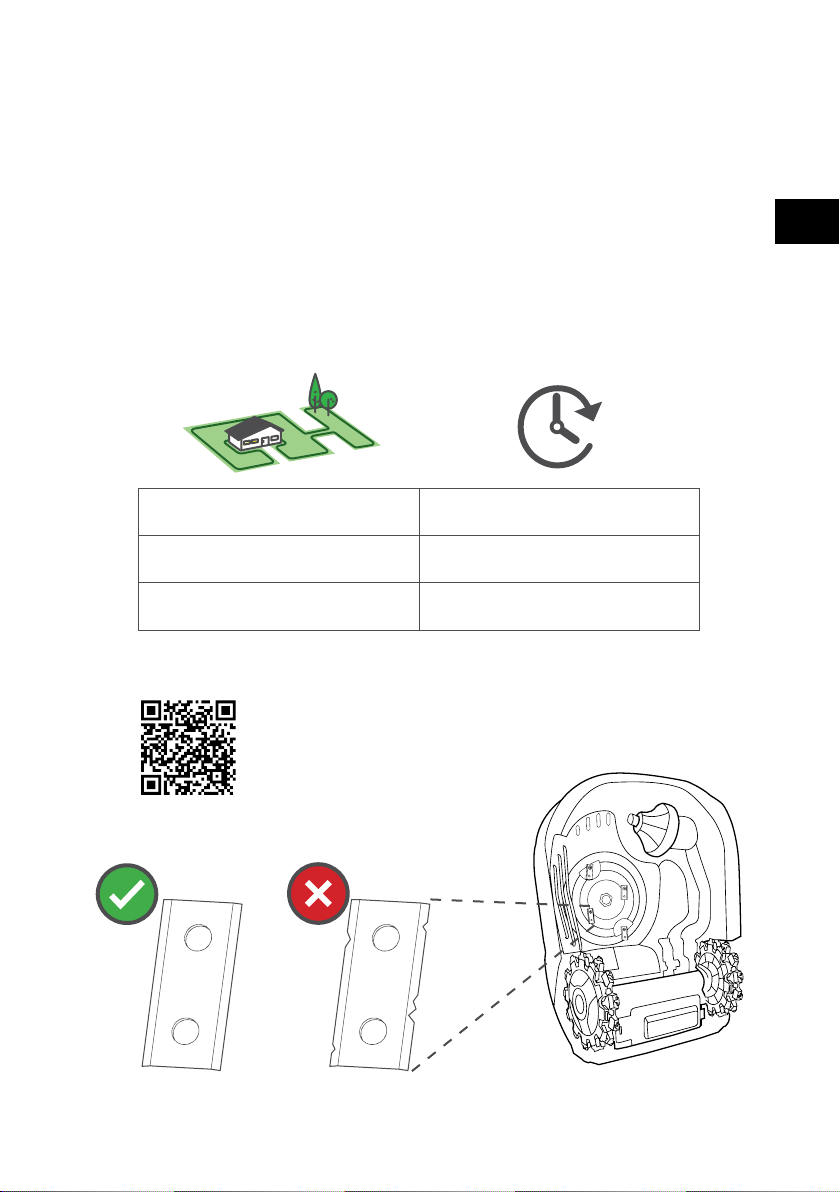

Periodically inspect the blades and replace them if damaged.
It is recommended to replace the blades per the table below.
Always replace all 4 blades, including the screws.
< 500 m² Every 8 - 10 weeks
500 m² - 1000 m² Every 6 - 8 weeks
> 1000 m² Every 4 - 6 weeks
Watch the video
EN

4
Cleaning
The RK wheels and deck are self-cleaning. Accumulated grass, soil and debris
will disperse when dry conditions return.
Every 1-2 weeks, clean the robot underneath.

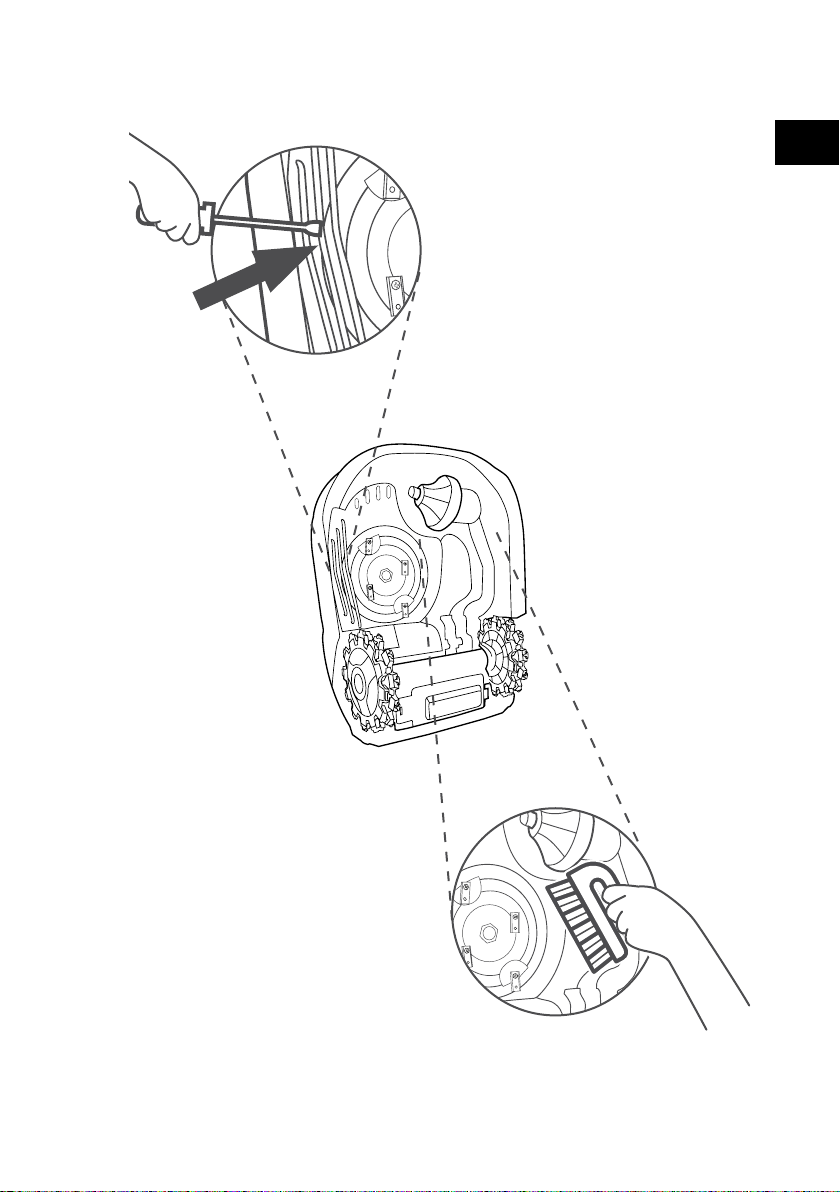

Remove debris
from the wheels
EN

5
Remove debris between
the guard wires
Use a soft brush to remove
debris from the mowing deck
EN

6
During longer periods of increased wet conditions, mud and mulch can
accumulate on wheels. It is recommended to attach the wheel cleaners
accessories to assist in removing debris in these conditions.
Insert each wheel cleaner
into its respective slot
Left
wheel
Right
wheel
L
L
R
STOP
STOP
R
Install the wheel cleaners
Watch the video
EN

7
Press wheel cleaner rmly into
slot until it is securely in place
EN

8
Technical Spec RK1000 RK2000
Model number 22AKFAFB619 22AKHAFB619
Recommended lawn size [m2]Up to 1000 m2Up to 2000 m2
Cutting width [cm] 21 21
Cutting height [mm] 20-100 20-100
Sub-zones 4 4
Separated zones
Wire [m] 225 300
Number of pegs 300 400
Mowing motors DC Brushless DC Brushless
Drive motors DC Brushless DC Brushless
Max. incline mowing area 45% (24°) 45% (24°)
Max. incline wire on slope 20% (11°) 20% (11°)
Maximum allowed perimeter wire length 800 m 800 m
Sound pressure level Lpa dB(A) (K=3) 50 50
Measured sound power level Lwa, dB(A) 61 61
Guaranteed sound power level Lwa, dB(A) 64 64
Mowing time [min] 40-50 80-90
Charging time [min] 60-120 60-120
Battery type 18,15V Li-Ion 18,15V Li-Ion
Battery capacity spec [Ah] 4.9 4.9
Power consumption [kWh/month] 4 7.3
Anti-theft
Bluetooth (BLE)
GSM module
Near Wire Following (MBLE)
Max altitude 3,000m 3,000m
Warranty 3 years 3 years
Mowing time and lawn size based on ideal mowing conditions.
EN

9
Mowing time and lawn size based on ideal mowing conditions.
Technical Spec RK1000 Pro RK2000 Pro
Model number 22AKFAFA619 22AKHAFA619
Recommended lawn size [m2]Up to 1000 m2Up to 2000 m2
Cutting width [cm] 21 21
Cutting height [mm] 20-100 20-100
Sub-zones 4 4
Separated zones
Wire [m]
Number of pegs
Mowing motors DC Brushless DC Brushless
Drive motors DC Brushless DC Brushless
Max. incline mowing area 45% (24°) 45% (24°)
Max. incline wire on slope 20% (11°) 20% (11°)
Maximum allowed perimeter wire length 800 m 800 m
Sound pressure level Lpa dB(A) (K=3) 50 50
Measured sound power level Lwa, dB(A) 61 61
Guaranteed sound power level Lwa, dB(A) 64 64
Mowing time [min] 40-50 80-90
Charging time [min] 60-120 60-120
Battery type 18,15V Li-Ion 18,15V Li-Ion
Battery capacity spec [Ah] 4.9 4.9
Power consumption [kWh/month] 4 7.3
Anti-theft
Bluetooth (BLE)
GSM module
Near Wire Following (MBLE)
Max altitude 3,000m 3,000m
Warranty 3 years 3 years
EN

10
Technical Spec RK3000 Pro RK4000 Pro
Model number 22AKJAFA619 22AKLAFA619
Recommended lawn size [m2]Up to 3000 m2Up to 4000 m2
Cutting width [cm] 42 42
Cutting height [mm] 20-100 20-100
Sub-zones 4 4
Separated zones
Wire [m]
Number of pegs
Mowing motors DC Brushless DC Brushless
Drive motors DC Brushless DC Brushless
Max. incline mowing area 45% (24°) 45% (24°)
Max. incline wire on slope 20% (11°) 20% (11°)
Maximum allowed perimeter wire length 800 m 800 m
Sound pressure level Lpa dB(A) (K=3) 53 53
Measured sound power level Lwa, dB(A) 64 64
Guaranteed sound power level Lwa, dB(A) 65 65
Mowing time [min] 80-90 110-120
Charging time [min] 60-80 90-110
Battery type 18,15V Li-Ion 18,15V Li-Ion
Battery capacity spec [Ah] 7.2 9.6
Power consumption [kWh/month] 8.7 11.5
Anti-theft
Bluetooth (BLE)
GSM module
Near Wire Following (MBLE)
Max altitude 3,000m 3,000m
Warranty 3 years 3 years
Mowing time and lawn size based on ideal mowing conditions.
EN

11
RED 2014/53/EU info
These products utilize radio transmitters.
Specications are in the table below.
Tx type Frequency Max power
BLE 2402 – 2480 MHz < 0.13 mW
GSM EGSM900 880.2 – 914.8 MHz < 0.28 W
GSM DSC1800 1710.2 – 1784.8 MHz < 0.73 W
SRD 3 – 8kHz < 73.2 dBuA/m @ 10m
LTE 1 1920 – 1980 MHz 1.86 W
LTE 3 1710 – 1785 MHz 0.64 W
LTE 8 824 – 849 MHz 0.06 W
LTE 20 832 – 862 MHz 0.66 W
LTE 28 703 – 748 MHz 0.15 W
Part Number Part Description
725-18190 Battery for RK1000/2000
725-18095 Battery for RK3000
725-17288 Battery for RK4000
122-100-619 Blade Kit
742-05538 Single blade
725-17183 Power supply for RK1000/2000 UK
725-17184 Power supply for RK3000/4000 UK
725-17185 Power supply for RK1000/2000 CH
725-17186 Power supply for RK3000/4000 CH
725-12966 Power supply for RK1000/2000 EU
725-12565 Power supply for RK3000/4000 EU
Replacement parts
EN

12
2 Sek.
Sicherheit zuerst
Wartung und Reinigung
1. Schalten Sie den Roboter aus.
2. Entfernen Sie den Unterbrecher, bevor Sie eine Wartung
vornehmen.
DE

13
Austausch der Messer
Untersuchen Sie regelmäßig die Messer, und tauschen Sie sie aus, sofern sie
beschädigt sind.
Es ist empfehlenswert, die Messer gemäß der nachfolgenden Tabelle
auszutauschen.
Tauschen Sie immer alle 4 Messer aus, einschließlich der Schrauben.
< 500 m² Alle 8 bis 10 Wochen
500 m² bis 1000 m² Alle 6 bis 8 Wochen
> 1.000 m² Alle 4 bis 6 Wochen
Video ansehen
DE

14
Reinigung
Die RK-Räder und das Deck sind selbstreinigend. Angesammeltes Gras, Erde
und Schmutz lösen sich bei trockenen Wetterbedingungen.
Reinigen Sie den Roboter alle 1 bis 2 Wochen von unten.
Entfernen Sie
Schmutz von den
Rädern.
DE

15
Entfernen Sie Schmutz
zwischen den
Schutzdrähten.
Verwenden Sie eine weiche
Bürste, um Schmutz vom
Mähdeck zu entfernen.
DE

16
Während länger anhaltenden sehr feuchten Bedingungen kann sich Schlamm
und Mulch an den Rädern anhäufen. Es wird empfohlen, das Radreiniger-
Zubehör anzubringen, um Schmutz bei diesen Bedingungen leichter zu
entfernen.
Montieren Sie die Radreiniger an
die entsprechenden Steckplätze
Linker
Rad
Rechtes
Rad
L
L
R
STOP
STOP
R
Installation der Radreiniger
Video ansehen
DE

17
Drücken Sie den Radreiniger fest
in den Steckplatz, bis er sicher
einrastet
DE

18
Technische Spezifikationen RK1000 RK2000
Modellnummer 22AKFAFB619 22AKHAFB619
Empfohlene Rasenfläche [m2] Bis zu 1.000 m2Bis zu 2.000 m2
Schnittbreite [cm] 21 21
Schnitthöhe [mm] 20-100 20-100
Nebenzonen 4 4
Separate Zonen
Draht [m] 225 300
Anzahl Rasennägel 300 400
Mähroboter-Motoren DC Brushless DC Brushless
Antriebsmotoren DC Brushless DC Brushless
Max. Neigung im Mähbereich 45% (24°) 45% (24°)
Max. Neigung Draht am Gefälle 20% (11°) 20% (11°)
Max. zulässige Länge des
Begrenzungsdrahts 800m 800m
Schalldruckpegel Lpa dB(A) (K=3) 50 50
Gemessener Schallleistungspegel Lwa,
dB(A) 61 61
Garantierter Schallleistungspegel Lwa, dB(A) 64 64
Mähdauer [Min.] 40-50 80-90
Ladezeit [Min.] 60-120 60-120
Batterietyp 18,15V Li-Ion 18,15V Li-Ion
Spez. Akkukapazität [Ah] 4.9 4.9
Stromverbrauch [kWh/Monat] 4 7.3
Diebstahlsicherung
Bluetooth (BLE)
GSM-Modul
Nahe Draht folg. (MBLE)
Max. Höhe 3.000m 3.000m
Garantie 3 Jahre 3 Jahre
Mähdauer und Rasenfläche bei idealen Mähbedingungen.
DE
