Roborock Dyad Pro User manual

Read this manual carefully before using this product and
store it properly for future reference.
Roborock Dyad Pro
Wet and Dry Vacuum Cleaner User Manual

004
Contents
005 Safety Information
007 Product Introduction
008 Product Installation
009 Connecting to the App
010 Instructions for Use
015 Routine Maintenance
019 Basic Parameters
020 Common Issues
021 EU Declaration of Conformity
021 WEEE Information
021 Warranty Information
English

005
Usage Restrictions
•Do not use this vacuum outdoor or in any commercial or industrial environments. It is intended for home use only.
•Do not store the vacuum anywhere in a car to avoid high or low temperatures affecting its battery life.
•Do not use the vacuum in environments with high humidity, or temperatures above 40°C or below 4°C.
•Use the maintenance brush carefully to avoid injury. Keep out of reach of children.
•Children should be supervised to ensure that they do not play with the appliance.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety (CB).
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision (EU).
•To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during
device operation. To ensure compliance, operations at closer than this distance is not recommended.
•The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.
•Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
•Keep limbs and pets away from the rotating brush heads to avoid injury.
•Do not touch the power supply, nor operate the product with wet hands to prevent injuries.
•Do not vacuum any burning or smoking substances (such as non-extinguished cigarette butts).
•Do not vacuum any hard or pointy objects (such as building materials, glass, and nails).
•Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that may arise
from improper use of this product.
•This product is only to be used in areas below 3,000 meters above sea level.
Safety Information

006
•Do not charge non-rechargeable batteries.
•This product contains batteries that are only replaceable by skilled persons.
•This product can only be charged using a YJS060P-3001900G, E060-1P300190VE or E060-1P300190VA power supply provided with the
product.
•Do not use any third-party batteries, power adapters or docks.
•To reduce the risk of injury from moving parts, keep the power off before servicing.
•Do not disassemble, repair or modify the battery, power adapter or the dock.
•Do not charge the vacuum or install the dock near heat sources or in humid areas (such as radiators or bathrooms).
•Do not wipe the adapter or the dock with a wet cloth, nor touch them with wet hands.
•If the power cord is damaged or broken, immediately stop use and contact after-sales service.
•If the vacuum is not going to be used for an extended period of time, fully charge it, unplug its power supply, and place it in a cool and dry
place.
•Make sure that you recharge it once every three months to avoid the battery to over-discharge.
Battery and Charging
WARNING
•It is recommended to transport the vacuum in its original packaging.
Transportation
•Rinse the filter at least once a month with tap water. For details please refer to Maintenance.
Note
Safety Information

007
Vacuum Cleaner
Product Introduction
Self-Clean
Power
Press: Start/Pause
Press and hold for 2s: Switch off
Press while charging: Start/Stop drying
Press: Switch to AUTO/MAX/
Floor Drying/ECO mode
Press: Standard mode
Press and hold for 2s: DEEP mode
Change Mode
Clean Tank Release
LED Display
Detergent Cartridge
Cleaning Head
Clean Tank
Dirty Tank Release
Dirty Tank
Splash Guard Lift Toggle
Rear Roller
Front Rollers
Handle
Accessories
Drying & Charging Dock Maintenance Brush
FilterPower Supply
Charging
Battery Level
Self-Cleaning
Clean Tank Empty
Dirty Tank Full
ECO Mode
AUTO Mode
Dirt Level
Body
Tray
Floor Drying Mode
MAX Mode
Drying
Error
WiFi
Screen Functions

008
Charging Dock Installation
1. Align the charging dock tray with the charging dock body, press
down, making sure they are firmly secured.
2. Connect the power supply into the bottom of the charging dock
and plug it in. Power cable can exit from either side.
3. To disassemble the charging dock, grasp the side handles of
the tray and pull upward.
Product Installation
Setting Up the Vacuum Cleaner
1. Insert the handle into the vacuum body until it clicks in place.
The power button should face forward.
2. To remove the handle, remove the clean tank and then gently
pull the handle while pressing the release button on the
vacuum body.
Click
Insert
Remove
PressPress

009
If the mobile phone fails to connect to the vacuum cleaner because your router
configuration has changed or you forget your password or for any other reasons, reset WiFi
and add your device again.
1. Download the App.
Search "Roborock" in the App Store or Google Play or scan the
QR code below to download and install the app.
a. Keep the machine upright and press to light up the screen
and enter standby mode.
b. Press and hold and until you hear the "Resetting WiFi"
voice alert. The reset is complete when the WiFi indicator
flashes slowly. The vacuum cleaner will then wait for a
connection.
On the Roborock App, tap “+” on the home page, and add the
device as instructed in the app.
2. Reset WiFi. 3. Add the Device.
Connecting to the App
Note:
Notes:
•The actual process may vary due to ongoing app updates. Follow the instructions provided
in the app.
•Only 2.4 GHz WiFi is supported.
•If the vacuum cleaner waits more than half an hour for a connection, WiFi will be
automatically disabled. If you want to reconnect, reset the WiFi before proceeding.
WiFi Indicator
•Off: WiFi disabled
•Flashing slowly: Waiting for connection
•Flashing quickly: Connecting
•Steady on: WiFi connected
Press and hold the
buttons simultaneously

010
To avoid deforming the Clean Tank, only use cold water.
Instructions for Use
Filling the Clean Tank Adding Detergent
1. Push the Clean Tank Release and remove the tank.
2. Open the plug, fill it with tap water, and then close it tightly. The
water level should not exceed the MAX line.
1. Push the detergent cartridge release button and remove the
cartridge.
2. Open the detergent cartridge, fill it with detergent, and then
close it tightly.
3. Reinstall the detergent cartridge.
Note:
Notes:
•The detergent cartridge requires refilling after about 20 tanks of clean water.
•Remove the detergent cartridge if it is deemed unnecessary.
•To prevent corrosion or damage, only use detergent recommended by Roborock.
3. Reinstall the Clean Tank bottom first then push forward to
secure it in place.

011
Instructions for Use
Unlock the cleaning head, tilt the body and press the power
button to start the vacuum cleaner.
•The cleaning head does not work when locked. Unlock it first.
•Press power button can only start drying when the vacuum cleaner is charging.
Notes:
Caution: In order to prevent dirty water from leaking out, do not lay the body flat or tilt it
over 60° when dirty tank in place.
Starting the Vacuum Cleaner
Tap the side of the cleaning head without the detergent cartridge,
and push the handle to lock the cleaning head or pull the handle
to unlock the cleaning head.
Locked
Unlocked
Locking and Unlocking
D
o
n
o
t
t
i
l
t
o
v
e
r
6
0
°

012
You can modify the settings in the app to enable automatically resume operation after
unlocking the cleaning head.
Press the change mode button to switch to AUTO, MAX, Floor
Drying or ECO mode. The screen will display the icon for the
current mode.
Switching Modes
Notes:
•Floor Drying mode is for removing clean water from wet environments such as bathrooms.
It should not be used when water depth exceeds 10mm (0.4in).
•Floor Drying mode is limited to one minute. After which, AUTO mode will resume.
You can adjust the splash guard using the lift toggle. You can
raise it to collect large pieces of waste on the floor and lower it
to prevent the cleaning head from getting stuck when there are
many objects on the floor.
1. When the vacuum cleaner is operating, press the power button
to pause it and enter standby mode.
2. In standby mode, you can lock the cleaning head and place the
vacuum cleaner upright on the floor.
3. Lock the cleaning head and press and hold the power button
for 2 seconds to turn off the vacuum cleaner. If the vacuum
cleaner is left idle for 5 minutes in standby mode, it will
automatically turn off.
Adjusting the Splash Guard
Standby and Power Off
Instructions for Use
Note:
ECO Mode
AUTO Mode
Floor Drying Mode
MAX Mode
Press: Switch to AUTO/MAX/
Floor Drying/ECO mode
Change Mode

013
Instructions for Use

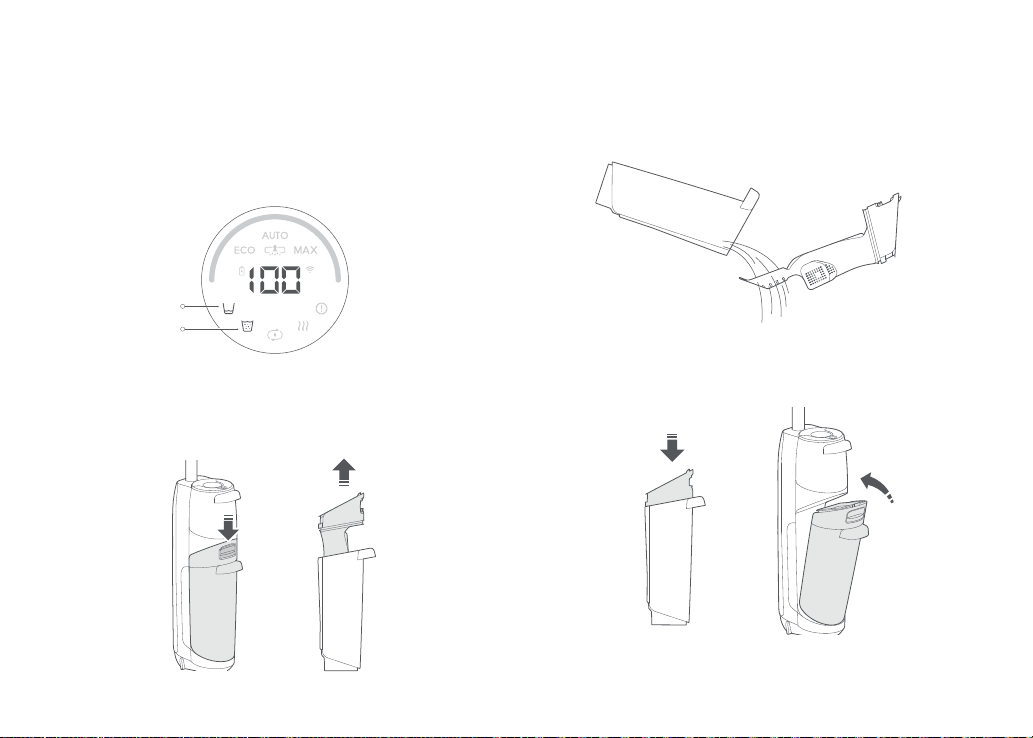

Adding and Emptying Water
When the dirty tank is full or the clean tank is empty during use,
the vacuum cleaner will provide audio and visual alerts. Add water
into the clean tank or empty the dirty tank before continuing.
Dirty Tank Full
Clean Tank Empty
Emptying the Dirty Tank
1. Push the dirty tank release and remove the tank.
2. Hold the handle firmly with one hand, and gently lift out the
cover.
3. Pour out the dirty water. If there is any solid dirt in the tank,
filter it using the filter at the bottom of the cover.
4. Reinstall the cover, tilt the dirty tank, install the bottom in place,
and then gently push it inward to secure it in place.

014
Drying
Voice Alert Settings
Drying starts automatically after self-cleaning is completed. To
manually start or stop drying, press the power button on the
docked vacuum cleaner.
Connect to the app to adjust the volume of voice alerts, change
voice alerts language or turn off voice alerts.
Charging and Self-Cleaning
1. Lock the cleaning head, and place the vacuum cleaner onto
the charging dock. The voice alert "Charging" indicates that the
vacuum cleaner is charging.
2. Press the Self-Clean button to start standard self-cleaning.
Press and hold the clean button for 2 seconds to switch to
DEEP self-cleaning mode.
3. After self-cleaning finishes, empty the dirty tank to prevent
odor.
Notes:
•The product is equipped with a built-in high-performance lithium-ion rechargeable battery
pack. To maintain battery performance, keep the product charged for normal use.
•Always place the vacuum cleaner on the charging dock after use to prevent water stains.
Instructions for Use
Self-Clean
Drying

015
Routine Maintenance
Parts Maintenance
Frequency
Replacement
Frequency

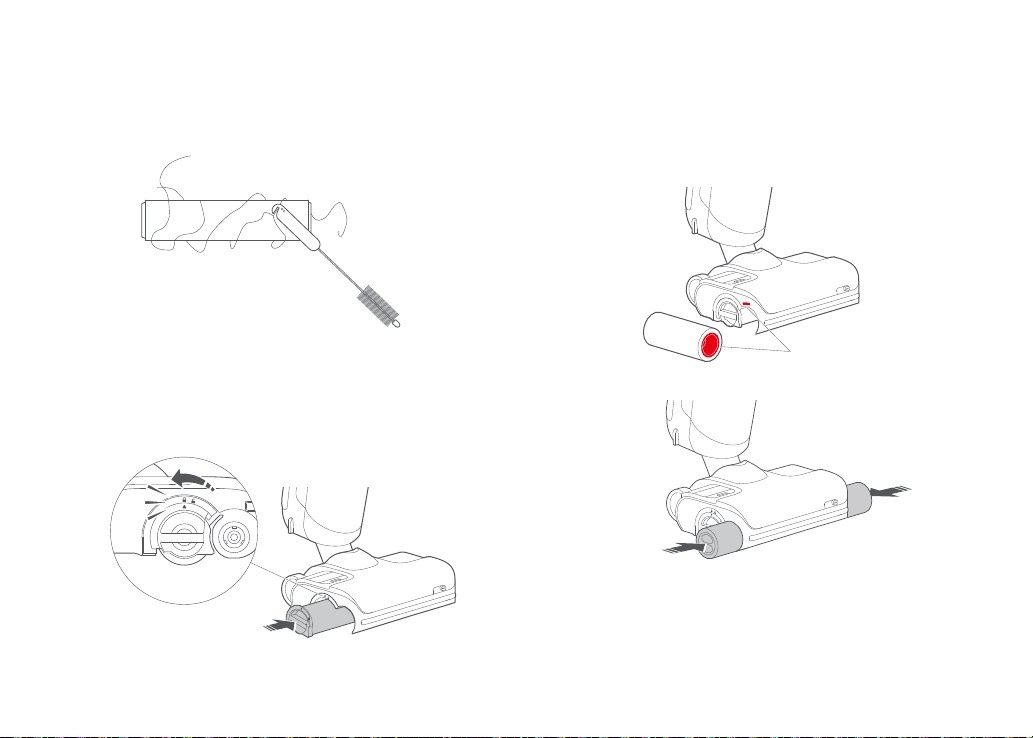

Roller 2–4 weeks 6–12 months
Filter 1 month 6–12 months
Cleaning head and
dirty water pipe 1 month N/A
Dirty tank 1 month N/A
Dirty water level
sensor 1 month N/A
Charging dock tray As needed N/A
Charging contact 1 month N/A
To maintain optimal performance of the product, refer to the
following table for routine maintenance. Product Maintenance

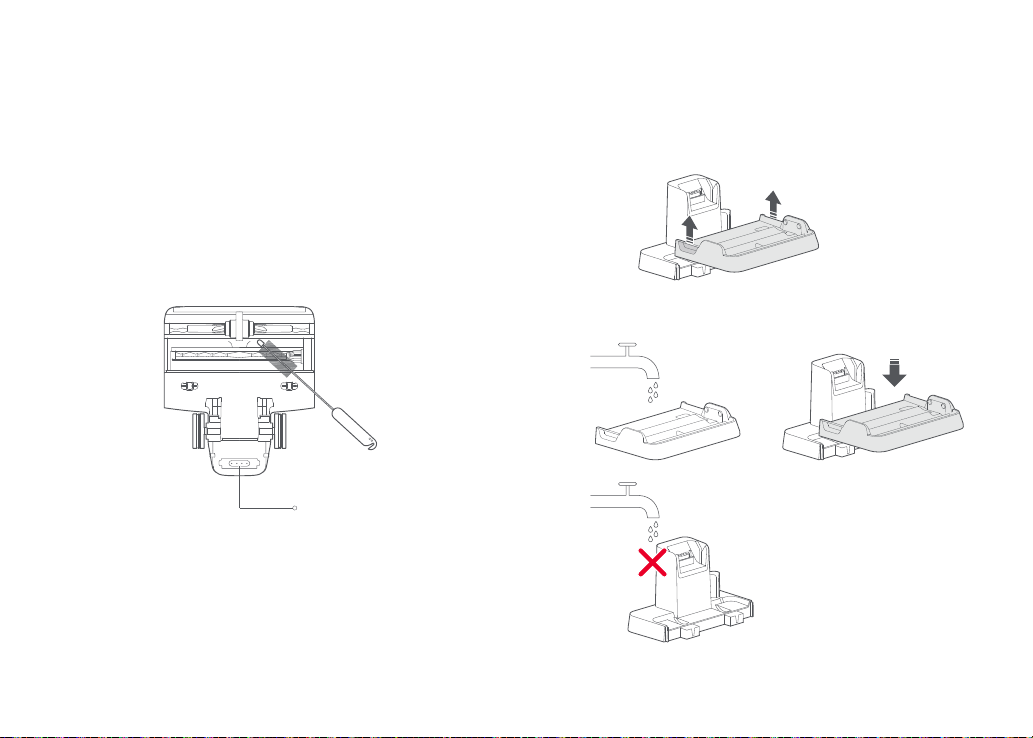

1. Take out the dirty tank, pull out the cover, and open the water
level sensors. Clean the parts with the provided maintenance
brush, rinse them with cold water, and then snap the water
level sensors back in place.
Wipe and clean the body with a soft and dry cloth. Before cleaning,
unplug the power supply and keep the vacuum cleaner off.
Cleaning the Body

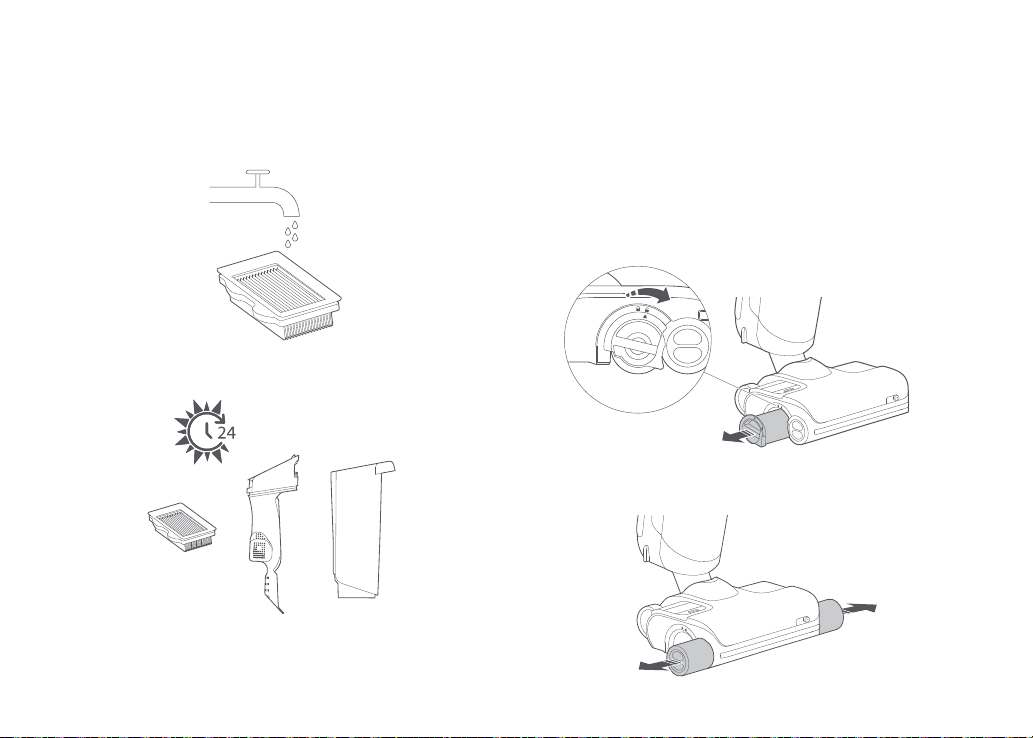

Cleaning the Dirty Tank and Filter
If this product is left unused for a prolonged period of time,
fully charge it and unplug it before storing it in a cool and dry
place. Do not place the product in humid locations or under
direct sunlight. Charge it at least once every 3 months to avoid
overdischarge.
Water Level Sensors

016
Routine Maintenance
Notes:
•Use a second filter if necessary.
•Do not touch the filter with your hands, brushes, or sharp objects to avoid damage to the
filter.
2. Take out the filter from dirty water tank cover and remove any
trash attached to the filter. If the filter is dirty, rinse it with cold
water and then shake off the residual water.
3. Allow up to 24 hours for all parts drying and install them back
in place.
1. Remove the vacuum cleaner from the charging dock, switch it
off.
2. Place the vacuum on a hard and flat floor and lock the cleaning
head.
3. Rotate the rear roller cover to the unlock position, and pull the
rear roller outward.
Cleaning the Rollers
4. Pinch the left and right front rollers with both hands, and pull
them outward.

017
5. Cut off any hair entangled on the rollers and remove any debris
using the provided maintenance brush.
6. Insert the rear roller from the side, and then rotate the rear
roller cover from the unlock position to the lock position until it
clicks in place.
Note: Use the maintenance brush carefully to avoid injury.
Routine Maintenance
ClickClick
7. To install the front rollers, marked red and blue, on the correct
sides of the head. Pinch them with both hands and align them
with the front roller shaft. Push inward to install properly.
Red

018
Cleaning the Cleaning Head and Dirty
Water Pipe
1. Remove the dirty tank and front and rear rollers. Switch off the
vacuum cleaner and stabilize the body.
2. Clean the roller slots and dirty water pipe with the maintenance
brush provided.
3. Wipe the charging contacts with a dry cloth.
4. Reinstall the rollers and dirty tank in place.
Note: Do not wash the cleaning head directly with water.
Cleaning the Charging Dock Tray
1. Grasp the side handles of the tray and pull upward.
2. Rinse the tray with water and reinstall it in place after drying.
Note: Only remove and wash the tray. Do not wash any other parts of the charging dock.
Routine Maintenance
Charging Contacts

019
Basic Parameters
Body
Model WD2H1A
Weight 4.8 kg
Rated power 260 W
Rated voltage 21.6 V
Charging time < 4 hours
Battery 21.6 V/4000 mAh (TYP)
Lithium-ion battery
Power Supply
Model
YJS060P-3001900G,
E060-1P300190VE or
E060-1P300190VA
Rated input 100–240 V~ 50–60 Hz, 1.5 A
Rated output 30 V 1.9 A
Battery 21.6 V/4000 mAh (TYP)
Lithium-ion battery
WiFi Specification
Service Protocol Frequency Range Max. Output Power
WiFi 802.11b/g/n 2400-2483.5 MHz ≤20dBm

020
Common Issues
Issue Solution
There are large water stains on the floor, the
cleaning head leaks water, or water cannot be
vacuumed from the floor.
•Remove the rollers and the dirty tank to check for a clog in the dirty water pipe or the suction
outlet, and if the filter is clogged. Clear all blockages, clean the filter and make sure dirty tank and
filter were properly installed before retrying.
The screen does not light up and the vacuum
cleaner cannot start. •Low battery level. Charge it before use.
The dirty tank leaks and the filter is wet. •Remove and clean the two water level sensors in the dirty tank. Make sure that the body is not laid
flat.
There is a strange smell during use. •Clean the rollers, dirty tank, and filter.
Cleaning creates a lot of bubbles. •Do not add detergent or disinfectants that are not recommended by Roborock to the clean tank,
or spray such detergent or disinfectants on the floor.
The vacuum cleaner does not charge when
docked. •Check the charging contacts on the charging dock and the corresponding part on the body.
The screen is on, but the buttons do not respond. •Press and hold the power button for 10 seconds to force restart the vacuum cleaner.
Unable to connect to WiFi.
•WiFi disabled. Reset the WiFi and try again.
•Poor WiFi signal. Move the vacuum cleaner to an area with good WiFi reception.
•Abnormal WiFi connection. Reset the WiFi, download the latest mobile app and retry.
•Unable to connect to WiFi. There may be an error with your router settings. Contact Roborock
Customer Service for help with troubleshooting.
Is power always being drawn when the
vacuum cleaner is on the dock?
•The vacuum cleaner will draw power while it is docked to maintain battery performance, but the
power consumption is extremely low.

021
We Shenzhen Roborock Innovation Technology Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Directives
and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address:
https://global.roborock.com/pages/compliance
EU Declaration of Conformity
WEEE Information
Correct Disposal of this product. This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Warranty Information
The warranty period depends on the laws of the country in which the product is sold, and the warranty is the responsibility of the seller.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original
bill of purchase (with purchase date) must be submitted.
The warranty will not apply in cases of:
•Normal wear and tear.
•Incorrect use, e.g. overloading of the appliance, use of non-approved accessories, use of force.
•Damage caused by external influences.
•Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains supply or non-compliance with the
installation instructions.
•Partially or completely dismantled appliances.
