Roborock Roborock S5 Series User manual

Roborock Robotic Vacuum Cleaner Manual
Please read this manual carefully before using the product and keep it properly

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THISAPPLIANCE), Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
WARNING
To reduce the risk of fire, electric shock, or injury:
Do not use outdoors or on wet surfaces
Do not allow to be used as a toy. Close aention is necessary when used by or near children, pets or plants.
Use only as described in this manual. Use only manufacturer’s recommended aachments
Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, le
outdoors, or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle charger, including charger plug, and charger terminals with wet hands
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
Do not pick up anything that is burning or smoking, such as cigarees, matches, or hot ashes.
Do not use without dust bag.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to baery pack, picking
up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that
have the switch on invites accidents.
Safety Information
1

For use only with roborock CDZ02RR or CDZ06RR charger.Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of baery pack may create a risk of fire when used with
another baery pack.
Use appliances only with specifically designated baery packs. Use of any other baery packs may create a
risk of injury and fire.
Under abusive conditions, liquid may be ejected from the baery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the baery may
cause irritation or burns.
Do not use a baery pack or appliance that is damaged or modified. Damaged or modified baeries may
exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a baery pack or appliance to fire or excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
Follow all charging instructions and do not charge the baery pack or appliance outside of the temperature
range specified in the instructions. Charging improperly or at temperatures outside of the specified range may
damage the baery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts.This will ensure
that the safety of the product is maintained.
Do not modify or aempt to repair the appliance or the baery pack except as indicated in the instructions for
use and care.
Place the cords from other appliances out of the area to be cleaned.
Do not operate the vacuum in a room where an infant or child is sleeping.
Do not operate the vacuum in an area where there are lit candles or fragile objects on thefloor to be cleaned.
Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or
bump into.
Do not allow children to sit on the vacuum.
Safety Information
2

Do not use the vacuum cleaner on a wet surface.
Risk Of Injury. Brush May Start Unexpectedly.Disconnect the main Brush Before Cleaning or Servicing.
Do not use the product when the temperature is higher than 40℃or lower than 4℃, or there is any liquid or
sticky substance on the floor
SAVE THESE INSTRUCTIONS
Household use only
Safety Information
3
IMPORTANTES MESURES DE S CURIT
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CETAPPAREIL), Le non-respect des mises
en garde et des instructions peut causer des chocs électriques, des incendies et/ou des blessures graves.
AVERTISSEMENT
Pour réduire les risques d’incendie, de choc électrique ou de blessure:
Ne pas exposer à la pluie, Ranger à l’intérieur.
Ne pas permere aux enfants de jouer avec l’appareil. Une aention particulière est nécessaire lorsque
l’appareil est utilize par des enfants ou à proximité de ces derniers.
N’utiliser que conformément à cee notice avec les accessories recommandés par le fabricant.
Ne pas utiliser si le cordon ou la fiche est endommagé. Retourner l’appareil à un atelier de reparation s’il ne
fonctionne pas bien, s’il est tombé ou s’il a été endommagé, oublié à l’extérieur ou immergé.
Ne pas tirer soulever ni trainer l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le
coincer dans l’embrasure d’une porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire rouler
l’appareil sur le cordon. Garder le cordonà l’écart des surfaces chaudes.
Ne pas débrancher en tyrant sur le cordon. Tirer plu la fiche.

Ne pas manipuler le chargeur, y compris la prise du chargeur, et les bornes du chargeur avec les mains mouillées
N’insérer aucun objet dans les ouvertures. Ne pas utiliser l’appareil lorsqu’une ouverture est bloquée. S’
assurer que de la poussière, de la peluche, des cheveux ou d’autres matières ne réduisent pas le debit d’air.
Maintenir les cheveux, les vêtements amples, les doigts et toutes les parties du corps à l’écart des ouvertures
et des pieces mobiles.
User de prudence lors du neoyage des escaliers.
Ne pas aspirer des liquids inflammables ou combustibles, comme de l’essence, et ne pas faire fonctionner dans
des endroits où peuvent se trouver de tells liquides.
Ne pas aspirer de matières en combustion ou qui dégagent de la fumée, comme des cigarees, des allumeesou
des cendres chaudes.
Ne pas utiliser l’appareil si le sac à poussière ou le filter n’est pas en place.
Safety Information
4
Emêcher une mise en marche accidentelle. S’assurer que l’interrupteur est à la position arrêt avant de raccorder
la baerie, de lever ou de déplacer l’appareil. Transporter l’appareil en gardant un doigt sur l’interrupteur, ou
mere sous tension un appareil dont l’interrupteur est à la position marche peut causer un accident.
Pour emploi seulement avec roborock CDZ02RR or CDZ06RR chargeur.Recharger uniquement avec le chargeur
prescrit par le fabricant. Un chargeur convenant à un type de baerie peut présenter un risque d’incendie lorsqu’
il est utilisé avec une autre baerie.
Utiliser uniquement les baeries recommandées pour l’appareil. L’utilisation d’autres types de baeries peut
présenter un risque de blessure ou d’incendie.
Lorsque l’appareil n’est pas utilisé, tenir la baerie loin d’objets métalliques comme des trombones, des pièces
de monnaie, des clés, des clous, des vis ou autres petits objets qui pourraient établir une liaison entre les bornes.
Un courtcircuit des bornes des baeries peut causer des brûlures ou un incendie.
Encondition d’usage abusif, du liquide peut s’échapper de la baerie ; éviter tout contact avec ce liquide.
En cas de contact accidentel, rincer abondamment avec de l’eau. En cas de contact avec les yeux, consulter
également un médecin. Le liquide projeté peut causer des irritations ou des brûlures.

Ne pas utiliser une baerie ou un appareil endommagé ou qui a été modifié. Des baeries endommagées
ou modifies peuvent avoir un comportement imprévisible pouvant causer un incendie, une explosion ou
un risque de blessure.
Ne pas exposer une baerie ou un appareil à la flamme ou à des températures excessives. L’exposition à
une flamme ou à des températures supérieures à 130 °C peut causer une explosion.
Respecter toutes les instructions de chargement et ne pas charger la baerie ou l’appareil à des températures
qui ne sont pas incluses dans la gamme de températures indiquées dans la notice d’instructions.
Un chargement mal effctué.
Confier les réparations à une personne qualifiée qui utilisera uniquement des pièces de remplacement
identiques. Cee façon de faire garantira la sécurité du produit.
Ne pas modifier ni tenter de réparer l’appareil ou la baerie sauf comme il est indiqué dans les instructions
d’utilisation et d’entretien.
Éloigner les cordons d’autres appareils de la zone à neoyer.
Ne pas utiliser l’aspirateur dans une pièce où un nourrisson ou un enfant dort.
Ne pas utiliser l’aspirateur dans un endroit où il ya des bougies allumées ou des objets fragiles sur le plancher
à neoyer.
Ne pas utiliser l’aspirateur dans une pièce où il ya des bougies allumées sur les meubles que l’aspirateur
peut heurter ou se cogner accidentellement.
Ne pas laisser les enfants s’assoir sur l’aspirateur.
Ne pas utiliser l’aspirateur sur une surface mouillée.
Risque de blessures. La brosse motorisée peut se mere en marche d’une manière imprévue.
Déconnecter la brosse principale avant le neoyage ou le service.
Safety Information
5
CONSERVER CES INSTRUCTIONS
Usage Domestique seulement
Laser Safety
Class I Laser Product, complies with FDA 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser.
Notice No.50, dated June 24, 2007.

FCC Statement
6
Warning:
Any changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Compliance Information
***** *
Correspondence of the responsible party in USA
Product Name Robotic Vacuum Cleaner with Dock Charger
Company Roborock Technology Co.
Email [email protected]
Address 108 West 13th Street, Wilmington, Delaware 19801.
Compliance Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation
Produce Model
Robotic Vacuum Cleaner Model: S5 （ can be 0 to 9,A to Z,
a to z, "-", "_", "\", "/" or blank, for marketing purpose.)
Dock Charger Model: CDZ02RR, CDZ06RR

Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
MPE Requirements
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained
between the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
L’antenne installée doit être située de facon à ce que la population ne puissey être exposée à une
distance de moin de 20 cm. Installer l’antenne de facon à ce que le personnel ne puisse approcher
à 20 cm ou moins de la position centrale de l’antenne.La FCC des éltats-unis stipule que cet appareil
doit être en tout temps éloigné d’au moins 20 cm des personnes pendant son functionnement.
CAN ICES-3 (B)/NMB-3(B)
7

Battery and Charging
Please keep the dock charger away from heat (such as heating plates)
The battery must be removed from the appliance before it is scrapped
Do not wipe or clean the chargers shrapnel with a piece of wet cloth or wet hands
Please make sure the cleaner is powered off in shipment and original packaging is advised
If left unused for a long period, please store the cleaner in a cool and dry place after
having it fully charged and switched off, charge it at least every three months to avoid the battery being over discharged
Please do not use the product when the temperature is higher than 40℃ or lower than 4℃, or there is any
liquid or sticky substance on the floor
The battery is to be disposed of safely.Please do not discard waste batteries. Leave them to a professional recycling
organization
The appliance must be disconnected from the supply mains when removing the battery
8
Battery pack charging temperature
Battery pack using temperature
4℃~40℃ @Max Charging Current:0.5C
4℃~40℃ @Max Discharge Current:0.5C
Battery pack storage
temperature
Storage(1month) -20℃~60℃
@Less than 70% RH
If the battery pack store at 25℃over the 3
months period, it should be recharged.
Long Storage(3months) -20℃~45℃
@Less than 70% RH
Long Storage(1year) -20℃~20℃
@Less than 70% RH

Bumper
LDS Laser distance sensor
LDS cover
bumper sensor
Main Unit
Product Introduction
9
Open lid
Circular indicator light
White: power ≥20%
Red: power ＜20%
Slow blinking: charging or launching
Red flash: fault status
Cleaning On/Off
Short press to start cleaning
Press and hold to turn on or off
Spot cleaning
Short press to start regional cleaning
Note:
Press any button to stop
the robotic vacuum during cleaning,
recharging, or spot cleaning
Recharge
Short press to start recharging
Reset WIFI
Press the spot cleaning button
and the recharge button
at the same time for 3 seconds
Side brush
Omni-directional
wheel
Charging contact pieces
Wall sensor
Main brush
Main wheel
Buckle of main
brush cover
Cliff sensor
*

Dust Bin
Product Introduction
10
WIFI indicator light
Slow blinking: Waiting to connect
Fast blinking: Connecting
Stable light: Wi-Fi is connected
Filter
Dust bin buckle
System Reset button
Speaker
Air vent
Cleaning tool of main brush
Dust bin lid
Accessories
Power cable
Dock charger
Mopping cloth
Water tank
Moistureproof mat

Installation
11
3
4

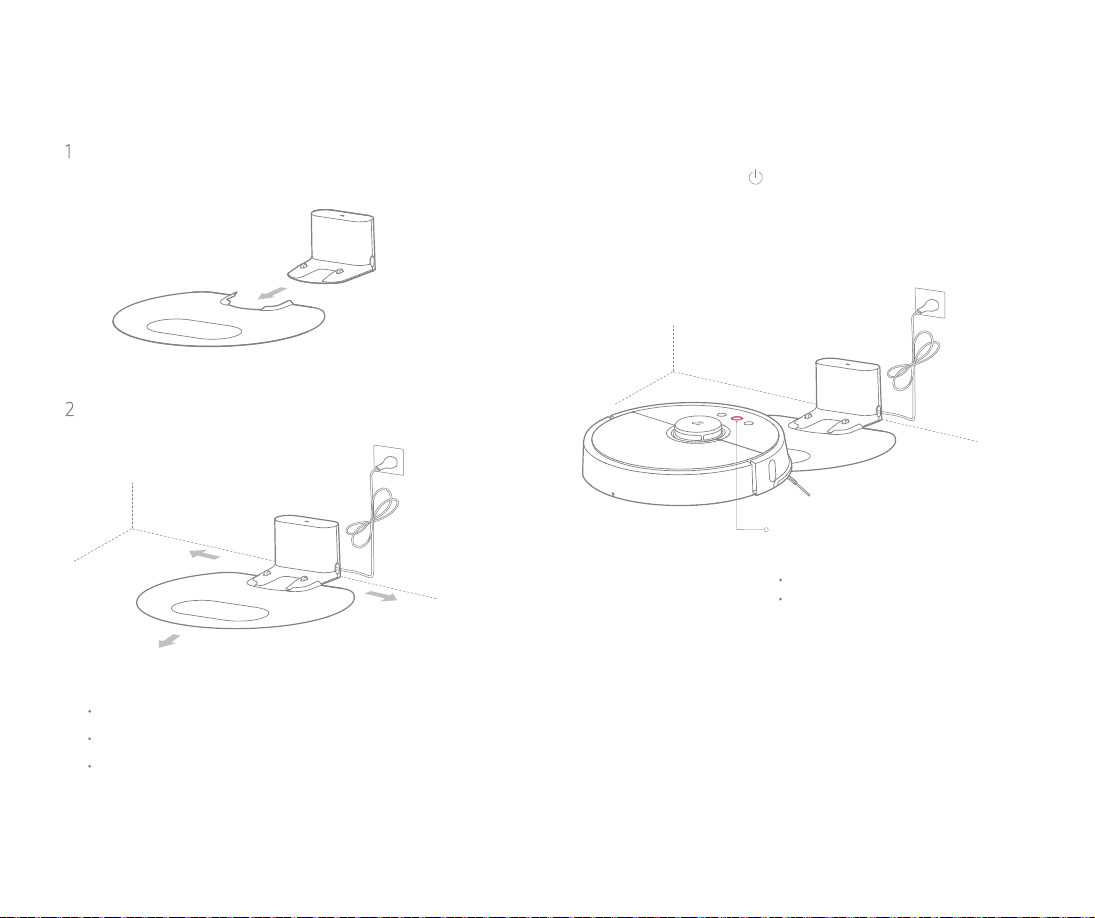

Turn on and charge the machine
The color of the circular light
indicator refers to the quantity
of electricity
White: power ≥20%
Red: power＜20%
Note: Robotic vacuum cleaner may not be powered on when battery is low
connect the robotic vacuum cleaner to the dock charger.
Plug the dock charger into the interface of the
moistureproof mat, and make sure it's firmly
installed.
Keep the dock charger on a level surface, flat
against a wall, plug into power outlet.
This moistureproof mat can keep the floor dry
Ensure to leave enough space to the dock charger
Note:
(0.5 meters on both sides, more than 1.5 meters in the front).
It will cause unexpected power outages and/or dock charger displacement if
the power cable is dragged by main unit accidentally due to disorganized placed.
The dock charger indicator is on after it's plugged into power outlet,
the indicator is off when main unit is being charged.
More than 1.5 meters
More than 0.5 meters
More than 0.5 meters
Press and hold the button to turn on the main unit ,wait until the
indicator light is on for a while ,then place the main unit on the dock
charger to charge.
The machine is equipped with a built-in high performance lithium-ion
rechargeable battery pack. To maintain battery performance, please
keep the machine charged for normal use.
Connect your mobile phone client (this can be skipped)

Installation
12
The product is compatible with Mi Home intelligent platform and could be controlled by Mi Home app.
It supports the MIUI system and can be interconnected with other Mi Home intelligent products
Quick Setup
Download App
Search "Mi Home" in App store/Google play or scan the QR code below to download and install the Mi Home app.
If anything is wrong with WIFI connection, you could try to reset WIFI to default.
Open upper cover to check the WIFI indicator status next to reset button. Press and hold the key and key until you hear the voice
"Reset WIFI ". The resetting is completed when the WIFI indicator starts to flash slowly and the cleaner will enter a pending connection
state.
1
2
Go to "My Device" page of Mi Home app and tap "+" on the top right corner of the page to add a device. You could find newly added device
on "My Device" list
Add Device
3Reset WIFI

Installation

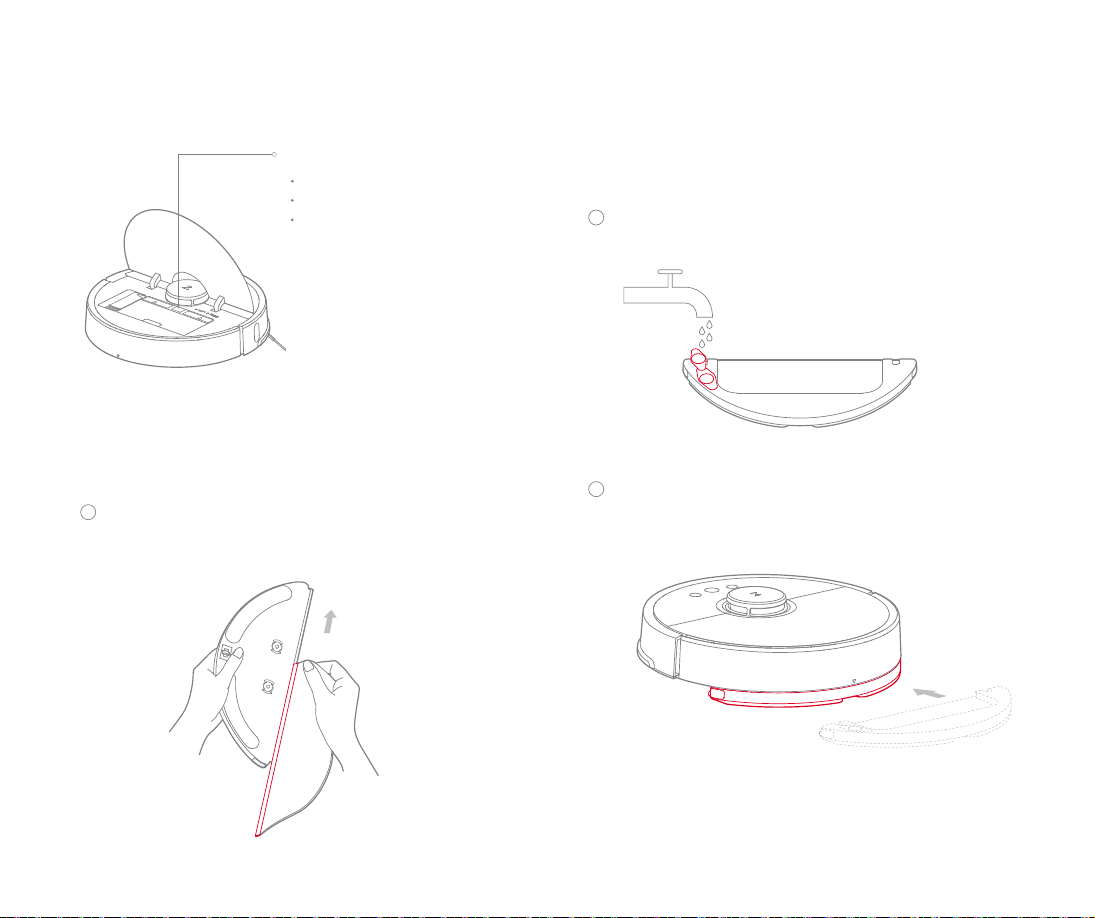

Install the mopping cloth: Wet the mopping cloth and wring it
until it doesn't drip.
.
Insert it into the bottom along the slot of the water tank and
stick it firmly.
Install the mopping module5
1
Note:If the mobile phone fails to connect to the cleaner，please refer to the
"Instruction"-"Reset WIFI"operation
Note:Do not use the mopping module when no one is at home
Install the module:Push in the module along the bottom of the
main unit and follow the alignment mark on the moppih module.
A click sound means it is installed properly.
Fill the water tank:Open the tank lid,fill it with water,and put back
the tank lid.
13
Slow blinking: Waiting to connect
Fast blinking: Connecting
Stable light: WIFI is connected 2
3
WIFI indicator light
Note:In order to achieve a better mopping effect, it is recommended to use the main unit
to clean the floor three times before install the mopping module.

Please use moistureproof mat if you put the dock charger on wood floor
Installation

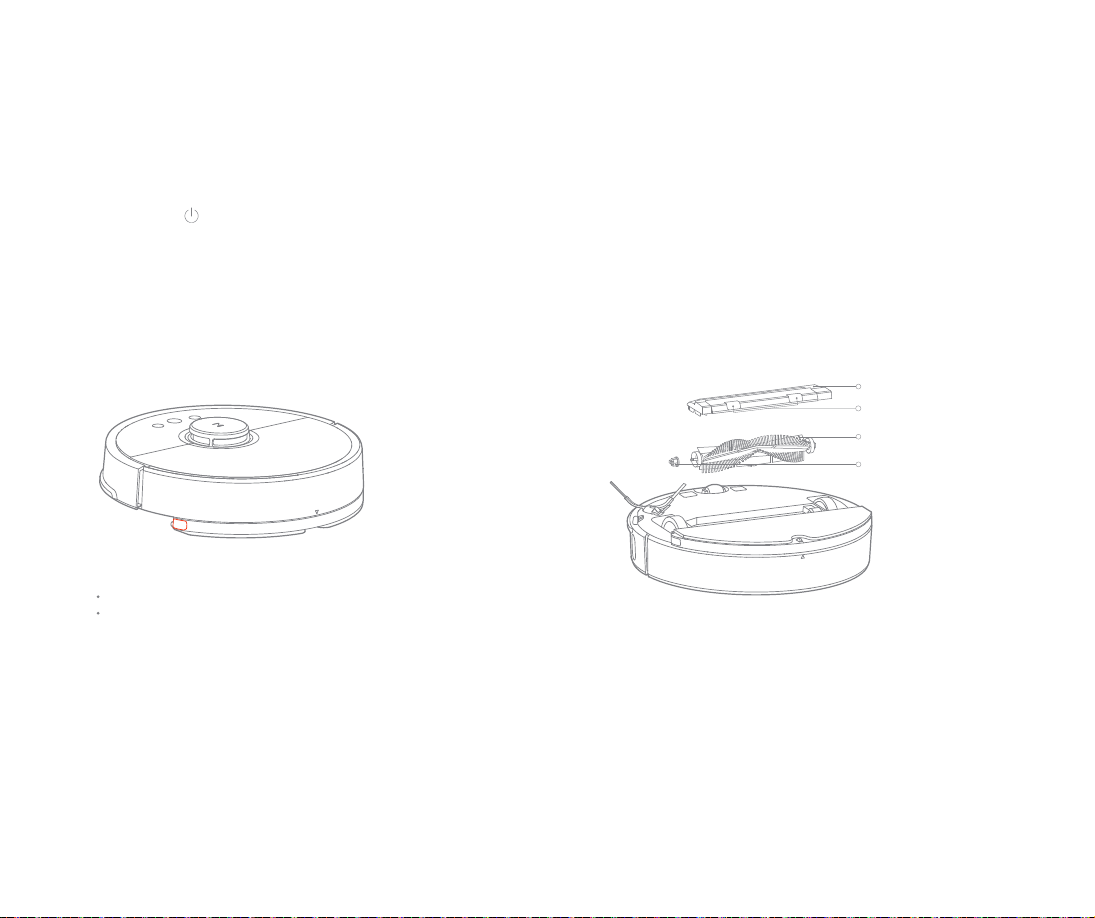

When the circular indicator light on the main unit changes from
slow blinking to stable,it means charging has completed.Briefly
press button or start cleaning through the mobile phone client.
Start cleaning6
When the main unit is back on the dock charger after cleaning,
press the buckles on both sides by hand, drag and remove the
mopping module.
Remove the mopping module7
14
Operating Instruction
Note:
Remove tank when charging or not in use
Note: It is recommended to replace the main brush every 6-12 months so as
to ensure it cleans effectively.
Main brush * Clean it every week as recommended
1. Turn over the machine, press the buckle and take off the cover.
2. Take out the main brush in an upwards movement and clean the
bearing of the main brush.
3. Use th matching cleaning toll of the main brush to cut off the hairs
entangled on the main brush.
4. Install the main brush,press tight the cover and fix the buckle.
Buckle
Main brush cover
Main brush
Bearing of the main brush

Daily Maintenance
15
Instruction for using the cleaning tool of the main brush
Wash the filter by water only, detergents are not allowed to use.
Please do not use finger or brush to clean the filter to avoid any possible
damage.
Change of filter
Please remove the filter and replace it as shown in the picture.
Water tank filter element component
*It is recommended to replace it every 1-3 months
1. Use your finger to remove the two filter element component
from the gap.
2. Fit the new filter element and make sure it is in the right place.
Note: It is recommended to replace the filter element component every 1-3
months so as to ensure effective cleaning
Please dry out the filter at least for 24 hours after washing.
Pour the water into the dust bin, close the dust bin cover, shake
the dust bin left and right, pour out the dirty water, repeat this
step several times, until the filter clean.
Note:

Daily Maintenance
16
Note: You may rinse it with tap water and install it after it gets dry
1. Turn over the machine and take out the omni-directional
wheel by pulling upwards.
2. Clean the hair and dirt off the wheel and the axle.
3. Install the wheel and press it tight.
Omni-directional wheel
*
*
It is recommended to clean it every month
Wheel
Axle
Supporting frame
Main Unit Sensor
Wipe the sensors of the main unit with a soft, dry cloth, including:
1. The four cliff sensors at the bottom of the main unit.
2. The wall sensor on the right side of the main unit.
3. The charging contact pieces at the bottom of the main unit.
Omni-directional wheel
Charging contact pieces
Side brush
Cliff sensor
Dock Charger
It is recommended to clean it every month.
Wipe the battery connectors of the dock charger
with a soft, dry cloth.
Restore Factory Settings
If the machine does not function properly after resetting, please
hold the button when the machine is on, and press the reset
button at the same time, until you hear the voice prompt "start
restoring the initial version", then the main unit has been restored
to the factory settings.
Wall sensor

Basic Parameters
Main Unit
353 350 96.5mm
Lithium-ion battery 14.4V/5200mAh
Item
Size
Battery
Rated Power
Weight
Parameters
58W
3.5kg
Wireless
Rated Voltage
Smart connect
14.4VDC
Dock Charger
Parameters
42W
100-240VAC
50-60Hz
151 130 98mm
Item
Size
Rated Power
Rated Input
Rated Output
Rated Frequency
20VDC 1.8A
Daily Maintenance
17
Holiday Energy Saving Function
When the cleaner is on the charging dock, hold and press
"Recharge" for 10 seconds until you hear a "Ding-dong"
sound, and Holiday mode will be activated.
In this mode, the LED indicator will dim, functions that has
nothing to do with charging such as cleaning, recharging
and remote control via WIFI will be disabled, and the cleaner
will enter low power consumption mode to maintain
optimal battery performance.
After Holiday mode is activated, you can disable it by holding
and pressing "Recharge"for 10 seconds until the LED
indicator brightens.

Robotic Vacuum Cleaner
Beijing Roborock T
***** *
echnology Co.,Ltd.
Product Model: S5 （can be0to 9,A to Z, a to z, "-", "_", "\", "/" or blank, for marketing purpose.)
Address: Floor 6,Suite 6016,6017,6018, Building C,Kangjian Baosheng Plaza,
No. 8 Heiquan Road,Haidian District,Beijing,P.R.CHINA
For more product information, please visit our website: www.roborock.com
For after-sales support, please email our after-sales service team:
US/Non-Europe Support: [email protected]
Europe Support: [email protected]
