Robot Coupe CL50 Gourmet User manual

CL 50 Gourmet
New
Register
your product
on line

www.robot-coupe.com
Register your product on line

Robot-Coupe SNC - 12 avenue du Maréchal Leclerc – BP 134 – 71305 Montceau-les-Mines Cedex - France
- EN ISO 12100: 2010: Safety of machinery – General
principles for design,
- EN 60204-1 -2006: Safety of machinery – Electrical
equipment of machines,
- EN 12852: Food Processors and Blenders,
- EN 1678-1998: Vegetable Cutting Machines,
- EN 454 + A1 2010-02: Blender-Mixers,
- EN 12853: Hand-held Blenders and Whisks
(stick blenders),
- EN 14655: Bread Slicers,
- EN 13208: Vegetable Preparation Machines,
- EN 13621: Salad Spinners,
- EN 60529-2000: Degrees of protection,
- IP 55 for the electrical controls,
- IP 34 for the machines.
Declares that the machines identified by their type above,
comply with:
• The essential requirements of the following European
directives and with the corresponding national
regulations:
- Directive «Machinery» 2006/42/EC,
- Directive «Low voltage» 2014/35/EU,
- Directive «Electromagnetic compatibility»
2014/30/EU,
- Regulation (EC) n°1935/2004 «Materials and articles
intended to come into contact with food»,
- Regulation (EU) n°10/2011 «Plastic materials and
articles intended to come into contact with food»,
- Directive «Reduction of Hazardous Substances (RoHS)
2002/95/EC,
- Directive «WEEE» 2012/19/EU,
• The requirements of the European harmonized standards
and with the standards specifying the hygiene and
safety requirements:
DECLARATION OF CONFORMITY
Montceau en Bourgogne on 4 March 2016
Alain NODET
Industrial Director

15
SUMMARY
WARRANTY
IMPORTANT WARNING
INTRODUCTION TO YOUR NEW
VEGETABLE PREPARATION MACHINE
CL 50 Gourmet
SWITCHING ON THE MACHINE
•Advice on electrical
ASSEMBLY
USES AND CHOICE OF DISCS
CLEANING
MAINTENANCE
•Blades, plates and graters
TECHNICAL SPECIFICATIONS
•Weight
•Dimensions
•Working height
•Noise level
•Electrical data
SAFETY
STANDARDS
TECHNICAL DATA

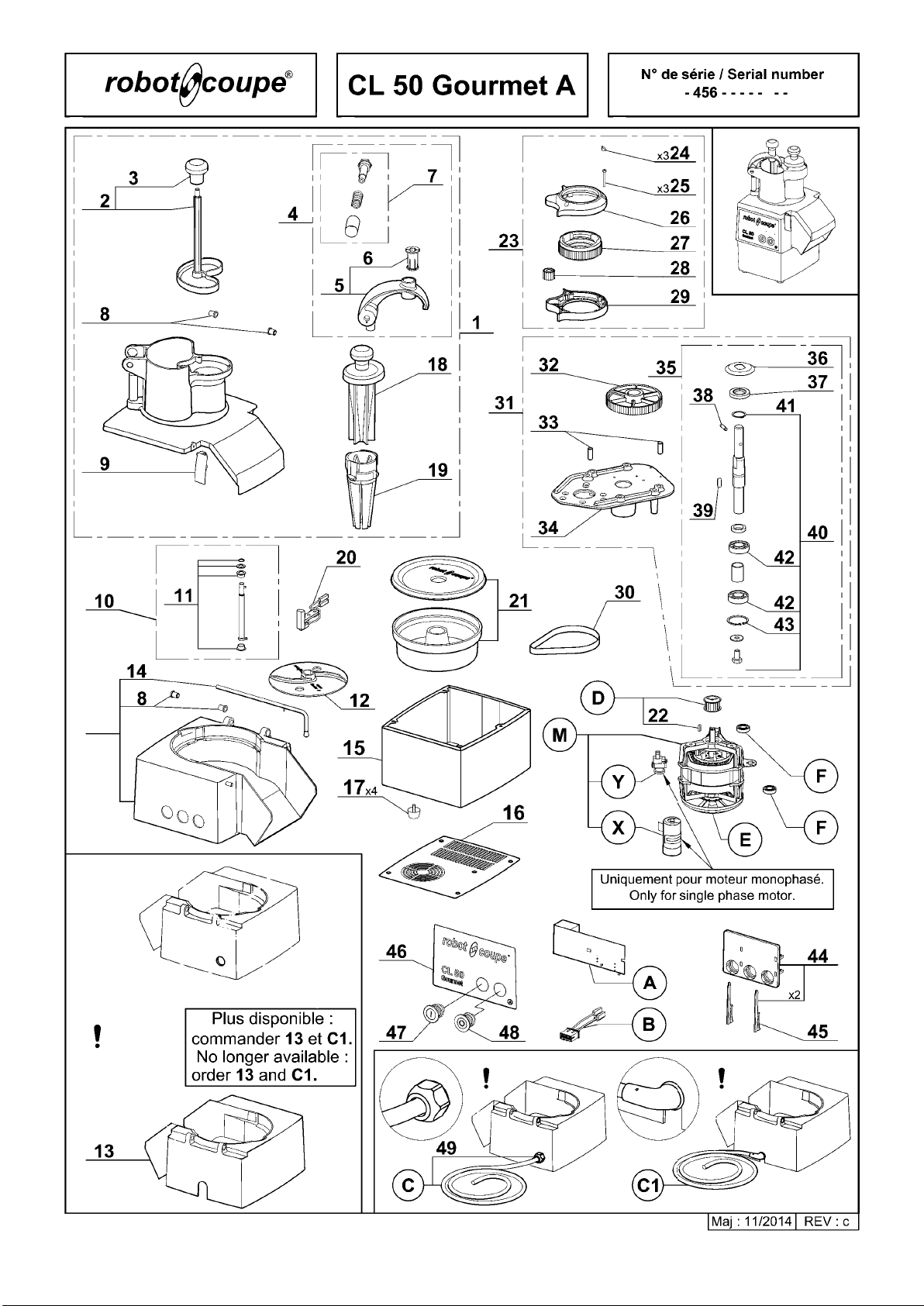

•Exploded views
•Electric and wiring diagrams

16
ROBOT-COUPE s.n.c., LIMITED WARRANTY
Your new ROBOT-COUPE appliance is war-
ranted to the original buyer for a period
of one year from the date of sale if you
bought it from ROBOT-COUPE s.n.c.
If you bought your ROBOT-COUPE product
from a distributor your product is cove-
red by your distributor’s warranty (Please
check with your distributor terms and
conditions of the warranty).
The ROBOT-COUPE s.n.c.limited warranty
is against defects in material and/or work-
manship.
The ROBOT-COUPE s.n.c.warranty is
given expressly and in lieu of all other
warranties, expressed or implied, for
merchantability and for fitness toward a
particular purpose and constitutes the only
warranty made by ROBOT-COUPE s.n.c.
France.
THE FOLLOWING ARE NOT COVERED
BY THE ROBOT-COUPE s.n.c.
WARRANTY:
1 - Damage caused by abuse, misuse, drop-
ping, or other similar damage caused by or
resulting from failure to follow assembly, ope-
rating, cleaning, user maintenance or storage
instructions.
2 - Labour to sharpen and/ or replacements
for blades which have become blunt, chipped or
worn after a normal or excessive period of use.
3 - Materials or labour to replace or repair
scratched, stained, chipped, pitted, dented or
discoloured surfaces, blades, knives, attachments
or accessories.
4 - Any alteration, addition or repair that
has not been carried out by the company or an
approved service agency.
5 - Transportation of the appliance to or from
an approved service agency.
6 - Labour charges to install or test new attach-
ments or accessories (i.e., bowls, discs, blades, at-
tachments) which have been arbitrarity replaced.
7 - The cost of changing direction-of-rotation of
three-phase electric motors (Installer is responsible).
8 - SHIPPING DAMAGES. Visible and latent
defects are the responsibility of the freight car-
rier. The consignee must inform the carrier and
consignor immediately, or upon discovery in the
case of latent defects.
KEEP ALL ORIGINAL CONTAINERS AND
PACKING MATERIALS FOR CARRIER
INSPECTION.
Neither ROBOT-COUPE s.n.c. nor its affiliated
companies or any of its distributors, directors,
agents, employees, or insurers will be liable for
indirect damage, losses, or expenses linked to the
appliance or the inability to use it.

17
WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse of
the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know
your appliance and enable you to use the equipment correctly. Please read these instructions in their entirely and make sure that anyone else
who may use the machine also reads them beforehand.
IMPORTANT WARNING
UNPACKING
• Carefully remove the equipment from the
packaging and take out all the boxes or packets
containing attachments or specific items.
• WARNING - some of the tools are very sharp
e.g. blade, discs... etc.
INSTALLATION
• We recommend you to install your machine on a
perfectly stable solid base.
CONNECTION
• Always check that your mains supply corresponds
to that indicated on the rating plate on the motor
unit and that it can take the amperage.
• The machine must be earthed.
HANDLING
• Always take care when handling the blades or
discs - they are very sharp.
ASSEMBLY PROCEDURES
• Follow the various assembly procedures
carefully (see page 18) and make sure that all the
attachments are correctly positioned.
USE
• Never try to override the locking and safety
systems.
• Never introduce any object into the container
where the food is being processed.
• Never push the ingredients down with your hand.
• Do not overload the appliance.
• Never switch the appliance on while it is empty.
CLEANING
• As a precaution, always unplung your appliance
before cleaning it.
• Always clean the appliance and its attachments at
the end of each cycle.
• Never place the motor unit in water.
• For parts made of aluminum alloys, use cleaning
fluids suitable for aluminum.
• For plastic parts , do not use detergents that are
too alkaline (i.e., containing too much caustic soda
or ammonia...).
• Robot-Coupe can in no way be held responsible
for the user’s failure to follow the basic rules of
cleaning and hygiene.
MAINTENANCE
• Before opening the motor housing, it is absolutely
vital to unplung the appliance.
• Check the seals and washers regularly and
ensure that the safety devices are in good working
order.
• It is particularly important to maintain and check
the attachments since certain ingredients contain
corrosive agents e.g. citric acid.
• Never operate the appliance if the power cord
or plug has been damaged in any way or if the
appliance fails to work properly or has been
damaged in any way.
• Do not hesitate to contact your local Maintenance
Department if something appears to be wrong.
WARNING
KEEP THESE INSTRUCTIONS
IN A SAFE PLACE

18
If you have more than 4 pins in the plug please
note the ROBOT-COUPE does not require a neutral
wire.
Switch on the empty machine, making sure that
the blade is rotating properly in an anti-clockwise
direction.
On the motor unit, a red arrow marks the blade
rotation direction. If the blade turns in a clockwise
direction, swap over two wires :
Since GREEN/YELLOW is the earth,
DO NOT DISCONNECT.
Swap either : the ➊ and the ➋
the
➊ and the ➌
the
➋and the ➌
ASSEMBLY
1) With the motor base
facing you, place the
discharge plate on the
bottom of the bowl.
SIDE A facing upwards (ejection rib
downwards) for any vegetables or
citrus fruit which require careful
handling (tomatoes, mushrooms...).
SIDE B facing upwards (ejection rib
upwards) for all other types of fruit
or vegetables.
CL 50 Gourmet Single-Phase
The CL 50 Gourmet is fitted with various types of
motors : 230 V / 50 Hz /1
120 V / 60 Hz /1
220 V / 60 Hz /1
The machine comes with a single-phase plug
connected to a power cord.
CL 50 Gourmet Three-Phase
The CL 50 Gourmet is fitted with various types of
motors : 400 V / 50 Hz /3
220 V / 60 Hz /3
380 V / 60 Hz /3
The machine is supplied with a cable to which you
simply attach the appropriate electrical plug for
your system. The cable has four wires, one earth
wire, plus three phase wires.
If you have a 4-pin plug :
1) Connect the green and yellow earth wire to the
earth pin.
2) Connect the three other wires to the remaining
pins.
INTRODUCTION TO YOUR
NEW CL 50 Gourmet
VEGETABLE PREPARATION
MACHINE
The CL 50 Gourmet is perfectly geared to profes-
sional needs. It can perform any number of tasks,
which you will gradually discover as you use it.
This model is equipped with a metal bowl and a
stainless steel motor base.
Thanks to its simple design, all components requiring
frequent handling for maintenance or cleaning can
be fitted and removed in a trice.
This manual contains important information designed
to help the user get the most out of this vegetable
preparation machine.
We therefore recommend that you read it care-
fully before using your machine. We have also
included a few examples to help you get the feel
of your new machine and appreciate its numerous
advantages.
SWITCHING ON
THE MACHINE
• ADVICE ON ELECTRICAL
Before plugging in, check that your power supply
corresponds to that indicated on the machine’s
identification plate.
WARNING
THIS MACHINE MUST BE EARTHED
(RISK OF ELECTROCUTION).
6
1
74
2
1
2
3
6
7
4
5
5
3
4
Large half-moon feed opening
Cylindrical feed tube
Food guide insert
Food guide pusher
Fastening lug
Receiver tray
Large feed opening pusher

19
2) Position your chosen disc:
a) If you have opted
for a slicing, grating or
julienne disc:
Position the disc on the
motor shaft. To ensure
that it is correctly
positioned, turn it in a
clockwise direction.
Place the dicing grid in
the bowl of the vegetable
processor.
Make sure that the spur
on the grid is fully en-
gaged in the locking slot
of the motor base.
b) You have chosen a dicing unit:
i.e. a grid and a special slicing disc for diced
vegetables.
Slicing discs and dicing grids can be mounted in
the following combinations:
14 x 14 mm
10 x 10 mm8 x 8 mm
5 x 5 mm
5 mm •
•
• •
Dicing grid
Slicer
8 mm
10 mm
WARNING
Never use a disc with a slicing thickness of
more than 10 mm.
Next, fit the correspon-
ding slicing disc (straight-
edged blade) and rotate
in a clockwise direction to
ensure that it is correctly
positioned.
c) If you want to use the French fries potatoes
cutting equipment:
This equipment comprises a French fries grid and a
special French fries slicing disc.
Position the French fries
grid in the vegetable
preparation bowl.
Check that it is correctly
positioned with the French
fries plate positioned at
the outlet.
Next fit the appropriate
slicing disc and rotate in
a clockwise direction to
check that it i correctly
positioned.
The ripple-cut and fine-dicing
discs are both fitted with a
driving pinion. If the motor
shaft and driving pinion
come into contact, you will
be unable to close the lid. In
which case, simply turn the
disc manually 90°.
WARNING
WARNING
To create brunoise or waffle cuts, place the
vegetables and fruit in the feed-head then
in the cylindrical hopper. Use the feed-head
pusher (to obtain an optimum cut).
To obtain an optimum cut of your flat leaf
parsley and aromatic herbs, use the special
herb feed-head, provided in your parsley kit
and/or tabbouleh kit. Place this feed-head in
the cylindrical hopper.
* see diagram page 18.
d) If you have selected a
dicing or ripple-cut disc :
Position the disc on the
motor shaft.

20
2) Remove the disc by lifting it from under-
neath using the hub and if necessary, turn in an
anti-clockwise direction to release…
If you have been using a dicing unit, we
recommend you remove the grid and the disc at the
same time. This will be easier if you first rotate the
emptying disc.
3) When fitting dicing equipment, we recommend
that you clean the inside of the bowl with a damp
cloth or sponge, particularly the part onto which the
grid is to be fitted.
Always use a properly cleaned grid.
Never process soft foodstuffs after hard ones wit-
hout properly cleaning the grid beforehand.
4) Fit the discharge plate, disc or dicing equipment
as indicated in“assembly procedures” in points 1)
and 2).
5) Close the lid of the vegetable preparation
machine and lock onto the motor base using the
fastening hook.
USES AND
CHOICE OF DISCS
The lid of the vegetable processor features two feed
openings:
- a wide feed opening for processing vegetables
such as cabbage and celery.
- a narrow feed opening for long vegetables,
guaranteeing a remarkable degree of cutting
precision. Cutting quality can be optimized if the
compartment is used as a cutting guide.
4) Position the head of
the vegetable prepa-
ration machine on the
motor shaft. The faste-
ning hook should now
be facing you, on your
right.
TO CHANGE THE DISC:
1) With the motor base
facing you, use your
right hand to undo the
aluminium fastening
hook which holds the
vegetable preparation
head on the motor base.
Lift the vegetable preparation head, tilting it back to
release the bowl.
3) Position the head of the vegetable preparation
machine on the motor shaft. The fastening hook
should now be facing you, on your right.
e) You only need to process small amounts :
When processing small amounts, we recommend
you use the receiver tray.
With the motor unit
facing you, place the tray
at the bottom of the bowl.
Position the disc of your
choice on the motor
shaft. Maximum capa-
city: 600 g diced pota-
toes (3x3x3 mm).
If you have trouble removing the disc, simply push
the tray up with your hand to free the disc from the
motor shaft.
WARNING
The receiver tray cannot be used with the
dicing or French Fries equipments.

21
After removing the head of the vegetable prepara-
tion machine, take off the disc, followed by the grid
and discharge plate where necessary.
Dishwashers are best avoided in order to prevent
the aluminium from becoming tarnished. Instead we
recommend that you clean the machine by hand
using washing-up liquid.
If you do put your machine in a dishwasher, we
suggest that you use a detergent designed specially
for aluminium.
Never immerse the motor base in water. Clean it
with a damp cloth or sponge.
• SMALL DICING DISCS / DICING GRID :
The cutting edges of the small dicing discs and
dicing grids have been precision-sharpened.
To maintain a consistently high cutting quality,
make sure the edges are not damaged during clea-
ning.
To clean the dicing plates, we advise you to use a
brush.
CLEANING
JULIENNE
J 2x2 carrot / céleriac / potato
J 2x4 carrot / beet root / zucchini / potato
J 2x6 carrot / beet root / zucchini / potato
J 4x4 egglant / beet root / zucchini / potato
J 6x6 egglant / beet root / celeriac / zucchini / potato
J 8x8 céleriac / patato
DICE
D 5x5x5 carrot / zucchini / cucumber / céleriac
D 8x8x8 potato / carrot / zucchini / beet root
D 10x10x10 potato / carrot / zucchini / beet root / turnip / onion / apple (fruit)
D 14x14X10 potato / carrot / zucchini / beet root / céleriac
FINE-DICING
FD 2x2x2 carrot / cucumber / radish / zucchini / céleriac / beet root /
potato / turnip
FD 3x3x3 carrot / cucumber / radish / zucchini / bell pepper / céleriac /
beet root / potato / turnip
FD 4x4x4 zucchini / bell pepper / céleriac / beet root / potato / turnip
RIPPLE-CUT
RC 4 mm zucchini / carrot / potato / emmenthal cheese / beet root /
cucumber / turnip
RC 6 mm zucchini / carrot / potato / emmenthal cheese / beet root /
cucumber / turnip
FRENCH FRIES
F 8x8 potato
F 10x10 potato
F 10x16 potato
BE CAREFUL
As a safety measure, we advise you always to
unplug your machine before cleaning (risk of
electrocution).
USING THE WIDE FEED OPENING
- Raise the pusher to gain access to the feed
opening.
- Fill the feeder right up to the top with vegetables.
- Lower the pusher so that it is flush with the top of
the feed opening.
- Exert a downwards pressure on the pusher.
This pressure should just accompany the cutting
process and will vary according to the type of
cut. Remember that too great a pressure will
place unnecessary strain on the appliance.
- Cut cabbages in half and remove the core before
processing, in order to avoid unnecessary strain
and ensure an end-product of a higher quality.
USING THE WIDE FEED OPENING
Fill the feeder right up to the top with vegetables.
Apply a downwards pressure on the pusher and
maintain it until all the vegetables have been pro-
cessed.
Always press the vegetables down with a pusher
to improve cutting efficiency.
SLICERS
S 0,8 cabbage
S 1 carrot / cabbage / cucumber / onion / potato / leek
S 2 / S 3 lemon / carrot / mushroom / cabbage / potato / cucumber /
zuccchini / onion / leek / bell pepper
S 4 / S 5 egglant / beet root / carrot / mushroom / cucumber /
bell pepper / radish / lettuce / potato / leek / tomato
S 8 / S 10 egglant / potato / zucchini / carrot
RIPPLE CUT SLICERS
R 2 beet root / potato / carrot / zucchini
R 3 beet root / potato / carrot / zucchini
R 5 beet root / potato / carrot / zucchini
GRATERS
G 1,5 céleriac / cheese
G 2 carrot / celeriac / cheese
G 3 carrot
G 5 cabbage / cheese
G 7 cabbage / cheese
G 9 cabbage / cheese
Parmesan/chocolate
Radish

22
The CL 50 Gourmet is fitted with magnetic
safety system which stops the motor as soon as
the large hopper or lid is opened, thus preventing
any access to the cutting tool while the latterit is in
motion.
As soon as the lid opens, the motor stops.
To restart your machine, simply relock the lid.
In addition, the cover locking catch is equipped with
a safety mechanism which prevents the processor
from being used if the cover is not correctly posi-
tioned.
The CL 50 Gourmet is fitted with a temperature
fuse which automatically stops the motor if the
machine is left on for too long or overloaded.
If this happens, allow the machine to cool comple-
tely before restarting.
CL 50 Gourmet Three-phase
• WORKING HEIGHT
We recommend that you position the CL 50 Gourmet
on a stable worktop so that the upper edge of the
large feed hopper is at a height of between1.20 and
1.30 m.
• NOISE LEVEL
The equivalent continuous sound level when the
CL 50 Gourmet is operating on no-load is less than
70 dB(A).
• ELECTRICAL DATA
CL 50 Gourmet Single-phase
REMEMBER
Never try to override the locking and safety
systems.
Never insert an object into the container
where the food is being processed.
Never push the ingredients down with your
hand.
Do not overload the appliance.
MAINTENANCE
• BLADES, PLATES AND GRATERS
The blades on the slicing discs, the plates on the
julienne discs and the graters are all wearing parts,
which have to be changed every so often to ensure
high quality cutting.
TECHNICAL SPECIFICATIONS
• WEIGHT
Net Gross
CL 50 Gourmet 21,5 kg 24,5 kg
average weight
of one disc
0,5 kg 0,6 kg
• DIMENSIONS (in mm)
IMPORTANT
Check that your detergent is suitable for
cleaning plastic parts. Some washing agents
are too alkaline (e.g. high levels of caustic
soda or ammonia) and totally incompatible
with certain types of plastic, causing them
to deteriorate rapidly. Never put them in the
dishwasher.
A 350
B 310
C 390
D 610
E 760
F 615
G 615
H 590
Motor Speed (rpm) Intensity (Amp)
230 V/50Hz 375 5.7
240 V/50Hz 375 5.4
120 V/60Hz 450 12.0
220 V/60Hz 450 5.7
Motor Speed (rpm) Intensity (Amp)
400 V/50Hz 375 1.9
220 V/60Hz 450 4.0
380 V/60Hz 450 2.4
- Power shown on data plate.
SAFETY
WARNING
The discs are very sharp, handle with care.
STANDARDS
Consult the declaration of compliance on page 2.

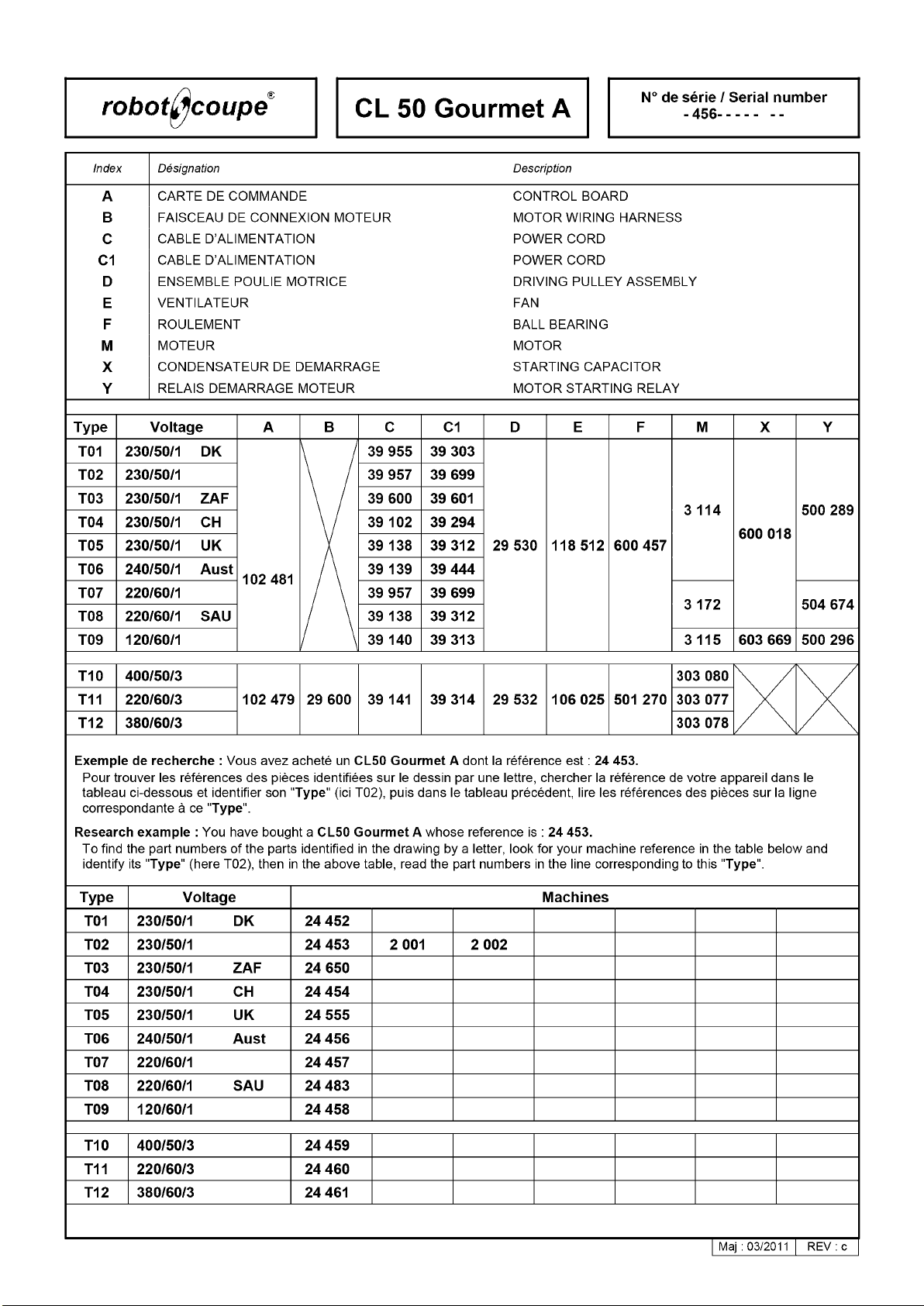

112

113

115

114

115

116

117

Head Office, French,
Ex ort and Marketing De artment:
48, rue des Vignerons
94305 Vincennes Cedex- Fr nce
Tel.: [phone] - F x: 01 43 74 36 26
Em il: intern tion [email protected]
Robot Cou e Australia Pty Ltd:
Unit 3/43 Herbert St
Art rmon NSW 2064 Austr li
T [phone]
F [phone]
Em il: [email protected]. u
Robot-Cou e U.K. LTD:
Fleming W y, Isleworth,
Middlesex TW7 6EU
Tel.: [phone]
F x: 020 8568 4966
Em il: s [email protected]
www.robot-cou e.com
4 de Couv UK:R 5 V.V. - Couv 24/04/13 17:15 Page 1
Réf. : 405 557- 12/2016
