Rocam Losi EROS 4 R/M Quick start guide

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
1
Item:
EROS 4 R/M
EROS 5 R/M
EROS 6 R/M
Summary
1. Instruction Warnings........................................................................................................2
2. Safety and Right Use Warnings.......................................................................................2
3. Warranty..........................................................................................................................2
4. Settings............................................................................................................................2
4.1 Appliance Start Up .....................................................................................................3
4.2 Technical Features.....................................................................................................4
4.3 Use Suggestions.....................................................................................................4
4.3.1 Dome Motion .......................................................................................................5
4.4 Spare Parts................................................................................................................6
4.5 Optionals....................................................................................................................9
4.5.1 Optional 9 ............................................................................................................9

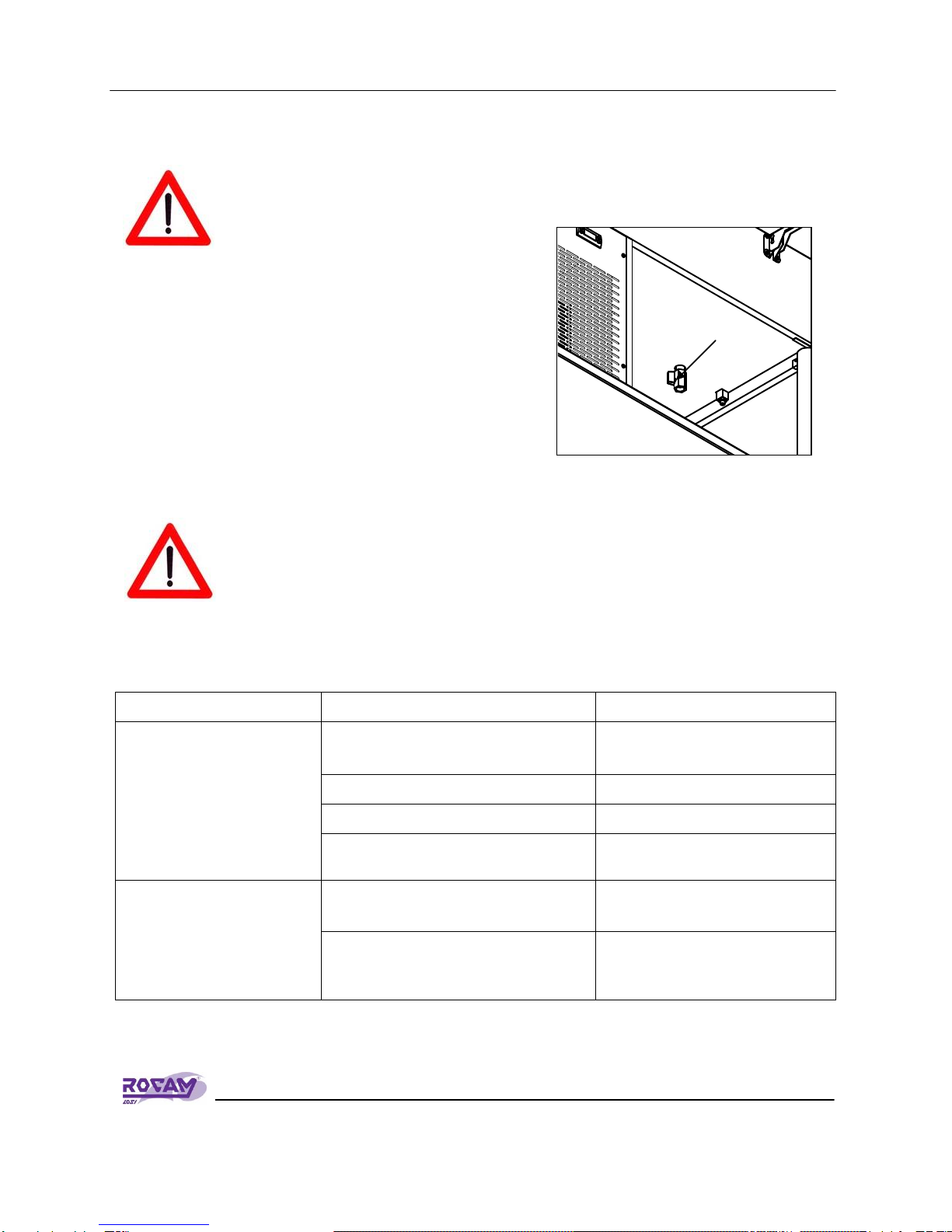

5. Cleaning and Manteinance............................................................................................10
5.1 Breakdowns..............................................................................................................10

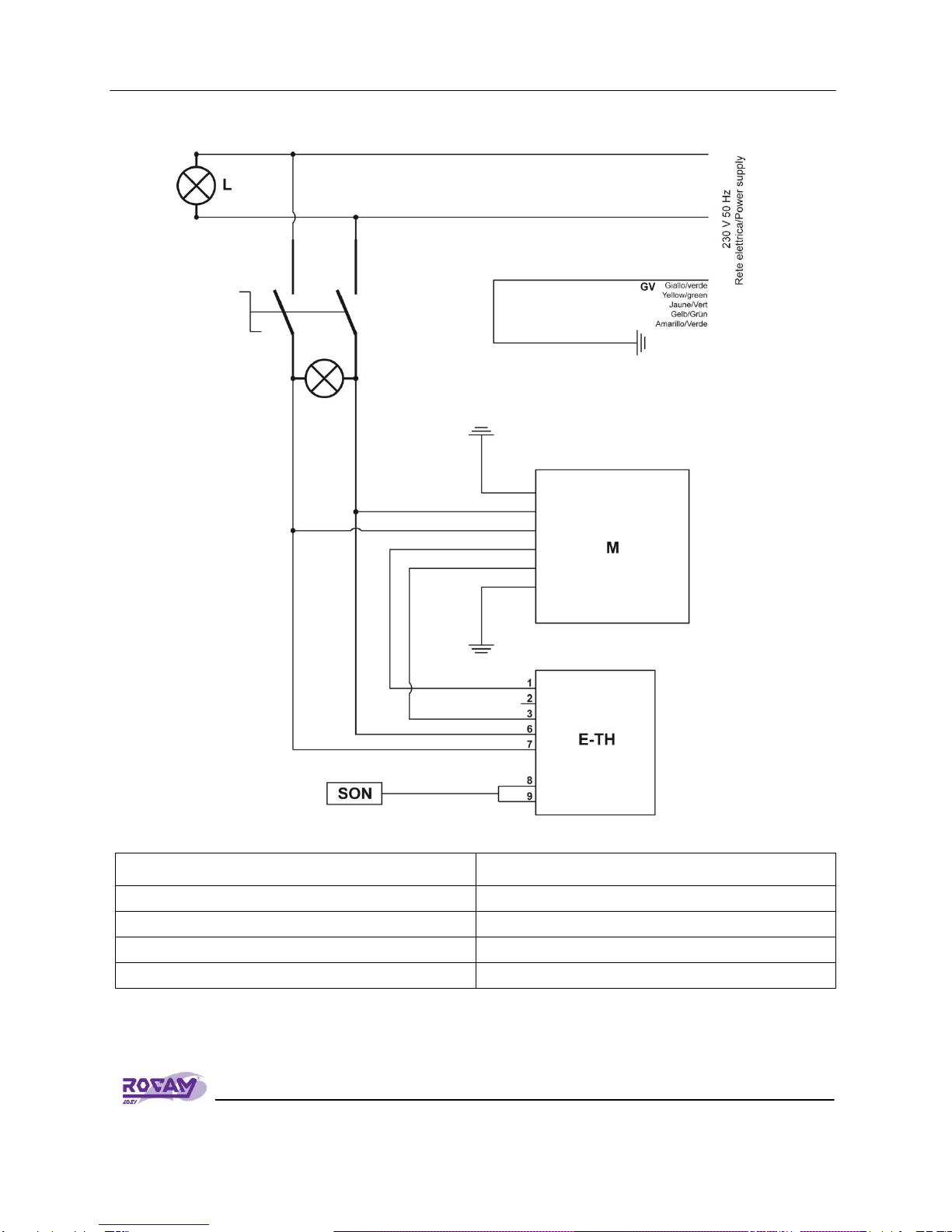

5.2 Wiring Diagram.........................................................................................................11
6. Disposal.........................................................................................................................12
EN

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
2
1. Instruction Warnings
User has to hold the whole instructions. User must store up this document in case
of use. The manufacturer is not responsible of any damage incurred due to the failure of
improper use of this manual.
All measures in this manual are in mm.
2. Safety and Right Use Warnings
The Rocam Losi products meet the latest technological evolutions and
current safety guidelines.
Trolley line EROS, object of this booklet, is projected to be in compliance
with directives and field laws, in order to guarantee a safe and reliable
product.
Any other use will be considered inappropriate to the original destination. The
producer is not responsible of any damage caused by an improper use. Responsibility lies
only on user.
A proper use also includes compliance with the instructions for use and installation and
any additional documentation as well as the conditions of inspection and maintenance.
3. Warranty
We thank you for purchasing a Rocam Losi product, designed and produced for a
professional environment. Due to commercial and construction requirements, the
manufacturer reserves the right to make changes in order to enhance the quality and use
of product. Rocam Losi s.r.l., in compliance with European Community legislation, grants
its products for 24 months. This warranty does not include electrical parts, labour and all
replacements related to an improper use of the good. Any manipulation carried out
automatically excludes the liability of the manufacturer. The products or parts to be
replaced or repaired for unequivocal defects in workmanship and materials used must be
in a “free port” at the offices of the producer, who after a careful inspection, will repair or
replace them. The repairs are carried out exclusively at the headquarters of the
manufacturer, and none cost incurred by the customer for repairs will be refunded by the
manufacturer unless explicitly agreed.
4. Settings
This item is packed and shipped assembled. The manufacturer declines every
responsibility for damages of someone or something caused by the failure to comply with
the instructions of this manual.
Do not make any structural change to the trolley.
The elements composing the trolley (plastic, polyurethane foam, bubble wrap,
Styrofoam, cardboard and so on) must be kept away from children as potential
sources of danger and must be collected and disposed off separately in
accordance with local regulations.

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
3
The manufacturer declines every responsibility of damage of someone or something
caused by the failure to comply with the instructions of this manual.
After the unpacking of the item from its packing, proceed by removing the adhesive
plastic tape before sarting up the product. Any residual glue has to be removed carefully
(do not use abrasive cleaners).
The device is designed to run on AC to the voltage specified on the technical data
plate (located on the bottom of the tank).
The grounding line is marked by the colours yellow/green and must not be
interrupted.
The device is provided with a cable in accordance with the CE regulations and with
a schuko plug (that can be replaced, when necessary, with a different plug, suitable for the
specified wattage and in accordance to the current regulations and guidelines; when
necessary, replace the provided cable with a new one with the same features).
Before switching the appliance
•Check if the electrical system can withstand the appliance’s load (WATT as indicated
on the technical plate)
•Make sure that the electrical system is provided with ground connection according to
the current norms and guidelines.
•Connect the appliance with the ground network through a cable connected to the
specific screw placed on the external casing of the appliance (See Component n°15
page. 6).
4.1 Appliance Start Up
Once ready to switch on the appliance, plug the device in the electrical system and
press the power switch placed on the compressor front grid.
You will hear a soft buzzing coming from the compressor and the thermostat display
will show the starting temperature of the device.
Once started up, the appliance reaches the selected temperature in about one hour
(it depends much on the starting temperature, the room temperature and the exposure of
the buffet trolley).
The thermostat is set from the manufacturer on +2°C for a optimal use of the
device. Use the attached instructions to change the settings of the digital thermostat.
CAUTION! Any change in the thermostat settings must be done on the
temperature only. Any other parameter changes can affect and damage
the operation of the compressor
PLEASE REFER TO THE ATTACHED INSTRUCTIONS

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
4
4.2 Technical Features
Eros 4 R/M
Eros 5 R/M
Eros 6 R/M
Power supply
230 V
230 V
230 V
Compressor power
Classe T 1/4 Hp
Classe T 1/4 Hp
Classe T 1/4 Hp
Cooling power
405 W
405 W
405 W
Compressor
sound
pressure level
(dBA)
1 mt.
distance
51
51
51
10 mt.
distance
31
31
31
Cooling gas
R 404
R 404
R 404
Gas quantity (Kg)
0,35
0,38
0,38
Min-Max Temperature
Set
-10°/+50°C
-10°/+50°C
-10°/+50°C
Range operating
temperature
+2°/+8°C
+2°/+8°C
+2°/+8°C
Tank capacity
4 x GN 1/1
5 x GN 1/1
6 x GN 1/1
Tank height (mm)
180
180
180
Weight (Kg)
180
210
240
4.3 Use Suggestions
Here below a list of suggestions for a optimal use of the buffet trolley:
Gastronorm tanks (with food) in all the possible splits combinations can be placed
inside the general tank. Otherwise, a grid in the GN 1/1 ( see optional 5 on page 9) can be
used to place and display ready meals.
. We suggest to place fresh seafood on a coat of ice chips on the grid.
Since this trolley is not a fridge, but a trolley for food display and service (2/3
hours service), it should not operate continuously.
Please use the following table for the storage temperatures. The
provided temperatures (recommended by the food code in accordance to the
HACCP Regulation) are approximate and subject to change and subject to
changes according to the environment, the sun exposure and the quantity of food.
The final customer must regularly check the food temperature and, if necessary,
has to change the keeping temperature according to the requirements.

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
5
* We suggest to place fresh seafood on a coat of ice chips on the grid.
4.3.1 Dome Motion
The buffet is provided with a mobile dome which can be lowered down on the tank. In
this way the food is preserved against the environmental influences before the service.This
mechanism is especially useful when the trolley is set up before the service begins.
To lower the dome, pull the two black knobs on the sides and lift them out from their
place, grasp the handle and lower the dome
to the tank edge where it will hang.
To lift the dome, unlock the knobs and
gently pull it up back to its place.
The upper shelf on the dome remains fix.
A silicon spray is provided with the
trolley, when necessary, use it in small
quantities on the two tubes for a better dome
sliding.
Food
Min.Temp
(°C)
Max.Temp
(°C)
Pastry
+2°
+8°
Pasta
+2°
+7°
Butchery
+2°
+6°
Seafood*
+0°
+4°
Gastronomy
Cooked food
+2°
+10°
Cooked food with eggs, milk or
coated with jelly
+0°
+4°
Dairy
+2°
+4°
Cheese
+2°
+10°
Cold Cuts
+2°
+10°
Vegetables
Whole
+8°
+10°
4 range (chopped)
+2°
+6°
Knob to pull

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
6

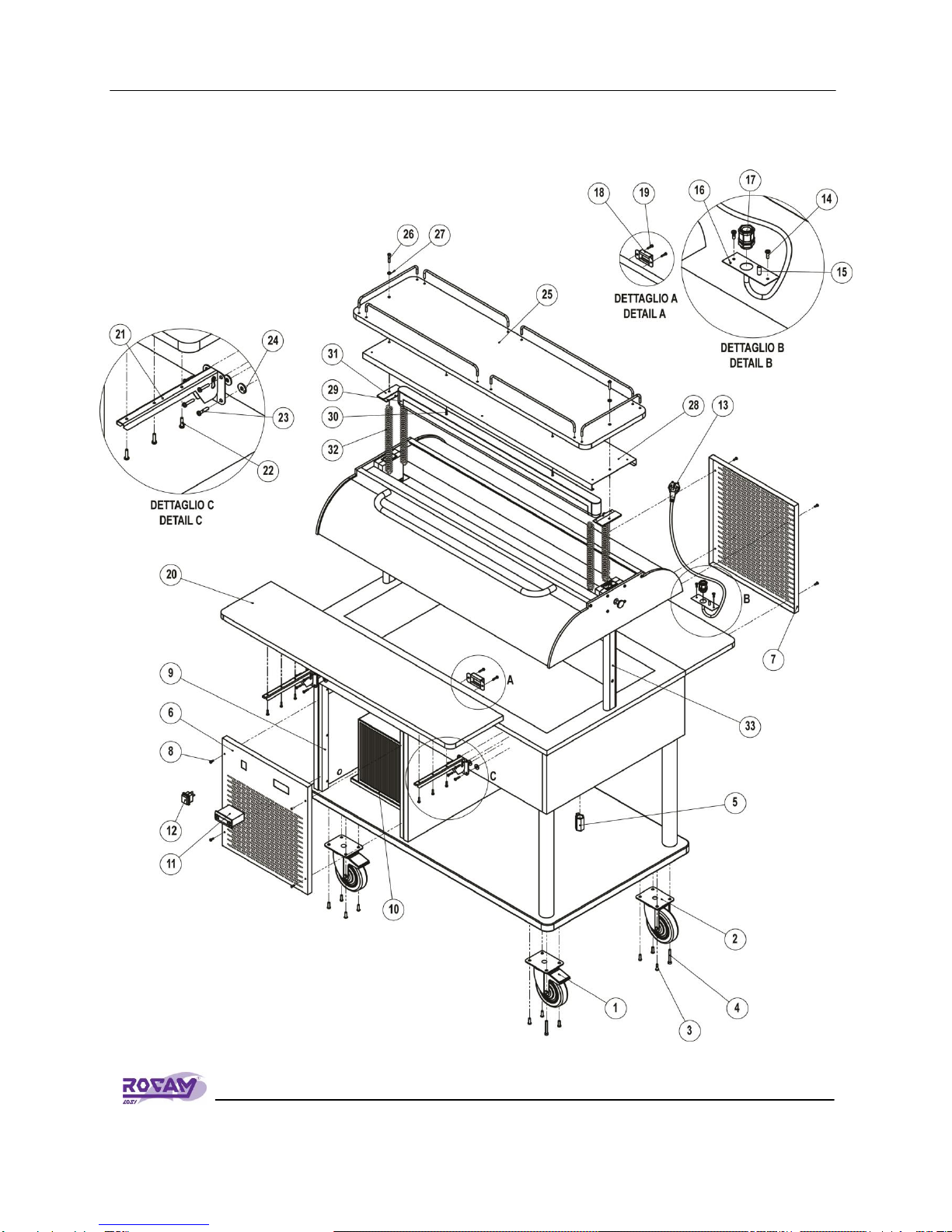

4.4 Spare Parts

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
7
Ref.
Code
Quantity*
Description
Eros 4 R/M
Eros 5 R/M
Eros 6 R/M
1
RF
2
2
2
Castor with brake Ø125
2
RS
3
3
3
Standard Castor Ø125
3
16
16
16
Screws 6x20 black burnished
4
4
4
4
Screws 6x50 black burnished
5
1
1
1
Drain Cock 1/2”
6
1
1
1
Panel grid
7
1
1
1
Back grid
8
8
8
8
Screws 3,5x12
9
4
4
4
Brackets for grid
10
1
1
1
Compressor
11
1
1
1
Digital Thermostat
12
1
1
1
Power switch
13
1
1
1
Schuko Cable
14
2
2
2
Screws 3,5x12
15
1
1
1
Grounding coupler
16
1
1
1
Cablegland plate
17
1
1
1
Cable gland
18
1
1
1
Probe cover
19
2
2
2
Screws 4x10
20
2*
2*
2*
Long side dish holder mod. Eros
3/1
21
6
6
8
Tip up for dish holder
22
18
18
18
Screws 3,5x16
23
24
24
24
Screws 3,5x20
24
12
12
12
Washer M6
25
1*
1*
1*
Wooden Top mod. Eros 3/1
26
2
2
2
Screws 6x40
27
2
2
2
Washer M6
28
1*
1*
1*
Under top steel. Eros 3/1
29
1*
1*
1*
Neon mod. Eros 3/1
30
2
2
2
Neon screws
31
2
2
2
Upper bracket springs
32
4
4
4
Springs
33
2
2
2
Chromed oval tube top support
*Please, do always mention the model of your reference.

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
8
Rif.
Codice
Quantity*
Descrizione
Eros 4
R/M
Eros 5
R/M
Eros 6
R/M
34
2*
2*
2*
Transverse mobile dome mod. Eros
3/1
35
2
2
2
Side mobile dome mod. Eros
36
1*
1*
1*
S/Steel Structure
37
1*
1*
2*
Chromed handle mod. Eros
38
1*
1*
1*
Reinforced handle hose mod. Eros
3/1
39
2
2
4
Screws 6x40 TS black burnished
40
2
2
2
Knobs
41
2
2
2
Pins
42
12
12
12
Screws 4x30/4x40
43
2
2
2
Plastic part
44
2
2
2
Lower bracket springs
45
4
4
4
Screws 4x40
46
10
14
16
Washer indented M4
47
10
14
16
Nut M4
*Please, do always mention the model of your reference.

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
9
4.5 Optionals
Ref.
Code
Quantity
Description
Eros 4
R/M
Eros 5
R/M
Eros 6
R/M
Opt. 1
1*
1*
1*
Chromed frames upper shelf
Opt. 2
2*
2*
2*
Chromed lower frame
Opt. 3
1-2*
1-2*
1-2*
Dish holder short side
Opt. 4
1-2*
1-2*
1-2*
Lower cabinet closure
Opt. 5
Up to 4x
Up to 5x
Up to 6x
Grid dim.GN1/1
Opt. 7
1-2*
1-2*
1-2*
Tube structure long side dish holder
Opt. 9
1-2*
1-2*
1-2*
Long dish holder short side
Please, do always mention the model of your reference.
*Not illustrated

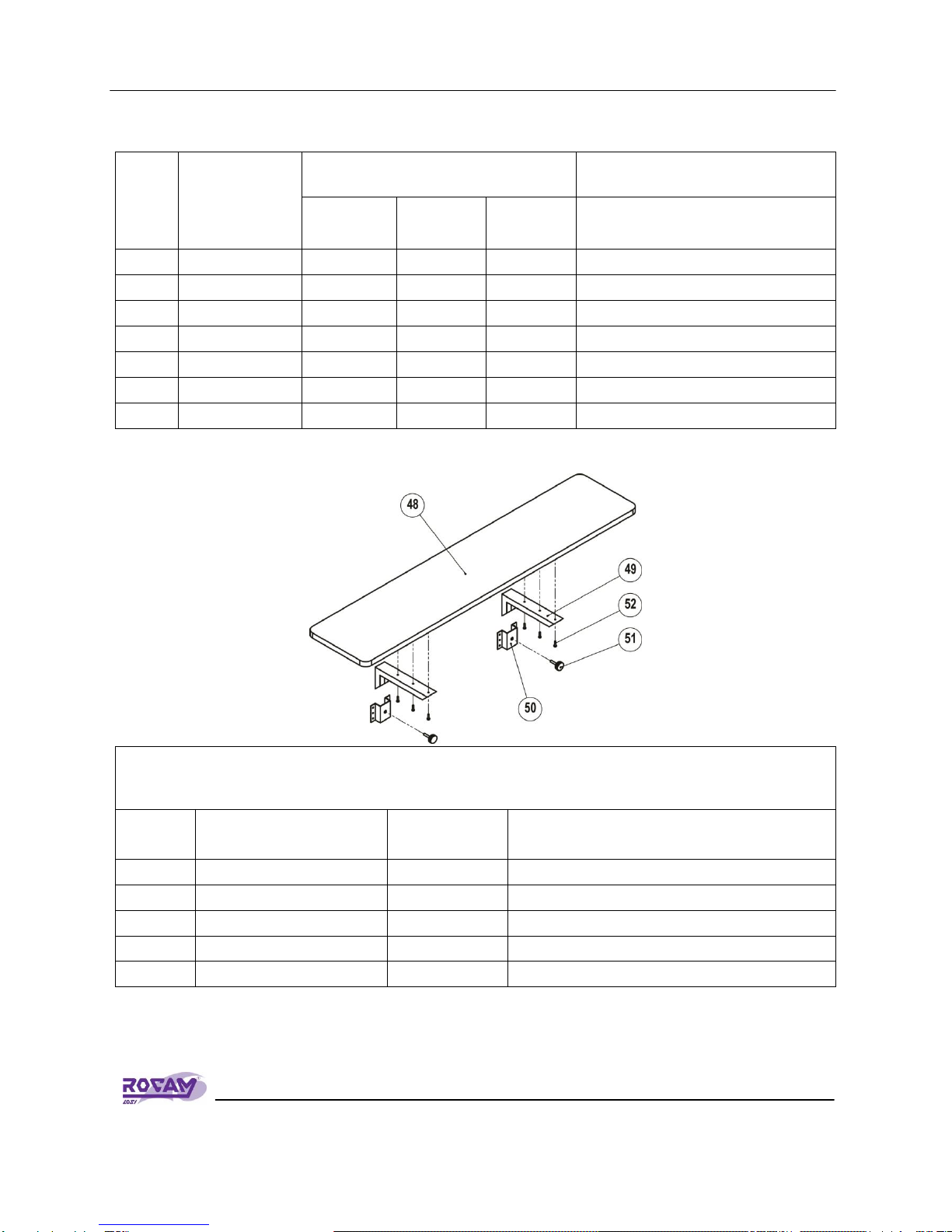

4.5.1 Optional 9
Optional 9 Mod. EROS
Ref.
Code
Quantity
Description
48
1
Laminate shelf
49
2
Bracket
50
2
Bracket holder
51
2
Screw knob
52
6
Screws 3,5x16
ANY MANIPULATION AUTOMATICALLY EXCLUDES THE MANUFACTURER’S
LIABILITY AND THE WARRANTY ON THIS PRODUCT.

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
10
5. Cleaning and Maintenance
WARNING:
Before any cleaning operation unplug the device from the electrical
system. Never wash the appliance with water jets in order to prevent
water seepage inside the electrical
components.
Clean the appliance at the end of the service.
The tank has to be emptied from the condensation
through the drain cock (see image on the right). Place
a bucket under the drain cock and turn the lever,
make sure it is closed once the tank will be empty.
Once the tank will be empty, it is
recommended to dry it up with a cloth or a sponge.
The laminate parts can be cleaned with a
damp cloth- In case of stubborn stains, use a damp
cloth with some alcohol, do never use corrosive or abrasive detergents.
The manufacturer is not responsible of any structural damage caused
by the use of damaging substances.
The trolley must always stand horizontally and shall never be turned to
prevent damages on the compressor.
5.1 Breakdowns
Problem
Possible Reasons
Solutions
The trolley does not cool
Power failure
Check the power presence in the
electric system
Lack and/or loss of gas from the system
Contact the retailer
The thermostat is broken
Contact the retailer
The power cable is worned out
Replace the cable with a suitable
one
The neon lamp does not light
up
The lamp is burned
Replace the lamps with the
suitable same ones
The switch is turned on “off”
Pull down the dome and turn the
neon power switch placed on the
side.
Drain cock

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
11
5.2 Wiring Diagram
Ref.
Description
E-TH
Digital thermostat
L
Lamp
M
Engine
SON
Probe

INSTRUCTION MANUAL
ASSEMBLY, INSTALLATION, USE AND MAINTENANCE.
Rev. 01/2013
Rocam Losi s.r.l. declines every responsibility on any print and/or transcription mistake contained in this booklet
Rocam Losi s.r.l. can change features and datas of this booklet with the proposal of keeping on increase the quality of its products.
Anytime and without notice, this booklet can’t be considered as contract with third parties.
12
6. Disposal
The device must be disposed according to the local regulations and, where
possible, it is necessary to unmount it and differentiate the various components..
The packing elements (plastic, foam, bubble wrap, styrofoam, cardboard, etc..)
must be kept away from children as potential danger and have to be collected and
disposed separately according to the local regulations.
This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of its working
life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
