ROCAM 600 User manual

1
Instruction manual
STRIPHEATER
600
820
1150
1480
1800
Summary
1. Instruction warnings..............................................................................................................................2
2. Safety and Right Use Warnings............................................................................................................2
3. Warranty...............................................................................................................................................2
3.1 Unpacking.......................................................................................................................................2
4. Appliance Start Up................................................................................................................................3
4.1 Technical Features .........................................................................................................................4
4.2 Installation instructions - Optional ...................................................................................................4
5. Cleaning and Maintenance ...................................................................................................................4
5.1 Troubleshooting..............................................................................................................................5
6.Components - Stripheater (all models) .................................................................................................5
6. 7. Wiring diagrams................................................................................................................................6
8. Disposal ...............................................................................................................................................6
EN

2
1. Instruction warnings
User has to hold the whole instructions. User must store up this document in case of use.
The manufacturer is not responsible of any damage incurred due to the failure of improper
use of this manual.
All measures in this manual are in mm.
2. Safety and Right Use Warnings
The Rocam Losi products meet the latest technological evolutions and current safety
guidelines. Heating elements line STRIPHEATER, object of this booklet, is designed to be
in compliance with directives and field laws, in order to guarantee a safe and reliable
product.
Any other use will be considered inappropriate to the original destination. The producer is not
responsible of any damage caused by an improper use. Responsibility lies only on user. A proper use
also includes compliance with the instructions for use and installation and any additional documentation
as well as the conditions of inspection and maintenance.
3. Warranty
We thank you for purchasing a Rocam Losi product, designed and produced for a professional
environment. Due to commercial and construction requirements, the manufacturer reserves the right to
make changes in order to enhance the quality and use of product. Rocam Losi s.r.l., in compliance with
European Community legislation, grants its products for 12 months. This warranty does not include
electrical parts, labour and all replacements related to an improper use of the good. Any manipulation
carried out automatically excludes the liability of the manufacturer. The products or parts to be replaced
or repaired for unequivocal defects in workmanship and materials used must be in a “free port” at the
offices of the producer, who after a careful inspection, will repair or replace them. The repairs are carried
out exclusively at the headquarters of the manufacturer, and none cost incurred by the customer for
repairs will be refunded by the manufacturer unless explicitly agreed.
ANY MANIPULATION AUTOMATICALLY EXCLUDES THE MANUFACTURER’S LIABILITY AND THE
WARRANTY ON THIS PRODUCT.
3.1 Unpacking
This item is packed and shipped assembled. The manufacturer declines every responsibility for
damages of someone or something caused by the failure to comply with the instructions of this manual.
Do not make any structural change to the product.
The elements composing the packaging (plastic, polyurethane foam, bubble wrap, Styrofoam, cardboard
and so on) must be kept away from children as potential sources of danger and must be collected and
disposed off separately in accordance with local regulations.
The manufacturer declines every responsibility of damage of someone or something caused by the
failure to comply with the instructions of this manual.
The grounding line is marked by the colours yellow/green and must not be interrupted.
The device is provided with a cable in accordance with the CE regulations and with a schuko plug (that
can be replaced, when necessary, with a different plug, suitable for the specified wattage and in
accordance to the current regulations and guidelines; when necessary, replace the provided cable with a
new one with the same features).
Before switching on the appliance
• Check if the electrical system can withstand the appliance’s load (WATT as indicated on the
technical plate)
• Make sure that the electrical system is provided with ground connection according to the current
norms and guidelines.
• Connect the appliance with the ground network through a cable connected to the specific screw
placed on the external casing of the appliance.

3
4. Appliance Start Up
STRIP HEATER (all models)
To turn on the device, turn the power regulator knob (EGO) to the desired power, the light will turn on
and when the required temperature is reached it will turn off; the selected power will be kept through the
regulator.
Turn the knob to the "0" (OFF) position to turn off the device.
The pilot light comes on when the EGO knob is turned and when the set power is
reached it goes out
Note: the pilot light always stays on when the power regulator is set at full
power.
Once switched on, the appliance will reach the desired temperature very quickly. To
avoid any inconvenience, turn on the device only shortly before starting the service
and turn it off shortly after t
he end. Do not make any structural changes to the
appliance.
ELECTRIC SHOCK HAZARD: The unit is not waterproof. Place the unit inside
BURNS HAZARD: Some external surfaces of the unit become hot.
Be careful when touching these areas.
Minimum distances for heat-
sensitive or flammable surfaces to
be provided during installation
* No minimum rear clearance required
.

4
4.1 Technical Features
Voltage Absorbed power
(MAX)
STRIPHEATER 600 230 V 500 W
STRIPHEATER 820 230 V 750 W
STRIPHEATER 1150 230 V 1000 W
STRIPHEATER 1480 230 V 1400 W
STRIPHEATER 1800 230 V 1750 W
4.2 Installation instructions - Optional
5. Cleaning and Maintenance
The device can be cleaned with specific detergents for steel and a damp cloth. In any case do not use
abrasives.
Before carrying out a
ny intervention, disconnect the appliance from the power
supply. Never wash the equipment with jet
s of water to avoid infiltration into the
electrical components
Before each cleaning operation, wait for the appliance to cool down (wait at least one
hour after the end of the service).

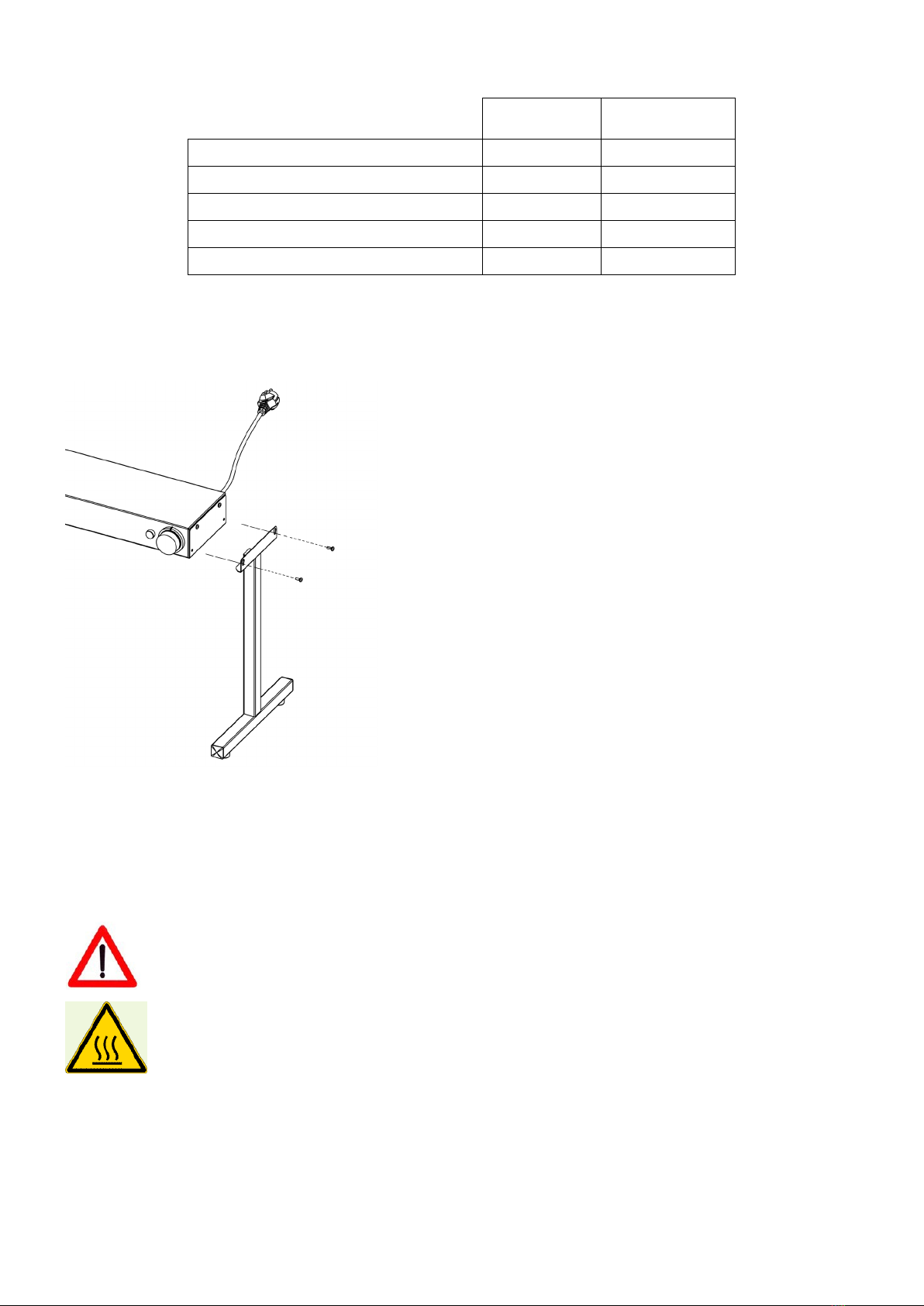

For mounting the bracket (available
as an option):
1 remove the M4 screws from the
side covers of the STRIPHEATER
(2X each side);
2 place the product on the side
brackets;
3 reinsert the screws in the correct
position, then tighten;
4 the optional is now correctly
installed

5
5.1 Troubleshooting
Problem
Possible cause
Solution
The resistance does not heat up
There is no power Check the presence of current in
the electrical network
The resistance is burned out Contact your dealer
The energy regulator is broken Contact your dealer
The power cord is worn out Replace the cable with a suitable
one
The switch does not work Contact your dealer
Pilot light does not light up
The resistance is already in
temperature -
The pilot light is burned out Contact your dealer

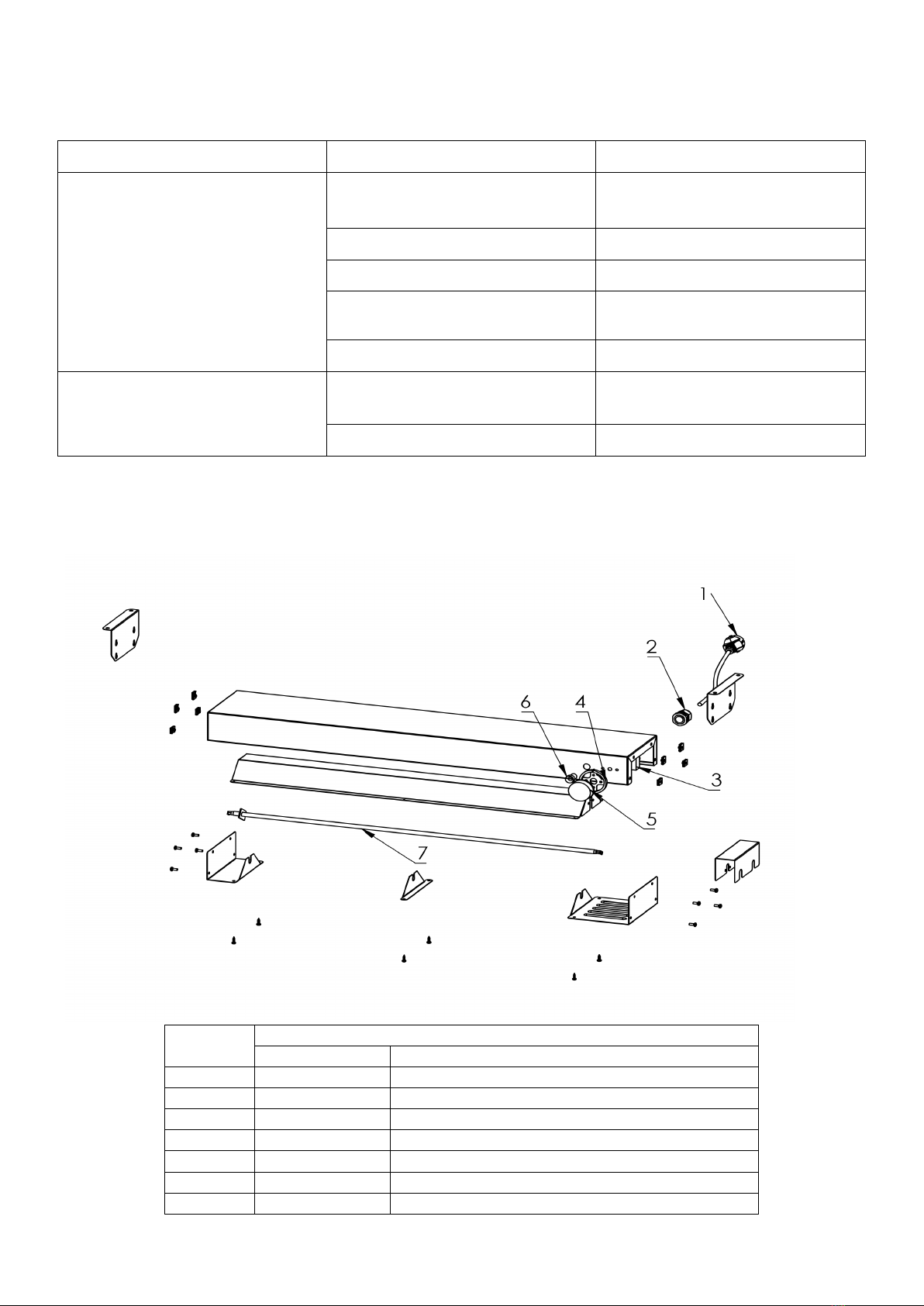

6.Components - Stripheater (all models)
Ref.
Description
Stripheater
1
All models
Cable with Shucko plug
2
All models
Cable stopper
3
All models
Power regulator EGO
4
All models
Power regulator knob ring
5
All models
Power regulator knob
6
All models
Pilot light
7
All models
Heating element (depending on the model)

6

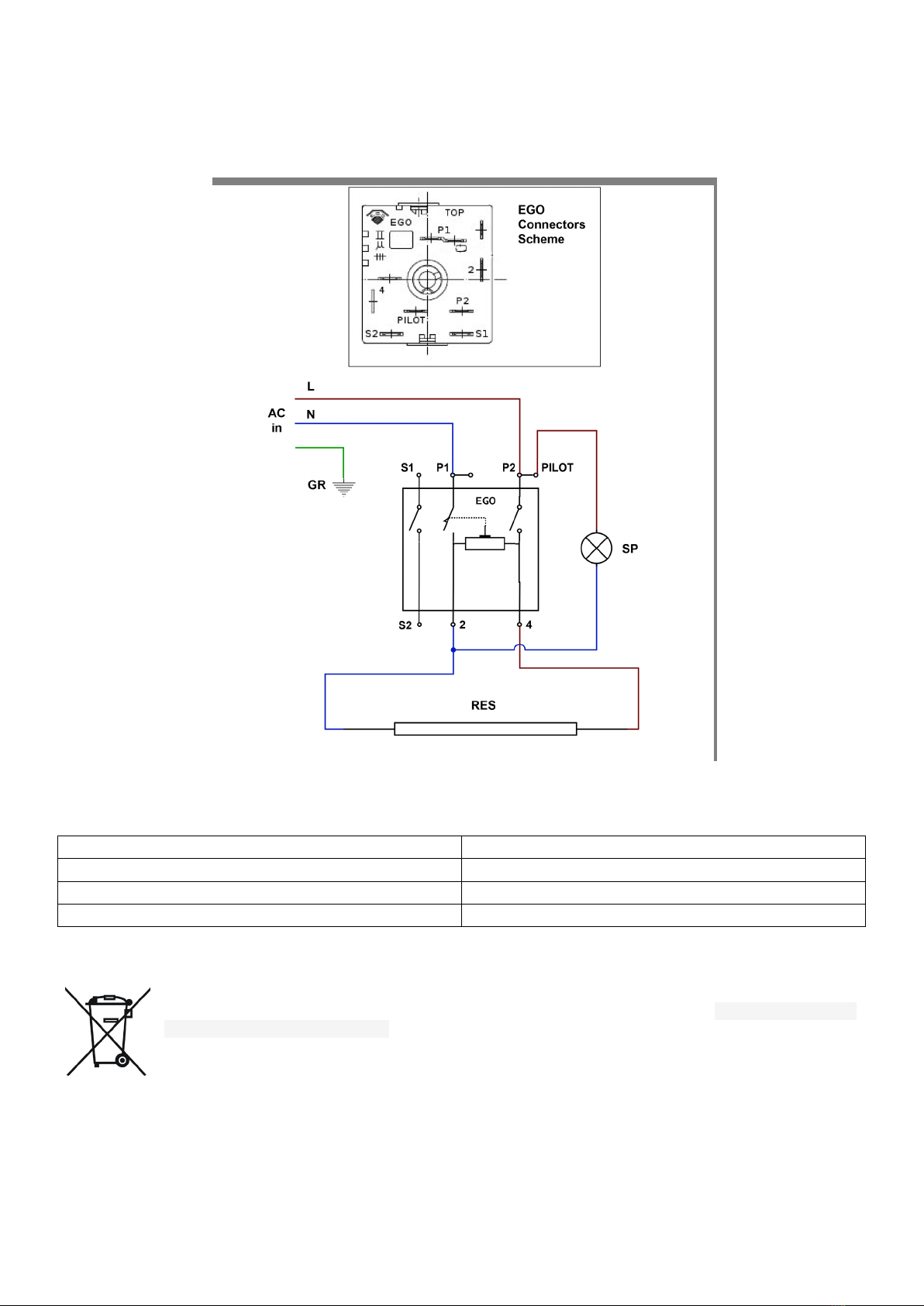

6. 7. Wiring diagrams
STRIPHEATER
600/820/1150/1480/1800
8. Disposal
The device must be disposed according to the local regulations and, where possible, it is necessary
to unmount it and differentiate the various components.. The packing elements (plastic, foam, bubble
wrap, styrofoam, cardboard, etc..) must be kept away from children as potential danger and have to
be collected and disposed separately according to the local regulations.
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life.To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.Household users should contact either the
retailer where they purchased this product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Ref.
Description
SP
Pilot light
RES
Heating elements
EGO
Power regulator
