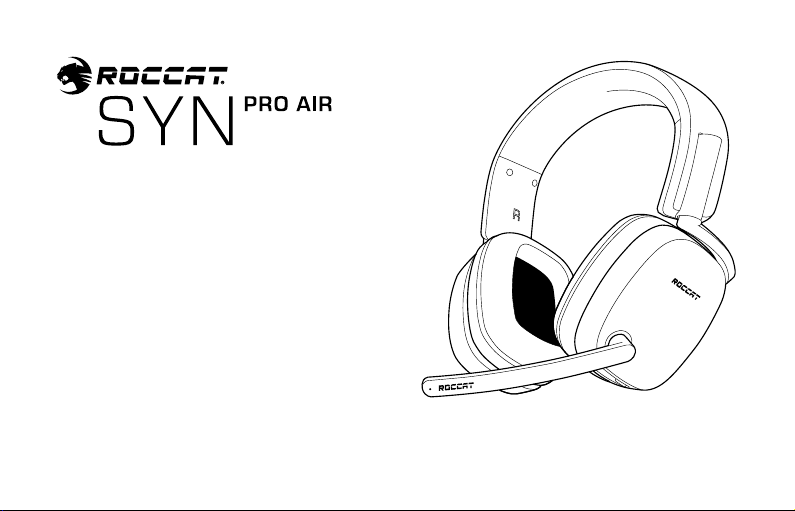

Roccat Syn pro air User manual

S Y N

QUICK START GUIDE

GUIDE DE DÉMARRAGE RAPIDE

S Y N

PACKAGE CONTAINS

CONTENU DE LA BOÎTE

Removable Microphone

Microphone amovible

USB Charging Cable

Câble de chargement USB

USB-C Adapter

Adaptateur USB-C

Syn Pro Air Gaming Headset

Casque de jeu Syn Pro Air

USB-A Transmitter

Transmetteur USB-A

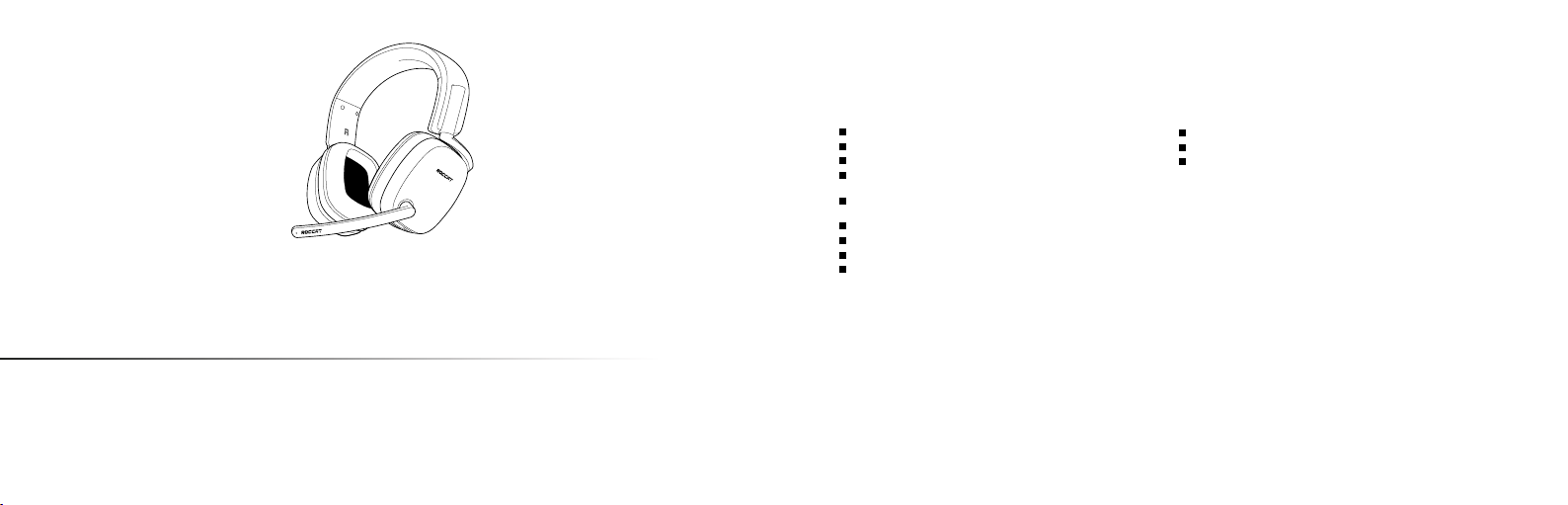

HEADSET CONTROLS

COMMANDES SUR CASQUE

Volume Control

Réglage du volume

Variable Mic Monitoring

Réglage du retour microphone

Power On / Off

Allumer / éteindre

USB Charge & Update Port

Port USB pour le chargement et la mise à jour

LED Indicator

Indicateur lumineux

S Y N

LED INDICATIONS

INDICATIONS LUMINEUSES

Connection Status LED

Solid White = Headset Connected

Double Blink White = Headset Pairing

Pulsing White = Headset On / Full Battery

Solid Red = Headset Charging

Pulsing Red = Low Battery

LED OFF* = Headset Off

* When the headset is off and charging, the Solid Red

LED will turn off when the battery is full

* Lorsque le casque est éteint et branché, la LED de couleur

rouge fixe s’éteindra lorsque la batterie est pleine.

Connection Status LED

Solid White = Headset Connected

Double Blink White = Headset Pairing

Pulsing Red = Microphone Muted

Indicateur d’état

Blanc fixe = Casque connecté

Blanc clignotant = Appairage du casque

Blanc respirant = Casque allumé / Batterie pleine

Rouge fixe = Chargement du casque

Rouge respirant = Batterie faible

Pas de lumière* = Casque éteint

Indicateur d’état

Blanc fixe = Casque connecté

Blanc clignotant = Appairage du casque

Rouge respirant = Microphone muet

CHARGING | CHARGEMENT

The Syn uses a 24+ hour rechargeable battery. Make sure to

charge it regularly.

Headset Storage

Always charge your headset before storing it for any extended

period of time (greater than 3 months). Never store the unit in

temperatures above 113°F/45°C

Le Syn dispose d‘une batterie rechargeable d‘une autonomie de

24 heures. Assurez-vous de la charger régulièrement.

Rangement du casque:

Toujours charger votre casque avant de le ranger pour une

longue durée (plus de 3 mois). Ne stockez jamais le casque à

des températures supérieures à 45°C.

S Y N

1. Plug the Syn Transmitter in a USB slot on your PC

2. Hold the Power Button for 2 seconds to turn on the headset

(the transmitter and headset are automatically paired)

3. Right click the speaker icon in your toolbar and select “Open

Sound Settings”

4. Select “Syn” from the “Choose Your Output Device” drop-down

5. Open the driver software to customize your settings

1. Schließe den Sender des Syn an einen USB-Port an deinem

PC an

2. Halte den Einschaltknopf an deinem Headset für 2 Sekunden

gedrückt (Sender und Headset werden automatisch gekoppelt)

3. Klicke mit rechts auf das Lautsprechersymbol in deiner Symbol-

leiste und öffne die Soundeinstellungen

4. Wähle bei „Ausgabegerät auswählen“ im Dropdownmenü das

Syn aus

5. Öffne die Treiber-Software, um deine Einstellungen anzupassen

PC SETUP | CONFIGURATION POUR PC

EN DE

1. Branchez l’émetteur du Syn dans un port USB de votre PC

2. Maintenez le bouton d’alimentation appuyé pendant 2 secondes

pour allumer le casque (l’émetteur et le casque sont appairés

automatiquement)

3. Faites un clic droit sur l’icône en forme de haut-parleur dans

votre barre d’outils et cliquez sur ‘Ouvrir les paramètres de son’

4. Sélectionnez le Syn dans le menu déroulant ‘Choisir votre

périphérique de sortie’

5. Ouvrez le logiciel de pilotes pour personnaliser vos options

1. Collega il trasmettitore delle Syn a una porta USB del tuo PC

2. Tieni premuto il pulsante di alimentazione per 2 secondi per

accendere le cuffie (il trasmettitore e le cuffie vengono associati

automaticamente)

3. Fai clic con il pulsante destro del mouse sull’icona dell’altoparlan-

te nella barra degli strumenti e seleziona “Apri impostazioni audio”

4. Seleziona “Syn” dal menu a discesa “Scegli dispositivo di output”

5. Avvia il software dei driver per personalizzare le tue impostazioni

1. Anslut Syn Transmitter till en USB-port på din dator

2. Håll in strömknappen i 2 sekunder för att slå på headsetet

(sändaren och headsetet parkopplas då automatiskt)

3. Högerklicka på högtalarikonen i verktygsfältet och välj Öppna

Ljudinställningar

4. Välj “Syn” från menyn Välj utdataenhet

5. Öppna drivrutinsprogramvaran för att anpassa dina inställningar

1. Enchufa el transmisor Syn en una ranura USB de tu PC

2. Mantén pulsado el botón de encendido durante 2 segundos

para encender los auriculares (el transmisor y los auriculares se

emparejan automáticamente)

3. Haz clic con el botón derecho en el icono de altavoz de tu barra

de herramientas y selecciona “Abrir configuración de sonido”

4. En el menú desplegable “Elige el dispositivo de salida”, selecciona

“Syn”

5. Abre el software de controlador para personalizar la configu-

ración

FR ES

IT SE

S Y N

Download now for Windows® 10 at:

Keep your ROCCAT® product up to date with

the latest software and ﬁrmware

WWW.ROCCAT.COM/DOWNLOADS

SYSTEM REQUIREMENTS

Windows®10 (software support)

USB 2.0 (or higher)

Internet connection (for driver software)

TECHNICAL FACTS

TECH SPECS

Direct wireless connection via USB-A transmitter

20Hz – 20kHz speaker frequency response

2.4GHz transmitter frequency response

Audio controls: power button, master volume wheel,

mic mute, mic monitor wheel

Rechargeable 24h battery (average 1+ week play time

based on typical ~3h use per day)

50mm speakers with neodymium magnets

Removable unidirectional microphone

Athletic fabric headband with foam cushioning

Over-ear design featuring memory foam

Should you need assistance …

Our support team is ready to help you with any technical questions.

Just send an e-mail to support@roccat.com or visit our website at:

WWW.ROCCAT.COM/SUPPORT

S Y N

MICROPHONE ATTACHMENT

FIXATION DU MICROPHONE MICROPHONE FLIP-TO-MUTE OPERATION

FONCTIONNEMENT DU MICROPHONE CONCERNANT LA MISE EN SOURDINE

Microphone Mute

Flip up mic to mute. There is an audbile

tone when the mic is muted or unmuted.

1. Remove the Microphone Cover from the left ear cup.

2. Align the Removable Microphone with the microphone

slot on the left ear cup.

3. Press rmly until the Removable Microphone clicks into

the microphone slot.

Mode muet

Relevez le microphone pour le désactiver.

Vous entendrez un son lorsque le micro-

phone est désactivé ou activé.

1. Retirez le capuchon de microphone situé sur l’écouteur gauche.

2. Alignez le microphone amovible à la fente dédiée au microphone

sur l’écouteur gauche.

3. Appuyez fermement jusqu’à ce que le microphone amovible

s’enclenche dans la fente dédiée au microphone.

Mic Unmuted

Micro activé

Mic Muted

Micro désactivé

Mic Muted

Micro désactivé

REGULATORY COMPLIANCE STATEMENTS FOR THE SYN PRO AIR RX & TX

LOCAL RESTRICTIONS ON RADIO USAGE

Caution: Due to the fact that the frequencies used by wireless devices may not yet be harmonized in all countries, these radio products are designed for use only in specific

countries, and are not allowed to be operated in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products

are used only in the countries for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country of use.

Any deviation from the permissible power and frequency settings for the country of use is an infringement of national law and may be punished as such.

To determine whether you are allowed to use your wireless network device in a specific country, please check to see if the radio type number that is printed on the identification label

of your device is listed in the manufacturer‘s OEM Regulatory Guidance document at the following URL http://www.turtlebeach.com/homologation or contact Turtle Beach directly.

FEDERAL COMMUNICATIONS COMMISSION (FCC) COMPLIANCE NOTICES

This section includes the following FCC statements for the Syn:

• FCC IDs: XGB-15150 & XGB-15153

• Class B Interference Statement

• RF Radiation Exposure & Hazard Warning

• Non-Modification Statement

CLASS B INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

RF RADIATION EXPOSURE & HAZARD STATEMENT

To ensure compliance with FCC RF exposure requirements, this device must be installed in a location such that the antenna of the device will be greater than 2 cm (0.8 in.)

from all persons. Using higher gain antennas and types of antennas not covered under the FCC certification of this product is not allowed. Installers of the radio and end users

of the product must adhere to the installation instructions provided in this manual. This transmitter must not be co-located or operated in conjunction with any other antenna

or transmitter.

NON-MODIFICATION STATEMENT

Use only the supplied internal antenna. Unauthorized antennas, modifications, or attachments could damage the Syn Pro Air RX & TX Models and violate FCC regulations. Any

changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment. Please contact Turtle Beach

for a list of approved 2.4 GHz antennas.

This product is compliant with the Consumer Product Safety Improvement Act of 2008, Public Law 110-314 (CPSIA)

CANADIAN ICES STATEMENTS

IC: IC: 3 879A-15150 and 3879 A-15153

This device complies with ICES-003 and RSS-247 of Industry Canada.

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

Ce dispositif est conforme aux normes NMB003 et CNR-247 d’Industrie Canada.

1. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :

2. il ne doit pas produire de brouillage et l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de

compromettre le fonctionnement du dispositif.

This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.

Cet équipement est conforme à l’exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé.

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide

maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing and not supported by Syn Pro Air RX & TX Models.

Pour éviter les interférences radio au service agréé (c.-à-d. Les systèmes par satellite mobile co-canal), cet appareil est destiné à fonctionner à l‘intérieur et à l‘extérieur des

fenêtres pour assurer un blindage maximal. L‘équipement (ou son antenne d‘émission) installé à l‘extérieur est soumis à l‘octroi de licences et n‘est pas pris en charge par les

modèles Syn Pro Air RX et TX.

RF RADIATION EXPOSURE & HAZARD STATEMENT

To ensure compliance with RSS-102 RF exposure requirements, this device must be installed in a location such that the antenna of the device will be greater than 2 cm (0.8

in.) away from all persons. Using higher gain antennas and types of antennas not covered under the IC certification of this product is not allowed. Installers of the radio and end

users of the product must adhere to the installation instructions provided in this manual. This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

EXPOSITION AUX RADIATIONS RF & MENTION DE DANGER

Pour assurer la conformité avec les exigences RSS-102 d‘exposition aux RF (Radio Fréquences), cet appareil doit être installé dans un endroit ou l‘antenne de l‘appareil sera

située à une distance de plus de 2 cm (0.8 po) de toutes personnes. L’utilisation d‘antennes à gain plus élevé et les types d‘antennes qui ne sont pas couverts en vertu de la

certification IC de ce produit n‘est pas autorisée. Les installateurs de la radio et les utilisateurs du produit final doivent se conformer aux instructions d‘installation fournies

dans ce manuel. Cet émetteur ne doit pas être co-implanté ou exploité en conjonction avec toute autre antenne ou transmetteur.

EUROPEAN UNION AND EUROPEAN FAIR TRADE ASSOCIATION (EFTA) REGULATORY COMPLIANCE

This equipment may be operated in the countries that comprise the member countries of the European Union and the European Fair Trade Association. These countries, listed

below, are referred to as The European Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE,, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUA-

NIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN,

NORWAY, SWITZERLAND

Declaration of Conformity

Marking by this symbol:

indicates compliance with the Essential Requirements of the EMC Directive of the European Union

(2014/30/EU). This equipment meets the following conformance standards:

Safety: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013(T-Mark License),

IEC 60950-1:2005 (2nd Ed.) + Am 1:2009 + Am 2:2013 (CB Scheme Certificate),

EN 62368-1: 2014 + A11 (T-Mark License), IEC 62368-1: 2014 (CB Scheme Certificate),

EN 50332-1:2013, EN 50332-2:2013, EN71-3:2013

EMC: EN 55032:2015; CISPR 32:2015,

E N 3 0 14 8 9 -1 V 2 .1.1( 2 0 17- 0 2 ), EN 3 014 8 9 -17 V 3 .1.1( 2 0 16 -11)

EN 61000-4-2: 2009, EN 61000-4-3: 2006 + A1: 2008 + A2: 2010, EN 61000-4-8: 2010

Radio: EN 300 328v2.1.2 (2019-07)

SAR: EN 62311:2008

Environmental: RoHS 2015/863 amending Annex II to 2011/65/EU, WEEE 2012/19/EU,

REACH 2006/1907/EC, Packaging 94/62/EC, Battery 2006/66/EC,

Toys Safety Directive 2009/48/EC

Please visit the following URL for a complete copy of the Declaration of Conformity:

http://www.turtlebeach.com/homologation

Warning!

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.

Achtung!

Dieses ist ein Gerät der Funkstörgrenzwertklasse B. In Wohnbereichen können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für

entsprechende Gegenmaßnahmen verantwortlich ist.

Attention!

Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l’utilisateur de

prendre les mesures spécifiques appropriées.

This symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility

to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate

collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects

human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you

purchased your product.

Voyetra Turtle Beach Inc. is obligated as a producer with a main activity of selling under The Producer Responsibility Obligations (Packaging Waste) Regulations 2007. To fulfil

our obligation we are registered with Comply Direct and their Recycling Room. Here you will find advice and information on packaging waste management, recycling symbols

and the waste hierarchy principles of reduce, reuse and recycle.

https://www.complydirect.com/the-recycling-room/

Mexican IFT-008 Statement

“La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o

dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.”

VOYETRA TURTLE BEACH, INC. | 44 SOUTH BROADWAY, 4TH FLOOR, WHITE PLAINS NY 10601, USA

the property of their respective owners. Information contained herein is subject to change without notice. Voyetra Turtle Beach, Inc shall not be made liable
