Crazy Claw™ The Emoji

3-Player

Rocket Amusements Limited

-2-

ROCKET AMUSEMENTS LIMITED

OPERATION MANUAL

VER. 1.0

Rocket Amusements Limited

-3-

Table of Contents

Crazy Claw™ The Emoji 3-Player................................................................................................................- 1 -

GETTING STARTED..................................................................................................................................... - 7 -

Safety precautions................................................................................................................................. - 8 -

Placing on Location................................................................................................................................ - 8 -

Precautions during play....................................................................................................................... - 10 -

Transporting and moving.....................................................................................................................- 10 -

INSTALLING AND PLACING.......................................................................................................................- 11 -

MAINTENANCE AND SERVICE.................................................................................................................. - 12 -

Power supply voltage and safety.........................................................................................................- 12 -

CIRCUIT BREAKER.....................................................................................................................................- 13 -

INSPECTION..............................................................................................................................................- 14 -

PRODUCT DESCRIPTION...........................................................................................................................- 15 -

Dimensions.......................................................................................................................................... - 15 -

Specification.........................................................................................................................................- 15 -

Cabinet description..............................................................................................................................- 15 -

PLAYER CONTROL PANEL......................................................................................................................... - 16 -

Central service panel........................................................................................................................... - 18 -

Coin door..............................................................................................................................................- 18 -

Cash box...............................................................................................................................................- 19 -

High capacity ticket bin and dispenser drawer................................................................................... - 19 -

FRONT CABINET ACCESS PANEL...............................................................................................................- 20 -

Connecting tube collapses for easy installation.................................................................................. - 21 -

REAR CABINET..........................................................................................................................................- 22 -

Power supply voltage settings............................................................................................................. - 23 -

Main AC voltage...................................................................................................................................- 23 -

Rocket Amusements Limited

-4-

Circuit breaker operation .................................................................................................................. - 23 -

Surge protector plug............................................................................................................................- 24 -

Fuse box............................................................................................................................................... - 24 -

MONITOR ACCESS....................................................................................................................................- 25 -

TOP SIGNAGE........................................................................................................................................... - 25 -

Modem support...................................................................................................................................- 26 -

Topper signage folding........................................................................................................................ - 27 -

SERVICE MENU.........................................................................................................................................- 28 -

Open service menu.............................................................................................................................. - 28 -

Close service menu.............................................................................................................................. - 28 -

Reset button........................................................................................................................................ - 29 -

Test dispensers.................................................................................................................................... - 29 -

Clear pending tickets........................................................................................................................... - 30 -

INTERNET SETTINGS.................................................................................................................................- 31 -

SOUND SETINGS.......................................................................................................................................- 37 -

GAME PLAY SETTINGS ............................................................................................................................- 38 -

Time per claw.......................................................................................................................................- 38 -

PAYOUT TICKET PATTERNS...................................................................................................................... - 39 -

Minimum target reward...................................................................................................................... - 41 -

Maximum target reward......................................................................................................................- 42 -

Super bonus reward.............................................................................................................................- 43 -

Minimum super bonus reward............................................................................................................ - 44 -

Maximum super bonus reward........................................................................................................... - 45 -

COIN SETTING.......................................................................................................................................... - 46 -

Free play...............................................................................................................................................- 46 -

Coin/card swipes..................................................................................................................................- 47 -

Rocket Amusements Limited

-5-

Swipe card ..........................................................................................................................................- 48 -

Claws per game....................................................................................................................................- 49 -

Game discount.....................................................................................................................................- 50 -

Mercy tickets........................................................................................................................................- 51 -

Play-till-win.......................................................................................................................................... - 52 -

Bill/note value......................................................................................................................................- 53 -

BONUS SETTINGS..................................................................................................................................... - 54 -

Super bonus enable............................................................................................................................. - 55 -

Super bonus quantity...........................................................................................................................- 56 -

Tickets by attendant............................................................................................................................ - 57 -

Progressive super bonus......................................................................................................................- 58 -

Custom super bonus............................................................................................................................ - 59 -

Super bonus reward.............................................................................................................................- 60 -

Super bonus reward low value............................................................................................................ - 61 -

Super bonus difficulty ........................................................................................................................- 62 -

Progressive super bonus settings........................................................................................................ - 63 -

Progressive super bonus increment.................................................................................................... - 64 -

Progressive super bonus starting reward............................................................................................- 65 -

Progressive super bonus maximum reward........................................................................................ - 66 -

TARGET VALUES....................................................................................................................................... - 67 -

TARGET GROUPS......................................................................................................................................- 68 -

Popular mix.......................................................................................................................................... - 69 -

Emoji.................................................................................................................................................... - 70 -

BOOKKEEPING ........................................................................................................................................- 71 -

Last reset..............................................................................................................................................- 71 -

Coins/credits in.................................................................................................................................... - 72 -

Rocket Amusements Limited

-6-

Free play games................................................................................................................................... - 73 -

Tickets/credits paid out....................................................................................................................... - 74 -

Super bonus tickets paid out............................................................................................................... - 75 -

Super bonus percent............................................................................................................................- 76 -

Mercy tickets paid out......................................................................................................................... - 77 -

Games paid for.....................................................................................................................................- 78 -

Games sold at discount........................................................................................................................- 79 -

Claws played........................................................................................................................................ - 80 -

Targets caught..................................................................................................................................... - 81 -

Average tickets per game.................................................................................................................... - 82 -

Target hit frequency .......................................................................................................................... - 83 -

Claw drops count................................................................................................................................. - 84 -

Average claw drop time.......................................................................................................................- 85 -

TICKET FAULT........................................................................................................................................... - 86 -

IO BOARD................................................................................................................................................. - 87 -

Enlarge view of IO board pin out......................................................................................................... - 88 -

TICKET DISPENSER SETTINGS................................................................................................................... - 89 -

COIN ACCEPTER PLATE.............................................................................................................................- 91 -

PARTS LIST................................................................................................................................................- 92 -

CONTACT................................................................................................................................................- 107 -

Rocket Amusements Limited

-7-

GETTING STARTED

Thank you for purchasing this product.

*The manual describes how to install, set up, use and maintain the product. The main purpose of the

manual is to instruct how to operate the product correctly and safely. Please follow all the safety and

warning instructions in the manual to avoid personal injury and product damage.

*This product should be maintained by a technician, a technician refers to a person who is routinely

engaged in the maintenance and repair of amusement machines.

*Please keep this manual properly for easy reference as needed. Moreover, if the operator entrusts

another party to operate, move, transport, install, maintain and repair the machine, please read relevant

content and instruct concerned party to observe all the instructions and precautions in this manual

regarding the particular action to be taken.

*When transferring the ownership of this product, be sure to provide this manual with the machine.

*For further information about the game and repair (including consumables), please contact our

company.

Unauthorized reproduction of this document or any of its contents in any form is strictly forbidden.

Rocket Amusements Limited

-8-

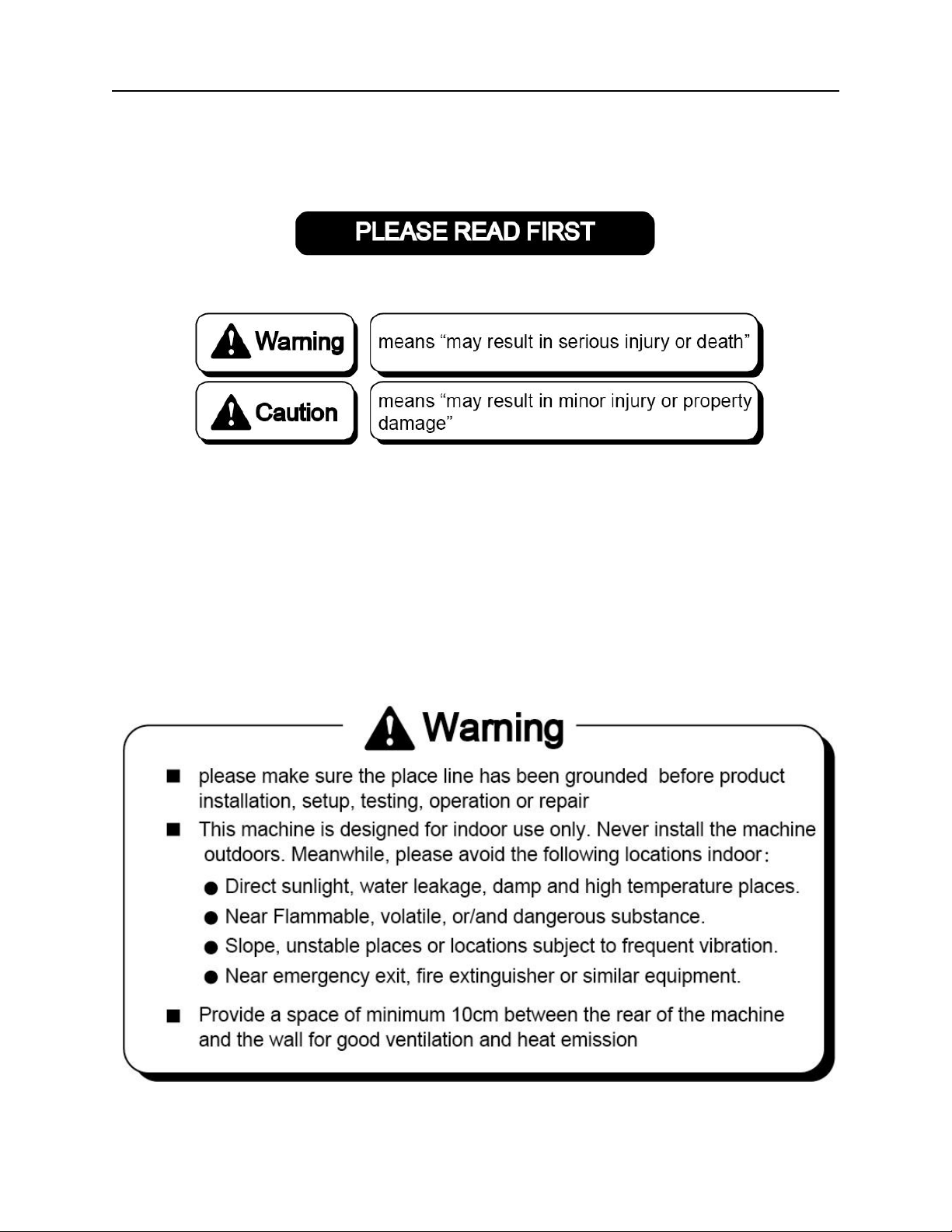

Safety precautions

Warning stickers. In order to avoid injury to related people and damage to property, please observe the

followings:

The following marks can be used to indicate the magnitudes of risk and damage caused by ignorance or

improper operation:

Serious Injury: refers to the situations in which hospital treatment or long-term treatment will be accepted

because of losing sight, getting hurt, getting burnt, electric shock, fracture or intoxication.

Minor Injury: refers to the cases that there is no need to go to hospital or accept long-term treatment.

Property Damage: refers to the damage of house, facility, or hurt of livestock and pet.

Placing on Location

Safety precautions. The owner shall pay attention to the followings when placing, checking and repairing

machine to insure player’s security and avoid damage:

Rocket Amusements Limited

-9-

Rocket Amusements Limited

- 10 -

Precautions during play

Transporting and moving

Rocket Amusements Limited

- 11 -

INSTALLING AND PLACING

Pay attention to the following when placing the machine.

Rocket Amusements Limited

- 12 -

MAINTENANCE AND SERVICE

Even though the machine will perform normally for a long period of time, a fault will eventually occur.

Therefore, please perform routine check and maintenance concerning the following to ensure successful

long-term use.

Power supply voltage and safety

△WARNING

VERY IMPORTANT! Before applying power to the machine.

Be certain your local main power voltage is between 110 and 220 volts.

Voltage which exceeds 240 volts will cause damage, use extreme caution.

No other settings are required for main input voltage.

△WARNING

Ground wire connection must comply with the following criteria. If not it may cause leakage and electric

shock accidents.

The attached power cord should be a properly grounded three (3) prong power plug.

Must use the included power cord. Poor quality cords may cause heat or fire.

△CAUTION

Pay attention to the power cord placement, it should not obstruct or stumble players and pedestrians.

power the machine on and check the settings.

△CLEANING THE MACHINE

Don't use diluted alcohol and other organic solvents. It may damage the paint.

Use a soft cloth with neutral detergent or water to cleanse each external section of the machine.

Then use the dry cloth to wipe away any remaining moisturize.

—Technical personnel only—

—Must have at least two People—

Rocket Amusements Limited

- 13 -

CIRCUIT BREAKER

In the event of a short and or power loss, the power strip mounted circuit breaker must be reset by pushing

down firmly on the red button and releasing.

Rocket Amusements Limited

- 14 -

INSPECTION

Rocket Amusements Limited

- 15 -

PRODUCT DESCRIPTION

Crazy Claw is the world’s first VR claw machine.

Dimensions

Dimensions: height 90” width 52” depth 52”

Weight: 900 pounds

Specification

Power requirement: 110 - 220 volts

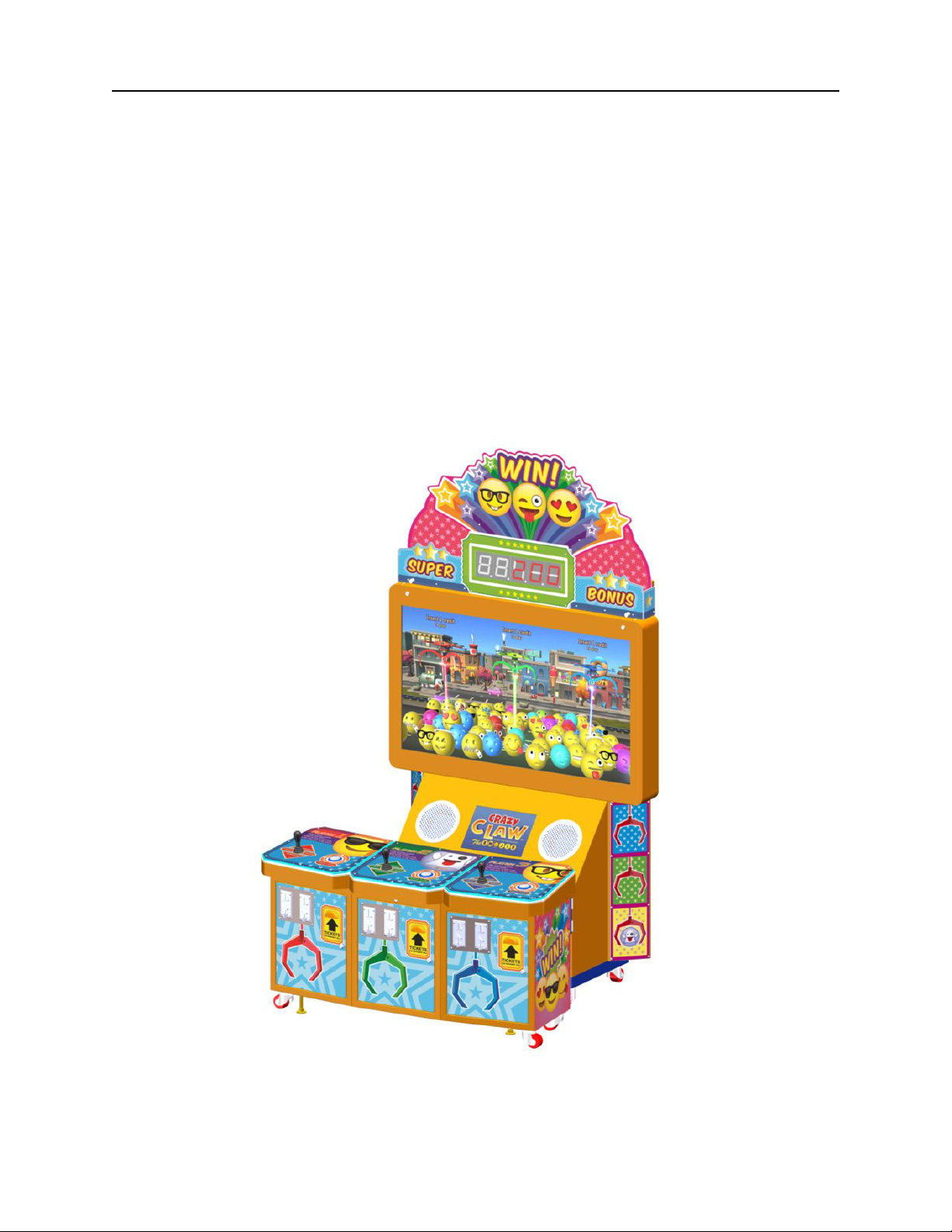

Cabinet description

Crazy Claw 3-player machine

Rocket Amusements Limited

- 16 -

PLAYER CONTROL PANEL

Unlock the center console here.

Panels flip up for easy access to IO board, ticket bin & controls.

Rocket Amusements Limited

- 17 -

Easy access to joysticks and buttons.

Easy access to IO boards, wiring, IO LED activity flashes when switches are tested.

Rocket Amusements Limited

- 18 -

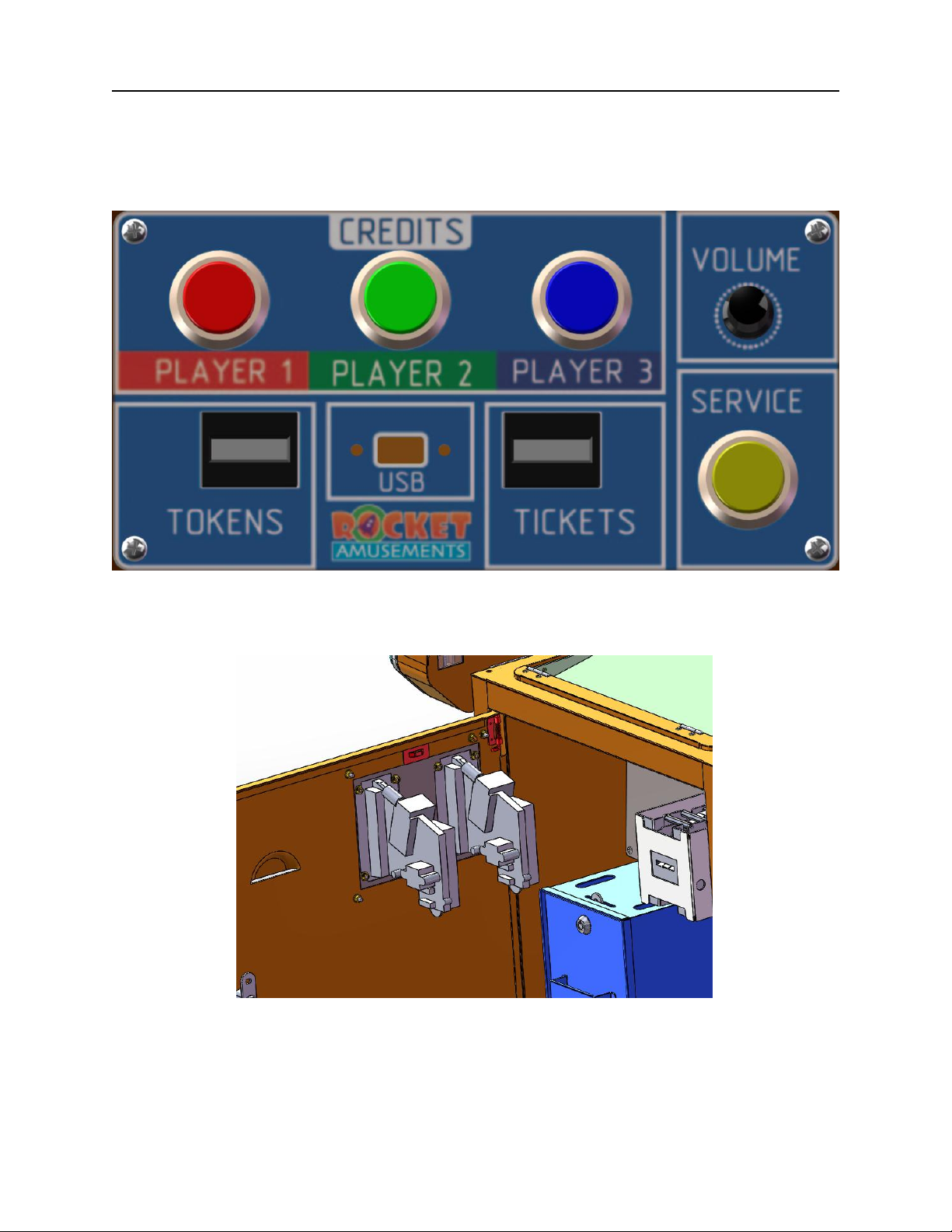

Central service panel

Buttons open service menu, credit the game for test purposes, volume control, USB port for updating and

keyboard connection, meters for coin, and ticket counts.

Coin door

Dual coin accepters, if one jams, operation of games may continue.

Rocket Amusements Limited

- 19 -

Cash box

High capacity ticket bin and dispenser drawer

Pull out drawer for easy refills and service. Ticket jams between door and dispenser are easy cleared. Machine

is equipped for any Deltronic Labs DL-1275 compatible ticket dispenser.

Rocket Amusements Limited

- 20 -

Ticket dispenser housing, drawer mounted for easy access and service.

FRONT CABINET ACCESS PANEL

Allows easy access door to front cabinet wiring.

Table of contents

Popular Toy manuals by other brands

LEGO

LEGO Racers 8304 Assembly instructions

E-FLITE

E-FLITE Adagio 280 instruction manual

LeapFrog

LeapFrog Shapes & Sharing Picnic Basket Parent guide & instructions

Eduard

Eduard MiG-23 Flogger armament quick start guide

Skynetic

Skynetic Shrike Glider instruction manual

Liliput

Liliput L13156x operating manual

Mattel

Mattel Hot Wheels Trick Tracks Ultimate Stunt World instructions

GREAT PLANES

GREAT PLANES Spirit 100 Instruction book

Eduard

Eduard 49 1006 quick start guide

Eduard

Eduard Zoom MiG-25RBT quick start guide

Goldwing RC

Goldwing RC Electric Extreme CORVUS 70E manual

REVELL

REVELL KIT 3015 Assembly manual

Giroo

Giroo OFF-ROAD GD30805 user manual

Eduard

Eduard 72 514 quick start guide

Super-E

Super-E Saturn user manual

Auhagen

Auhagen 12 215 Assembly manual

Twister

Twister Medevac 2.4 Assembly & flight training guide

Black Horse

Black Horse bravo 3d instruction manual

Rocket Amusements Crazy Claw The Emoji User manual

Popular Toy manuals by other brands
