Rocket Fish ROCKETBOOST RF-RBWHP01 User manual

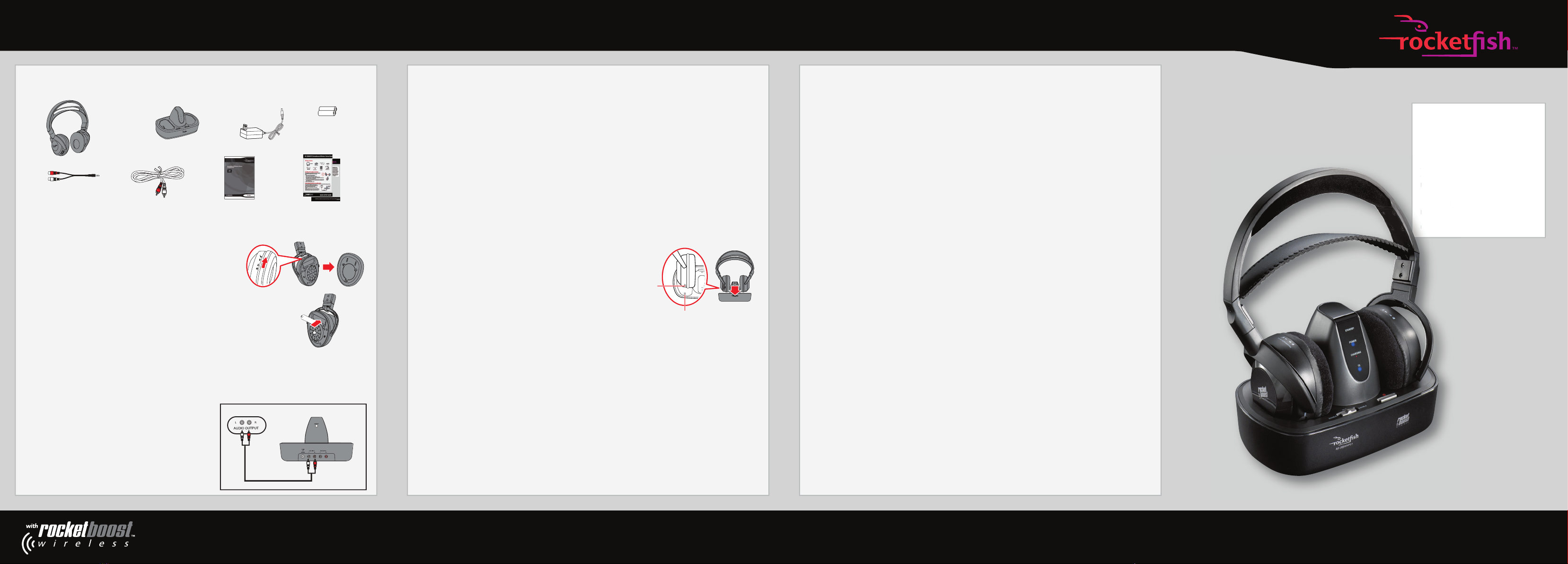

QUICK SETUP GUIDE
Installing the headphone batteries
The headphones are powered by two AA rechargeable
batteries. Each earpiece houses one battery.
Notes:
• Do not install non-rechargeable batteries.
• Make sure that all batteries are installed correctly.
1With an earpiece cushion facing you, unlock and remove
left and right earpiece cushions by slightly rotating them clockwise, then
pulling them away from the headphones.
2Insert one AA rechargeable battery into each battery compartment. Make
sure to align the + and - symbols on the batteries with the symbols in the
battery compartments.
3Replace the left and right cushions.
Connecting the system to an audio source
Caution: To prevent damage to your system, make sure all components are turned o before making connections.
In a typical user installation, the docking station is
connected to the audio output of a TV. Other devices
with audio outputs could be used as well.
To connect the docking station to your audio
source:
Using the supplied RCA audio cable, connect the audio
output jacks of your audio source to the AUX INPUT jacks
of the docking station. Make sure that you connect the
Package contents
Headphones
User Guide
3.5 mm-to-RCA
adapter cable
AC power adapter
RCA audio cable Quick Setup Guide
© 2010 BBY Solutions, Inc., All Rights Reserved. Distributed by Best Buy Purchasing, LLC, 7601 Penn Avenue South, Richeld, MN USA 55423-3645
ENGLISH 10-0801
same color jacks together (the white to the white and the red to the red).
Note: If your audio source has only a 3.5 mm“phones”or“line out”jack, use the supplied 3.5 mm-to-RCA adapter
cable.
Connecting the AC adapter to the docking station
Caution: To avoid risk of re and to prevent damage, only use the AC adapter supplied with your wireless
headphones. Make sure that the power supply outlet matches the AC adapter’s 120V before making the
connection.
1 Connect the AC adapter connector to the docking station’s DC IN jack.
2 Connect the AC adapter plug to an AC power outlet. The STANDBY indicator lights red steadily
when the docking station is plugged in.
Caution: Plug the AC adapter into the power outlet only after all other connections are completed.
Charging the headphones
Important: Before using the wireless headphones for the rst time, make sure the batteries are fully charged for at
least 16 hours. This will help provide a longer operating lifetime for the batteries.
Place the headphones onto the docking station. Make sure
that the headphone charging contacts and the docking
station charging pins make contact.
• The docking station charging indicator turns red to
indicate the headphones are charging.
• When the headphones are fully charged (which takes
about eight to nine hours), the docking station charging
indicator turns green.
Notes:
• The batteries will last up to ten hours with continuous use
(depending on the headphone volume level and distance from the docking station).
• The headphones can be charged even if the docking station or headphones are turned o.
Turning on the system
1Set the POWER switch on the left earpiece of headphones to ON.
2Press the POWER button on the docking station.
Establishing communication
The headphones and docking station must be "joined" or wirelessly connected to each other so that
audio can be sent from the docking station to the headphones.
Since the headphones and docking station are pre-joined at the factory, you can skip this step and go
to the Listening through the headphones step. Follow this procedure only if you need to rejoin the
headphone and docking station. For information on how to use this product with an existing
Rocketboost network, see your User Guide.
Docking station
Rechargeable
batteries (2)
LLR
Docking station charging pin
To join the headphones to the docking station:
1Set the HUB STATUS switch on the docking station to ENABLE if this is your rst Rocketboost
product set.
• The power indicators turn green when the HUB STATUS switch is set to ENABLE.
• The power indicators turn blue when the HUB STATUS switch is set to DISABLE.
2Press and hold the CONNECT button on the docking station for more than three seconds to put it
into joining mode. The power indicator starts blinking rapidly and the unit will stay in joining mode
for 30 seconds.
3Press and hold the CONNECT button on the headphone for more than three seconds so the
docking station and headphone enter joining mode.
• The power indicator lights steadily if the joining was successful.
• The power indicator blinks slowly if the joining was not successful.
For more information, see your User Guide.
Listening through the headphones
1Set the headphone’s volume level to the minimum.
2Turn on the headphones and docking station. Make sure that your docking station and headphones
are wirelessly“joined.”
The power indicators light steadily if the docking station and headphones are joined and blink
slowly if they are not. If they are not joined, see“Establishing Communication”above or in the User
Guide.
3Put your headphones on your head. Adjust the angles of the left and right ear pieces until you feel
comfortable.
4Turn on your audio source and begin playback.
If there are multiple sources in the Rocketboost network, press the SOURCE button on the
headphones to nd the source you want to listen to. TheTX indicator on the docking station (if it is a
hub) blinks several times, indicating that the current audio source is changing.
5Adjust the headphone volume to your normal listening level.
Caution: Continuous use at high volume may permanently damage your hearing.
Note: If the system is connected to an A/V receiver with an external amplier, turn o the amplier to prevent
hearing sound from the amplier speakers.
Turning o the system
1Set the POWER ON/OFF switch located on the headphone’s left earpiece to OFF.
2Press and hold the POWER button on the docking station. The power indicator on the docking
station goes o.
Audio source
RCA cable (supplied)
Docking station
back panel
Rocketboost network notes:
Every Rocketboost network must contain
one hub device, which helps devices join
the network. The network can have only
one hub, which you can enable using the
hub switch on the back of all Rocketboost
senders and sender/receivers. If this is your
rst Rocketboost product, you should make
the docking station the hub, if you already
have Rocketboost products, you should
disable hub mode on the docking station.
Important: Hub devices must always have
power for your network to operate. The hub
device can be in standby (power-saving)
mode, but must stay plugged in.
senders and se
rst Rocketboo
the docking sta
have Rocketbo
disable hub mo
Important
: Hu
power for your
device can be i
mod
m
m
e, but mus
Headphone
charging
contact
RF-RBWHP01 Rocketboost Wireless Stereo Headphones
