Rockford Fosgate POWER 150 User manual

® ®
car audio
fanatics
for
mono Amplifiers
Operation & Installation
®
power

POWER 150 POWER 200
Dynamic Power Rating (IHF-202 Standard) - Measured at 14.4 Volts
Mono into a 4ΩLoad 110 Watts 150 Watts
Mono into a 2ΩLoad 190 Watts 260 Watts
Continuous Power Rating (Competition Standard) - Measured at 13.8 Battery Volts
RMS continuous power mono, driven into a 75 Watts 100 Watts
4Ωload from 20 to 20,000Hz with less than
0.05% Total Harmonic Distortion (THD)
RMS continuous power mono, driven into a 150 Watts 200 Watts
2Ωload from 20 to 20,000Hz, with less than
0.1% Total Harmonic Distortion (THD)
Signal-to-Noise Ratio >100dB A-weighted
Crossover Slope 12dB/octave Butterworth
Crossover Frequency variable from 50Hz to 210Hz
Dimensions 2.60" (6.60cm) H 2.60" (6.60cm) H
9.60" (24.38cm) W 9.60" (24.38cm) W
6.70" (17.01cm) L 7.70" (19.55cm) L
Frequency Response 20Hz to 20kHz ±0.5dB
Bandwidth 10Hz to 200kHz ±3dB
Damping Factor @ 4Ω(at output connector ) >200
Slew Rate 30 Volts/µs
IM Distortion (IHF) <0.05%
Source Unit Compatibility (+15dB gain overlap) 17V max. (low level in)
Input Sensitivity (+0dB gain overlap) Variable from 250mV to 4V (low level in)
Variable from 650mV to 11V (high level in)
Protection NOMAD - Internal analog-computer output protection
circuitry limits power in case of overload. Thermal
switch shuts down the amplifier in case of overheating.
Battery Fusing Rates (External to Amplifier) 15 amps 20 amps
Fuse Type ATC ATC
Equalization (45Hz Punch Bass) Variable from 0dB to +18dB @ 45Hz
Input Impedance 20k ohms
Specifications are subject to change without notice.
S PECIFICATIONS
– i –

Dear Customer,
Congratulations on your purchase of the world's finest brand of car audio amplifiers.
AtRockfordFosgatewearefanaticsaboutmusicalreproductionatitsbest,andweare
pleasedyouchoseourproduct.Throughyearsofengineeringexpertise,handcraftsman-
ship and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized
training through Rockford Technical Training Institute (RTTI). Please read your
warranty and retain your receipt and original carton for possible future use.
Greatproductandcompetent installationsareonlyapieceofthepuzzle whenitcomes
to your system. Make sure that your installer is using 100% authentic installation
accessories from Connecting Punch in your installation. Connecting Punch has
everything from RCA cables and speaker wire to Power line and battery connectors.
Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rockford
wearables,which include everything from T-shirts and jackets tohats and sunglasses.
To get a free brochure on Rockford Fosgate products and Rockford accessories, in the
U.S.call602-967-3565orFAX602-967-8132.Forallothercountries,call+001-602-
967-3565 or FAX [phone].
If, after reading your manual, you still have questions regarding this product,
we recommend that you see your Rockford Fosgate dealer. If you need further
assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial
number, model number and date of purchase available when you call.
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER 100dB
MAY CAUSE PERMANENT HEARING LOSS.HIGH POWERED AUTOSOUND
SYSTEMS MAY PRODUCE SOUND PRESSURE LEVELS WELL OVER
130dB. USE COMMON SENSE AND PRACTICE SAFE SOUND.
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will serve as
verificationofyourfactorywarrantyandmaybecomeusefulinrecoveringyour
amplifier if it is ever stolen.
Serial Number: ________________________________
Model Number:________________________________
– ii –

T ABLE OF C ONTENTS
Specifications .............................................................................................. i
Introduction................................................................................................1
Amplifier Accessory Pack ............................................................................. 1
Feature Chart..............................................................................................2
Design Features .......................................................................................... 4
Installation Considerations ...........................................................................6
Mounting Location ...................................................................................... 7
Battery and Charging ..................................................................................8
Wiring the System.......................................................................................8

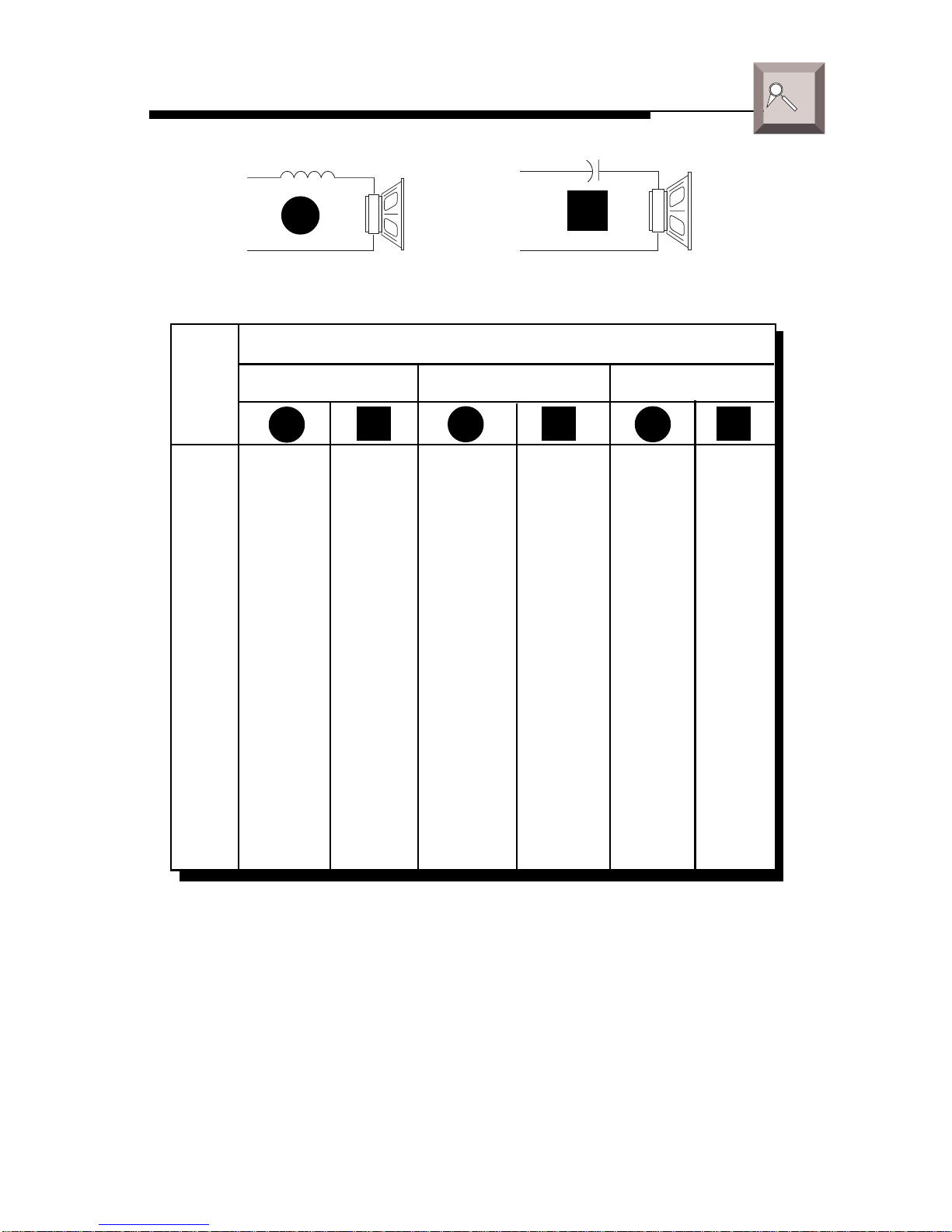

Using Passive Crossovers........................................................................... 10
Table of Component Values........................................................................ 11
Installation ...............................................................................................12
System Diagrams...................................................................................... 15
Troubleshooting........................................................................................ 18
Dynamic Power Measurements................................................................... 20
Warranty Information ................................................................................ 22
International Information............................................................................23
Sections marked
ADVANCED OPERATION
include in-depth
technical information
Sections marked
TROUBLESHOOTING
include recommendations for
curing installation problems
Sections marked
INSTALLATION
include “slam dunk”
wiring connections
I
N
S
T
A
L
L
A
T
I
O
N
® ®
TROUBLE-S
H
O
O
T
I
N
G
Welcometo Rockford Fosgate! This manual is designedto provide information
for the owner, salesperson and installer. For those of you who want quick
information on how to install this product, please turn to the Installation
Section of this manual or refer to the icons listed below. Other information can
be located by using the Table of Contents. We, at Rockford Fosgate, have
workedveryhardtomakesurealltheinformationinthismanualiscurrent.But,
asweareconstantlyfindingnewwaystoimproveourproduct,thisinformation
is subject to change without notice.
GETTING STARTED
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

I NTRODUCTION
Rockford engineers designed the Power 150 and Power 200 amplifiers to
withstand the rugged automotive environment while delivering superior
sound quality in a flexible, reliable, and efficient package. TRANS• ana is a
lowvoltagecircuitinthepreampstageletsthemusicsoundcrystalclearand
very real, even when played at high volume levels. This is matched with
TOPAZ, a unique grounding circuit used to eliminate noise problems
associated with car audio systems and their installation. Flexibility is
accomplished with the use of a built-in variable crossover. The use of a
protection circuit called NOMAD, along with MOSFET and DSM (Discrete
SurfaceMount)technologiesimproveamplifierefficiency.Theresultofthese
components give the Power amplifier awesome sound quality in a “Bullet
Proof” package. Explanations of these technologies, most of which are
exclusively designed and patented by Rockford, are described in the
Technical Design Features.
– 1 –
A MPLIFIER A CCESSORY P ACK
The accessory pack included with each amplifier contains the mounting
hardware necessary to secure the amp to the vehicle and to attach the end
caps to the amplifier.
Installation & Operation Manual
Punch Verification Certificate
(4) Amplifier mounting screws (#8 x 3/4" Phillips)
(4) Speaker/Power Connector Set Screws (3/32" Allen)
(4) Endbell Mounting Screws (9/64" Allen)
(1) Allen Wrench 9/64"
(1) Allen Wrench 3/32"
(1) High Level Input Harness (replacement part #CC-1992)
(1) ATC Inline Fuseholder
(1) ATC 15 Amp Fuse (Power 150)
(1) ATC 20 Amp Fuse (Power 200)

P OWER M ONO A MPLIFIER F EATURE C HART
– 2 –
Power 150 Power 200
# of CHANNELS 11
RMS Power Mono (4Ω) 75x1 100x1
RMS Power Mono (2Ω) 150x1 200x1
Stable Into: 2Ω2Ω
CIRCUITRY1
TRANS• ana – circuit topology xx
TRANS• nova – patented circuit topology2--
Class-H – high efficiency topology --
MEHSA – heat dissipating technology -x
TOPAZ– patented noise eliminating circuitry3x
DSM – discrete surface mount xx
MOSFETs – power supply and output devices xx
NOMAD – protection circuit xx
FEATURES
Die Cast Heatsink4xx
Hi-Level Inputs x x
RCA Inputs x x
Balanced Inputs - -
Input Switches - -
Pass-Thru x x
Pwr/Spk Screw Terminals - -
Pwr/Spk Block Terminals x x
4 Gauge Pwr/Gnd - -

– 3 –
--INTERNAL USE ONLY--
Heatsink Type #1 #2
Power 150 Power 200
Fixed Punch Bass - -
(0dB/+6dB/+12dB @ 45Hz)
Variable Punch Bass x x
(0dB ~+18dB @ 45Hz)
Adjustable Crossover (80Hz fixed) - -
Variable Crossover (50Hz ~ 210Hz) LP/FULL5LP/FULL5
Crossover Slope (Butterworth) 12dB/octave 12dB/octave
Phase Warp (00~1800)--
GENERAL
B+ Fuse Size 15A ATC 20A ATC
Dimensions (H x W x L) 2.60" x 2.60" x
9.60" x 9.60" x
6.70" 7.70"
(6.60cm x (6.60cm x
24.38cm x 24.38cm x
17.01cm) 19.55cm)
1Additional information on features, specifications and system designs can be
found at: www.rockfordfosgate.com
2Trans•nova is patented under U.S. Patent No. 4,467,288
3TOPAZ is patented under U.S. Patent No. 5,751,823
4Diecast Heatsink patent pending
5HP = 12dB/octave High-Pass / LP = 12dB/octave Low-Pass / FULL = Full Range

D ESIGN F EATURES
1. Cast Aluminum Heatsink – The cast aluminum heatsink of the Punch
amplifier dissipates heat generated by the amplifier's circuitry. The
inherentadvantage of casting provides a 30% improvement of cooling
over conventional extrusion heatsink designs.
2. Speaker Terminals – The heavy duty, gold-plated terminal block
connectors (+ and –) will accept wire sizes from 8 AWG to 18 AWG.
These gold-plated connectors are immune to corrosion that can cause
signal deterioration.
3. Power Terminals – The power and ground connectors on the Punch
amplifier are gold-plated and will accommodate up to 8 AWG wire
maximizing the input current capability of the amplifier.
4. REM Terminal – This spade terminal is used to remotely turn-on and
turn-off the amplifier when +12V DC is applied.
5. RCA Input Jacks – The industry standard RCA jacks provide an easy
connectionforsignallevelinput.Theyaregold-platedtoresistthesignal
degradation caused by corrosion.
6. High Level Inputs – The high level inputs use a detachable connector
terminatedwith20AWGleads.Theseinputsshouldbeusedifthesource
unit has only speaker line (high level) outputs.
7. Gain Control – The input gain control is preset to match the output of
most source units. It can be adjusted to match output levels from a
variety of source units.
– 4 –
Punch 150
Punch 200
911 476 532 1
810
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Crossover
Frequency
Punch
Bass
18dB 0dB
REM – + B+ GND
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full

– 5 –
8. RCAPass-ThruJacks–ThePass-Thruprovidesaconvenientsourcefor
daisy-chaining an additional amplifier without running an extra set of
RCA cables from the front of the vehicle to the rear amplifier location.

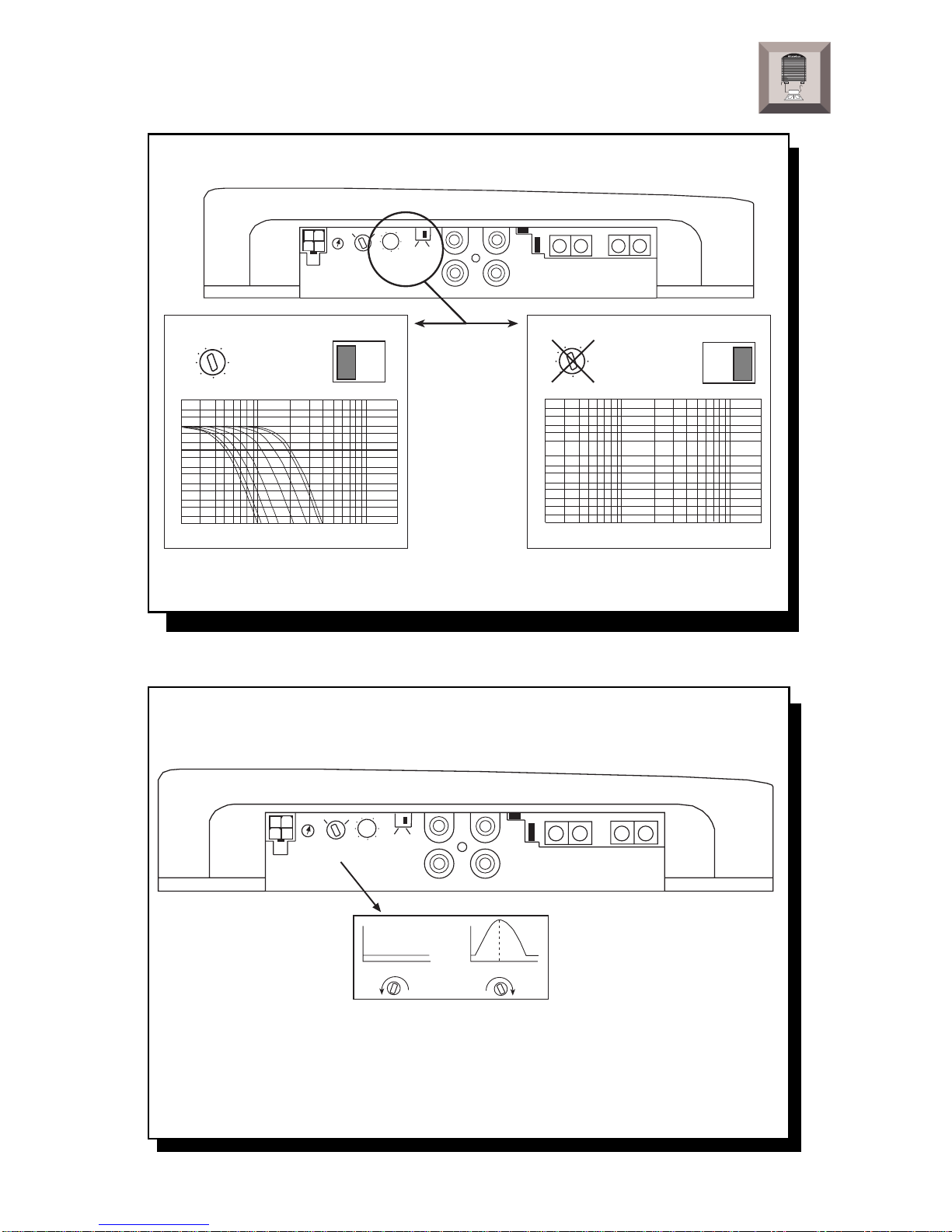

9. Punch Bass – The Punch Bass control helps correct for acoustical
deficiencies in the listening environment. The Punch Bass allows a
narrow band adjustment at 45Hz to help reproduce full range sound
without excessive boost.
10. Variable Crossover – The amplifiers have a built-in 12dB/octave
Butterworth filter with a crossover point variable from 50Hz to 210Hz.
The crossover can be set to Low-Pass (LP) or it can be bypassed by
setting it to Full Range (FULL).
11. LED Power Indicator – TheLED illuminates when the unit is turned on.

I NSTALLATION C ONSIDERATIONS
The following is a list of tools you will need for installing the amplifier:
Allen wrenches 9/64" & 3/32" (included) Voltmeter
Wire strippers Battery post wrench
Electric hand drill w/assorted bits Wire cutters
17' (5m) Red Power Wire Assorted connectors
12' (4m) Remote Turn-On Wire Wire crimpers
1.5' (45cm) Black Grounding Wire
– 6 –
Thissectionfocuses on some of the vehicle considerations for installing your
new Punch amplifier. Checking your battery and present sound system, as
well as pre-planning your system layout and best wiring routes, will save
installationtime. Whendecidinghowtolayoutyournewsystem,besurethat
each component will be easily accessible for making adjustments.
Before beginning any installation, be sure to follow these simple rules:
1. Besuretocarefullyreadandunderstandtheinstructionsbeforeattempt-
ing to install the amplifier.
2. For safety, disconnect the negative lead from the battery prior to
beginning the installation.
3. Foreasierassembly,wesuggestyourunallwirespriortomountingyour
amplifier in place.
4. Route all of the RCA cables close together and away from any high
current wires.
5. Use high quality connectors for a reliable installation and to minimize
signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel
lines, brake or hydraulic lines, vacuum lines or electrical wiring when
working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the
vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic
grommets to protect any wires routed through metal, especially the
firewall.
9. ALWAYS protect the battery and electrical system from damage with
proper fusing. Install a fuseholder and appropriate fuse on the +12V
power wire within 18” (46 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the
metal to ensure a good, clean ground connection. Grounding connec-
tions should be as short as possible and always be connected to metal
that is welded to the main body, or chassis, of the vehicle.

M OUNTING L OCATION
Themountinglocationandpositionofyouramplifierwill haveagreateffect
on its ability to dissipate the heat generated during normal operation. The
design of our cast aluminum heatsink serves to easily dissipate the heat
generatedoverawiderangeofoperatingconditions.However,tomaximize
theperformance ofyouramplifier, care shouldbetaken to ensureadequate
ventilation.
Trunk Mounting
Mounting the amplifier vertically on a surface with the fin grooves running
up and down will provide the best cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will work but provides less
cooling capability than vertical mounting.
Mounting the amplifier upside down to the rear deck of the trunk will not
provide proper cooling and will severely affect the performance of the
amplifier and is strongly not recommended.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as long as
you provide a sufficient amount of air for the amplifier to cool itself. If you
aregoingtomounttheamplifierundertheseatofthevehicle,youmusthave
at least 1" (2.54cm) of air gap around the amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around the
amplifier's heatsink in the passenger compartment will not provide proper
cooling and will severely affect the performance of the amplifier and is
strongly not recommended.
Engine Compartment Mounting
Rockford Fosgate amplifiers should never be mounted in the engine
compartment. Not only will this void your warranty but could create an
embarrassing situation caused by the ridicule from your friends.
– 7 –

B ATTERY AND C HARGING
– 8 –
Amplifiers will put an increased load on the vehicle's battery and charging
system. We recommend checking your alternator and battery condition to
ensure that the electrical system has enough capacity to handle the
increased load of your stereo system. Stock electrical systems which are in
good condition should be able to handle the extra load of any Rockford
amplifier without problems, although battery and alternator life can be
reduced slightly. To maximize the performance of your Rockford Fosgate
amplifier,wesuggesttheuseofaheavydutybatteryandanenergystorage
capacitor.
W IRING THE S YSTEM
CAUTION: Avoid running power wires near the low level input cables,
antenna, power leads, sensitive equipment or harnesses. The power
wires carry substantial current and could induce noise into the audio
system.
•Forsafety,disconnectthenegativeleadfromthebatterypriortobeginning
the installation.
1. Plan the wire routing. Take care when running signal level RCA cables
tokeepthemclosetogetherbutisolatedfromtheamplifier'spowercables
and any high power auto accessories, especially electric motors. This is
doneto prevent coupling thenoisefromradiated electrical fields intothe
audio signal. When feeding the wires through the firewall or any metal
barrier, protect them with plastic or rubber grommets to prevent short
circuits. Leave the wires long at this point to adjust for a precise fit at a
later time.
2. Prepare the Power cable for attachment to the amplifier by stripping 1/2"
of insulation from the end of the wire. Insert the bared wire into the B+
terminal and tighten the set screw to secure the cable in place.
NOTE: The B+ cable MUST be fused 18" or less from the vehicle's
battery. Install the fuseholder under the hood and prepare the cable
ends as stated above. Connections should be
water tight.
Trim the power cable within 18" of the battery and
strip 1/2" of insulation from the end of the wire. Cut
the wire loop that is attached to the fuseholder in
half and splice the fuse into the power line using
appropriate inline connectors. Use the section of
cable that was trimmed earlier and connect it to the
other end of the fuseholder.
Cut
here
X

– 9 –
3. Strip 1/2" from the battery end of the power cable and crimp a large ring
terminal to the cable. Use the ring terminal to connect to the battery
positive terminal. Do not install the fuse at this time.
4. Prepare the Ground cable for attachment to the amplifier by stripping 1/2"
of insulation from the end of the wire. Insert the bared wire into the GND
terminal and tighten the set screw to secure the cable in place. Prepare
the chassis ground by scraping any paint from the metal surface and
thoroughly clean the area of all dirt and grease. Strip the other end of the
wire and attach a ring connector. Fasten the cable to the chassis using a
non-anodized screw and a star washer.
5. PreparetheREM turn-onwireforconnectiontotheamplifierbystripping
1/2" of insulation from the wire end. Insert the bared wire into the REM
terminalandtighten thesetscrewtosecurethecable intoplace. Connect
the other end of the REM wire to a switched 12 volt positive source. The
switched voltage is usually taken from the source unit's auto antenna or
the accessory lead. If the source unit does not have these outputs
available, the recommended solution is to wire a mechanical switch in
line with a 12 volt source to activate the amplifier.
6. Securely mount the amplifier to the vehicle or amp rack. Be careful not
to mount the amplifier on cardboard or plastic panels. Doing so may
enable the screws to pull out from the panel due to road vibration or
sudden vehicle stops.
7. ConnectthesourcesignaltotheamplifierbypluggingtheRCAcables/high
level inputs into the input jacks at the amplifier.
8. Connect the speakers. Strip the speaker wires 1/2" and insert into the
speaker terminal and tighten the set screw to secure into place. Be sure
tomaintain proper speaker polarity. DO NOT chassis ground any of the
speaker leads as unstable operation may result.
9. Perform a final check of the completed system wiring to ensure that all
connections are accurate. Check all power and ground connections for
frayed wires and loose connections which could cause problems.

– 10 –
U SING P ASSIVE C ROSSOVERS
Apassivecrossoverisacircuitthatusescapacitorsand/orcoilsandisplaced
onspeakerleadsbetweentheamplifierandspeaker.Thecrossoverdelegates
aspecificrangeoffrequenciestothespeakerforoptimumdriverperformance.
A crossover network can perform one of three functions: High-Pass (capaci-
tors),Low-Pass(inductorsorcoils)andBandpass(combinationofcapacitor
and coil).
The most commonly used passive crossover networks are 6dB/octave
systems. These are easy to construct and require one component per filter.
Placing this filter in series with the circuit will reduce power to the speaker by
6dB/octave above or below the crossover point depending on whether it is a
high-pass or low-pass filter. More complex systems such as 12dB/octave or
18dB/octavecancause impedance problems if not professionally designed.
Passivecrossoversaredirectlydependentuponthespeaker'simpedanceand
component value for accuracy. When passive crossover components are
used in multiple speaker systems, the crossover's effect on the overall
impedance should be taken into consideration along with the speaker's
impedancewhen determining amplifierloads. CAUTION: The Power ampli-
fiers are not recommended for impedance loads below 2Ω.
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

– 11 –
T ABLE OF C ROSSOVER C OMPONENT V ALUES
6dB/Octave Low-Pass 6dB/Octave High-Pass
Freq.
Hertz Speaker Impedance
80 4.1mH 1000µF 8.2mH 500µF 16mH 250µF
100 3.1mH 800µF 6.2mH 400µF 12mH 200µF
130 2.4mH 600µF 4.7mH 300µF 10mH 150µF
200 1.6mH 400µF 3.3mH 200µF 6.8mH 100µF
260 1.2mH 300µF 2.4mH 150µF 4.7mH 75µF
400 .8mH 200µF 1.6mH 100µF 3.3mH 50µF
600 .5mH 136µF 1.0mH 68µF 2.0mH 33µF
800 .41mH 100µF .82mH 50µF 1.6mH 26µF
1000 .31mH 78µF .62mH 39µF 1.2mH 20µF
1200 .25mH 66µF .51mH 33µF 1.0mH 16µF
1800 .16mH 44µF .33mH 22µF .68mH 10µF
4000 .08mH 20µF .16mH 10µF .33mH 5µF
6000 51µH14µF .10mH 6.8µF .20mH 3.3µF
9000 34µH 9.5µF68µH 4.7µF .15mH 2.2µF
12000 25µH 6.6µF51µH 3.3µF 100µH 1.6µF
2 OHMS 8 OHMS
4 OHMS
LC L CL C
LC
L = Low-Pass (Inductor)
C = High-Pass (Capacitor)
For more information, see your Authorized Rockford Fosgate Dealer.
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

– 12 –
I NSTALLATION
*Keep grounds as short as possible
Power Connections
I
N
S
T
A
L
L
A
T
I
O
N
® ®

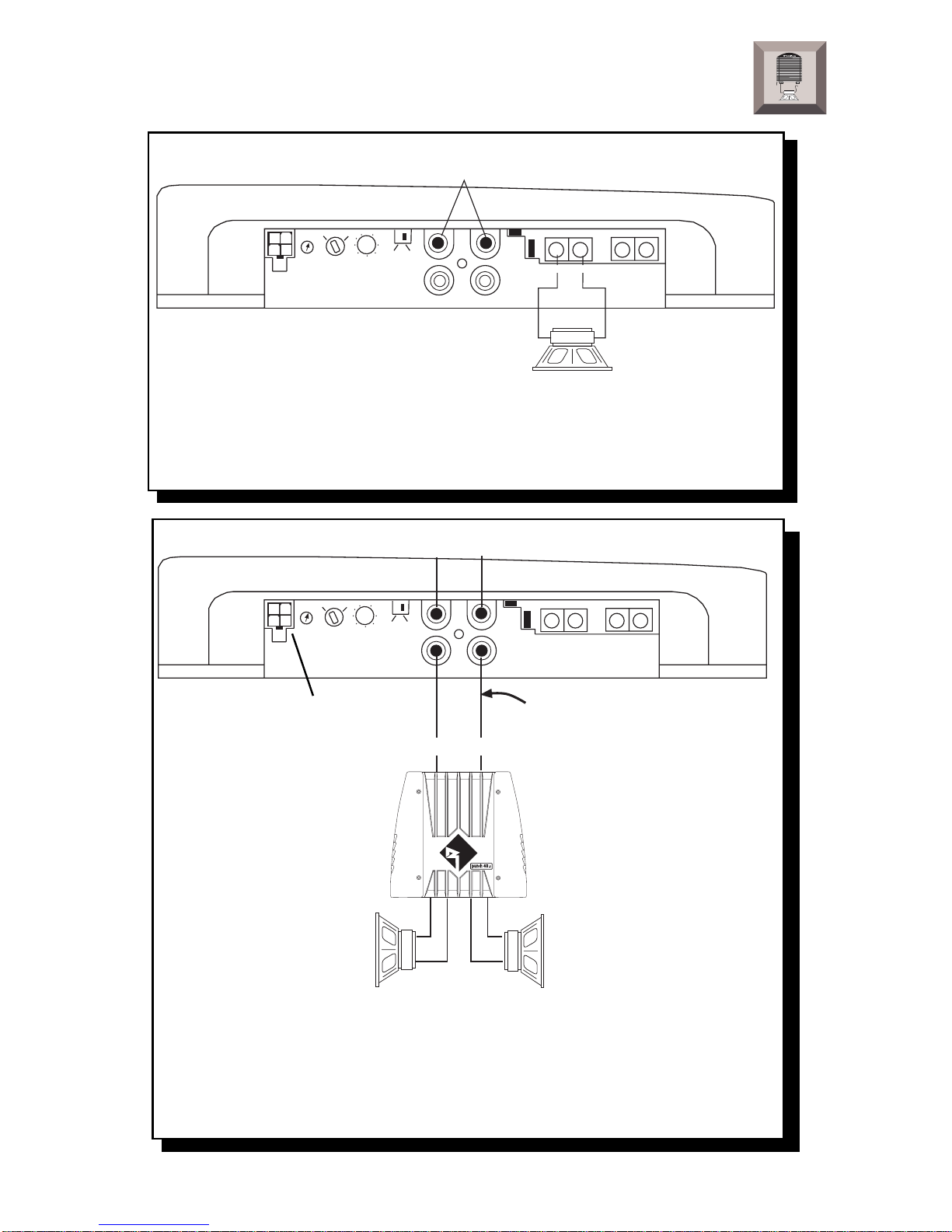

RCA Inputs
High Level Inputs
•High Level Inputs connect directly to radio's speaker outputs
•RCA Inputs connect to radio's RCA preamp outputs
CAUTION: Use only one input configuration. Using both the High Level Inputs &
RCA Inputs may cause undesirable operation.
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Crossover
Frequency
Punch
Bass
18dB 0dB
Connect to remote
turn-on lead of
source unit
Connect to B+ of battery
with appropriate fuse
Connect to chassis
ground of vehicle*
Less than 18"
P
150
P200
- 15A
- 20A
REM –+
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full
B+ GND
L+
L–
R+
R–
High Level
Inputs
RCA Inputs
use these
or
these
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Crossover
Frequency
Punch
Bass
18dB 0dB
REM –+
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full
B+ GND
[R-]
[R+]
[L-]
[L+]White
White/Black
Gray
Gray/Black
High
Level
Inputs
AUD SEL
1 2 3 4 5 6
RDM
RPT
SCAN PAUSE
D.SCN DIM
AMFM Ch
RPT
LD RDM
DISC ST
P.SCN LOUDDSPL
R
CLOCK ILLUM
PWR
AUTO
® ®
VOL TUNE

– 13 –
Crossover Operation
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Punch Bass Operation
• Carefully increase potentiometer to add Punch to your bass frequencies
• Exercise caution when increasing Punch Bass. Maximum boost can cause
potential woofer damage caused by overexcursion
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Crossover
Frequency REM –+
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full
B+ GND
Punch
Bass
18dB 0dB
33Hz 45Hz 67.5Hz
+18
+12
+6
+3
0dB 33Hz 45Hz 67.5Hz
Minimum
Flat Maximum Boost
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Ap
+3
+2
+1
0
–1
–2
–3
–4
–5
–6
–7
–8
–9
–10
–11
–12 50 80 210 500 1k 2k
55 65 110145
Ap
+3
+2
+1
0
–1
–2
–3
–4
–5
–6
–7
–8
–9
–10
–11
–12 50 80 210 500 1k 2k
55 65 110145
REM –+
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full
B+ GND
Punch
Bass
18dB 0dB
Frequency in Hz
FULL
65
80
55
50
110
210 Hz
145
190
LP
Low-Pass (LP)
Operation
Full Range (FULL)
Operation
65
80
55
50
110
210 Hz
145
190
Frequency in Hz
Crossover
Frequency
Crossover Frequency Crossover Crossover Frequency FULL
LP
Crossover

– 14 –
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Mono Operation
•RCA inputs are connected to both left and right inputs
•Speaker Impedance should be 2Ωminimum
•Variable Crossover can be set for Full Range (FULL) or Low-Pass (LP)
adjusted between 50Hz and 210Hz
•Pass-Thru feeds signal to secondary amplifier
•Signal from Pass-Thru remains stereo
Note1: If using High Level Inputs causes engine whine in an amplifier connected
to the Pass-Thru, the Pass-Thru amplifier should have its RCA input shield
connected to the radio chassis ground. Refer to the Troubleshooting section of this
manual for more information.
Pass-Thru
+–
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Crossover
Frequency
Punch
Bass
18dB 0dB
RCA Inputs
2Ωmin.
REM –+
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full
B+ GND
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Crossover
Frequency
Punch
Bass
18dB 0dB
Input
Left Right
Left Right
Connect Pass-Thru to
input of secondary
amplifier if needed.
REM –+
High
Level
Input
LED
Pass-Thru
Input
L R
Gain Crossover
L R
LP Full
B+ GND
See Note1

– 15 –
S YSTEM D IAGRAMS
2-Way System using Single Voice Coil woofers
Crossover
Tweeter
Midrange
Crossover
Tweeter
Midrange
+–
+ + +
–
–
–
+–
+–
+ +
+–+
–+–
–
+
––+–
Power 150 or
Power 200
4Ω
8Ω8Ω8Ω
8Ω8Ω8Ω8Ω
4Ω
AUD SEL
1 2 3 4 5 6
RDM
RPT
SCAN PAUSE
D.SCN DIM
AMFM Ch
RPT
LD RDM
DISC ST
P.SCN LOUDDSPL
R
CLOCK ILLUM
PWR
AUTO
® ®
VOL TUNE

– 16 –
3-Way System
using Dual Voice Coil woofers
+
+
–
–
+
––
+
–
+–
+
+–+–+
Crossover
Tweeter
Midrange
Crossover
Tweeter
Midrange
Crossover
Tweeter
Midrange
Crossover
Tweeter
Midrange
Power 150 or
Power 200
–
–
+–
+
+–+––
+–
+
+
4Ωx 2
4Ωx 2 4Ωx 2
4Ωx 2 4Ωx 2 4Ωx 2
+–
AUD SEL
1 2 3 4 5 6
RDM
RPT
SCAN PAUSE
D.SCN DIM
AMFM Ch
RPT
LD RDM
DISC ST
P.SCN LOUDDSPL
R
CLOCK ILLUM
PWR
AUTO
® ®
VOL TUNE
