Rockford Fosgate RFX-8030 User manual

rfx
am/fm Cassette Player
RFX-8030
operation & installation
rfx

Dear Customer,
Congratulationsonyourpurchaseoftheworld'sfinestbrandofcaraudiosourceunits.
At Rockford Fosgate we are committed to musical reproduction at its best, and we are
pleasedyouchoseourproduct.Throughyearsofengineeringexpertise,handcraftsman-
ship and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized
training through Rockford Technical Training Institute (RTTI). Please read your
warranty and retain your receipt and original carton for possible future use.
To add the finishing touch to your new Rockford Fosgate image order your Rockford
accessories,whichincludeeverythingfromT-shirtsandjacketstohatsandsunglasses.
To get a free brochure on Rockford Fosgate products and Rockford accessories, in the
U.S.call602-967-3565orFAX602-967-8132.Forallothercountries,call+001-602-
967-3565 or FAX [phone].
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER
100dBMAY CAUSE PERMANENT HEARING LOSS. HIGH
POWERED AUTOSOUND SYSTEMS MAY PRODUCE SOUND
PRESSURE LEVELS WELL OVER 130dB. USE COMMON SENSE
AND PRACTICE SAFE SOUND.
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will serve as
verificationofyourfactorywarrantyandmaybecomeusefulinrecoveringyour
source unit if it is ever stolen.
Serial Number: ________________________________
Model Number:________________________________
If, after reading your manual, you still have questions regarding this product,
we recommend that you see your Rockford Fosgate dealer. If you need further
assistance, you can call us direct at 1-800-795-2385. Be sure to have your serial
number, model number and date of purchase available when you call.

G ETTING S TARTED
Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you
who want quick information on how to install this product, please turn
to the Installation Section of this manual or refer to the icons listed
below.OtherinformationcanbelocatedbyusingtheTableofContents.
We, at Rockford Fosgate, have worked very hard to make sure all the
information in this manual is current. But, as we are constantly finding
newwaystoimproveourproduct,thisinformationissubjecttochange
without notice.
Sections marked
INSTALLATION
include “slam dunk”
wiring connections
I
N
S
T
A
L
L
A
T
I
O
N
® ®
TROUBLE-S
H
O
O
T
I
N
G
Sections marked
TROUBLESHOOTING
include recommendations for curing
installation problems
TABLE OF CONTENTS
Introduction ............................................................................................. 1
Accessory Pack ........................................................................................ 1
Precautions ..............................................................................................2
Features Matrix ........................................................................................ 4
Technical Design Features ....................................................................... 5
RFX-8030 Design Features ....................................................................... 9
IR Remote Design Features.....................................................................12
Installation Considerations ..................................................................... 13
Source Unit Mounting Locations............................................................ 14
Wiring the System .................................................................................. 15
Source Unit Installation..........................................................................19
Basic Operation .....................................................................................22
Tuner Operation .................................................................................... 30
Cassette Operation.................................................................................36
CD Changer Operation ..........................................................................44
External Audio Operation.......................................................................50
IR Remote Operation .............................................................................51
Rockford Fosgate Accessories.................................................................58
Troubleshooting .....................................................................................60
Specifications.........................................................................................67
Warranty Information.............................................................................69
International Information........................................................................ 70

– 1 –
INTRODUCTION
Rockford Fosgate optimized usable features in the RFX source units for
use in high performance car audio systems. The “world's best tuner,” a
high performance Cassette Player, and controls pioneered by Rockford
Fosgate offer unmatched performance in the aftermarket world.
We strongly recommend you have your authorized Rockford Fosgate
Dealer install your new Rockford Fosgate source unit. If you choose to
installyoursourceunityourself,pleasebesuretoreadtheentiremanual
before beginning.
ACCESSORY PACK
RFX-8030
Installation & Operation Manual
(1) Mounting Sleeve
(1) Backstrap
(1) Left Chassis Release Key
(1) Right Chassis Release Key
(5) Mounting Screws
(m5 x 0.88mm x 4mm)
(1) Faceplate Case

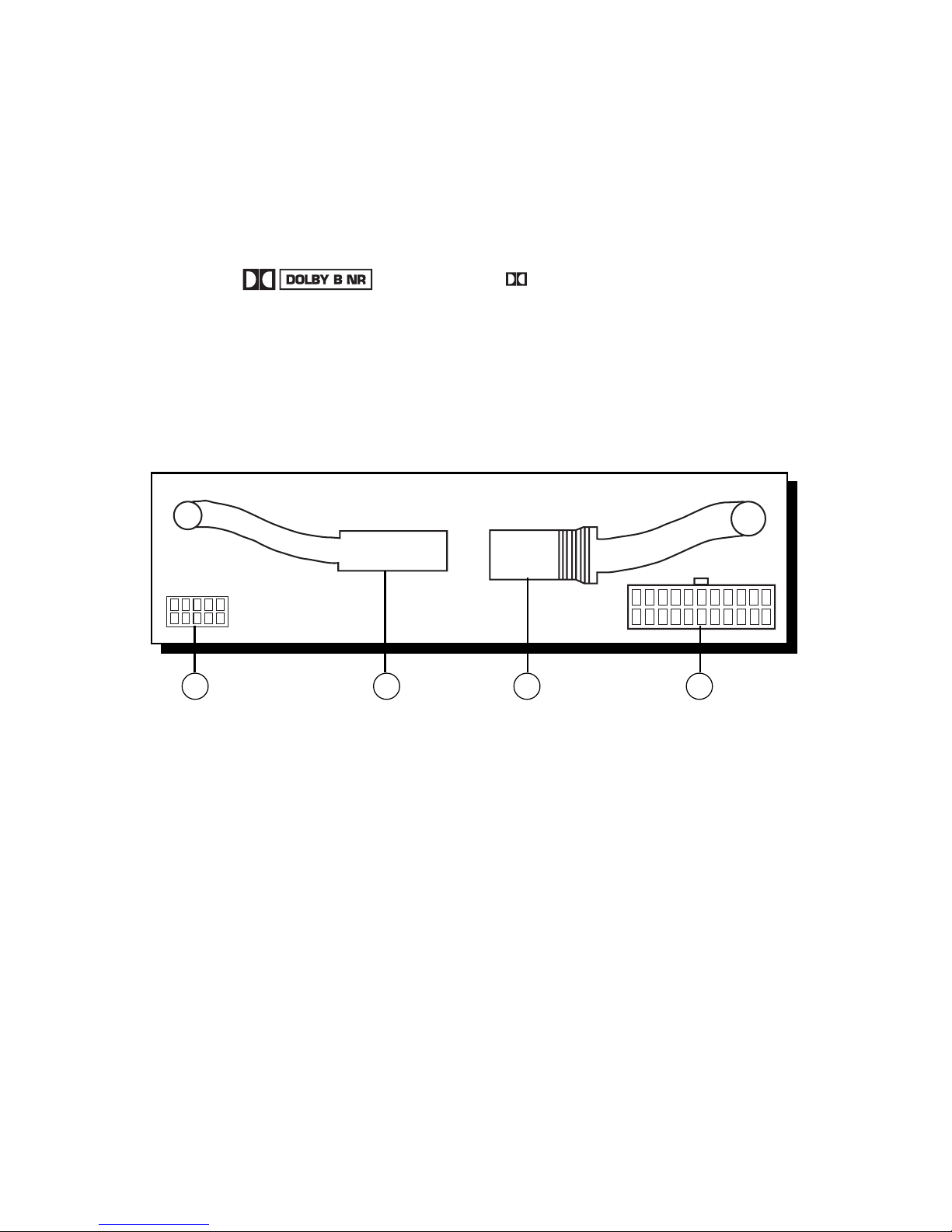

(1) Power Harness (22-pin)
(1) 5-Channel RCA Harness (10-pin)

– 2 –
PRECAUTIONS
Operating Temperature
Be sure the temperature inside the vehicle is
between–10°Cand+70°C(+14°Fand+158°F).
DO NOT play a cassette if the temperature is
higher or lower than the operating range.
Moisture Condensation
Thetape playback may waver dueto condensa-
tion. If this occurs, remove the tape from the
source unit and wait for approximately an hour
for the moisture to evaporate.
Environment Exposure
DONOTexposetheSourceUnitoroptionalCD
Changer to any of the following: direct sun and
heat, high humidity, excessive dust, excessive
vibration and rain or water.
Handling the Detachable Faceplate
DONOTdroporcauseshocktothefaceplateas
seriousdamagemayoccur.Protectthefaceplate
by storing it in the supplied carrying case.
Avoid Mechanical Malfunction
DO NOT grab a cassette while it is being auto-
maticallyloadedintothesourceunit.Doingthis
may cause serious damage to the source unit.
SOURCE UNIT & OPTIONAL
CD CHANGER
+70°C
–10°C
RFX-8030
®®
AUD SEL
6
RDMRPTSCAN PAUSE
43 521
P.SCN LOUDDSPL
CLOCK AUTO
VOL TUNE
ILLUM
D.SCN DIM
PWR
MON SKIP
COMPACT
DIGITALAUDIO
RFX-8030
®®
AUD SEL
6
RDMRPTSCAN PAUSE
43 521
P.SCN LOUDDSPL
CLOCK AUTO
VOL TUNE
ILLUM
D.SCN DIM
PWR
MON SKIP
COMPACT
DIGITALAUDIO
RFX-8030
®®
AUD SEL
6
RDMRPTSCAN PAUSE
4
35
2
1
P.SCN LOUDDSPL
CLOCK AUTO
VOL TUNE
ILLUM
D.SCN DIM
PWR
MON SKIP
COMPACT
DIGITALAUDIO
✯
✯
✯
RFX-8030
®®
AUD SEL
6
RDMRPTSCAN PAUSE
43 521
P.SCN LOUDDSPL
CLOCK AUTO
VOL TUNE
ILLUM
D.SCN DIM
PWR
MON SKIP
COMPACT
DIGITALAUDIO

– 3 –
CASSETTES
Cassette Player Care
DONOTlubricatetheplayermechanism.AVOID
TOUCHING the tape head with hard or magnetic
objects. AVOID USING thin and long C-120 cas-
settes. Use C-30 to C-90 minute cassettes. DO
NOT use cassettes that are deformed, dirty or
contaminated. VERIFY the cassette is in good
condition. Over time, cassettes may wear and
degrade in sound quality.
Cassette Player Maintenance
CLEAN the tape player after every 35 hours of use
withanon-abrasive,“wet-type”cleaningcassette.
A dirty tape head may result in reduced sound
quality, “eating” the cassette, or damaging the
mechanism.CLEANthetapeheadifareductionin
sound quality is observed.
Cassette Care
DO NOT expose cassettes to direct sun and heat,
highhumidity,orrainandwater.STORE cassettes
in their plastic cases to avoid dirt and other con-
taminants.
IR REMOTE (OPTIONAL)
1-6
+
–
✯
✯
✯
®
1-6
+
–
®
Environment Exposure
DO NOT expose the IR Remote to any of the
following: direct sun and heat, high humidity and
rain or water.
Handling the IR Remote
DO NOT drop or cause shock to the IR Remote as
serious damage may occur.
Cleaning
Fluid
Cleaning Cassette

FEATURE RFX-8030
General
Detachable Faceplate X
Any Button Wake-Up X
SMART-On X
Green/Amber Illumination X
Illumination Dimmer X
Clock X
Display Recall X
Default Display X
Tuner
AM/FM Stereo (6AM/18FM Presets X
Preset Scan X
Auto Store X
AM/FM Tune/Seek X
Mute* X
World Wide Tuner X
Power Antenna X
Cassette Player
Auto Reverse X
Dolby-B NR X
Auto Metal EQ X
Music Search X
Radio Monitor X
Pause X
Repeat X
Music Search X
Clean Indicator X
Tape Counter X
CD Changer Controller
Next/Previous Track X
Fast Forward/Reverse X
Repeat X
Random Track X
Pause X
Track Scan X
Disc Scan X
Audio
Source Tone Memory X
Switchable Loudness X
Cell Phone Mute X
Internal Amp X
Preamp Output 5-Ch RCA
Adjustable Sub Level X
Preamp Output Voltage 2.4 Vrms
External Audio Input 1
IR Remote Compatible X
Tuner Mode X
Cassette Player Mode X
CD Changer Mode X
Volume Up/Dn X
Track Seek Up/Dn X
Tuner Preset Select X
Any Button Wake-Up X
Pulse X
* Accessible through IR Remote
®
– 4 –

TUNER
◆MIR Circuit
The MIR (Multipath Interference Rejection) Circuit improves audio
performance under difficult reception conditions. The tuner slowly
tapersfromstereotomonauralwhenexcessivestaticisproduceddue
to poor radio reception in fringe areas. This feature is virtually
undetectablebythelistenerduetoitssmoothtransitionfrommonau-
ralbacktostereo.TheMIRcircuitimprovesaudioqualitybyreducing
multipath effects in both weak and strong signal conditions.
THERESULT:Improvesaudioperformancewhenradioreceptionispoor
TECHNICAL DESIGN FEATURES
◆High Output Voltage/
Low Source Impedance
A high preamp output voltage allows a cleaner signal to be driven to
the amplifier. A low source impedance (50Ω) enables the preamp to
drive multiple amplifiers without signal loss. It is not enough to have
onlyahighvoltageoutput;totakefulladvantageoftheextra voltage,
a low source impedance is essential. These two features are an
important combination for a preamp that truly delivers a Punch!
THE RESULT: Resists noise and enables multiple amplifiers to be
driven without signal loss
PREAMP/AMPLIFIER
– 5 –
◆ Patented Tuner
TheSourceUnitsutilizea refinedhighperformancetunerforprovid-
ing unmatched tuning range. The tuner uses a patented Digital
Automatic Alignment (a mini pre-programmed computer) to pre-
ciselytargetand“tunein”FMradiostations.Theaftermarketstandard
is done by mechanical alignment which relies on not-so-precise
tunable inductors to “get within the ballpark” of a radio station. The
tuner is also refined with Dual FM Conversion and Dual AM Up-
Convert schemes to create a tuner that is capable of receiving radio
signals better.
THE RESULT: Absolutely the “world's best tuner”

– 6 –
CASSETTE PLAYER
◆Full Logic Cassette Mechanism
The Full Logic Cassette Mechanism provides smooth and reliable
operation for cassette play-back. The mechanism uses logic circuits,
rather than mechanical methods, to control loading, ejecting, fast
forward and fast reverse. Logic circuits provide the cassette mecha-
nism with long term reliability and increased features.
THE RESULT: Provides smooth and reliable cassette operation
◆Pinch Roller Release
ThePinchRollerReleasehelpsmaintainthequalityofcassettetapes.
The tape head and pinch roller are retracted when a loaded cassette
is not currently playing or the ignition is turned off. By relieving
tension on the tape, “flat spots” and other forms of degradation are
minimized to maintain tape quality.
THE RESULT: Maintains sound quality of cassettes by reducing tape
wear
◆Auto Tape Tightening
Auto Tape Tightening helps reduce play-back failure caused by
cassettes exposed to vibration or shock. The cassette is checked for
loosely wound tape by automatically tightening it before play-back.
The tape tightening feature helps prevent the cassette mechansim
from “eating” the tape.
THE RESULT: Reduces “eaten” tapes
◆Auto Metal EQ
No, this doesn't instantly optimize your source unit to play heavy
metal music. The Auto Metal EQ senses metal and CrO2 tapes to
automaticallyengage an equalization circuit.This allows the source
unittotakeadvantageoftheimprovedfrequencyresponsegainedby
using metal-biased cassettes.
THE RESULT: Engages EQ circuity for metal-biased tapes

– 7 –
◆Any Button Wake Up
TheAnyButtonWakeUpfeatureallowsthereceivertopower-upby
pressing any button on the faceplate or IR remote. If the receiver is
manuallypowereddownwhileignitionpowerison,thereceiverwill
“wakeup”whenanybuttononthefaceplateisdepressed.Thisallows
the user to easily turn on the source unit while simultaneously
demonstrating his/her street racing skills.
THE RESULT: Power-up the receiver without fumbling for the PWR
button
◆SMART On (Outputs A & B)
TheSMART On(SequentiallyManagedAccessoryRemoteTurn-On)
outputs supply sequential on/off auto power for external compo-
nents. After the radio is powered on, output “A” will immediately
supply turn-on voltage to its output. A half second later, output “B”
supplies turn-on voltage to its output. After the radio is powered
down, output “B” will immediately turn off, then a half second later,
output “A” will turn off. The SMART On circuitry eliminates turn on/
off transients for components with various power on/off cycles.
THE RESULT: Protects speakers and electronics from damaging
transients
◆Detachable Faceplate
No need to haul around a five pound source unit wherever you go.
A Detachable Faceplate is a lot easier to remove and carry around
with you. Just press the faceplate release button, drop the faceplate
initscarryingcase,andputitinyourshirtpocket.Now, you'reready
toroll.TheDetachableFaceplateisagreatdeterrenttotheftandhelps
to ensure your source unit is safe …just make sure to remove it.
THE RESULT: Deters source unit theft
CONTROLS/SECURITY
