Rockwell Automation Allen-Bradley 1606-XLSRED40 User manual

Reference Manual
egaPegaP
1. Intended Use .......................................................3
2. Installation Requirements...................................3
3. Input and Output Characteristics .......................4
4. Power Losses........................................................5
5. Lifetime Expectancy and MTBF...........................6
6. Terminals and Wiring..........................................7

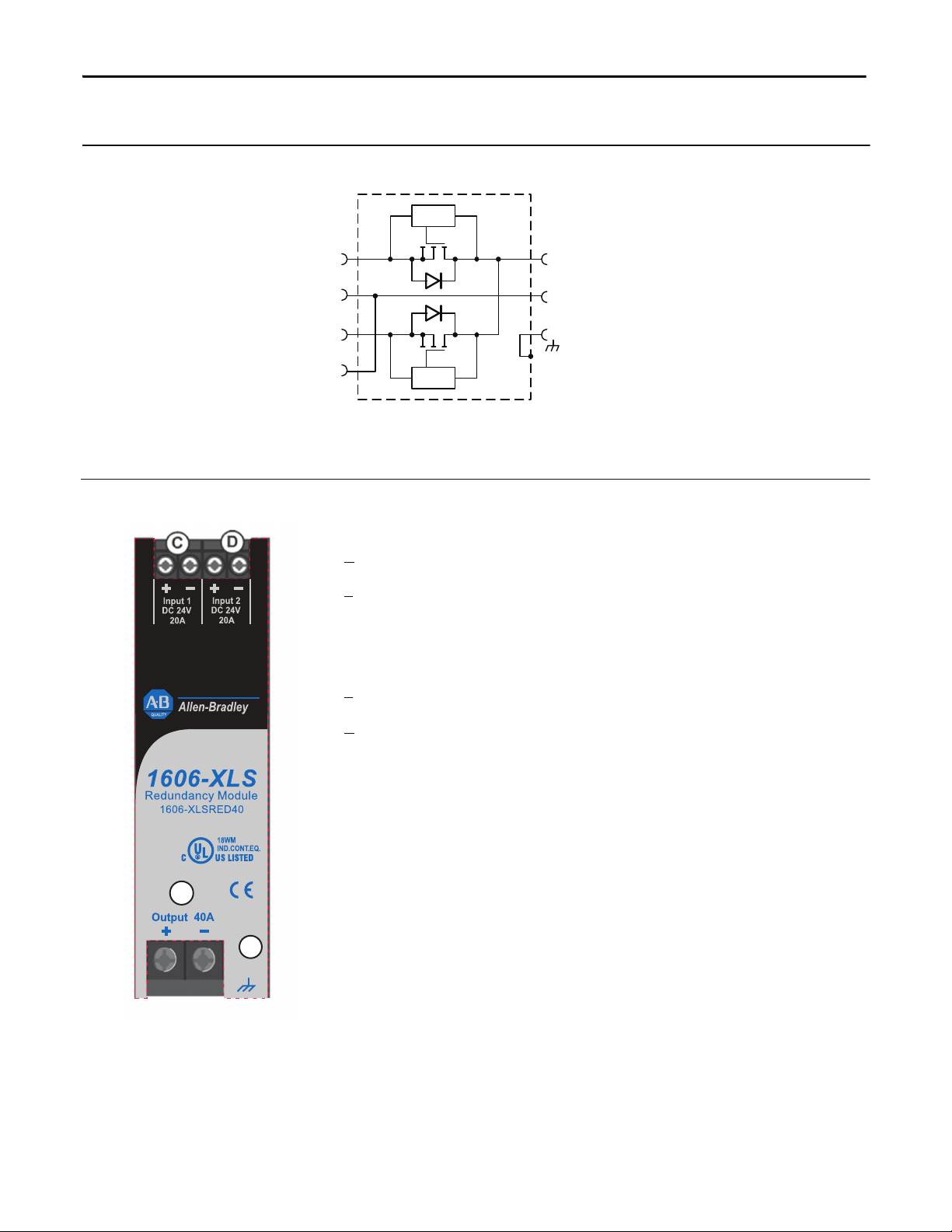

7. Functional Diagram.............................................8
8. Front Side and User Elements.............................8
9. EMC......................................................................9
10. Environment ......................................................10
11. Protection Features ...........................................11
12. Safety Features..................................................11
13. Dielectric Strength ............................................11
14. Certications .................................................... 12

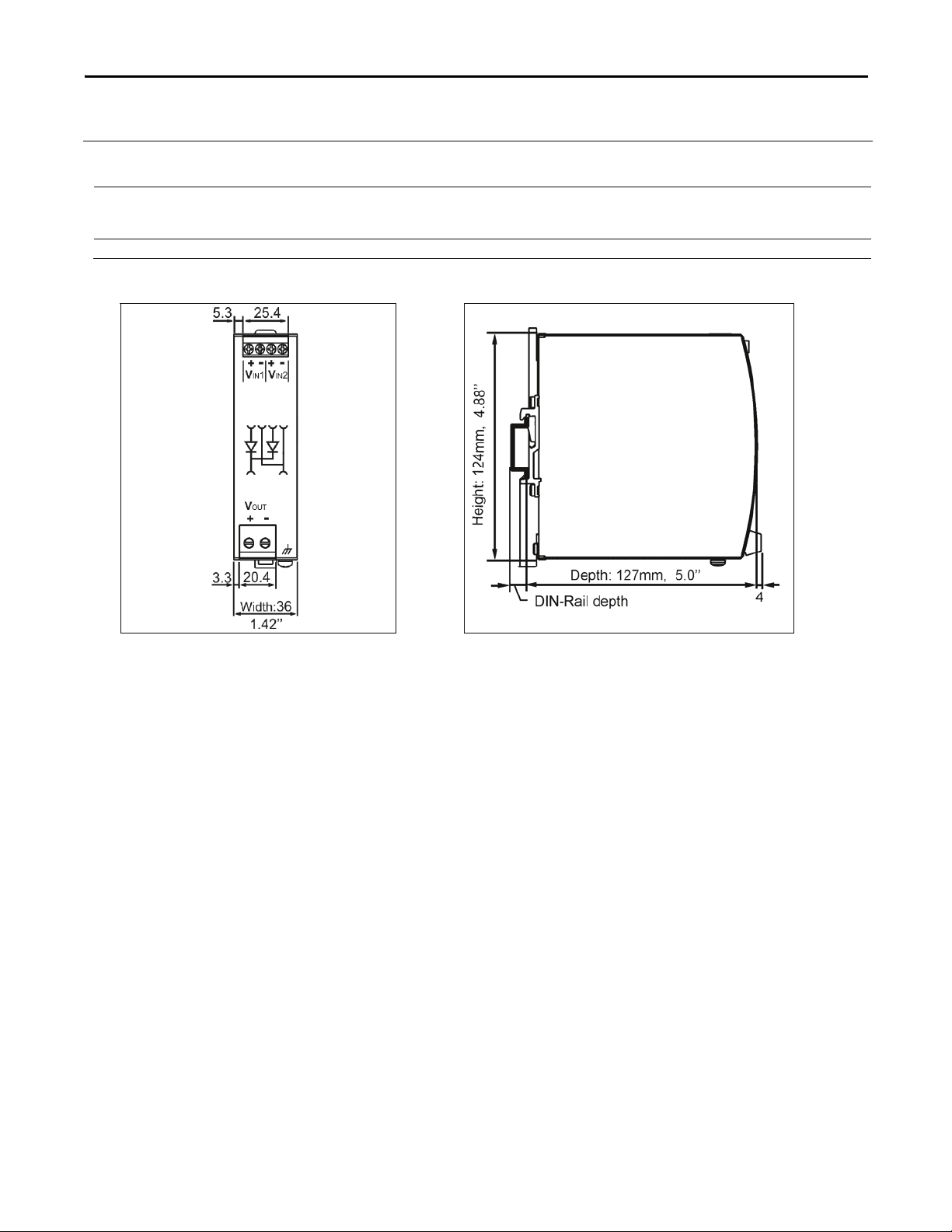

15. Physical Dimensions and Weight ..................... 13
16. Accessories ........................................................ 14
17. Application Notes............................................. 15
17.1. Recommendations for Redundancy.........15
17.2. Inductive and Capacitive Loads................15
17.3. Lateral Installation Clearances ............15
17.4. 1+1 Redundancy up to 20A......................16
17.5. N+1 Redundancy, Example with 60A ......16
17.6. Mounting Orientations ............................17
Bulletin 1606 Switched Mode Power Supplies
CatalogNumber: 1606-XLSRED40
Index
•PE and symbol—PE is the abbreviation for Protective Earth and has the same meaning as the symbol .
• Earth, Ground—This document uses the term “earth” which is the same as the U.S. term “ground”.
• T.b.d.—To be defined, value or description will follow later.
• DC 24V—A figure displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. E.g.: DC
12V describes a 12V battery whether it is full (13.7V) or flat (10V)
• 24Vdc—A figure with the unit (Vdc) at the end is a momentary figure with no additional tolerance included.
• may, shall, should—Three key words indicating, respectively: flexibility of choice with no implied preference, a mandatory requirement, flexibility of
choice
• 1+1 Redundancy—Use of two identical power supplies in parallel to provide
continued operation following most failures in a single power supply. The two
power supply outputs should be isolated from each other by using diodes or
other switching arrangements. E.g. two 10A power supplies are needed to
achieve a 10A redundant system.
• N+1 Redundancy—Use of three or more identical power supplies in parallel
to provide continued operation following most failures in a single power supply.
All power supply outputs should be isolated from each other by using diodes or
other switching arrangements. E.g. to achieve a 40A redundant system, five 10A
power supplies are required in a N+1 redundant system.
Terminology and Abbreviations

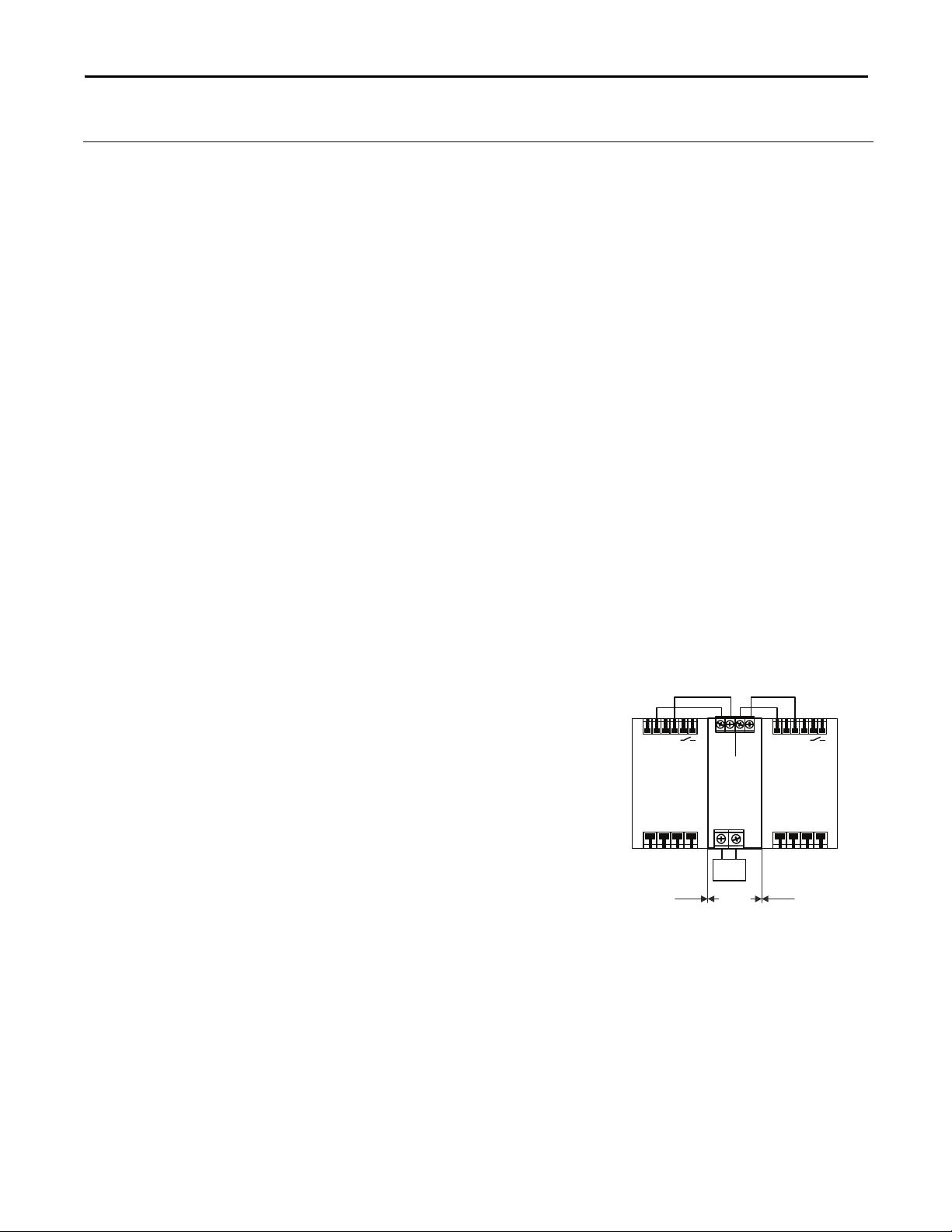

N+1
Redundancy
1+1
Redundancy
AC
DC
AC
DC
AC
DC
AC
DC
AC
DC
AC
DC
IN 1
OUT
IN 2 IN 1
OUT
IN 2 IN 1
OUT
IN 2
Load
+
-
AC
DC
AC
DC
Load
+
-
IN 1
OUT
IN 2

All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time, unless noted otherwise.
2Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
For N+1 and 1+1 Redundant Systems
Dual Input with Single Output
Suitable for all Power Supplies
Only 72mV Voltage Drop at 20A Output Current
Only 2.15W Loss at 20A and 6.3W at 40A Output Current
160% (65A) Peak Load Capability
Reverse Input Polarity Protection
Full Power Between -40°C and +70°C
Width only 36mm
Rugged Metal Housing
Easy Wiring:
Distribution Terminal for Negative Pole Included
3 Year Warranty
Description
The 1606-XLSRED40 is a redundancy module which can
be used to build 1+1 and N+1 redundant systems. It is
equipped with two input channels, which can be
connected to power supplies with up to 20A output
current and one output, which can carry nominal
currents up to 40A. The module is suitable for power
supplies with constant current overload behavior as well
as any kind of “Hiccup” overload behavior.
The novelty of this redundancy module is the utilization
of mosfets instead of diodes for the decoupling of the
two input channels. This reduces the heat generation
and the voltage drop between input and output. The
redundancy module does not require an additional
auxiliary voltage and is self-sufcient even in case of a
short circuit across the output.
Due to the low power losses, the unit is very slender and
only requires 36mm width on the DIN rail. Large
connection terminals allow for a safe and fast
installation with a large international approval package.
This unit is suitable for nearly every application.
Specication Quick Reference
Input voltage DC 12-28V ±30%
Input voltage
range
8.4-36.4Vdc
Input current 2x 0-20A continuous
2x 20-32.5A for 5 seconds
Output current 0-40A continuous
40-65A for 5 seconds
65A at cont. overload
or short circuit
Input to output
voltage drop
typ. 72mV
typ. 112mV
typ. 140mV
input: 2x10A
input: 1x20A
input: 2x20A
Power losses typ. 700mW at no load
typ. 2.15W input: 2x10A
typ. 2.65W input: 1x20A
typ. 6.3W input: 2x20A
Temperature range -40°C to +70°C operational,
no de-rating req.
Dimensions 36x124x127mm
*)
WxHxD
*) plus 4mm in depth for the screw terminal
Catalog Numbers
Redundancy 1606-XLSRED40 12-28V Standard unit
Module
Accessory
1606-XLC Wall/panel mount
bracket
Certication Marks
IND. CONT. E
Q.
UL 508
UL 60950-1
Class I Div 2
IECEx ATEX
II 3G Ex nA IIC T4 Gc
Marine
EMC, LVD
Mosfet Redundancy Module

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 3
Bulletin 1606 Switched Mode Power Supplies
1. Intended Use
•This redundancy module is designed for installation in an enclosure and is intended for general use such as in industrial control, office,
communication and instrumentation equipment.
•This redundancy module can be used with any type of power supply as long as the maximum ratings are not exceeded. It is suitable for power
supplies with constant current overload behavior as well as any kind of “Hiccup” overload behavior.
•Do not use this redundancy module in equipment where malfunction may cause severe personal injury or threaten human life.
•This device is designed for use in hazardous, non-hazardous, ordinary or unclassified locations.
2. Installation Requirements
•This device may only be installed and put into operation by qualified personnel.
•This device does not contain serviceable parts.
•If damage or malfunction should occur during installation or operation, immediately turn power off and send unit to the factory for inspection.
•Mount the unit on a DIN rail so that the input terminals are located on top and the output terminals on the bottom of the unit. For other
mounting orientations, see derating requirements in the present document (refer to section 17.6).
•This device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do not cover ventilation grid
(e.g. cable conduits) by more than 30%!
•Keep the following installation clearances: 40mm on top, 20mm on the bottom, 5mm on the left and right sides are recommended when the
device is loaded permanently with more than 50% of the rated power. Increase the side clearance to 15mm in case the adjacent device is a heat
source (e.g. another power supply). See section 17.3 for further information in combination with poser supplies.
Notes for use in hazardous location areas:
•The unit is suitable for use in Class I Division 2 Groups A, B, C, D locations and for use in Group II Category 3 (Zone 2) environments and is
evaluated according to EN 60079-0:2009 and EN 60079-15:2010.
SHOCK HAZARD: Do not use the power supply without proper grounding (Protective Earth). Use the terminal on the input
block for earth connection and not one of the screws on the housing.
- Turn power off before working on the device. Protect against inadvertent re-powering
- Make sure that the wiring is correct by following all local and national codes
- Do not modify or repair the unit
- Do not open the unit as high voltages are present inside
- Use caution to prevent any foreign objects from entering the housing
- Do not use in wet locations or in areas where moisture or condensation can be expected
- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.
WARNING: EXPLOSION HAZARDS!
Substitution of components may impair suitability for this environment. Do not disconnect the unit unless power has been switched off or the area is
known to be non-hazardous.
A suitable enclosure must be provided for the end product which has a minimum protection of IP54 and meets the requirements of the EN 60079-15:2010.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
4Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
3. Input and Output Characteristics
Number of inputs - 2
Number of outputs - 1
Input voltage nom. DC 12-28V ±30% The input circuitry must meet the SELV requirements
stipulated by IEC/EN/UL 60950-1.
Input voltage range - 8.4-36.4Vdc
Voltage drop, input to output typ. 140mV at 2x20A, see Fig. 3-1
typ. 72mV at 2x10A, see Fig. 3-1
typ. 112mV at 1x20A, see Fig. 3-2
Input current nom. 2x 0-20A continuous
nom. 2x 20-32.5A for 5 seconds
max 2x 32.5A at continuous overload or short circuit
Peak input current max. 1000A for max. 1ms per input
Output current nom. 40A continuous
nom. 40-65A for 5 seconds
max.
65A at continuous overload or short circuit
Reverse current max. 1mA at 24V, per input, -40°C to +70°C
Reverse voltage max. 40Vdc voltage applied to the output, continuously allowed
Output capacitance typ. 320μF
Note: Ensure that the continuous output current does not exceed 65A. Check the short-circuit current of the power sources and if the
power source can deliver more than 65A together, use an appropriate fuse on the output.
Fig. 3-1 Input to output voltage drop when both inputs draw current
(typical 1+1 redundant case, when the output voltages of the two units are equal)
Voltage Drop, typ
0mV
10A 30A
20mV
40mV
60mV
80mV
100mV
120mV
40A20A
Output:
A...25°C
B...60°C
2x10A2x5A
Input / Output Current
Input:
2x20A2x15A
0
0
140mV
160mV
AB
V
A
24V,20A
+
-
24V,20A
+
-
V
A
I 1
I 2
U 1
U 2
I 1 I 2 = U 2 U 1 = Voltage Drop U 1 = U OUT -
Output
A
V
I OUT
U OUT
Variable
Load,
0-40A
Input 1
Input 2
Output
Fig. 3-2 Input to output voltage drop when only one input draws current
Voltage Drop, typ.
0mV
5A 15A
20mV
40mV
60mV
80mV
100mV
120mV
20A10A
A...25°C
B...60°C
Output Current
0
140mV
160mV
AB
Voltage Drop U 1 = U OUT -
Not used or
power supply
with lower
voltage
V
A
24V,20A
+
-
I
1
U 1
Output
A
V
I OUT
U OUT
Variable
Load,
0-20A
Input 1
Input 2
Output
XLSRED40
XLSRED40

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 5
Bulletin 1606 Switched Mode Power Supplies
4. Power Losses
DC 24V
Power losses typ. 2.15W input: 2x10A
typ.
6.3W input: 2x20A
typ.
2.6W input: 1x20A,
(only one input is connected to input voltage)
Standby power losses typ. 0.35W at no output current,
(only one input is connected to input voltage)
typ. 0.7W at no output current,
(both inputs are connected to input voltages)
Fig. 4-1 Power losses when both inputs draw equal current
Output
V
A
24V,20A
+
-
e.g.
24.5V
V
A
I 1
I 2
U 1
U 2
A
V
I OUT
U OUT
I 1 I 2 = U 2 U 1 L=osses U 1 = U OUT -
*
I 1 +)(* U 2
*
I 2 I OUT
24V,20A
+
-
e.g.
24.5V
Variable
Load,
0-40A
XLSRED40
Input 1
Input 2
Output
Power Losses, typ.
0
0510 30
1.0
2.0
4.0
5.0
7W
40
A
2515 20 35
Output Current
A
3.0
A...25°C
B...60°C
6.0
B
Fig. 4-2 Power losses when only one input is used
Power Losses, typ.
0
0 2.5 5 15
0.5
1.0
2.0
2.5
4W
20
A
12.57.5 10 17.5
Output Current
1.5
3.0
3.5
A...25°C
B...60°C
AB
Losses U 1 = U OUT -
*
I 1
*
I OUT
Output
V
A
24V,20A
+
-
I
1
U 1
A
V
I OUT
U OUT
XLSRED40
Input 1
Input 2
Output
Variable
Load,
0-20A
Note: As soon as voltage is applied on input 2, an additional 0.35W will be consumed. It is not relevant whether this channel contributes
to the output current or not.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
6Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
5. Lifetime Expectancy and MTBF
The redundancy module has two input channels which are completely independent from each other. Each control
circuit, auxiliary voltage source, or other circuitry in the module are designed separately for each input. The dual input
redundancy module can be considered as two single redundancy modules combined together in one housing. The only
common point is the circuit trace that ties the two separate circuits together at the output.
The MTBF gures below are for the entire dual input module. If the MTBF number of only one path is needed, simply
double the value from the table.
Input / output current
conditions
Input: 2x10A
Output: 20A
Input: 2x20A
Output: 40A
Lifetime expectancy*) 649 000h *) 246 000h *) at 24V and 40°C
1 835 000h *) 696 000h *) at 24V and 25°C
MTBF**) SN 29500, IEC 61709 3 386 000h 2 706 000h at 24V 40°C
5 667 000h 4 686 000h at 24V 25°C
MTBF**) MIL HDBK 217F 116 000h 97 000h Ground Fixed GF40 (24V and 40°C)
155 000h 128 000h Ground Fixed GF25 (24V and 25°C)
612 000h 522 000h Ground Benign GB40 (24V and 40°C)
813 000h 687 000h Ground Benign GB25 (24V and 25°C)
*) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the lifetime
expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specied in operational hours and is calculated according to the
capacitor’s manufacturer specication. The manufacturer of the electrolytic capacitors only guarantees a maximum life of up to 15 years
(131 400h). Any number exceeding this value is a calculated theoretical lifetime which can be used to compare devices.
**) MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates reliability of a
device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily represent the life of a product.
The MTBF gure is a statistical representation of the likelihood of a device to fail. A MTBF gure of e.g. 1 000 000h means that
statistically one unit will fail every 100 hours if 10 000 units are installed in the eld. However, it can not be determined if the failed unit
has been running for 50 000h or only for 100h.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 7
Bulletin 1606 Switched Mode Power Supplies
6. Terminals and Wiring
Input Output
Type Screw termination
IP20 Finger safe construction.
Suitable for eld installation.
Screw termination
IP20 Finger safe construction.
Suitable for eld installation.
Solid wire 0.5-6mm20.5-16mm2
Stranded wire 0.5-4mm20.5-10mm2
American Wire Gauge 20-10 AWG 22-8 AWG
Max. wire diameter 2.8mm (including ferrule) 5.2mm (including ferrule)
Wire stripping length 7mm / 0.275inch 12mm / 0.5inch
Screwdriver 3.5mm slotted or Pozidrive No 2 3.5mm slotted or Pozidrive No 2
Recommended tightening torque 0.8Nm, 7lb.in 1.2Nm, 10.6lb.in
To connect the chassis to ground, use a ring-type terminal (ring cable lug) which is suitable for a M4 screw and connect
it to the chassis ground terminal on top of the unit.
Instructions:
a) The external circuitry of all terminals must meet the safety requirements stipulated by IEC/EN/UL 60950-1: SELV.
b) Use appropriate copper cables that are designed for minimum operating temperatures of:
60°C for ambient up to 45°C and
75°C for ambient up to 60°C and
90°C for ambient up to 70°C minimum.
c) Follow national installation codes and installation regulations!
d) Ensure that all strands of a stranded wire enter the terminal connection!
e) Screws of unused terminal compartments should be securely tightened.
f) Ferrules are allowed.
g) Do not connect or disconnect the wires from the terminals below -25°C (-13°F).

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
8Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
7. Functional Diagram
Fig. 7-1 Functional diagram
+
-
+
-
+
-
Input 1
control
control
Input 2
Chassis
Ground
Output
8. Front Side and User Elements
Fig. 8-1 Front side
AOutput Terminals (screw terminals)
BChassis Ground Terminals
To be connected on the top side of the housing with a ring-type terminal
(ring cable lug) which is suitable for a M4 screw.
Connection of the chassis is optional and not required since the unit fulls
the requirements according to protection class III.
CInput Terminals for Input 1 (screw terminals)
DInput Terminals for Input 2 (screw terminals)
Chassis
Ground
A
B

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 9
Bulletin 1606 Switched Mode Power Supplies
9. EMC
The redundancy module is suitable for applications in industrial environment as well as in residential, commercial and
light industry environment without any restrictions. A detailed EMC report is available on request.
EMC Immunity According generic standards: EN 61000-6-1 and EN 61000-6-2
Electrostatic discharge EN 61000-4-2 Contact discharge
Air discharge
8kV
15kV
Criterion A
Criterion A
Electromagnetic RF eld EN 61000-4-3 80MHz-2.7GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4 Input lines
Output lines
2kV
2kV
Criterion A
Criterion A
Surge voltage on input
lines
EN 61000-4-5 + -
+/-Chassis ground
500V
1kV
Criterion A
Criterion A
Surge voltage on output
lines
EN 61000-4-5 + -
+/-Chassis ground
500V
1kV
Criterion A
Criterion A
Conducted disturbance EN 61000-4-6 0.15-80MHz 20V Criterion A
Power-frequency magnetic
eld *)
EN 61000-4-8 50Hz 30A/m Criterion A
Criteria:
A: Redundancy module shows normal operation behavior within the dened limits.
Notes:
*) A test is not applicable according to EN 61000-6-2, since the device does not contain components susceptible to magnetic elds, e.g. hall
elements, electrodynamic microphones, etc.
EMC Emission According generic standards: EN 61000-6-3 and EN 61000-6-4
Conducted emission IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 limits for DC power ports according
EN 61000-6-3 fullled *)
Radiated emission EN 55011, EN 55022 Class B
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
*) For information only, not mandatory for EN 61000-6-3. Provided, that power sources connected on the inputs fulll the requirements too.
Switching frequency The internal auxiliary supply is generated with a boost converter.
The switching frequency is typ. 16kHz.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
10 Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
10. Environment
Operational temperature *) -40°C to +70°C (-40°F to 158°F)
Storage temperature -40 to +85°C (-40°F to 185°F) for storage and transportation
Humidity **) 5 to 95% r.H. IEC 60068-2-30
Vibration sinusoidal 2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g
2 hours / axis
IEC 60068-2-6
Shock 30g 6ms, 20g 11ms
3 bumps / direction, 18 bumps in total
IEC 60068-2-27
Altitude 0 to 2000m (0 to 6 560ft) without any restrictions
2000 to 6000m (6 560 to 20 000ft) reduce output power or ambient temperature,
see Fig. 10-2
Altitude de-rating 2.5A/1000m or 5°C/1000m > 2000m (6500ft), see Fig. 10-2
Over-voltage category not applicable The concept of the overvoltage category is
used for equipment energized directly from
the low voltage mains (IEC 60664-1 §4.3.3.2.1).
Degree of pollution 2 IEC 62103, EN 50178, not conductive
LABS compatibility The unit does not release any silicone or other LABS-critical substances and is suitable for
use in paint shops.
*) Operational temperature is the same as the ambient temperature and is dened as the air temperature 2cm below the unit.
**) Do not energize in the presence of condensation.
Fig. 10-1 Output current vs. ambient temp. Fig. 10-2 Output current vs. altitude
Allowed Output Current
0
0 2000 4000 6000m
10
20
30
40
50
65A
normalmode
Altitude
overload/shortcircuit
A...Tamb<70°C
B...Tamb<60°C
C...Tamb<50°C
ABC
Allowed Output Current
0
-40 0 20 40 70°C
10
20
30
40
50
65A
60-25
normalmode
atoverload/shortcircuit
Ambient Temperature

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 11
Bulletin 1606 Switched Mode Power Supplies
11. Protection Features
Output over-current protection not included
Reverse input polarity
protection included unit does not start when input voltage is reversed
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 3.6mm e.g. screws, small parts
Over-temperature protection not included
Input transient protection not included
Output transient protection included see EMC section
Internal input fuse not included
12. Safety Features
Input / output separation no galvanic separation Mosfet between input and output
Class of protection III PE (Protective Earth) or chassis connection not required
PE resistance < 0.1Ohm between housing and chassis-ground terminal
13. Dielectric Strength
The input and output voltages have the same reference, are oating and have no ohmic connection to ground.
Type and factory tests are conducted by the manufacturer. Field tests may be conducted in the eld using the
appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down). Connect input/output
terminals together before conducting the test.
When testing, set the cut-off current settings to the value in the table below.
Fig. 13-1 Dielectric strength
A
Type test 60s 500Vac
Factory test 5s 500Vac
Field test 5s 500Vac
Cut-off current setting > 2mA
A
Chassis
In- / Output
-
+

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
12 Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
14. Certications
EC Declaration of
Conformity
Complies with
- CE EMC directive,
- CE Low-voltage directive
UL 508
Listed E56639 for use in the U.S.A. (UL 508) and Canada
(C22.2 No. 14-95). Industrial Control Equipment
UL 60950-1
RECOGNIZED E168663 for use in the U.S.A. (UL 60950-1) and
Canada (C22.2 No. 60950)
INformation Technology Equipment, Level 3
GOST R
C-TICK C-tick compliance is for products intended for sale and use within
the Australian market. See below for the link to the C-tick
Declarations of Conformity.
Marine GL GL (Germanischer Lloyd) classied for marine and offshore
applications. Environmental category: C, EMC2. See below for link
to Certicate.
Marine Rina RINA (Registro Italiano Navale) certied. See below for the link to
Certicate.
The CE mark indicates conformance with the
- ATEX directive 94/9/EC (Equipment and protection systems
intended for use in potentially explosive atmospheres)
CSA Certied under File NUmber 2400020; CERTIFIED for use
in the U.S.A. (ISA 12.12.01) and Canada (C22.2 No. 213)
Hazardous Location Class I Div. 2 - Groups A, B, C, D
CSA 22.2 No 107,1-01
RECOGNIZED UNDER FILE NUMBER E244404 for use in the U.S.A.
(ISA 12.12.01) and Canada (C22.2 No 213)
Hazardous Location Class I Div. 2 - Groups A, B, C, D
ISA 12.12.01, CSA
C22.2 No. 213
ATEX
Approval for use in hazardous locations Zone 2 Category 3G.
Number of ATEX Certicate: EPS 11 ATEX 1 312 X
The redundancy module must be built-in in an IP54 enclosure.
II 3G Ex nA IIC T4 Gc
GOST R certication is applicable for products intended for sale
and use within Russia. See below for link to Certicate.
Product certification information (including Certificates and Declarations of Conformity) can be found at www.ab.com/certifications.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 13
Bulletin 1606 Switched Mode Power Supplies
15. Physical Dimensions and Weight
Weight 340g / 0.75lb
DIN Rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
The DIN rail height must be added to the unit depth (127mm) to calculate the total required
installation depth.
Installation Clearances See section 2.
Fig. 15-1 Front view Fig. 15-2 Side view

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
14 Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
16. Accessories
1606-XLC Wall mounting bracket
This standard bracket is used to mount the 1606-XLSRED40 redundancy module on a wall, without a DIN rail.
Fig. 16-1 1606-XLC Wall mounting bracket Fig. 16-2 Assembled wall mounting bracket

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 15
Bulletin 1606 Switched Mode Power Supplies
17. Application Notes
17.1. Recommendations for Redundancy
Recommendations for the conguration of redundant power systems:
-Use separate input fuses for each power supply.
-Use three-phase power supplies to gain functional safety if one phase fails.
-When single-phase power supplies are utilized connect them to different phases or mains circuits if possible.
-Set the power supply in “Parallel-Use” mode if this feature is available
-It is desirable to set the output voltages of all power supplies to the same value.
17.2. Inductive and Capacitive Loads
The unit is designed to supply any kind of load, including unlimited capacitive and inductive loads.
17.3. Lateral Installation Clearances
The minimum clearance recommendations are dened in section 2.
Normally, the following installation clearance are recommended: 40mm on top, 20mm on the bottom, 5mm on the
left and right sides when the device is loaded permanently with more than 50% of the rated power. Increase this
clearance to 15mm in case the adjacent device is a heat source (e.g. another power supply).
The clearance between the power supplies and the redundancy module can be reduced to zero under the following
conditions:
0mm0mm
20A
Load
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
1606-
XLSRED40
Redundancy
Module
Output
Input
1
Input
2
+
-
+
-
+
-
-1+1 redundancy application with maximum 20A output current.
-The power supplies are from the XLS family.
-The redundancy module is placed between the two power supplies.
-The output voltage is set to the same level on both power supplies.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
16 Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
17.4. 1+1 Redundancy up to 20A
1+1 Redundancy up to 20A requires two 20A power supplies and one 1606-XLSRED40 redundancy module.
Fig. 17-1 Wiring diagram, 1+1 Redundancy, 20A output current
L1
L2
PE
L3
20A
Load
Failure
Monitor
I I I I I I
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
1606-
XLSRED40
Redundancy
Module
Output
Input
1
Input
2
+
-
+
-
+
-
Note: Use separate mains systems for each power supply whenever possible.
17.5. N+1 Redundancy, Example with 60A
N+1 Redundancy up to 60A requires four 20A power supplies and two 1606-XLSRED40 redundancy modules.
Fig. 17-2 Wiring diagram, n+1 Redundancy, 60A output current
60A
Load
Failure
Monitor
I I II I I I I I
L1
L2
PE
L3
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
1606-
XLSRED40
Redundancy
Module
Output
Input
1
Input
2
+
-
+
-
+
-
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
L1 L2 L3 PE
+ +
- -
Power
Supply
24V,20A DC-
OK
1606-
XLSRED40
Redundancy
Module
Output
Input
1
Input
2
+
-
+
-
+
-
I I I
Note: Use separate mains systems for each power supply whenever possible.

All parameters are specified at 24V, 40A output current, 26°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM010A-EN-P — February 2014 17
Bulletin 1606 Switched Mode Power Supplies
17.6. Mounting Orientations
Mounting orientations other than input terminals on the bottom and output on the top require a reduction in
continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction
inuences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous
operation can be found below:
Curve A1 Recommended output current.
Curve A2 Max allowed output current (results in approximately half the lifetime expectancy of A1).
Fig. 17-3
Mounting
Orientation A
(Standard
orientation)
Redundancy
Module
INPUT
OUTPUT
Output Current
0
20 30 40 50 70°C
10
20
30
40A
60
A1
Ambient Temperature
Fig. 17-4
Mounting
Orientation B
(Upside down)
Redundancy
Module
INPUT
OUTPUT
Output Current
0
20 30 40 50 70°C
10
20
30
40A
60
A1
Ambient Temperature
Fig. 17-5
Mounting
Orientation C
(Table-top
mounting)
Output Current
0
20 30 40 50 70°C
10
30
40A
60
20
A1
A2
Ambient Temperature
Fig. 17-6
Mounting
Orientation D
(Horizontal cw)
Redundancy
Module
INPUT
OUTPUT
Output Current
0
20 30 40 50 70°C
10
30
40A
60
20
A1
A2
Ambient Temperature
Fig. 17-7
Mounting
Orientation E
(Horizontal ccw)
Redundancy
Module
INPUT
OUTPUT
Output Current
0
20 30 40 50 70°C
10
30
40A
60
20
A1
A2
Ambient Temperature

Rockwell Automation Support
Rockwell Automation provides technical information on the Web to assist you in using its products.
At http://www.rockwellautomation.com/support, you can find technical manuals, technical and application
notes, sample code and links to software service packs, and a MySupport feature that you can customize to
make the best use of these tools. You can also visit our Knowledgebase at http://
www.rockwellautomation.com/knowledgebase for FAQs, technical information, support chat and forums,
software updates, and to sign up for product notification updates.
For an additional level of technical phone support for installation, configuration, and troubleshooting, we offer
TechConnectSM support programs. For more information, contact your local distributor or Rockwell Automation
representative, or visit http://www.rockwellautomation.com/support/.
Installation Assistance
If you experience a problem within the first 24 hours of installation, review the information that is contained in
this manual. You can contact Customer Support for initial help in getting your product up and running.
New Product Satisfaction Return
Rockwell Automation tests all of its products to help ensure that they are fully operational when shipped from
the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these
procedures.
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions on how to
improve this document, complete this form, publication RA-DU002, available at http://
literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf.
United States or Canada 1.440.646.3434
Outside United States or Canada Use the Worldwide Locator at http://www.rockwellautomation.com/rockwellautomation/support/overview.page, or contact your local
Rockwell Automation representative.
United States Contact your distributor. You must provide a Customer Support case number (call the phone number above to obtain one) to your
distributor to complete the return process.
Outside United States Please contact your local Rockwell Automation representative for the return procedure.
Publication 1606-RM010A-EN-P — February 2014
Copyright © 2014 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
