Rockwell ShopSeries RS9135 User manual

RS8135
HIGH PRESSURE WASHER EN

RS8135
14
1
2
4
3
5
6
8
10
13 12
9
7
16
15
11
816
15
C2 DE
ABC1
IJK
LMN
FGH
2a
5

RS8135
14
1
2
4
3
5
6
8
10
13 12
9
7
16
15
11
816
15
C2 DE
ABC1
IJK
LMN
FGH
2a
5

5
HIGH PRESSURE WASHER EN

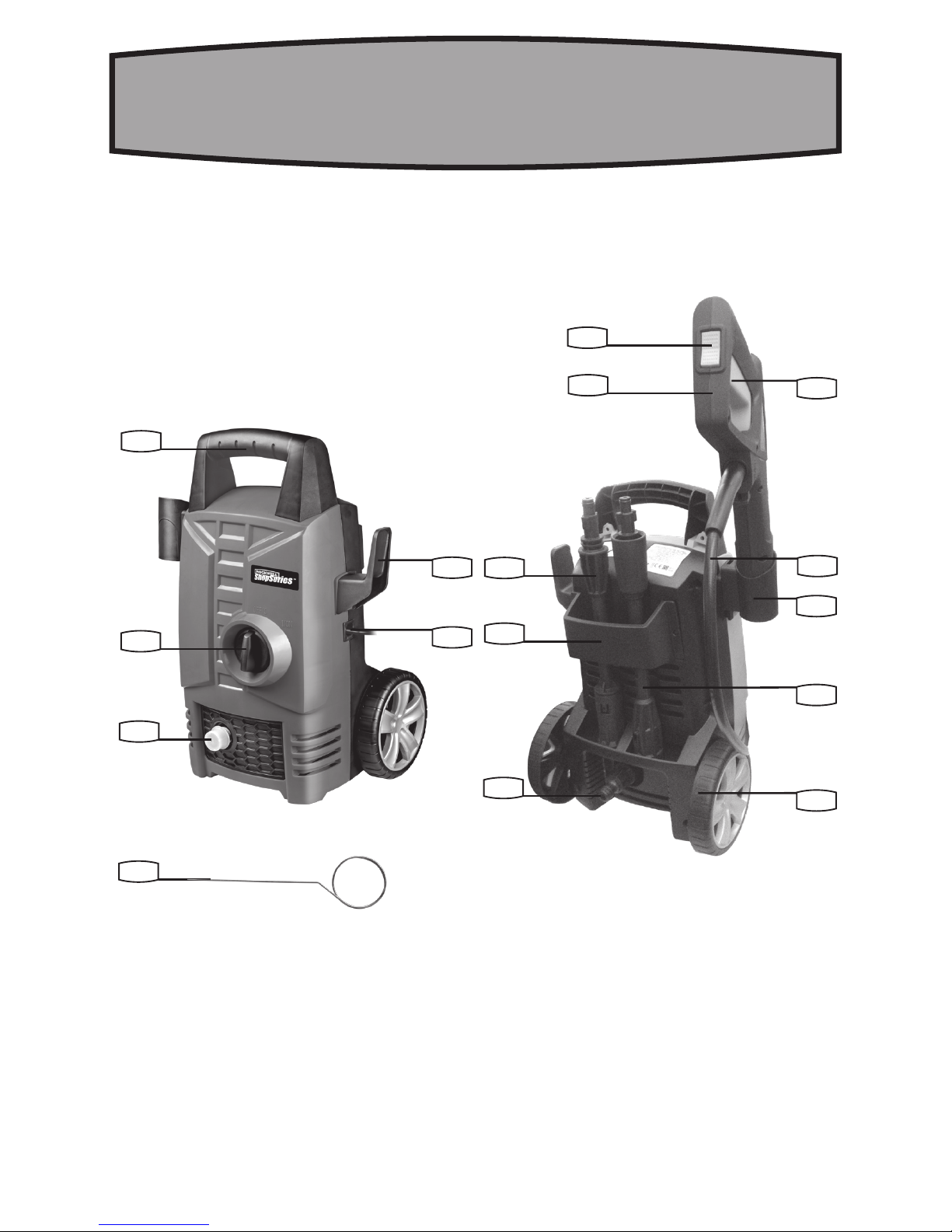

COMPONENT LIST
ON/OFF SWITCH
OUTLET WITH PROTECTION CAP
ELECTRIC CABLE
HOLDER FOR ELECTRIC CABLE
SAFETY LOCK
SPRAY GUN
HIGH PRESSURE HOSE
ADJUSTABLE SPRAY LANCE
SPRAY GUN HOLDER
LANCE HOLDER FENCE
NOZZLE CLEANING TOOL
WHEELS
INLET WITH QUICK CONNECTOR
HANDLE
TRIGGER SWITCH
CONNECTION LANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ACCESSORIES
Connection lance 1
Spray gun 1
Adjustable spray lance 1
3 M high pressure hose 1
Cleaning pin 1
Water filter(fitted within inlet) 1
Use good quality accessories marked with a
well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the
accessory packaging for further details. Store
personnel can assist you and offer advice.
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future
reference.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision

HIGH PRESSURE WASHER EN
6
or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they do
not play with the appliance.
ADDITIONAL POWER TOOL SAFETY
WARNINGS
WARNING: Do not use the appliance without reading the instruction sheet.
- Safety boots, safety gloves, safety helmets with
visors, hearing protection etc. shall be worn while
operating the machine.
- When opening the trigger gun, there is a danger of
the kickback force and the sudden torque on the
spray assembly. Please hold the nozzles tightly.
- WARNING This machine has been designed
for use with the cleaning agent supplied or
recommended by the manufacturer. The use of
other cleaning agents or chemicals may adversely
affect the safety of the machine.
- WARNING High pressure jets can be dangerous if
subject to misuse. The jet must not be directed at
persons, live electrical equipment or the machine
itself.
- WARNING Do not use the machine within range of
persons unless they wear protective clothing.
- WARNING Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
- Disconnect from the electrical power supply
before carrying out user maintenance.
- High pressure cleaner should not be taken by
children or untrained persons.
- WARNINGRiskofexplosion–Donotspray
flammable liquids.
- WARNING To ensure machine safety, use only
original spare parts from the manufacturer or
approved by the manufacturer.
- WARNING: High pressure hoses, fittings and
couplings are important for the safety of the
appliance. Use only hoses, fittings and couplings
recommended by the manufacturer
- WARNING Water that has flown through backflow
preventers is considered to be non-potable.
- WARNING The machine shall be disconnected
from its power source by removing the plug from
the socket-outlet during leaning or maintenance
and when replacing parts or converting the
machine to another function.
- WARNING Do not use machine if a supply cord or
important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
- WARNING If an extension cord is used, the plug
and socket must be of watertight construction.
- WARNING Inadequate extension cords can be
dangerous.
- The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364-1.
It is recommended that the electric supply to this
machine should include either a residual current
device that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms or a
device that will prove the earth circuit.

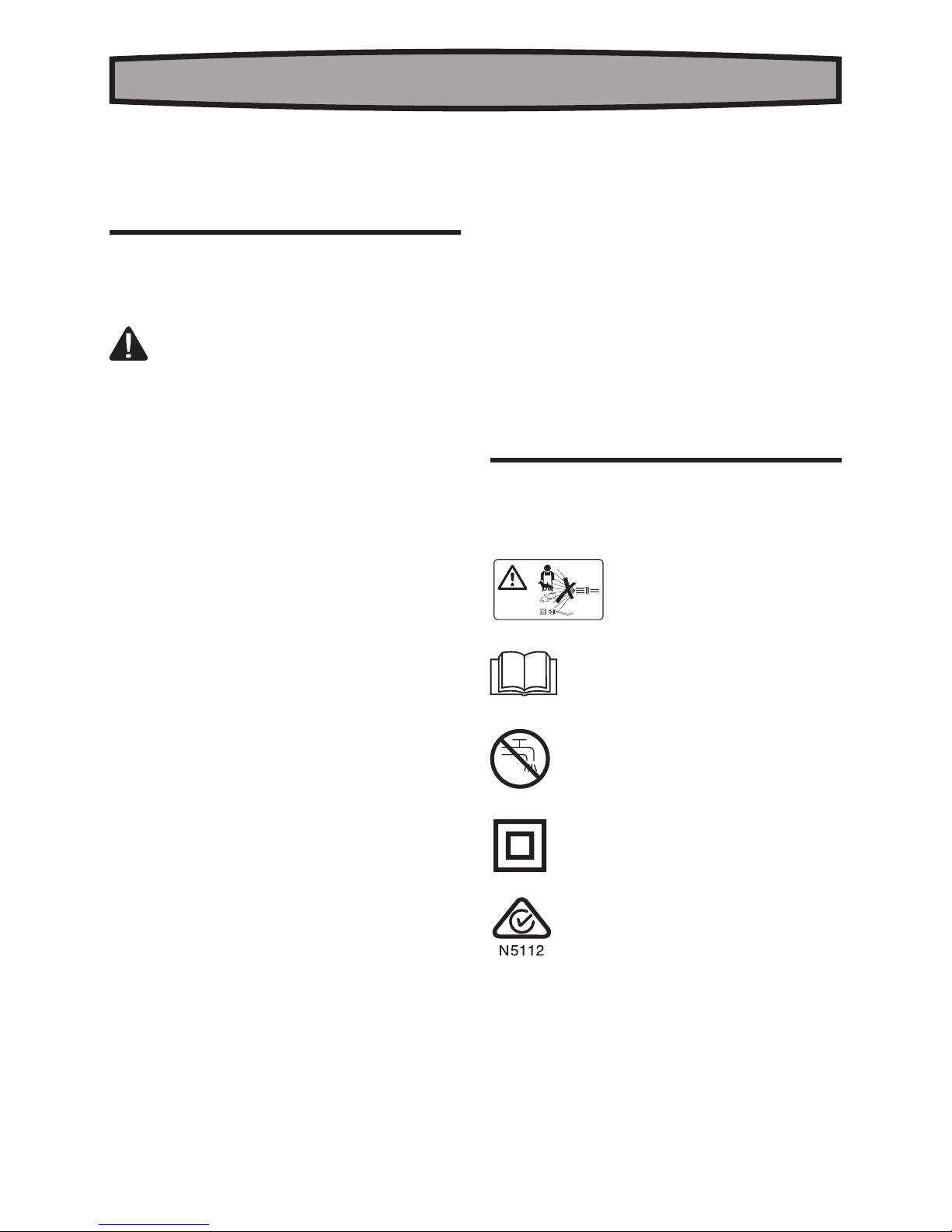

SYMBOLS
Warning: Do not direct the jet at
persons, animals and electrical
equipment.
Read the manual
Machine not suitable for connection to the
potable water mains
Double insulation
RCM approval mark

7
HIGH PRESSURE WASHER EN
TECHNICAL DATA
Rated voltage 220-240V ~ 50Hz
Rated input power 1400W
Rated working pressure 7MPa (1015PSI)
Max. permissible pressure 10MPa (1450PSI)
Rated flow rate 5.5 l/min
Max. flow rate 6.5 l/min
Max. inlet water pressure 0.7MPa
Degree of protection IPX5
Rated temperature 0-40oC
Insulation class /II
Machine weight 5.3kg
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
CAUTION!
• Neverusethepressurewashertodrawinwater
contaminated with solvents (e.g. paint thinners,
gasoline, oil, etc.).
• Dirtinthefeedwaterwilldamagetheunit.To
avoid this risk, we recommended checking the
water filter (located inside the water inlet; to clean
it out see maintenance section).
• Alwayspreventdebrisfrombeingdrawnintothe
unit by using a clean water source and an acces-
sory water source and an accessory water filter if
required.
Water supply (cold water only)
1. Do not draw non-water liquids through the unit.
For use with cold water supply only.
2. Water hose must be at least a 1/2” in diameter.
3. Flow rate of water supply must not fall below 6 l /
min.
4. Flow rate can be determined by running the water
for one minute into an empty container.
5. The water supply temperature must not exceed
40oC (104oF)
ASSEMBLY
1. ASSEMBLING SPRAY GUN HOLDER
Press the spray gun holder (9) on to the machine.
(See Fig, A)
2. MOUNTING OF HOLDER FOR ELECTRIC CABLE
Press the holder for electric cable (4) on to the
machine. (See Fig. B)
3. MOUNTING OF WHEELS
Mount the wheels (12) by pressing them into the
bracket. (See Fig. C1)
4. MOUNTING OF INLET WATER CONNECTOR
Unscrew white protection cap from inlet thread, screw
quick connector to inlet (13). Please ensure water filter
always fitted before every operation.(See Fig.C2)
5. MOUNTING OF ADJUSTABLE SPRAY NOZZLE AND
LANCE HOLDER
Place the lance holder fence (10) on to the machine,
and fix the screws. (See Fig. D)
6. MOUNTING OF HANDLE
Press the handle (14) on to the machine, and fix the
screws. (See Fig. E)
7. ASSEMBLING THE HIGH PRESSURE HOSE
1) Make sure that ON/OFF switch is in OFF position.
(See Fig. F)
2) Insert the high-pressure hose to spray gun.
(See Fig. G)
3) Insert the connection lance (16) into spray gun,
and twist 1/4turn. Then insert the adjustable spray
lance (8) into the connection lance (16), and twist
1/4turn until rectangular tab appears. (See Fig. H)
4) Unscrew white protection cap from outlet thread
and connect high pressure hose with outlet (2),
and then tighten ring (a) with clockwise. (See Fig.I)
8. CONNECTING WATER SUPPLY
Connect water pipe with female coupler (no supplied)
to quick connector of inlet.(See Fig. J)
OPERATION
1. ON/OFF SAFETY SWITCH
1) Connect the plug to into a properly outlet.
2) Trigger switch is in a locked off position to prevent
in accidental starting. Depress safety lock (5) to
“unlocking” position, then trigger switch is now
on. Release trigger switch (15) and depress safety
lock (5) to “locking” position to activate safety
lock.(See Fig. K)

HIGH PRESSURE WASHER EN
8
3) Before operate high pressure washer, press the
trigger switch (15) to bleed any trapped air out of
the pump and hose. (See Fig. K)
4) Start the pressure washer by turning ON/OFF
switch to ON. Press the trigger. Reminder: motor
does not run continuously, only when trigger is
squeezed. (See Fig. L)
2.SURFACE PREPARATION
Before staring any cleaning task it is important the
area for objects which could create a hazard. Remove
objects from the work area which area which could
be tripped over, such as toys or outdoor furniture.
Ensure that all doors and windows are closed tight.
3. USING THE ACCESSORIES
1) ADJUSTABLE WAND
The adjustable nozzle allows you to use any variety of
spray patterns from a fan spray to a pencil jet spray.
When using pressure washer to clean wood decks,
siding, vehicles etc., always start using the fan spray
and begin spraying from a minimum 36” away to avoid
damaging the surface of the material you are cleaning.
CAUTION: Do not adjust the nozzle while the trigger is squeezed.
2) ADJUSTING THE SPRAY
The adjustable spray nozzle can adjust from fan to
jet setting. The spray is adjusted from jet spray to fan
spray by turning the nozzle. (See Fig. M).
NOTE: The pressure of the spray on the surface you
are cleaning increases as you move the wand closer
to the surface.
CAUTION: Jet spray adjustment is very aggressive. Do not adjust while spraying.
We recommend that for most cleaning applications
a 20-degree spray angle should be used to avoid
damage to the surface being sprayed.
STORAGE
The machine should be stored in a frost-free room!
Pump, hose and accessories should always be emp-
tied of water prior to storing as follows:
Stop the machine and detach water hose and acces-
sory.
Restart the machine and activate the trigger. Let the
machine run until no more water runs through the
spray gun.
3. Stop the machine, unplug and wind up hose and
cable.
4. Place spray handle, nozzles and other accessories
in the holders of the machine. Should the machine by
mistake be frozen, it will be necessary to check it for
damage.
NEVER START-UP A FROZEN MACHINE.
Frost damages are not covered by the guarantee!
Winding up of electric cable and high pressure
hose
To avoid accidents, the electric cable and the high
pressure hose should always be winded carefully up
around the handle. Wind up the cable on the appropri-
ate hook.
Storage of accessories
The lance and the nozzles can be stored on the pres-
sure washer.
MAINTENANCE
WARNING! Always disconnect the electrical plug from the socket prior to maintenance or
cleaning. To ensure a long and problem free working
life, please take the following advice:
- Wash out water hose, high pressure hose, spray
lance and accessories before mounting.
- Clean the connectors of dust and sand.
- Rinse the detergent spraying attachment after
use.
- Clean the nozzles.
Any repair should always be made in an authorized
workshop with original spare parts.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
CLEANING OF WATER INLET FILTER
Clean the water inlet filter regularly once a month or
more frequently according to use.
Unscrew quick connector and take water inlet out.
Check that it is intact before re-mounting it.
The inlet filter must always be fitted inside the water
inlet pipe to filter out sand, limestone and other impu-
rities, as they will damage the pump valves.
CAUTION: Failure to fit the filter will invalidate the guarantee.
Cleaning of nozzle
A clogging up in the nozzle causes a pump pressure

9
HIGH PRESSURE WASHER EN
which is too high. This is why cleaning is
required immediately.
1. Stop the machine and disconnect the nozzle.
2. Clean the nozzle.
IMPORTANT:
The cleaning tool (11) should only be used when the
nozzle is detached! (See Fig. N)
3. Flush the nozzle backwards with water.
Cleaning of machine vents
The machine should be kept clean so as to let cooling
air pass freely through the machine vents.
Greasing of couplings
To ensure an easy connection and that o-rings do not
dry up. The couplings should be greased regularly.
TROUBLESHOOTING
Disconnect the machine from the power source before
making any repair. To avoid unnecessary disappoint-
ments, you should check the following before contact-
ing the service organization:
Symptom Cause Recommended action
Machine refuses
to start
Machine not plugged in
Defective socket
Defective extension cable
Plug in machine
Try another socket.
Try without the extension cable.
Fluctuating pressure
Pump sucking air
Valves dirty, worn out or stuck
Pump seals worn out
Check that hoses and connections are
airtight.
Clean and replace or refer to local distribu-
tor
Clean and replace or refer to local distribu-
tor
Machine stops
Incorrect mains voltage
Thermal cut-out activated
Nozzle partially blocked
Check that the mains voltage corresponds
to specification on the model tag.
Leave the washer for 5 minutes to cool
down.
Clean the nozzle
Machine pulsating
Air in inlet hose
Inadequate supply of mains water
Nozzle partially blocked
Water filter blocked
Hose kinked
Pump allow machine to run with open
trigger until regular working pressure
resumes.
Check that the water supply corresponds
to specifications required
Avoid using long, thin hoses (min. 1/2”)
Clean the nozzle
Clean the filter
Straighten out hose.

HIGH PRESSURE WASHER EN
10
Staple your purchase receipt here
Before returning this product for
warranty or any other reason, please call.
POSITEC AUSTRALIA PTY LIMITED
ABN 14 101 682 357
Unit 15, 23 Narabang Way Belrose 2085 NSW
Australia
FREE CALL 1300 889 028
EMAIL:ofce.s[email protected].au
Machine often starts and
stops by itself
Pump/spray gun is leaking . Contact your nearest Service
Machine starts, but no
water comes out
Pump/hoses or accessory frozen
No water supply
Water filter blocked
Nozzle blocked
Wait for pump/hoses or accessory to thaw.
Connect water supply and turn on.
Clean the filter
Clean the nozzle

MADE IN PRC
Copyright © 2013, Positec. All Rights Reserved.
