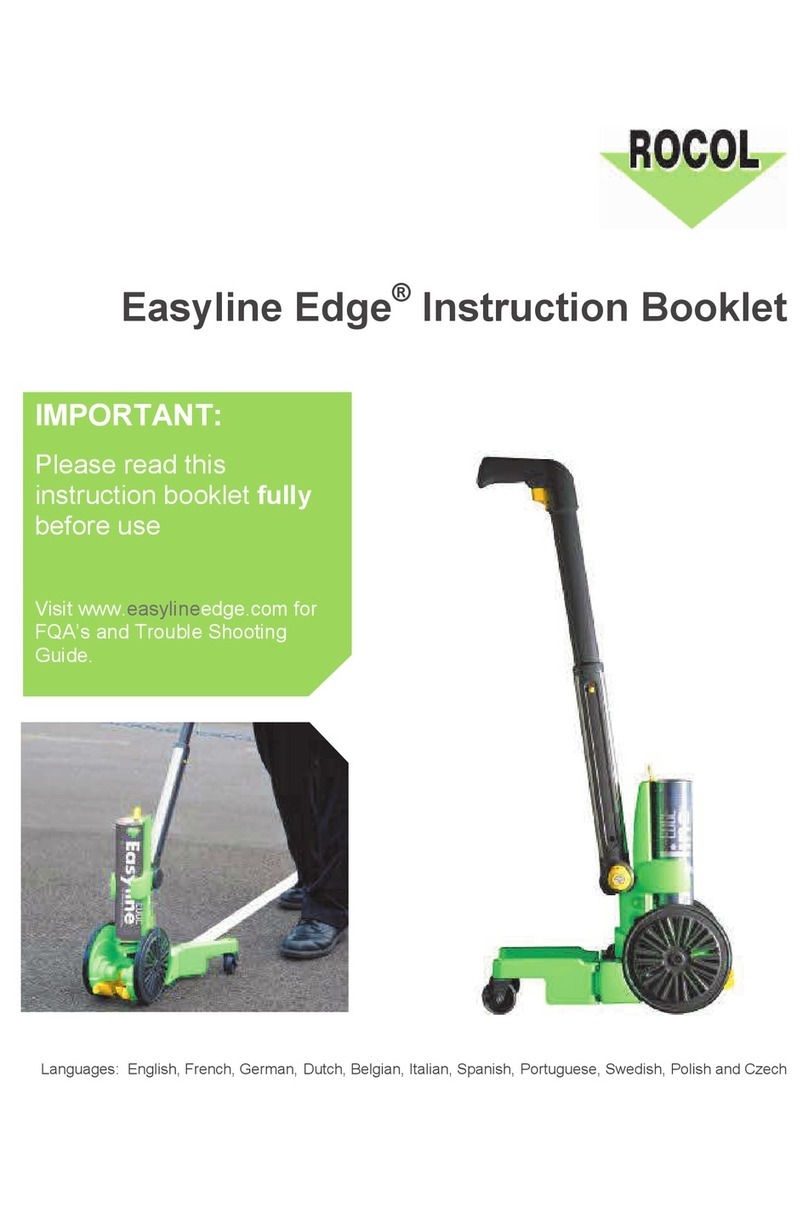

Rocol EASYLINE EDGE Line Marking System Instruction manual

Technical Data
EASYLINE®EDGE
Line Marking System
Part Code EASYLINE®EDGE Aerosol Paints 750ml
47000 White
47001 Yellow
47002 Red
47003 Blue
47004 Green
47005 Orange
47006 Black
47007 Grey
47009 Fluorescent Yellow
47012 EASYLINE®EDGE Applicator
47013 Hand-Held Applicator
47014 Replacement Masking Plates
(includes: Masking Plates; Silicone Brushes; Pointer and Central protection plate)
40141 STENCIL PACK 150mm - UPPERCASE
40144 STENCIL PACK 300mm - UPPERCASE
No of Pages 8
Issue No 08
Date 05/2020
Ref NEWEELMS
Please refer to the respective technical data sheets for more information www.rocol.com/datasheets
Product Overview
The unique patented EASYLINE®EDGE Line Marking System - easy to achieve
professional quality line marking, no additional tools or experience required.
• Ideal for marking factory floors, warehouses, car parks, playgrounds walkways and
other hard flat surfaces.
• Produces sharp, clear lines which last up to 2 times longer than the next best
competitor*
• Supplied in a heavy duty carry case
The EASYLINE®EDGE Applicator and paint are sold separately.
PLEASE NOTE – The EASYLINE®EDGE Applicator is specifically designed for use with
EASYLINE® EDGE Aerosol Line Marking Paint 750ml – NOT compatible with other aerosol brands.

Technical Data
Features and Benefits
EASYLINE®EDGE Applicator
• Battery-powered Airflow System produces sharp, clean
lines
• New and unique Masking plates with Silicone Brushes
– Even better edge definition and quality.
– Paint flow is managed consistently for trouble free
marking over long distances
– Non-stick design can be cleaned without solvents.
• Adjustable rear stabilisers with three possible
configurations:
– Wide: for straight line stability
– Inline: New freehand marking feature allows the
creation of curves (minimum radius 0.6 metres)
– Curb side: Mark straight lines close to a curbs or
racking. (within 70mm)
• Now even better over rougher surfaces
– Wider Track for greater stability
– Deep rubber tyres all-round
– Vibration damping in rear wheels
– Greater ground clearance
• Fully Adjustable line width function. All line widths
possible between 50mm, and 100mm.
(Width setting accuracy +/- 3mm)
• ROCOL’s EASYLINE® EDGE Applicator is quick to
assemble and simple to use - no specialist equipment or
knowledge required.
• Supplied in a heavy duty carry case for safe storage and
transit.
• Included in the box:
– Wheeled base unit x1
– Can holder/handle unit x 1
– 1 x polythene bag containing:
- AA Battery x 1
- Spare pair of Masking Plates and Silicone Brushes.
- Pointer/scraping tool x 1
Supplied will an alkaline battery to get you started that
will deliver enough power to spray up to 6 cans. For best
performance we recommend the Energizer Ultimate
Lithium AA battery which provides 21/2 hours of service;
typically, enough to spray 15 cans, or up to 800 metres of
a 75mm wide line.
EASYLINE®EDGE Aerosol Paint
• ROCOL EASYLINE®EDGE ‘traffic-grade’ epoxy paint
produces highly durable lines - lasts up to 2 times longer
than the next best competitor*
• ROCOL EASYLINE®EDGE lines are quick to apply and
dry in 10 minutes, reducing costly ‘down-time’
• Safe formula, non-irritant and non-hazardous to the
aquatic environment, reduces the hazards to the user and
the environment.
• Superior wear resistance compared to other aerosol line
marking products
• Excellent covering power
• Available in nine bright colours
• Utilises a unique dual propellant system:
– More paint and less propellant
– Consistent quality lines throughout full discharge of
the aerosol
– Consistent quality across a broad temperature range
• Easy to apply with minimal mess and wastage
* Determined by measurement of wear resistance in accordance
with ASTM D4060 using a Taber Abraser and a comparison of
effects of weathering by UV/condensation cycles in accordance
with ISO 11507

Technical Data
Technical Data
Dimensions boxed:
Height:
Width:
Length
Gross Weight:
30.5 cm
25.5 cm
71.0 cm
7.5 Kg
Recycling
Carry case shell
Metallic Handle inserts
Applicator Large plastic parts
100% Virgin HDPE - Widely Recyclable
Aluminium - Widely Recyclable
PA66 GF15 - Recyclable
Batteries Required 1 x AA
For best performance we recommend Energizer Ultimate Lithium AA batteries
Country of Origin China
Hazard Classification for Transport Not classified as hazardous for transport by road or sea
H
WL
7.5kg
EASYLINE®EDGE Applicator
Technical Data
EASYLINE®EDGE Aerosol Paint
Pack Size: 750ml Aerosol
Colours: White (RAL 9016), Yellow (RAL 1023), Red (RAL 3020), Blue (RAL 5017), Green
(RAL 6024), Orange (RAL 2009), Black (RAL 9017), Grey (RAL 7045)*and
Fluorescent Yellow.
*RAL Colours are approximates only
Drying Times (20oC)
Touch Dr y:
Surface Dry:
Through Dry:
Hard Dry:
Vehicular Traffic:
10 minutes
30 minutes
70 minutes
~ 4 hours
Overnight

Technical Data
Technical Data
EASYLINE®EDGE Aerosol Paint
Maximum Coverage per can:
50mm
75mm
100mm
100 metres
75 metres
55 metres
No Pick-Up Time:
ASTM D711
(Representative of light traffic)
30 minutes
Taber Wear Index:
ASTM D4060
200μm Wet Film Thickness
Load: 1000g/1000cycles/CS10 Abrading
wheel at 20oC
Cure Time 24 hours
(White) 7 days
142
99
Shelf Life: 2 years
Maximum Chemical Resistance:
ASTM D5402
7 days
Cross Hatch Adhesion:
BS 3900-E6
Very good/excellent
Flexibility:
ASTM D522
(Conical Mandrel)
Excellent
Solvent Resistance:
(After 7 days)
Resistant to most general chemicals for example: Detergents, Petrol,
Diesel and Oil.
Resin Type: Modified Epoxy Ester
Application Temperature:
Surface:
Can temperature:
5-30oC
15-25oC
Hazard Classification According to CLP
Physico-Chemical Hazards
Health Hazards
Environmental
Flammable Aerosol Cat.1
Not Classified
Not Classified
Hazard Classification for Transport
Please Refer to the Safety Data Sheet for more
information.
ADR and IMDG
UN1950 AEROSOLS, 2.1
Not Dangerous for the Environment
Not a Marine Pollutant

Technical Data
Surface Preparation
All surfaces should be clean, dry and dust free before
application. Any surfaces covered in heavy grime/grease
should be cleaned with a suitable water washable,
multipurpose degreaser. Ensure that the surface is thoroughly
rinsed and allowed to dry before application.
Steel Surfaces
Clean the surface thoroughly before application. If possible,
abrade the surface to improve adhesion.
Concrete
The surface should be cleaned thoroughly before use. All
surface latence should be removed. On new or polished
concrete, treatment with an acid etch solution is recommended
prior to application of EASYLINE®EDGE. Alternatively,
mechanically etch the surface by scabbling.
Asphalt
Asphalt should be free from dust, dirt, and grease etc. If
necessary, the surface should be cleaned by pressure washing
and allowing the asphalt to dry thoroughly before application of
EASYLINE®EDGE.
To avoid asphalt bleed on very new tarmac/asphalt surfaces,
apply a quick line as a primer and leave to dry for 20 minutes
before overcoating.
Timber
Sand the surface to remove any weak timber or contamination.
Not suitable for hardwoods with high tannin content or
traditional railway sleepers which may result in tannin bleed
and pour adhesion.
Painted Surfaces
Caution, perform a small test area before coating. Lightly
abrade the surface before application. Check for compatibility.
May damage the existing surface. Removal will not be possible
without damage to the existing finish.
Assembly Instructions
01. Remove the components from the case.
Note: All adjustable or detachable components are colour coded
yellow (except red silicone brushes)
02. Note: New Applicators are supplied with the masking plates
already fitted.
To re-assemble and attach the masking plates after use:
A&B: First attach the silicone brushes to the pegs on the
back of the masking plates. Ensure that the back of each
red silicone brush is flush with the back of the masking
plate.
03. C&D: If desired, fit the pointer to the front of a masking
plate. Right-handed people should fit the pointer to the
left masking plate as shown.
04. E: Attach the assembled masking plates into the wheeled
base unit as shown. They should click into place.
F: The complete base unit assembly should look like this.
05. G: Insert the AA battery. Slide the yellow battery cover
upwards, insert the battery positive end up, push the
battery down and in.
06. H: Switch on the fans and I: check that air is blowing
down, behind the masking plates. (Switch off the fans
when not in use).
07. J: Attach the handle to the base unit and push down until
K: the yellow buttons click into the 100mm height setting
08. Extend the handle.
L: Depress the small yellow buttons at the base of the
handle.
M&N: Pull the handle up until O: the yellow buttons re-
engage into the fully extended position.
09. Adjust the angle of the handle.
P: Press and hold the yellow button on the hinge and
Q: pull back the handle to the desired angled before
releasing the button.
10. Set the desired line width.
R: First adjust the width by turning the wheel until the
desired width is at the edge of the visible gauge. Note the
colour zone in which the width setting resides.
S: Then adjust the height of the can holder to the matching
colour zone. Pinch the yellow buttons on either side and
whilst holding the base unit down with the other hand,
slide the can holder to the required position.
Assembley Instructions (with reference on next page)
Watch video
Click here for assembly instruction video

Technical Data
Assembly Instructions
A B C D E
F G H I
MK L
J
N O P Q
R S
U
W
T
60
V
11. Mix the aerosol contents:
T: Hold the aerosol can upside down and shake it until the mixing
balls rattle. Then shake for a further minute.
Caution! Before attaching the yellow spray nozzle, ensure that all orifices
are free of paint build up. If any orifice is blocked, discard the actuator.
Do not try to remove paint with a pin or other such instrument, as this is
likely to damage the actuator and it will not be possible to produce good
quality lines. Never insert anything into the valve stem!
12. U: Attach the yellow spray nozzle (supplied with the aerosol).
whilst pointing the can up and away from your face and others,
position the valve stem into the underside of the nozzle and pull
down gently until it clicks into place.
13. V: Invert the can and insert it into the can holder. Rotate the can
until the wings of the yellow nozzle locate.
14. W: Ensure that the yellow clip has hooked over the top of the can.
Preparation of the Aerosol
Watch video
Click here for assembly instruction video

Technical Data
Assembly Instructions
Configure the Rear Stabilisers as Required
Steerable:
Curves or circles
Fully Stabilised:
Straight lines
Half stabilised:
Straight lines close to kerbs or racking
You are now ready to start line marking! Whilst working, remove the can from the applicator every 30mins and re-shake the
contents.
Application
ROCOL EASYLINE®EDGE aerosol paint is supplied with two
actuators (spray nozzles). Attach the yellow actuator for use
with the EASYLINE®EDGE Applicator or attach the white
actuator for use with the Hand-Held Applicator for free-
hand marking or stencilling.
For optimum performance, the can temperature should be
15 - 25oC, (can temperatures outside of this range will affect
line quality).
After Use
Allow the applicator to rest on a piece of card. Remove the
aerosol from the applicator. Clear the actuator nozzle and
valve by pointing the can away from your face and others
and depressing the actuator for 3-5 seconds. Store the can
separately in a cool, well ventilated place away from sources
of ignition. Do not store in direct sunlight.
Follow the instructions for cleaning the applicator before
storing it in its carry case, remove the pointer and detach
the handle unit from the base unit. Set the width of the base
unit to 60mm, and place in the box. Straighten the handle
and collapse the height before placing in the box, (handle
with trigger down and into the hole).
Cleaning and Maintenance of the Applicator
Remove the making plates and centre protection plate.
Allow the paint to touch-dry (10 minutes). Remove the
silicone brushes from the masking plates before using the
scraper tool (back of the Pointer) to remove the paint from
the masking plates and centre protection plate. Clean the
silicone brushes by gently rubbing the dry paint with paper
tissue or a rag.
Over-spray on other parts of the machine can be removed
before hardening with the scraper tool and a damp plastic
scrubbing pad. Do not allow moisture to enter the battery
chamber. Hardened paint can be removed using a paint
remover wipe or cleaning solvent and a rag. Avoid contact
of solvents with printed diagrams on the base unit and
graphics on the handle.
Replacement parts available Masking plates; silicone
brushes; pointer and centre protection plate are all included
in: Part Code 47014 Replacement Masking Plates.

Technical Data
Professional Hints and Tips
• Do not mark out car parking spaces when the car park is
in use. Warn people of your planned work. Cordon off the
area before working
• Whilst working, rest the applicator over a piece of card
with a straight edge when not in use to prevent unwanted
marks.
• Use the straight edge of the card to create a sharp start
to your lines. Have another piece of card ready at the end
of the line for a professional finish.
• To improve hiding power over rough or artificial surfaces,
apply a coat of paint in both directions.
• Use a straight edge such as a ladder or a piece of racking
to create perfectly straight lines.
• To draw curves:
1. leave the rear arms in-line, the applicator can be
steered.
2. Create a chalk line inside the intended curve with a
radius 50mm shorter. Instead of using the pointer,
track the front wheel, inside the curve, over the chalk
line,
• To avoid poor adhesion, do not paint over moss, surface
frost, morning dew, wet surfaces or when raining.
• If the spray is not falling equally between the two
masking plates, use the adjuster ring to centralise the
spray pattern.
Warning
• Aerosols are pressurised vessels and should be stored
and handled with care.
• Protect from sunlight and do not expose to temperatures
exceeding 50ºC.
• Do not spray onto a naked flame or any incandescent
material.
• Do not pierce or burn even after use.
• If the aerosol valve becomes blocked never insert an
object into the valve stem!
• Be sure to install the battery correctly, observing the
polarity (+/-) signs
• Do not attempt to recharge the battery, do not open or
dispose of in a fire, and do not mix with used or other
battery types: may explode, leak and cause damage.
Health & Safety
For professional users only. Use outdoors or in a well-
ventilated area.
Refer to the Safety Data Sheet before use. Data Sheets can
be found on www.rocol.com/datasheets
T+44 (0) 113 232 2600 F+44 (0) 113 232 2740
[e-mail] www.rocol.com
ROCOL House, Swillington, Leeds LS26 8BS
This document contains information based on data that is believed to be
correct. However, the product may not be applicable to all uses and operating
environments. No warranty or guarantee is expressed or implied.
