FLEXIBLE HEAD CUT-OFF TOOL
Valid from Serial No. A00001 to Z99999
Model:
RC7199
WARNING
To reduce risk of injury, everyone using, installing, repairing, main-
taining, changing accessories on, or working near this tool MUST
read and understand these instructions before performing any such
task.
DO NOT DISCARD - GIVE TO USER

EN FLEXIBLE HEAD CUT-OFF TOOL
2© Rodcraft - 8956002235
Schema 1
Table 1
Description RC7199
Spindle Thread (inch) 3/8
Disc (inch) 3
Power (w) 440
Free Speed (rpm) 16000
Weight (kg) 1.3
Inner Hose Diameter (mm) 10
Length (mm) 248
Width (mm) 90
Height (mm) 92
Air Inlet (inch) [BSP] 1/4
Air Consumption [actual] (l/s) 9.37
Air Consumption [free speed] (l/s) 11.1
Air Consumption [average] (l/s) 3.33
Max. Air Pressure (bar) 6.3
Schema 2
Schema 3
1) Cut-Off Tool 2) Pressure Regulator 3) Lubricator 4) Shut-Off Valve 5) Air Filter

FLEXIBLE HEAD CUT-OFF TOOL EN
© Rodcraft - 8956002235 3
Schema 4
Schema 5

4© Rodcraft - 8956002235
Table of Contents
EN Safety Information...................................................................................................... 5
FR Informations concernant la sécurité ........................................................................... 9
DE Sicherheitshinweise.................................................................................................. 13
ES Información sobre seguridad.................................................................................... 17
PT Informação de Segurança......................................................................................... 22
IT Informazioni sulla sicurezza..................................................................................... 26
NL Veiligheidsinformatie............................................................................................... 30
DA Sikkerhedsoplysninger ............................................................................................. 34
NO Sikkerhetsinformasjon.............................................................................................. 38
FI Turvallisuustiedot..................................................................................................... 41
EL Πληροφορίες για την ασφάλεια ............................................................................... 45
SV Säkerhetsinformation ............................................................................................... 50
RU Информация по технике безопасности ................................................................ 54
PL Informacje dotyczące bezpieczeństwa ..................................................................... 59
SK Bezpečnostné informácie ......................................................................................... 63
CS Bezpečnostní informace ........................................................................................... 67
HU Biztonsággal kapcsolatos tudnivalók ....................................................................... 71
SL Varnostne informacije.............................................................................................. 75
RO Informaţii privind siguranţa ..................................................................................... 79
TR Güvenlik bilgileri ..................................................................................................... 83
BG Информация за безопасност.................................................................................. 87
HR Sigurnosne informacije ............................................................................................ 92
LT Saugos informacija................................................................................................... 95
LV Drošības informācija ................................................................................................ 99
ZH 安全信息................................................................................................................ 103
JA 安全情報................................................................................................................ 106
KO 안전 정보............................................................................................................... 110

FLEXIBLE HEAD CUT-OFF TOOL Safety Information
© Rodcraft - 8956002235 5
Declarations
EU Declaration of Conformity
We, Desoutter GmbH, Edmund-Seng-Str. 3-5,
63477 Maintal, Germany, declare under our sole
responsibility that the product (with name, type,
and serial number, see the front page) is in con-
formity with the following Directive (s):
2006/42/EC (17/05/2006)
Harmonized standards applied:
EN ISO 11148-7 :2012
Authorities can request relevant technical infor-
mation from:
Pascal Roussy, R&D Manager, Ets Georges Re-
nault, 38 rue Bobby Sands, BP10273 44818
Saint Herblain, France
Saint-Herblain, 2023/01/09 Signature
Pascal ROUSSY
UK Declaration of Conformity
We, Desoutter GmbH, Edmund-Seng-Str. 3-5,
63477 Maintal, Germany, declare under our sole
responsibility that the product (with name, type
and serial number, see front page) is in conform-
ity with the following UK Regulation(s):
Supply of Machinery (Safety) Regulations 2008
Designated Standards applied:
EN ISO 11148-7:2012
Saint-Herblain, 2023/01/09 Signature
Pascal ROUSSY
Authorities can request relevant technical information from:
UK Authorized Representative:
Air Compressors & Tools Ltd
Unit 5 Westway 21
Chesford Grange, Woolston,
Warrington, WA1 4SZ
UK
Contact: M.Taylor
Noise and Vibration Declaration Statement
• Sound pressure level 90 dB(A) , uncertainty 3 dB(A), in
accordance with EN ISO 15744.
• Sound power level 101 dB(A) , uncertainty 3 dB(A), in
accordance with EN ISO 15744.
• Vibration total value 4.33 m/s2, uncertainty 1.1 m/s2, in
accordance with ISO-28927-4.
These declared values were obtained by laboratory-type test-
ing in accordance with the stated standards and are suitable
for comparison with the declared values of other tools tested
in accordance with the same standards. The vibration emis-
sion level may be used for a preliminary assessment of expo-
sure. These declared values are not adequate for use in risk
assessments and values measured in individual workplaces
maybe higher. The actual exposure values and risk of harm
experienced by an individual user are unique and depend
upon the way the user works, the workpiece, and the worksta-
tion design, as well upon the exposure time and the physical
condition of the user.
We, Desoutter GmbH, cannot be held liable for the conse-
quences of using the declared values, instead of values re-
flecting the actual exposure, in an individual risk assessment
happening in a workplace situation a workplace situation over
which we have no control.
This tool may cause hand-arm vibration syndrome if its use is
not adequately managed. An EU guide to managing hand-arm
vibration can be found by accessing http://www.pneurop.eu/
index.php and selecting 'Tools' and then 'Legislation'.
We recommend a programme of health surveillance to detect
early symptoms which may relate to noise or vibration expo-
sure, so that the management procedures can be modified to
help prevent future impairment.
If this equipment is intended for fixtured applications:
The noise emission is given as a guide to the machine-
builder. Noise and vibration emission data for the com-
plete machine should be given in the instruction manual
for the machine.
Information regarding Article 33 in REACH
The European Regulation (EU) No. 1907/2006 on Registra-
tion, Evaluation, Authorization, and restriction of Chemicals
(REACH) defines among other things requirements related to
communication in the supply chain. The information require-
ment applies also to products containing so-called Substances
of Very High Concern (the “Candidate List”). On 27 June
2018 lead metal (CAS nr 7439-92-1) was added to the Candi-
date List.
In accordance with the above, this is to inform you that cer-
tain mechanical components in the product may contain lead
metal. This is in compliance with the current substance re-
striction legislation and based on legit exemptions in the
RoHS Directive (2011/65/EU). Lead metal will not leak or
mutate from the product during normal use and the concentra-
tion of lead metal in the complete product is well below the
applicable threshold limit. Please consider local requirements
on the disposal of lead at product end of life.
Regional Requirements
WARNING
This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer
and birth defects or other reproductive harm. For more
information go to
https://www.p65warnings.ca.gov/
Safety
DO NOT DISCARD - GIVE TO USER

Safety Information FLEXIBLE HEAD CUT-OFF TOOL
6© Rodcraft - 8956002235
WARNING Read all safety warnings, instructions, il-
lustrations and specifications provided with this
power tool.
Failure to follow all instructions listed below may result
in electric shock, fire, and/or serious injury.
Save all warnings and instructions for future refer-
ence.
WARNING All locally legislated safety rules regard-
ing installation, operation and maintenance shall be
respected at all times.
Statement of Use
• For professional use only.
• This product and its accessories must not be modified in
any way.
• Do not use this product if it has been damaged.
• If the product data or hazard warning signs on the product
cease to be legible or become detached, replace without
delay.
• The product must only be installed, operated and serviced
by qualified personnel in an industrial environment.
Intended Use
This product is designed for removing material using abra-
sives. No other use permitted.
Product Specific Instructions
Operation
Air Supply Requirements
1. Supply clean, dry air with maximum pressure 90 psi
(6.3 bar) to the tool. Higher pressure drastically reduces
tool life.
2. Connect the tool to air line using pipe, hose, and fitting
sizes shown in the schema 3.
Installation / Operation
1. Loosen the safety screw, install the cutting disc between
two flanges, tighten the safety screw ,make sure the cut-
ting disc fixed properly to the tool.
2. Connect the tool as shown in schema 3.
3. To start the tool, pull the safety lever (2) and push the
throttle lever (1). Increase the machine speed by in-
creasing pressure on the throttle lever (1). Refer schema
2.
4. Release the throttle lever (1) to stop the tool. Refer
schema 1.
Turning Head Position

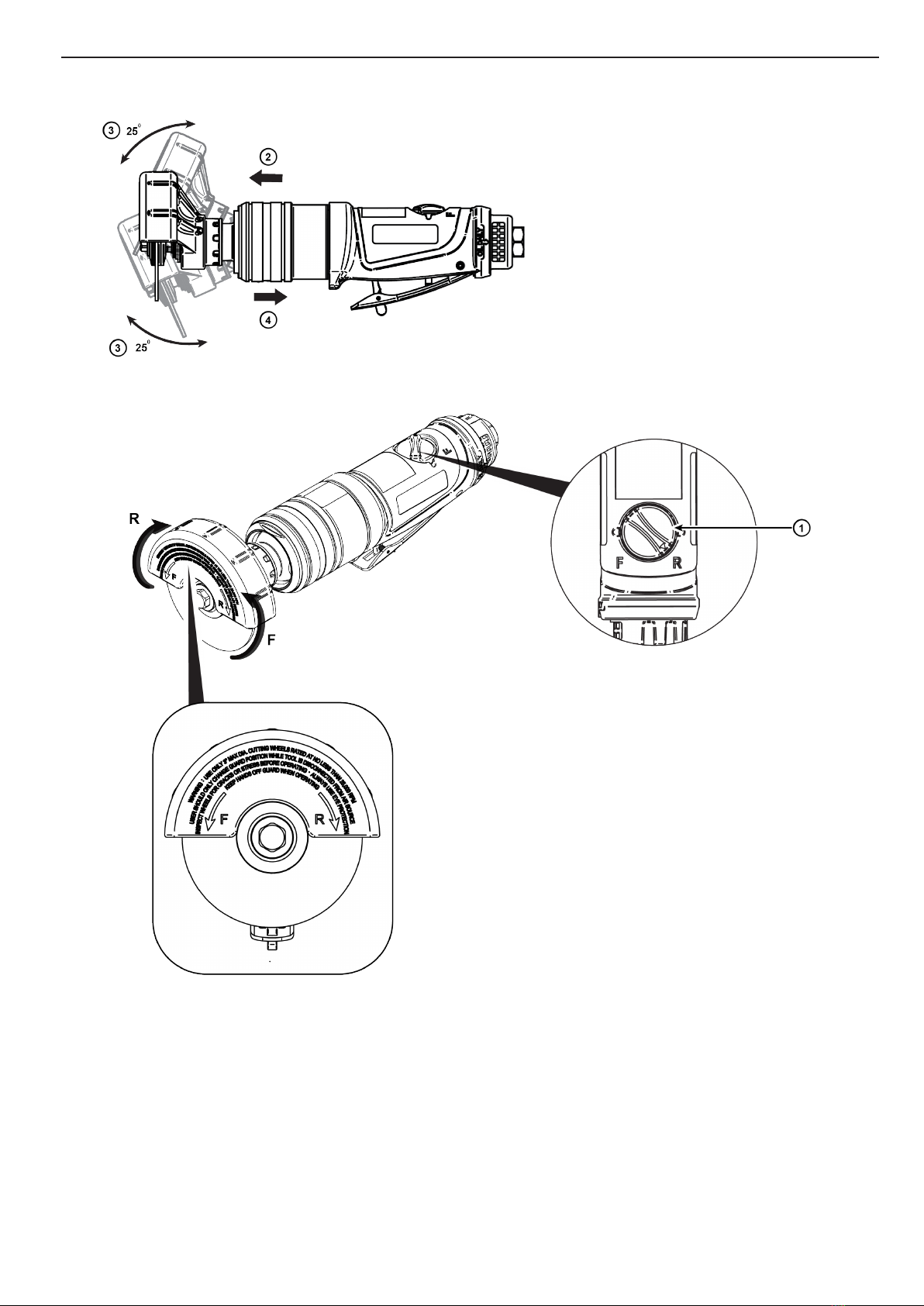

Refer Schema 4
1. Stop the tool.
2. Push forward the lock sleeve (2).
3. Change the position of the tool head up or down (3), or
back to normal position. Refer Schema 1.
4. Release the lock sleeve (4). The lock sleeve comes back
to its original position. Refer Schema 1
WARNING
►Do not start the tool, if the tool head is not locked.
►Avoid fingers injury by keeping your fingers off the
mechanisms when operating the flex head.
►Make sure to hold onto the mechanism edge each
time the flex head is adjusted. Fingers caught by the
mechanism may occur without paying attention.
Changing the Direction of Rotation
Refer Schema 5
1. Stop the tool.
2. Turn the knob (1) to 'F' or 'R' for forward and reverse
rotation respectively.
3. Start the tool again.
After the work is finished
WARNING The stopping time may be longer than 5
seconds.
►Make sure that the tool is switched off and has come
to a complete stop before it is laid down.
►The stopping time is dependent on the abrasive used.
Put down the tool carefully to ensure that the tool will not
start by itself/on its own.
Service and Maintenance
Lubrication
Use an air line lubricator with SAE #10 oil, adjusted to two
(2) drops per minute.
Maintenance instructions
•Follow environmental regulations of the local country
for safe handling and disposal of all components.
• Maintenance and repair work must be carried out by qual-
ified personnel by using only original spare parts. Contact
the manufacturer or your nearest authorised dealer for ad-
vice on technical service or if you require spare parts.
• Always ensure that the machine is disconnected from en-
ergy source to avoid accidental operation.
• Disassemble and inspect the tool every three 3 months if
the tool is used every day. Replace damaged or worn
parts.
• To keep downtime to a minimum, the following service
kit is recommended: Tune-up kit
Disposal
• The legislation of the respective country must be fol-
lowed for the disposal of this equipment.
• All damaged, badly worn or improperly functioning de-
vices MUST BE TAKEN OUT OF OPERATION.

FLEXIBLE HEAD CUT-OFF TOOL Safety Information
© Rodcraft - 8956002235 7
General safety instructions
Additional safety information regarding portable air
tools:
• CAGI 2528 - B186.1, SAFETY CODE FOR POR-
TABLE AIR TOOLS, available from Global Engi-
neering Documents at https://global.ihs.com/ or call
[phone]. In case of difficulty in obtaining
ANSI standards, contact ANSI via https://
www.ansi.org/
Air supply and connection hazards
• Air under pressure can cause severe injury.
• Always shut off air supply, drain the hose of air pressure
and disconnect the tool from air supply when not in use,
before changing accessories or when making repairs.
• Never direct air at yourself or anyone else.
• Whipping hoses can cause severe injury. Always check
for damaged or loose hoses and fittings.
• Do not use quick disconnect couplings at tool. See in-
structions for correct set up.
• Whenever universal twist couplings are used, lock pins
must be installed.
• Do not exceed maximum air pressure of 6.3 bar / 90 psig,
or as stated on tool nameplate.
Wheel guard usage
• Always use the recommended wheel guard to reduce the
risk of injury from broken grinding wheel parts.
• If a guard has withstood a wheel breakage do not con-
tinue to use it. It may be damaged.
• Position the guard between the grinding wheel and the
operator.
• Use barriers to protect others from wheel fragments and
grinding sparks.
Entanglement hazards
• Stay away from rotating drive spindle and abrasive. Rota-
tion may continue for several seconds after the throttle
has been released. Do not lay the tool down until rotation
has stopped.
• Choking, scalping and / or lacerations can occur if loose
clothing, gloves, jewellery, neck wear and hair are not
kept away from tool and accessories.
Projectile hazards
• Failure of the accessory, abrasive or workpiece can gen-
erate high-velocity projectiles. Grinding sparks and even
small projectiles can injure eyes and cause blindness.
• Always wear impact-resistant eye and face protection
during operation, repair or maintenance of the tool or
while changing accessories on the tool.
• Ensure that everyone in the area are wearing impact-re-
sistant eye and face protection.
• A grinding wheel that bursts can cause very serious in-
jury or death.
• Measure the air grinder speed daily with a tachometer to
make sure that it is not greater than the RPM marked on
the grinding wheel.
• Never use a grinding wheel marked with a lower speed
than that of the air grinder.
• With the help of the tools provided ensure that the abra-
sive is securely clamped to the grinder. Flanges must be
free from burrs and cracks and have flat clamping sur-
faces. Spindles and spindle threads must not be damaged
or worn.
• Ensure that the workpiece is securely fixed.
Accessory hazards
• Always turn off air supply, relieve the hose of air pres-
sure and disconnect the tool from air supply when chang-
ing accessories.
• Use only recommended sizes and types of abrasives.
• Do not use chipped or cracked wheels, or wheels which
may have been dropped.
• Mounting the grinding wheel correctly is necessary to
prevent injury from broken wheels.
• Avoid mismatch between UNC and metric threads.
• Grinding wheels should be a free fit on the spindle to pre-
vent stress at the hole. Do not use reducing bushes to fit
large hole grinding wheels.
• Use only the flanges that come with the grinder for
mounting the grinding wheel. Flat washers or other
adapters may over stress the wheel. Always use heavy pa-
per blotter discs between the flanges and the grinding
wheel.
• If several flanges are supplied to fit different sizes and
types of abrasive, always fit the correct flange(s) for the
abrasive that is being used.
• When mounting cups, cones or plugs with threaded holes,
the spindle end must not touch the bottom of the hole as it
will stress the abrasive.
• Tighten the wheel on the spindle to prevent spin off when
the air grinder is turned off.
• Test the grinding wheel before grinding by running the
tool at full throttle. Be sure to use a barrier (such as under
a heavy work table) to stop any possible broken wheel
parts. Stop immediately if vibration is excessive.
Operating hazards
• Operators and maintenance personnel must be must be
able to physically handle the bulk, weight and power of
the tool.
• Hold the tool correctly: be ready to counteract normal or
sudden movements – keep both the hands free.
• You may be cut or burned if you come in contact with the
accessory, grinding sparks or the work surface. Avoid
such contact and wear protective equipment such as
gloves, apron and helmet.
• Avoid wheel jamming when cutting-off. Support the
workpiece on both sides of the cut line to prevent the
wheel from getting trapped. If jamming occurs, release
the throttle and free the wheel free. Check that the wheel
is undamaged and properly secured before continuing.
• Never use cutting-off wheels for side grinding.
• Grinding sparks can set clothing and cause severe burns.
Ensure that the sparks do not land on clothing. Wear fire-
retardant clothing and have a bucket of water nearby.

Safety Information FLEXIBLE HEAD CUT-OFF TOOL
8© Rodcraft - 8956002235
• There is a risk of electrostatic discharge if the tool is used
on plastic and other non-conductive materials.
• It causes sparks to be ejected in opposite direction when
change the direction of rotation.
• It causes an opposite reaction force to the operator when
change the direction of rotation.
Repetitive motion hazards
• When using a power tool to perform work-related activi-
ties, the operator might experience discomfort in the
hands, arms, shoulders, neck, or other parts of the body.
• Adopt a comfortable posture whilst maintaining secure
footing and avoiding awkward or off-balance postures.
Changing posture during extended tasks can help to avoid
discomfort and fatigue.
• Do not ignore symptoms such as persistent or recurring
discomfort, pain, throbbing, aching, tingling, numbness,
burning sensation, or stiffness. Stop using the tool, tell
your employer and consult a physician.
Noise and Vibration hazards
• High sound levels can cause permanent hearing loss and
other problems such as tinnitus. Use hearing protection as
recommended by your employer or occupational health
and safety regulations.
• Exposure to vibration can cause disabling damage to the
nerves and blood supply of the hands and arms. Wear
warm clothing and keep your hands warm and dry. If
numbness, tingling, pain or whitening of the skin occurs,
stop using the tool, tell your employer and consult a
physician.
• Hold the tool in a light but safe grip because the risk from
vibration is generally greater when the grip force is
higher. Wherever possible support the weight of the tool
with a balancer.
• To prevent unnecessary increase in noise and vibration
levels:
• Operate and maintain the tool, and select, maintain
and replace the accessories and consumables, in ac-
cordance with this instruction manual;
• Use damping materials to prevent workpiece from
“ringing.”
Workplace hazards
• Slipping/Tripping/Falling is a major cause of serious in-
jury or death. Be aware of excess hose left on the walking
or work surfaces.
• Avoid inhaling dust or fumes or handling debris from the
work process which can cause ill health (for example,
cancer, birth defects, asthma and/or dermatitis). Use dust
extraction and wear respiratory protective equipment
when working with materials which produce airborne
particles.
• Some dust created by power sanding, sawing, grinding,
drilling and other construction activities contains chemi-
cals known to the State of California to cause cancer and
birth defects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead based paints
• Crystalline silica bricks and cement and other ma-
sonry products
• Arsenic and chromium from chemically-treated rub-
ber
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
• Proceed with care in unfamiliar surroundings. Hidden
hazards such as electricity or other utility lines may exist.
• Potentially explosive atmospheres can be caused by dust
and fumes resulting from sanding or grinding. Always
use dust extraction or suppression systems which are suit-
able for the material being processed.
• This tool is not intended for use in potentially explosive
atmospheres and is not insulated from coming into con-
tact with electric power.
Useful Information
Country of origin
Taiwan
Website
Information concerning our Products, Accessories, Spare
Parts and Published Matters can be found on the Rodcraft
website.
Please visit: www.rodcraft.com.
Safety Data Sheet
The Safety Data Sheets describe the chemical products sold
by Rodcraft.
Please consult the Rodcraft website for more information
qr.cp.com/sds.
Copyright
© Copyright 2023, Desoutter GmbH, Edmund-Seng-Str. 3-5,
63477 Maintal, Germany
All rights reserved. Any unauthorized use or copying of the
contents or part thereof is prohibited. This applies in particu-
lar to trademarks, model denominations, part numbers, and
drawings. Use only authorized parts. Any damage or malfunc-
tion caused by the use of unauthorised parts is not covered by
Warranty or Product Liability.

FLEXIBLE HEAD CUT-OFF TOOL Safety Information
© Rodcraft - 8956002235 9
Déclarations
Déclaration de conformité UE
Nous, Desoutter GmbH, Edmund-Seng-Str.
3-5, 63477 Maintal, Germany, déclarons sous
notre seule et entière responsabilité que le pro-
duit (dont le nom, le type et le numéro de série
figurent en première page) est en conformité
avec la ou les directives suivantes:
2006/42/EC (17/05/2006)
Normes harmonisées appliquées:
EN ISO 11148-7 :2012
Les autorités peuvent obtenir les informations
techniques pertinentes en s’adressant à:
Pascal Roussy, R&D Manager, Ets Georges Re-
nault, 38 rue Bobby Sands, BP10273 44818
Saint Herblain, France
Saint-Herblain, 2023/01/09 Signature
Pascal ROUSSY
Déclaration relative au bruit et aux
vibrations
• Niveau de pression acoustique 90 dB(A), incertitude 3
dB(A), en conformité avec EN ISO 15744.
• Niveau de puissance acoustique 101 dB(A), incertitude 3
dB(A), en conformité avec EN ISO 15744.
• Valeur de la vibration totale 4.33m/s2, incertitude 1.1m/
s2, conformément à ISO-28927-4.
Les valeurs déclarées ont été obtenues par le biais d'essais de
type effectués en laboratoire, conformément aux normes men-
tionnées, et peuvent être comparées avec les valeurs déclarées
des autres outils testés dans le cadre de ces mêmes normes. Le
niveau d'émission de vibrations peut être utilisé pour une
évaluation préliminaire de l'exposition. Ces valeurs déclarées
ne peuvent pas être utilisées pour l'évaluation des risques et
les valeurs mesurées sur des lieux de travail individuels peu-
vent être supérieures. Les valeurs réelles d’exposition et le
risque de préjudice subi par un utilisateur individuel sont
uniques et dépendent de la façon dont cet utilisateur travaille,
de la pièce sur laquelle il travaille et de la conception du poste
de travail, ainsi que du temps d'exposition et de l'état de santé
physique de l'utilisateur.
Notre société, Desoutter GmbH, ne peut en aucun cas être
tenue responsable des conséquences de l'utilisation des
valeurs déclarées à la place des valeurs reflétant l'exposition
réelle dans l'évaluation des risques individuels dans un lieu de
travail sur lequel nous n'avons aucun contrôle.
Cet outil peut provoquer un syndrome des vibrations mains-
bras s'il n'est pas utilisé correctement. Un guide européen de
gestion des vibrations main-bras est disponible sur le site
http://www.pneurop.eu/index.php en sélectionnant «Tools»
puis «Legislation».
Nous recommandons la mise en place d'un programme de sur-
veillance médicale afin de détecter les premiers symptômes
qui pourraient être dus à une exposition aux vibrations ; les
procédures de gestion pourraient alors être modifiées pour
éviter une future déficience.
Si ce matériel est destiné aux applications embarquées:
Le niveau sonore est donné à titre indicatif à l'intention
du constructeur de machines. Les données de niveau
sonore et de vibrations pour la machine complète devront
figurer dans le manuel d'utilisation de cette dernière.
Informations concernant l'article 33 de
REACH
Le règlement européen (UE) n° 1907/2006 sur l'enreg-
istrement, l'évaluation et l'autorisation des substances chim-
iques, ainsi que les restrictions applicables à ces substances
(REACH) définit entre autres les exigences relatives à la
communication dans la chaîne d'approvisionnement. L'obliga-
tion d'information s'applique également aux produits con-
tenant des substances dites extrêmement préoccupantes (la «
Liste des substances candidates »). Le 27 juin 2018, le plomb
(n° CAS 7439921) a été ajouté à la Liste des substances can-
didates.
Conformément à ce qui précède, ceci est pour vous informer
que certains composants mécaniques du produit peuvent con-
tenir du plomb. Ceci est conforme à la législation en vigueur
en matière de restriction des substances et se fonde sur les ex-
emptions légales prévues par la directive RoHS (2011/65/
UE). Le plomb ne fuira pas ou ne mutera pas du produit lors
d'une utilisation normale et la concentration de plomb dans le
produit complet est bien en dessous du seuil limite applicable.
Veuillez tenir compte des exigences locales concernant l'élim-
ination du plomb en fin de vie du produit.
Spécificités régionales
AVERTISSEMENT
Ce produit peut vous exposer à des produits chimiques
comme le plomb qui est reconnu par l'État de Californie
comme cancérigène et causant des malformations con-
génitales ou autres anomalies de la reproduction. Pour de
plus amples informations
https://www.p65warnings.ca.gov/
Sécurité
NE PAS JETER - REMETTRE À L'UTILISATEUR
AVERTISSEMENT Lire l'ensemble des mises en
garde et consignes de sécurité ainsi que les illustra-
tions et les caractéristiques techniques fournies avec
cet outil électrique.
Le non-respect de toutes les instructions répertoriées ci-
dessous peut entraîner un choc électrique, un incendie et/
ou un grave accident corporel.
Conserver l'ensemble des mises en garde et consignes
pour pouvoir les consulter ultérieurement.
AVERTISSEMENT Toutes les réglementations lo-
cales de sécurité en matière d'installation, d'utilisa-
tion et de réparation doivent toujours être respectées.
Utilisation prévue
• Pour utilisation professionnelle uniquement.

Safety Information FLEXIBLE HEAD CUT-OFF TOOL
10 © Rodcraft - 8956002235
• Ce produit et ses accessoires ne doivent être modifiés en
aucune manière.
• Ne pas utiliser ce produit s'il a subi des dégâts.
• Si les vignettes apposées sur le produit pour indiquer les
données du produit ou des mises en garde ne sont plus
lisibles ou se décollent, les remplacer sans attendre.
• Le produit ne doit être installé que par un personnel qual-
ifié, dans un environnement industriel.
Utilisation prévue
Ce produit est conçu pour effectuer un enlèvement de matière
au moyen d'abrasifs. Aucune autre utilisation n’est autorisée.
Instructions spécifiques au produit
Fonctionnement
Exigences en termes d’alimentation en air
1. Alimentez l'outil en air propre et sec à une pression
maximale de 6,3 bars (90 psi). Une pression plus élevée
réduit considérablement la durée de vie des outils.
2. Raccordez l'outil à la conduite d'air en utilisant des
tuyaux, des flexibles et des raccords dont les dimensions
sont affichées sur le schéma n°3.
Installation / Fonctionnement
1. Desserrez la vis de sécurité, installez le disque à dé-
couper entre deux brides, serrez la vis de sécurité,
veillez à ce que le disque à découper soit correctement
fixé à l'outil.
2. Raccordez l’outil comme indiqué dans le schéma n°3.
3. Pour démarrer l'outil, tirez le levier de sécurité (2) et
poussez le levier d'accélération (1). Augmentez la
vitesse de la machine en augmentant la pression sur le
levier de commande (1). Consultez le schéma n°2.
4. Relâcher le levier d'accélération (1) pour arrêter
l'outil.Consultez le schéma n° 1.
Tourner la position de la tête
Consultez le schéma n°4
1. Arrêtez l'outil.
2. Poussez le manchon de blocage vers l'avant (2).
3. Modifiez la position de la tête de l'outil vers le haut ou
vers le bas (3) ou de retour à la position normale. Con-
sultez le schéma n°1.
4. Relâchez le manchon de blocage (4). Le manchon de
blocage revient à sa position initiale. Consultez le
schéma n°1
AVERTISSEMENT
►Ne mettez pas l'outil en marche si la tête de l'outil
n'est pas verrouillée.
►Évitez les lésions aux doigts en gardant vos doigts à
l'écart des mécanismes lorsque vous utilisez la tête
flexible.
►Veillez à maintenir le bord du mécanisme à chaque
réglage de la tête flexible. Les doigts peuvent être
happés par le mécanisme sans que l'on y prête atten-
tion.
Changer le sens de rotation
Consultez le schéma n°5
1. Arrêtez l'outil.
2. Tournez le bouton (1) sur 'F' ou 'R' pour la rotation
avant et arrière.
3. Redémarrez l'outil.
Lorsque le travail est terminé
AVERTISSEMENT Le temps avant l’arrêt peut
durer plus de 5 secondes.
►S'assurer que l'outil est éteint et s'est entièrement ar-
rêté avant de le poser.
►Le temps d'arrêt complet dépende de l'abrasif utilisé.
Posez l'outil avec précaution pour vous assurer que l'outil ne
démarre pas tout seul.
Entretien et maintenance
Lubrification
Utilisez un lubrificateur pneumatique avec de l'huile SAE
#10, à un dosage de deux (2) gouttes par minute.
Consignes de maintenance
•Suivez les réglementations environnementales du pays
local pour une manipulation et une élimination sûres
de tous les composants.
• Les travaux de maintenance et de réparation doivent être
effectués par un personnel qualifié à l'aide de pièces de
rechange d'origine uniquement. Prendre contact avec le
fabricant ou le revendeur agréé le plus proche pour
obtenir des conseils techniques ou pour tout besoin de
pièces de rechange.
• Veillez à toujours débrancher la machine de la source
d'énergie pour éviter toute mise en fonctionnement acci-
dentelle.
• Démontez et contrôlez l'outil tous les trois (3) mois si
vous l'utilisez quotidiennement. Remplacez les pièces
usées ou endommagées.
• Afin de limiter au strict minimum les périodes d'immobil-
isation, le kit d'entretien suivant est conseillé: Kit de
réglage
Élimination
• La législation du pays concerné doit être respectée pour la
mise au rebut de cet appareil.
