ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Rojaflex RVS-01
For Rojaflex radio awning motors and radio receivers REHK-BI
Vibration sensor
RVS-01_V3- 2022-04-29

2 www.rojaex.com
CONTENTS
General safety instructions 3 - 5
Function overview 6
Technical data / scope of delivery / 7
Mounting
Programming and settings 8 - 10
Other settings and notes 11
Contact information Back
ATTENTION!
After unpacking, compare the device type with the correspon-
ding information on the type plate. Incomplete devices or
devices that do not comply with the specifications must not be
put into operation and a complaint must be lodged with our
customer service department (see contact information) before
commissioning.
EU Declaration of Conformity according to Article 10(9):
Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn,
that the radio system type rojaflex sun-wind sensor "RVS-01" complies with the directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following Internet address:
www.rojaflex.com/konformitaetserklaerungen.html
Content

www.rojaex.com 3
WARNING!
Important safety instrucons!
• For the safety of persons it is import-
ant to follow these instrucons!
• Please keep the manual and hand
it over to the new owner in case of
change of ownership!
• This appliance can be used by chil-
dren aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilies or lack
of experience and knowledge if they
have been given supervision or inst-
rucon concerning use of the appli-
ance in a safe way and understand
the hazards involved.
• Children are not allowed to play with
the device.
• Cleaning and maintenance by the
user must not be carried out by chil-
dren without supervision.
WARNING!
The motor controlled by the wireless vib-
raon sensor must be disconnected from
its power source during cleaning, mainte-
nance and replacement of parts.
WARNING!
There is a danger to life in case of non-ob-
servance!
There is a danger to life from electric
shock when working on electrical equip-
ment!
Observe the instrucons and safety inst-
rucons of the drive / receiver controlled
by the sensor as well as the corresponding
instrucons of the driven sun shading
system!
ATTENTION!
The following instrucons must be obser-
ved!
The range of radio controls is regulated by
the legal requirements for radio systems
and is inuenced by structural condions,
among other things.
When planning, make sure you have ade-
quate radio recepon.
This is especially true if the radio trans-
mier is located in a dierent room than
the radio receiver, and therefore the radio
signal must penetrate walls or ceilings.
Do not install the radio control in the direct
vicinity of large metallic surfaces.
Other transming devices (e.g. radio he-
adphones, baby monitors, radio weather
staons), whose transmission frequency is
idencal to that of the radio control, may
interfere with recepon.
Aenon!
It is essenal to observe the instrucons
for correct use and the operang condi-
ons!
Improper use increases the risk of damage
to the sun shading system!
• Use the radio control (sensor) only for
connecon to roller shuer, awning
and blind motors.
• Mount the sensor on the outside, on
the side of the awning's drop prole.
• Mount the sensor horizontally to the
right.
• The sensor must be mounted in such
a way that the wind speed can be
measured without interference!
General safety instructions

4 www.rojaex.com
• Deacvate the automac funcons
in case of snowfall, icing or danger of
frost to avoid damage to the motor or
the driven system.
• Only use original components and
accessories from the manufacturer.
• Instruct all persons in the safe use of
the device and the motor controlled
by it.
• Watch the moving awning and keep
people away from it unl the move-
ment is nished.
• Prohibit children from playing with
the device.
• Store the handheld transmier in
such a way that unintenonal opera-
on, e.g. by children playing, is pre-
vented.
• Secure the controlled system against
unauthorized operaon.
• Take safety precauons against unin-
tenonal switch-on.
• Carry out all cleaning work on the
sun shading system in a de-energized
state.
• Use cauon when operang the
open/extended system, as parts may
fall if fasteners (e.g. springs) weaken
or break.
• Never use defecve or damaged
equipment.
• Check the motor controlled by the
sensor and the power cable of the
motor for integrity.
WARNING!
The use of defecve devices can endanger
persons and cause damage to property.
Check the sensor regularly for proper
funcon!
Please contact our service department
(see last page) if you noce any damage
to the device.
ATTENTION!
Aer unpacking, compare the device type
with the corresponding informaon on
the type plate.
Incomplete devices or devices that do not
comply with the specicaons must not
be put into operaon.
IMPORTANT!
Disposal instructions!
(European Directive 2012/19/EU (WEEE)
Our electrical and
electronic products
are marked with a
crossed-out wheeled
garbage can, which
indicates that these
products and any bat-
teries they may con-
tain must be collected
separately at the end
of their useful life and must not be dispo-
sed of together with normal household
waste.
General safety instructions

www.rojaex.com 5
The substances contained in these pro-
ducts may have negative effects on health
and the environment, so users of electrical
products and batteries also have a respon-
sibility in recycling these waste materials
and in this way contribute to the protec-
tion, preservation and improvement of the
environment.
Obligation for separate disposal
Our duty as manufacturers is, among other
things, to inform you of your obligation to
separate disposal.
• When disposing of products with batte-
ries, remove them from the product and
dispose of them separately.
• When disposing of illuminants, they
must be disposed of separately to the
receptacle.
Return option and
Recycling program EU
We are connected to public-law return
systems throughout Europe and thus offer
our customers access to a Europe-wide net-
work of local recycling facilities (recycling
centers, take-back points or similar).
Our products are professionally recycled
via these local facilities. This reduces the
amount of waste - to the benefit of the en-
vironment.
Our registration numbers:
*For registration data of other European count-
ries, see Contact Information page.
A take-back by us as manufacturer accor-
ding to §19 WEEE is not to be asserted.
Information on the degree of fulfillment
of the collection and recycling require-
ments
As a manufacturer, it is also our duty to in-
form you about the degree of fulfillment of
the collection and recycling requirements.
Since we are connected to a qualified take-
back system, we can refer to the degree of
fulfillment of the recycling companies.
You can find this information on our web-
site.
Deletion of personal data
Some of our products contain personal data.
This applies in particular to information and
telecommunications technology devices
such as computers and smartphones. In
your own interest, please note that each end
user is responsible for deleting the data on
the old devices to be disposed of!
Reg. No.*
WEEE DE 41060608
Battery DE 88866710
Illuminant
Transport and
Shipping packaging DE5768543732165
General safety instructions

6 www.rojaex.com
1. Slide on the rear cover from the side.
2. Remove the control unit from the housing.
Functional Description:
P2 key = Programming
Trimmer = Set sensitivity
0 = Programming mode
1 = high sensitivity
9 = low sensitivity*
1 = Batteries (2 x AAA)
Pay attention to correct pola
rity!
2 = Beeper
ATTENTION!
The magnet must be in the specified position
when the sensor is assembled!
The sensor beeps when the housing is closed to
signal activation.
3 = Magnet for Readkontakt
* for folding arm awnings we recommend a
setting of max. level 3.
Please observe the instructions for the aw
ning observe!
NOTICE:
If the battery voltage drops below 2.2 V, the sen-
sor beeps at intervals of approx. 5 seconds.
Risk of fire or explosion if the battery is repla-
ced by an incorrect type!
ABS
3
The RVS-01 is a battery-powered vibration sensor for motorized awnings.
Incoming wind generates vibrations at the drop profile of the awning.
The sensor can be set to 9 sensitivity levels and sends a retract command to the previously taught-in
receiver when the preset sensitivity level is reached (see technical data for compatible receivers).
1
2
3
4
5
6
7
8
9
0
+
+-
-
P2
Trimmer
2
1
1
Function overview

www.rojaex.com 7
Technical data
Input voltage 3 V DC (batteries 2 x AAA)
Transmit frequency 433.05 - 434.79 MHz
Operating current ≤ 20 mA
Quiescent current ≤ 30 μA
Standby consumption ≤ 0.1 mW
Transmitting power ≤ 10 mW
Protection class IP 44
Permissible temperature range - 20 °C to + 50 °C
Adjustment range wind speed 9 levels (level 0 = programming mode)
Range approx. 30 m*
Channels 1-channel
Compatibility Rojaflex radio awning motors (type ELFIM-45M) and receiver REHK-BI
Dimensions 150mm x 41mm x 26mm
Scope of delivery
After unpacking, please compare the package contents with
the information on the scope of delivery in these instructions.
1. Vibration sensor RVS-01
2. Instruction manual
1. 2.
Art. No. 1000018670 * Range data are approximate values and depend on the structural conditions.
The sensor must be mounted on the drop profile of the awning.
ABS
Mounting
1. Attach the rear cover (base) to the outside (left or right) of the front of the drop-out profile. Arrow
must point upwards.
2. Click the control unit into the housing.
3. Slide the housing onto the base.
It is essenal to observe the permissible
wind class for the sun shading system!
Technical data / scope of delivery / mounting

8 www.rojaex.com

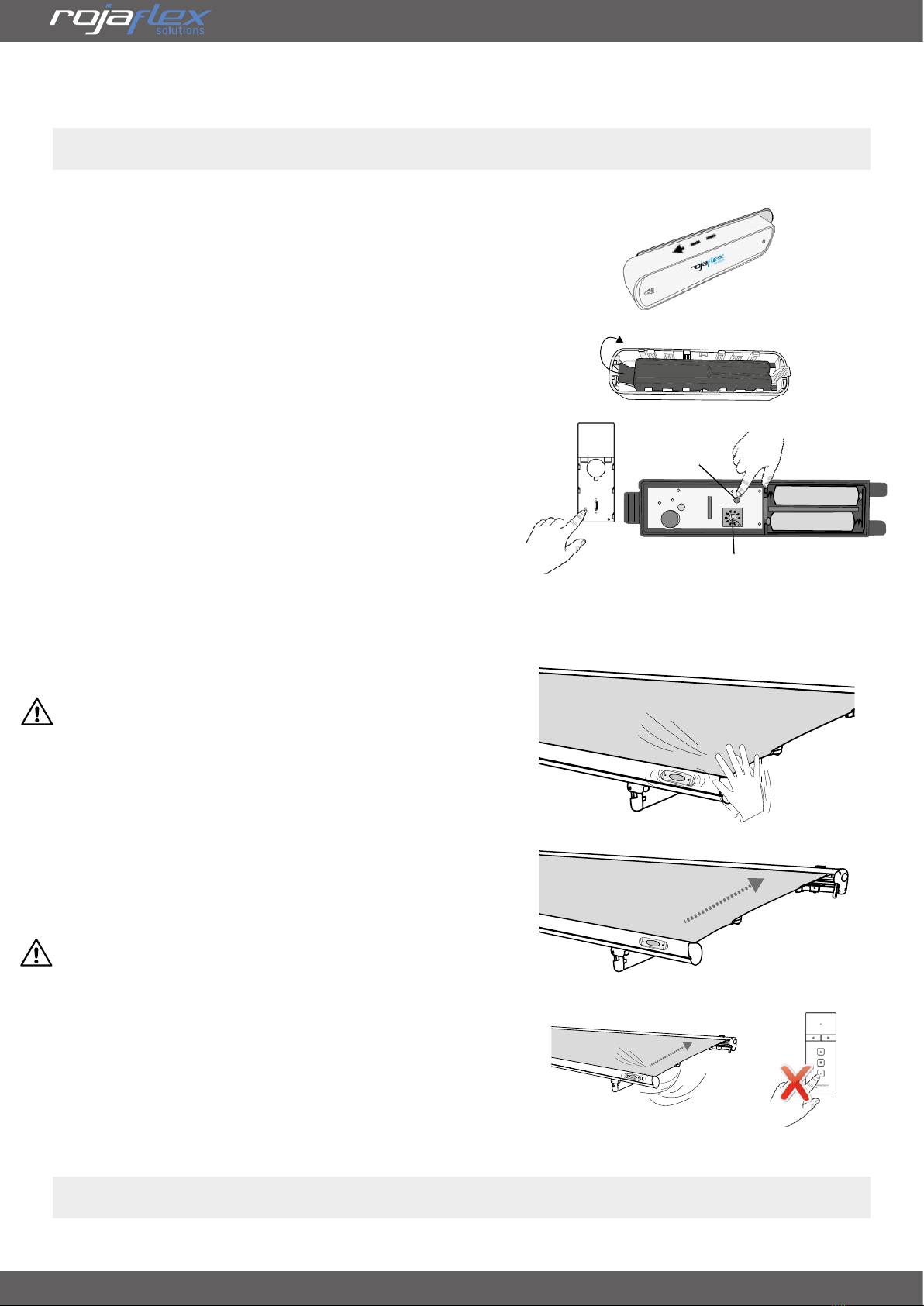

To be able to program the sensor, a hand-held or wall transmitter must already be programmed in the cor-
responding receiver (Rojaflex radio motor or radio receiver).
Each keystroke must be executed within approx. 4 seconds!
Otherwise, the system automatically exits the programming mode.
1. Programming the RVS-01 vibration sensor
1.1 Open the housing and remove the control
unit.
1.2 Set the trimmer to level "0" using a small
screwdriver.
1.3 Press key P2 3 times in succession on an
already programmed handheld transmitter.
1.4 Press the P2 key on the RVS-01 once.
Motor moves up/down briefly.
RVS-01 is programmed.
1.5 Set the desired sensitivity of the sensor on the
trimmer.
-start with a low setting (level 1 or 2).
1.5 Click the control unit into the housing.
1.5 Slide the housing back onto the rear cover.
slide
Sensor beeps briefly and is activated.
2. Check the function
2.1 The awning's drop profile vibrates oscillate.
CAUTION! Do not move the awning too much!
2.2 After approx. 2-3 seconds, the awning must
retract automatically.
2.3 Change the trimmer setting if necessary.
NOTE!
After the retract command has been triggered by
the sensor, the awning cannot be extended for
approx. 10 minutes (blocking time).
3. Deactivate the sensor
ATTENTION!
Not recommended, as there is a risk of damage to
the sunshade system when the sensor is
deactivated.
3.1 Set the trimmer to level "0".
When the set vibration intensity is reached, the retract command is triggered with a delay of approx.
3 seconds and repeated 2 times.
3 x P2 - already
taught Handheld
transmitter
1 x P2
RVS-01
1
2
3
4
5
6
7
8
9
0
+
+-
-
P2
Trimmer
Function overview

www.rojaex.com 9
Notes

10 www.rojaex.com
Notes

www.rojaex.com 11
Notes

Reprints, including excerpts, only with the permission of the author.
Product changes, which from our point of view serve to improve quality,
can be made at any time, even without prior notice or notification.
Illustrations can be example illustrations, which differ in appearance from
the delivered goods.
Errors excepted. No liability is assumed for printing errors.
Our general terms and conditions apply.
If you have any questions about this product,
please contact us at the following address:
rojaflex
is a registered trademark of
Schoenberger Germany Enterprises GmbH & Co. KG
Zechtraße 1-7
82069 Hohenschäftlarn
Germany
T +49 (0) 8178 / 93 29 93 93
F +49 (0) 8178 / 93 29 93 94
info@rojaflex.com
www.rojaflex.com
EU Waste and recycling / Registrations
Germany for electrical devices:
Stiftung EAR
WEEE-Reg.-no.: DE 41060608
Germany for batteries:
Stiftung EAR
Batt-Reg.-no.: DE 88866710
Germany for packaging:
LUCID Reg.-no.: DE5768543732165
Austria for electrical devices:
Elektro Recycling Austria (ERA) GmbH
ERA Contract no: 40801
Austria for packaging:
Altstoff Recycling Austria (ARA) AG
ARA License number: 23363
Switzerland for electrical devices:
Stiftung SENS
Membership number: VP11544
France for electrical devices:
Ecologic
Membership number / Take-back system: M3670
National registry: UIN FR208795_01SUIN
France for packaging:
Citeo
Membership number / Take-back system: 532886
National registry: UIN FR208795_01SUIN
Spain for electrical devices:
ECOTIC
Reg.-no.: RII-AEE- 7601
Spain for packaging:
Ecoembes
Membership number: 97556
Italy for electrical devices:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Reg.-no.: n/a
Italy for packaging:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Membership number: n/a
