Rojopa Heat STANDARD Product guide

OPERATING AND ASSEMBLY INSTRUCTIONS
For installers and end users
Infrared heater
September 2019
Version 1.02

DISCLAIMER
ROJOPA HEAT does not assume any warranties or guarantees with respect to this instruction and limits
its liability for violation of any implied guarantee to the extent permitted by law to replace this
instruction with another one. Moreover, ROJOPA HEAT reserves the right to revise this publication at
any time, without having to notify anyone of this revision.
The information provided in this documentation includes general descriptions and / or technical
features to operate the products described in this. This documentation cannot be used as a proper
assessment of the suitability or reliability of the products for a specific application by a user and
should not be relied upon to replace such assessment. It is the responsibility of every such user or
installer to carry out an appropriate and complete risk assessment, evaluation and testing of the
products for his specific application. Neither ROJOPA HEAT nor any of his partners or subsidiary
companies can be held responsible or liable for any misuse of the information included in this
instruction. If you have any suggestions for improvements or additions or have noticed any errors in
this publication, please let us know.
All applicable state, regional and local safety regulations must always be taken into account during the
installation and application of this product. The manufacturer alone is authorized to carry out repair
works to components for safety reasons and to ensure compliance with the documented system data.
If this information is disregarded, it could result in violations or damage to the device.
Copyright © 2019 ROJOPA HEAT
All rights reserved. No part of this publication may be reproduced, processed or forwarded in any
form, including photocopy, recording or any other electronic or mechanical process without the
written approval of the publisher. Requests for approval must be sent in writing to the publisher at the
address below and addressed to “attn. approval coordinator ".
Rojopa Vertriebs GmbH
Gniebing 125
A-8330 Feldbach
2

Table of contents
1.
1.1
1.2
1.3
1.4
1.4 /
1
1.4 /
2
1.4 /
3
1.4 /
4
1.4 /
5
Introduction
Description of the user
Safety symbols used in this instruction: safekeeping
instructions
Obtaining documentation and information Internet
Ordering documentation other languages
Feedback on the documentation
Support and Service
5
5
5
5
6
6
6
6
6
7
2
2.1
Product descriptions
Intended use and reasonably foreseeable misuse
Technical specifications
Product elements
8
8
8
10
2.2
2.3
3
3.1
3.2
Safety instructions
Warnings and safety information
Explanation of the notes on the device and the package
11
11
14
4
4.1
4.2
4.2.1
4.2.2
4.2.3
4.2.4
4.3
Installation
Transport and storage of the product Assembly
of the product
Unpacking and checking the contents of the package
Minimum space requirement
Installation of infrared heater disassembly
First commissioning
15
15
15
15
15
16
20
21
5
5.1
Maintenance and cleaning
Maintenance of the product
22
22
3

24
24
24
25
25
7.4
4
6
6.1
6.2
Disposal
Disposal of electronic devices
Disposal of the package
23
23
23
7
7.1
7.2
7.3
Guarantee, warranty
statement, guarantee exclusion
Assertion, presentation of the original proof of
purchase,
Applicable law
Contact

1.
Introduction
1.1
Description of the user
This document is intended for the installer and the user of the ROJOPA HEAT infrared
heater. Installation and electrical installation must only be carried out by a trained expert.
1.2
Safety symbols used in this instruction
"Hazard" indicates an imminently hazardous situation which, if not
avoided, could result in death or serious injuries.
"Warning" indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injuries.
"Caution" indicates a potentially hazardous situation which,
If not avoided, could result in minor to moderate injuries.
"Note" indicates a situation which, if not avoided, could result
in property damage.
1.3
Safekeeping the instructions
Please ensure that you have read and understood the instructions completely before you
use the product. Otherwise, consequences could be serious injuries or even death.
Follow all instructions. Any disregard may cause fire, explosions, and electric shocks or other
hazards that may cause property damage and / or cause serious injuries or death.
5

The product should be used only by persons, who have read and understood the
contents of this instruction completely.
Make sure that every person using this product has read and follows these warnings and
instructions.
Please retain all safety information and instructions for future reference and pass it on
to later users of the product. The manufacturer is not liable for any material damage or
injuries resulting from mishandling or non-compliance with the safety instructions. The
warranty expires in such cases.
1.4
Obtaining documentation and information
1.4 /
1
Internet
A current version of the documentation is available on the following website
www.rojopa.com
1.4 /
2
Ordering documentation
Documentation, user manuals and technical information can be ordered or downloaded
via phone or E-mail to [e-mail] at [phone] or on the website
www.ROJOPA-heat.com.
1.4 /
3
Other languages
This is the operating Instruction in German. Instruction in other languages can be
made available on request.
1.4 /
4
Feedback on the documentation
If you read ROJOPA HEAT product documentation on the Internet, you can submit
comments via the support website (www.rojopa.com).
Comments can also be.
We look forward to your feedback.
6

1.4.5
Support and Service
If you have further questions, for any other information, technical support,
In case of queries about maintenance or to order user instructions, please contact:
Rojopa Vertriebs GmbH
Gniebing 125, A-8330 Feldbach
[phone]
[e-mail]
7

2
Product descriptions
2.1
Intended use and reasonably foreseeable misuse
The STANDARD infrared heater is intended for ceiling or wall heating indoors. The
device should only be used in household or similar environments (e.g. in offices, shops
and schools).
The ROJOPA HEAT infrared heater is not intended for use outdoors or in small rooms. The
device must not be used for cooking.
The device should be used only in accordance with these operating instructions. Any use
deviating from the use described in this instruction is considered improper use. There may
be hazards to humans, animals and the environment in case of improper use.
2.2
8
Parameter
Unit
Product name
ROJOPA HEAT infrared heater
Name
Infrared heater
Model identification
Standard (ST-xxx)
-xxx)
Vehicle-heating, round
Fuel type
Electric
The ROJOPA HEAT infrared heater should be used only with original
accessories and components.
Technical specifications (information on the individual room devices)

9
Type of heat supply
Control
Electronic control of heat supply with ROJOPA HEAT
control units and response to room temperature.
The device must be connected to a grounded AC
wall socket or supply line with a radio-controlled
socket receiver, radio thermostat or
In-wall radio receiver
Type of heat output /
Room temperature control
Optional (accessories required obligatorily)
Other control options
-
Type of heat output /Room
temperature control
Type of heat output /Room temperature control
Optional ROJOPA-HEAT control units
Technical service life
Under examination
Input voltage
220-240 Volt ~50Hz
Nominal heat output
250Watt, 430Watt, 560Watt, 680Watt,
860Watt
Minimum output
Tolerance +/- 8%
Surface temperature
Approx. 90°C to 105°C
Weight
5 to 16 kg
Materials
Surface: sheet steel powder coated
Back panel: sheet steel powder coated
Protection class
IP44
Surrounding conditions
0°C to +40°C; 10-80 % relative humidity

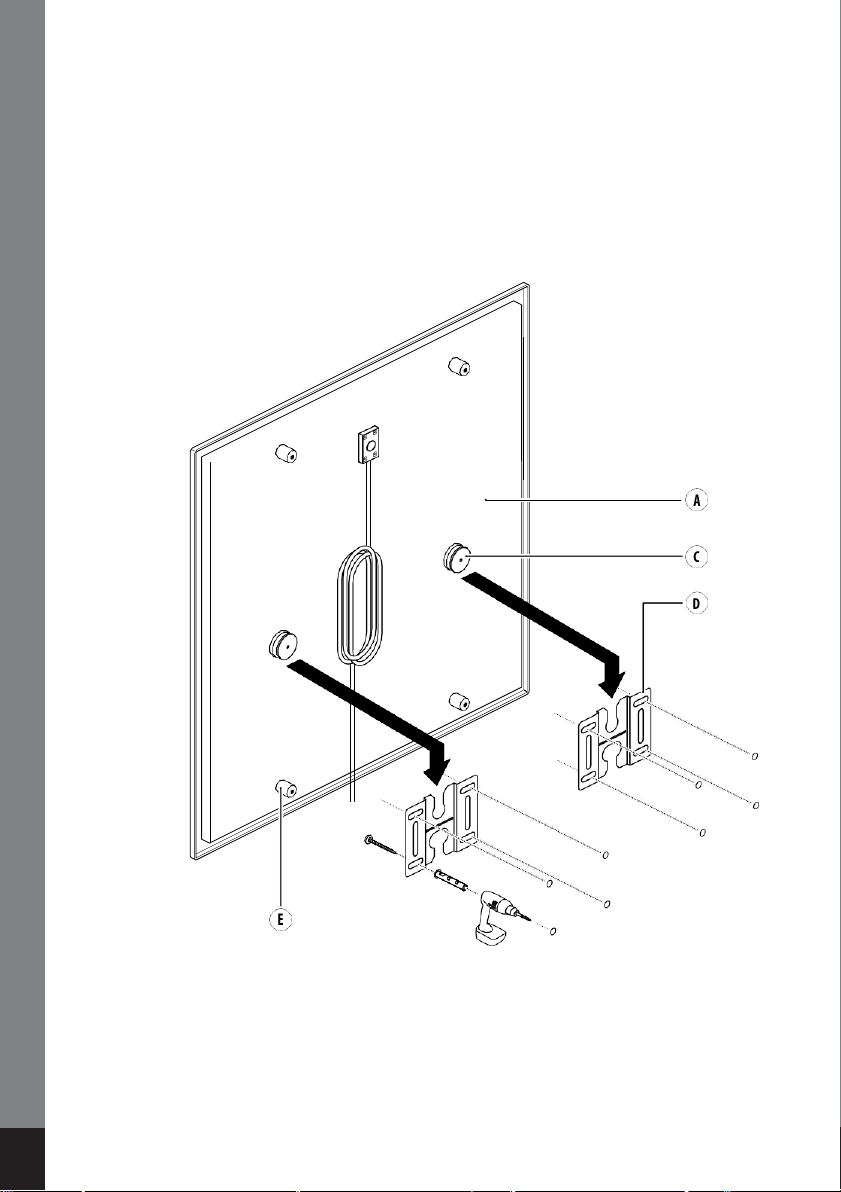

2.3
Product elements
A.
B.
C.
D.
E.
Infrared heater
Power cable with mains plug
mounting bolt holder
Wall bracket
Spacers
10

3
Safety instructions
Read all safety instructions and make sure you understand them.
3.1
Warnings and safety information
The device is designed for indoor use. Never use it outdoors.
The device does not have a built-in temperature control (only temperature limiter).
Therefore, the device must not be used in small rooms, occupants of which cannot
leave them independently, unless constant monitoring is ensured.
This device is not intended for use by persons (including children of 8 years of age and
above) with limited physical, sensory or mental capabilities or a lack of experience
and / or knowledge, unless they are supervised by a person responsible for safety of
the device and its correct use and gives instructions.
Children aged between 3 and 8 years are allowed to only switch the device on and off,
if they are supervised and instructed about the safe use of the device and have
understood the hazards resulting from it, provided that the device is placed and
installed in its normal application. Children between 3 and 8 years, should not plug in
the device, should not control the device, should not clean the device and / or should
not carry out the maintenance activities through the user.
Children younger than 3 years are to be kept away, unless they are constantly
monitored.
Keep the device out of reach of children to avoid injuries. Children should be supervised
and it must be ensured that they do not play with the device.
11
Ff

Never leave children unsupervised with the packaging material. The packaging material can cause death
by suffocation. Children often underestimate the hazards. Always keep the packaging material away from
children.
Always be vigilant and always exercise caution. Do not use electrical appliances, if you have difficulty
concentrating or if you lack the necessary awareness or are under the influence of drugs, alcohol or
medication. Even the slightest inattentiveness while using electrical device can lead to serious
accidents and injuries.
Check the device (and possibly even the cables) for damage before use. If you notice visible damage, a
strong smell, excessive overheating of components, immediately disconnect all the plugs and stop
using the device.
If the device is not installed and used in accordance with this instruction, it may cause hazardous
interference with radio or television reception or affect other electronic devices. The infrared heater
should only be mounted with the provided suspension device. Any warranty is excluded and no liability is
guaranteed for consequential damages for damages resulting from mounting the device without the
original suspension. The heating elements should only be used with the original frame; otherwise the
warranty and liability for consequential damage are excluded. Before connecting the device to the power
supply, check if the voltage in your house matches the voltage indicated on the power supply unit.
The device must be connected to a grounded AC wall socket with a radio-controlled socket receiver, radio
thermostat or in-wall radio receiver.
The device has a Schuko plug. Connect your device to only such a socket that is suitable for the plug of
your device.
Never pull the power cord, it may damage the plug. Please unplug the mains plug to disconnect the
power supply!
Do not clamp the cable and avoid kinks.
If the mains cable of this device is damaged, it must be replaced by the manufacturer or his customer
service agent or an equally qualified person in order to avoid hazards.
Never touch a mains plug or the device with wet hands.
Keep the device away from moisture. Do not use the device near a bathtub, shower or swimming pool.
12

Persons, who are in a bathtub or shower, must never come into contact with the voltage.
The device is to be used only within the specified performance limits. Ensure that the electric circuit
can be broken immediately for instance via a circuit breaker or an FI-switch. Short circuits can cause
electric shock.
Keep the device away from flammable materials such as drapes and curtains.
WARNING: No objects should be placed on the infrared heaters or the heating
element should not be covered.
Do not touch heating elements during operation. It may possibly lead to severe burns because the
surface of the infrared heater becomes hot during operation up to 105 ° C.
Protect the plug from being used by third person (especially children).
On the supposition that the device cannot be operated safely, the device must be switched off and
protected against unintentional use.
Disconnect all plugs before cleaning the device. Do not use cloths or chemicals that can damage the
surface. Wipe the housing with a damp cloth. Electrical / electronic parts must not be cleaned.
Do not attempt to open, modify or repair the device. Do not let it drop, do not drill in, do not break
it up, and do not expose it to high pressure.
No repair works of the infrared heater should be carried out on your own. Always contact a dealer.
Any changes to the device and technical changes are prohibited.
WARNING: The device must not be covered in order to avoid overheating.
WARNING: The heater must not be installed directly below a wall socket.
13

3.2
Explanation of the notes on the device and the
packaging
14
Note:
Meaning:
The device complies with the respective European
directives.
The device fulfills the requirements of the
RoHS directive.
This device must not be disposed of as unsorted
waste, but must be handed over at a special collection
point.
WEEE Number: WLC 63054412

4
4.1
Installation
Transport and storage of the product
Exercise caution while handling, lifting, carrying and transporting
the product in order to avoid any damage to it.
For safe storage of the product:
1. Ensure that the product is in its original packaging.
2. Store the product at a temperature between + 5 ° C and + 40 ° C with a relative
humidity of maximum 50% at + 40 °C.
4.2
Mounting the product
4.2 /
1
Unpacking and checking the contents of the package
To check the content:
1. Remove the transport and packaging elements.
2. Check if the package includes the following parts: 1 x infrared
heater
1 x installation kit
▪ 2 x holders
▪ 8 x Screws
▪ 8 x wall plugs
1 x operating instructions
4.2 /
2
Minimum space
requirement
Please note the following:

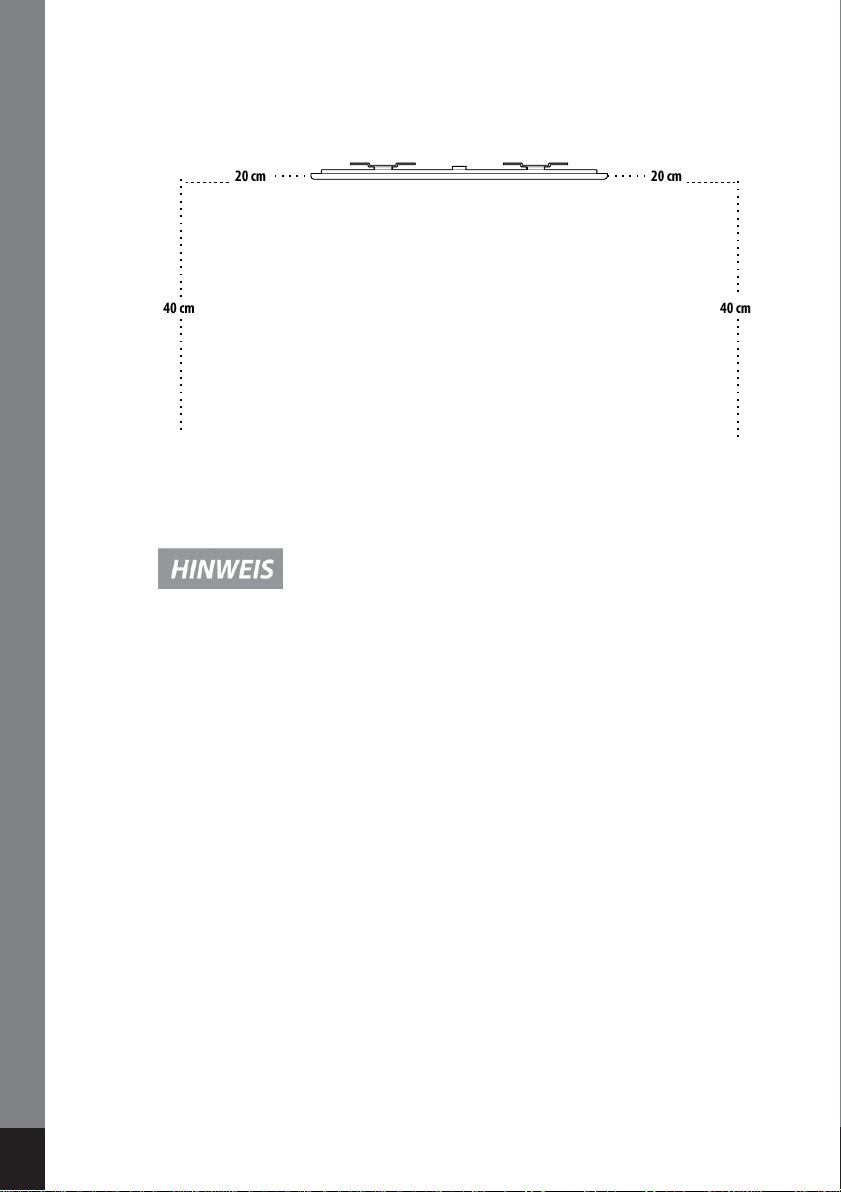

The minimum distance to objects on the front of the product should be 40 cm. A
minimum distance of approx. 20 cm should be maintained from the side.
The device should not be installed near a bathtub, shower or swimming pool. In case
of installation by a specialist company, the standard VDE 0100 Part 701, Part 702 and
Part 703 Is to be used.
15

For installation in public places, compliance with the VDE 0108 is to be ensured.
4.2 /
3
Installation of infrared heater
The infrared heater should be mounted only with the provided suspension device.
Installation and electrical installation should be carried out only by a trained expert.
Drilling holes on the infrared heater is not allowed and could destroy your device.
If holes are drilled on the infrared heater, its reliability is no longer guaranteed. Therefore,
the device must no longer be connected to the power supply.
Required tools:
Pencil
Drill (8 mm)
Phillips head screwdriver
Self-unrolling measuring tape made of metal
Level
16

Mounting the device:
1.
Ensure that the bearing capacity of the wall or ceiling is adequate. Ensure that the wall
or ceiling materials are appropriate for installation.

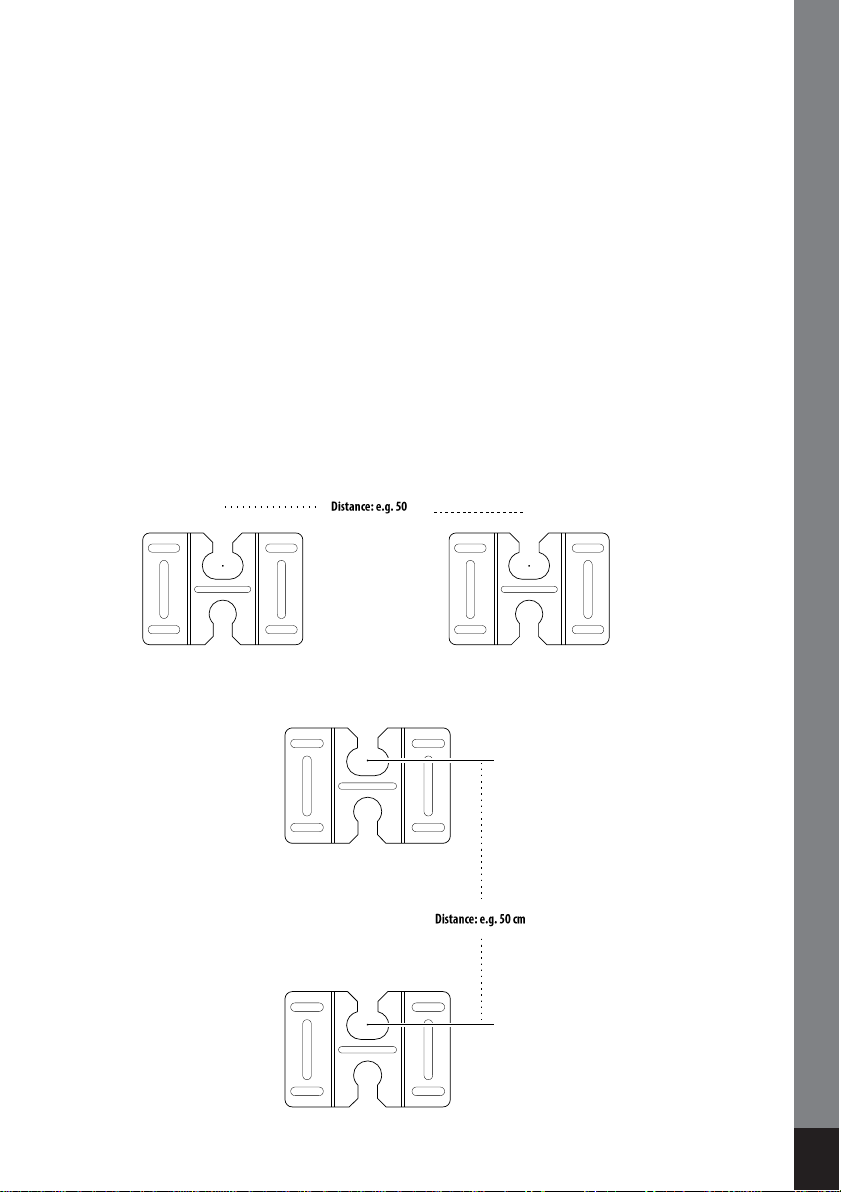

Measure the distance between the center points of the mounting bolts (C) (The
distance may vary depending on the model and can be, for example, 50 cm).
Determine the position of the drilling holes in the wall or ceiling to mount the holders
(D). For this purpose, use the holders as a template. Note! Please note that the device
is suspended 1.2 m above the floor in the children's room or in rooms, to which
children may have access.
2.
3.
A.
Horizontal installation / ceiling installation. Note! The standard model is suitable
for ceiling installation.
B.
Vertical installation / wall mounting
17

4.
5.
6.
7.
Drill eight holes in the wall with the 8 mm drill. Insert eight wall plugs.
Fix the holders (D) with the eight screws.
Place the infrared heater (A) on the holders (D) with the mounting bolts (C).
ATTENTION! Make sure that the infrared heater is completely cooled off.
18

8.
Turn the four spacers (E) to lock the infrared heater.
19

9. Connect the infrared heater electrically. Select one of the following control components:
Connect the mains plug to a radio socket receiver on a grounded wall socket.
Connect the power cable (B) to a radio thermostat. WARNING! This permanent
electrical wiring should be set up only by a trained expert.
Connect the power supply cable (B) to an in-wall radio receiver.
WARNING! This permanent electrical wiring should be set up only by a trained
expert.
4.2 /
4
Disassembly
For disassembly:
1.
2.
Unplug the mains plug (B).
Release the spacers (E) to unhook the infrared heater.
Remove the infrared heater (A).
3.
20
