Roksan Audio Attessa User manual

Read me, keep me or recycle me
Roksan 24 Brook Road, Rayleigh, Essex, United Kingdom, SS6 7XJ | [phone] | [email protected] | roksan.com Version 1
Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States
and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd.,
registered in the United States and other countries.
Dimensions & Material
Dimensions(Inc. Connect & Encoder) H76 x W432 x D383 mm
Dimensions(Exc. Connect & Encoder) H76 x W432 x D346 mm
Weight 10.2 Kg
Construction Formed plated steel and bespoke machined anodised
aluminium front panel
Power Amplier
Power Output (8 Ohms) 80Wrms Both Channels Driven, Nominal (THD+N <1%)
Power Output (4 Ohms) 130Wrms Both Channels Driven, Nominal (THD+N <1%)
THD+N <0.02% (1KHz, 2 channels, 1W@8 Ohms, A-Weighted)
Amplier Type Class AB
Gain 29dB
Channel Separation >75dB @10kHz
Channel Matching <0.5dB
Signal to Noise Ratio >80dBa 1W/8R, >98dBa 75W/8R
Frequency Response 5Hz to 50KHz (-3dB)
Mains Transformer Rating 400VA
Pre- Amplier
Volume Channel Matching <0.25dB
THD+N 0.002% (1KHz, 2Vrms at Pre-Out)
Signal to Noise Ratio >104dB (unweighted)
RIAA (Phono) 47k/56p loading; gain settings suitable for 12mV, 6mV,3mV
output cartridges
Bluetooth®
Bluetooth® Type A2DP Audio prole
Bluetooth® Codecs SBC, aptX™, AAC
Bluetooth® Range 15m (typical)
Digital Inputs
Digital Coax Input up to 24bit/192kHz PCM
Digital Optical Input up to 24bit/96kHz PCM
DAC
Format Support PCM
Sampling Rate up to 192KHz/24bit
THD+N 0.001% (1KHz, 2Vrms at Pre-Out)
Signal to Noise Ratio 106dB (A-Weighted)
Power Supply
Mains input
IEC Connector on rear panel
Mains transformer will self-select for either
100-130 VAC 50/60Hz
210-240 VAC 50/60Hz
(Operational down to 85VAC with reduced output power)

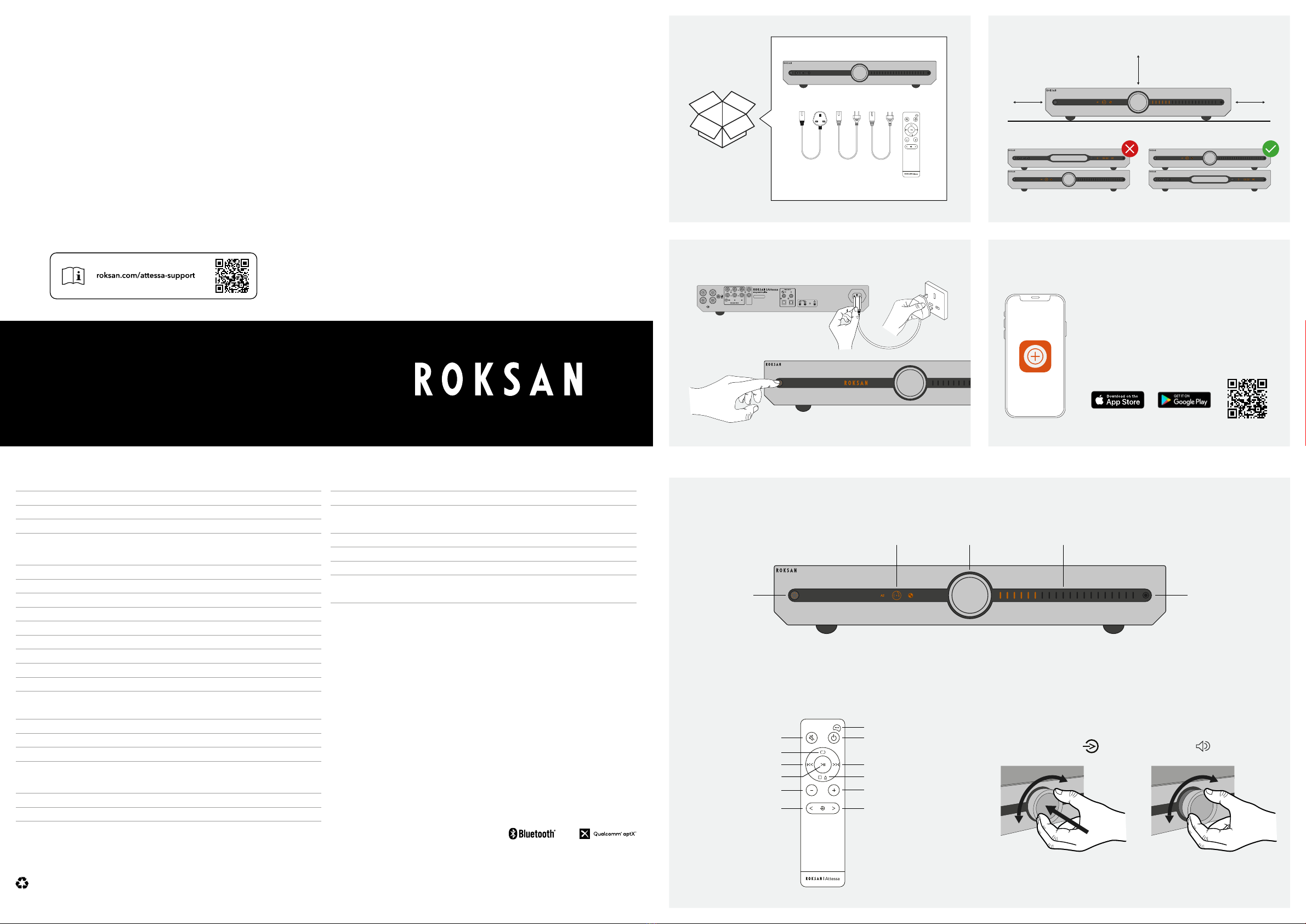

Let’s get started
Attessa Integrated Amplier
Quick Start Guide
RL
LOUDSPEAKEROUTPUT
+
-
D3 D4
PREOUT
/SUB
SerialNumber:
2Power on
1Place in suitable location
75mm
3”
75mm
3”
75mm
3”
Already have MaestroUnite?
Open the app, select +then follow setup
3Download MaestroUnite App
Follow the instructions on the app to nish
setting up your product.
Controls and Navigation
Standby 3.5mm
Headphone Jack
Input Display Dynamic Control Dial Volume Indicators
Using the Remote Control Using the Dynamic Control Dial
Change Source Volume
Attessa CD Transport
Attessa CD TransportAttessa Integrated Amplier
Attessa Integrated Amplier
Previous / Rewind
Play / Pause
Mute
Shufe / Repeat / Repeat Once
Previous Source
Volume Down Volume Up
Next Source
Stop / Eject Disc
Next / Fast-Forward
Standby
Options

RL
LOUDSPEAKER OUTPUT
+
-
PRE OUT
/SUB
RL
LOUDSPEAKER OUTPUT
+
-
D3 D4
PRE OUT
/SUB
Serial Number:
RL
LOUDSPEAKER OUTPUT
+
-
D3 D4
PRE OUT
/SUB
Serial Number:
RL
LOUDSPEAKER OUTPUT
+
-
D3 D4
PRE OUT
/SUB
Serial Number:
RL
LOUDSPEAKER OUTPUT
+
-
D3 D4
PRE OUT
/SUB
Serial Number:
RL
LOUDSPEAKER OUTPUT
+
-
D3 D4
PRE OUT
/SUB
Serial Number:
Inputs and Outputs
Using Bluetooth®
Using Analogue RCA A1 / A2
Using Digital Coaxial D1 (CD) / D3
Using Digital Optical
Using Moving Magnet Phono (Attessa Turntable or Passive Turntables)
Connecting loudspeakers
R L
Loudspeaker
Output
Moving Magnet
Phono Input
(Turntable)
Pre-Out
Sub Output
Digital Inputs
Coaxial / Optical
12V Trigger &
IR Input
Mains Power Supply
Analogue RCA
Inputs
Bluetooth®
Attessa XX-XX
+ +
(D1)
33 45
Input Display Icons and Volume
Mute
Analogue
RCA
Analogue
RCA
MM Phono
(Turntable)
CD
(D1)
Digital Optical
(D3)
Digital Optical
(D4)
Bluetooth® Digital Coaxial
(D2)
