OWNER’S MANUAL
OXYGENE INTEGRATED AMPLIFIER

Introduction
Congratulations on the purchase of your new Oxygene
Integrated Amplifier. You have made an excellent choice!
All ROKSAN products are designed, engineered and manufactured
in the United Kingdom. They are thoroughly tested before shipment
in order to provide you the best musical satisfaction and a lasting
value. We have gone to every length to ensure that your amplifier will
be easy to operate, enabling you to enjoy your music immediately.
We do, however, recommend that you read these instructions carefully.
Your experience will benefit from knowing the details of operation of your
new Oxygene Integrated Amplifier.
Unpacking
Carefully lift the amplifier out of the box and make sure not to scratch the
fine surfaces.
Pleasesaveallthepackaginginadryplaceforfutureuse.Shouldyourunitever
require transporting, it is strongly advised to do so in the original packaging.
Repair and servicing agents will insist on the original packaging. Your
warranty may be affected, if an alternative packaging is used and transport
damage is caused due to inadequate packaging.
General Safety Precautions
Read instructions
All the safety and operating instructions should be read carefully before the
unit is operated.
1

Retain Instructions
The safety and operating instructions should be retained for future
reference.
Heed warnings
All warnings on the equipment and in the operating instructions should be
adhered to.
Water and moisture
Theunitshouldnotbeusednearwater–forexample,nearabathtub,washbowl,
kitchensink,laundrymachine,inawetbasementornearaswimmingpooletc.
Note: Liquids should never come into contact with this product.
Heat
The unit should be situated away from heat sources such as radiators, heat
registers, stoves, direct sunlight or other components that produce heat.
Ventilation
The unit should be placed in a well ventilated environment and not be
obstructed by soft furnishings such as bedding, sofas, on rugs or carpets, or
similar surfaces that may block the vent openings, it is not advised to placed
in cabinets, cupboards or bookcases where ventilation is limited.
Non-use periods
Unplug the unit from the mains outlet when left unused for longer periods
of time e.g. a vacation period.
2

INSTALLATION
Installation
Keep power switched off when connecting or disconnecting the unit to
other components. This will prevent unpleasant and loud noises coming
from the loudspeakers and avoid the risk of damage to the equipment.
Power cord
The separate power cord supplied connects to the AC power socket on the
rear panel. Make all other connections before fitting the mains power cord.
ON/OFF
Press the ON/OFF button, underneath and to the right front side of the
Oxygene Integrated Amplifier to power it up. When switching the unit off
please reduce the volume level to less than 20.
Standby
The Oxygene products do not have a standby function. This is because
we constantly strive to make our products environmentally friendly; and
the best way to save on electricity is to turn off the unit when not in use.
Many audio products require a long warm up period in order to perform at
their best. This is not the case with the Oxygene series as these units have
Service and repairs
All service and repair work must be performed by a qualified technician,
authorized by ROKSAN. The warranty will become void, if the unit has been
modified or tampered with.
3

been designed using the latest digital technology.
Mains Voltage
The Oxygene Integrated Amplifier is factory set for a specific voltage and
will only work with that voltage (±10%). The correct AC mains voltage is
printed on the label situated at the bottom of the unit.
Make sure your AC mains voltage is correct before connecting the unit.
three versions of the Oxygene Integrated Amplifier are available:
• 100 V 50/60 Hz
• 115 V 50/60 Hz
• 220-240 V 50/60 Hz
In case you move to a country that has a different AC supply voltage,
contact your ROKSAN dealer or the authorized distributor for a professional
conversion to the new supply voltage.
Loudspeakers
The rear panel of the Oxygene Integrated Amplifier has one pair of safety
4 mm Jack output sockets on either side. Please make sure not to short the
wires when you connect your loudspeakers. Please use the special Roksan
safety plugs for the loudspeaker cables.
Subwoofers
The Oxygene Integrated Amplifier has two RCA output connectors L/R
labeled “OUT”. These can be used for connecting active subwoofers. The
4

General
Receiver
The remote receiver is located behind the 3 small holes on the front top
right corner of either amplifier or CD player.
Display and Dimmer
The Oxygene display has three brightness modes; Bright, Dim & off.
When selecting any function either by remote control or touch of “LESS”,
“IS” or “MORE” on the unit, the display will go bright to acknowledge
contact allowing for functions to be selected. The dot matrix display will
appropriately show “VOLUME” or “LINE INPUT”.
Batteries
The Oxygene’s minimalist remote carries two (2) CR 2430 button type
batteries. To replace the battery access is achieved via the rear panel;
remove four small screws, lift rear panel and carefully remove battery. Insert
new battery taking care that the + (positive) is facing up as before. Replace
rear panel and tighten screws until they stop turning, do not over tighten.
signal is volume regulated – known as a pre-out signal. This output can also
be used for adding an amplifier for another room, or for bi-amping.
Cables
Please use the ROKSAN interconnects & loudspeaker cables. As better
components and systems are developed, it becomes increasingly important
to avoid the limitations of inferior system interconnections and cables.
5

OPERATION
“LESS IS MORE”
LESS IS MORE
LESS IS MORE
Input select Touch “IS” once - then “LESS” or “MORE” to move
backward or forward between inputs.
Volume Up Touch “MORE”
Volume Down Touch “LESS”
The Oxygene Integrated Amplifier has 3 touch sensitive switches
incorporated in the words “LESS IS MORE” on top of the cabinet. These
three switches/words control all basic functions of the integrated amplifier.
You will get familiar with the various commands after just a few minutes.
All functions can also be accessed via the Oxygene Remote Control (please
refer to the section about the Oxygene Remote).
6

Less is More Controls
When one makes contact with “LESS”, “IS” or “MORE” the display will
go bright to acknowledge contact allowing for function to be selected.
After three seconds of having been left idle the display
will go back to the previously chosen light intensity.
Simply touch “LESS” or “MORE” to adjust the volume down or up respectively
or to toggle between the different input channels.
7

Functions
1Press to adjust the intensity of the
display light :Bright, Dim & Off
2 Volume UP
3Volume DOWN
4 PLAY & PAUSE
5 Previous track & Fast reverse
6 Next track & Fast Forward
7EJECT CD
8 INPUT SELECT (Line1,2,3 & BT)
1
2
3
7
8
4
5
6

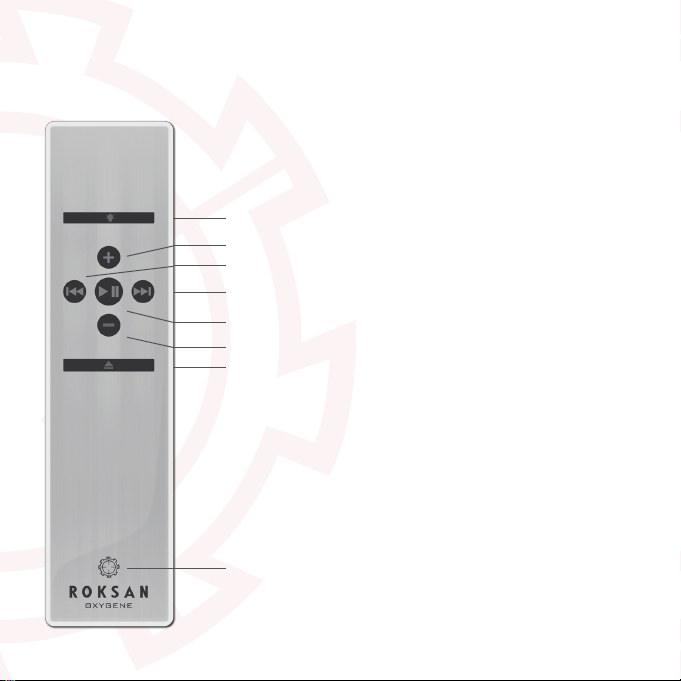

Oxygene Remote Controls
Controls both the CD Player and the Integrated Amplifier.
8

Display
The dot matrix display on amplifier will respectively show “VOLUME” or
“LINE INPUT”.
Dimmer
The Oxygene display has three brightness modes; Bright, Dim & off.
Bluetooth
How to set up your Bluetooth devices
The Oxygene Integrated Amplifier is fitted with the latest Bluetooth aptX
technology.
In order to stream your music wirelessly from your Bluetooth devices to the
Oxygene Integrated Amplifier you need to first pair them to the Bluetooth
module in the Oxygene Integrated Amplifier. This is very easy and shouldn’t
take more than a few seconds.
For best uninterrupted BT connection keep the Bluetooth music source
within 8 meters of the Oxygene amplifier in the room.
Streaming from mobile phones and other BT enabled devices
Make sure the line input on the Oxygene Integrated Amplifier is at “BT”.
Activate Bluetooth on your Bluetooth device and search for devices. The
Oxygene Integrated Amplifier will be visible as “ROKSAN” on your mobile
phone. If asked for the code, please enter ‘0000’. Please note that the
Oxygene Integrated Amplifier will take a few moments to connect to your
mobile phone for the first time. When the Oxygene Integrated Amplifier
9

and the mobile phone have been paired you can play wirelessly at anytime
in the future without having to pair the devices again.
Changing between Bluetooth Devices
You can easily switch between playing on different Bluetooth devices.
The Bluetooth module in the Oxygene Integrated Amplifier receives one
signal at a time. Please disconnect one device from the Oxygene Integrated
Amplifier before you play from another, e.g. disconnect one phone before
you can connect and play music from a different phone. Up to 16 Bluetooth
devices will be saved in the Oxygene memory.
Note: Sound output volume/quality produced on the Bluetooth
channel can differ with the use of different brand/make of Bluetooth
devices. e.g devices with aptX technology will sound superior.
Recommendation: For optimum results use lossless audio format.
10

WARRANTY
Your ROKSAN Product is guaranteed against any defect in materials and
workmanship for a period of two (2) years from the date of purchase or first
use whichever is earlier. This guarantee only becomes effective once your
product has been registered at Roksan within fourteen (14) days of purchase.
ROKSAN reserves the right to ask for a copy of your purchase invoice.
This guarantee excludes:
• Damage caused due to accident, misuse, neglect and incorrect
installation, adjustment or repair.
• Liability for damage or loss during transit from the retailer or purchaser
to ROKSAN or its authorised distributor for the purposes of repair or
inspection.
Warranty repair processes and conditions:
• Carriage costs to ROKSAN shall be borne by the consignor.
• All claims under this warranty must be made through an authorised
ROKSAN retailer. If equipment returned for repair to ROKSAN is found on
inspection to comply with the product specification ROKSAN reserves
the right to make a charge for examination and return carriage.
• Unauthorised servicing will void this guarantee.
• Warranty will only be valid when the product is bought through a
ROKSAN authorized retailer.
• All the warranty issues will be dealt with through the selling retailer and
11

or market distributor.
This warranty is subject to the following conditions and limitations:
• The warranty is void and inapplicable if the product has been used or
handled other than in accordance with the instructions in the owner’s
manual, abused, misused or damaged by accident, neglect or while
being transported, or the defect is due to the product being repaired or
tampered with by anyone other than ROKSAN or an authorized ROKSAN
repair centre or retailer.
• The product must be packed properly using the original shipping carton,
and returned to ROKSAN or an authorized ROKSAN repair centre. Before
shipping a product to ROKSAN a return authorisation reference must be
obtained from ROKSAN.
• A written description of the defect and photocopy of the original
purchase receipt must also accompany a returned product.
• If these terms are not fulfilled, ROKSAN will not cover the repair costs.
Visit : http://www.roksan.co.uk/rw.php for warranty registration.
In case of diculty Call: [phone]
12

SPECIFICATIONS
Oxygene Integrated Amplier
2 channel integrated amplifier
3 pairs of analogue inputs via RCA
Up to 16 Channels of Bluetooth memory
L/R outputs for active subwoofer(s) , or a 2nd Zone amplifier or bi-amping.
aptX Bluetooth connection for improved sound quality from aptX enabled smartphones and
other aptX sources
Power bandwidth 1 Hz – 35 kHz
Total Harmonic Distortion (THD) Better than 0.1 %
Signal to noise ratio 95 dB
Input sensitivity > 1 Vrms
Input impedance 10 kΏ
*Output power at 230V AC 90 Watt rms / 8 ohm
130 Wat rms / 4 ohm
with external PSU 120 Watt rms / 8 ohm
180 Watt rms / 4 ohm
Output Impedance 0.02 ohm @ f > 1 kHz
Current maximum 16 A peak, 32 A peak to peak
**Mains power see 100 V/ 115V / 220V - 240 AC at 50Hz or 60Hz
Max power consumption <250 Watt
Dimensions (WxDxH) 12 x 12 x 2 inches (31 x 31 x 6 cm) + feet
Weight (Net) 7KG (15.4 LBS)
13

* Both channels driven at 1 kHz.
** Mains voltage must be specified at order. Products for Japan get 100V AC special
transfomers installed at the Roksan factory. Mainland Europe get 230 V AC transfomers, USA
and Canada get 115 V AC transfomers.
UK products get transformers, which are made to handle 240V.
For other countries please ask your dealer before purchase.
If you move to a country with a different AC voltage, you need first to contact Roksan about
changing the mains transfomers in your amplifier. You can totally destroy the amplifier by
using it with the wrong AC voltage. This event is not covered by warranty.
All amplifiers can handle their AC voltage plus and minus 10%.
All specifications are liable to change without prior notice. E&OE
Miscellaneous
• Any implied warranties relating to the above product shall be limited to
the duration of this warranty.
• This warranty does not extend to any incidental or consequential costs
or damages to the purchaser.
• Your consumer rights are not affected in any way.
Notice
ROKSAN reserves the right to modify the design of any product without
obligation to purchasers of previously manufactured products and to
change the price and specifications of any product without notice or
obligation to any person.
14

Roksan Audio Ltd
Jubilee Close
Townsend Lane
London NW9 8TR
T: [phone]
F: [phone]
E: [e-mail]
W: OXYGENE.ROKSANAUDIO.COM
© 2012 CSR plc and its group companies.
The aptX® mark and the aptX logo are trade marks of CSR plc or one of its
group companies and may be registered in one or more jurisdictions.
