Roksan Audio K3 User manual

!
!
Page 1

!
!
MANUAL
!
This manual is divided into the following sections:
!
• Safety Instructions (accompanying card)
• Safety Certification
• Introduction
• Cautions
• Installation
• Setup
• Operation
• Troubleshooting
• Guarantee
• Specifications
• Notes
!
!
!
!!
!
!
!
!
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 2

!
!
!
Congratulations on your purchase of the ROKSAN K3 Integrated Amplifier.
This CD Player is designed and manufactured to the highest specification
and rigorously tested to reward you with many years of listening pleasure.
Your K3 CD Player is an integral part of your system. Its correct installation,
set-up and operation will have a significant influence on the performance of
the entire hi-fi installation. Please read the contents of this manual
thoroughly. It will help you to understand your hi-fi equipment better and
further enhance your listening pleasure.
Unpacking
!
Included in the packing of your K3 Integrated Amplifier you will find:
•One mains lead fitted with the correct mains power plug for your
country.
•One Roksan R7 remote control
After removing these items please retain all packing material. Correct
packing is necessary for future transportation of your K3 Integrated
Amplifier.
Maintenance
!
After disconnecting the K3 Integrated Amplifier from the mains supply, the
cabinet and front panel may be cleaned with a lightly dampened soft cloth
or chamois leather. Avoid using abrasive substances or solvents.
!
EU Directives
!
This product is designed to comply with the legal provisions of EU
Directives 89/3336/EC and 72/23/EC. The standards which have been
applied are those which were in force at the time of the introduction of this
product. This product bears the CE mark. This product must be earthed.
Please ensure that other equipment connected to it is earthed according to
the manufacturer’s instructions. !
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 3

!
!
!
Cautions
AC Mains Supply
!
Your K3 Integrated Amplifier is set to operate from a fixed supply voltage
which is marked on a label next to the mains input plug. Before connecting
the mains lead please check that your mains supply corresponds to the
label as below:
230V Products: Voltage Range 220V – 240V
115V Products: Voltage Range: 110V – 120V
100V Products : Voltage Range: 90V – 110V
The mains lead supplied with this product has an IEC mains socket which
plugs into the IEC connector on the unit’s rear panel. The other end is
normally attached to the appropriate mains plug for your country. In the UK
this is the standard UK13A plug.
This plug should ordinarily not be removed from the lead. If you do remove
it, please dispose of it safely so that it cannot be plugged into a mains
socket whilst in a potentially dangerous condition. We suggest that you
obtain from your dealer a complete set of replacement leads.
Should you move to another area where either the mains voltage or the
mains plug are different from those as supplied with your Integrated
Amplifier, please contact the appointed ROKSAN distributor for assistance.
Please observe correct mains polarity at all times.
The Integrated Amplifier mains fuse is located on the rear panel next to the
IEC mains connector. This must only be replaced by the fuse of the type and
rating as described on the fuse rating label on the rear panel of the unit.
!
This product requires connection to earth (ground). The earth wire (in the
UK this is colour coded green/yellow) of the mains cable supplied with your
Integrated Amplifier must be connected to a suitable earthing point
established for this purpose by your electricity supply company. If you are in
any doubt, consult a qualified electrician.
If the equipment is likely to be unattended for some time, unplug it from the
mains supply. !
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 4

!
!
!
General Cautions
FCC Warning
!
This equipment may generate or use Radio Frequency energy. The user may
lose the right to operate this equipment if unauthorised modifications are
made.
Interference
!
Properly installed, this unit should not cause harmful interference to radio
communications. There is, however, no guarantee that such interference will
not occur in a specific installation. If interference arises (which you can
determine by switching the unit off and on) you could try to remedy matters
by using the following methods:
•Re-orient or re-locate the receiving antenna.
•Increase the distance between the K3 Integrated Amplifier and receiver.
•Connect the unit to a different mains circuit from that of the receiver.
•Consult your ROKSAN appointed dealer or an experienced Radio/TV
technician for help and advice. !
Location
!
Your K3 Integrated Amplifier should be located in a well ventilated area and
kept away from sources of heat, dust and humidity and from direct sunlight.!
The integrated Amplifier may be positioned either as a free standing unit or
along side another audio/video product. Never allow liquids or other
objects to fall into the unit.
This unit contains no user serviceable parts. DO NOT remove any panels or
attempt to service it yourself. Unauthorised servicing will void the warranty.
!
!!
!
!
!
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 5

!
!
!
Installation
K3 Integrated Amplifier- Front Panel View
!
1. Mode Button
2. Input Button (back)
3. Input Button (forward)
4. Mode Indicator
5. CD Input Indicator
6. Tuner/Aux. Line 3 Input Indicator
7. AV Input Indicator
8. Aux Line 1 Input Indicator
9. Aux Line 2 Input Indicator
10. Phono Input Indicator
11. Bluetooth Indicator
12. Bluetooth Button
13. Headphone Socket (3.5mm)
14. Volume Control
15. AC Mains Power Switch
!
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
!
Page 6

!
!
!
!

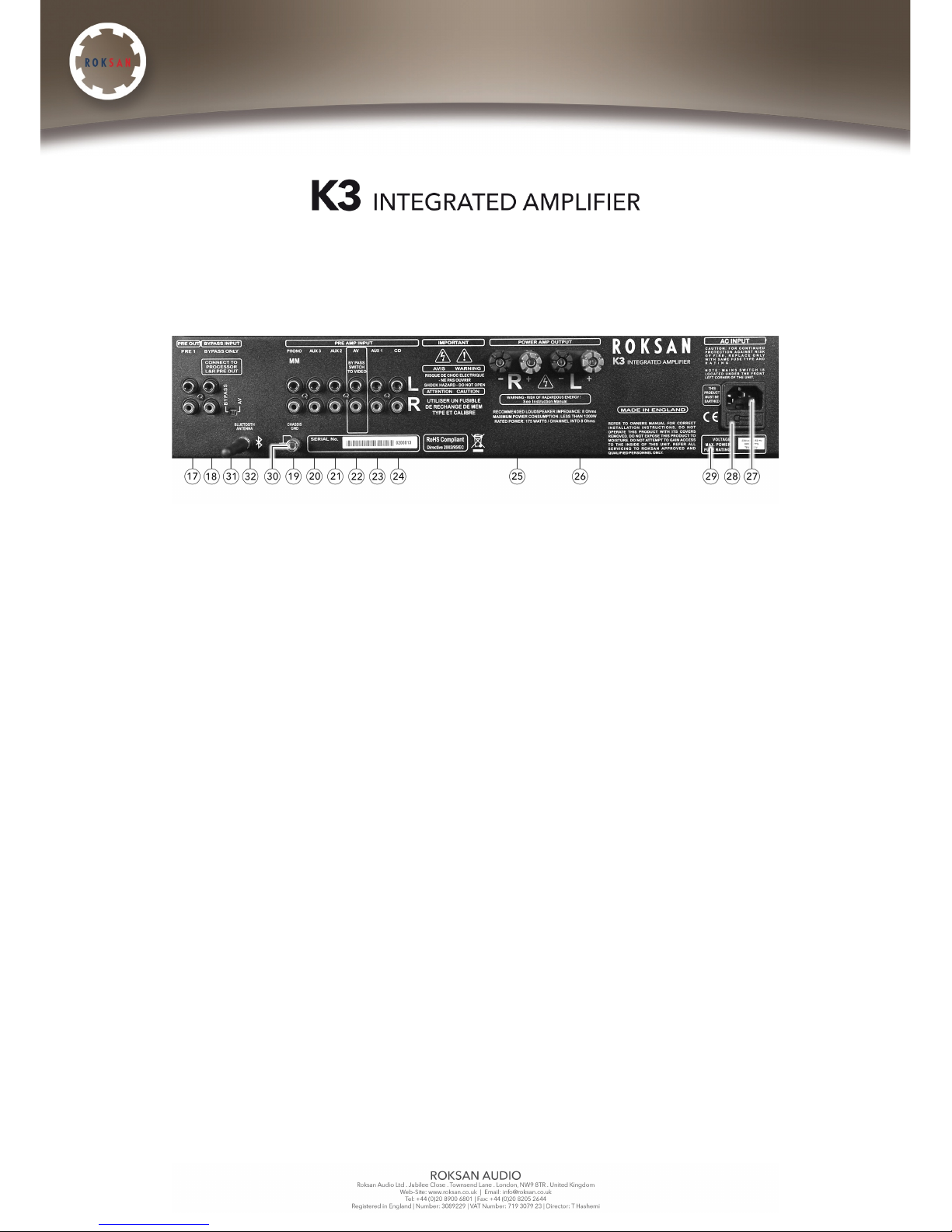

K3 Integrated Amplifier- Rear Panel View
17. Pre amp Output 1 (Multi-Amping or Subwoofer)
18. Bypass Input (When Bypass switch 31 is set to BYPASS)
19. Phono Input (Moving Magnet)
20. Tuner / Aux line 3 Input
21. Aux line 2 Input
22. AV Input
23. Aux line 1 Input
24. CD Input
25. Right Speaker Output
26. Left Speaker Output
27. AC mains Input
28. AC Mains Fuse Holder
29. Voltage & Fuse Label
30. Phono Input / Chassis Grounding Terminal
31. Bypass Switch (selects between AV & Bypass Inputs)
32. Bluetooth aptX Antenna !
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 7

!
!
!
Set-Up
Connecting mains Power
!
Please refer to the front & rear panel view on Pages 5&6. The moulded IE
connector or the supplied mains lead should be plugged into socket (27)
on the rear of the unit first and then plugged into the mains supply.!
The mains power switch (15) is on the front under side of the Integrated
Amplifier. This switch can be left on; if however the amplifier is likely to be
unattended for a long period of time, switch it off and unplug the mains
lead from the wall.
Signal Connections
!
There are 6 Inputs (18 -24) on your K3 Integrated Amplifier. Except for
PHONO input (19) all other inputs are line level and will accept virtually all
currently available source components. The PHONO input is factory set for
Moving Magnet Cartridges to accommodate record players fitted with MM
phono cartridges. The AV input (22) is linked to the BYPASS input (18) and
switch to set BYPASS, then the AV input will be deactivated and the BYPASS
input will become activated. In this mode, the BYPASS input can be used to
a surround sound processor’s front L & R pre output for home theatre use.
The BYPASS input is directly connected to the power amp section and
bypasses the preamp. The volume is then controlled via the surround sound
processor and not the K3 Integrated. You could also use the integrated as a
power amp in this mode.
All the inputs use gold plated RCA phono connectors and should be
connected according to the standard convention.
-Right Channel - Red
-Left Channel - Black or White
Also in accordance with standard practice, the upper row of phono Sockets
carries the Left Channel and the Lower row carries the Right Channel.!
The input sockets are labelled with their legends upside down as well as the
normal way up to assist you should you be connecting an input from a
position in front of and above the amplifier.
!!
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 8

!
!
!
MC Input Connection
If you wish to use a Moving Coil Cartridge, an in-line MC step-up
transformer should be connected to the Phono Input. Alternatively a
dedicated Phono Stage can be connected to a line level input.!
(NOTE: if you wish to connect to the Phono input, it must be set for line level
signal. See above). For advice and demonstration of ROKSAN state of the
art turntable reproduction systems contact your authorised retailer.
!
Loudspeaker Connections
!
The right and left loudspeakers are connected to the amplifier via the rear
panel binding posts (25) and (26) respectively. There are two basic types of
cable:!
• Figure 8 cable has two insulated conductors which lie parallel, either side
by side, or spaced by insulation.!
• Overall sheathed cable has both conductors insulated and enclosed in an
overall plastic sheath.
Carefully remove any over all sheath or split the figure 8 cable to a depth of
about 75mm (3”). Carefully strip the insulation on each wire to a depth of
about 12 mm (1/2”) exposing the bare core. If the conductor is stranded,
twist the strands together on each conductor.!
Unscrew the binding post. There is a cross-hole about 5 mm from the panel
end of the binding post. Insert the bared conductor through the hole and
tighten the binding post securely making sure that there are no loose
strands or bare ends protruding through the post. Carefully observe polarity
ensuring that the RED (+) speaker terminal is connected to the RED (+)
amplifier terminal and the BLACK (-) speaker terminal to the BLACK (-)
amplifier terminal. When both left and right channels are connected to the
irrespective speaker’s the amplifier is ready for use.
!
!
!
!!
!
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 9

!
!
!
!
IMPORTANT NOTE: For optimum performance it is recommended to use
high quality inter-connect cable such as ROKSAN HDC-03A High Definition
Analogue Cable.
IMPORTANT NOTE: For optimum performance it is recommended to use
high quality cable such as ROKSAN HDC 03S High Definition Loudspeaker
Cable. Many speaker cables such as the ROKSAN HDC-03S are directional.
Please observe this characteristic. DO NOT use a speaker cable with
conductor size less than 16 AWG (1.6mm Diameter). The binding posts
accept conductor sizes up to 12 AWG.
!
Multi-amping Loudspeakers
!
If the system loudspeakers utilise more than one drive unit with individual
input terminals, for example a Tweeter and Woofer, then the loudspeakers
performance should benefit from bi-amping by use of the addition of a K3
Power Amplifier. Dedicating one amplifier to the Tweeter and another to the
Woofer isolates them from each other, hence reducing distortion and
increasing reserved power. Speakers work significantly better with most
amplifiers when multi-amped than using one, more powerful, amplifier.
For setup and connection details on multi-amping refer to the K3 Power
Amplifier Manual.
!
Multi-wiring Loudspeakers
NOTE: Multi-Wiring connects the Woofer and the Tweeter terminals directly
to the output terminals of the amplifier and is the first step towards Multi-
Amping.
!
!
!
!
!
!
Roksan Audio Ltd
CLASSIFICATION: General Use
All specifications are liable to change without notice. E&OE
Page 10
