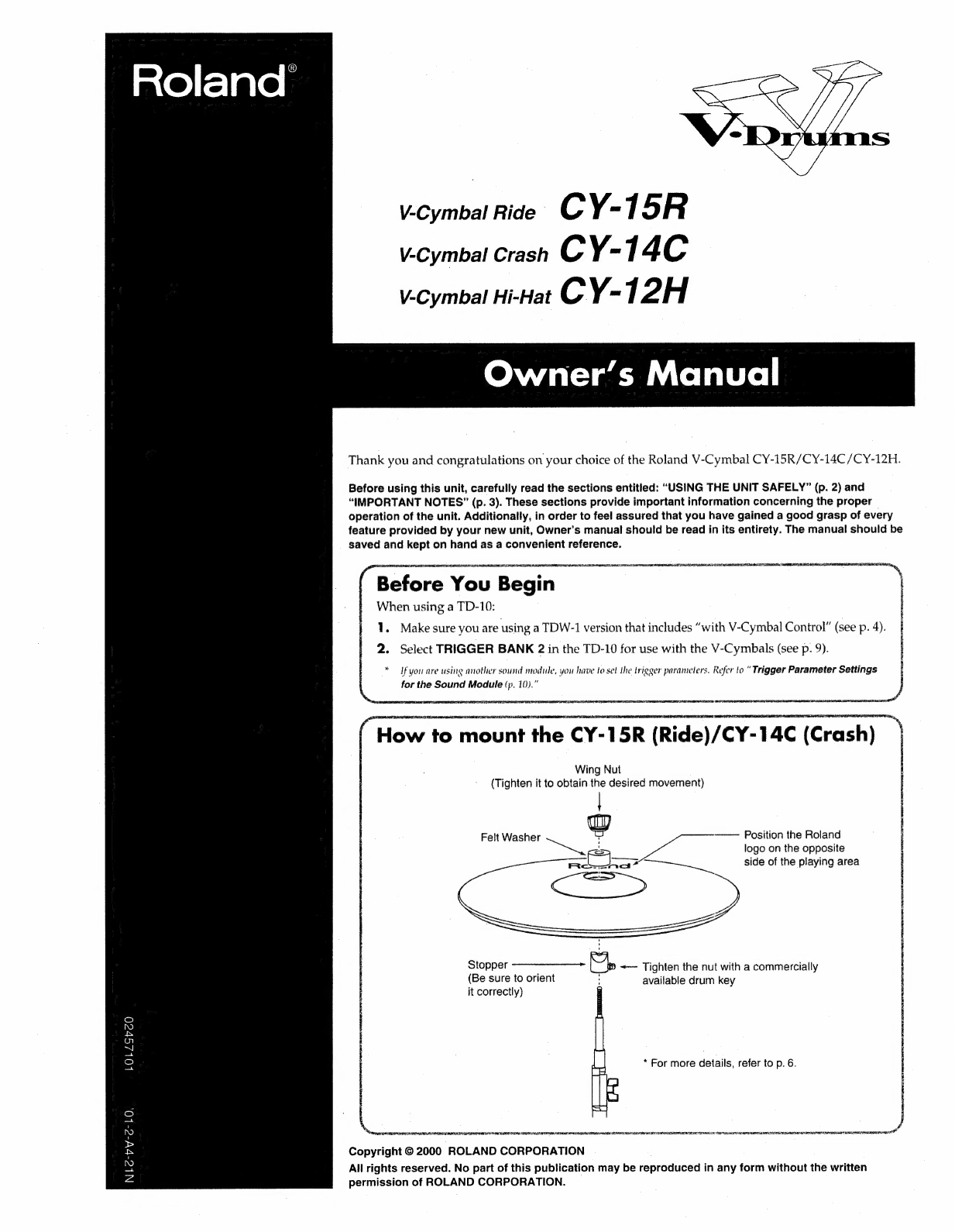

v-cymbal Ride CY-15R
V-Cymbal Crash C Y- 1 4 C
V-Cymbal Hi-Hat C Y- 12 H
Owner’s Manual
Thank you and congratulations on your choice of the Roland V-Cymbal CY-15R/CY-14C/CY-12H.
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” (p. 2) and
“IMPORTANT NOTES” (p. 3). These sections provide important information concerning the proper —
operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every
feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.
RGA A ANE SA AR I ABN HRC NARI NNER LET LAER A
Before You Begin
When using a TD-10:
1. Make sure you are using a TDW-1 version that includes “with V-Cymbal Control” (see p. 4).
2. Select TRIGGER BANK 2 in the TD-10 for use with the V-Cymbals (see p. 9).
* If you are using another sound module, you have to set the trigger parameters. Refer to “Trigger Parameter Settings
for the Sound Module (p. 10).”
Wing Nut
(Tighten it to obtain.the desired movement)
Felt
Washer
C
~~
Position
the
Roland
a
25
ae
logo
on
the
opposite
Rosanne
ee
side
of
the
playing
area
2
Stopper ————_——+ Mp ~— Tighten the nut with a commercially
(Be sure to orient available drum key
it correctly)
* For more details, refer to p. 6.
Copyright © 2000 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written
permission of ROLAND CORPORATION.

USING THE UNIT SAFELY
INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
About Z\ WARNING and Z\ CAUTION Notices
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
Z\WARNING
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
Z\ CAUTION
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
animals or pets. ?
| Z\WARNING
PPUTeeePTITITTETETTVOCERTTTePTTIceeeTeeerree errr eee eee cree reer errr reer err ee err rrr rrrr terrier irr sy
¢ Before using this unit, make sure to read the
instructions below, and the Owner’s Manual.
¢ Do not open or perform any internal modifica-
tions on the unit.
PereeeeSC ECORV OTE O OC COP Ue CCrerrerrerrrrrecer rir ereri irre terre rr eee rere
S
© Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the "Information" page.
OVENS UUESITEOTT CTO e Pee TeerIeerererere re rrr reer eee cere e errr ir rrr rer rere err rr eee erie eerie sire
e Never use or store the unit in places that are:
¢ Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment); or
are
¢ Damp (e.g., baths, washrooms, on wet floors);
or are
¢ Humid; or are
¢ Exposed to rain; or are
¢ Dusty; or are
¢ Subject to high levels of vibration.
POUPe ere VER eCererrrec rece rarer cr rerr ree ver errr reser errr rsrerrerr restate tri rere set r ere rire irises)
AN
¢ This unit should be used only with a rack or stand
that is recommended by Roland.
¢ When using the unit with a rack or stand recom-
mended by Roland, the rack or stand must be
carefully placed so it is level and sure to remain
stable. If not using a rack or stand, you still need
to make sure that any location you choose for
placing the unit provides a level surface that will
properly support the unit, and keep it from
wobbling.
furnishings, as well to domestic}
ALWAYS OBSERVE THE FOLLOWING
About the Symbols .
The A\ symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
The & symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
‘means that the unit must never be disassembled.
The @ symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the power-
cord plug must be unplugged from the outlet.
Z\WARNING) |
¢ Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.
Pere eeerrerere rere tere eve rrr ere rererrrrrrrrrrerrecir errr ert iret eerie rrr rrr ir rere iirc irri irii yy)
¢ In households with small children, an adult
should provide supervision until the child is
capable of following all the rules essential for the
safe operation of the unit.
[>
Perec ee OUR VOU rOeer eee errr errr rrrerrrrcerrrerrer er rerreririrr rr ree rrr irir rer iri rrr rir rir irr eri rir)
eee R eee ree eee eee reer eer eres rr erreur err irirr irr r err rir errr rer rier cirri irri rrr
LN
TOO Meee Hen em Oe eee nea R EEE ER EH SEEDER HAOREAHH AMADOU HDOUROSMEEE ERD EODHOREH SOSH OO OHE DOE Ev OEE Hbee One RE
S
Oo ee ere ere ree eee Pere reer river rr etree ere rr errr rere rr rtrrrcrt rr rerrr er sets
o
er ee eer ere errr errr eee ee rrr e rr ere rr errr irrirer rere ee errr err Terrie rer rrirr eri rere se
¢ Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
¢ Never climb on top of, nor place heavy objects on
the unit.
¢ Should you remove the stopper bolt, make sure to
put them in a safe place out of children's reach, so
there is no chance of them being swallowed
accidentally.

IMPORTANT NOTES
In addition to the items listed under “USING THE UNIT
SAFELY” on page 2, please read and observe the
following:
Placement
¢ Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Also, do not allow lighting devices that normally are used
while their light source is very close to the unit (such as a
piano light), or powerful spotlights to shine upon the
same area of the unit for extended periods of time.
Excessive heat can deform or discolor the unit.
¢ To avoid possible breakdown, do not use the unit in a wet
area, such as an area exposed to rain or other moisture.
Maintenance
e For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
¢ Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.
Additional Precautions
¢ Use a reasonable amount of care when using the unit's
jacks. Rough handling can lead to malfunctions.
When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s
internal elements.
This instrument is designed to minimize the extraneous
sounds produced when it’s played. However, since sound
vibrations can be transmitted through floors and walls to
a greater degree than expected, take care not to allow
these sounds to become a nuisance to neighbors,
especially when performing at night and when using
headphones.
When you need to transport the unit, package it in the box
(including padding) that it came in, if possible. Otherwise,
you will need to use equivalent packaging materials.
Use the included cable to make connections. If using some
other make of connection cable, please note the following
precautions.
¢ Some connection cables contain resistors. Do not use
cables that incorporate resistors for connecting to this
unit. Since the sensitivity of the pad will be dimin-
ished, the sound may become extremely soft or even
inaudible. For information on cable specifications,
contact the manufacturer of the cable.

Getting Started

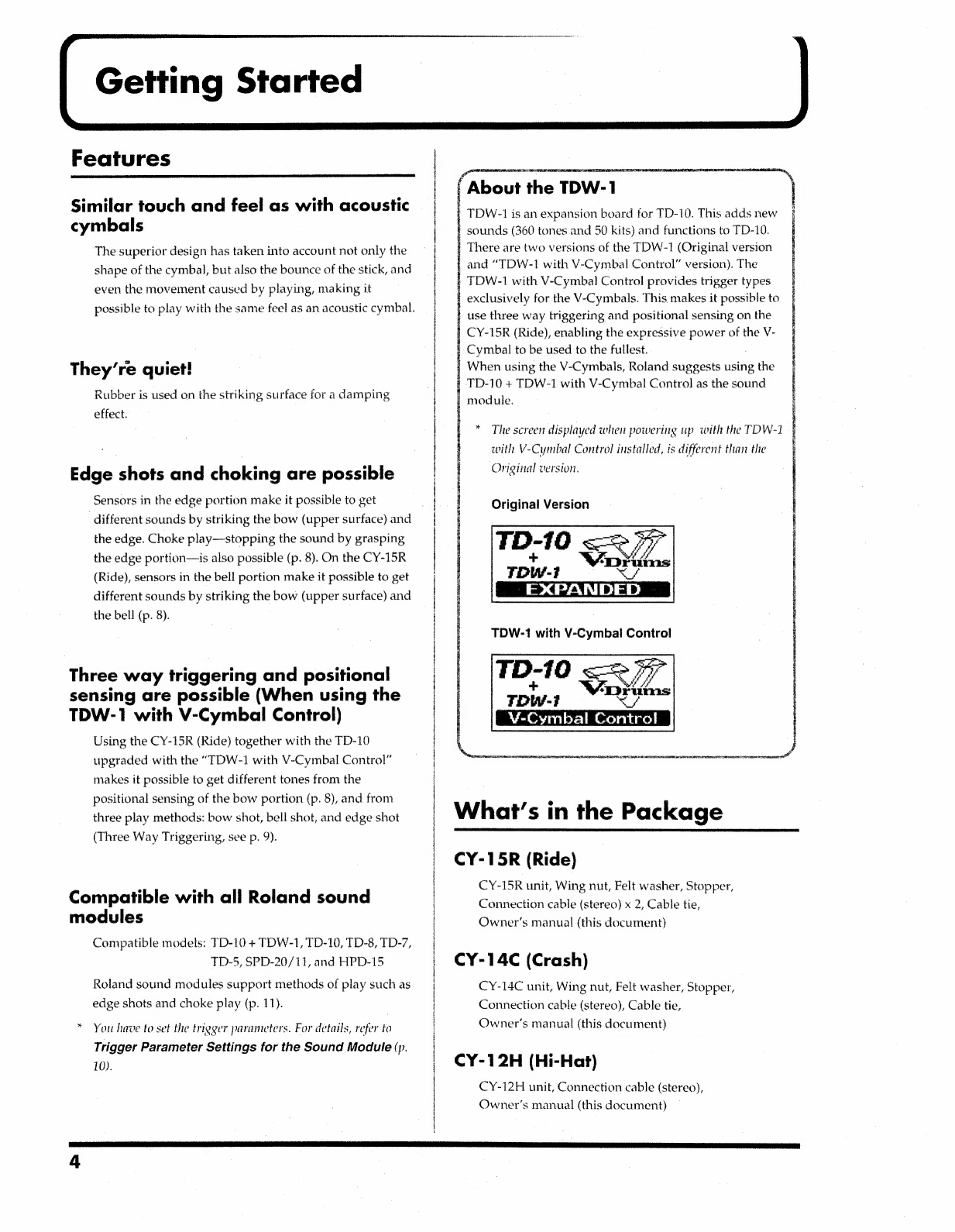

Features
Similar touch and feel as with acoustic
cymbals
The superior design has taken into account not only the
shape of the cymbal, but also the bounce of the stick, and
even the movement caused by playing, making it
possible to play with the same feel as an acoustic cymbal.
They’re quiet!
Rubber is used on the striking surface for a damping
effect.
Edge shots and choking are possible
Sensors in the edge portion make it possible to get
different sounds by striking the bow (upper surface) and
the edge. Choke play—stopping the sound by grasping
the edge portion—is also possible (p. 8). On the CY-15R
(Ride), sensors in the bell portion make it possible to get
different sounds by striking the bow (upper surface) and
the bell (p. 8). |
Three way triggering and positional
sensing are possible (When using the
TDW-1 with V-Cymbal Control)
Using the CY-15R (Ride) together with the TD-10
upgraded with the “TDW-1 with V-Cymbal Control”
makes it possible to get different tones from the
positional sensing of the bow portion (p. 8), and from
three play methods: bow shot, bell shot, and edge shot
(Three Way Triggering, see p. 9).
Compatible with all Roland sound
modules
Compatible models: TD-10 + TDW-1, TD-10, TD-8, TD-7,
TD-5, SPD-20/11, and HPD-15
Roland sound modules support methods of play such as
edge shots and choke play (p. 11).
* You have to set the trigger parameters. For details, refer to
Trigger Parameter Settings for the Sound Module ( p.
10).
About the TDW-1
(
TDW-1 is an expansion board for TD-10. This adds new
| sounds (360 tones and 50 kits) and functions to TD-10.
There are two versions of the TDW-1 (Original version
| and “TDW-1 with V-Cymbal Control” version). The
TDW-1 with V-Cymbal Control provides trigger types
exclusively for the V-Cymbals. This makes it possible to
use three way triggering and positional sensing on the
| cy- 15R (Ride), enabling the expressive power of the V-
Cymbal to be used to the fullest.
| When using the V-Cymbals, Roland suggests using the
§ TD-10 + TDW-1 with V-Cymbal Control as the sound
' module.
* The screen displayed when powering up with the TOW-1
with V-Cymbal Control installed, is different than the
Original version.
Original Version
.
=
:
TDW-?
: ars
EXPANDED
TDW-1 with V-Cymbai Control
TD-10 oie
Sp viins
v/
TDW-1
; ¥-Cymbal Control
see
What’s in the Package
CY-15R (Ride)
CY-15R unit, Wing nut, Felt washer, Stopper,
Connection cable (stereo) x 2, Cable tie,
Owner’s manual (this document)
CY-14C (Crash)
CY-14C unit, Wing nut, Felt washer, Stopper,
Connection cable (stereo), Cable tie,
Owner’s manual (this document)
CY-12H (Hi-Hat)
CY-12H unit, Connection cable (stereo),
Owner’s manual (this document)
SS SE GI TB STEN TO

Definitions & Names of Parts
CY-15R (Ride)
Rela)
wv Wing Nut
ae Felt Washer
he
Mp
Stopper
Sk
eS
a
Bell
Portion
ae BOW/BELL OUTPUT Jack
Tee Bow Portion
Edge Portion BOW/EDGE OUTPUT Jack
Diameter: 15 inches
CY-14C (Crash)
WO Wing Nut
ca Felt Washer
Mp Stopper
Bow Porti
ow
Portion
BOW/EDGE
OUTPUT
Jack
Edge Portion *The CY-14C has no BOW/BELL OUTPUT Jack.
OTe
Diameter: 14 inches
CY-12H (Hi-Hat)
4
Edge Portion
Bow Portion
OUTPUT Jack
Stand Fixing Screw
Diameter: 12 inches

CY-15R (Ride)
CY-14C (Crash)

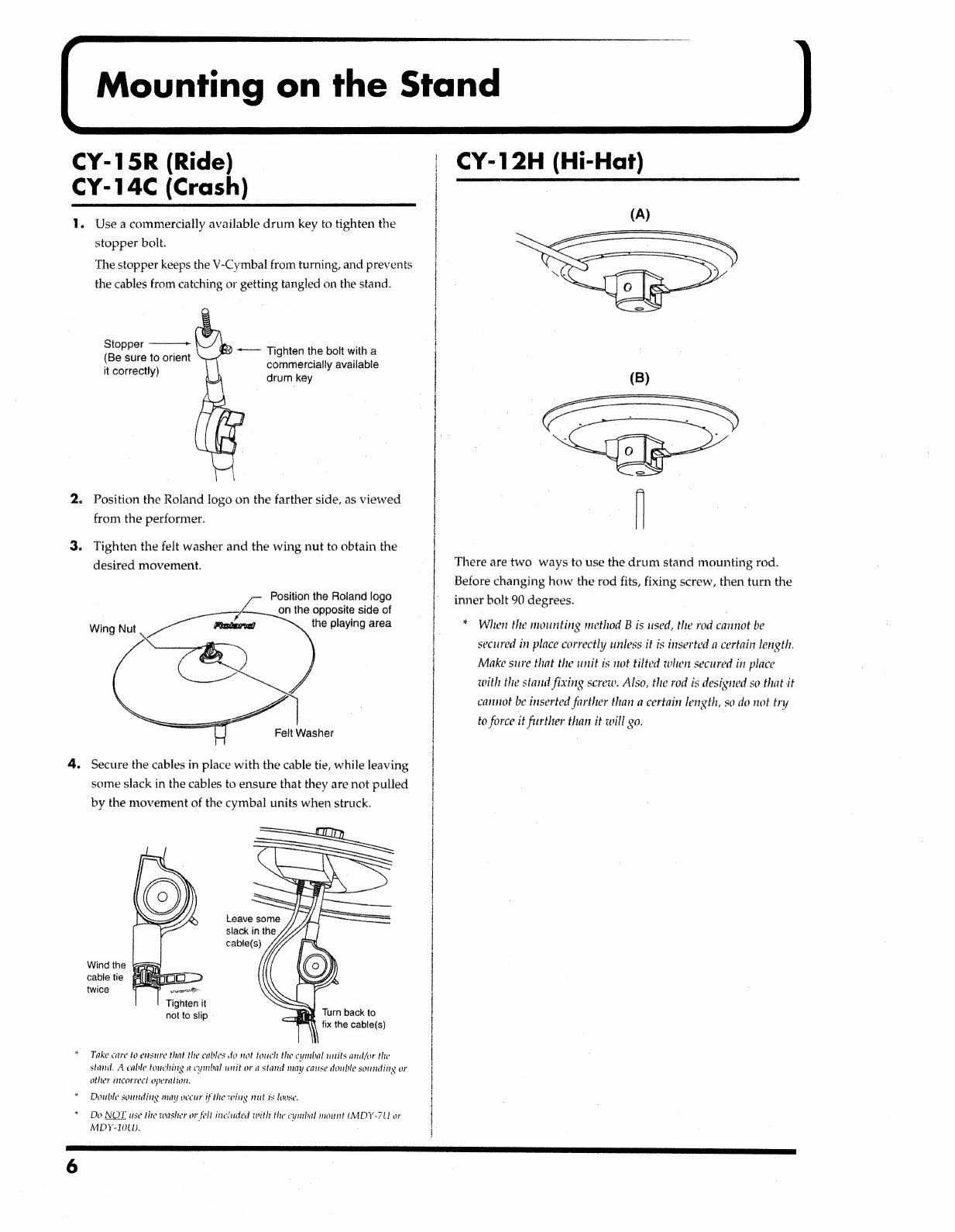

1. Use a commercially available drum key to tighten the
stopper bolt.
The stopper keeps the V-Cymbal from turning, and prevents
the cables from catching or getting tangled on the stand.
=
=)
be
a
=
<a
| &7
Wp -—— Tighten the bolt with a
|| commercially available
2 drum key
Stopper ————~
(Be sure to orient
it correctly)
2. Position the Roland logo on the farther side, as viewed
from the performer.
3. Tighten the felt washer and the wing nut to obtain the
desired movement.
Position the Roland logo
on the opposite side of
Wing Nut the playing area
a
ee
Felt Washer
4. Secure the cables in place with the cable tie, while leaving
some slack in the cables to ensure that they are not pulled
by the movement of the cymbal units when struck.
Leave some
slack in the
cable(s)
Wind the
cable tie
twice
Tighten it
not to slip - Fay Turn back to
fix the cable(s)
* Take care to ensure that the cables do not touch the cymbal units and/or the
staid. A cable touching a cymbal unit or a stand may cause double sounding or
other incorrect operation.
* Double sounding may vecur if the ing nut ts loose.
* Do NOT use the washer or felt included with the cymbal mount (MDY-7U or
MDY-10UD.
There are two ways to use the drum stand mounting rod.
Before changing how the rod fits, fixing screw, then turn the
inner bolt 90 degrees.
* When the mounting method B is used, the rod cannot be
secured in place correctly unless it is inserted a certain length.
Make sure that the unit is not tilted when secured in place
with the stand fixing screw. Also, the rod is designed so that it
cannot be inserted farther than a certain length, so do not try
to force it further than it will go.

Connecting to a Sound Module
ce
before making any connections.
t -
Mio!
OUT/THAU
=6 @obe
MX IN 4
Ql, V8 26
S)
OUTPUT
t QRIREST “n
Use the supplied connection cables (stereo) to make the
connections. If monaural cables are used, edge shots, bell
shots, and choke play cannot be supported.
The CY-14C has no BOW /BELL output. Make the connection
to the BOW/EDGE output.
Connecting to the CY-15R (Ride)
The CY-15R has two outputs—BOW /BELL and BOW/
EDGE—but normally you should use only one or the other
(except when using TDW-1 with V-Cymbal Control).
The output used and the corresponding playing methods are
as shown below.
(master)
ne CT a
| Output Corresponding | Tones Sounded |
Play Methods
BOW/BELL __ | Bow Shot RIDEHEAD |
Bell Shot | RIDE RIM
BOW/EDGE | BowShot —__—'| RIDE HEAD
L | Edge Shot | RIDE RIM | =.
6)006300000005
000260000002
Roland,
To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices
MEMORY CARD
Aine
M2 TOM
RASH 2 CRASH1 HIHAT
TRIGGER INPUT
Nin
The TDW-1 with V-Cymbal Control, which is the version
with full support for V-Cymbal, provides trigger types
exclusively for the CY-15R. When using the “RIDE” AND the
AUX 1 inputs at the same time, it is possible to play BELL,
BOW and EDGE areas allowing three way triggering support
(different sounds for bow, bell, and edge shots). For more
information, refer to “Playing Different Sounds with the
CY-15R’s Bow, Bell, and Edge (Three Way Triggering
Feature) (p. 9).”
Oke
If you are using a sound module other than the TD-10 +
TDW-1 with V-Cymbal Control (such as a non-expanded TD-
10 or the Original version of TDW-1), then use either the
BOW/BELL output or the BOW /EDGE output, but NOT
both. When the two outputs are used simultaneously, the
two connected trigger inputs are sounded at the same time.

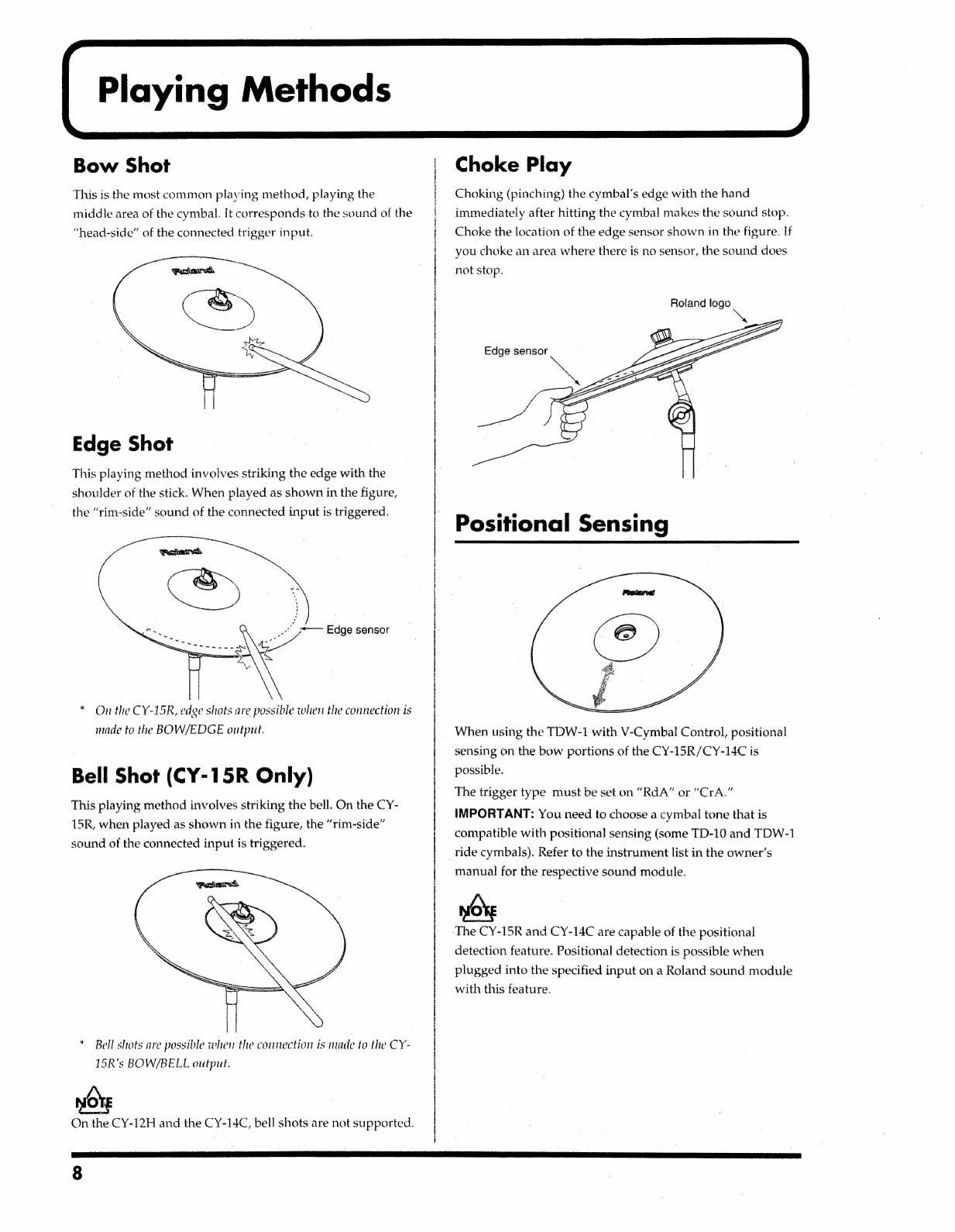

Playing Methods
Bow Shot
This is the most common playing method, playing the
middle area of the cymbal. It corresponds to the sound of the
“head-side” of the connected trigger input.
Edge Shot
This playing method involves striking the edge with the
shoulder of the stick. When played as shown in the figure,
‘
the “rim-side” sound of the connected input is triggered.
” —— Edge sensor
* On the CY-15R, edge shots are possible when the connection is
made to the BOW/EDGE output.
Bell Shot (CY-15R Only)
This playing method involves striking the bell. On the CY-
15R, when played as shown in the figure, the “rim-side”
sound of the connected input is triggered.
* Bell shots are possible when the connection is made to the CY-
15R’s BOW/BELL output.
ore
On the CY-12H and the CY-14C, bell shots are not supported.
Choke Play
Choking (pinching) the cymbal’s edge with the hand
immediately after hitting the cymbal makes the sound stop.
Choke the location of the edge sensor shown in the figure. If
you choke an area where there is no sensor, the sound does
not stop.
Roland logo
Edge sensor
When using the TOW-1 with V-Cymbal Control, positional
sensing on the bow portions of the CY-15R/CY-14C is
possible.
The trigger type must be set on “Rd A” or “CrA.”
IMPORTANT: You need to choose a cymbal tone that is
compatible with positional sensing (some TD-10 and TDW-1
_ride cymbals). Refer to the instrument list in the owner's
manual for the respective sound module.
vole
The CY-15R and CY-14C are capable of the positional
detection feature. Positional detection is possible when
plugged into the specified input on a Roland sound module
with this feature.
8

For TDW-1 with V-Cymbal Control Users
Playing Different Sounds with the CY-15R’s Bow, Bell, and Edge
(Three Way Triggering Feature)
When you use the TDW-1 with V-Cymbal Control, which completely supports the V-Cymbal, three way triggering (bow, bell,
and edge shot) performances that use both outputs on the CY-15R are possible.
Oke
The Original version of the TDW-1 and the non-expanded TD-10 do NOT support three way triggering (p. 11).
Connection Examples
As shown below, connect the two outputs on the CY-15R to the two trigger inputs on the TD-10 (TDW-1 with V-Cymbal Control)
and make the'settings for the corresponding trigger types.
OUTPUT
DIRECT
i
DIRECT 3
Trigger Type Settings
TRIGGER BANK 2's factory defaults are set for using the
three way triggering feature.
How to Select the Trigger Bank
1. Press [SETUP] - [Fl (TRIG)] - [Fl (BANK)].
2. Select the BANK “2” by turning the VALUE dial.
OUTPUT TRIG INPUT | TRIGGER TYPE
| BOW/BELL | 10/RIDE “RdA (CY-I5R Position) _
| BOW/EDGE | 11/AUX 1
Tf you connect a pad or a V-Cymbal ONLY to the trigger input for
which trigger type is set to “CTR” (11/AUX 1), it will NOT work. °
, _Roland
rps ee CBee @® MR 8 ke
5600036000000
DIRECT 2
bs 606026
TD-10 (TDW-1 with V-Cymbal Control)
MEMORY CARD
©
®
4 SNARE KICK
O0O0000®
CRASH 2 CRASH) HIHAT ®
TRIGGER INPUT
Playing Methods TRIG INPUT
Bow Shot
10/RIDE RIM
Correspondences Between Playing
Methods and Trigger Input
|
Bell Shot —_
Edge Shot L1/AUX1TRIM
*Head-side tones for the trigger input 11/AUX 1 cannot be sounded.
Ore
If you are using a sound module other than the TD-10 + TDW-1 with V-
Cymbal Control (such as a non-expanded TD-10 or the Original version
of TDW-1), then use either the BOW/BELL output or the BOW /EDGE
output, but NOT both (p. 7). When the two outputs are used
simultaneously, the two sounds of the connected trigger inputs are
sounded at the same time.
* For more details on three way trigvertig feature, refer to the owner's
manual for the TOW-1 with V-Cymbal Control.
9

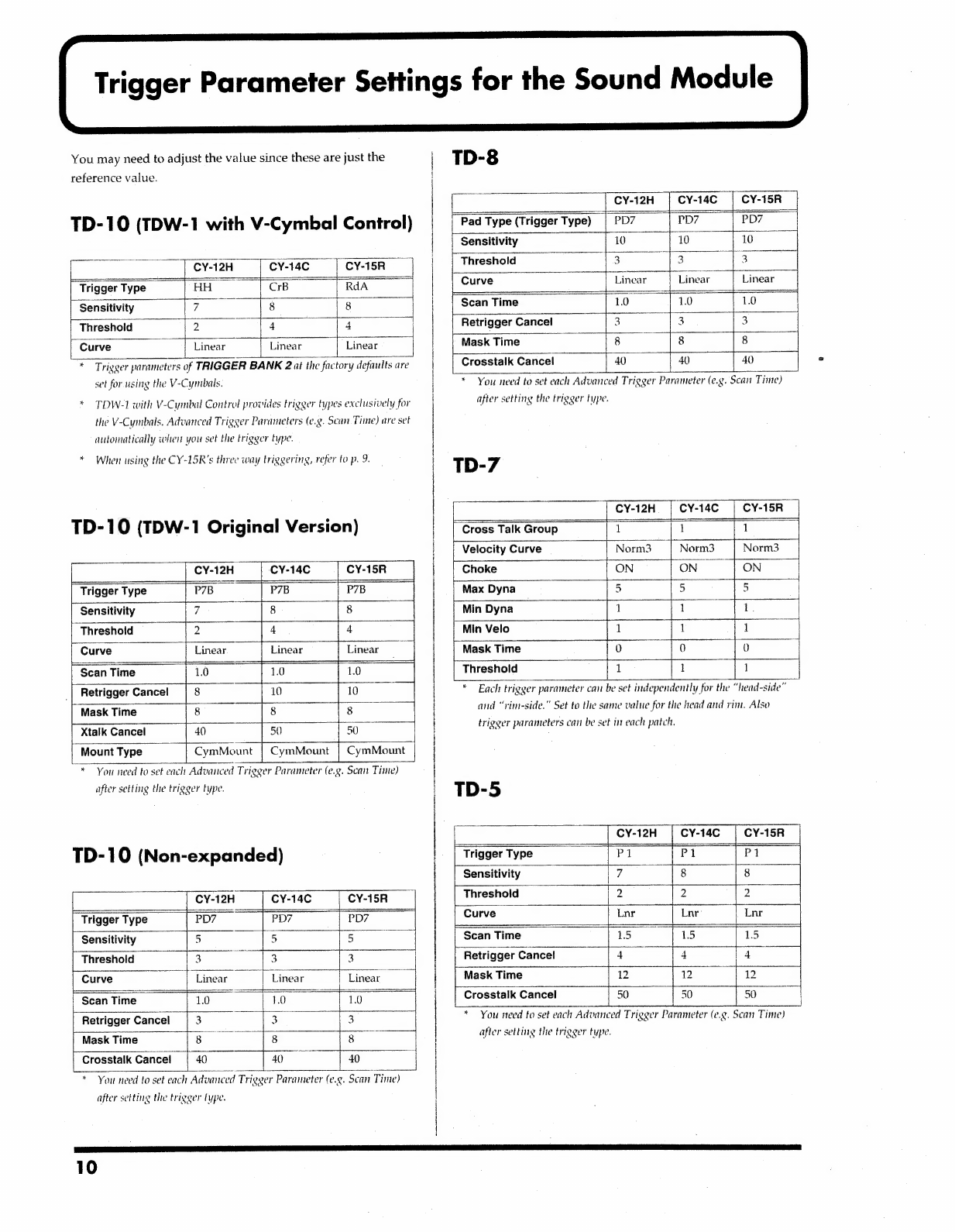

Trigger
Parameter
Settings
for
the
Sound
Module
You may need to adjust the value since these are just the |
reference value.
|
_
CY-12H
|
Cy-14C
|
CY-15R
°
F
;
=
+
ie
=
TD-10
(TDW-1
with
V-Cymbal
Control)
|
|
Pad
Type
(Trigger
Type)
|
PD7
poz
|
Por
LL
| Sensitivity 10 10 10
7
TD
GY-42H-
CY-14C
—|:-CY-15R
|
Threshold
3
3
7
3
Trigger
Type
THH
=
CrB
RdA
|
|
Curve
Linear
Linear
Linear
= = +
Sensitivity
=F
7
8
8
|
Scan
Time
1.0
1.0
|
1.0
|
Threshold
“To
4
4
|
Retrigger
Cancel
3
a
5
ross
fat
hes
cont
=
=
ies
aac
|
Curve
T
Linear
Linear
Linear
|
[
Mask
Time
8
ic
i
*
Trigger
parameters
of
TRIGGER
BANK
2at
the
factory
defaults
are
|
Crosstalk
Cancel
40
|
40
40
set
for.
using
the
V-Cymbals:
*
You
need
to
set
each
Advanced
Trigger
Parameter
(e.g.
Scan
Time)
s
L
i
Sa
8
*
TDW-1
with
V-Cymbal
Control
provides
trigger
types
exclusively
for
after
setting
the
trigger
type.
the V-Cymbals. Advanced Trigger Parameters (c.g. Scan Time) are set |
automatically when you set the trigger type. |
*
When
using
the
CY-15R’s
three
way
triggering,
refer
to
p.
9.
i
7 7 : | TD-7
CY-12H | CY-14C | CY-15R
TD-
1
0
(TDOW-1
Original
Version)
Cross
Talk
Group
1
1
1
|
Velocity Curve Norm3 | Norm3 Norm3
CY-12H | CY-14C =|: CY-15R ON ON | ON
Trigger
Type
P7B
CSS
PZB
P7B
Max
Dyna
5
Sensitivity
rae
8
8
Min
Dyna
1.
Threshold
—
3
4
4
Min
Velo
aay
Curve Linear Linear Mask Time
Scan
Time
1.0
1.0
1.0
Threshold
Retrigger
Cancel
8
10
10
:
|
*
Each
trigger
parameter
can
be
set
independently
for
the
“head-side”
Mask
Time
8 8
3
i
and
“rim-side.”
Set
to
the
same
value
for
the
head
and
rim.
Also
|
Xtalk
Cancel
40 50
5)
|
|
trigger
parameters
can
be
set
in
each
patch.
| ai | |
Mount Type CymMount | CymMount | CymMount |
~* You need to set each Advanced Trigger Parameter (e.g. Scan Time) |
after
setting
the
trigger
type.
TD-
5
|
|
| CY-12H CY-14C CY-15R
TD-10
(Non-expanded)
|
|
Trigger
Type
~
|
PL
|
Pi
| Sensitivity 7 8
i [ Threshold 2 2
— at
l Trigger Type Curve Lnr Lor Lnr
gger
lyp
|
rare
eit
Sale
Sensitivity
Scan
Time
1.5
1.5
15
1
L.
—————_
Threshold
Retrigger
Cancel
4
4
4
aif
ies
at.
22
:
tng
ea
Curve
Linear
Linear
|
Linear
Mask
Time
12
12
Paes FN eat Ss
| Scan Time niger 1.0 1.0 Crosstalk Cancel 50 50 [50
tL L
Retrigger Cancel [3 3. 3 * You need to set each Advanced Trigger Parameter (e.g. Scan Time)
|" Mask Time 3. _ 8 as after setting the trigger type.
* You need to set each Advanced Trigger Parameter (e.¢. Scan Time)
after setting the trigger fype.
_ | i |
Crosstalk Cancel | 40 40 40

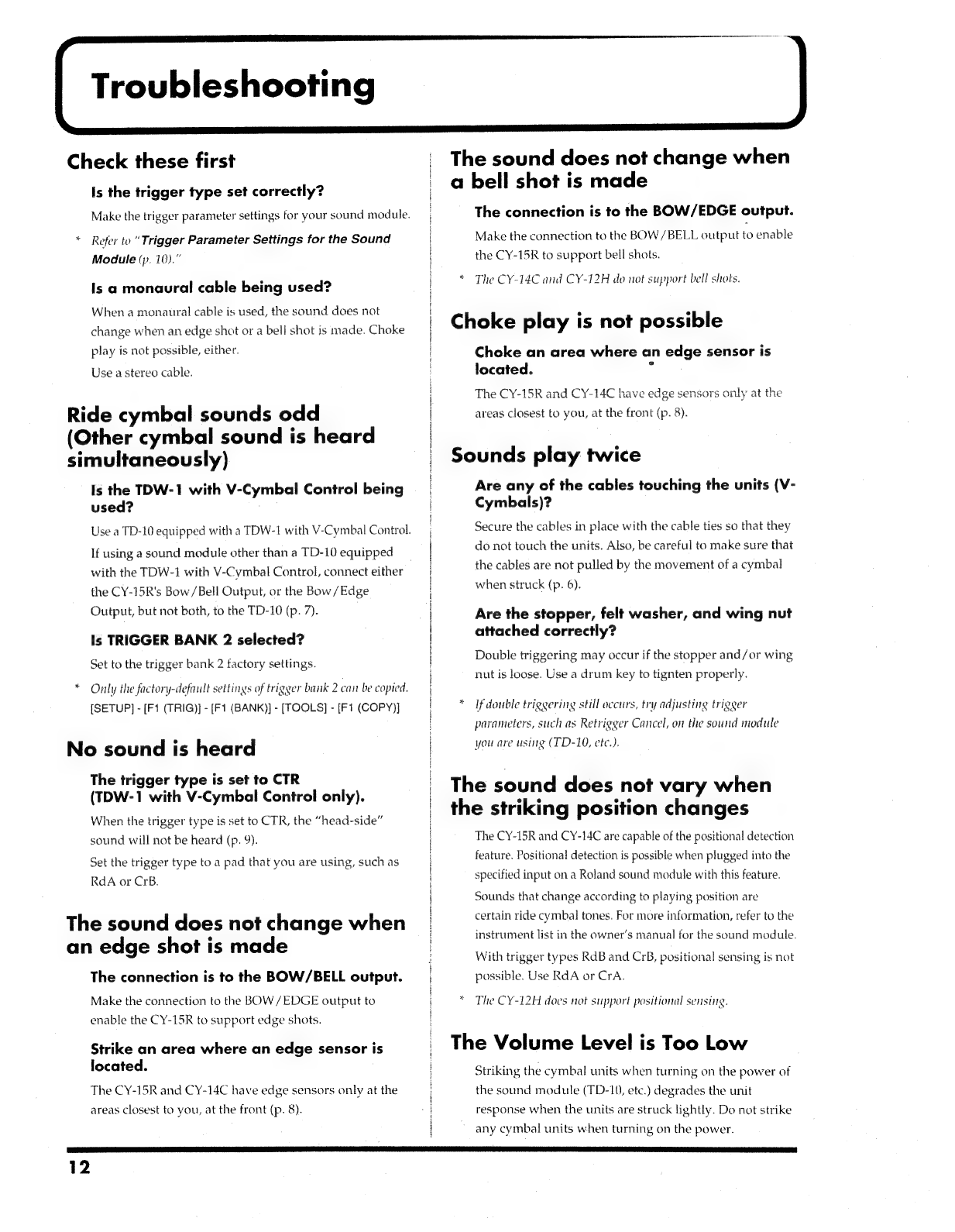

10
