TD-20 LEAFLET
40566289 3PD

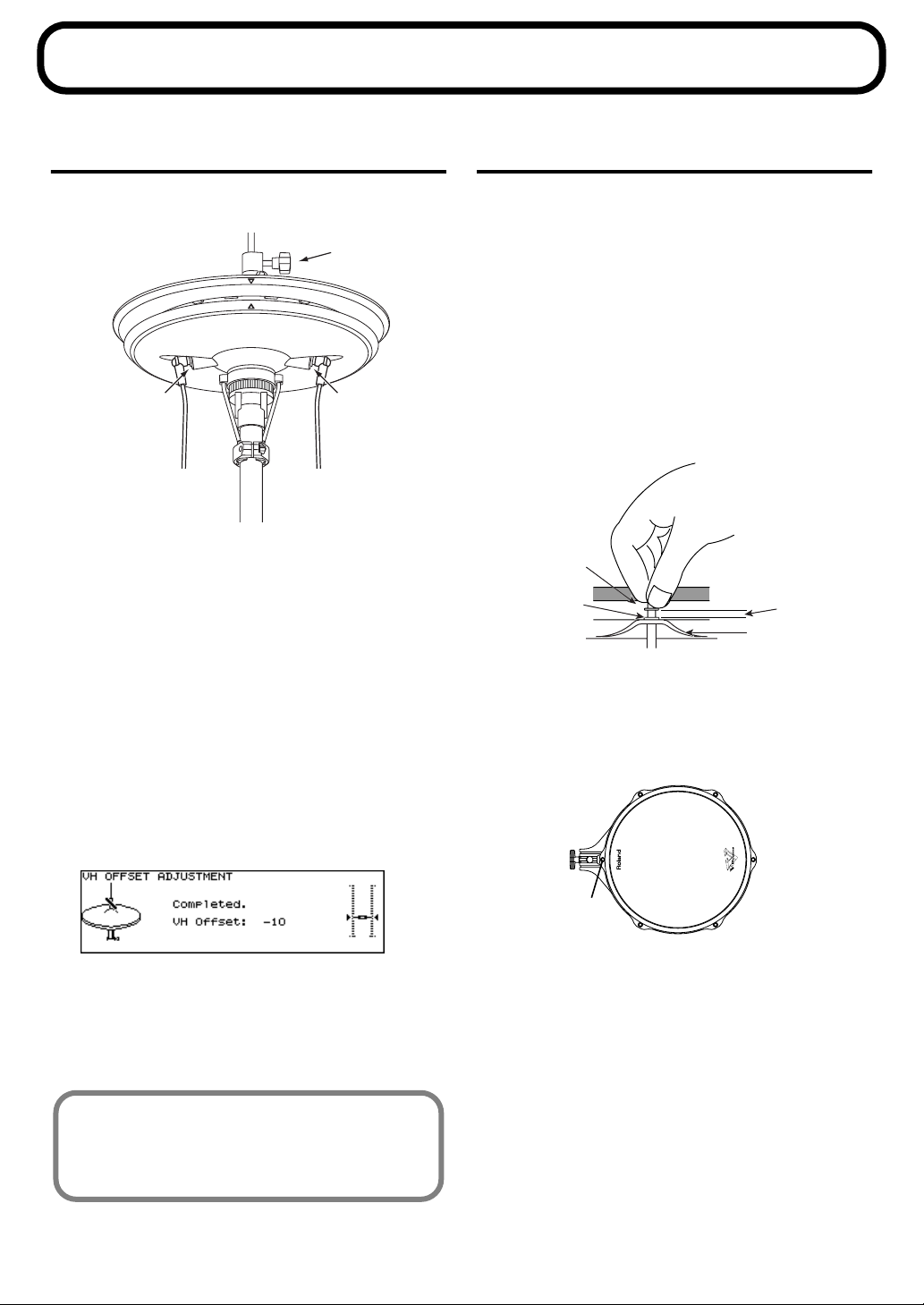

Connecting the Hi-Hat (VH-12)
and Setting the “VH Offset”
Connecting the Hi-Hat
* If you do not make VH-12’s setting correctly, it may cause
malfunction. For details, refer to the VH-12 owner’s manual.
Adjusting the Offset
When using the VH-12, the “VH Offset” needs to be set up.
1.
Loosen the clutch of the top hi-hat and let it sit
on the bottom hi-hat.
* Do NOT touch the hi-hats or the pedal.
2.
Hold down [KIT] and press [TRIGGER] on the
TD-20.
The “VH offset” parameter is set automatically. (approx.
3 seconds)
[TRIGGER] stops flashing and remains lit.
fig.05-VHOffset3_70
If you need, make further adjustments to the parameters.
Refer to
Hi-Hat Settings [F3 (HI-HAT)]
(TD-20 owner’s
manual; p. 46).
* If you adjust the value of “Noise Cancel,” set it to the
minimum value required to prevent a noise.
Adjusting the Mesh Head of the
Pad (PD-125/105)
Heads MUST BE TUNED BEFORE PLAYING.
When adjusting, use a tuning key.
Like with an acoustic drum, accurate and equal head tension
is needed for correct triggering response.
*On the PD-125/105, adjusting the head tension affects only the
head response, and not the pitch of the sound, as it would on an
acoustic drum.
1.
Loosen the tuning bolts until a slight gap is
produced.
2.
Tighten all tuning bolts by fingers, as tightly as
you can.
fig.PD-Nut.e
3.
Using the tuning key, turn the tuning bolts two
full revolutions each, thus tightening them.
Tighten each tuning bolt one by one, observing the
numerical order shown in the figure.
fig.PD-BoltOrder
If You Could Not Get a Rim Shot/
Cross Stick Sound Smoothly
If you could not get a rim shot/cross stick sound smoothly,
you can adjust the parameter described below.
1.
Press [TRIGGER] - [F5 (ADVANCE)] - [F2 (RIM)]
on the TD-20.
2.
Raise the value of “RimShot Adjust.”
* Set this value as high as possible while the rim does not sound
when you hit the head strongly.
CONTROL
OUTPUT
jack
TRIGGER
OUTPUT
jack
to
TRIGGER INPUT
HI-HAT jack
to
HH CTRL jack
Clutch
screw
Compatible Memory Card
Compatible memory card with TD-20 is a 3.3 V
CompactFlash card with the capacity of 16 to 512 MB.
The other card cannot be used.
Tuning bolt
Washer
Hoop
Slight gap
13
42
5
6
HEADMADE BY REMO U.S.A.
Before Playing
