Select/Listen to a Song Score Display

Song Stylist

Session Partner

Music Assistant Select Various Tones

P. 6 P. 8 P. 18

P. 14

P. 10

P. 16

The KR features over

170 songs in its

memory. Use this

button to select a song.

The score for the selected song

is displayed on the screen. You

can display scores not only for

songs in the KR’s memory, but

also for songs on disks.

Enjoy performing songs with

alternative arrangements,

including rock and jazz-

inspired styles.

(not available on KR-5)

You can play along with a

band accompaniment.

Chord progressions are

provided automatically

(not available on KR-5).

Use the KR’s Automatic

Accompaniment feature to

add accompaniments to

your favorite songs.

You can select specially

recommended Tones

from the KR’s library of

sounds.

Quick Start

without the written permission of ROLAND CORPORATION.

Congratulations on choosing of the Roland Digital Intelligent Piano KR!

How To Use This Manual

The KR Owner’s Manual consists of two volumes, Quick Start and the Owner’s Manual.

Please start out by reading “Before You Start Playing” in the Owner’s Manual. This explains how to connect

the KR’s power cord and how to turn on the instrument’s power.

After turning on the KR’s power, please continue by reading Quick Start (this volume).

By trying out the various procedures while reading the Quick Start, you can easily learn how to play the KR

and make use of its major functions (especially procedures that involve use of the “main buttons”).

The Owner’s Manual describes procedures, from basic operation to procedures for special applications (for

example, using the KR as an accompanist and creating songs), that will help you master the KR’s many

performance functions.

2 19

Contents

About the Piano Screen .................................................................3

About the Key Template................................................................3

A Quick Tour of the KR.........................................................4

Playing in a Wonderland of Sounds .....................................5

[Select/Listen to a Song] Button ............................................6

[Score Display] Button ..........................................................8

[Music Assistant] Button (1).................................................10

[Music Assistant] Button (2).................................................12

[Select Various Tones] Button..............................................14

[Song Stylist] Button (not available on KR-5).......................16

[Session Partner] Button (not available on KR-5).................18

• The screens and panel diagrams used in this text are from the KR-7.

Thus, be aware that certain features may differ from those described.

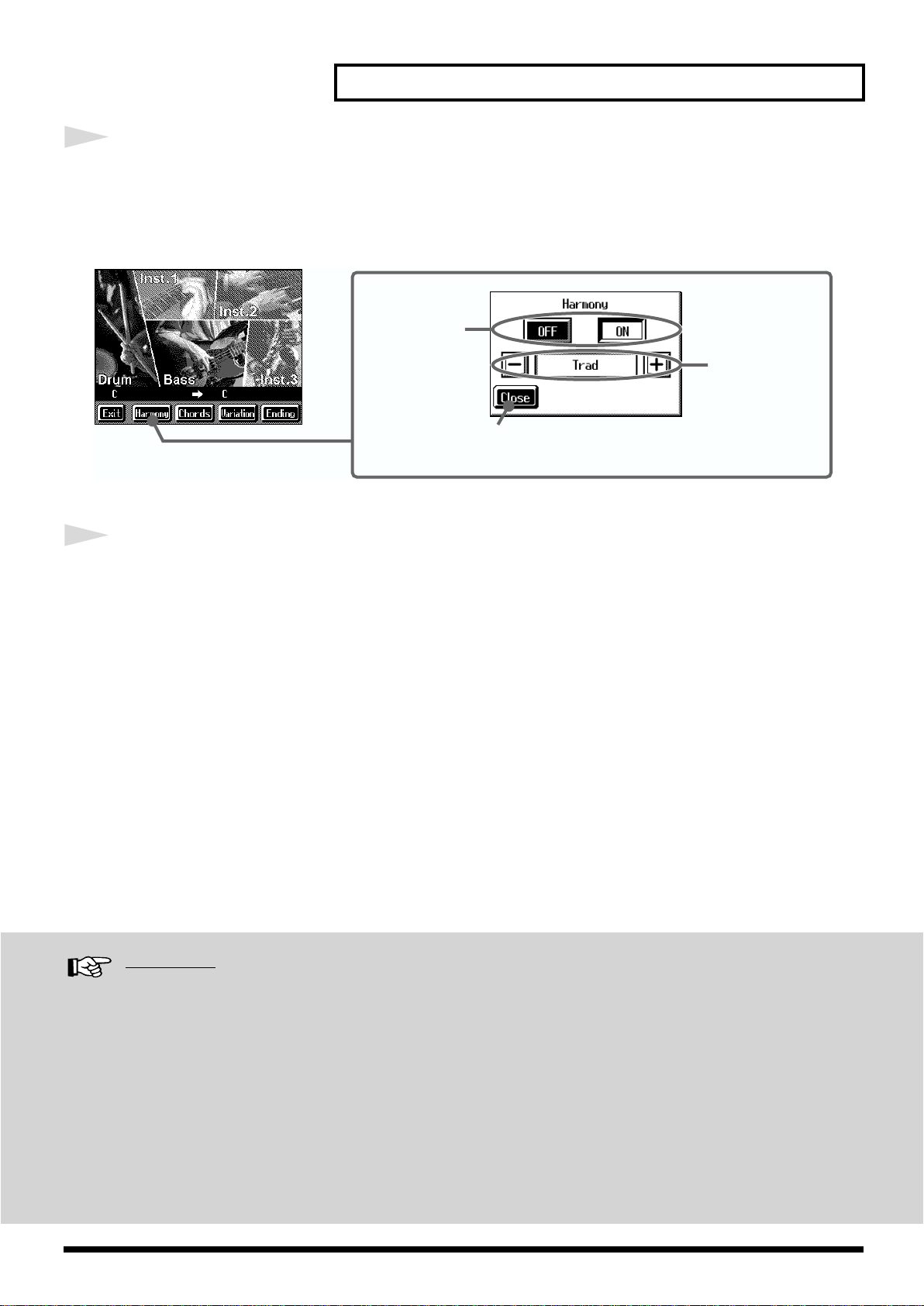

3Touch <Harmony>.

You can use the “Harmony” features to add more excitement to your performances.

Use “Harmony” to add harmonies to the melodies, based on the accompaniment chords. Change

the type to change the instrument playing the melody and the way harmonies are added.

fig.Q_session2.e

4Touch <Ending> to stop the performance.

Reference

For more detailed information about the Automatic Accompaniment, refer to “Chapter 2 Automatic Accompaniment” in

the Owner’s Manual.

For more detailed information about the Harmony function, refer to “Adding Harmony to the Right-Hand Part (Melody

Intelligence)” in the Owner’s Manual.

For more detailed information about the chord fingering, refer to “Chord List” in the Owner’s Manual.

Touch here to

close this window.

Touch <-><+>

to select the

harmony type.

This switches

the harmonies

on and off.

[Session Partner] Button (not available on KR-5)

About the Piano Screen

The following “Piano Screen” appears when the KR is turned on.

fig.Q_piano.j

When this screen is displayed, you can change the settings that affect the KR’s piano performances.

Although the screen changes when you press the buttons to carry out the various operations and

settings, you can bring up the Piano screen at any time by pressing the One Touch Program [Piano]

button, and switch back to piano performance.

fig.Q_panel_piano

For more detailed information, refer to “Playing the Keyboard Like a Piano (One-Touch Piano)” in

the Owner’s Manual.

About the Key Template

Use the key template included with this volume when specifying the chords for Automatic

Accompaniment on the KR.

For more on performing with Automatic Accompaniment, refer to “[Music Assistant] Button (1)”

(p. 10).

Position the key template as shown in the figure below.

fig.panel

When you touch the

piano lid, the piano

tone changes as you

slide your finger to

open and close the lid.

When you touch here, you can

then change the piano

performance settings.

For more information, take a

look at “Changing the Settings

for One-Touch Piano” in the

Owner’s Manual.

Touch here, the piano tone

changes.

Press the OneTouch Program [Piano]

button to bring up the Piano screen.

Placement of

the Key Template

KR-7

A Quick Tour of the KR

The “Quick Tour” provides visual descriptions of the KR’s special features, characteristics and

main performance functions.

Touch the screen to listen to a variety of demos.

Display the Quick Tour screen.

Touch the category for the type of demo you want to hear.

fig.Q_demo.e

At this time, let’s see what we get by touching <Styles>.

You can listen to demo performances in the <Styles> and <Tones> introductory demos.

Touch <Exit> to return to

the Quick Tour screen.

Try the other categories.

Touch <Exit> on the Quick

Tour screen to end the

Quick Tour.

Hold down the [Game] button

and press the [Part Balance] button.

Quits the

Quick Tour

screen.

When you touch here, the demo continues

automatically. All of the demos may be viewed

using this function.

Make settings for the

automatic demo. For more

detailed information, refer

to “Automatically Starting

the Quick Tour” in the

Owner’s Manual.

* The KR-5 does not

feature the <Display>.

This returns you to

the Quick Tour screen.

This displays the screen

used for listening to

demo performances.

Shows the

previous page. Shows the

next page.

Playing in a Wonderland of Sounds

“Wonderland” is an enjoyable world of sounds when you can listen to a variety of instruments,

hear performances, and play game with a simple touch of the screen.

Display the Wonderland screen.

fig.Q_wonder.j

Touch the item you want to play.

fig.Q_demo.e

Touch <Exit> to return to the Wonderland screen.

Touch <Exit> on the Wonderland screen to end the Wonderland.

Reference

When connecting a mic to the KR, refer to “Connecting a Microphone” in the Owner’s Manual.

Performances can use

several types of

percussion instru-

ment sounds.

Performances can use

a number of different

instrument sounds.

You can hear various

sound effects.

Hear kid’s songs.

Youcanconnecta mic

to the KR and change

the sound of your

voice. (not available

on KR-5)

Play six different

games, including ear

training and rhythm

games.

Press the [Wonderland]

button.

Quits

the Wonderland screen.

* The KR-5 does not

feature the <Mic>.

[Select/Listen to a Song] Button

Press this button to select songs.

The KR’s more than 170 internal songs are categorized by

musical style, or genre.

Additionally, you can file songs you like to the “Favorites”

category.

Saving songs to the “Favorites” makes it more convenient to

play songs you are practicing and those you listen to frequently.

Press the [Select/Listen to a Song] button.

Touch the screen to select a genre.

Here, let’s touch <Folks>.

fig.Q_song2.e

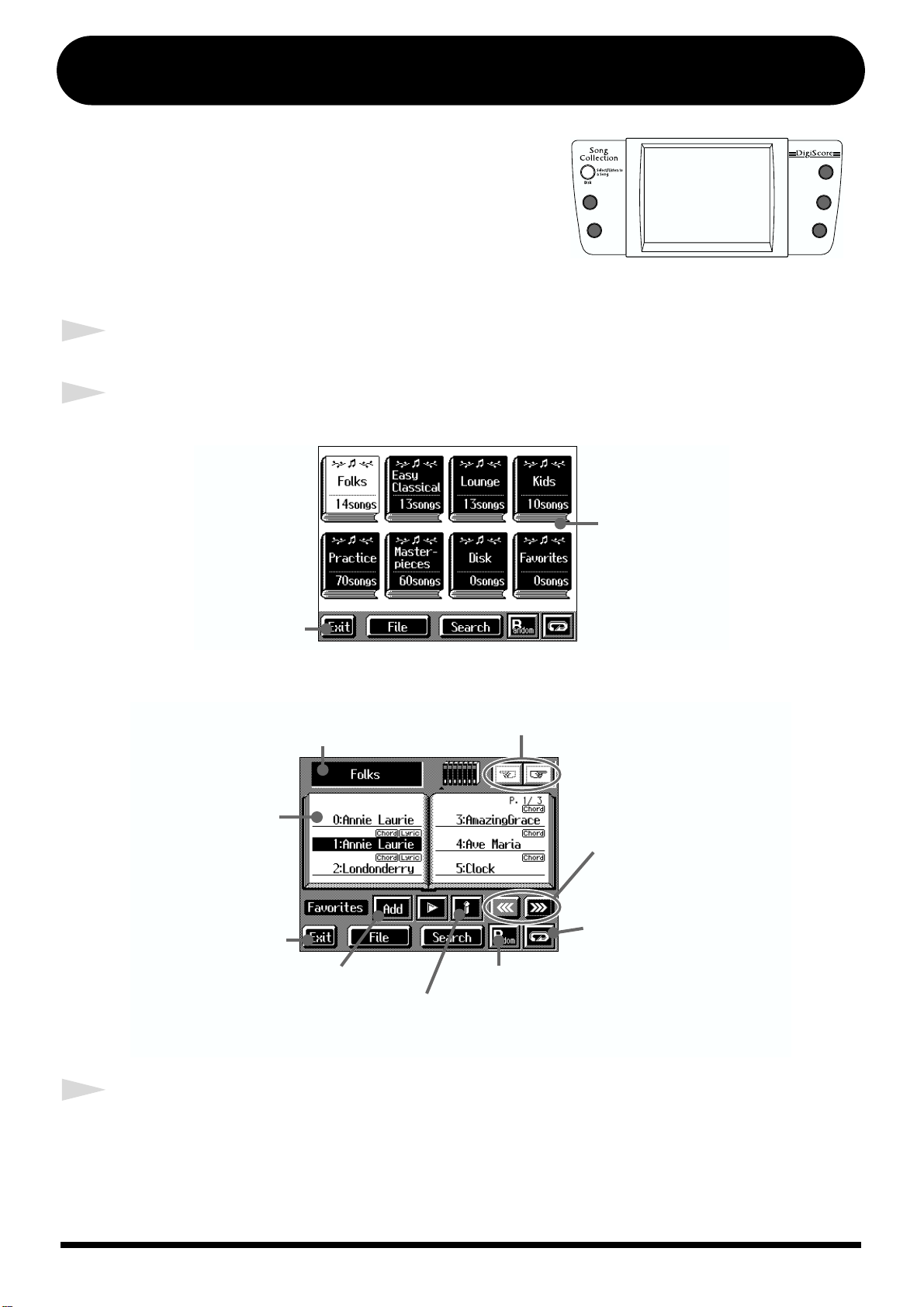

Select the song you want to hear, then touch the song name.

Quit the Song

Selection screen.

You can select the

songs by individual

genre.

This returns you to the

Genre Selection screen.

Touch here for continuous

playback of all songs in the

selected genre.

This turns the pages

in the song list.

This plays back songs

continuously in

random order.

Information about

the selected song

is displayed here.

This saves songs to the

“Favorites.”

The current song is

indicated as Song

Number 0.

The genre for the currently

selected song is displayed. Touch here to change the genre.

[Select/Listen to a Song] Button

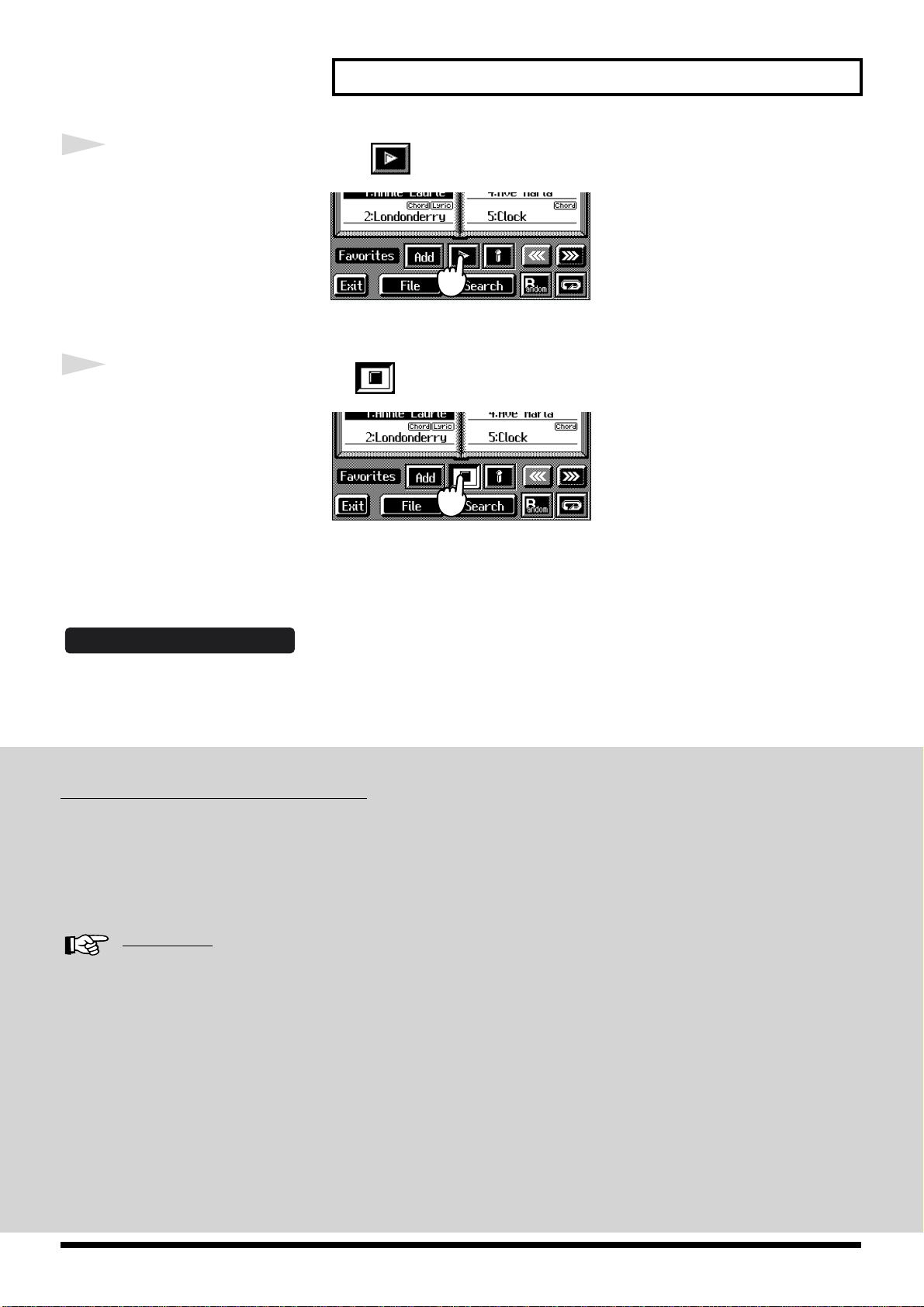

Listen to the song. Touch < >.

fig.Q_song3.j

If lyrics are displayed, touch <Exit> to return to the Song Selection screen.

To stop the song, touch < >.

fig.Q_song4.j

Displaying Song Scores

→

“[Score Display] Button” (p. 8)

Playing Back Songs with Different Arrangements

→

“[Song Stylist] Button (not available on KR-

5)” (p. 16)

When Listening to Songs on Disks

Insert the disk containing the song you want to play in the KR’s disk drive.

Press the [Select/Listen to a Song] button and select “Disk” for the genre; you now can select songs

on the disk.

Reference

For more detailed information about playing back songs, refer to “Playing a Song” in the Owner’s Manual.

For more detailed information about

“Favorites,”

refer to “Registering the Songs You Like (Favorites)” in the Owner’s

Manual.

For more detailed information about

<File>

in the Song Selection screen, refer to “Saving Songs” in the Owner’s Manual.

For more detailed information about

in the Song Selection screen, refer to “Using Keywords to Search for Songs

(Song Search)” in the Owner’s Manual.

Advanced Use of the KR

[Score Display] Button

You can display scores not only for the internal songs, but for

recorded songs and songs on disks as well.

Some songs also include the fingering and chord information

in the display.

This information is not only useful for piano practicing, but is

also handy when you want to view the chords while playing

accompaniment to songs.

Press the [Select/Listen to a Song] button to select a song (p. 6).

Press the [Score Display] button.

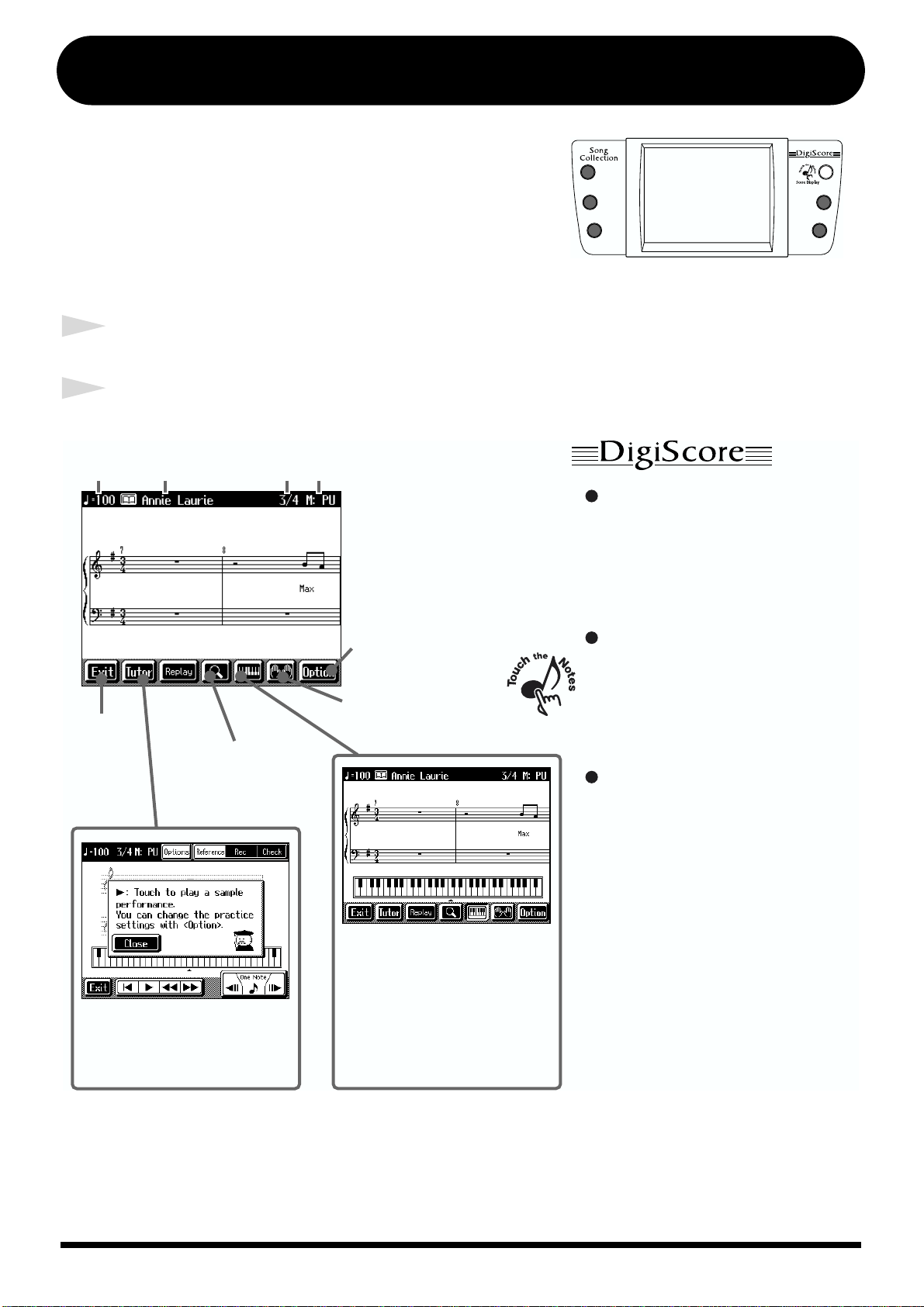

fig.Q_score.j

Quit the

Score screen.

Make settings for

the score display

This gives an enlarged

view of individual

measures. You can also

display the note names.

The score and keyboard are

displayed. This allows you to

check the keys that are pressed

for the sounds being played back.

On the KR-5, the keyboard is

displayed.

This brings up the Tutor screen.

For more detailed information,

refer to the Owner’s Manual.

This selects the part for

the score displayed.

Tempo Song name Beat Measure number

Bouncing Ball

The bouncing ball shows you the note

that is currently being played. It helps

you follow the score and get a sense of

the rhythm.

Touch the Notes

When you touch a note on the screen, the

sound of that note is played. When you

drag your fingertip along the score, the

section your trace is then played back.

Replay

When you touch <Replay>, the left pedal

functions as the “Replay.” When you

press the pedal during the playback of

the song, playback stops, and when you

release the pedal, playback resumes

starting at the beginning of that measure.

When the pedal is pressed repeatedly,

playback rewinds.

* The KR-5 does not

feature the <Tutor>.

[Score Display] Button

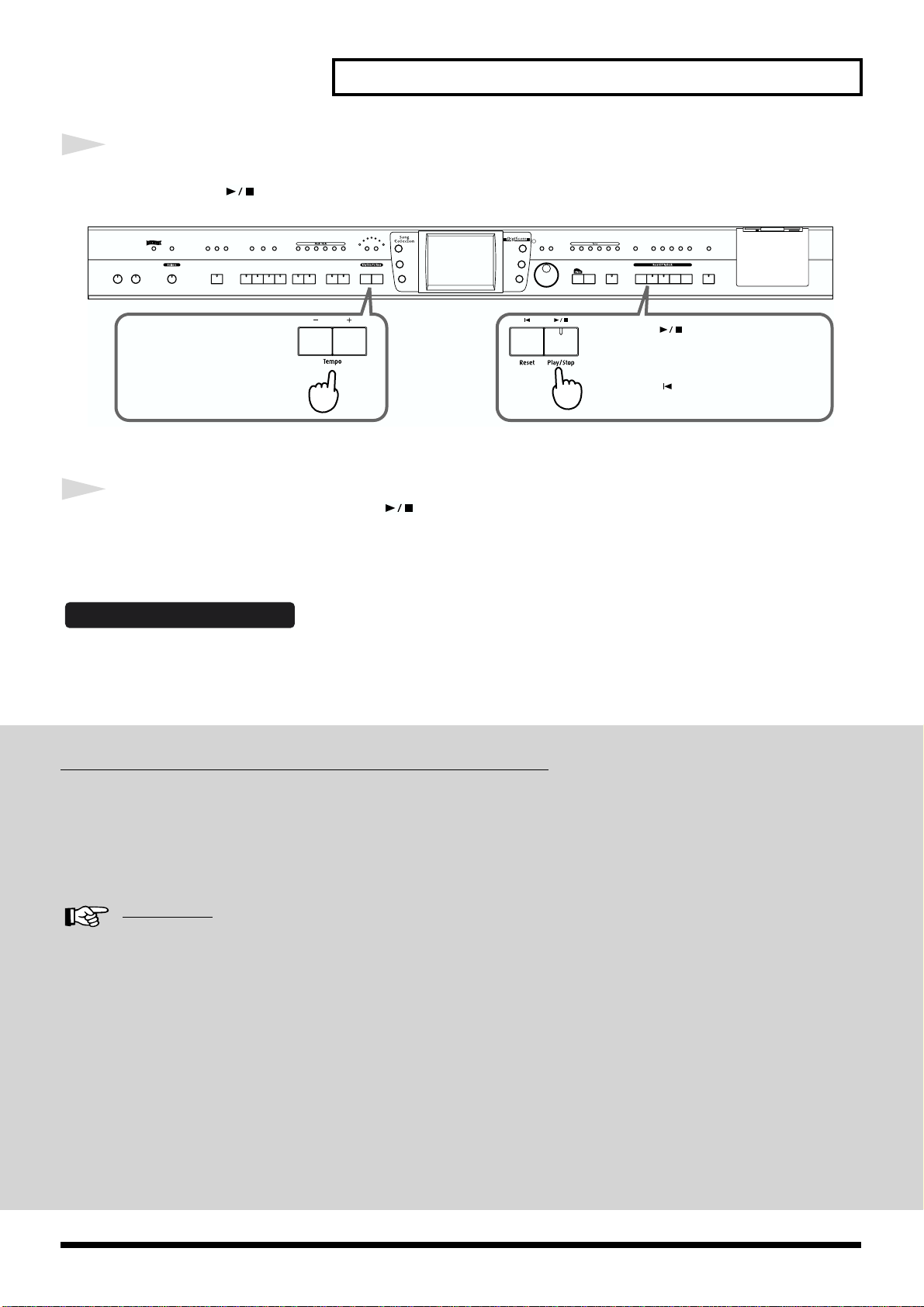

Now play back the song.

Press the [ (Play/Stop)] button.

fig.Q_panel5-1

The display advances along with the song playback.

To stop the song, press the [ (Play/Stop)] button once more.

Practicing Songs

→

“Practicing Songs with the Practice Function” in the Owner’s Manual.

Displaying the Score on a Large Screen

→

“Connecting an External Display” in the Owner’s Manual.

When displaying the scores of recorded performances:

After recording your own performance, press the [Score Display] button.

For more detailed information about recording, refer to “Chapter 4 Recording and Saving the

Performance” in the Owner’s Manual.

Reference

For more detailed information on the Score screen, refer to “Displaying the Score” in the Owner’s Manual.

For more detailed information about

on the score screen, refer to “Making Detailed Settings for the Score

Display” in the Owner’s Manual.

Press the [ (Play/Stop)] button

to play back the song. Press it again

to stop the song.

Press the [ (Reset)] button to

return to the beginning of the song.

Change the tempo of the

playback with the

Tempo [-] [+] buttons.

Advanced Use of the KR

[Music Assistant] Button (1)

What is Automatic Accompaniment?

Automatic Accompaniment is a function that lets you add

accompanimentusing avariety ofinstrument sounds,such as

drums, guitar and trumpet, simply by playing the chords.

Let’s try playing a song using Automatic Accompaniment.

Press the [Music Assistant] button.

Touch a song name to select the song you want to play.

fig.Q_accomp.j

Let’s select “Annie Laurie.”

The optimum settings for the selected song are automatic.

When you select a song marked with , you can display the score for that song.

Now display the score. Touch < >.

Songs Without the

Mark

Although the scores for songs without the mark cannot be displayed on the KR, try

performing while reading commercially available chord charts or sheet music.

Once you are able to play the chords in the left hand, make use of the

“[Music Assistant] Button

(2)” (p. 12)

Excitement function.

Quit the Music

Assistant screen.

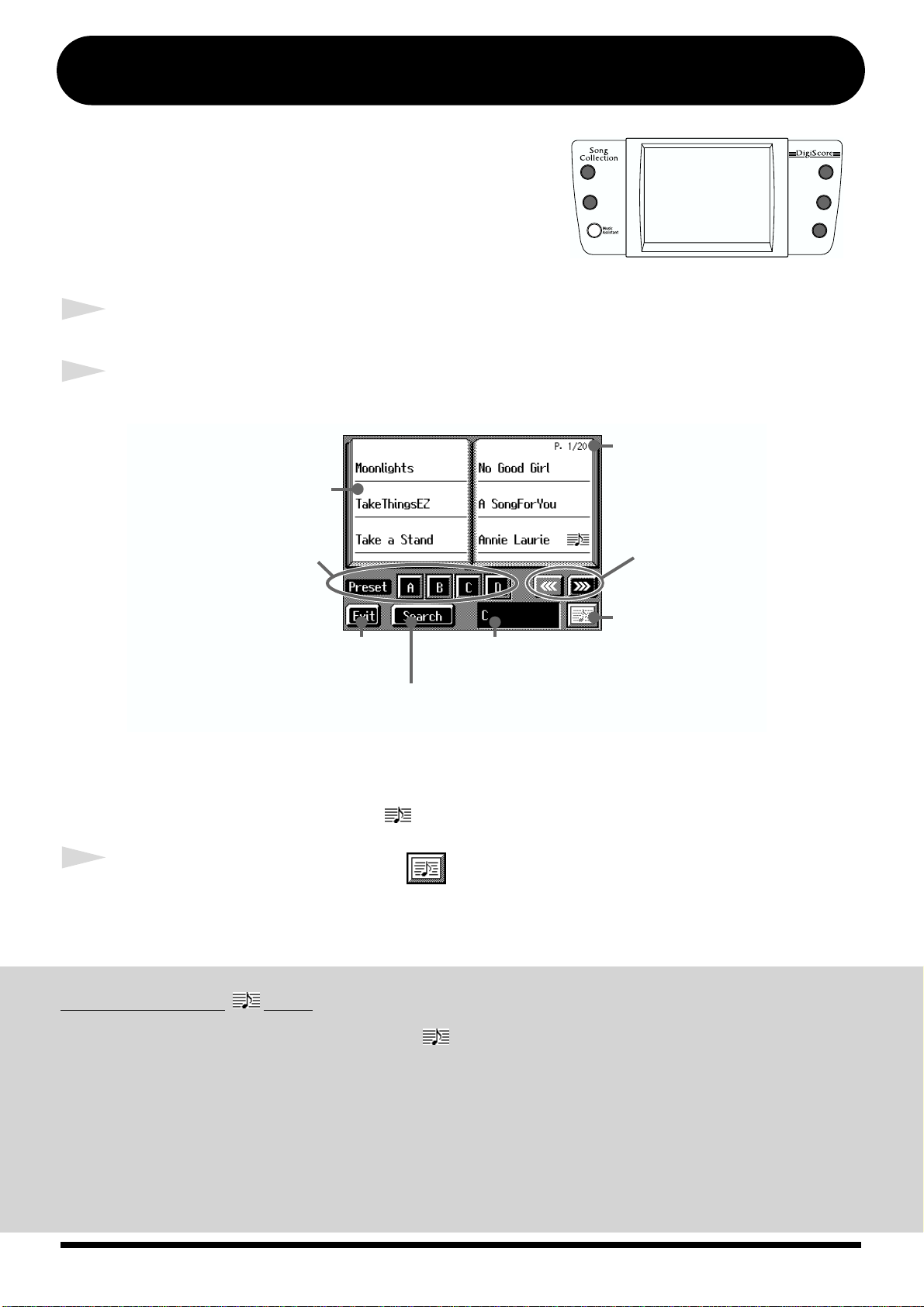

Touch the name of the

song you want to play.

Touch here to display

the score.

This turns the pages

in the song list.

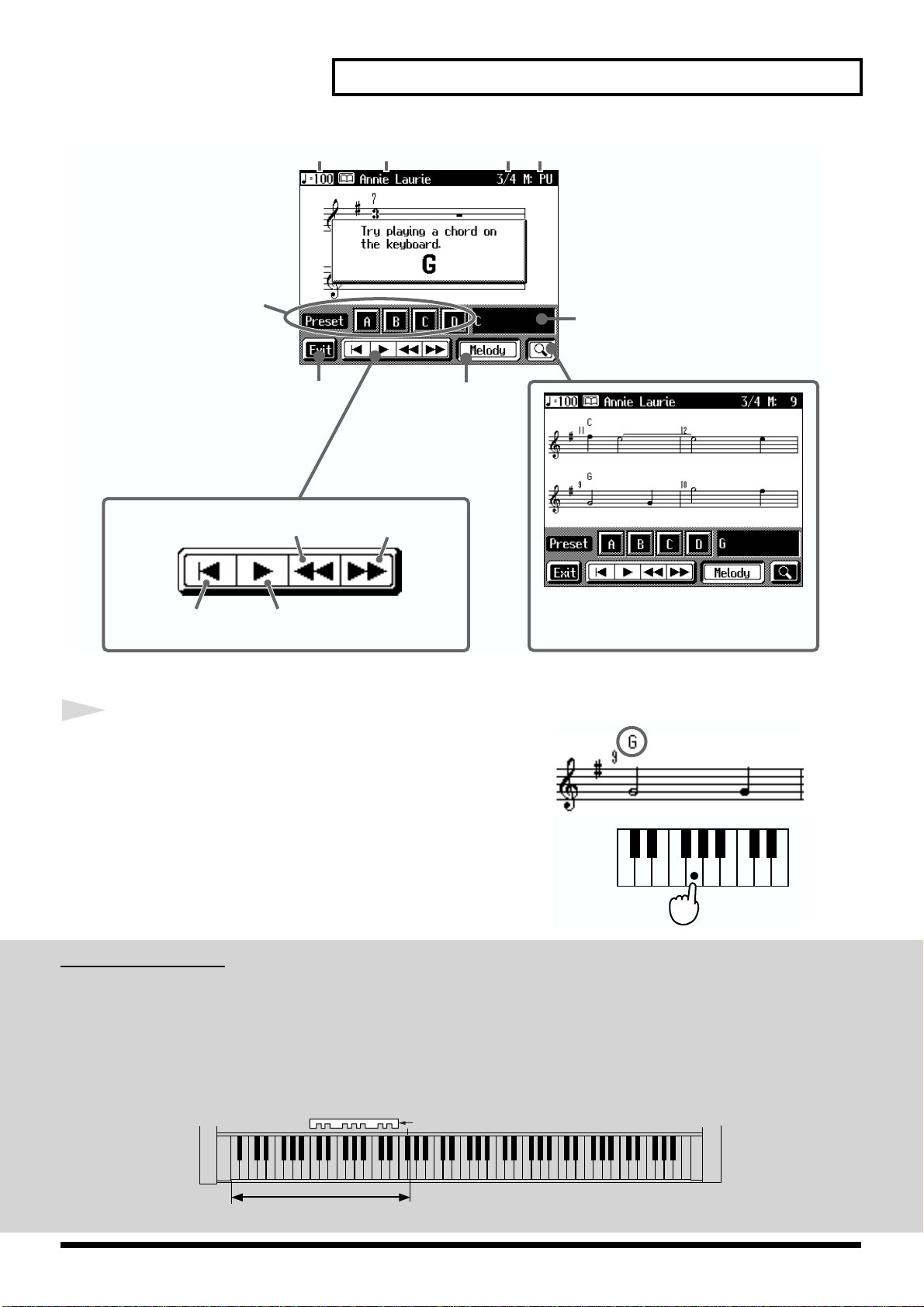

The name of the chord currently

played is displayed.

Search for song names using

keywords and initials.

The pages in the song

list are displayed here.

Changing the preset

changes the accompaniment

style, right-hand tone and

other settings.

[Music Assistant] Button (1)

fig.Q_accomp2.j

Begin performing.

Play a G chord on the keyboard.

The accompaniment begins.

The first chord is “G.” Play the key template “G” key.

Look at the chord symbol shown in the score, and play the

chord in the left hand.

If the accompaniment tempo is too fast or difficult, then

try a slower tempo.

Specifying Chords

WhenAutomatic Accompanimentis in use,the keyboardis dividedinto left and right sections,and

each sections is assigned a different function.

Accompaniment is started and chords are switched on the left-hand side. The right-hand side is

used for playing melodies. The included key template (p. 3) makes it easier to figure out the keys

that are used in specifying chords.

This returns you to the

Song Selection screen.

The name of the chord currently

played is displayed.

Changing the preset

changes the accompaniment

style, right-hand tone and

other settings.

This increases the number of measures

displayed.

This mutes the sound

in the melody part.

Returns to the

beginning of the song.

Moves back the

playback position. Advances the

playback position.

This starts and stops playback

of the performance.

Tempo Song name Beat Measure number

Play a G key

Key used for specifying chords

Refer to the key template when specify chords.

[Music Assistant] Button (2)

Press the Fill In buttons at the points where

<>and < > are indicated.

Phrases added at points in the song where the mood

changes are called “fill-ins.”

Press the Fill In [To Original] button when < > appears

and the Fill In [To Variation] button when < > is

displayed to add more excitement to the accompaniment.

fig.Q_panel6-1

Press the [Intro/Ending] button when < >

comes up.

When you press the [Intro/Ending] button, the

accompaniment stops after the ending is performed.

Now try changing the preset.

When you change the preset, the Tone in the right hand is

altered, the accompaniment style is different, and the

entire feeling of the song is transformed.

Some presets also add harmony to the sounds played with the right hand, based on the chords

played in the left hand.

Play a melody with the right hand.

When you touch <Melody>, the melody part is muted.

When you become more familiar with the accompaniment

in the left hand, mute the sounds of melody part, and try

playing the melody yourself.

Excitement Function 1

Change the tempo of the

playback with the

Tempo [-] [+] buttons.

Excitement Function 2

It’s Time to Take on the Melody!

[Music Assistant] Button (2)

When using the melody feature with the following songs, change the point at which the keyboard

is divided (the split point) to <C3>, or some other key to the left of <C3>.

For details, refer to “Changing the Keyboard’s Split Point (Split Point)” in the Owner’s Manual.

You can specify chords with the keys to the left of the split point.

By assigning different functions to the pedals, you can then press the pedals as you perform to add

variation to the accompaniment. Here are a few of these functions. For more on how to assign the

functions, refer to “Assigning Functions to Pedals and Performance Pads” in the Owner’s Manual.

1. N.C. (No Chord) Function

When “N.C.” appears in the score screen, press the pedal to which “No Chord” is assigned.

Only the accompaniment’s rhythm part is played. The next time you specify a chord with the

keyboard, the No Chord function is cancelled, and all of the accompaniment parts are played.

2. Leading Bass Function (Specifying Slash Chords)

Slash chords, such as “C/G,” are shown in the form of a fraction. The letter in the slash chord’s

denominator indicates the lowest note. When specifying such slash chords, first assign the

“Leading Bass” function to the pedal.

For example, for the slash chord “C/G,” on the keyboard you would specify a “C” chord having

“G” as the lowest note. At the same time, press the pedal to which the leading bass is assigned.

When you touch <Search> in the screen for a song performed with Automatic Accompaniment,

you can then search for song titles by keyword or initial letter.

The procedure is the same as that for “Style Search.” Refer to “Using Keywords to Search for Music

Styles (Style Search)” in the Owner’s Manual.

Reference

For more detailed information about the Automatic Accompaniment, refer to “Chapter 2 Automatic Accompaniment” in

the Owner’s Manual.

For more detailed information about the chord fingering, refer to “Chord List” in the Owner’s Manual.

Hallelujah! Little Brown Jug Mondschein

More Pedal Techniques!

[Select Various Tones] Button

The KR features more than 600 internal sounds.

Naturally, these include piano, but you can also play brass,

woodwind, and electronic instrument tones, as well as a

variety of other tones, even non-instrument sounds.

Press this button to select recommended tones.

1Press the [Select Various Tones] button.

2Touch the tone you want to perform with.

fig.Q_tone.j

Tones are grouped into seven types.

===ts_3

Select these to play with organ

Tones.

Select these to play with percus-

sion instrument sounds. A dif-

ferent percussion instrument

plays with each key you press.

These produce special effects. A

different sound effect is pro-

duced with each key you press.

These Tones change

according to how hard

the keys are pressed.

These Tones change

when the left pedal is

pressed.

These let you play with

different Tones on the

right and left sides of the

keyboard.

These let you perform

with two Tones layered

together.

Quit the Select

Various Tones

screen.

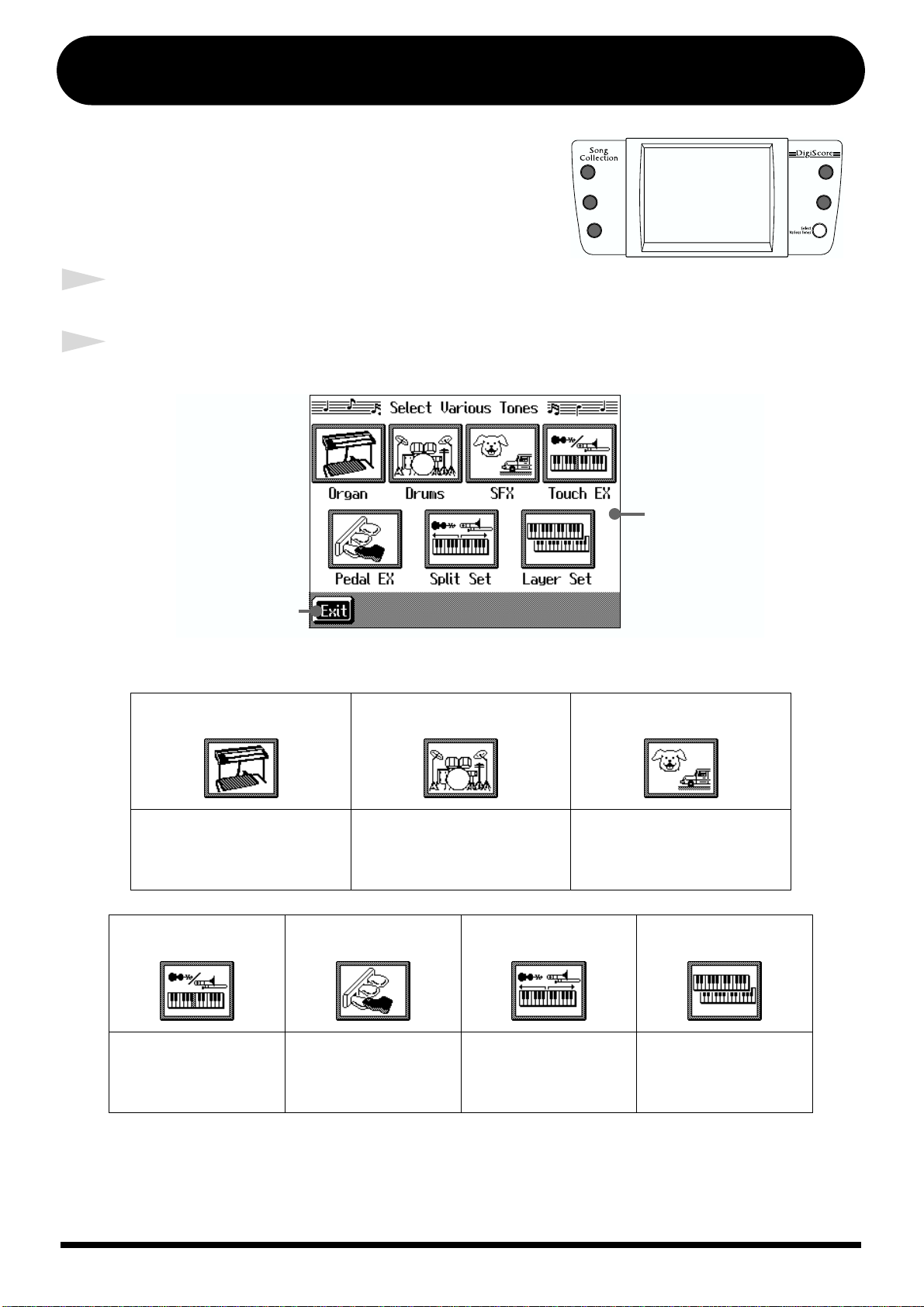

Touch the tone

you want hear.

[Select Various Tones] Button

Here, touch <Organ>.

fig.Q_tone1.j

What is the Rotary Effect?

This adds a sort of spinning effect to the organ sound, similar to the sound when a rotary speaker

is used.

Changing the speed increases or decreases the speed of this spinning effect.

What is Footage?

A device for combining different frequencies to create a desired sound is called “Footage.”

The numbers displayed originally referred to the lengths of the pipes on a pipe organ. Reducing

thepipe lengthby half producesa notean octavehigher, and doubling the lengthproduces asound

an octave lower. This means that with <8> as the base value, <16> produces a note one octave

lower, and <2> produces a note two octaves higher.

Try experimenting by touching different icons to change the tone, and find one you like.

* If all icons are off (black background, like ), there will be no sound when you play the

keyboard.

You can use Percussion or to change the tone when it is played.

Touching makes the accent time shorter.

Reference

For more detailed information about the keyboard performance Tones, refer to “Performing with a Variety of Tones (Tone

Buttons)” in the Owner’s Manual.

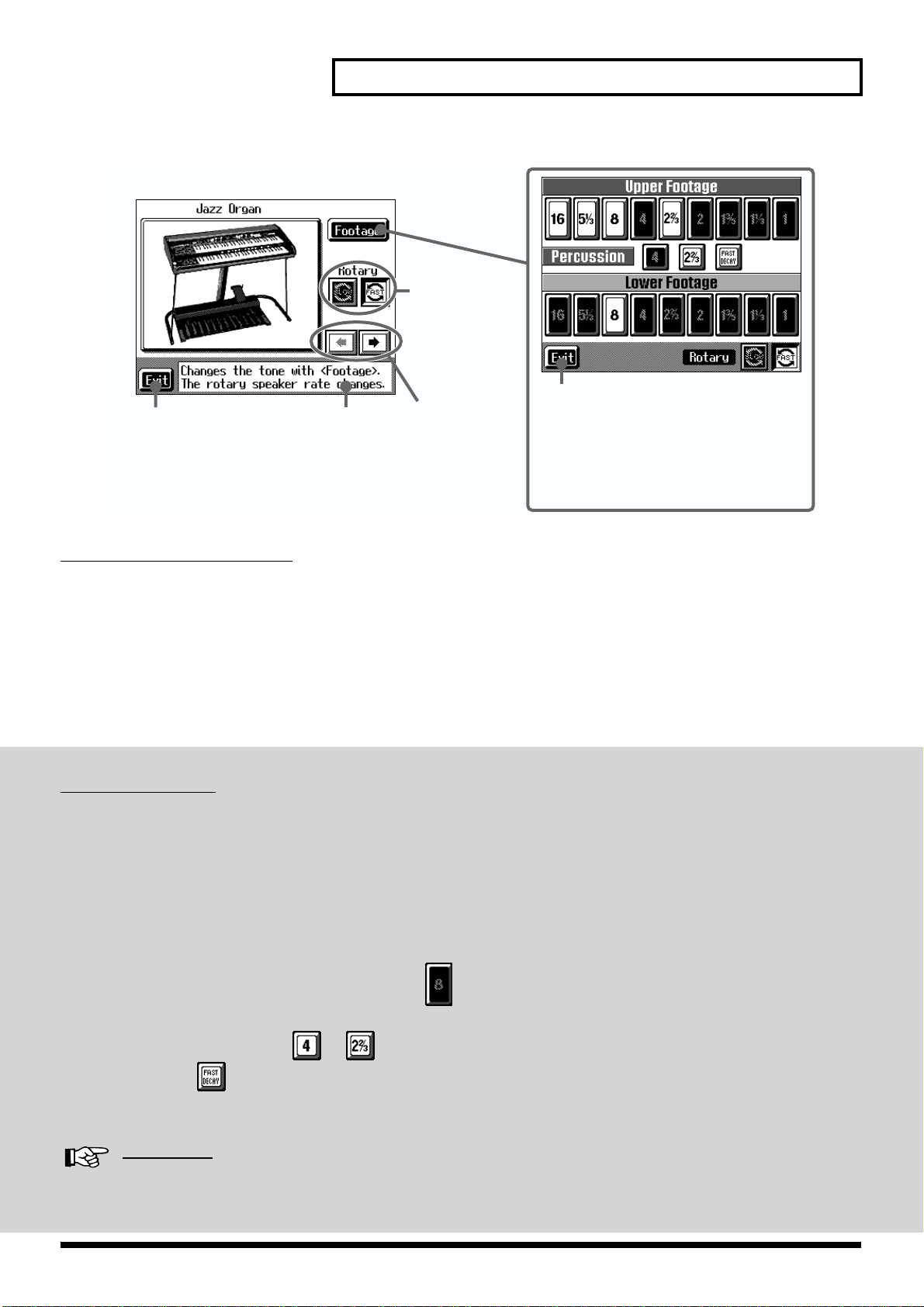

When Jazz Organ is selected, you can

create the organ Tone you want with the

footage.

Refer to “What is Footage?” below.

This returns you to the Organ screen

This returns you to

the Select Various

Tones screen.

A description of

each Tone is

displayed here.

Touch here

to select

other tones.

This changes

the speed of the

rotary effect.

[Song Stylist] Button (not available on KR-5)

You can listen to different arrangements of the songs you

select with the [Select/Listen to a Song] button. For example,

you can hear jazz tunes arranged for rock, or a pop standard

arranged like country music.

1Press the [Select/Listen to a Song] button to

select a song (p. 6).

2Press the [Song Stylist] button.

fig.Q_arrange.j

3Begin performing. Touch < >.

When you touch the genre name on the screen, the song’s arrangement changes.

You can change the arrangement using the KR’s Music Styles with the Music Style buttons.

When you select a Tone with the Tone buttons, the Tone in the melody changes.

Quit

the Song Stylist screen.

This mutes the sound

in the melody part.

Touch here to display the score.

Returns to the

beginning of the song.

Moves back the

playback position. Advances the

playback position.

This starts and stops playback

of the performance.

Tempo Song name Beat Measure number

[Song Stylist] Button (not available on KR-5)

fig.Q_panel7-1

4To stop the song, touch < >.

Changing the Arrangement of Original Songs

You can change the arrangement of songs recorded with the KR’s “Chord Sequencer” recording

function with the [Song Stylist] button.

For more detailed information, refer to “Composing an Accompaniment By Entering Chords

(Chord Sequencer).”

Reference

For more detailed information about the Automatic Accompaniment, refer to “Chapter 2 Automatic Accompaniment” in

the Owner’s Manual.

For more on selecting Music Styles, refer to “Selecting Music Styles (Music Style Buttons)” in the Owner’s Manual.

For more on selecting Tones, refer to “Performing with a Variety of Tones (Tone Buttons)” in the Owner’s Manual.

When you select a Music

Style with the Music

Style buttons, the

arrangement changes.

When you select a Tone

with theTone buttons,

the instrumental sound

changes.

Change the tempo of the

playback with the

Tempo [-] [+] buttons.

[Session Partner] Button (not available on KR-5)

You can have the members of your band (the performance

patterns) play background for you, in any combination.

You decide just how the chords are played automatically.

Enjoy jam sessions you create yourself!

1Press the [Session Partner] button.

Begin performing.

2Touch the band member playing the performance pattern you want to

change.

fig.Q_session.e

Quit the

Session Partner

screen.

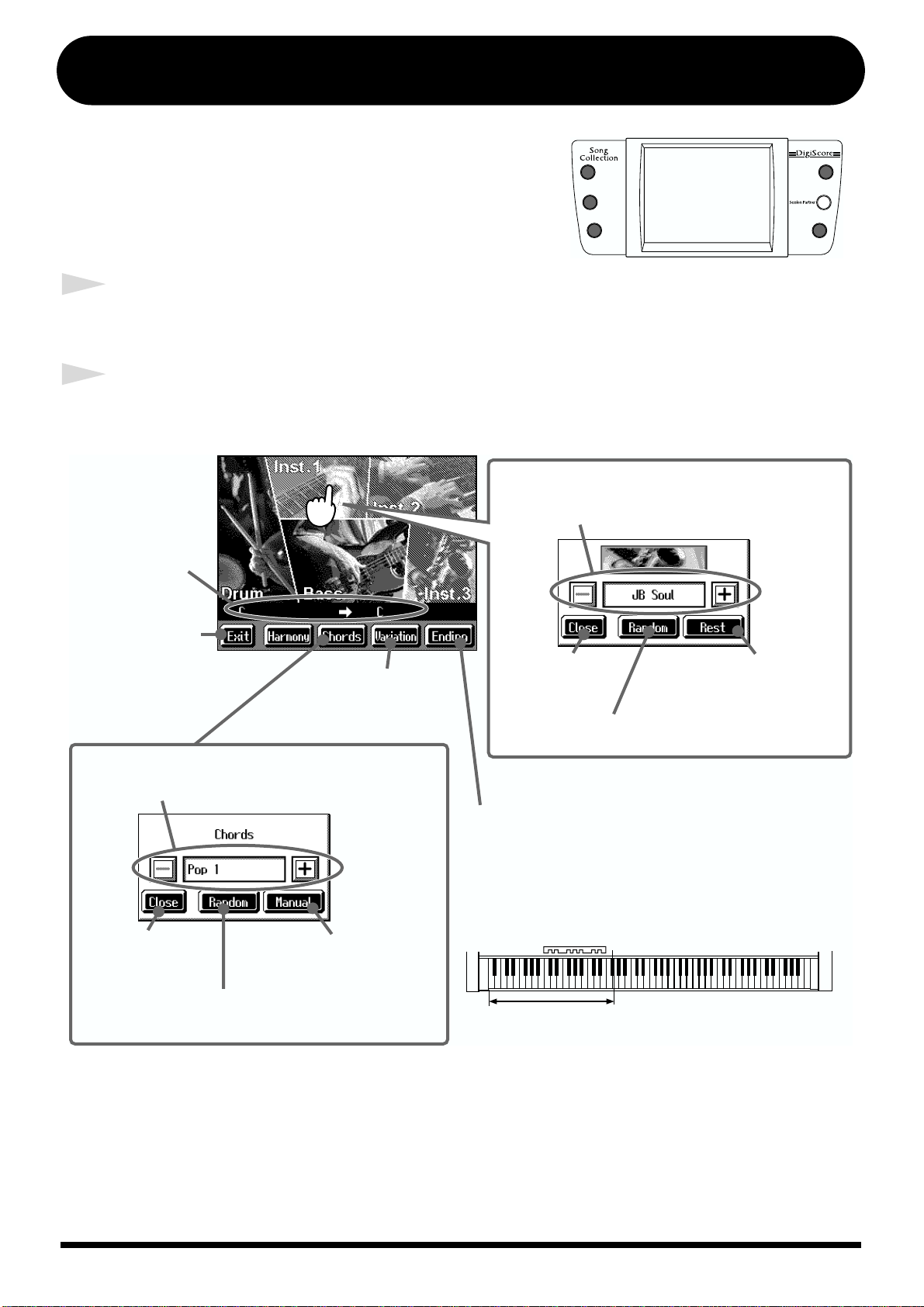

The chord

progression is

indicated here.

Touch here to

close this window. Touch here to give the

musicians a break (stop the

performance).

Touch here to have the performance

patterns play in random order.

The performance pattern currently played by

the member you have touched is displayed.

Touch <-><+> to select the pattern.

Touch here to

close this window. This switches between

automatic and user-

specified chord

progressions.

Touch here to have the chord

progression play in random order.

The currently selected chord progression appears here.

Touch <-><+> to select the chord progression.

Each time you touch here,

the Variation and Original

performance patterns are

switched.

When you touch here, playing comes to an

end, and the accompaniment stops.

When you touch <Intro>, the accompaniment

starts after the intro is played.

Key used for specifying chords
