Roll-X GO User manual

ROLL-X GO
ROLL-X GO INSTALLATION MANUAL -
FACTORY ASSEMBLED 2018

INSTALLATION MANUAL
ROLL-X 327 / 175 GO |
ROLL-X 400 / 175 GO |
ROLL-X 470 / 175 GO |
ASSEMBLY TYPE: FACTORY ASSEMBLED

2
CONTENT
TABLE OF CONTENTS
ROLL-X OVERVIEW…………………………………………….. 3 - 3
ROLL-X LEVELING SCREWS…………………………………..4 - 4
ROLL-X CONTROL PANEL……………………………………..5 - 5
ROLL-X COMPRESSOR OR OWN…………………………..5 - 5
ROLL-X TILT FUNCTION………………………………………. 6 - 7
MOUNT ROLL-X ROLL HOLDER GLIDE BEAM………..8 - 8

3
This installaon manual contains
general informaon when you choosing a factory assembled ROLL-X GO machine.
Overview
OVERVIEW

4
Aer you have unpacked the machine and liit of the pallet remove the wooden table top liers.
When you have get the table in posion screw down every machine foot in disired height, make sure
that the table is in level .
ROLL-X LEVELING SCREW

5
Connect the power cord in to the power socket. Press the power switch buon to one.
If you purchased a ROLL-X compressor connect to the compressor outlet.
Use the air pressure regulator to increase or decrease the pressure of the glide beam roller.
(To acvate the regulator pull the black knob outwards and increase(turn right) or decrease
(turn le) when you are done push the black knob back in again.
If you purchased Illuminaon use the On & O buon Illuminaon to turn on and o lights.
If you already have a
compressor,
Connect it to the air
lter mounted on the
table.
ROLL-X CONTROL PANEL & ROLL-X COMPRESSOR OR OWN

6
If you have purchased the ROLL-X machine with lt funkon, start by removing the screw with
the hanging label. Repeat in the other end of the table.
Before you start to lt the table loosen the plasc knob a lile bit behind the bed end cover.
Repeat on the other side of the table.
NOTE! Don’t loosen the plasc knob complitely!
ROLL-X TILT FUNCTION

7
Aer you loosen the plasc knob on both sides of the table. Pull the locking handle outwards and twist a
quarter turn (le or right) to acvate the self holding posion of the locking handle. Repeat same step on
the other side of the table.

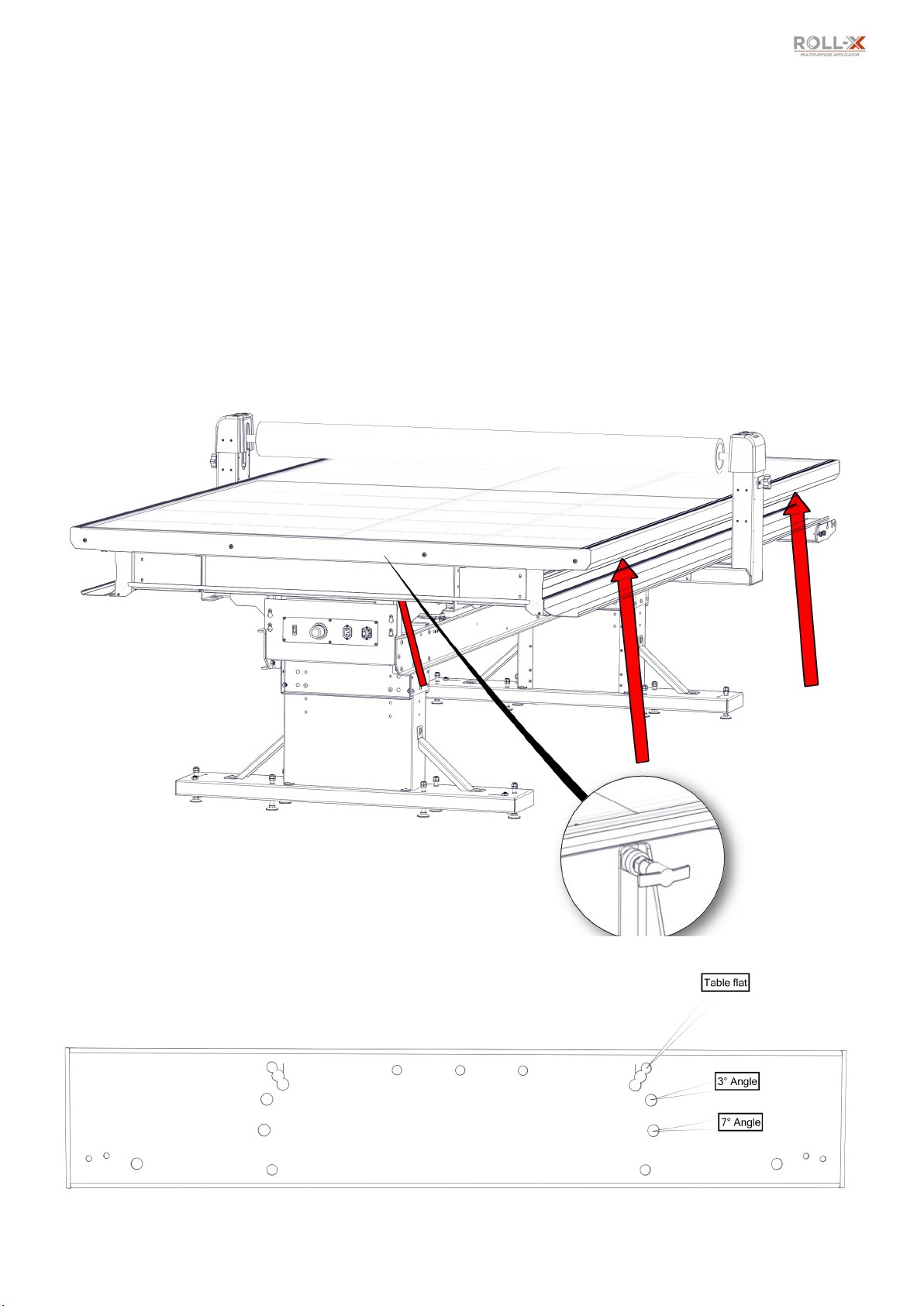

NOTE! Keep your arm and hand on the side of the table panels (as the red line shows in the picture
Push the table upwards slowly, as soon as you start pushing the table upwards turn back the locking
handle and connue push upwards, you will hear a click noise when the table r each one of the two lng
posions.
Tight the plasc knob on both sides to make sure the table is steady.
NOTE! Facilitates with two people.
ROLL-X TILT FUNCTION

8
Mount the roll holders on the glide beam on both sides of the glide beam.
MOUNT ROLL-X HOLDERS GLIDE BEAM
