rollease acmeda Automate MTRF-DCIM-1C Installation manual

Dry Contact Input Transmitter
4.33 MHz SEQUENCE
MODE
DRY CONTACT
INPUT
GROUP
CONTROL
1
2
1
FEATURES:
• Interface between third party smart home systems and ARC motors
• Three dry contact inputs
• Wireless signal output
• ARC motor communication protocol
• Group Motor Control
• Four switch modes
• 12V or 24V power source compatible
AUTOMATE | Dry contact input transmitter enables most common mechanical switches
or automation systems relays to control ARC motorized shades. It functions as a single
channel transmitter and accepts dry contact input. Once a motor or group of motors
are paired to the transmitter, it converts the dry contact inputs and sends ARC radio
commands to trigger those motors to move upward/downward.
MTRF-DCIM-1C_v1.0_JULY_2018

2 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
CONTENTS
1 TECHNICAL DATA / PACK CONTENTS 3
2 SAFETY 4
3 INSTALLATION 5
3.1 Overview 5
3.2 Wire Diagram 5
4 SETTING SWITCH MODE 6
5 ADDING OR DELETING A TRANSMITTER & CREATING A GROUP OF CHANNELS 7
5.1 Using motor P1 button 7
5.2 Using a pre-existing controller 7
6 SWITCH MODE OPERATION 8
6.1 Operation of Normal Switch Mode 8
6.2 Operation of Pulse Switch Mode 9
6.3 Operation of Mechanical Switch Mode 10
6.4 Operation of Sequence Switch Mode 11
6.5 Operation of Favorite Position 12
7 TROUBLESHOOTING 13
NOTES 14

3 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
1 STATIC TITLE
1 TECHNICAL DATA / PACK CONTENTS
TECHNICAL SPECIFICATIONS
12V Power Input Voltage: 8V ~ 16V
24V Power Input Voltage: 16V ~ 26V
Radio Frequency 433.92 MHz
Transmitting Power: 10 milliwatt
Ambient Operating
Temperature:
-10°C ~ 50°C
14°F ~ 122°F
Transmission Distance: up to 200m (open space)
up to 656’ (open space)
Dry Contract Input Duration >0.25 seconds
PACK CONTENTS
1x contact closure box
1 x instructions
DIMENSIONS
[7/8"]
23mm
[2 1/2"]
65mm
[1 3/4"]
45mm
[1 1/2"]
37mm
C
ROLLEASE
ACMEDA
DIMENSIONS
IN "MM"
SCALE:2:1
SIZE:
A3
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE
WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED.
ITEM CODE:
PRODUCT SPECIFICATION SHEET
20 MAR 2018 DRAWN:
www.rolleaseacmeda.com
ITEM DESCRIPTION:
Inspection Drawing
MTRF-DCIM-1C
REV.
01

4 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
WARNING: Important safety instructions to be read before installation.
Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty.
It is important for the safety of persons to follow the enclosed instructions.
Save these instructions for future reference.
CAUTION
• Do not expose to moisture or extreme temperatures.
• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
should not be allowed to use this product.
• Use or modification outside the scope of this instruction manual will void warranty.
• Installation and programming to be performed by a suitably qualified installer.
• Follow installation instructions.
• For use with motorized shading devices.
• Keep away from children.
• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.
• Keep clear when in operation.
Rollease Acmeda declares this equipment is in compliance with the essential requirements and other relevant provisions of
R&TT EC Directive 1999/5/EC.
Statement Regarding FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning th equipment off an on, the user is
encouraged to try correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
Do not dispose of in general waste.
Please recycle batteries and damaged electrical products appropriately.
2 SAFETY
5005833

ROLLEASE ACMEDA Automate™Programming Instructions | MTRF-DCIM-1C | 5
[7/8"]
23mm
[2 1/2"]
65mm
[1 3/4"]
45mm
[1 1/2"]
37mm
C
ROLLEASE
ACMEDA
DIMENSIONS
IN "MM"
SCALE:2:1
SIZE:
A3
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE
WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED.
ITEM CODE:
PRODUCT SPECIFICATION SHEET
20 MAR 2018 DRAWN:
www.rolleaseacmeda.com
ITEM DESCRIPTION:
Inspection Drawing
MTRF-DCIM-1C
REV.
01
[7/8"]
23mm
[2 1/2"]
65mm
[1 3/4"]
45mm
[1 1/2"]
37mm
C
ROLLEASE
ACMEDA
DIMENSIONS
IN "MM"
SCALE:2:1
SIZE:
A3
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE
WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED.
ITEM CODE:
PRODUCT SPECIFICATION SHEET
20 MAR 2018 DRAWN:
www.rolleaseacmeda.com
ITEM DESCRIPTION:
Inspection Drawing
MTRF-DCIM-1C
REV.
01
3 FUNCTIONAL OVERVIEW
STOP
+24V
+12V
GROUND
DOWN
UP
COMMON
SET
LED
GROUND CONTACT
POSITIVE CONTACT 12V
POSITIVE CONTACT 24V
3.1 Overview
3.2 Wiring Diagram
NOTE: Only one positive power point, +12V or +24V, is needed.

6 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
4 SETTING SWITCH MODE
IMPORTANT
NORMAL SWITCH MODE
PULSE SWITCH MODE
MECHANICAL SWITCH MODE
SEQUENCE SWITCH MODE
The SET button is utilized to choose the working mode of the dry contact input transmitter as described below:
[7/8"]
23mm
[2 1/2"]
65mm
[1 3/4"]
45mm
[1 1/2"]
37mm
C
ROLLEASE
ACMEDA
DIMENSIONS
IN "MM"
SCALE:2:1
SIZE:
A3
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE
WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED.
ITEM CODE:
PRODUCT SPECIFICATION SHEET
20 MAR 2018 DRAWN:
www.rolleaseacmeda.com
ITEM DESCRIPTION:
Inspection Drawing
MTRF-DCIM-1C
REV.
01
Continuously hold SET button
and release when the desirable
switch mode is achieved.
LED flashing indicates switch
mode type.
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response
LED Response LED Response
Approx.
Approx.
Approx.
Approx.
Approx.
Approx.
Approx.
Approx.
Approx. Approx.
FLASH x2
FLASH x2
FLASH x2
FLASH x2
FLASH x1
FLASH x1
FLASH x1
FLASH x1
FLASH x1
FLASH x1
FLASH x1
FLASH x1
FLASH x1 FLASH x1
RELEASE SET BUTTON
RELEASE SET BUTTON
RELEASE SET BUTTON
RELEASE SET BUTTON

ROLLEASE ACMEDA Automate™Programming Instructions | MTRF-DCIM-1C | 7
5 ADDING OR DELETING TRANSMITTER & CREATING GROUP CHANNELS
5.1 Using Motor P1 Button
5.2 Using a preexisting Controller
IMPORTANT
Multiple motors can be paired to the dry contact input transmitter for group control. Their limit settings and
favorite positions should be individually adjusted by a single channel remote, which is only paired to one of
those motors
• Confirm that motor limits and favorite position are already set for each individual motor.
• Ensure that each motor you want to group is also assigned to a channel by itself or another remote.
NOTE: This is not applicable in mechanical switching mode.
[7/8"]
23mm
[2 1/2"]
65mm
[1 3/4"]
45mm
[1 1/2"]
37mm
C
ROLLEASE
ACMEDA
DIMENSIONS
IN "MM"
SCALE:2:1
SIZE:
A3
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE
WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED.
ITEM CODE:
PRODUCT SPECIFICATION SHEET
20 MAR 2018 DRAWN:
www.rolleaseacmeda.com
ITEM DESCRIPTION:
Inspection Drawing
MTRF-DCIM-1C
REV.
01
[7/8"]
23mm
[2 1/2"]
65mm
[1 3/4"]
45mm
[1 1/2"]
37mm
C
ROLLEASE
ACMEDA
DIMENSIONS
IN "MM"
SCALE:2:1
SIZE:
A3
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE
WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED.
ITEM CODE:
PRODUCT SPECIFICATION SHEET
20 MAR 2018 DRAWN:
www.rolleaseacmeda.com
ITEM DESCRIPTION:
Inspection Drawing
MTRF-DCIM-1C
REV.
01
Hold P1 button on motor head.
Press P2 on existing controller. Press and release SET button on
new transmitter.
Pres P2 on existing controller.
RELEASE P1
Hold STOP on controller to add
or remove.
Motor Response
Motor Response Motor Response Motor Response
Motor Response
Approx.

8 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA

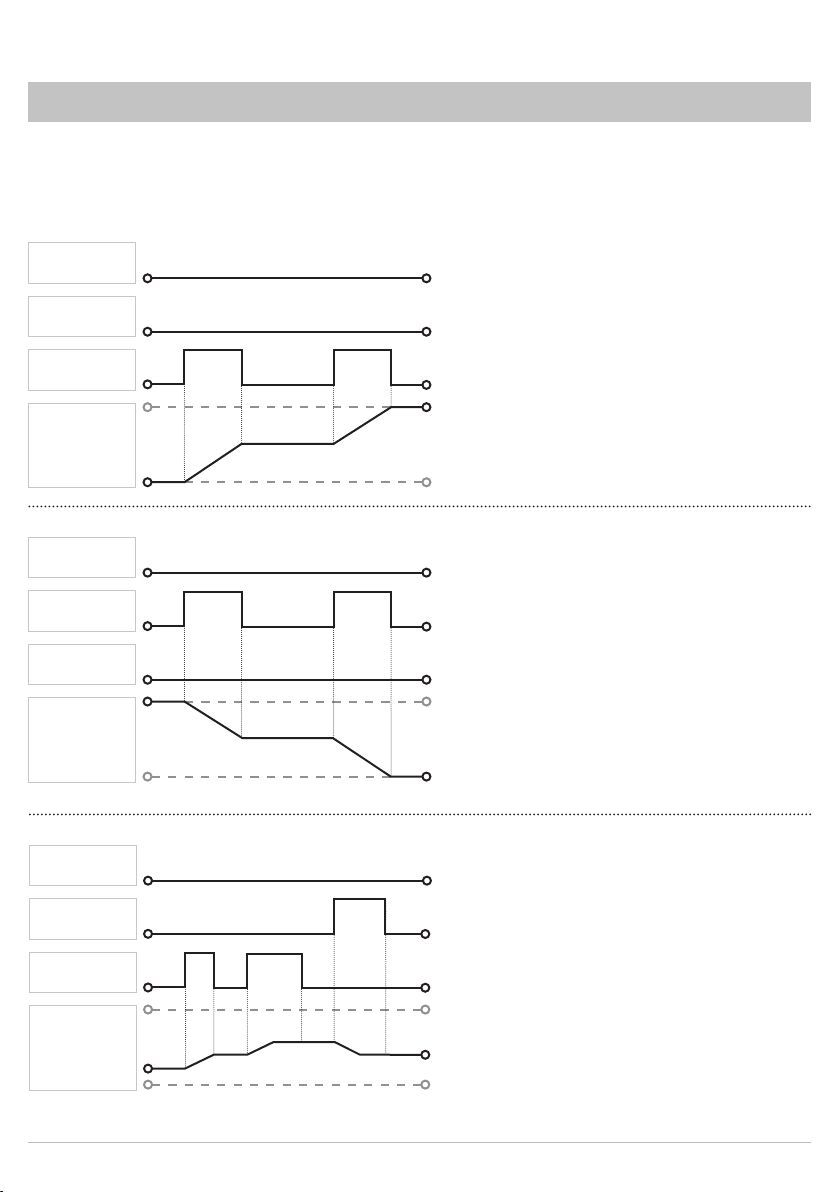

6.1 Operation of Normal Switch Mode
Prior to selecting a switch mode, the upper and bottom limits of any ARC motors must be set.
A single or combination of three dry contact inputs can operate the paired ARC motors.
STOP
STOP
STOP
UPPER LIMIT
UPPER LIMIT
UPPER LIMIT
LOWER LIMIT
LOWER LIMIT
LOWER LIMIT
DOWN
DOWN
DOWN
UP
UP
UP
COMMON
COMMON
COMMON
MOVE UP UNDER ROLLER MOTOR MODE
MOVE DOWN UNDER ROLLER MOTOR MODE
STOP UNDER ROLLER MOTOR MODE
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
NOTE: In this mode, the transmitter can implement all the ARC remote functions. The P2 button of the
remote is described as the SET button in the transmitter. Please refer to the motor instructions for
functions such as setting/adjusting limits, setting a favorite position, toggling tilt/roller mode etc.
6 SWITCH MODE OPERATION

ROLLEASE ACMEDA Automate™Programming Instructions | MTRF-DCIM-1C | 9
6.2 Operation of Pulse Switch Mode
STOP
STOP
STOP
UPPER LIMIT
UPPER LIMIT
UPPER LIMIT
LOWER LIMIT
LOWER LIMIT
LOWER LIMIT
DOWN
DOWN
DOWN
UP
UP
UP
COMMON
COMMON
COMMON
MOVE UP IN TILT MOTOR MODE
MOVE DOWN IN TILT MOTOR MODE
MOVE UP/DOWN, STOP IN ROLLER MOTOR MODE
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
NOTE: The time interval of each pulse should be in the range of 0.25 ~ 2.0 seconds. The motor rotation can
be stopped by using the STOP button or the UP & DOWN together in the roller motor mode. In the tilt mode,
each closing pulse triggers the motor to move one small step but a pulse longer than 2 seconds can trigger
continuous movement of the motor.

10 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
STOP
UPPER LIMIT
LOWER LIMIT
DOWN
UP
COMMON
OPERATION IN TILT MOTOR MODE
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
6.3 Operation of Mechanical Switch Mode
STOP
STOP
UPPER LIMIT
UPPER LIMIT
LOWER LIMIT
LOWER LIMIT
DOWN
DOWN
UP
UP
COMMON
COMMON
MOVE UP IN THE ROLLER MOTOR MODE
MOVE DOWN IN THE ROLLER MOTOR MODE
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
NOTE: Closing the UP/DOWN dry contacts keeps the motor rotating, opening the dry contacts immediately
stops the rotation in the roller motor mode. In the tilt motor mode, each UP/DOWN closing pulse, whatever
the pulse duration, triggers the motor to move one UP/DOWN step.

ROLLEASE ACMEDA Automate™Programming Instructions | MTRF-DCIM-1C | 11
6.4 Operation of Sequence Switch Mode
STOP
STOP CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
UPPER LIMIT
UPPER LIMIT
LOWER LIMIT
LOWER LIMIT
DOWN
DOWN
UP
UP
COMMON
COMMON
MOVE UP IN THE ROLLER MOTOR MODE
MOVE DOWN IN THE ROLLER MOTOR MODE
NOTE: The closing/releasing of the “UP” pin alternatively triggers the upward movement or the stopping
of the paired motor. The closing of the “DOWN” pin alternatively triggers the downward movement or the
stopping of the paired motor.

12 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
6.5 Operation of Favorite Position
STOP
CLOSED
OPEN
CLOSED
OPEN
CLOSED
OPEN
UPPER LIMIT
LOWER LIMIT
FAVORITE
DOWN
UP
COMMON
FAVORITE POSITION
NOTE: Closing the STOP pin for more than 5 seconds can activate the motor to move to the preset favorite
position under Normal, Pulse & Sequence Mode.

ROLLEASE ACMEDA Automate™Programming Instructions | MTRF-DCIM-1C | 13
Problem Cause Remedy
Motor is not responding
Switch power supply is not
connected
Check power source and
connections.
Radio interference / Shielding
Ensure switch is positioned away
from metal objects and that
the antenna on motors are kept
straight and away from metal.
Receiver distance is too far from
switch Move switch to a closer position.
Power failure
Check power supply to motor is
connected and active (non-battery
motors).
Incorrect motor wiring
Check motor wiring is connected
correctly (refer to motor
installation instructions).
Cannot set limits on a single
motor (multiple motors respond)
Transmitter has group control
function set and drives all the
paired motors together
Use an ARC remote to individually
adjust motor limits.
Use P1 motor button to set other
motors in group into “Sleep” mode.
SYSTEM BEST PRACTICE - Provide
an extra 15 channel switch or
remote in you multi motor projects
to provide individual control for
each motor for programming/
configuration purposes.
Motor will not go down after
setting the top limit
Top limit was set using the down
and stop buttons
Reset the motor and begin
programming sequence again.
Remember that upper limit is to be
set using the up and stop and the
down limit is set using the down
and stop.
7 TROUBLE SHOOTING

14 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
NOTES

15 | Automate™Programming Instructions | MTRF-DCIM-1C ROLLEASE ACMEDA
NOTES

16 | Automate™Programming Instructions | MTRF-DCIM-1C
ROLLEASE ACMEDA | AUSTRALIA
110 Northcorp Boulevard,
Broadmeadows VIC 3047
T [phone] | F [phone]
ROLLEASE ACMEDA | USA
750 East Main Street
7th Floor, Stamford, CT 06902 6320
T [phone] | F [phone]
ROLLEASE ACMEDA | EUROPE
Via Conca Del Naviglio 18, Milan
(Lombardia) Italy
T [phone] | F [phone]
[e-mail]
rolleaseacmeda.com
