X-Clamp
For PRIME X Vacuum Wax Injectors
OPERATIONS MANUAL

- The manufacturer shall in no event be liable for any damage resulting from
improper use, negligence to follow the warnings and cautions in the instructions
manual or the labels on the machine, unskillfulness, use of non-original optional /
consumable accessories/ spare parts, non-authorized modication.
-The manufacturer shall in no event be liable for any consequential or indirect
damages including, but not limited to, loss of production or loss of prot or
damages due to machine downtime.
- Damages to the instrument and / or human bodies resulting from contacting with
high temperature parts, and their consequential or indirect damages are not
compensated by the manufacturer.
- Damages resulting from delay of reaction at emergency and mistaken operation
are not compensated by the manufacturer.
-Damages from electrical noise, over voltage, or wiring error are not
compensated by the manufacturer.
-Mold production results by the machine or by this manual are not compensated
by the manufacturer.
- No part of this document may be copied or in any way reproduced without the
expressed written consent of the manufacturer.
- Product information including specication will be subject to change without
prior notice.
74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
2

1. SAFETY INFORMATION
2. INTRODUCTION
2-1. SPECIFICATION LABEL
2-2. WORKING CONDITIONS
2-3. INSTALLATION
2-4. TRANSPORTATION
2-5. PRODUCT INFORMATION
3. INSTALLATION
3-1. ACCESSORIES
3-2. PLACE
3-3. Z axis adjustment
3-4. Y axis adjustment
4. FUNCTION
5. OPERATION
4
5
5
5
5
5
5
6
6
7
9
10
11
12
CONTENTS

74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
4
1. Do not look into wax injection nozzle by bare eyes because unexpected
discharge of molten wax from the nozzle may cause eye burn.
Be sure to always place a rubber mold or a pan in front of wax injection nozzle to
block molten wax ow so as to prevent accidental ow of molten wax into the eyes
or over the skin. Because wax injected from wax injection nozzle is heated above 70
degrees Celsius, the eyes or skin may be burnt.
If the eyes or skin were exposed to molten wax, ush and cool the eyes or skin with
a large amount of cold water and get prompt medical attention.
2. Take care not to touch START button (blue) on control unit unnecessarily,
because machine starts its injection process automatically.
3. Do not place ngers on moving parts such as platen, as this could result in injury.
Fingers may be pinched between platen and the bottom edge of cylinder base.
1. Turn air regulator knob to “zero” when operator leaves machine for an extended
period of time.
2. At the time of cleaning or maintenance work, do not wipe surface of warning
labels attached to the surface of machine.
!
!
WARNING
CAUTION
1. SAFETY INFORMATION

2. INTRODUCTION
74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
5
2-1. SPECIFICATION LABEL
1) The principal specications label of this machine is afxed on the
side of X Clamp.
2) When ordering spare parts, specify the production serial number
that is printed on that label.
Other information on the label should be recommended to take note.
2-2. WORKING CONDITIONS
1) Use the machine at temperatures ranging 0-40 degrees Celsius and humidity under 70%.
2) Do not use the machine under atmosphere with too much dust or with harmful gas.
2-3. INSTALLATION
1) It is very important to handle and install with enough attention to show the superior performance.
2) Try to check loose connection and contacts rst, especially when it is transported by car.
2-4. TRANSPORTATION
1) When you transport the machine, put cushion material provided in the package with a double
carton box.
2) Do not turn upside down.
3) Do not expose the package to water.
4) Keep away from ame.
SKU: 74-269X-SC X-Clamp unit and accessories
2-5. PRODUCT INFORMATION

Please review this list to ensure all parts are included without damage.
74-265-AJ2
3. INSTALLATION
74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
6
3-1. ACCESSORIES

74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
7
1) It is dangerous to hold any part of upper clamp when removing it from the box or while transporting.
The upper clamp can be easily removed from lower clamp unit.
As such, the lower clamp unit may become accidentally undone and fall on your foot.
2) Remove the 8 screw bolts from clamp base.
Use the supplied 5mm hex wrench included with the clamps.
3) Place the base under the body of PRIME X.
Allow the guide stopper on the base and front panel touch each other.
Fasten the 4 screws inside of body.
Always handle from
the clamp’s base
Never handle
from the top
3-1. ACCESSORIES

74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
8
4) You may use the supplied mirror to assist your
installation of the nozzle cover on the right or left side.
This will allow you to conrm the nozzle position and sprue
gate of the rubber more easily.
5) Place the clamp unit on it’s base and fasten it to the unit
with the 4 remaining screws. Be sure not to hit the nozzle
or mirror during installation.
5) Place the clamp unit on it’s base and fasten it to the unit
with the 4 remaining screws. Be sure not to hit the nozzle
or mirror during installation.
6) Open the right and rear side panels to
feed the 5 plastic tubes inside of the control
box through the partition and front panel.

1) The PRIME X has a new acrylic jig with an adjustable Z axis. This new jig
eleminates the need of having several acrylic jigs for each mold.
2) Place the rubber mold onto the stage of the clamp unit.
3) Check the height of nozzle and sprue gate is on same level from the side.
Adjust height as necessary using the following instructions;
* Loosen the two lock nuts that hold the clamp in place.
* Adjust the height and reinstall the two screw bolts.
* Use the supplied mirror to aid this process.
Dial positions displayed are for shown
as a reference.
3-3. Z axis adjustment
Do not power on the unit while right panel is open
!CAUTION
Connect each corresponding tube from clamp unit with barb joints.
74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
9

74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
10

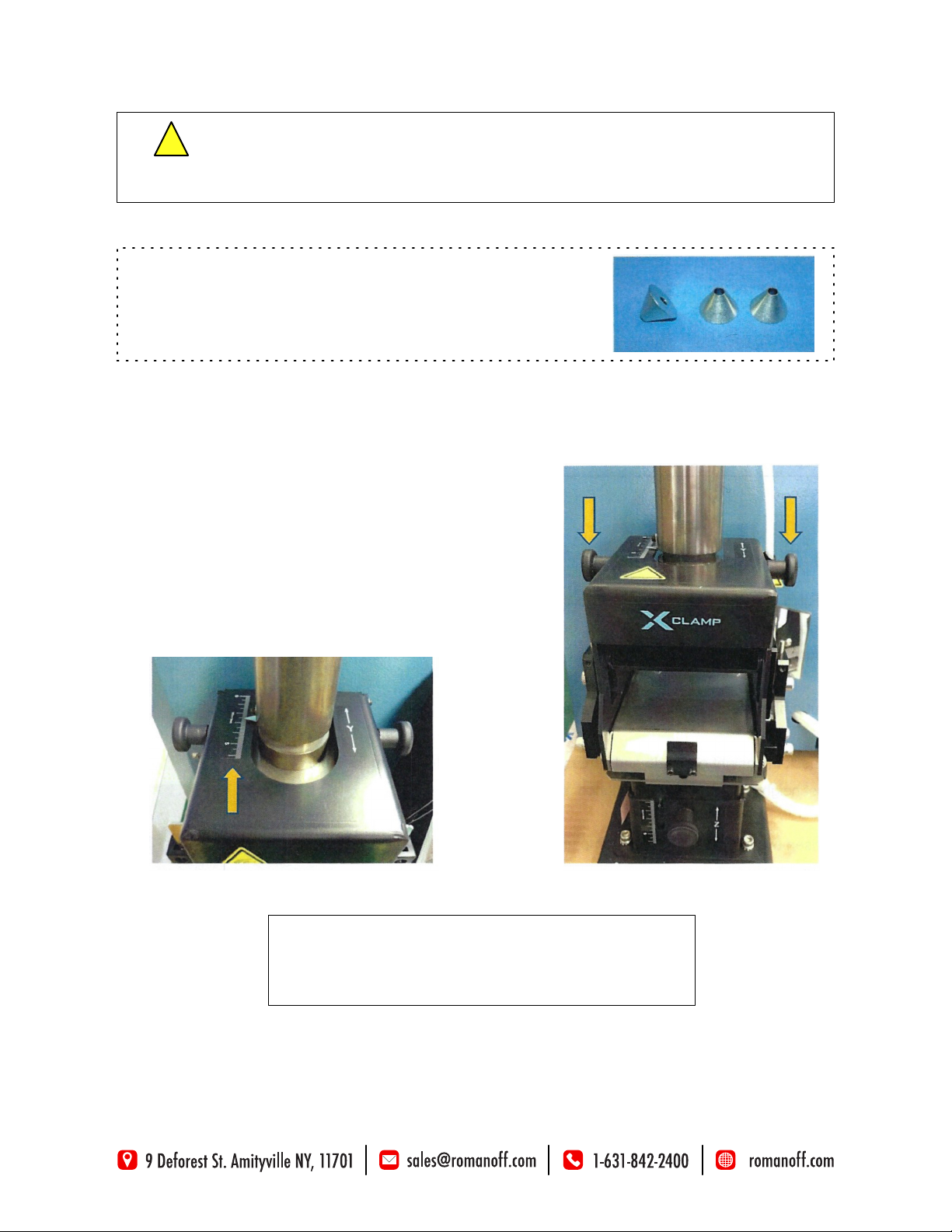

Do not touch anything around the rubber mold or clamp stage.
Be cautious of hot wax.
!CAUTION
** Sprue former: Strongly recommended when vulcanizing
rubber for optimal tting.
SKU: 98-132 (large) or 98-133 (small)
if poor wax due to vacuum or wax leakage results occur, you
can manually adjust Clamp Position along the Y axis (back
and forth).
Changing the pivot point of clamp cylinder can very effective.
Simply loosen two lock nuts to adjust the clamp cylinder
position.
Lock nuts on both sides.
Reference the indicator on top of the clamp for
current position.
3-4. Y axis adjustment

P10 Cong Clamp Unit
Select your clamp unit.
0: No clamp unit
1: Standard clamp
2: Large clamp
4. FUNCTION
As previsously ounlined in PRIME X instruction manual, you will need to edit the system’s conguration
using the FUNCTION menu under P10 to congure your X-Clamp.
Navigate to the FUNCTION display by holding the [FUNCTION] button down.
The rst FUNCTION menu option (No.1 Counter clear) will be displayed.
Navigate to P10 by turning the rotary dial clockwise until option 10 is reached.
To return to standby mode, long press the [FUNCTION] button or press the [CANCEL] button.
1) From the FUNCTION Button, turn the rotary dial to navigate to P10.
2) Press the rotary dial. The selected value will start blinking.
3) Select the desired value by turning the rotary dial (Valid range 0-2).
0: Working without Clamp unit.
1: Standard Clamp unit.
2: Large Clamp unit.
4) Press the rotary dial to conrm selections.
Follow this chart to congure the P10 menu
Maintenance and conguration menu via the FUNCTION button
CLAMP UNIT - P10
74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
11

74-269X-SC - X-Clamp for Yasui Prime X Wax Injector Systems
12
5) Press the START button to start the wax shooting process.
(You can also start the process via the system’s foot pedal.
6) Remove the rubber mold from the clamp unit when the
process is completed.
Press the START Button
SHOOTING PRCEDURE
5. OPERATION
1) Power ON the machine before starting.
2) Select the desired memory preset.
3) Check temperature, pressure and other settings.
4) Place your rubber mold onto the acrylic jig, then place the
jig onto the clamp stage.
4) Place your rubber mold onto the
acrylic jig, then place the jig onto the
clamp stage.
