Romus ROMIX 1000 User manual

Original Instructions……....................10 - 16

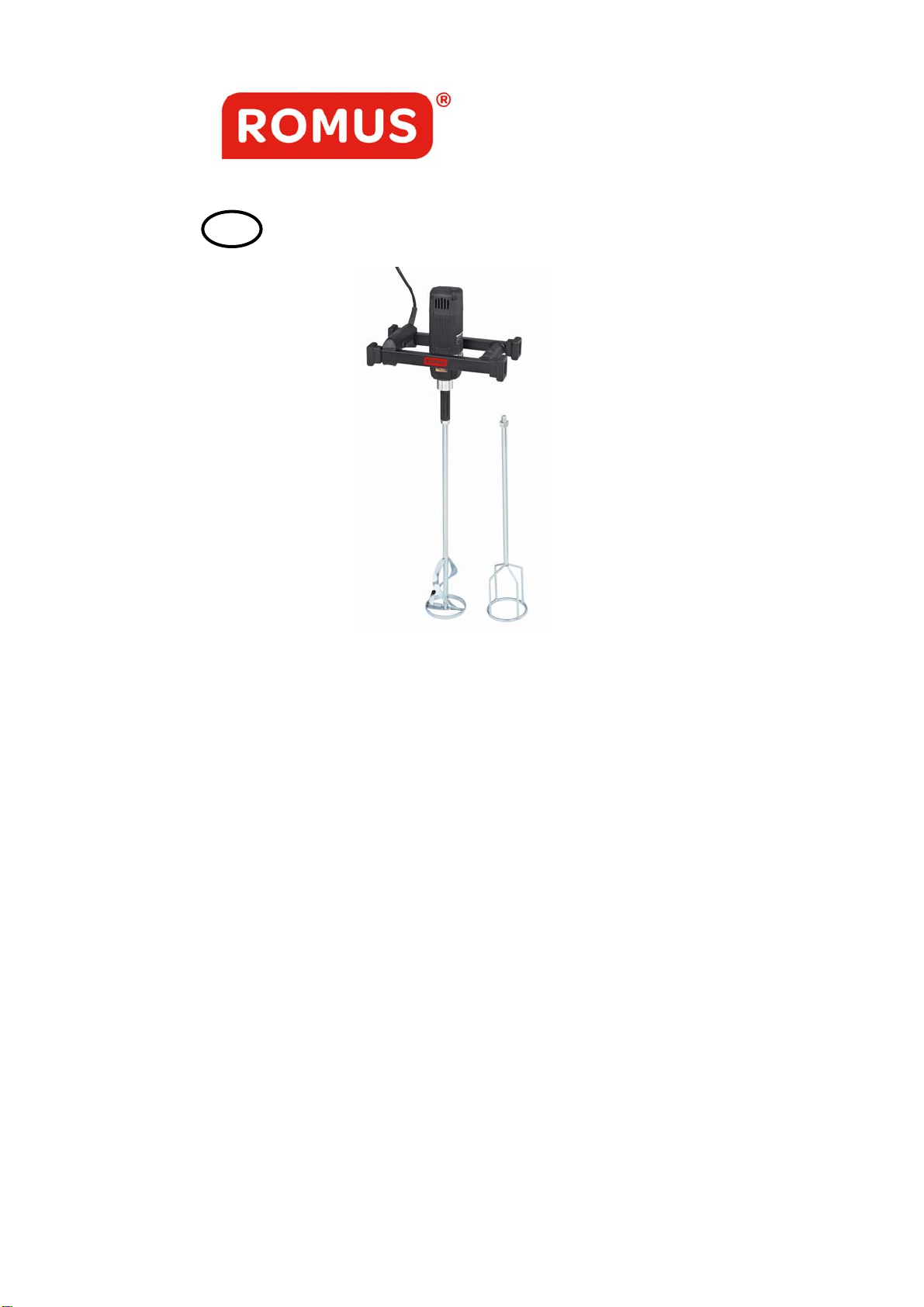

ROMIX 1000
Réf. 94011
GB

2
English
Important Instructions
Important instructions and warning notices are allegorized on the machine
by means of symbols:
Before you start working, read the
operating instructions of the machine.
Work concentrated and carefully. Keep
your workplace clean and avoid dangerous
situations.
In order to protect the user, take
precautions.
During work you should wear goggles, ear protectors, protective gloves and
sturdy work clothes!
wear ear protectors
wear goggles
wear protective gloves

3
Specifications
Stirrer Romix 1000
Rated Voltage: 230 V ~
Power Input: 1100 W
Rated Current: 4,6 A
Rated Speed: 0 – 500 rpm
Max. Basket Diameter: 120 mm
Weight: ca. 4,9 kg
Order no.: 094011
Frequency: 40 - 60 Hz
Thread connection: M 14 i
Protection class: II
Degree of protection: IP 20
Interference suppression: EN 55014 and EN 61000
Supply
Stirrer with stirring rod and operating instructions in a set cardboard box.
Application for Indented Purpose
The Stirrer Romix 1100 is designed for use in mixing paint, glue, tile
cement and other media in batches up to about 40 kg.
The diameter of the used stirring rods should not exceed 120 mm.
Safety Instructions
Safe work with the machine is only possible if you read
this operating instruction and the safety instructions
completely and follow the instructions contained strictly.
Additionally, the general safety instructions of the leaflet
supplied with the tool must be observed. Prior to the first
use, the user should absolve a practical training.
If the connection cable gets damaged or cut during the
use, do not touch it, but instantly pull the plug out of the
socket. Never use the tool with a damaged connection
cable.

4
The tool must neither be wet nor used in humid
environment.
Do not use the tool near explosive materials (petrol, dilution).
Modifications of the tool are prohibited.
Always check the tool, cable and plug before use. Have damages only
repaired by specialists. Only insert the plug into the socket when the
tool switch is off.
When the machine runs outside, always use a protection switch (30 mA
max.) against fault current.
The machine should only work under supervision of somebody. Plug
and switch the machine off if it is not under supervision, e. g. in case of
putting up and stripping down the machine, in case of setting up and
striking, voltage drop or when fixing or mounting an accessory.
Switch the machine off if it stops for whatever reason. This way, you
avoid that it starts suddenly and not under supervision.
Do not use the machine if one part of the housing is damaged or in
case of damages on the switch, cable or plug.
Electric tools have to be inspected by a specialist in regular intervals.
Do not touch rotating parts.
Persons under 16 years of age are not allowed to use the tool.
During use, always hold the machine with both hands and
maintain a safe standing position. Pay attention to the reaction
moment of the machine.
For further safety instructions, please refer to the enclosure!
Before starting the machine check the correspondence between voltage
and frequency according to the data mentioned on the identification plate.
Voltage differences from + 6 % and – 10 % are allowed.
The mixer is made in protection class II.
Only use extension cables with a sufficient cross-section. A cross-section
which is too small could lead to an excessive power loss and to an
overheating of motor and cable.
Electrical Connection

5
Tool Change
Attention!
Before any work on the tool, disconnect the plug from the mains!
When inserting the tool, you could catch your hands. For this reason,
always wear protective gloves for changing the tool.
The work spindle of the machine has an M 14 - internal thread. Keep
threads and front surface clean.
Please hold up with a jaw wrench 22 to remove the stirring rod.
Tool Protection
Wrong handling can cause damages on the tool.
Therefor, please always observe the following instructions:
Use only stirring rods recommended with M 14 – internal thread (diameter
120 mm max.) which are recommended by the producer.
Do not allow blocking of the tool due to overload.
Only use original accessories.
Switching on and off
Short-Time Operation
Switching-on: press the on/off switch
Switching-off: release the on/off switch
Permanent Operation
Switching-on: press the on/off switch and, keeping it pressed, engage the
arrestor button
Switching-off: press the on/off switch and let it go off again

6
!
The stirrer is equipped with an electronic switch. With this switch the speed
can be regulated according to the pressure on the button. Only use the
electronic switch when you want to start or stop the machine in order to
avoid material splashing around. Permanent use with reduced speed can
cause an overload because the motor then gets less cooling air and
therefore the machine will be overheated much faster.
Care and Maintenance
Before the beginning of maintenance or repair works you
have to disconnect the plug from the mains.
Repairs may be executed only be appropriately qualified and experienced
personnel. After every repair the machine has to be inspected by an
electric specialist. Due to its design, the machine needs a minimum of care
and maintenance. However, the following points always have to be
observed:
Always keep the power tool and the ventilation slots clean.
During work, please pay attention that no particles get inside the
machine.
In case of failure, a repair has to be carried out by an authorized
service workshop.
Attention!
Only press the arrestor button when using a
stand. In case of every stop of the machine, the
arrestor button has to be released immediately by
pressing the on/off switch. Consequently you can
avoid an unintentional restart of the machine
(physical hazard).

7
Environmental Protection
Raw Material Recycling instead of Waste Disposal
In order to avoid damages on transportation, the tool has to be delivered in
solid packaging. Packaging as well as unit and accessories are made of
recyclable materials and can be disposed accordingly.
The tool’s plastics components are marked according to their material,
which makes it possible to remove environmental friendly and differentiated
because of available collection facilities.
Only for EU countries
Do not dispose of electric tools together with household
waste material!
In observance of European Directive 2002/96/EC on
waste electrical and electronic equipment and its
implementation in accordance with national law, electric
tools that have reached the end of their life must be
collected separately and returned to an environmentally
compatible recycling facility.
Noise Emission/ Vibration
The indication of noise emission is measured according to DIN 45 635, part
21. The level of acoustic pressure on the work place could exceed 85 dB
(A); in this case protection measures must be taken.
Wear ear protectors!
The typical hand-arm vibration is below 2.5 m/s².
Measured values determined according to EN 60 745.
The declared vibration emission level represents the main applications of
the tool. However if the tool is used for different applications, with different
accessories or poorly maintained, the vibration emission may differ. This
may significantly increase the exposure level over the total working period

8
An estimation of the level of exposure to vibration should also take into
account the times when the tool is switched off or when it is running but not
actually doing the job. This may significantly reduce the exposure level over
the total working period.
Identify additional safety measures to protect the operator from the effects
of vibration such as: maintain the tool and the accessories, keep the hands
warm, organisation of work patterns.
Warranty
According to the general supply conditions for business dealings, suppliers
have to provide to companies a warranty period of 12 months for redhibitory
defects. (to be documented by invoice or delivery note)
Damage due to natural wear, overstressing or improper handling are
excluded from this warranty.
Damages due to material defects or production faults shall be eliminated
free of charge by either repair or replacement.
Complaints will be accepted only if the tool was returned in non-dismantled
condition to the manufacturer or an authorized Romus service centre.
Declaration of Conformity
On sole responsibility we declare that this product is in conformity with the
following standards and standard documents:
EN 60 745, EN 55 014, EN 61 000,
according to the regulations 2006/95/EC, 2004/108/EC, 2006/42/EC
